Lathe - cycle-controlled

KERN CD 480

Condition: good (used), KERN - Universal Lathe CD 480 - Control - Manual Plus - Year of manufacture: 1994 - 1,029 operating hours - Prismatic / flat guides hardened - Swing / turning diameter over bed: 475 mm - Swing / turning diameter over cross slide: 260 mm - Cross slide travel: 260 mm - Turning length: 1,500 mm - Spindle bore: 78 mm - Speed range (constant V): 1-3,000 rpm Kfedpsx Iu E Refx Ac Hja - Feed range / cross: 0.001-1,000 mm/rev - Feed range / longitudinal: 0.001-2,000 mm/rev - Rapid traverse / cross / longitudinal: 5/10 m/min - Tailstock Morse taper 5 - quill travel: 120 mm - Multifix with insert - Röhm - 3-jaw chuck 250 mm - Automatic central lubrication - Coolant system - Complete machine documentation Dimensions (LxWxH): 3.5 x 1.4 x 1.8 meters / Weight: 3,000 kg Errors and typos excepted.

Condition: like new (used), functionality: fully functional, Weiler Commodor guide and feed spindle lathe with 3-axis digital display K&C NEW Overhauled with acceptance certificate for tolerances of new machines Kfedpfovrcqdex Ac Hoa Technical data: >> Machine no. 1824 >> Center height 180 mm >> Center width 1000 mm >> Spindle speeds: from 13 to 2000 rpm >> Spindle passage 56 mm >> Short taper spindle head DIN 55029 size 5 >> Tailstock MK 4 >> Feed rates from 0.026 to 0.888 mm / rev >> Possible threads metric, inch, module and diametric pitch >> Metric thread pitches from 0.35 to 12 mm >> Weight approx. 1500 kg >> Spindle brake can be switched on >> Drive power 2.0/4.0 KW >> Length 2.2 m, height 1.5 m, depth 1 m Accessories and equipment: >> 3-axis digital display from K&C New, 12-month manufacturer's guarantee with operating instructions Functions: Switching mm/inch, coordinate selection ABS/INC, halving of the display value, reference mark, tool programming 200 pcs., cone calculation, radius / diameter, quick zeroing, switching of the counting direction, >> Three-jaw chuck wedge bars as good as new 200mm 1 set of jaws >> Mulifix size B with 2 pcs steel holders NEW >> Bed stop >> Machine feet >> Coolant system >> LED machine lamp For safety, the machine is equipped with: >> Electronic spindle protection >> Spindle brake >> 2 emergency stops On request: covers for the guide. and feed spindle About the machine: A Weiler Commodor guide and feed spindle lathe is offered in a geometrically overhauled condition. The guides have been reground or re-scraped. With acceptance according to the test report. 2K glossy white paint. The Multifix and chuck accessories are new. For safety: The machine has a brake motor, electronic spindle protection and two emergency stops - an absolutely new lathe. Even at high speeds, the Weiler runs very quietly. This new generation of Weiler lathes is very user-friendly and surfaces can be produced as if they were ground. Take the opportunity to view this machine on site under power and see for yourself its condition.

Year of construction: 2010, condition: ready for operation (used), General Data Machine weight 4000 kg Control Unit Brand HEIDENHAIN Model Manual Plus 620 Main Drive Spindle Speed 3000 RPM Number of axis 3 Media Kjdpfx Acjx D Hugo Hjfa Chip conveyor Yes Dimensions Machine Length 5500 mm This 3-axis KERN CD 480/2000 horizontal turning machine was manufactured in 2010. It features a Heidenhain Manual Plus 620 control, C-axis, driven tools, a 12-fold revolver, and a chip conveyor. With a spindle speed of up to 3000 UpM and a spindle bore of 82 mm, it's ideal for precise turning operations. Consider the opportunity to buy this KERN CD 480/2000 horizontal turning machine. Contact us for more information. Application Types Turning

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Spindle speed 3,000 min-1 Kjdpfjt T T Urox Ac Hofa 4-fold parat holder Tailstock

Condition: used, Year of construction: 2001, turning diameter 500 mm turning length 1000 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm Kodsvh I Hvopfx Ac Hsfa tailstock taper MT 5 weight of the machine ca. 3,1 t dimensions of machine L x W x H 2,88 x 1,68 x 2,18 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: used, Year of construction: 2002, Technical details: turning diameter: 475 mm turning length: 1500 mm control: HEIDENHAIN MANUAL PLUS 4110 turning diameter over slide: 260 mm turning speeds: 3000 U/min turret head: 12 Pos. spindle bore: 78 mm quill stroke: 120 mm weight of the machine ca.: 3,1 t dimensions of the machine ca.: 3,2 x 2 x 1,9 m SAUTER turret 12 pos. , VDI 30 chipconveyor, 4-jaw chuck Kjdpfx Aoxhqqmec Hofa approx. 74.000h "machine on" *

Condition: good (used), Year of construction: 1998, Circulation/rotation Ø over bed 475 mm Rotation/rotation Ø via cross slide 260 mm Sledge path plan 260 mm centre distance 1000 / 1500 / 2000 mm power capacity 22 kW Gear stages. m= manual / e= electric. 2 e Spindle head DIN 55026 / DIN 55027 A6 / 6 Spindle Ø in front bearing 115 mm spindle bore 78 / 70 mm Kfsdswgn Agopfx Ac Hja turning speed range (V-constant) 1 - 3.000 U/min feed range flat 1µ - 1.000 mm/U feed range lengthwise and thread 1µ - 2.000 mm/U Rapid traverse plan/longitudinal 5 / 10 m/min diameter of quill 70 mm quill travel 120 mm quill inner cone 5 MK This machine is used for the production of individual parts and small batches from simple to the most complex contours. It is characterised by: --> Ease of operation Precision Working range

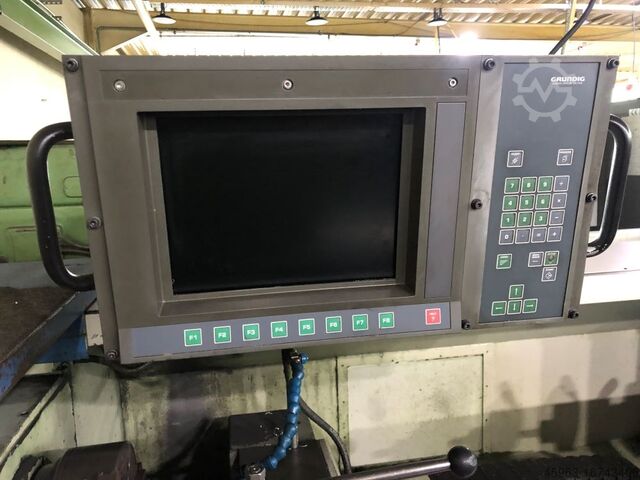

Condition: ready for operation (used), Year of construction: 1995, Make: GILDEMEISTER Type of machine: NEF Plus 500 Year of manufacture: 1995 Control system: Gründig Machine's weight: 2650 kg Speed range: 8 - 2800 1/ min Cutting diameter: 500 mm Turning length: 1000 mm Ksdjtpn S Iepfx Ac Hsfa Overall dimensions: 2500 x 1750 x 1850 mm Spindle opening: 70 mm

Condition: good (used), Year of construction: 2009, 1 used CNC lathe Brand DMT/Kern Type CD 480 x 3000 Year of manufacture 2009 Control Manual Plus 620 Technical specifications: Center height 230 mm Turning diameter over bed 475 mm Center distance 3000 mm Cross travel 255 mm Spindle head DIN 55026/6 Spindle bore 82 mm Power consumption 30 kW Tool holder turret VDI 40 Equipped with Turret Hinged belt conveyor Kfsdpfx Acju A Duco Hsa Complete documentation available! Machine is ready for use and can be tested on-site!

Condition: used, Year of construction: 2000, turning diameter 500 mm turning length 1500 mm control MONFORTS CONTROL control SYSTEM EURO TURN turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 total power requirement kW weight of the machine ca. 3,3 t Kedpfjvh Ncrjx Ac Hefa dimensions of machine L x W x H 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant
