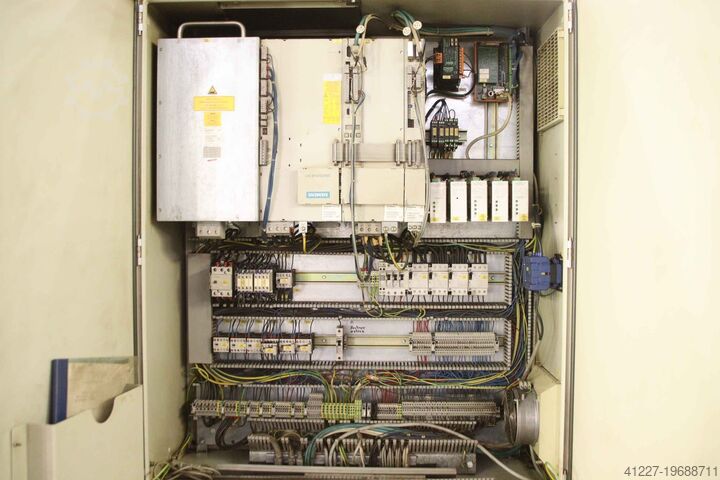

Lathe - cycle controled

MONFORTS KNC 5 1000

Condition: excellent (used), Year of construction: 1986, Heavy-duty lathe, cycle-controlled lathe, lathe, center- and feed-screw lathe, center- and feed-screw lathe, CNC lathe -Control: Monforts Control System MTC K -Machine bed: hardened -Turning length: 1100 mm -Turning Ø over bed: 560 mm -Turning Ø over support: 300 mm -Spindle bore: Ø 60 mm -Spindle speeds: 2 - 2800 rpm -Key bar chuck: Schunk Ø 250 mm -Tailstock mount: MK5 -Drive: 16 kW -Accessories: Multifix tool holder, tools see photos Fpedpfx Aow E Nkija Nsp -Dimensions: 1600/2860/H1830 mm -Weight: 3300 kg

Year of construction: 2002, condition: ready for operation (used), Axes: XYZCB (8-axes), max. turning diameter: 250mm, max. turning length: 300mm, bar loader diameter: 65mm, tool system: VDI30/tooth profile, torque: 150Nm, speed: 5000rpm, drive power: 22kW, control: Siemens Sinumerik 840D powerline. Dimensions X/Y/Z: approx. 2430mm/5600mm/2430mm, weight: approx. 13000kg, operating hours: approx. 34624h, spindle hours: approx. 22797h. Fpedpetufbyjfx Aa Nsp

Condition: used, Year of construction: 2003, centre height 255 mm Fodpswizltsfx Aa Nspp centre distance 1.080 mm turning diameter over bed 500 mm turning diameter over slide 290 mm turning length 1.000 mm control EuroTurn spindle bore 70 mm spindle taper KK 8 DIN 55027 3-jaw-chuck diameter 250 mm bed width 360 mm turning speed range 2 - 2.800 U/min rapid travel - longitudinal/face 10 / 5 m/min quick change toolholder PARAT Gr. 2 drive capacity - spindle motor 11,0 kW taper in tailstock-quill MK 5 dia. of quill 80 mm quill stroke 160 mm voltage 400 V total power requirement 16,0 kVA weight of the machine ca. 3,0 t dimensions of the machine ca. 2,85 x 1,60 x 1,80 m - Serial-No.: 495 / 03 - control: EuroTurn - quick change tool holder PARAT - coolant equipment - machine lamp

Condition: used, Year of construction: 1999, centre height 255 mm centre distance 1080 mm turning diameter over bed 500 mm turning diameter over slide 290 mm turning length 1000 mm spindle taper KK 8 DIN 55027 control Sinumerik 810 D SIEMENS bed width 360 mm spindle bore 70 mm turning speed range 2 - 2800 U/min rapid travel - longitudinal/face 10 / 5 m/min quick change toolholder MULTIFIX Typ B / CAPTO drive capacity - spindle motor 11,0 kW taper in tailstock-quill MK 5 dia. of quill 80 mm quill stroke 160 mm voltage 400 V total power requirement 16,0 kVA weight of the machine ca. 3,0 t dimensions of the machine ca. 2,85 x 1,60 x 1,80 m chip conveyor 4,00 x 0,40 x 1,50 m - Serial-No.: 346 / 03 - control: SIEMENS Sinumerik 810 D - quick change tool holder MULTIFIX - coolant equipment Fpsdpjqzm Ngofx Aa Njp - machine lamp

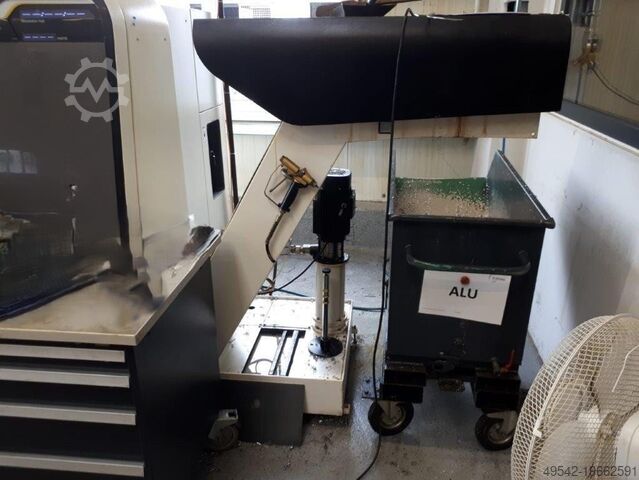

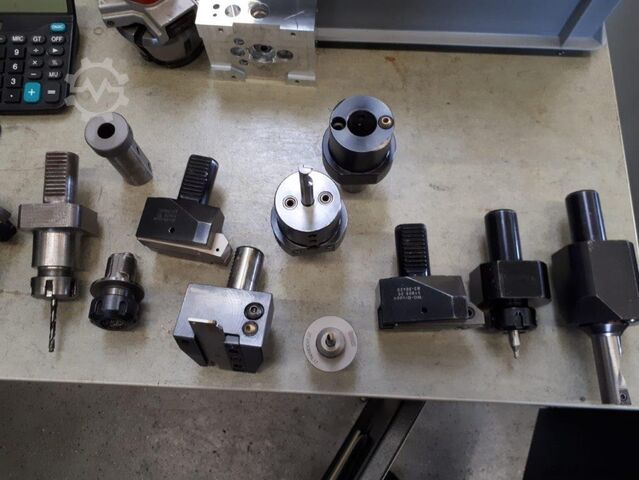

Condition: good (used), Year of construction: 2013, functionality: fully functional, Control: CNC path control including 15" TFT SlimLine Panel Siemens 840 D SL 4.4 with Shop Turn and freely programmable DMG Smartkey Operating hours: 38,495 h Program run time: 21,047 h TECHNICAL DATA Swivel range * Over bed: 330 mm * X-slide: 260 mm Max. turning diameter: 200 mm Chuck diameter: 210 mm Center height: 190 mm Axis distance: 581 mm Travel * X-axis: 160 mm * Z-axis: 450 mm Drive power (40/100% duty cycle): 16.5 / 11 kW Torque (40/100% duty cycle): 166.5 / 112 Nm Max. speed: 5,000 rpm Spindle mount (flange): 140 h5 Spindle bore: 68.5 mm Max. bar capacity: 51 mm Rapid traverse (X/Z axes): 30 m/min Fpsdpew Eb D Uefx Aa Njp Feed forces (X/Z axes): 4,500 Nm C-axis Speed range: 0–100 rpm Torque: 112 Nm Rapid traverse: 100 m/min Positioning accuracy:

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Fpedet T T Uropfx Aa Nsp Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Spindle speed 3,000 min-1 4-fold parat holder Tailstock

Condition: used, Year of construction: 1998, turning diameter 570 mm Fpedpfx Aeugawfja Njp turning length 2000 mm control total power requirement 15 kW weight of the machine ca. 3,5 t dimensions of the machine ca. m

Condition: like new (used), functionality: fully functional, Weiler Commodor guide and feed spindle lathe with 3-axis digital display K&C NEW Overhauled with acceptance certificate for tolerances of new machines Technical data: Fpodpfxevrcqdo Aa Nep >> Machine no. 1824 >> Center height 180 mm >> Center width 1000 mm >> Spindle speeds: from 13 to 2000 rpm >> Spindle passage 56 mm >> Short taper spindle head DIN 55029 size 5 >> Tailstock MK 4 >> Feed rates from 0.026 to 0.888 mm / rev >> Possible threads metric, inch, module and diametric pitch >> Metric thread pitches from 0.35 to 12 mm >> Weight approx. 1500 kg >> Spindle brake can be switched on >> Drive power 2.0/4.0 KW >> Length 2.2 m, height 1.5 m, depth 1 m Accessories and equipment: >> 3-axis digital display from K&C New, 12-month manufacturer's guarantee with operating instructions Functions: Switching mm/inch, coordinate selection ABS/INC, halving of the display value, reference mark, tool programming 200 pcs., cone calculation, radius / diameter, quick zeroing, switching of the counting direction, >> Three-jaw chuck wedge bars as good as new 200mm 1 set of jaws >> Mulifix size B with 2 pcs steel holders NEW >> Bed stop >> Machine feet >> Coolant system >> LED machine lamp For safety, the machine is equipped with: >> Electronic spindle protection >> Spindle brake >> 2 emergency stops On request: covers for the guide. and feed spindle About the machine: A Weiler Commodor guide and feed spindle lathe is offered in a geometrically overhauled condition. The guides have been reground or re-scraped. With acceptance according to the test report. 2K glossy white paint. The Multifix and chuck accessories are new. For safety: The machine has a brake motor, electronic spindle protection and two emergency stops - an absolutely new lathe. Even at high speeds, the Weiler runs very quietly. This new generation of Weiler lathes is very user-friendly and surfaces can be produced as if they were ground. Take the opportunity to view this machine on site under power and see for yourself its condition.

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Spindle speed 3,000 min-1 4-fold parat holder Tailstock Fpsdpfet T T Uxex Aa Njp

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Fpedpfxevt D D Ue Aa Njp Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition
