Final inspection material test stand Opto Engineering TC23096 Keyence XG-H500M CA-DC21E XG-7701P

Keyence TC23096 XG-H500M CA-DC21E XG-7701P

Material testing station / final inspection

consisting of the following main components

Keyence XG-H500M Digital 5-million-pixel B/W camera

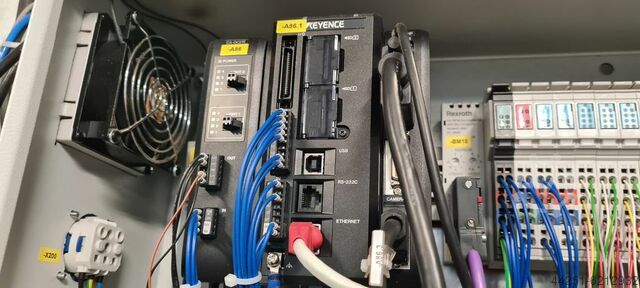

Keyence XG-7701P Multi-camera image processing system / controller
Keyence CA-DC21E Lighting controller
Opto Engineering TC23096 Bi-telecentric lens

Keyence XG-H500M Digital 5-million-pixel B/W camera
CCD: 2/3-inch monochrome CCD, square elements, all pixels have 11x reading speed, 5,050,000 pixels
Scan method: Progressive (61.2 ms), Line skip (40.3 ms) Interlace is a binning process that sums the odd lines and even lines.

Model CA-DC21E Lighting controller
Type: Lighting controller, only for XG/CV-5000/CV-X200/CV-X100 series
Input: Forced shutdown of lighting: Input voltage max. 26.4 V, min. 2 mA
Output

Light control method
(1) Constant voltage control method (DC lighting)
(2) Pulse width modulation method (Emission frequency: 100 kHz) [Change controller settings]
Brightness levels
255 levels digital [Change controller settings]
Number of connections: 2 channels (available for LED connection and terminal block connection)
Voltage: 12 VDC/24 VDC [Setting via DIP switch]
Power: Max. 40 W (30 W per channel)
Synchronization: Synchronization via FLASH output/continuous lighting [Change controller settings]
Response time
(1) Constant voltage control: Max. 10 ms at 12 V output, Max. 20 ms at 24 V output
(2) Pulse width modulation method: Max. 1 ms at 12/24 V output
Display: LED display
Supply voltage: 24 VDC ±10 %
Power consumption:
3.0 A (12 V output at maximum load),
6.5 A (24 V output at maximum load)*1

Keyence XG-7701P Multi-camera image processing system / controller

TC23096 Bi-telecentric lens for 2/3" detectors, magnification 0.093 x, C-mount
Magnification (×): 0.093
Image circle Ø (mm): 11.0
Max. detector size: 2/3"
Working distance (1) (mm): 278.6
wF/# (2): 8
Typical telecentricity (max) (3) (deg): < 0.06 (0.08)
Typical distortion (max) (4) (%): < 0.04 (0.08)
Depth of field (5) (mm): 77
CTF @ 70 lp/mm (%): > 40

Image area of the object (6)
with 1/3" detector (4.8 x 3.6 mm) (mm × mm): 51.61 x 38.71
with 1/2.5" detector (5.70 x 4.28 mm) (mm × mm): 61.29 x 46.02
with 1/2" detector (6.4 x 4.8 mm) (mm × mm): 68.82 x 51.61
with 1/1.8" detector (7.13 x 5.33 mm) (mm × mm): 76.67 x 57.31
with 2/3" - 5 MP detector (8.50 x 7.09 mm) (mm × mm): 91.40 x 76.24
Dimensions
Mount: C
Phase setting (7)
Length (8) (mm): 336.6
Diameter (mm): 143
Weight (g): 2500
