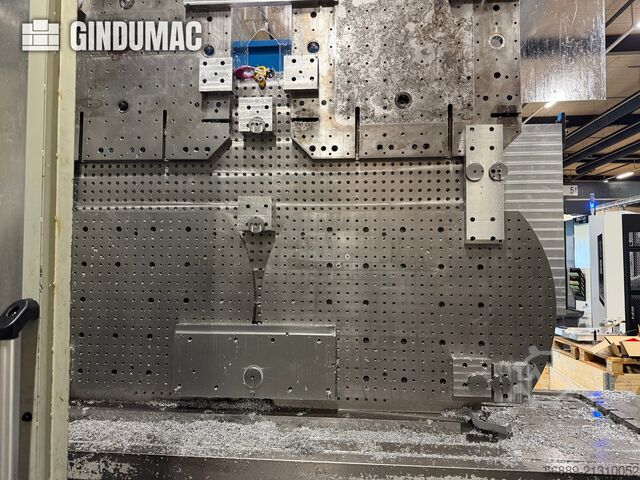

Bed milling machine

kiheung U1000

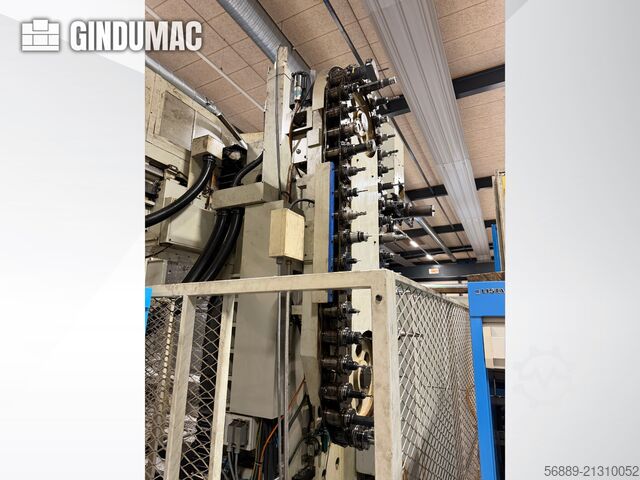

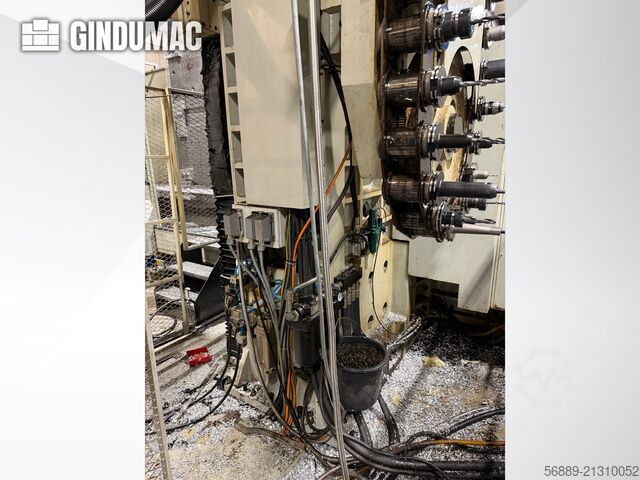

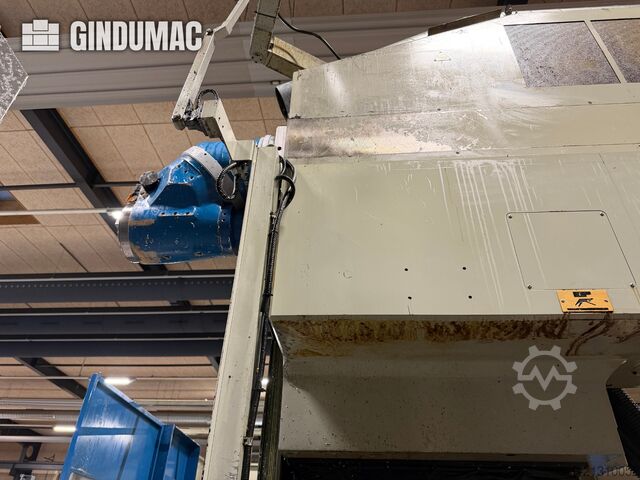

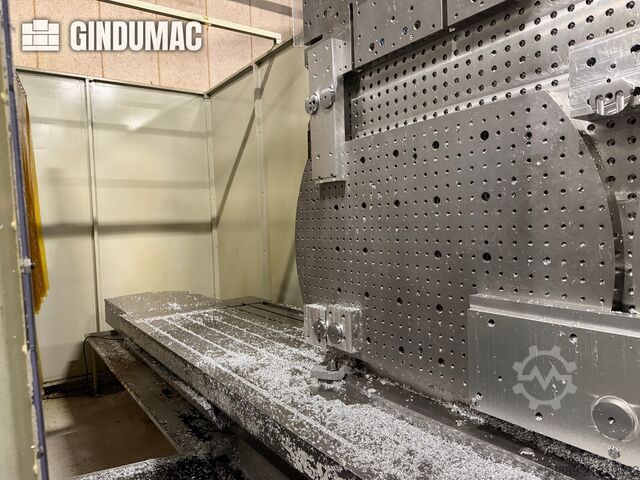

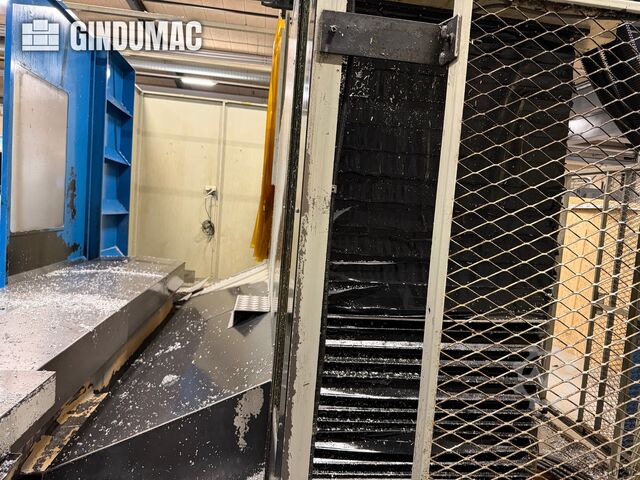

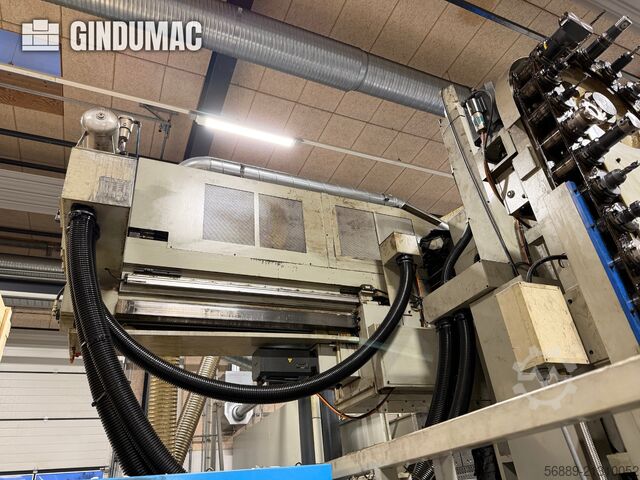

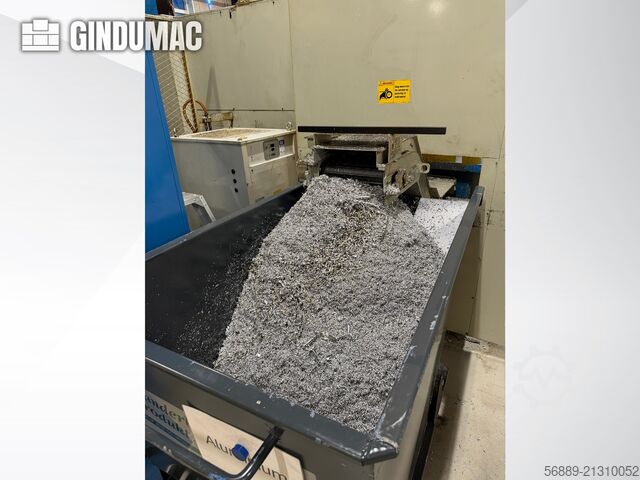

Condition: good (used), Year of construction: 2011, Table size 3100 x 900mm, traverses X Y Z 3100 x 1000 x 1050mm, spindle taper DIN 50, Hodpfx Aozdq Abjp Henn toolchanger capacity 24 stations, spindle speed 4,000rpm, automatic head, swarf conveyor,

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D 48-tool changer, Capto C8 tools Hedpfx Apswzyn Rj Honn chip conveyor Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok capacity 2800x1250MM, spindle bore 132MM weight 23,500 kg

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 5220511, travel distance X-axis: 2,600 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 4,000 rpm, workpiece weight (max.): 8,000 kg, TECHNICAL DETAILS Travel X-axis: 2,600 mm Travel Y-axis: 1,000 mm Travel Z-axis: 1,000 mm Max. workpiece weight: 8,000 kg Table size: 3,600 x 900 mm Number of T-slots: 6 T-slot width: 22 mm T-slot spacing: 125 mm Spindle taper: ISO 50 DIN 69871 Spindle speed: 4,000 rpm (2 ranges: 0 - 1,000 rpm) Feed rate: 10 - 5,000 mm/min Rapid traverse: 10,000 / 10,000 / 10,000 mm/min MACHINE DETAILS Control: HEIDENHAIN TNC 426 Dimensions & Weight Space requirement: approx. 9.82 x 5.1 x 3.16 m Hodpfx Apeygxgzj Hsnn Machine weight: approx. 21.5 t Motor Spindle drive motor: 29 kW Feed drive motor (Y-axis): 20 Nm Feed drive motor (X and Z-axis): 27 Nm Hydraulic motor: 2.2 kW Coolant pump motor: 0.50 kW Lubrication pump motor: 0.09 kW EQUIPMENT Tool changer Both head joints have 2.5°

Condition: used, Year of construction: 2009, operating hours: 60,000 h, functionality: fully functional, machine/vehicle number: 6290309, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,600 mm, Model X 3100 - HEIDENHAIN iTNC 530 path control - Max. spindle speed 4,000 rpm - Table length 3,600 mm - Table width 1,050 mm - Max. table load 8,000/13,000 kg - Y-axis 1,250 mm, extended travel - Z-axis 1,600 mm, increased column height, vertical travel 1,600 mm - Table extension to 1,050 mm - Universal automatic milling head A 4, universal bi-rotating automatic milling head - Vertical tool changer, 24 positions, incl. spindle orientation - CTS (coolant through spindle), 2 pumps - Preparation for 4th axis Hnedpfjxp I Swsx Ap Hon - Full-width chip augers front and rear - High-performance hinged belt chip conveyor - Full machine enclosure

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW Hsdpfx Apovptmwj Hsnn dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders *

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, 5-axis gantry machining center CYPORT CP 6830 Travels X/Y/Z: 6,800 / 3,000 / 1,200 mm Gantry passage Y/Z: 3,276 / 1,405 mm Rapid Traverse X/Y/Z 30/30/30m/min 2-axis-NC-swivel head M-Series of German manufacturer Cytec: Swivel range A-axis : +/-110° Swivel range C-axis +/- 360° Powerful milling spindle of German manufacturer Cytec: Tool taper: HSK-A100 Speed: 8,000 rpm Power: 50/64 kW (100%/40% DC) Torque: 240/300 Nm (100%/40% DC) Control: HEIDENHAIN TNC 530 (Heidenhain TNC 640 / 7 possible) 5-axis path control DXF-converter CAD-Viewer KinematicsOPT Energy efficiency certificate Remote Service Tool magazine: Number of pockets: 39 pcs. HSK-A63 max. tool diameter: 125/175 mm max. tool length: 300 mm max. tool weight: 15 kg Coolant system Manufacturer: KNOLL Tank volume: 1,600 L external coolant supply: 20 bar internal coolant supply: 50 bar Paper band filter, Spray gun Chip conveyor Hnodpfx Ajigriksp Hen Coolant-airblast-changeover Work piece measuring system: Touch probe BLUM TC 60 - radio controlled Working area coverage Safety light sensors Documentation CE-certification Made in Germany

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels Hnjdpfx Apow Rrb He Hon - Oil cooler - Technical documentation

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- Hnjdpfxettah Rs Ap Hjn For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 750 mm, table width: 1,500 mm, table length: 850 mm, rotational speed (max.): 2,500 rpm, quill stroke: 120 mm, SHW UF 5 Travels - X-axis (rotary table): 1,500 mm - Y-axis (vertical headstock): 1,000 mm - Z-axis (horizontal headstock): 750 mm Control system - CNC control: Heidenhain TNC 355 Automatic swivel head (change between horizontal and vertical machining) Quill 120mm Milling spindle holder SK 50 Speed 2500 rpm Partial overhaul 2014 - Year of construction 1990 - Inspection/repair 2025 Table assembly - Travel distance: X = 1,500 mm - Clamping surface: 1,500 x 800 mm Chip conveyor Splash guard cabin We have ALL spare parts for this series (SHW UF 5) in stock! About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is in the field of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control modernization _____ Hnjdpjvfm I Tjfx Ap Hen Used machine - used milling machine - used bed type milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - milling machine used - milling machine used - CNC milling machine used - drilling milling machine used - milling machine metal used - metal milling machine used - metal milling machine used metal milling machine used - used cnc milling machine - cnc milling machines - cnc milling machines - milling machine - large part machining - large part machining - large part machining - cnc large part machining - milling - shw - uf5 - uf 5 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 5 - UFZ 5 - UFZ5L - UFZ 5 L - MBM Milling Machine - MBM Machine

Condition: used, Craven 2000mm x 8000mm Heavy Duty Lathe 2000mm swing over bed 1500mm swing over saddle 8,000mm between centres Main drive 60kW, 40 ton load capacity Spindle speeds 2 – 152 rpm Hnodpfxjx Hp Iws Ap Hsn Steadies 2000mm Bed extension
