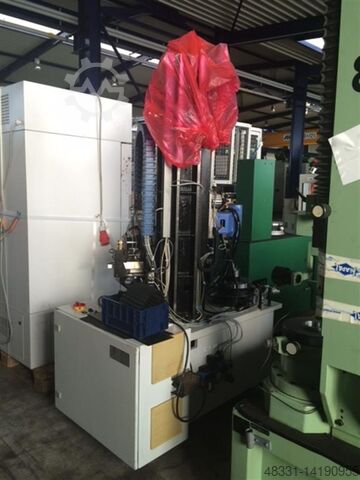

Gear Testing Machine

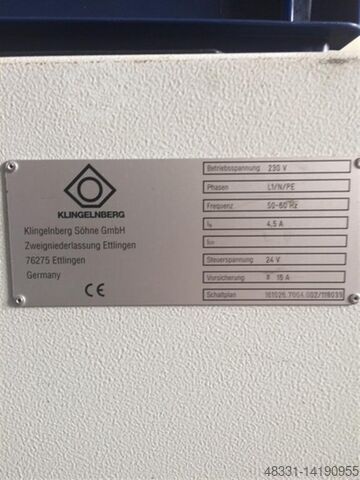

KLINGELNBERG-HOEFLER ZP 260

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm Gtedjxb Ufujpfx Aa Ist For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Gjdpfew T Tb Hex Aa Istt Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Condition: good (used), cylindrical grinding machine Gtjdpfstrgndox Aa Ist

Condition: ready for operation (used), Centre height: 175mm, centre width: 1000mm, max. external grinding diameter: 350mm, max. grinding length: 1000mm, max. workpiece weight: 130kg, grinding wheel dimensions X/Y/Z: 400mm/80mm/127mm. Machine dimensions X/Y/Z: approx. 2700mm/1700mm/1700mm, weight: approx. 3300kg, operating hours: approx. 21315h. An on-site inspection is possible. Gedjw Dfhbopfx Aa Ijtt

Condition: good (used), Year of construction: 2002, workpiece dia. 40 mm max. module 2 min. module 0,1 workpiece length - max. 665 mm weight 4,5 t spindle bore diameter 82,5 mm Control Siemens total power requirement 5,5 kW Technical data max. module 2 Pitch 0.5 - 25 mm Number of speeds multi-speed / multiple max. workpiece diameter40 mm max. workpiece length180 mm Milling cutter diameter max.80 mm max. milling cutter width12 mm Z-axis (milling length with counter point)90 mm Z-axis (milling length without counter point)113 mm Gtodpfx Aasv Ucdvs Iet Milling head swivelling angle30° / 30° Description Gear hobbing and thread cutting machine. LAMBERT - 124 CNC The machine is in a well-maintained condition.

Condition: used, Jig grinding machine cnc MOORE TOOLS 450-CPR Gtedpex Sr Ttofx Aa Ijt

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The Godow N S E Aepfx Aa Iott combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data
