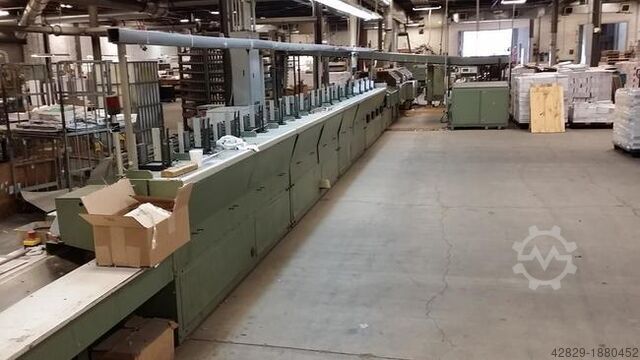

Binder with MDT

Kolbus KM 470

Condition: excellent (used), Year of construction: 2008, Ref: 11035 . 2008 Kolbus KM470 EVA/PUR Ratiobinder Line Space saving perfect binding line with front cut device & gauzing. Comprising: (2008) Meccanotecnica ‘Fido’ Book block feeder 20 station ZU804 gatherer for folded sections and single sheets with hand feed station Becker ‘Air Centre’ vacuum & compressed air supply for gatherer ZA 800 downstream reject device & delivery belt & can be used for separate gathering Extended raceway/transfer with vibrate unit Open section for feeding book blocks Ratiobinder KM470 with 21 clamps TFT visualizing monitors with graphic operator guidance. Cutting, micro-notch & brushing units (in-house extraction) EVA & PUR spine gluing system, comprising; Kolbus LH375.B EVA hot-melt pre-melt unit EVA hot-melt roller type spine gluing unit on mobile base EVA hot-melt roller side-gluing device Nordson ‘Durapail’ PUR pre’melter Nordson PUR spine gluing Gauzing unit I.R. heating in radius for increased glue open time Pile cover feeder with spine pressing & side nipping units Njdpfjxyin Ijx Ac Hslk Downhill delivery to lay-down device to; Raised TS.E flat conveyor (details on request) system to; XFA660 spiral tower to; TSZ 'Intermediate' escape delivery to; (2007) CERMI XCR 650 Front cutting device Kolbus HD150.B Pile trimmer Kolbus XTP 130 Book stacker (2006) Hugo Beck Shrink wrap tunnel Roller belt delivery. Including spares, tools & manuals. N.B. Compressed air supply required (NOT included). Specification: Book size, Max: 383 x 320 mm Max: 460 x 190 mm Min: 105 x 100 mm Book thickness : 3 -- 60 mm Mechanical speed, Max: 6,000 cycles/hr.

Condition: excellent (used), Year of construction: 2009, Perfect Binding Line, consisting of: Gathering Machine ZU 841.A - basic frame with 21 gathering stations - 19 standard feeders - 1 handfeeding station (covering 2 housing stations) - device for electrostatic fixation of three advertising medias - integrated jogging station - Aircenter - reject unit AS 841 to the right - transfer channel as connecting unit to the binder Perfectbinder KM 473 - 26 clamps - handfeeding - main milling station - equalized milling station - notching station - micro-notching station - brushing station with roller brush - 2 Hotmelt spine gluing units - 1 Hotmelt side gluing unit - 3 premelters LH 375 - IR heating at curve - stream cover feeder SAL 411.A - scoring station for 4 scores - 2 pressing stations - gripper carriage delivery - laydown device Transport and Drying Line, incl. Ambaflex drying tower, incl. emergency delivery Three Knife Trimmer HD 153.P - copilot - right hand infeed - counter stacker - silicon spraying device - standard cutting cassettes 7 - 18 Nedpfovg Ad Tox Ac Holk additionally available: Kolbus book block feeder with delivery belt Kolbus card gluer KK 841 PUR spine gluing unit with Nordson smelting unit Best for PUR cover 600L Kolbus destacker AE 360 Kolbus blocking unit VB 120 pallettizer Kolbus PL 770 or Kolbus PL 771

Year of construction: 1988, condition: good (used), Size: max 460 x 310 x 60 mm, min 125 x 100 x 3 mm Book block thickness: max 60 mm, min 3 mm Speed: max 6.000 c/h Equipment: gathering machine • chain tensioner with hand feeding station • 16 stations • machine number 62 controls • missing and double sheet control intermediate elements • spiral raceway • hand fed perfect binder Nedpfx Acjl Dpcwe Helk • serial number 58 • 20 clamps • jogging station • resting table • fold pressing station • milling and roughening station • brushing station • hotmelt spine gluing unit • cam controlled • hotmelt side gluing unit • premelter • gauzing station • stream cover feeder • cover scoring 2 to 6 lines • cover pressing station • lay down device standard accessories • pv pressure-vacuum pump • 1 set of operator manuals • 1 set of electrical diagrams • 1 set of spare part catalogues • 1 set of tools optionales Equipment:--not included-- • extending of the gathering machine • modification of the conveyor belts • three knife trimmer • compensating stacker • shrink wrapping • optional equipment • palletizer

Condition: used, Year of construction: 1995, Klebebinder mit Vorsatzanleger / Perfect Binder Kolbus Ratiobinder KM 470 with endsheet feederBaujahr 1988/1995 Nedpfx Acon Aw Uks Hslk Kolbus Ratiobinder KM470 23 Zagne Format / Size min 125 x 100 x 3mm / max 460 x 310 x 60mm Buchblockdicke min. 3mm - max. 60mmAussattung / Consist of: Zusammentragmschine / Gatherer ZU 803 32 Stations Links- und Rechtslauf / Left and right side Criss-Cross Auslage / Criss-Cross delivery Anleger Vor- & Nachsatz für Hardcoverproduktion / Feeder for endsheet hard cover production Handanleger / Hand fed stationRatiobinder KM 470 mit 25 Zangen / Ratiobinder KM 470 with 25 Clamps PUR Rückenleimwerk / PUR spine gluing unit Hotmelt spine gluing unit PUR-, Hotmelt- und Dispersionsklebebindung / PUR, Hotmelt and dispersion glue binding Seitenbeleimung Heißleim / Hotmelt side gluing unit Fälzelstation / Back Lining station Buchblock- und Ganzpresse FM 405 für fadengeheftete Buchblocks für HardcoverproduktionKolbus FM 405 Buchblock- und Ganzpresse FM 405 für fadengeheftete Buchblocks für Hardcoverproduktion Book block and PRessing Station FM 405 for sewing book blocks and hard cover productionsDreischneider / Three knife Trimmer Kolbus HD 150 Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Year of construction: 1996, condition: ready for operation (used), Built in 1996 Size max 480 x 320 mm Size untrimmed max 480 x 320 mm min 153 x 108 mm Size trimmed max 475 x 300 mm min 148 x 105 mm Product thickness max 13 mm Speed max 13.000 c/h Equipment gathering chain & feeder • 6 station gathering track & chain • 5 feeders 370 • 1 cover folder feeder stitching unit • stitching unit 390 Nodpfx Acoizi Ivs Holk • wire unwind device • thickness control/ plus-minus • 2 stitching heads three knife trimmer • three knife trimmer 360 knives • 2 sets of knives

Year of construction: 1997, condition: used, Size: max 460 x 310 x 60 mm; min 125 x 100 x 3 mm Book block thickness: max 60 mm; min 3 mm Speed: max 6.000 c/h Equipment gathering machine • 16 stations • gatherer ZU 801 controls • missing and double sheet control intermediate elements • spiral raceway • hand fed • jogging element • criss-cross delivery • -connected with perfect binder • 21 clamps • jogging station • milling and roughening station • hotmelt spine gluing unit • hotmelt side gluing unit • premelter • gauzing station • stream cover feeder • cover scoring 2 to 6 lines • cover pressing station • lay down device Nedpfob Hppfex Ac Hjlk • shingle conveyor delivery conveyor system • conveyor system ca. 20m • connected with three knife trimmer • conveyor belt to trimmer optionales Equipment:--not included-- • - Opticontrol signature image reader

Year of construction: 1998, condition: used, Built in 1998 Size max 460 x 310 x 60 mm min 125 x 100 x 3 mm Book block thickness max 60 mm min 3 mm Speed max 6.000 c/h Equipment Njdpfxsdix Rxe Ac Hjlk gathering machine • 16 stations • gatherer ZU 801 • machine number gatherer 376 • -connected with perfect binder • 17 clamps • milling and roughening station • brushing station • hotmelt spine gluing unit • hotmelt side gluing unit • 2 premelters • stream cover feeder • cover scoring • cover pressing station • smooth lay down device • - option - not included • PURt spine gluing unit

Condition: good (used), Year of construction: 2012, 2012 overhauled Size max. 360 x 310 mm at least 140 x 100 mm Book block thickness max. 60 mm at least 3 mm Cover size max. 642 mm at least 203 mm Speed max. 18,000 c/h Equipment collecting machine - Chain tensioner - 18 stations - 18 feeders 3681 - Reject gate 3714 Njdpfx Acou Eubxs Hslk Checks - Missing and double sheet control - 2 jogging elements perfect binder - commander - 35 clamps - Clamp spacing 18" - Inlet channel with vibrator - Jogging station - Seam pressing station - Milling and roughening station - Double combined spine preparation station - Unit for gluing the spine with hot glue - Cam-controlled - Trolley spine gluing unit - Hot glue side gluing unit - Cam-controlled - Gluing unit on carriage side - 2 pre-melters - SF-Stream cover feeder - Cover scoring from 2 to 6 lines - Smooth depositing device Standard accessories - 1 set of operating instructions - condition - . clean in very good, working condition - available: - immediately

Year of construction: 1990, condition: good (used), Built in: 1990 Size: max 460 x 310 x 60 mm Speed: max 6000 c/h Equipment: gathering machine: • chain tensioner with hand feeding station • 20 stations controls: • missing and double sheet control intermediate elements: • spiral raceway • hand fed perfect binder: • 25 clamps • jogging station • resting table • fold pressing station • milling and roughening station • brushing station • hotmelt spine gluing unit • cam controlled • hotmelt side gluing unit • premelter • gauzing station • stream cover feeder • cover scoring 2 to 6 lines • cover pressing station • 2. cover pressing station • smooth lay down device optional equipment - not included: • extending of the gathering machine • modification of the conveyor belts Nlodpfxedyk Rhe Ac Hek • three knife trimmer • compensating stacker • shrink wrapping • palletizer • optional equipment

Year of construction: 1986, condition: good (used), Built in: 1986 Size: 460 x 310 x 60 mm Speed: 6.000 c/h Equipment: • hand fed • 18 clamps Nedpfedymnbjx Ac Hjlk • resting table • milling station • equalizing-leveling • hotmelt spine gluing unit • gauzing station • pile cover feeder • four line scoring • cover pressing station

Condition: good (used), Year of construction: 1999, Size: max 480 x 320 x 80 mm; min 140 x 100 x 2 mm Cover size: max 642 mm; min 203 mm Book block thickness: max 80 mm; min 2 mm Speed: max 7.500 c/h; min 1.200 mm Equipment gathering machine • hand feeding station • 21 feeders 3691/18 • reject gate 3614 Nledpfx Acotuwilo Hjk • pile delivery Universo 244 • seperation element • jogging element perfect binder • 30 clamps • PVA (cold glue) spine gluing unit • hot melt side gluing unit • IR intermediate dryer • gauzing station • stream cover feeder • 2 pressing stations • HF dryer optionales Equipment:--not included-- • PUR spine gluing unit • premelter for PUR gluing unit
