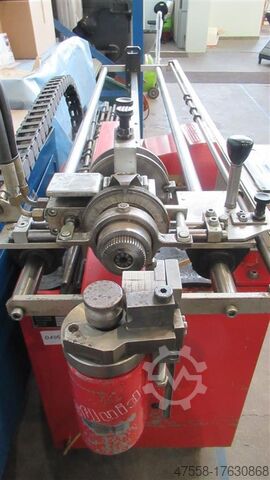

Pipe-Bending Machine

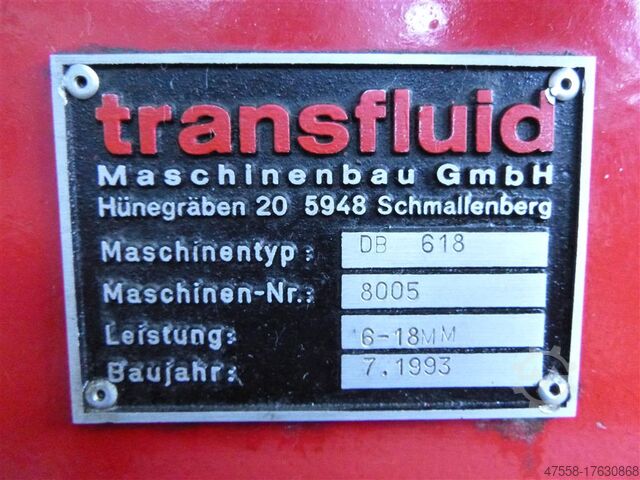

TRANSFLUID DB618

Condition: used, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gearbox Year of construction: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending jaws interchangeable - Bending tool drive via AC servo motor and Alpha spur gear, planetary gearbox - 2-part bending tool opens and closes via hydraulic stroke movement - MERKLE hydraulic round block cylinder, item 014445 for hydraulic tool opening - Pneumatic height adjustment of the bending jaw via Festo compressed air cylinder - without electrical control - without hydraulic unit Dimensions L/W/H 760 x 400 x 150 mm weight: approx. 60 kg good condition Removed from a functional special machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Typ:1FK6061-7AF71-1EG0 Nominal torque = MO: 6.4 Nm Fpsdpfx Aod E A I Isgmsb Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 pieces available in right-hand version. 5 pieces available in left-hand version. The price quoted refers to 1 bending unit with servo motor. If required, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. We also offer hydraulic units.

Condition: new, Year of construction: 2025, PROFILE BENDING ATTACHMENT PB20 The PB20 profile bending attachment is the optimal supplement for tube bending on the 3000 and 6000 models. The device can be easily and quickly mounted on the bending shaft without the use of tools. The workpiece is clamped onto the turntable with the clamping device and pulled around the bending tool. With this system, leg lengths to be bent can be accurately measured in conjunction with a length stop and can be bent with repeatable accuracy. TECHNICAL DATA: - Bending capacity steel 37: 100 x 10 mm, Ø 20 mm. - Many standard tools available - Special tools possible - Sharp-edged tools with bending radius R2 or 5 mm - round tools R 10 to 25 mm for bends max. 260° optional OUR SERVICE: Fedonh R Ekopfx Agmspb - Welcome to the test production in our house in the demo room - Consultation and information meeting at your site - Consultation and handling as leasing/financing purchase via the company JUTEC - Service contracts, maintenance at your site

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Fpodpfx Ajttah Rsgmob Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: new, functionality: fully functional, Year of construction: 2025, operating hours: 1 h, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, pipe diameter (max.): 38 mm, pipe length (max.): 3,700 mm, tube wall thickness (max.): 2 mm, bending angle (max.): 180 °, bending radius (min.): 60 mm, working width: 3,700 mm, number of axes: 5, working height: 1,500 mm, overall weight: 2,700 kg, total length: 5,500 mm, total width: 1,800 mm, total height: 1,800 mm, warranty duration: 12 months, Equipment: CE marking, emergency stop, foot remote control, 5 Axis 38 CNC Mandrel Pipe Bending Machine – PUMA Liv Makina’s 5-axis, 38 mm CNC mandrel pipe bending machine is among the most referenced machines across four continents, especially in the Automotive, White Goods, and Defense Industries. Its Solidworks-compatible interface ensures highly user-friendly operation. Our Industry 4.0-ready machine provides daily reporting directly to users. With its rolling die, the machine can coil the pipe similar to a spring. Its ability to mount dies with 3 different radii allows for easier handling of complex bends. The collision simulation software enables you to preview bends on-screen prior to production, saving time and increasing efficiency. This software is offered free of charge on all our CNC tube and profile bending machines for our valued customers. Key Features: - Import drawings directly from Solidworks - Fully automatic and manual mode operation via interactive PLC control system - Multiple language support - 3D visualization of created programs - 3D collision simulation for pipe bends Fedsw Hpfcepfx Agmepb - Automatic pipe length calculation - CE-compliant - On-screen error display - Integrated safety warning system - User-friendly Livmak interface Technical Specifications – PUMA 5 Axis 38 CNC: - Maximum Bending Capacity: Ø38 mm x 2 mm - Minimum/Maximum Die Diameter: 60 / 250 mm - Material Processing Length: 4000 mm - Machine Dimensions: 5500 x 1600 x 1600 mm - Total Motor Power: 15 HP - Machine Weight: 2.5 tons

Condition: good (used), Year of construction: 1996, tube diameter 6 - 28 mm wall strength 2 mm bending radius min. 2 x D Control IPU 20 bending radius max. 5,0 x D mm bending angle max. 190 ° arbor length 3000 mm Fjdpfx Agevtgn Nemepb operating pressure 180 bar hydraulic motor 4 kW weight of the machine ca. 900 kg dimensions of the machine ca. 3,8 x 1,1 x 1,3 m Semi-automatic electro-hydr. mandrel tube bending machine with PLC control for 20 angles and display in the control panel for bending angle specification, angle detection and angle measurement via absolute value encoder, autom. tool plate reset, Turning device with digital display, hydr. quick chuck, aut. Mandrel lubrication, adjustable length stops. Operating modes: MANUAL and semi-automatic. Control buttons: hydraulics on / off, operating mode selection, clamp to / on, clamp forward / backward, mandrel forward / backward, bending forward / backward /, locking forward / backward, mandrel lubrication, turning device forward / backward, plate reset, length stop forward, emergency stop. The machine comes from a prototype construction and was only used a little until 2000. After that, the machines of this department were sold. However, the purchaser did not use the pipe bending machine and therefore it has only stood in the warehouse and has not worked since then ((original paint). Please notice that the price of a new machine today is over € 60.000,--. Machine dealer with own stock of 1600 m².

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 48 h, machine/vehicle number: BD38CNCOMPACT, Max. pipe OD 38mm CNC control Compact Model Fpjdpovu R Amsfx Agmjb

Condition: used, The RGM 2 is a state-of-the-art Tube End Finishing Machine designed by KNUTH, renowned for its robust and precise engineering. With a rigid design and a small footprint, this machine is perfectly suited for shops that require efficiency without sacrificing performance. The RGM 2 features an impact chuck at the front and a clamping chuck at the rear, ensuring secure handling of various tube sizes. Additionally, it includes a tube cutter and an inside tube deburrer, which provide a complete solution for finishing operations. For mobility, the machine is equipped with a mobile base. When looking for a reliable Tube End Finishing Machine, the RGM 2 stands out with its advanced features. Don't hesitate to request a quote today to enhance your tube processing capabilities with this exceptional product from the renowned KNUTH brand. Fpsdpfop Atgbjx Agmob

Year of construction: 2025, condition: new, The robust manual length stop MD 100 d enables you to efficiently increase the productivity and quality of your production. The operator can move the carriage to the desired position quickly and accurately. The specially developed clamping system gives the carriage a very high holding power. The length measurements are taken via an easy-to-read digital display on the carriage. Existing machines / roller conveyors can be retrofitted at any time. Product Details: • suitable for striking steel profiles and solid materials • Trolley with 3 ball bearings • smooth-running for quick and precise length positioning • Manual stop clamping via large adjustable hand knob • specially developed clamping system with very high holding power. • raise and lower manual arm • digital position display with a resolution of 0.1 mm • Standard measurement lengths: 1m to 6m, maximum up to 20m Fedpfx Ageidmppjmopb • Total length of the system = measuring length + 0.3 m • Left or right hand versions available • Mounting screws • Accesories: -Stop arm with spring damping -manual arm retraction via hand lever -Arm retraction with impact damping via pneumatic cylinder -various material roller conveyors

Condition: good (used), Year of construction: 1977, machine/vehicle number: 22247, Offered 23250 Technical data: Fedpfxov Hzr Ns Agmopb - Bending performance - Pipe at 45 kg / mm² Ø 6 - 48 mm - Max. bending angle 180 ° - Max. bending radius 145 mm - Drive 400 V / 1.7 kW - Space requirement approx. W 900 x H 1100 x D 1400 mm - Weight approx. 600 kg - with - Pipe circular saw - Inside and outside pipe deburring device - Pipe necking device - Without tools

Condition: good (used), Stock number: 2878 Manufacturer: Tracto Technik Paul Schmidt Year of construction: Type: Mini pipe bender TUBOFORM Machine number: 1841091 Pipe diameter: up to 16 mm Maximum bending angle: 180 Bending radius: 2 x D Equipment: digital bending angle display Accessories: various bending tools between 5 and 16 mm diameter Drive: 0.75 kW 220 V Dimensions: 2,400 x 700 x 1,000 mm Weight: approx. 0.4 t Fpedouqypdepfx Agmsb
