Twin screw extruder

Krauss-Maffei Berstorff ZE 110 R x 28D UTmi

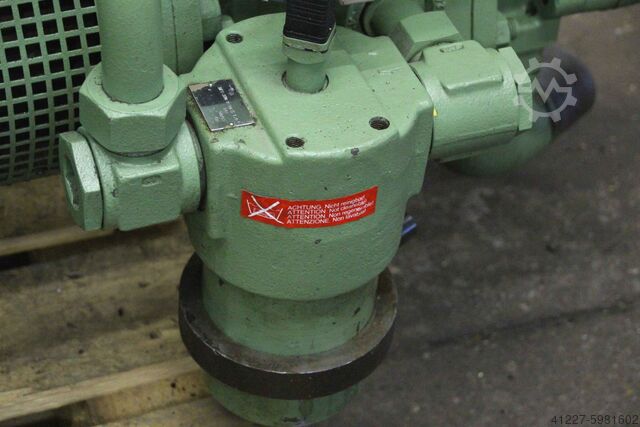

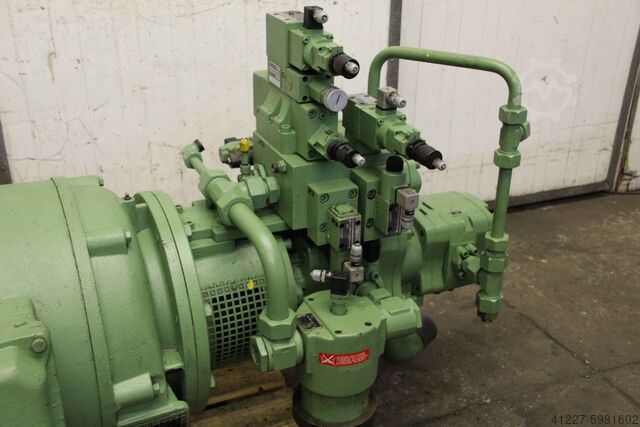

Condition: good (used), Hydraulic pump, oil pump, gear pump, vane pump, hydraulic power unit, double hydraulic pump -Double hydraulic pump: from KHS Krauss Maffei KM 1000-5000A injection molding machine -Pump 1: Voith type IPH 6/5-125/50 300 bar -Pump 2: Voith type IPR/H 6/5-125/40 210/300 bar -Drive: Loher 75 kW 1500 rpm -Individual components: filters/valves, see photos -Dimensions: 2285/800/H900 mm Rjdog Avqcspfx Anpew -Weight: 1132 kg

Condition: ready for operation (used), functionality: fully functional, color: grey, Year of construction: 1988, Aeroplex fluidised bed counterjet mill 400 AFG The plant is fully functional and can be inspected on site. Trial milling can be carried out in advance depending on the material. In 2005, the plant was modernised and converted to load cells. Electrical control system: Simatic S7-300 The plant consists of the following units: 1. Mill 2. Raw material filling unit Rsdpfxsx T Ar Ne Anpsw 3. Air filter 4. Electrical switchgear

Condition: ready for operation (used), Year of construction: 1995, operating hours: 39,000 h, functionality: fully functional, Equipment: documentation/manual, A used and functional profile line for rigid PVC-profiles (300 x 100 mm), consisting of: Twin-screw extruder (parallel) Manufacturer: WEBER Type: DS 7.22 Year of manufacture: 1995 Machine no.: DS70-043 Operating hours: 39,000 hours Screw diameter: 70 mm Effective screw length: 22 x D Screw geometry: for rigid PVC profiles Torque: 4,500 Nm per screw Screw speed: max. 40 rpm, continuously adjustable Drive motor: DC low-voltage motor, thyristor-controlled Drive power: approx. 25 kW Cylinder heating/cooling zones: 5/3 (air cooling with fan) Adapter heating zone: 1 Tool heating zones: 5 Control: conventional control with digital temperature controllers Degassing: Busch rotary vane vacuum pump (1.5 kW) Output capacity, max.: 120-150 kg/h for hard PVC, depending on material Connected load: approx. 50 kW (without tool) Special accessories: Mass temperature sensor and mass pressure sensor Adapter between extruder connection and extrusion tool Used tool set for a window profile (widening), consisting of: - Extrusion tool ‘widening’, incl. heating bands - Dry calibration - Vacuum tank approx. 2 m long, with 8 slots for calibration discs - 16 calibration discs Vacuum calibration unit Manufacturer: Uniplast / Greiner Type: CAL VAK 4P Year of manufacture: 1992 Machine number: K9209590 Total length: 6500 mm Vacuum pumps: 4 x Speck vacuum pumps (4.3 kW each) Water circulation pumps: 2 x Calpeda (1.1 kW each) Rodpfxeyx Dwks Anpew Caterpillar haul-off, incl. attached saw Manufacturer: Uniplast / Greiner Type: CAT PUL 2D Year of manufacture: 1992 Machine number: R 9204546 Haul-off: Effective contact length: 2000 mm Pad width: 250 mm Haul-off force, max.: approx. 25000 N Speed range: approx. max. 10 m/min. Profile saw: HM circular saw blade: Ø 450 mm Profile cross-section, max.: approx. 300 x 100 mm Tilting table Manufacturer: Ide Type: ME N 52/2 Year of manufacture: 1994 Length: 6000 mm Support width: 270 mm Note: The complet profile line was overhauled in 2020 and has only been in operation for 325 hours since then.

Condition: excellent (used), Year of construction: 2004, overall weight: 500 kg, ATEX air micronizer mill manufactured by BACHILLER in stainless steel, model JET-MILL MSB305. High-efficiency equipment, highly suitable for the micronization of all types of powder products. Includes bag filter reference C9905. Redpfexpx Agox Anpjw

Condition: reconditioned (used), For sale is a Neuman & Esser ICM 48 mill. The mill has been completely overhauled. Rsdpoy Tvdlsfx Anpjw Accessories can be included if required.
