Injection molding machine up to 5000 KN

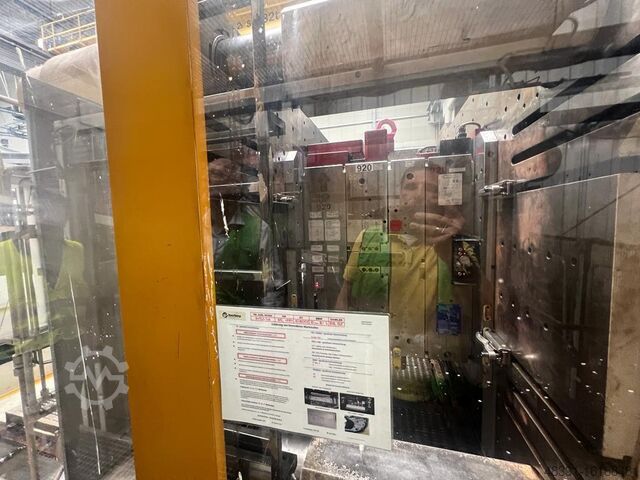

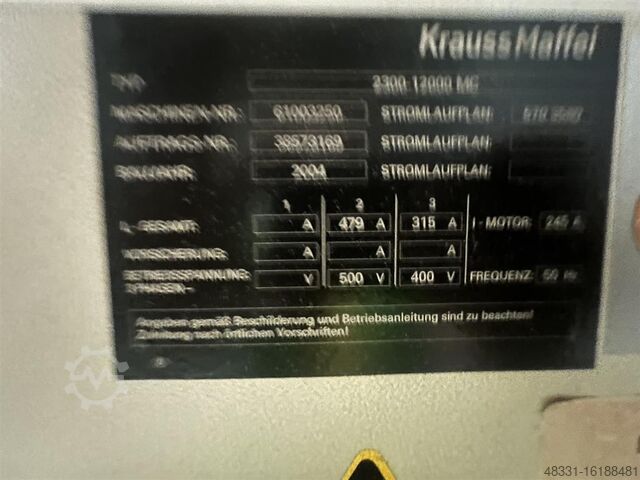

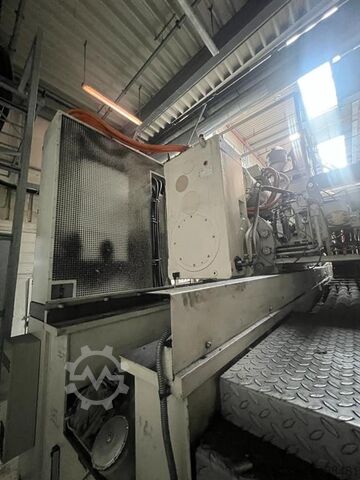

KraussMaffei 2300/12000/MC

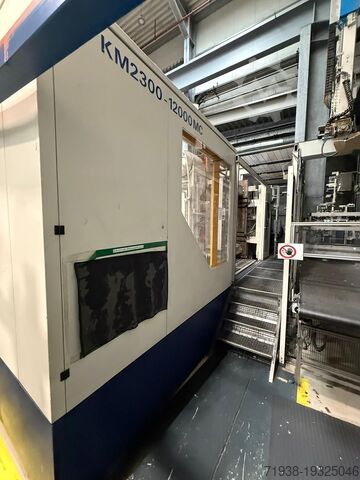

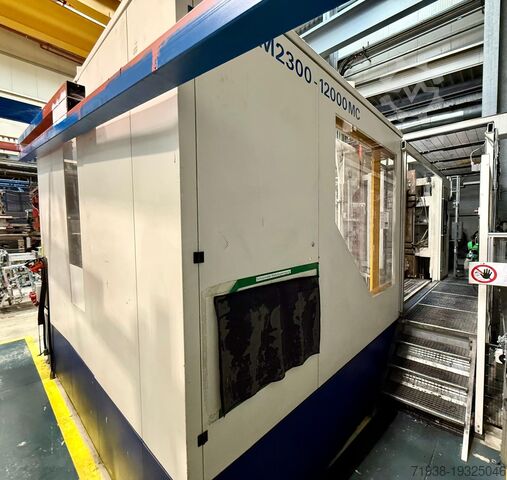

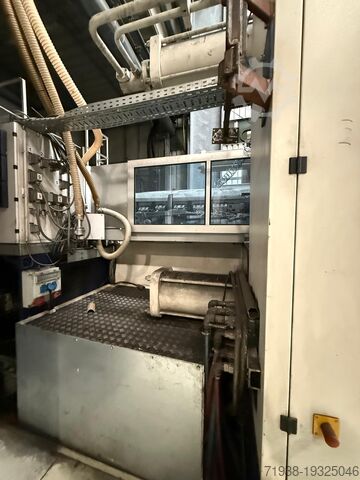

Condition: excellent (used), Year of construction: 2004, Krauss Maffei KM 2300 - 12000 MC injection molding machine Year: 2004 Control type: MC 4 Number of operating hours 93 900 Closing unit Clamping force: 23000 kN Mould opening force, max.: 1420 kN Moving platen feed force Opening: 227 kN Moving platen feed force Closing: 203 kN Mould platen size (h x v): 2830 mm x 2400 mm Distance between columns (h x v): 2000 mm x 1600 mm Mould opening stroke: 2600 mm Min. mould height: 1100 mm Maximum mould height: 1800 mm Maximum daylight: 3700 mm Hydraulic ejector - stroke: 350 mm Ejector force forward/backward: 415/115 kN Injection unit Screw diameter: 135 mm Ls/D ratio: 23 Injection pressure: 1389 bar Sweep volume: 8588 ccm Shot weight, PS: 7815 g Injection rate: 1019 ccm/s Screw speed: 113 1/min Maximum plasticization rate: 191 g/s Nozzle pressure: 241 kN Electrical and hydraulic equipment Giedswq Ed Aepfx Af Eer Nominal pump motor capacity: 132 kW Installed heating power: 997kW Adjustable barrel heating zones: 7 Number of drying cycles: 350 1/h Tank capacity: 2500 ltr. Dimensions and weight Machine dimensions: 15.15 m x 4.15 m x 3.29 m Total machine weight: 143,000 kg Maximum mold weight: 62,000 kg LRX 1000 robot X-axis - 2,000 mm Y-axis - 3,000 mm Z-axis - 5,000 mm

Condition: like new (used), 300 mm intermediate plate for Krauss-Maffei KM 800. Original Krauss-Maffei Godpfx Afsh Hlr Es Ejir

Condition: good (used), Year of construction: 2013, clamping force: 16,000 kN, Equipment: documentation/manual, Clamping force: 1600 t Screw diameter: 135 mm Distance between tie bars V: 1420 mm Distance between tie bars H: 1870 mm Shot volume: 9662 cm3 Type: Horizontal Gsdpjyh I Emsfx Af Eoir Drive: Hydraulic

Condition: ready for operation (used), Year of construction: 2001, operating hours: 4,517 h, clamping force: 16,000 kN, screw diameter: 125 mm, injection weight: 7,450 g, This 3-axis Krauss Maffei 1600-17200MC hydraulic injection moulding machine was manufactured in 2001. It features a clamping force of 16,000 kN and a screw diameter of 125 mm. The machine has a maximum shot weight of 7450 g and a platen size of 2600 x 2110 mm. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei 1600-17200MC machine we have for sale. Contact us for further details. • Injection unit: 17200 • Distance between tie bars (h × v): 1600 × 1250 mm • Platen size (h × v): 2600 × 2110 mm • Clear distance (x × y): 1800 × 1400 mm • Max. mold opening stroke: 2,500 mm • Mold installation height (min–max): 900–1,600 mm Gisdpfx Aoyyyr Tjf Eor • Opening width: 3,400 mm • Mold opening force: 1,108 kN • Moving platen force: Opening 177 kN / Closing 153 kN • Ejector stroke: 300 mm • Ejector force (forward/backward): 415 / 177 kN • Operating voltage: 400 V / 50 Hz • Motor current: 446 A • Heating current: 164 A • Total pump operating hours: 73,761 h Additional equipment • Spare cylinder/screw set (1x) • Internal cooling system • Core pullers (2x)

Condition: ready for operation (used), Year of construction: 2002, operating hours: 57,752 h, clamping force: 13,000 kN, screw diameter: 105 mm, overall weight: 83,000 kg, Hydraulic injection moulding machine manufactured in 2002. This Krauss Maffei 1300-12000 MC features a screw diameter of 105 mm and a maximum processing temperature of 450°C. It includes a hydraulic mechanical 2 platen clamping system and a robust motor current of 261 A. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei 1300-12000 MC machine we have for sale. Contact us for further details. • International size designation: 12000 MC / 1300 • Operating hours: 57,752 hElectrical • Operating voltage: 400 V, 3-phase, 50 Hz (400/230 V European standard) • Motor current: 261 A • Heating current: 239 A • Motor total current: 245 A • Motor fuse: 315 A • Heating fuse: 250 A • Main switch: 6-pole, heating and power separated • Sockets: Service socket Schuko 10 A; 3x Schuko 16 A; 2x CEE 16 A; 2x CEE 32 A • Oil cooled pump motor: IP54 • Cabinet cooling fanControl and HMI • MC4 32-bit microprocessor control • TFT color display • 3.5 inch floppy disk driveClamping unit • Hydraulic mechanical 2-platen clamping system • 4 pressure cushions integrated in moving platen • Hydraulic central ejector • Hydraulic core pull control • Hydraulic safety door on operator side • Minimum mould height: 700 mm • Maximum mould height: 1400 mm • Maximum opening stroke: 2250 mm • Maximum daylight opening: 2950 mmInjection and plasticizing • PV controlled injection unit • Thermoplastic plasticizing unit, wear-resistant design • Non-return valve installed • Open nozzle design • Nozzle radius: 15 mm; nozzle bore diameter: 4 mm • Hydraulic screw drive with constant motor • Parallel plasticizing possible • Plasticizing unit: SP12000 • Maximum processing temperature: 450°C • Injection embossing control adjustable on screen • Injection stroke control • Holding pressure control • Injection speed controlHydraulics, lubrication, cooling • Regenerative pump control system • Internal oil filtration system • Oil monitoring system • Oil cooler for water supply: max 31°C • Cooling water pressure: 4–6 barTemperature control • 8 temperature control circuits for hot runner • Adaptive temperature controllers • Maximum temperature controller power: 2 kW • 230 V temperature controller supplyMonitoring and software • Quality monitoring package • Process monitoring system • Tolerance band monitoring • Cycle analysis display • Cycle data storage up to 20,000 cycles • Event log protocol • Alarm history Gijdpjyx Ez Rsfx Af Eer • Graphical process curves • Trend graphics for 12 parametersInterfaces and connectivity • RS232 interface • Ethernet interface TCP/IP • Euromap 12 interface • Euromap 63 / SPI software support • External temperature unit interface 20 mA • Central computer interface • BDE interface with 5 contacts • Potential-free contact for dosing unit
