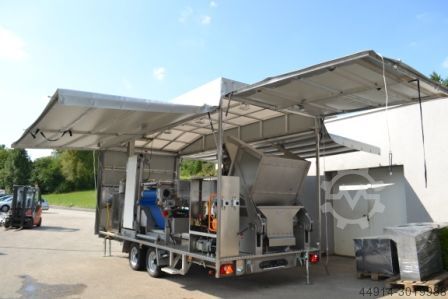

Mobile Line 750

Kreuzmayr KML 750

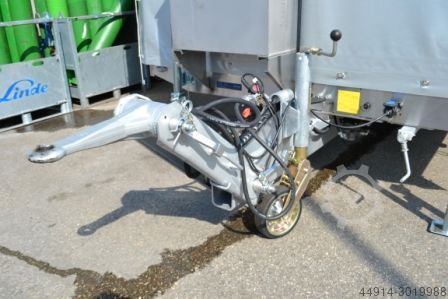

Year of construction: 2020, operating hours: 20 h, condition: as good as new (ex-display), The mobile Kreuzmayr units are used for the processing of fruit juices on site. The fruit is loaded into the washing container with the bin tipper, transported to the grinder, crushed and then conducted to the sieve belt press. The generated juice is automatically pumped into tanks, heated to about 80° C in the pasteurizer, and then filled into Bag in Box. The following machines are built on the trailer: Bwjdec Rghyepfx Aggen • Bin Tipper Kreuzmayr GKE • Wasching and Crushing Unit KWEM 2000 • Single Belt Press KEB 750 with cleaning brush • Bigger juice pan for the KEB 750 • Pomance conveyor • Stainless steel tank 530 Liter with hanging sieve • Pasteurizer Kreuzmayr PAS 1500 Liter oil • Bag in Box filler Kreuzmayr KBF 2000 special construction for mobile trailer • Accessories: like pumps, air compressor, high pressure cleaner, hoses and fittings • Trailer with canvas cover, pneumatic brake system and antilocking system The trailer has only a few operating days and is thus in a new condition.

Condition: new, Year of construction: 2025, Parts cleaning machine, spray cleaning system type L122 automatically working hot water chamber washing machine with basket drive by means of gear motor, housing of the plant made of stainless steel 1.4301, - 2 pieces 3-sided arranged nozzle systems made of stainless steel with stainless steel flat spray nozzles, - 2 stainless steel wash pumps (Xylem/Lowara), - level control as dry run protection - 2 suction filters as pump protection - Oil skimmer for bath maintenance - basket diameter: 1.150 mm - useful height: 700 mm - max. loading weight: 300 kg - spray pressure: 2x 3 bar - tank volume: 270 litres - heating: electrically adjustable (RT - 60°C) - Connected load (electrical): approx. 11.5 kW - plant dimensions (WxDxH): 1.480 x 1.540 x 2.195(h) mm Bjdpfx Agef Dy Rwogjwn

Year of construction: 2026, condition: new, Our belt presses are equipped with two large pressing rollers that extend the pressing process, ensuring particularly gentle juice extraction. The result is a clear, foam-free juice of high quality. The pneumatic belt tension and automatic belt control guarantee consistently high quality throughout the entire pressing process. The belt press features an automatic brush cleaning system, eliminating the need for a high-pressure cleaner. The belt is cleaned by six specially designed water nozzles. For cleaning, only a compressor with 8 bar pressure and a ½” water connection are required. Thanks to these special nozzles, water consumption is reduced, leading to lower operating costs. The open design allows for quick and uncomplicated cleaning, which can be completed in just a few minutes. Technical Information: • Nominal capacity: 950 kg/h • Power requirement: 1 kW, 400 V, 16 A • Material: WNr. 1.4301, AISI 304 stainless steel • Compressed air requirement: 50 l/h at 6 bar • IP65 electronic control cabinet Bwedpfxev Sq S Ne Aggon • Juice yield: Up to 75% • Fully automatic and stepless control of belt speed • User-friendly • Easy to clean • Rollable machine feet Dimensions: Length: 2230 mm Width: 1450 mm Height: 1250 mm Loading height: 1240 mm Pomace discharge height: 500 mm Juice outlet height: 370 mm Weight: 540 kg Optional: Juice collection tray ISW 100 Automatic juice discharge

Year of construction: 2026, condition: new, The fruit washer with a mill for fruits and vegetables is made entirely of stainless steel and is equipped with a sorting grate, a washing tank, and a conveyor belt. The fruits are immersed in water for a pre-wash. Afterwards, they are transported further via the conveyor belt, which thoroughly cleans the fruits with fresh water. After cleaning, the fruits enter the mill, where they are processed with the desired sieve to achieve the required mash consistency. Bjdjv Srguepfx Aggjwn • Easy to clean • Low maintenance requirements • Belt speed is steplessly adjustable in both directions • Equipped with 2 swivel wheels • Equipped with 2 fixed wheels Technical Information • Nominal capacity: 2000 kg/h • Power requirement: 3 kW, 400 V, 10 A • Mash discharge height: 1400 mm • Connection for washing tank: G 6/4” • Connection for cleaning: G ½” • Material: WNr. 1.4301, AISI 304 stainless steel • Water consumption: approx. 12 L/min Dimensions: Length: 2700 mm Width: 840 mm Height: 2270 mm Weight: 150 kg

Year of construction: 2026, condition: new, Our belt presses can be dismantled and cleaned in just a few minutes without tools. The belt press is easy to operate. Effective belt cleaning is achieved by three spray nozzles and silicone wipers. Thanks to this innovative solution, the system can be operated for the economical production of fruit and vegetable juice. You don’t need a high-pressure cleaner, so you save on electricity costs when pressing. All you need is a compressor with 8-bar pressure and a ½" water connection. • Fully automatic and infinitely variable belt speed control • Easy to clean • Easier maintenance • Rolling machine feet • Automatic belt correction Technical Information Rated output: 350 kg/h Working width: 400 mm Juice yield: up to 75% Power consumption: 0.55 kW, 400 V, 16 A Material: Wnr. 1.4301, AISI 304 stainless steel Air Operating pressure: 6 bar approx. 50 l/h Bedpfev Sq Nbex Aggewn Dimensions: Length: 1,080 mm Width: 1,070 mm Height: 1,320 mm Weight: 297 kg Optional: automatic juice draining

Condition: like new (used), functionality: fully functional, This line is designed for the production of all types of juices and compotes. It is engineered for continuous processing of the final product, with adjustable capacity up to 2,500 l/h for juices and up to approximately 700 l/h for apple compote. For products with viscosities between juices and compotes (such as purées), throughput ranges from approximately 700 to 1,500 l/h. The line is suitable for a wide variety of applications, including pomegranate juice, apple compote, and similar products. The processing line is capable of heating the selected flow from an adjustable inlet temperature between 30°C/50°C (or as low as 20°C for juices) up to a pasteurisation temperature of 95°C, before cooling the product down for pouch filling, with a setpoint temperature at 75/80°C. INCLUDES: - LOAD CELLS FOR ACCURATE DOSING/MIXING - AUTOMATIC CIP CLEANING SYSTEM - MULTITUBULAR HEAT EXCHANGER THE LINE CONSISTS OF: - 2 TANKS: - BRAND: SACOME - AGITATOR MOTOR POWER: 2 HP EACH Bodpfoynkgcox Aggswn - MANHOLE INCLUDED - EQUIPPED WITH STAINLESS STEEL VACUUM PUMP - TOTAL TANK HEIGHT: 1.90 M - INTERNAL DIAMETER: 1.18 M - CAPACITY: 2,000 LITRES (EACH) - 1 DEAERATOR TANK: - BRAND: SACOME - CAPACITY: 700 LITRES - 45° CONICAL BOTTOM - SIDE MANHOLE INCLUDED.

Condition: new, capacity 750 l/h Bwedpfxeyw Hu Ae Aggen heater capacity 70 kW electrical power 1,1 kW electric outlet 400V 50Hz (three-phase) fuse 16 A dimensions: length 1 165 mm width 795 mm height 1 805 mm weight 463 kg Gas consumption liquid gas approx. 5.5 l/h Gas consumption natural gas approx. 7.5 m³/h Max. exhaust temperature: 210°C

Condition: excellent (used), Offer for juice pressing line: - Flottweg B-FRU-1500 LR press, year 2004 - mill/crusher Bjdpfx Agjyc D N Tsgjwn - mash pump - Flottweg control cabinet - juice pump - slotted filter for water from belt washing - water pump - pulp pump - process cabinet All machines and equipment are made of acid-resistant stainless steel. The price is for the complete set of machines.

Condition: new, capacity up to 2400 kg/h power: drive motor 0,75 kW washing machine motor 0,37 kW electric outlet 400V 50Hz (3 phases) fuse 16 A dimensions: Bsdpjy At Elefx Aggown length 2 920 mm width 1 750 mm height 1 463 mm insertion resp. discharge height 1 290mm belt width 900 mm spread width 680 mm spread height (9 stages) 10 - 50 mm weight 1800 kg material 1.4301 / AISI 304 juice yield up to 75 % belt speed (continuously) 1,0 - 3,5 m/min lead time 1 - 4 min water consumption for cleaning 5 l/min connections: sewage connection DN75 juice discharge connection 1 1/2 " juice discharge height 300-440 mm sewage discharge height 64 mm pomace discharge height 790 mm suitable for pomaceous and stone fruit scope of delivery high-pressure cleaner, compressor

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: contino spezial 260, total length: 10,200 mm, total width: 2,532 mm, total height: 2,487 mm, water consumption per time unit: 4 l/min, input voltage: 400 V, type of input current: three-phase, input frequency: 50 Hz, pressure: 6 bar, temperature: 80 °C, heating capacity: 50 kW (67.98 HP), power: 75 kW (101.97 HP), waste water connection: 50 mm, water pressure: 2 bar, water connection: 25 mm, Equipment: documentation/manual, Machine description - the lids of the crates can be folded down to the side, total transport height approx. 1000 - 1050mm - the two track belts each have 2 guides on the side, one guide each from above and a cam spacing of 700mm - Feed zone with 1500mm straight length with drive, working height approx. 1000mm - Main washing zone with 2700mm length, tank 600l with heating 50kW, (20kW possible via hot water) washing temperature 55-60°C, 1 stainless steel centrifugal pump 7.5kW 1500l/min at 2bar, stable external box filter, brush cleaning takes place after the first spray cleaning with an external brush, then repeated spray cleaning, - 1800mm rinsing zone with approx. 150 - 250l/h via direct fresh water supply, the fresh water is supplied hot at at least 60°C; 500mm feed zone with top suction connection (stainless steel radial fan, DN 250 connection); 1800mm long blow-off with 2 5kW fan motors; 500mm long discharge table Washing, rinsing and drying system length 8800mm Hourly output (adjustable with LENZE frequency inverter) approx. 250-300 crates with hinged lids (cross flow) or 500 lids in longitudinal flow incl. label removal with lateral brushes (LENZE drive 0.37kW) Brush cleaning takes place after the first spray cleaning with an external brush, followed by a second spray cleaning, Additional hot water heat exchanger in the machine, Drum filter for automatic label discharge, with this equipment the dirty water in the main flow is fed through a drum filter, the label dissolution and mash formation is significantly reduced, the washing tank capacity can be used for several shifts without changing Bwedpfsrr Smlox Aggon Gravity roller conveyor for Euro pallets, internal width 840mm, very stable design made of 4mm thick stainless steel sheet, the rollers are made of galvanized steel 5000mm The machine has the following connections: - Fresh water at approx. 60-80°C 3/4", flow pressure min. 2 max. 6bar via hose connection 3/4" - Electricity: max. approx. 50kW, 400V 50 Hz - Waste water DN 50 discharge into floor drain - Hot water 1 1/4" flow and return, flow temperature min. 80°C, flow rate approx. 3-4m3/h Key advantages of our machines: - completely double-walled, sound and heat-insulated machine housing, manufactured in one piece and completely welded, low energy consumption - reliable operation, very long service life - long washing treatment and nozzle and washing system refined over the years = excellent washing results - Nozzle arms can be removed and cleaned without tools, stainless steel nozzles with large passage and optimized droplet size = good cleaning effect + insensitive to soiling - Washing tunnel designed for crate size 300x400x600mm - Use of first-class attachments, e.g. LENZE drive and frequency converter, EDUR stainless steel centrifugal pump, stainless steel ELEKTROR Esslingen blow-off motor with motor separation and SIEMENS switch cabinet components
