Milling machine

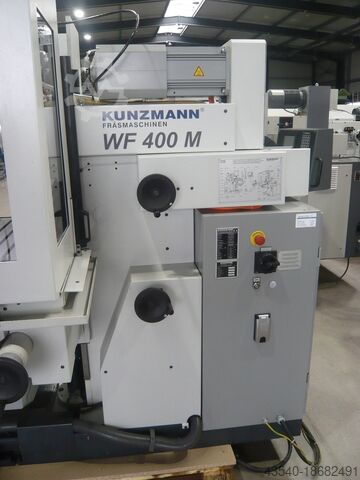

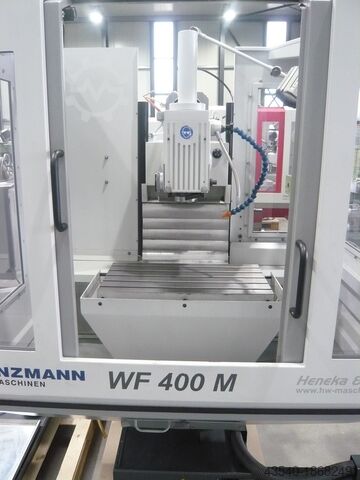

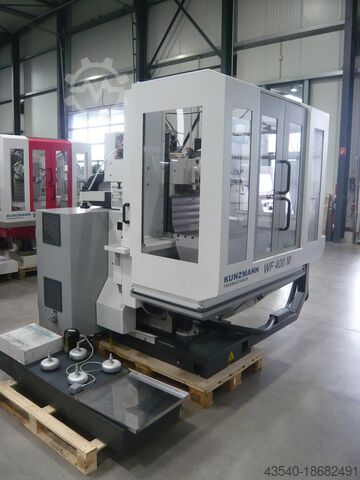

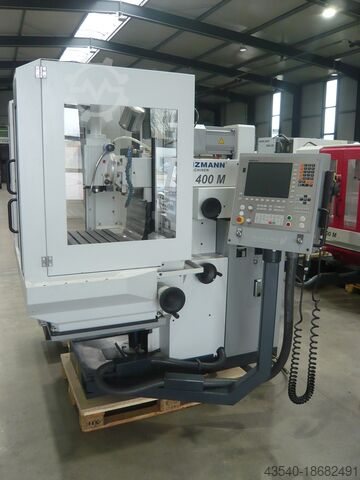

Kunzmann WF400M

Kunzmann WF 400M tool milling machine with Heidenhain TNC 128 path control. As good as new. CE-compliant!!

Technical data:

>> Year of manufacture 2016 (demonstration machine delivered in 2019)
>> Milling table clamping surface 600 x 375 mm

Clamping slots 5

Slot width 14 H 7

Maximum load 250 kg
>> Speed range 1-4500 rpm
>> Feed up to 2000 mm/min
>> Rapid traverse X and Y axis 5000 mm/min

Z axis 4000 mm/min
>> Travels X/Y/Z: 410/350/450 mm
>> Vertical quill and horizontal quill - SK40
>> Hydraulic tightening system
Crsdpfov Ifx Njx Agmeh
>> Weight approx. 1700 kg
>> Dimensions approx.: 2 x 2 x 2 m
>> Power consumption 12KVA

Accessories and equipment:

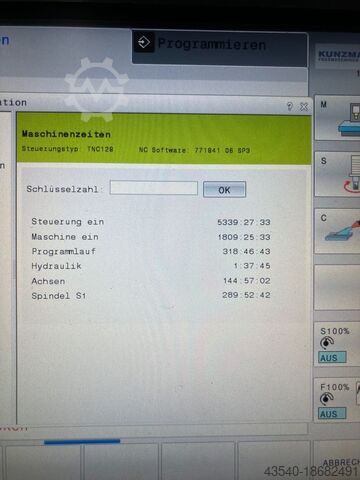

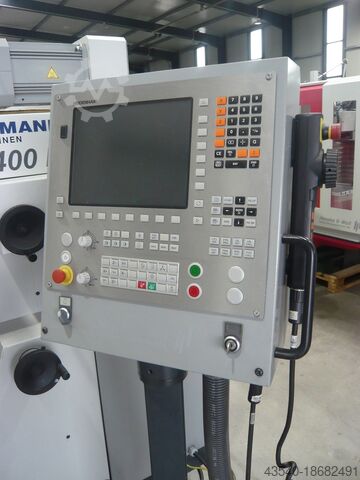

>> Heidenhain TNC 128 path control
>> Hydraulic clamping vertically and horizontally
>> Automatic central lubrication
>> Electronic handwheel HR410
>> Chip splash guard cabin
>> Spindle brake
>> Technical documentation, spare parts plans, operating instructions
>> Coolant system

About the machine:

A Kunzmann WF 400M tool milling machine with a Heidenhain TNC 128 control is offered. The TNC 128 provides numerous dialog-guided cycles with graphic simulation for quick and easy data entry, e.g.: various drilling cycles, thread cutting, hole circles, rows of holes, rectangular pockets, rectangular tenons and line cutting of surfaces.
This universal milling machine was a demonstration machine built in 2016, it was only sold to a training company in 2019. It is in mint condition. A very easy-to-use control. The machine also has hydraulic clamping vertically and horizontally. Converting from vertical to horizontal is very easy, by folding away the vertical head. The guides are regularly lubricated by the central lubrication system. The Kunzmann was mechanically and electrically tested by us. Take the opportunity to view and try out the Kunzmann on site with power on.
