Wide planer

Kupfermühle VUIN 605

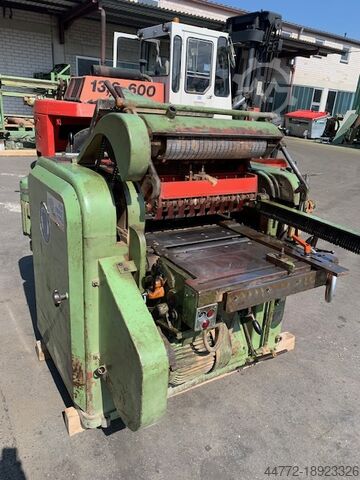

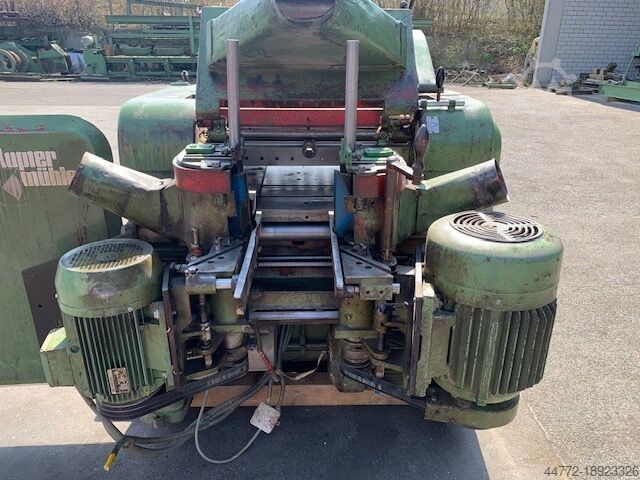

Condition: used, Year of construction: 1972, Empty weight: 3.000 kg Dimensions (LxBxH): 180 x 170 x 200 cm Four-sided planer Küpfermuhle 600 planing width 600 mm planing height 190 mm Crodpfewnhbxex Agmoh Angled bottom cutterblock 9 kW Top inclined cutterblock 11 kW Vertical spindle right 4 kW Vertical spindle left 5.5 kW Dimensions approx. 1800 x 2000 x 1700 mm (LxWxH), Weight 3000. - Year: 1972 - Documentation available: No - Serial number: 9552 - Transport dimensions: 1800mm x 1700mm x 2000mm (l x w x h) - Transport weight [kg]: 3000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

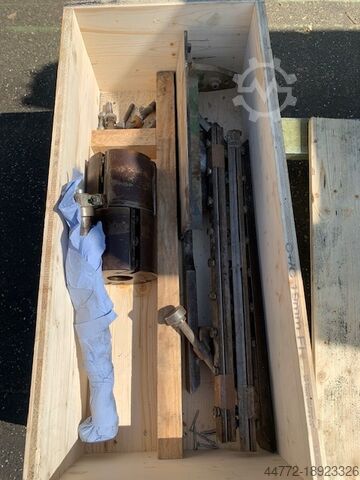

Condition: excellent (used), Feed rollers for DOIN 605 VUIN 605 Crjdpfeic T R Rox Agmjh DK 14 and other spare parts and accessories

Condition: good (used), Code: 0046 Brand: KUPFERMUEHLE - GERMANY Model: DOIN - VUIN 605 2-shaft planing machine + multi rip saw for wood carpentry, wood beams, roofing, sawmill, coffins and various Credov D N Efepfx Agmjh Technical data: Heavy cast iron structure Working width mm 605 Min/max working height mm 3/200 Min workpiece length mm 350 Automatic group lifting with possibility of manual adjustment Feed speed mt/min 7 - 9 - 11,5 - 14 - 18 - 23 Infeed table with 3 support guides and motorized top feed rollers Height adjustable guide saw unit - Motor Hp 2,5 - Blade diameter mm 180 - Suction port mm 120 Motorized towing roller on the table 1° shaft surface planer with 4 knives - Motor Hp 7,5 - Suction port mm 120 2° shaft thickness planer with 4 knives - Motor Hp 12 - Suction port mm 160 - Motorized towing roller on the table 3° Multiblade saw shaft - Motor Hp 40 - Blade diameter mm 230 - Cutting height mm 50 - Upper suction port mm 160 - Lower suction port mm 160 N° 2 upper motorized towing rollers and N°1 lower roller Control panel Overall dimensions mm 3300 x 1650 x 1600 h Weight kg 4000

Condition: ready for operation (used), Wide planer Constant table Maximum planing width: 605 mm Crsdpfxswg S Tvo Agmeh Planing height (2 sides): 200 mm Planing height (4 sides): 170 mm Planer blocks with 6 knives
