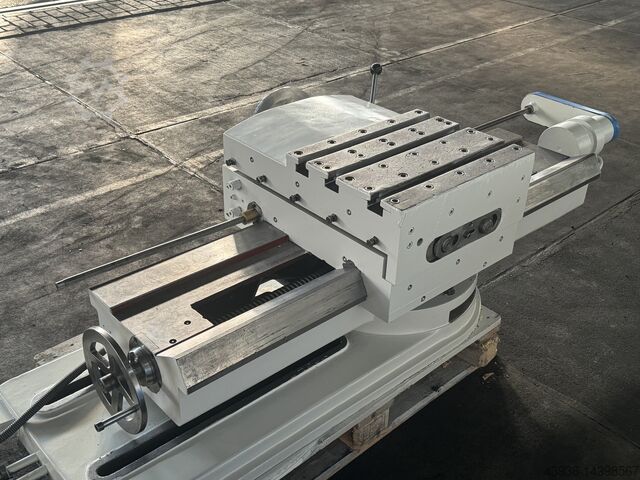

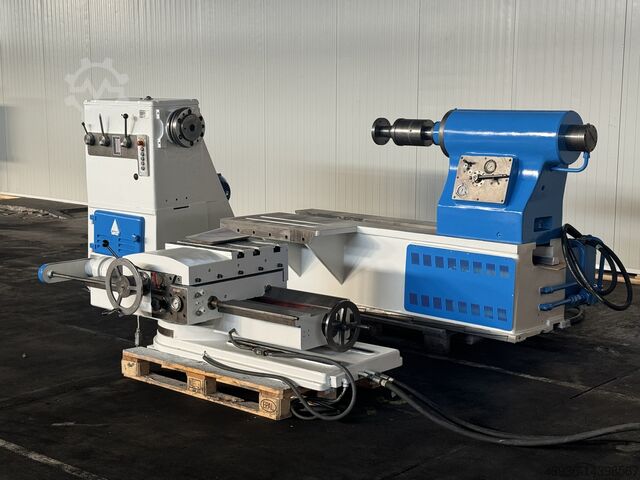

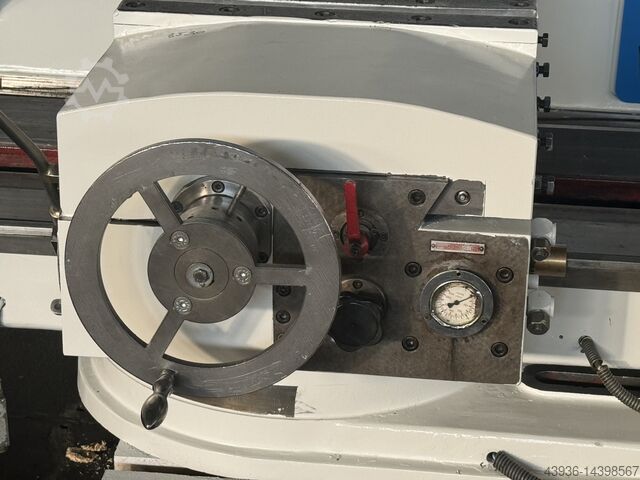

SPINNING LATHE

LEIFELD PLB 1200

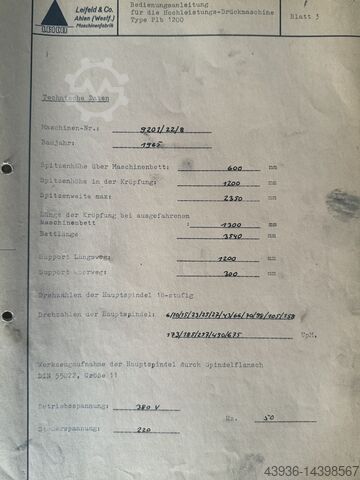

Condition: good (used), Year of construction: 1970, center width: 2,350 mm, center height: 2,400 mm, Max. blank / workpiece over bed:2400 Centre height over bed: 1200mm Distance between centers: 2350mm Length of the gap: 400mm Maximum sheet thickness: 6mm Stroke X-Axis: 1200mm Stroke Y-Axis: 300mm Speedrange: 6 - 675Rpm Power: 40kW Stroke pinole quill: 1200mm Length: 4500mm Kodpjxtaxwsfx Aayjdw Width: 3200mm Height: 2500mm Weight: 10200kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: not inspected (used), Year of construction: 1998, machine/vehicle number: 2183, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 300 kg, total height: 3,250 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, table width: 380 mm, table length: 600 mm, table load: 300 kg, overall weight: 4,500 kg, travel distance W-axis: 450 mm, Equipment: documentation/manual, THIS MACHINE IS SOLD EXCLUSIVELY WITHIN THE EU – THANK YOU FOR YOUR UNDERSTANDING! Item type: CNC Coordinate Grinding Machine Manufacturer: HAUSER Model: S35-400 Year of manufacture: 1998 Machine number: 2183 Condition: According to the previous owner and a Hauser specialist, the machine is in good condition. Terms of delivery: Free loaded onto truck Availability: Immediately (subject to prior agreement) Location: Magdeburg Kjdpfxjwakqys Aayodw Technical data: • Control: GE Fanuc Series 16-M • Tool holder: Collets EX 19 or grinding arbors E19 • Travel X / Y / W axes: 500 / 300 / 450 mm • Feed rate X & Y axes: 0 – 2000 mm/min • Feed rate W axis approx.: 900 mm/min • Table dimensions: 600 x 380 mm • Max. table load: 300 kg • Grinding spindle speed stepless: 9,000 – 60,000 rpm • Z-axis stroke speed stepless: 0.5 – 14,000 mm/min • Fire extinguishing system • Further technical data – see pictures Scope of delivery: • Grinding motor 60S (9,000 – 60,000 rpm) – see separate pictures • Extraction system • Coolant system • Dressing turbine • Available manuals • The clamping equipment visible in the pictures as well as the currently mounted grinding motor are NOT included in the scope of delivery! Dimensions & weights: • Installation dimensions (L x W x H) approx.: 4,250 x 4,000 x 3,250 mm • Weight approx.: 4,500 kg If you have any questions or would like to arrange a viewing, please feel free to contact us. Additional notes: The tool changer is not operational – according to the previous owner, it was never needed anyway! • On request, we can arrange transport to the destination. • The offer price is net plus VAT. • The goods are sold under exclusion of any warranty! • The sale is exclusively to business customers! • Technical data subject to change and without guarantee. • Subject to prior sale.

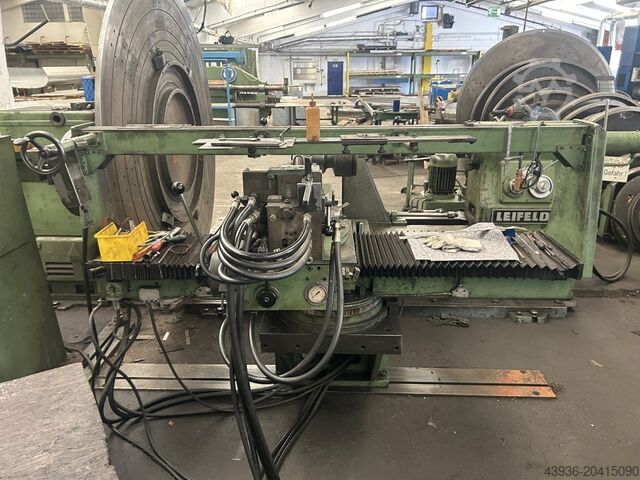

Condition: good (used), Year of construction: 1980, center width: 2,350 mm, center height: 1,200 mm, product height (max.): 6 mm, Manufacturer: LEIFELD Type: PLB 1200 Year of construction: 1980 Specifications: Metric Metric US Standard Max. Product over bed 1200 Max. Product in the pit 2260 Ø Center height above the bed 600 mm Distance between the centers 2350 mm Length of the gap 400 mm Max. Sheet thickness 6 mm Stroke X-Axis 1200 mm Stroke Y-axis 300 mm rotational speed 6 - 675 rpm Power output 40 kW Tailstock quill 750 mm Dimensions (estimate) length 4500 mm width 3200 mm height 2500 mm Kedpfx Asq Dqdijayjdw weight 10200 kg Please note: The information on this page is given in good faith and to the best of our knowledge and belief, and where possible obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: excellent (used), Polish production Rafamet lathe for sale, efficient machine in good condition after employing electrics and management by Rafamet. The machine worked until the very end, currently disassembled loading machine. Technical data Track width (for normal version) - 1435 mm Track width (for special execution) - 1524 or 1676 mm Wheel diameter - 800-1500 mm The minimum distance between the axes of the sets - 1500 mm Maximum axle clamping on the rails - 25 tons Rotation of drive rollers (stepless) - 15-82 rpm Circumferential speed of drive rollers - 7.5-43 mm/min Feeds of copying supports (stepless) - 0.95-34 mm / min Travel of external jacks - 540 mm/min Travel of hydraulic jacks - 410 mm/min Slide travel - 2300 mm/min Sliding rail travel - 9000 mm/min Kdodpfxjmidwco Aaysw Weight including standard equipment 25 200 kg Installed power 83kW (after modernization 58kW)

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 120 mm, travel distance W-axis: 450 mm, For sale: Hauser coordinate grinding machine, model S35-400 The machine is in excellent condition and underwent a partial overhaul in 2024 for €15,000. The machine is equipped with 6 high-quality grinding motors, a face motor, and turbines. TECHNICAL DATA Distance between column and spindle: 365 mm Clearance between table and spindle: 485 mm Main spindle diameter: 100 mm X-axis: 500 mm Y-axis: 350 mm Z-axis: 120 mm W-axis: 450 mm U-axis: 5.5 mm Maximum taper grinding: 16° Table size: 600 x 380 mm T-slots: 6 units, 10 mm width, 50 mm spacing Table load capacity: 300 kg Speeds and Tool Holders Speed 22S: 4,500 - 22,500 rpm 45S/45ST: E19 Speed 45S/45ST: 9,000 - 45,000 rpm 80S: F6 Speed 80S: 40,000 - 80,000 rpm T10/T16: Ø 3 mm Speed T10/T16: 100,000 / 160,000 rpm Slot grinding attachment: 2,900 - 34,500 rpm Planetary movement: 5 - 250 rpm C-axis: 0 - 5 rpm Kjdpfx Aswtqthoayedw X/Y feed: 0 - 1,200 mm/min W-axis feed: 900 mm/min Z-axis feed: 0.5 - 12,000 mm/min MACHINE DETAILS Digital measuring accuracy: 0.001 mm Base deviation: 0.003 mm Power: 7.5 kW Compressed air requirement: 20 m³ System pressure: 5 bar Footprint: 3.5 x 4.4 m Machine height: 3.5 m Connection value: 8.3 kVA Weight: 3.1 t EQUIPMENT - Slot grinding attachment - Rotary table, 300 mm diameter - Swivel table, 200 mm diameter - Coolant system - Extraction unit - Very high-quality accessories included Transportation and loading can be arranged across Europe at extra cost upon request. Prices plus VAT. Viewing by appointment is possible. Contact us—our team is happy to assist you. Trade-in or exchange possible! MACHINE PROCUREMENT / SALES PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: used, SCHULER TYPE 315-400 PRESSURE: 315t LENGTH OF STROKE: 30-160mm Kedpfx Aorgp N Hjayjdw STROKES PER MIN: 36

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets Kodpfx Aaovk E Nmoyodw - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: used, WIDTH 1250 MM DEPTH 1700 MM HEIGHT 5000 MM (3000 + 2000) Kjdpfot Hrymjx Aayjdw NR 20 T-SLOTS
