Glass laminating line

Lisec

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC vertical glass processing centre with waterjet Working direction: from left to right Max. glass size: 6000 x 3300 mm Min. glass size: 600 x 200 mm Glass thickness: 3 - 25 mm Max. grinding speed: 25 m/min Ibsdpez Syvxofx Acpoc Line consists of: - Vertical CNC glass working centre SYSTRON proHD 6033 (year: 2016), - High-pressure waterjet pump THYSSENKRUPP HPS 4037, - Vertical glass washing machine LISEC VHW-33/V8 (year: 2011). Types of processes: - Grinding (inner and outer contours), - Polishing (inner and outer contours), - Drilling/counter-sinking/milling (by waterjet), More technical information can be found attached as Tech. data file Very good and clean condition Good working order, still in production As is Available in December, 2026

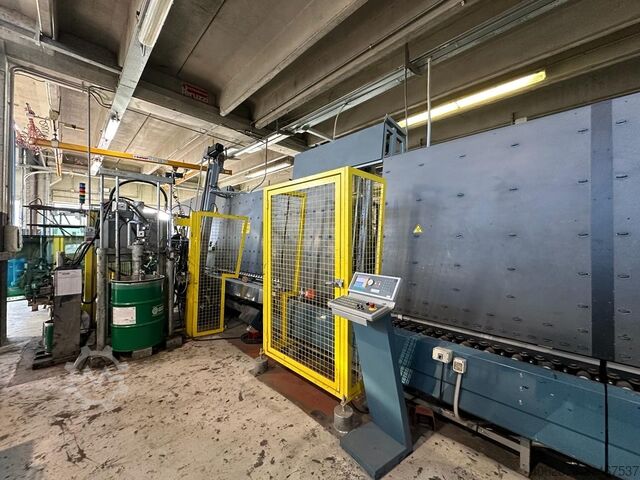

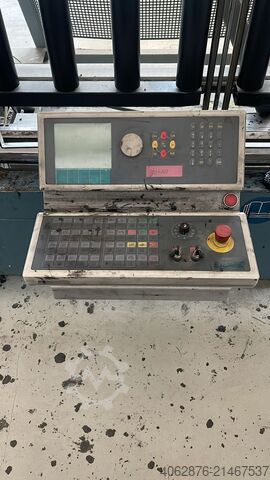

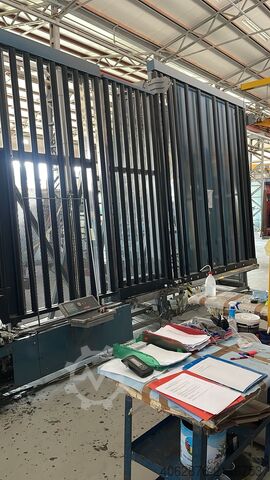

Condition: good (used), Washing machine: GTA, year of manufacture: 2003 Press: ZP 3.1, year of manufacture: 1995 Sealing unit: VFL-1D/27. Year of manufacture: 2009 Dosing unit: DOS-1PSD. Year of manufacture: 2009. Material: polysulfide. Main components: Glass washing machine with inlet and outlet up to and including the gas press, inspection station, gas-filling press with outlet up to the end of the automatic sealing unit, automatic sealing unit. System configuration: see sketch Max. glass height: 2700 mm Max. glass length: 3500 mm The washing system’s drives have been refitted with new bearings. This very well-maintained system is still in operation. Viewing is possible by appointment. Ibedpoz Scanjfx Acpjc Condition: good, second-hand

Condition: good (used), Year of construction: 1998, The machine is still in use. However, it is ready for pickup if needed. Length: approx. 3000 mm Iedpfx Acez Rn T Nspsbc Depth: approx. 700 mm Height: approx. 850 mm Weight: 750 kg Condition: good, second-hand

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, total length: 8,200 mm, total width: 3,800 mm, overall weight: 5,250 kg, Tiltable automatic float glass cutting table Ibedpfxoz N Dquo Acpsc for jumbo sizes : 6000 x 3210 mm min. glass size : 350 x 180 mm glass thikness : 2,3 - 19 mm This table has NO option for low e deletion

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, total width: 2,500 mm, total height: 3,500 mm, input voltage: 400 V, feed length X-axis: 2,500 mm, feed length Y-axis: 3,500 mm, overall weight: 3,550 kg, type of input current: three-phase, power: 17.06 kW (23.20 HP), Equipment: documentation/manual, Used Lisec VL-1N/25 insulating glass manufacturing machine for sale, year of manufacture: 2009. Type: VL-1N/25 Serial number: 361-053012 Ibodpsz Nkh Tsfx Acpec Weight: 3,550 kg Total load current: 24.60 A Apparent power: 17.06 kVA Voltage: 3/N/PE-50Hz 400 V Pressure: 6.00 bar Maximum material load: 250 kg/m Auxiliary current: 8.0 A AC/DC voltage: 400 / 24 V LISEC VL-1N/25 automatic thermal insulating glass sealing robot – 2500 x 3500 mm. Automatic edge sealing machine designed for applying secondary sealant to thermal insulating glass units. The machine consists of an infeed and an outfeed section, as well as a discharge station. A separate measuring unit located in front of the machine measures the thickness of the glass panes, the air gap between them, and the total thickness of the thermal insulating glass unit. The top edge of the thermal insulating glass unit is guided by a horizontal roller beam. This allows the glass units to pass at a defined distance in front of the back panel in the sealing sections. They are transported using a patented, wear-resistant conveyor chain, which supports the lower edge of the unit only minimally, leaving the sealing groove free for the application of the sealant. A linear-guided vacuum suction system integrated into the back panel ensures that the thermal insulating glass units are transported without slipping. The machine can also process polyurethane in 200-liter containers of component "A" + 20-liter containers of component "B", as well as silicone in 200-liter containers of component "A" + 20-liter containers of component "B". The machine can be viewed in operation and will be dismantled in mid-January. If you have any questions or require further information, please send us a message or call us.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, input frequency: 50 Hz, input voltage: 400 V, pressure: 6 bar, LiSEC, KSR-25, Right – Left, year 2010 Vertical Glass Edge Seaming Machine, h=2,50 m Vertical compact grinding machine for the seaming of glass sheets on all four sides in a fully automatic cycle. Inspection during production is possible by appointment. In very good working condition. Ibodev Eguyjpfx Acpsc Available: March / April 2025.

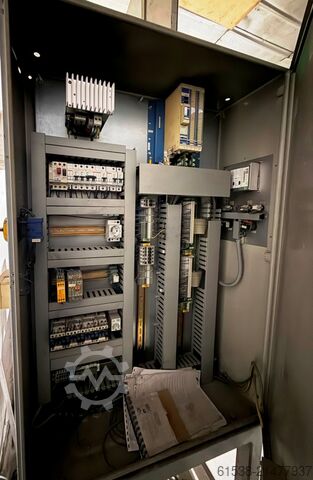

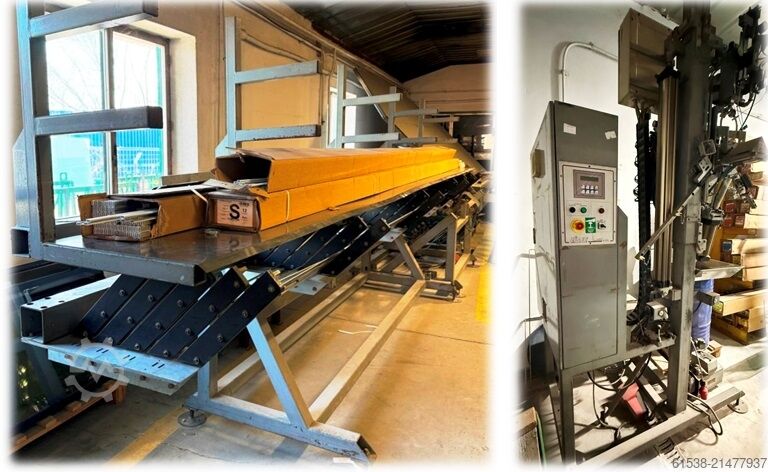

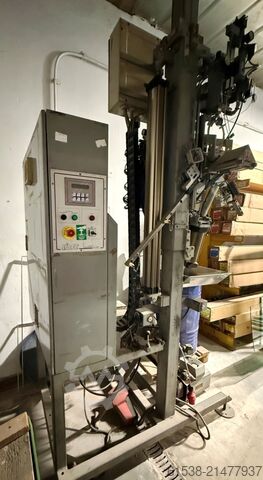

Condition: good (used), Year of construction: 1995, Includes bending tool The machine can process: aluminium, Chromatec/stainless steel. Suitable for moulds and models. Isdpfxexm Tn Es Acpobc 4-compartment profile magazine. Total length: 12,000 mm Max. height: 2,760 mm Depth: approx. 2,000 mm Weight: approx. 2,500 kg

Condition: used, Year of construction: 2002, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, Automatic Lisec butyl application machine, left to right, year 2002, consisting of: Isdjz Ipcrspfx Acpjbc FRS-25Z, overhead frame conveyor for supply RZVS-25/25, frame lift (down to butyl machine level), including frame measuring device LBH-25AR, automatic butyl application machine, 2×7,5 kg butyl cylinder capacity, suitable also for Georgian bars RAVS-25/25, frame lift (up to overhead frame conveyor) FRS-25A, overhead frame conveyor down to frame set section The machine is available from our stock in Hofkirchen/Austria and can be seen in our warehouse on appointment

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 030-062962, type of input current: three-phase, input voltage: 400 V, input frequency: 50 Hz, pressure: 8 bar, cutting length (max.): 6,000 mm, LiSEC ESL-6030RS-L – Automatic Glass Cutting Line Complete automatic LiSEC line for precise and high-speed cutting of float, Low-E and laminated glass. Manufactured in 2013, the line consists of four interconnected components that together form a complete system for glass loading, transport, cutting and breaking. The cutting table is equipped with a magnetic drive and a Low-E coating removal head, allowing coating removal and glass cutting within the same process. Line Components: 1. Float and Low-E Glass Cutting Table - Model: LiSEC ESL-60/30RS-L - Serial number: 030-062962 - Year of manufacture: 2013 - Glass thickness: 2–19 mm - Cutting of straight and irregular shapes - Low-E coating removal system 2. Laminated Glass Cutting Table - Model: LiSEC VB-33 - Serial number: 040-014769 - Year of manufacture: 2013 - Designed for cutting laminated glass - Supported configurations: 33, 44, 55, 66 and 88 3. Glass Breaking Table - Model: LiSEC BTS-37/33 - Serial number: 054-054715 - Year of manufacture: 2013 - Weight: 1,525 kg - Maximum load: 55 kg/m² - Power supply: 400 V, 50 Hz - Connected load: 10.89 kVA - Operating pressure: 8 bar - Protection rating: IP32 4. Tilting and Transport Table - Model: LiSEC ATH-60/30FD - Type: Double-Sided Moveable Glass Un/Loading Station - Serial number: 011-071248 - Year of manufacture: 2013 - Weight: 6,040 kg - Maximum load: 48 kg/m² - Power supply: 400 V, 50 Hz - Connected load: 7.80 kVA - Operating pressure: 6 bar - Equipped with new mechanisms and vacuum suction cups for handling glass sheets Condition: - The complete production line is in good working condition and fully operational, - Documentation and additional technical information are available upon request, Isdez Ilrijpfx Acpebc - A set of spare parts is included with the production line, along with an estimated value of the spare parts, - The production line will be available for collection from December 2026, - On-site inspection of the machinery is possible by prior arrangement. Note: - Glass racks for jumbo glass sheets are not included in the sale (we provide drawings for their construction) - The metal guideways in the floor for the Tilting and Transport Table are not included in the sale

Condition: good (used), Year of construction: 1993, EL. connected load: 44.2 kW 6 washing brushes/good condition Working direction: right/left Ibsdpfxowx H Tbs Acpoc Washing height: 2500 mm Inlet to washing machine l=3200 mm Outlet to washing machine l=1100 mm
