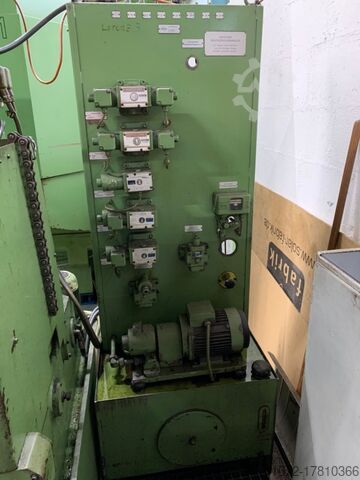

Gear Shaping Machine

LORENZ SN 4

Condition: used, max. wheel diameter 180 mm gear width 45 mm max. module 4 Knsdpfx Akotycg Sjweb min. module 0,5 stroke length max. 0 - 52 mm spindle taper innen MK 4 table diameter 160 mm table bore diameter 75 mm no. of strokes 355 - 630 Hub/min feed range 0,008 - 0,4 mm/Hub dimensions of the machine ca. 2,30 x 1,50 x 2,36 m power capacity 6 kW weight of the machine ca. 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981

Condition: new, Year of construction: 2026, 540×250 Surface Grinder (MYS1022) is a compact machine designed for precision grinding of small and medium-sized metal components. Its robust construction and advanced technologies ensure high machining accuracy and reliable operation in demanding industrial environments. Ksdpfxokkcm Uo Akwonb Main advantages of the 540×250 (MYS1022) surface grinder The 540×250 (MYS1022) magnetic surface grinder is an ideal solution for industrial facilities requiring precise machining in a compact format. Designed for professional users, it combines advanced technologies such as hydraulic feed in two axes and precision guideways with a solid construction, ensuring reliability and high machining efficiency. Its compact dimensions and high accuracy make it an excellent choice for smaller workshops and production facilities where space is limited. Key benefits include: High grinding precision – maximum grinding area of 540 × 240 mm and transverse feed accuracy of 0.02 mm ensure excellent surface finishing quality. Compact construction – dimensions of 1800 × 1400 × 1800 mm and a weight of 900 kg allow easy installation in smaller production facilities. Smooth hydraulic feed system – two-axis feed system enables precise movements with transverse speed up to 600 mm/min, ensuring efficient machining. Stability and durability – robust construction with double guideways minimizes vibrations, guaranteeing stable operation during intensive use. Easy maintenance – centralized guideway lubrication reduces manual maintenance requirements and increases machine availability. Ready for operation – the machine is fully equipped for immediate production, minimizing setup and downtime. Machine design and technology Robust construction and precision components The MYS1022 surface grinder features a heavy-duty construction weighing approximately 1000 kg, providing excellent stability during machining operations. Hardened and ground linear guideways eliminate vibrations, ensuring smooth table movement and high-quality surface finishes. The spindle, driven by a 1.5 kW motor, operates with a grinding wheel measuring 200 × 20 × 32 mm, enabling efficient processing of various metal materials. Technical specifications Parameter Value Table dimensions 500 × 250 mm Longitudinal / transverse travel 560 × 260 mm Maximum grinding area 540 × 240 mm Maximum distance from table to spindle centerline 490 mm Table guideways Double guideway Transverse movement per vernier scale division 0.02 mm Transverse movement per handwheel revolution 2.5 mm Vertical movement per vernier scale division 0.01 mm Manual vertical movement per handwheel revolution 1.25 mm Grinding wheel dimensions 200 × 20 × 32 mm Grinding wheel speed 2850 rpm Main motor power 1.5 kW Hydraulic oil tank capacity 80 L Hydraulic pump motor power 1.5 kW Coolant pump motor power 40 W Machine dimensions 1800 × 1400 × 1800 mm Weight 1000 kg Standard equipment Magnetic table Grinding wheel Grinding wheel holder Cooling system Chip separator with magnetic filter Halogen lighting system Technical documentation (DTR) CE declaration

Condition: used, Year of construction: 1992, max. wheel diameter 150 mm gear width 300 mm max. module 4,5 min. module Kodpfx Akot Hwxbswonb total power requirement 20 kW weight of the machine ca. 6 t dimensions of the machine ca. m

Condition: ready for operation (used), Year of construction: 1988, SARATOV 5C280P Spiral Bevel Gear Grinding Machine - 2 machines Max. gear diameter: 800 mm Max. module: 16 Max. gear ring width: 125 mm Number of teeth: 5-150 Spindle speed range: 20-125 rpm Main motor power: 7.5 kW Overall dimensions (LxWxH): 3170x2180x2200 mm Weight: 15 t Video of the machine in operation available! SARATOV 5C276 Straight Bevel Gear Grinding Machine Kjdpfx Ajum Ez Rekwenb Module, mm: 10 Max. gear wheel diameter, mm: 500 Max. gear wheel cone distance, mm: 250 Max. gear ring width, mm: 80 Min. angle of dividing cone (pitch), degrees: 5 Number of wheel teeth: 10 – 150 Distance between spindle and machine center, mm: – max. (stock angle 5 degrees) 375 mm; – min. (stock angle 90 degrees) 75 mm Stroke, mm: 100 Slider double stroke, spm: 48 – 400 Motor capacity, kW: 4.0 Machine weight, kg: 8750

Condition: used, Year of construction: 1991, workpiece diameter 30 mm threading length 110 mm thread pitch 0,5-2,75 mm/GG total power requirement 4,5 kW weight of the machine ca. 1,7 t dimensions of the machine ca. m Knjdpfjt Hwzcox Akweb

Condition: new, Precision surface grinding machine with automatic longitudinal and transverse feed. All castings, such as machine stand, table, etc., are made of MEEHANITE® quality cast iron and are therefore ideally suited for rough everyday work. Ideal for tool and mold making. Table size: 250 x 500 mm Installation height (max. distance spindle/table): 500 mm Max. Table load: 250 kg Motor power main spindle: 1,5 kW Connection: 400 V Dimensions (LxWxH), approx.: 2250 x 1400 x 1800 mm Weight, approx.: 1350 kg* * only machine without auxiliary units Features: Knodpfx Aop Dt T Nekwob - All castings, such as machine column, table, etc., made of MEEHANITE® quality castings. - All guideways hardened and ground - Automatic cross and longitudinal feed - NC-controlled automatic vertical infeed - Ergonomically arranged control panel - Automatic central lubrication - Separate hydraulic power pack - Grinding wheel - Grinding wheel flange - Manual dressing device - Balancing mandrel - Balancing scale - Dressing diamond - Demagnetizing device - Machine light - leveling elements - Operating tool - Operating instructions - CE Available options: - Elektromagent clamping plate (fine-pole) - Automatic demagnetization control for electromagent clamping plate - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Coolant system with magnetic separator / magnetic separator - Partial enclosure with limit switch protected sliding doors - Full enclosure with limit switch protected sliding doors - Additional grinding wheel flange - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 - Ball screw for cross feed - Further options on request Pictures may show the machine with special accessories and with application examples.

Condition: good (used), Gear hobbing machine using the Fellow system, brand Alfred Herbert, max diameter 180 mm, max module 4, in good condition. Knedpfx Asy Swmfjkwob

Condition: used, total width: 1,500 mm, total length: 2,550 mm, total height: 1,700 mm, Empty weight: 2.000 kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Distance between centres [mm]: 700 - Centre height [mm]: 145 - Transport dimensions: 2550mm x 1500mm x 1700mm (l x w x h) - Transport weight [kg]: 2000kg - Transport packages [pcs.]: 2 Financial information Kodew Rywvepfx Akwonb VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum
