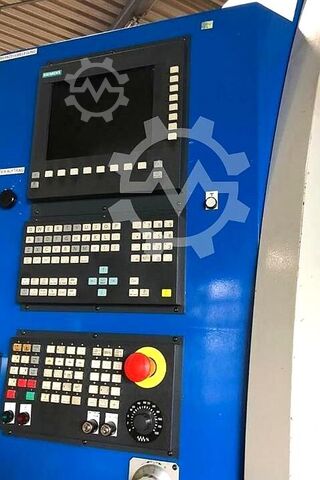

CNC Turning- and Milling Center

PFIFFNER-MANURHIN KMX-XL32

Condition: ready for operation (used), Year of construction: 2001, operating hours: 58,134 h, functionality: fully functional, machine/vehicle number: 25 03 - 01104608, turning length: 330 mm, turning diameter: 33 mm, rotational speed (max.): 8,000 rpm, feed length X-axis: 70 mm, feed length Y-axis: 225 mm, feed length Z-axis: 140 mm, Equipment and axis systems Turrets: 3 units with driven tools Gantry: 1 unit with driven tools C-axes: main and sub spindle with C-axis TECHNICAL DETAILS Turning diameter: 33 mm Turning length: 330 mm Number of axes: 17 Controller: SIEMENS 840D Main Spindle Working area – max. bar capacity: Ø 32 mm Headstock travel: 350 mm Spindle bore: Ø 37.5 mm Spindle drive – AC motor power (100/40%): 8 / 12.5 kW Max. spindle speed: 8,000 rpm Spindle movement: left and right Spindle Feed Max. feed rate: 18 m/min Torque: 10.5 Nm Max. speed: 3,000 rpm Max. thrust: 3,000 daN Turret Heads (3 units) Rotary drive: gear motor Torque: 25 Nm Hydraulic locking – force: 2,500 daN Number of stations: 8 Tool clamping: VDI 30 Number of rotating tools: 4 Tool speed: 7,500 rpm Drive Motor power (100/40%): 5.5 / 7.5 kW Direction of rotation: left and right C-axis: included Feed Feed rate: 30 m/min Rated torque: 10.5 Nm Max. speed: 1,500 rpm Max. thrust: 3,000 daN Cross-Slide X1 – U1 Number of cross-slides: 1 Cross-slide travel: 70 mm Max. feed rate: 18 m/min Rated motor torque: 6 Nm Max. motor speed: 3,000 rpm Max. thrust: 500 daN Rear Tool Slide Number of slides: 2 U1 Slide travel: 70 mm Y1 Slide travel: 225 mm Max. feed rate: 18 m/min Number of stations: 6 Tool section: 20 x 20 Max. thrust: 500 daN Rated torque: 6 Nm Number of rotating tool holders: 1 / 4 Motor drive: 8,000 rpm Motor torque: 4.2 Nm Max. speed single spindle ER32: 2,000 rpm – 12.6 Nm 1 modular double spindle ER20: 6,000 rpm – 4.2 Nm 1 modular double spindle ER20: 8,000 rpm – 3.2 Nm Cross-Slide Number of slides: 2 X2 cross-slide travel: 140 mm Z2 feed slide travel: 120 mm Max. feed rate: 18 m/min Max. thrust on X2: 500 daN Rated torque: 6 Nm Max. thrust on Z2: 900 daN Rated torque: 10.5 Nm Turret Slide X3 Number of slides: 1 Travel: 80 mm Max. feed rate: 18 m/min Rated motor torque: 6 Nm Max. motor speed: 3,000 rpm Max. thrust: 500 daN MACHINE DETAILS Supply voltage: 3 x 400 V – 50 Hz Total power consumption: 30 kVA Cgsdpfxewm I Nts Ah Isp Continuous sound pressure level at workplace – machine only: 76 dB(A) Machine Dimensions Machine weight: approx. 6 t Space requirement: approx. 3,850 × 2,000 × 2,100 mm Operating Data Operating hours: 58,134 h EQUIPMENT - Bar loader - Equipment and axis systems - Turrets: 3 units with driven tools - Gantry: 1 unit with driven tools - C-axes: main and sub-spindle with C-axis

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, The positions of the rotating tools are: T01-02-03-04 / T22-23 / T34-35 - equipped with Iemca Boss 332E/32 new in 2006 - lot of collets / guide bushes - MSC-501 Control - the machine has always worked with oil. Codpfxjwpu Eto Ah Iogp

Year of construction: 2004, condition: excellent (used), Swiss type lathes MANURHIN K'MX overhauled with : – Spindle, counter spindle, geometry and changes of all non-conforming parts. Cjdpfx Ahsir Id Uo Iogp Rotating tool on: rear comb, front comb, end unit, radial and axial counter operation C-axis on: main spindle and counter spindle Rigid tapping on: main spindle and backworking spindle High-pressure Predispo Year of construction 2004 – approx. 22 000 h

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3,7/5,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3,7 / 5,5 [kW] Cgodpfeuhbdiox Ah Iop - C axis indexing precision : 0,001 [°] - Number of turrets : 1 LOWER TURRET - Number of positions : 12 - X/Z stroke : 90x65 [mm] - Y stroke : 50 [mm] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - X/Y stroke : 90 / 319 [mm] END ATTACHMENT - Number of positions : 12 - X/Z stroke : 215x305 [mm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2000x1280 [mm] - Machine height : 1720 [mm] - Machine weight : 3600 [kg] MACHINE HOURS - Number of hours under power : 23167 [h] EQUIPMENT - CNC : Fanuc 31i-B - Interface : Ethernet / RS232 / USB / PCMCIA - 3 colors status lamp - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank - Bar loader : Iemca Elite 220 (2010) - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: new, Year of construction: 2023, The K’MX 920 CLEVER sliding headstock automatic lathe is designed for machining complex workpieces up to Ø 20 mm. The lathe is equipped as standard with two electrospindles with a maximum speed of 12.000 rpm each. Cgjdpfxjk Dz Dio Ah Isp With its nine axes, comb + turret on three axes and independent end unit, this machine is capable of having four tools in the material for an optimised cycle time. 9 linear axis 1 independent rack with 10 positions Cross-section of outer tools 12 x 12 mm Turret number of stations 12

Condition: used, Year of construction: 1990, Technical details: spindle passage: 23 mm z-axis: 150 mm turning length: 150 mm stroke: x+z Achse / Axis/eje/eixo/os = 30 mm facing movement (x-axis): 30 mm longitudinal traverse (z-axis): 30 mm control: Num 760T spindle turning speed - continuous: U/min feed speed: x/y: 5 mm/min feed speed: z: 10 mm/min tool turret: 2 Stück/pcs mit je/each 6 tools operating pressure: max. 45 bar Cgsdpfsu Iwyvex Ah Ijp total power requirement: 8,0 kW weight of the machine ca.: 2,2 t dimension machine xH: 2,45x1,3x2,2 m dimensions of the bar loader L-W-H: 4,65x0,5x1,3 m techn. details: - bar clamping hydraulic -automatic workpiece discharge (via catch basket) - 2 turrets with each 6 tool tapers - coolant device - control NUM 760 (size: L:1,0xW0,8mxH:1,56m) Zubehör: - bar loader magazine make IEMCA type CS 112/31 accessories: -24 div. tool tapers - device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m) *

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW Cgjdevk E Nmjpfx Ah Ijp rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Cjdpfx Ahevkx Nyo Iegp Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.

Condition: new, MANURHIN K'MX 620 is designed for the productive machining of workpieces consisting of bars with a maximum diameter of 20 mm. The machine is equipped as standard with two electro-spindles with a maximum speed of 12,000 rpm and a rotating guide bush synchronised with the main spindle by means of pulleys and belts. Main features: - Max. bar material diameter 20 mm - 12,000 rpm on both spindles Csdpouqngqsfx Ah Ijgp - Main spindle power 3.7/5.5 kW - Spindle travel 210 mm - Number of tools in the cut at the same time: 2 - Power of rotating tools: 2kW - Number of stations: 22, 9 of which can be motorised

Condition: new, MANURHIN K'MX 520 is designed for the productive machining of workpieces consisting of bars with a maximum diameter of 20 mm. The machine is equipped as standard with two electrospindles with a maximum speed of 12,000 rpm and a rotating guide bush synchronised with the main spindle by means of pulleys and belts. Five CNC linear axes (X1, Y1, Z1, X2, Z2), two rotary axes (C1, C2). Main features : - Max. bar material diameter 20 mm - 12,000 rpm on both spindles - 8,400 rpm driven tools - Main spindle power 3.7/5.5 kW - Headstock travel 210 mm Cedpfx Ahouqirbo Isgp - Number of tools in the cut at the same time: 2
