Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 516220V00316, Year of construction: 2019, operating hours: 6,820 h, load capacity: 1,600 kg, lifting height: 3,180 mm, free lift: 150 mm, Equipment: sideshift, TECHNICAL DETAILS Load capacity: 1,600 kg Load center: 500 mm Load distance: 374 mm Wheelbase: 1,319 mm Lift height: 3,180 mm Free lift: 150 mm Length including fork carriage: 1,861 mm Fork thickness: 40 mm Fork width: 80 mm Fork length: 800 mm Fork carriage width: 980 mm Axle load with load front/rear: 4,160 / 565 kg Axle load without load front/rear: 1,500 / 1,625 kg Ground clearance with load under mast: 290 mm Ground clearance at wheelbase center: 114 mm Aisle width for pallet 1,000 x 1,200 mm (crossways): 3,186 mm Aisle width for pallet 800 x 1,200 mm (lengthways): 3,311 mm Turning radius: 1,487 mm Smallest pivot point distance: 1,487 mm Mast height lowered: 2,160 mm Mast height extended: 3,742 mm Height above overhead guard: 2,035 mm Seat height: 1,058 mm Coupling height: 473 mm MACHINE DETAILS Hjdpfxjyiaxzo Afcei Dimensions & Weight Dimensions: 2,661 x 1,099 x 2,160 mm Own weight incl. battery: 3,125 kg Mast height extended: 3,742 mm Height above overhead guard: 2,035 mm Seat height: 1,058 mm Coupling height: 473 mm Voltage: 48 V Capacity: 625 Ah Operating hours: approx. 6,820 h EQUIPMENT UVV 04/26 Charger Side shifter Seat with seat heating Blue Spot front and rear LED headlights: 2x front, 1x rear Windscreen with wiper Panoramic roof Digital display Interior rear-view mirror Operating manual Note: The upholstery is worn.

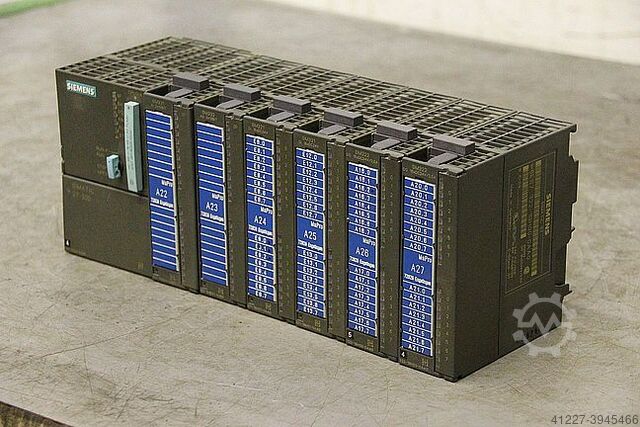

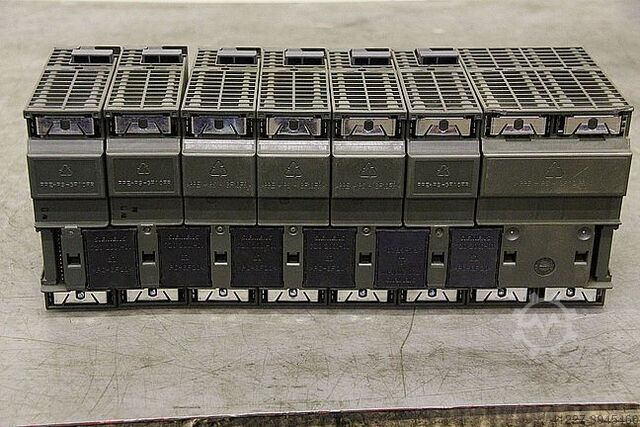

Condition: used, PLC control, electronic module -Type: Simatic S7 6ES7 314-1AE01-0AB0 -Number: 1 pieces available (photos) -Price: complete Hodpfx Ajd Ep U Isfcji -Weight: 2.2 kg

Condition: ready for operation (used), Year of construction: 2004, operating hours: 18,183 h, functionality: fully functional, machine/vehicle number: 15035709304, travel distance X-axis: 700 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 520 mm, swivel angle B-axis (max.): 180 °, swivel angle C-axis (max.): 360 °, The machine will remain powered until 06.03.2026. TECHNICAL DETAILS Travel distances X-axis travel: 750 mm Hsdpfx Afeymmpdscoi Y-axis travel: 600 mm Z-axis travel: 520 mm C-axis: ±360° B-axis: 180° Spindle type: SK-40 Spindle speed: 18,000 rpm Rotary table Clamping surface: 700 × 500 mm T-slot spacing: 63 mm Number of T-slots: 7 T-slot size: 14 H7 Centering bore: 30 H6 Rotary axis torque: max. 1,674 Nm Table rotation speed: max. 21.5 rpm Swivel torque: max. 2,019 Nm Swivel speed: 18.9 rpm Swivel range: 0 – 180° Input/display unit: 0.001° Maximum tool length from spindle nose: 315 mm Maximum tool weight (with automatic tool changer): 6 kg MACHINE DETAILS Control system: Siemens 840D Shop Mill Operating hours Power-on hours: 65,794 h Spindle hours: 18,183 h Dimensions & Weight Machine dimensions (L x W x H): 2,604 x 2,820 x 2,785 mm Machine weight (including base): 9,255 kg EQUIPMENT 5-axis simultaneous machining 32-position tool changer Chip conveyor IKZ (internal coolant supply) with 70 bar Blum TC50 spindle probe

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 516220V00299, Year of construction: 2019, operating hours: 6,310 h, load capacity: 1,600 kg, lifting height: 3,180 mm, free lift: 150 mm, mast type: duplex, Equipment: sideshift, TECHNICAL DETAILS Load capacity: 1,600 kg Load center: 500 mm Load distance: 374 mm Wheelbase: 1,319 mm Lift height: 3,180 mm Free lift: 150 mm Length incl. fork back: 1,861 mm Fork thickness: 40 mm Fork width: 80 mm Fork length: 800 mm Fork carriage width: 980 mm Hjdpfxjyia Dke Afcsi Axle load with load front/rear: 4,160 / 565 kg Axle load without load front/rear: 1,500 / 1,625 kg Ground clearance with load under mast: 290 mm Ground clearance at wheelbase center: 114 mm Aisle width pallet 1,000 x 1,200 crosswise: 3,186 mm Aisle width pallet 800 x 1,200 lengthwise: 3,311 mm Turning radius: 1,487 mm Smallest pivot point distance: 1,487 mm Mast height retracted: 2,160 mm Mast height extended: 3,742 mm Height over protective roof: 2,035 mm Seat height: 1,058 mm Coupling height: 473 mm MACHINE DETAILS Dimensions & Weight Dimensions: 2,661 x 1,099 x 2,160 mm Own weight incl. battery: 3,125 kg Mast height extended: 3,742 mm Height over protective roof: 2,035 mm Seat height: 1,058 mm Coupling height: 473 mm Voltage: 48 V Capacity: 625 Ah Operating hours: approx. 6,310 h EQUIPMENT UVV 05/26 Charger Sideshift Seat with seat heating Blue Spot front and rear LED headlights: 2x front, 1x rear Front window with wiper Panoramic roof Digital display Interior mirror Operator’s manual

Condition: like new (used), Year of construction: 2022, functionality: fully functional, total width: 6,370 mm, total length: 2,150 mm, total height: 2,300 mm, overall weight: 4,800 kg, 340cm sticky belt printer equipped with 8 NEW Kyocera print heads, printer condition like new. In operational status Hsdpfsxvb Ufox Afcoi

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: UWID/5000/97, grinding spindle speed: 10,000 rpm, feed rate X-axis: 20 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 20 m/min, center height: 150 mm, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 250 mm Travel Z-axis: 250 mm Feed rate X-axis: 0 - 20 m/min Feed rate Y-axis: 0 - 10 m/min Feed rate Z-axis: 0 - 20 m/min Centre height: 150 mm Usable table area: 980 x 185 mm Grinding head Swivel range: 240° Rotation speed: 120°/s Spindle diameter: 170 mm Spindle speed: 2,000 – 10,000 rpm Workpiece holder A-axis Indexing accuracy: ± 15″ Cumulative indexing error (at ∅ 100 mm): 8 µm Mount: ISO 50 Max. rotational speed: 50 rpm Position measuring systems resolution: 0.0001 mm / 0.0001° Tool magazine: 70 tools MACHINE DETAILS Control: NUM 1050 M with PC; Program memory: 512 KB Drive capacities Grinding spindle motor: 10 kW Table drive X-axis: 1.5 kW Workpiece holder A-axis: 1.5 kW Cross slide Z-axis: 1.5 kW Grinding head column Y-axis: 3 kW Grinding head rotation B-axis: 3 kW Electrical connection Hedpfxjyh I U Ij Afcji Connected load: 23 kW Main fuse: 63 A Operating voltage: 400 V, 50 Hz Control voltage: 24 V Lighting voltage: 230 V, 50 Hz Compressed air Air consumption: 10-12 Nm³/h Pressure min/max: 5/8 bar (500/800 kPa) Compressed air quality: ISO 8573-1, class 4 Ambient temperature Operation: 15°C - 35°C Weight: 7,400 kg Further documentation for the machine is available on request.

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 511903V00414, Year of construction: 2019, operating hours: 6,292 h, load capacity: 1,700 kg, lifting height: 5,750 mm, free lift: 1,880 mm, mast type: duplex, TECHNICAL DETAILS Load capacity: 1,700 kg Load center: 600 mm Hedpjyh Eppofx Afcji Load distance: 410 mm Wheelbase: 1,453 mm Free lift: 1,880 mm Lift height: 5,750 mm Fork dimensions: 50 / 100 / 1,150 mm Fork carriage width: 760 mm Fork outside width min./max.: 316 / 620 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,412 x 1,270 x 2,900 mm Weight: 3,470 kg Length incl. back of forks: 1,262 mm Mast height extended: 6,320 mm Overhead guard height: 2,200 mm Seat height: 1,140 mm Arm height: 308 mm Battery voltage / capacity: 48 V / 620 Ah Mast type: Duplex (side-shift) Operating hours: approx. 6,292 h EQUIPMENT Charger Blue Spot rear Operating manual UVV: 06/26

Condition: defective spare-parts repository (used), Year of construction: 2007, functionality: not functional, grinding length: 3,150 mm, grinding width: 800 mm, table load: 6,000 kg, grinding spindle motor power: 22,000 W, workpiece height (max.): 650 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Grinding length: 3,150 mm Grinding width: 800 mm Hsdeylk E Hepfx Afcoi Max. workpiece height: 650 mm Table surface dimensions: 3,150 x 600 mm Magnetic chuck dimensions: 3,000 x 600 mm Grinding wheel dimensions: 450 x 100 x 127 mm Max. table load: 6 t MACHINE DETAILS Control system: SIEMENS 840D Total power requirement: 70.6 kW Spindle power: 22 kW Dimensions & Weight Installation space required: approx. 11 x 3 x 2.4 m Machine weight: approx. 15 t EQUIPMENT Coolant system 2,500 l Magnetic holding force regulation Semi-automatic balancing system Note: The control unit boots up, but the MININI grinding software does not load for unknown reasons. The control hardware has been checked and is in order. Backup files are available.

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: H-H20140, travel distance X-axis: 610 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 15,000 rpm, number of slots in tool magazine: 24, TECHNICAL DETAILS Hodpfx Aoylk Eyefcsi X-axis travel: 610 mm Y-axis travel: 510 mm Z-axis travel: 610 mm Table size: 760 mm x 510 mm System: SK40 Speed: 15,000 rpm MACHINE DETAILS Machine weight: 4,700 kg Control: Ultimax EQUIPMENT 24-position tool changer Internal coolant supply (IKZ) Chip conveyor Electronic handwheel

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, total length: 90,000 mm, travel distance X-axis: 2,600 mm, travel distance Y-axis: 4,000 mm, table length: 4,000 mm, table width: 2,600 mm, TECHNICAL DETAILS Travel distance X-axis: 2,600 mm Travel distance Y-axis: 4,000 mm Table length: 4,000 mm Table width: 2,600 mm Maximum glass weight: 260 kg Glass thickness: 4 - 10 mm MACHINE DETAILS Cycle time: 10 pieces/hour Cabin type: SUP-E2-D107/20000 + "D" Total production line length: 90 m Hedsyk S Uyjpfx Afcji Installed power: 1,100 kW EQUIPMENT Loading station with lifter Vertical inlet conveyor WM Vertical washing machine with dryer Vertical inspection conveyor with activation section Tilting table with horizontal transport and vertical inspection Pre-heating section Powder section with belt cleaning Cleaning conveyor Cooling section Tilting table with vertical and horizontal transport Vertical inspection station Unloading station Electrical distribution Deionized water system for the washing machine supply The ovens that may be visible in the pictures are not included in the scope of sale and delivery.

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, travel distance Z-axis: 185 mm, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,500 mm, TECHNICAL DETAILS Maximum glass dimensions: 1,500 x 3,000 mm Hedpjyk S I Hefx Afcei Z-axis travel (vertical): 185 mm Work table: 3,250 x 1,620 mm

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, year of last overhaul: 2022, The machine was completely overhauled in 2022! TECHNICAL DETAILS Hjdpfxsyk Stpe Afcei Variable angle: 0-45°
