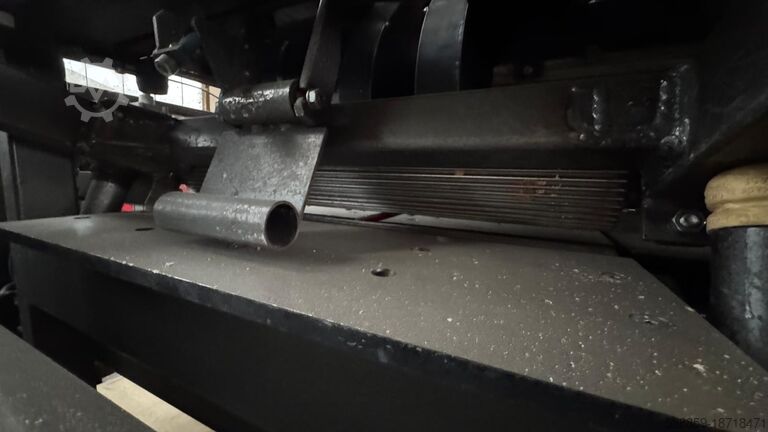

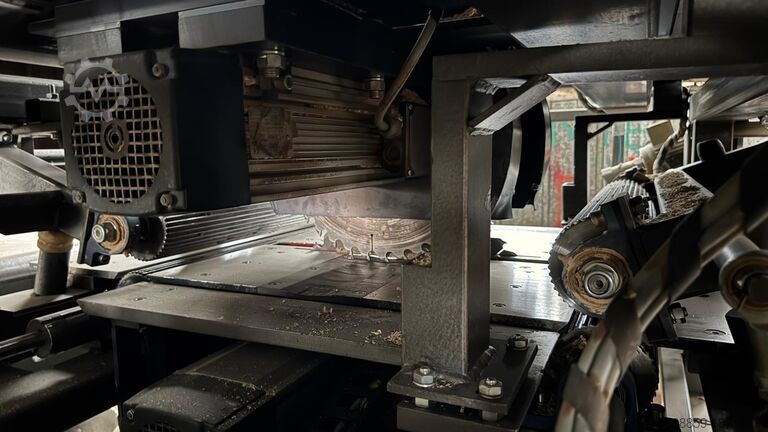

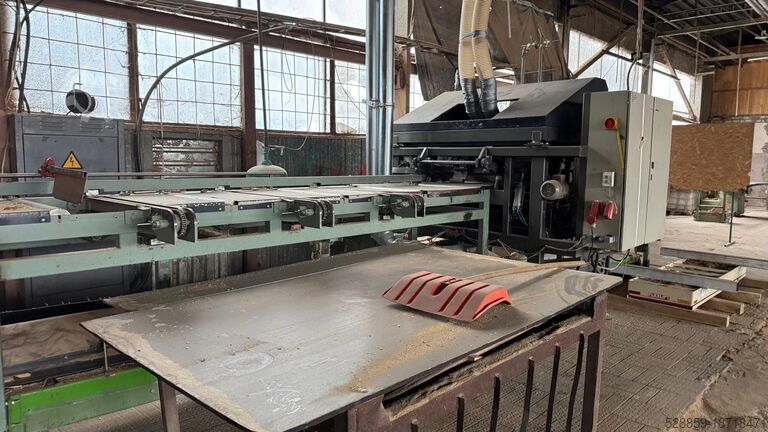

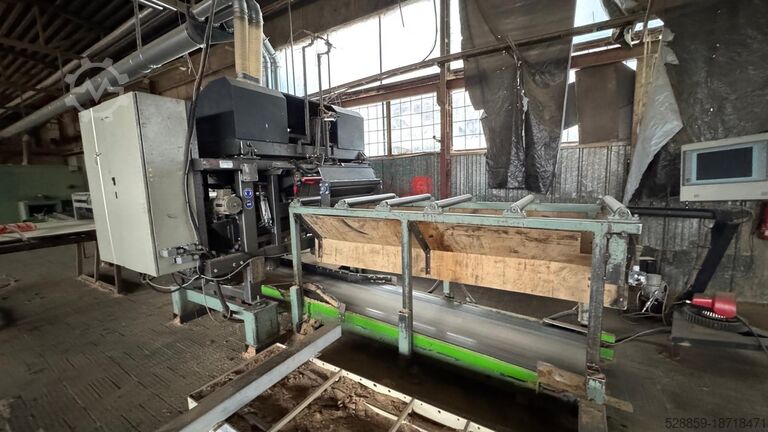

Edger Saw

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller model: Fanuc Series 18-M, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 500 mm Godjz Ir Iwopfx Aqgouh Travel range, Y-axis: 500 mm Travel range, Z-axis: 500 mm Rapid traverse rate, X-axis: 30,000 mm/min Rapid traverse rate, Y-axis: 30,000 mm/min Rapid traverse rate, Z-axis: 30,000 mm/min Table length: 650 mm Table width: 500 mm Spindle speed: 10,000 rpm Speed ranges: 2 Spindle interface: ISO 40 Tool positions: 30 Tool selection: Random MACHINE DETAILS Control system: Fanuc Series 18-M Coolant pressure: 20 bar Dimensions & Weight Dimensions (L x W x H): 3,140 x 2,090 x 2,900 mm Weight: 7,000 kg

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 2,100 mm, travel distance Y-axis: 720 mm, travel distance Z-axis: 600 mm, controller manufacturer: Siemens, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Godpez Irphjfx Aqgjuh Travel range, X-axis: 2,100 mm Travel range, Y-axis: 720 mm Travel range, Z-axis: 600 mm Table size: 2,800 × 650 mm Rapid traverse rate, X-axis: 30 m/min Rapid traverse rate, Y-axis: 30 m/min Rapid traverse rate, Z-axis: 30 m/min Spindle speed: 8,000 rpm Tool holder: ISO 40 Tool capacity: 30 MACHINE DETAILS Control system: Siemens Coolant pressure: 25 bar EQUIPMENT High-pressure coolant system through the spindle and at the flange side Additional coolant tank Chip conveyor with scraper belt

Condition: repair required (used), functionality: limited functionality, Year of construction: 2017, machine/vehicle number: 2219, laser type: fiber laser, working length: 3,000 mm, working width: 1,500 mm, travel distance Z-axis: 120 mm, No minimum price – guaranteed sale to the highest bidder! The machine will be dismantled at the end of week 42. TECHNICAL DETAILS Laser type: Fiber laser Laser source manufacturer: IPG Laser source model: YLS-4000-CUT Laser source power: 4 kW Currently available cutting power: 2 kW Working area: 3,000 × 1,500 mm Z-axis travel: 120 mm Number of pallets: 2 MACHINE DETAILS Control system type: CNC control Level of automation: Automatic Type of operation: Electric Machine dimensions: approx. 4,000 × 8,000 mm EQUIPMENT 2-pallet changing table Guodpfx Asz N Dutoqgjh Note: Modules 1, 4, and 5 automatically lock after cutting and must be unlocked by IPG. The currently available cutting power is 2 kW.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, spindle speed (max.): 6,000 rpm, bar passage: 65 mm, Equipment: bar feeder, chip conveyor, TECHNICAL DETAILS Tool turret Number of turrets: 3 Tool holder: VDI 25 W-gear Gujdpfsz Ibf Ejx Aqgjh Main and counter spindle Main and counter spindle speed: up to 6,000 rpm Bar diameter: 65 mm MACHINE DETAILS Coolant tank: 600 l Coolant pressure: 8 / 18 bar EQUIPMENT Gantry removal device Hainbuch HS Axzug / GS Axfix Chip conveyor Coolant tank with strainer basket Coolant pump Coolant cooling unit FMB Turbo 10-65, 3-meter bar feeder

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 640 mm, controller model: SIEMENS 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Guedpfsz Ibb Tox Aqgjh Travel range, Y-axis: 500 mm Travel range, Z-axis: 640 mm Number of pallets: 2 Table size: 2 × 1,000 × 450 mm Table load capacity: 600 kg Spindle speed range: 50–10,000 rpm Drive power: 18.5 kW Tool interface: DIN 69871 / ISO 40 Feed rate range X/Y/Z: up to 10,000 mm/min Rapid traverse rate in all axes: 30 m/min MACHINE DETAILS CNC path control: SIEMENS 840 D Number of tool positions: 30 Machine dimensions & weight Machine dimensions L × W × H: approx. 3,605 × 3,041 × 3,220 mm Machine weight: approx. 6,700 kg EQUIPMENT 2-position pallet changer 30-position tool changer Internal coolant supply (ICS) Full enclosure with electrically interlocked safety doors Linear guides with double roller recirculating bearing for even absorption of high torques in all directions Ball screws in all 3 axes Machine bed made of Meehanite cast iron for high precision, rigidity, and vibration damping Swivel chip conveyor with integrated coolant system Preparation for 4th axis CE compliant

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 90439563, Year of construction: 2013, operating hours: 4,543 h, load capacity: 1,200 kg, lifting height: 2,600 mm, mast type: duplex, fork length: 1,150 mm, TECHNICAL DETAILS General Information Year of manufacture: 2013 Type: Pedestrian stacker Serial number: 90439563 Operating hours: 4,543 h Unladen weight: 834 kg CE marking: Yes Lifting Data Lifting capacity: 1,200 kg Lifting force: 1,200 kg Lifting height: 2,600 mm Free lift: 0 mm Guedez N Di Repfx Aqgeh Mast: Duplex Dimensions Overhead height: 1,700 mm Fork length: 1,150 mm Fork width: 560 mm Drive and Battery Drive: electric Battery voltage: 24 V Transport Data Transport dimensions: 1,850 × 800 × 1,700 mm Transport weight: 834 kg Transport packages: 1 unit EQUIPMENT Duplex mast Electric drive CE marking present

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2012, operating hours: 28,000 h, controller model: Siemens Sinumerik 840 D SL, laser power: 5,000 W, sheet thickness steel (max.): 25 mm, working length: 4,000 mm, working width: 2,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Resonator power: 5 kW Working area (L × W): 4,000 × 2,000 mm Sheet metal thickness, steel: max. 25 mm Sheet metal thickness, stainless steel: max. 20 mm Sheet metal thickness, aluminum: max. 20 mm Speed: max. 235 m/min Accuracy: 0.001 mm Gsdpfoz Npdgsx Aqgsuh MACHINE DETAILS Control system: Siemens Sinumerik 840 D SL Dimensions & Weight Dimensions (L x W x H): 12,000 x 5,300 x 2,200 mm Machine weight: 13,000 kg Operating hours: 28,000 h EQUIPMENT LiftMaster Power supply for TruDisk via the machine Work area lighting Positioning laser diode Spray device PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning TRUMPF laser Solid-state laser TruDisk 5001 with one LLK outlet Light guide cable according to standard layout Laser cooling unit (water-air) Excitation via pump diodes Laser power control Laser logbook function Cutting head Universal cutting unit with fully adaptive lens system Protective glass against lens contamination Condition monitoring of the protective glass ControlLine: Height control and sheet metal edge detection 17-inch touch color display Simple workshop programming Advanced workshop programming Fast reproduction Integrated technology data Automatic shutdown FastLine FlyLine AdjustLine Remote service via internet USB interface RJ-45 network connection CE marking Light barriers Multi-camera base system Compact dust extraction system Machine enclosure with certified viewing window, door on the right Electric roll-up roof Retrofitting capability for max. 2 additional LLK outlets

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 38,149 h, controller model: Bosch MTX compact, laser power: 4,000 W, punching force: 22 t, sheet thickness (max.): 8 mm, Includes SheetMaster & GripMaster! TECHNICAL DETAILS Laser power: approx. 4,000 W Punching force: max. 220 kN Sheet thickness: max. approx. 8 mm Working area, laser operation (X × Y): approx. 2,540 × 1,280 mm Working area, punching operation (X × Y): approx. 2,540 × 1,370 mm MACHINE DETAILS Control system: Bosch MTX compact Dimensions & Weight Footprint (L × W): approx. 7,950 × 6,700 mm Machine weight: approx. 23,000 kg Total connected load: 87 kVA Operating hours: 38,797 h Beam on-time: 38,149 h EQUIPMENT Active dies SheetMaster Godoz Nn H Hopfx Aqgsuh GripMaster

Condition: ready for operation (used), Year of construction: 2010, machine/vehicle number: 6.719, functionality: fully functional, cutting height (max.): 90 mm, saw blade diameter: 350 mm, overall weight: 500 kg, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. cutting depth: 120 mm Max. cutting height: 90 mm Max. saw blade diameter: 350 mm Saw blade bore diameter: 30 mm MACHINE DETAILS Voltage: 400 V Current consumption: 7.13 Fuse rating: 16 A Main motor power: 3.1 kW Godpfx Aqez Ni S Regouh Dimensions & Weight Dimensions (L x W x H): 1,500 x 900 x 1,700 mm Weight: 500 kg Shipping packages: 1 piece

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, operating hours: 3,625 h, cutting width (max.): 4,300 mm, overall weight: 7,200 kg, cutting length (max.): 1,600 mm, No minimum price – guaranteed sale to the highest bidder! Gsdsz Ni S Djpfx Aqgjuh TECHNICAL DETAILS Max. cutting length: 1,600 mm Max. cutting width: 4,300 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 13,600 x 2,450 x 2,450 mm Weight: 7,200 kg Transport packages: 8 pcs. Operating hours: 3,625 h
