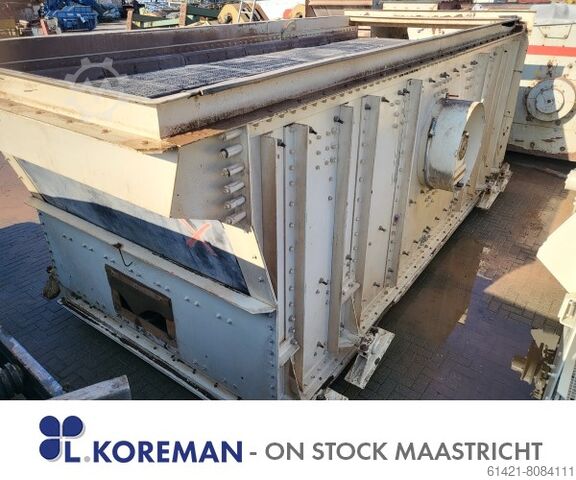

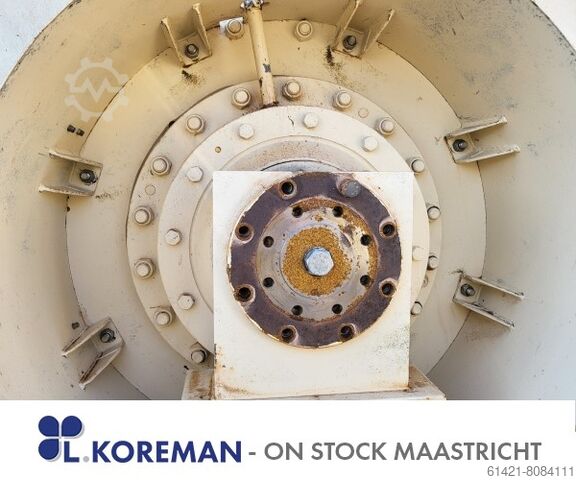

Screening machine GFA 25/60-3

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 1000030194, table length: 4,500 mm, table width: 3,000 mm, TECHNICAL DETAILS Table dimensions: 3000 x 4500 mm Ksdpfx Ahex Trm Asujll MACHINE DETAILS Supply voltage: 400 VAC Rated current at full load: 5.04 A Number of supply phases: 3 Power: 2.7 kW Frequency: 50 Hz

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 13688, Year of construction: 2012, empty load weight: 4,990 kg, Fully automated, horizontal production line for IGUs and spacer frames! Production capacity of 1,200 units per shift! TECHNICAL DETAILS Klsdpfxjx Trlro Ahuol Production capacity: 150 pcs/h MACHINE DETAILS Electrical data Voltage: 480 VAC Frequency: 50/60 Hz Phases: 3 Maximum motor capacity: 2 A Short-circuit current: 5,000 A Power: 142 kVA Machine weight: 4,990 kg EQUIPMENT GED Intercept Ultra / Thin frame machine i-3 – CE version Warm-edge spacer production system Production of Intercept ULTRA stainless steel, ThinPlate or BlackLine

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, empty load weight: 1,720 kg, operating speed: 10,700 mm/s, roller width: 2,200 mm, TECHNICAL DETAILS Rigid material Workpiece height: max. 50.8 mm Workpiece weight: max. 34 kg/m² Klodpfxex Trdne Ahujl Roll material Width: min. 900 mm – max. 2,200 mm Weight: max. 50 kg Diameter: max. 240 mm Maximum print speed: 64.2 m²/h (in express mode) MACHINE DETAILS Dimensions & weight Dimensions: 3,080 × 2,500 mm Weight: 1,720 kg Note: The print heads of the machine need to be replaced. The seller can provide a complete service for this.

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, load capacity: 200 kg, arm reach: 2,400 mm, repeat accuracy: 0.06 mm, empty load weight: 1,155 kg, number of axes: 6, Auction of a package of 4 KUKA KR 200 robots! The machines have been fully overhauled (cleaning, oil change, mechanical maintenance, repeatability and load tests)! TECHNICAL DETAILS Payload: 200 kg Arm reach: 2,400 mm Number of controlled axes: 6 Working envelope: 38.6 m³ Positional repeatability (ISO 9283): ± 0.06 mm Range of motion: A1: ±185° A2: -142° / 0° A3: -120° / 148° A4: ±350° A5: ±120° A6: ±350° Axis speeds (rated load): A1: 90 °/s A2: 85 °/s A3: 85 °/s A4: 117 °/s A5: 120 °/s A6: 195 °/s MACHINE DETAILS Controller model: KRC2 Weight per robot: 1,155 kg Noise level: < 75 dB Tilt angle: ± 5° Ambient temperature (operation): 10 °C to 55 °C Ambient temperature (storage/transport): -40 °C to 60 °C INCLUDED EQUIPMENT Manipulator KRC2 control cabinet Teach pendant Cable sets Klodpfx Ahsx Sykteuol

Condition: refurbished (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 7600-101325, load capacity: 340 kg, arm reach: 2,800 mm, pivoting range: 360 °, warranty duration: 4 months, Equipment: documentation/manual, Robot with a 4-month warranty General overhaul included: - Cleaning: Thorough cleaning of the robot panel and surface. - Oil change: Changing the oils for all six axes. - Battery replacement: All internal batteries were replaced with new batteries. - Mechanical maintenance: Gears and counterweight were inspected and serviced after repeatability and weight tests. - Electronic maintenance: Drivers, electronic boards, teach pendant, and PC components were serviced. - Polishing and repainting: The robot was polished and repainted in the original color or a custom color upon request. TECHNICAL DETAILS Reach: 2800 x 3171 mm Payload: 340 kg Klodpfox Syivex Ahusl Control: IRC5 Axis 1 – Rotation motion: +180° to -180° Axis 2 – Arm motion: +85° to -60° Axis 3 – Arm motion: +60° to -180° Axis 4 – Wrist motion: +300° to -300° Axis 5 – Bend motion: +100° to -100° Axis 6 – Turn motion: ±360° (standard), max. ±67 revolutions Dynamics (max. rotation speed per axis) Axis 1: 75°/s Axis 2: 60°/s Axis 3: 60°/s Axis 4: 100°/s Axis 5: 100°/s Axis 6: 160° °/s Position and Path Precision Position Accuracy (AP): 0.18 mm Repeatability (RP): 0.27 mm Stabilization Time (Pst at ±0.4 mm): 0.18 s Path Accuracy (AT): 2.05 mm Path Repeatability (RT): 0.23 mm FEATURES - 6-axis industrial robot with a high payload class - Large swivel range on axis 6 with up to 67 revolutions - Precise path guidance with repeatability of less than 0.3 mm - High speed of the wrist axes for fast movements - Perfectly suited for heavy-duty handling and precise motion sequences

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, load capacity: 360 kg, arm reach: 2,826 mm, controller model: KRC4, repeat accuracy: 0.08 mm, number of axes: 6, The machine has been completely overhauled (cleaning, oil change, mechanical maintenance, repeatability and load tests)! TECHNICAL DETAILS Payload: 360 kg Arm reach: 2,826 mm Position repeatability (ISO 9283): ±0.08 mm Number of axes: 6 Additional load capacity max.: Rotating column: 550 kg Link arm: 130 kg Arm: 150 kg Range of motion: A1: ±185° A2: −130° / +5° A3: −110° / +162° A4: ±350° A5: ±120° A6: ±350° Axis speeds (rated load): A1: 103°/s A2: 94°/s A3: 100°/s A4: 117°/s A5: 110°/s A6: 163°/s MACHINE DETAILS Control model: KRC4 Dimensions & weight Base area: 968 × 944 mm Robot weight: approx. 1,660 kg EQUIPMENT Manipulator Klsdpfox Syg Iex Ahusl KRC4 control cabinet Complete cable set Teach pendant

Condition: like new (used), Year of construction: 2025, functionality: fully functional, controller model: DC241 EEC, workpiece height (max.): 3 mm, swivel angle A-axis (max.): 105 °, swivel angle B-axis (max.): 180 °, As-new Hexagon Global S Blue Coordinate Measuring Machine! TECHNICAL DETAILS Probe Interface (CMM): TKJ Probe Weight: 350 g Total Weight: 480 g Measuring Performance Probing Force: 5 µm Measuring Range: 2 mm Maximum Measuring Distance: 14 mm Resolution in Z-Axis: 66 nm Lateral Resolution: 6 µm Angular Acceptance: ±30 ° Max. Measurable Thickness: 3 mm Spot Diameter: 12 µm LED Area Light Illuminated Area: 780 × 780 mm Overall Dimensions: approx. 860 × 840 × 20 mm Weight: approx. 19 kg Load Capacity: max. 50 kg Stylus Shank Diameter: 3 mm Shank Length: 50 mm Ruby Ball Diameter: 5 mm Thread: M3 Angular Rotation Steps: 2.5° A-Axis: ±105° B-Axis: ±180° Rotation Speed: 90° in 2.5 s Max. Extension Length: 450 mm Recommended Drive Torque: max. 1.4 Nm Positioning Repeatability: 0.5 µm at 100 mm from the A-axis center MACHINE DETAILS Control System: DC241 EEC Control Compatibility: HH-C-V2.0, HH-CA-V2.0 with HR-R automatic probe changer rack Electrical Data Supply Voltage: DC 5 V to 6 V Current Consumption (normal): 50 mA Current Consumption (min): 30 mA Current Consumption (max): 150 mA (pulsed) Protection Class: IP40 (IEC 60529) Temperature Range: 16 °C to 26 °C EQUIPMENT Windows 10 Operating System Interactive 3D Graphical Capability Computer-Simulated Measuring Machine Environment Bidirectional Interface to CAD Systems: IGES, VDA, DXF, and STEP Processing of 2D, 3D, wireframe, and surface models Curve and Surface Scanning (CurveAnalyzer) Includes PC-DMIS-SHEETMETAL Functions for measuring thin-walled components Automatic White Light Probe – TKJ 2.5 HP-OW-2.14 Sensor Kit, incl. controller and reference sphere, Ø 30 mm, ceramic matte HP-SX1H Scanning Probe Sensor LED area light for mounting on the coordinate measuring machine Reference price mechanical frame for supporting the area light HP-CTS5.10 Optical Sensor HP-S-X1C/H Stylus Holder (1× M3) HH-C-V2.1 Controller HR-OW-2.14 Short End Cap HR-R3 Sensor Acceleration HH-CA-V2.0 Interface Active Probe Rack, HR-RA-65 HR-X1-3P Stylus Rack Reference Sphere, Ø 60 mm, ceramic, with stand Kodpfsx Sx Nusx Ahuell M3 Stylus (R-5-SS-3.50) Stylus Tray Computer & Software PC-DMIS CAD++ PC-DMIS Operator Interface with order system PC-DMIS CWS Interface PC-DMIS Probe Change Support Software PC-DMIS Vision for Tactile Sensors Touchscreen including computer system Desk for computer system

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 34,797 h, machine/vehicle number: 2011-0250, pipe diameter (max.): 600 mm, pipe length (max.): 1,500 mm, bending angle (max.): 180 °, bending radius (max.): 200 mm, wall thickness: 3 mm, Original machine year: 1996. In 2011, fully overhauled by the manufacturer for approx. EUR 250,000: electrical and mechanical components extensively renewed. TECHNICAL DETAILS Tube diameter: 16 – 60 mm Wall thickness: max. 3.0 mm Bending radius: 20 – 200 mm Tube feed length: 1,500 mm Bending angle: max. 180° + spring-back Tube length: 400 – 1,500 mm Tube outside diameter: 28 mm – 60 mm Material specifications Tensile strength stainless steel: max. 750 N/mm² Tensile strength mild steel: max. 450 N/mm² Capacity (steel): Ø 60 x 3 mm Capacity (stainless steel): Ø 57 x 2 mm Axes/Movements Bending direction: left Bending speed (forward): max. 22.0 rpm (infinitely variable) Bending speed (return): constant 22.0 rpm Kljdpfsx Srklsx Ahuol Rotational positioning: max. 360° Rotational speed: 50 rpm Multi-radius height adjustment: lowest tube center 55 mm Height travel: suitable for 3-groove bending tools MACHINE DETAILS Overrun time: 125 ms Machine weight: approx. 8.0 t Machine dimensions (L × W × H): 6,300 × 3,300 × 1,900 mm Control cabinet (L × W × H): 2,700 × 700 × 2,000 mm Control console (L × W × H): 900 × 600 × 1,850 mm Tube magazine (L × W × H): 1,800 × 2,400 × 1,750 mm Operating hours: approx. 34,797 h Performance data Total power requirement: 55 kW Hydraulic oil volume: 340 l Control Bending planes: up to 6 (CNC programmable) Positioning device: NTB configuration Control unit: Schwarze-Robitec operation and control console FEATURES - Automatic cold tube bending machine - Tube positioning device - Gripper - Schwarze-Robitec tube magazine - Hydraulic operation for bending table, tool clamping, sliding rail, mandrel retraction, reinforced sliding rail feed and retraction - Various bending tools for Ø 60 mm tubes - Various accessories - Control cabinet cooling unit - Dual foot switch - Schwarze-Robitec control console - Rittal control cabinet cooling unit, type SK 3361100 Note: Machine could only be tested in setup mode due to lack of operating know-how. No faults are known. The machine is currently disassembled.

Condition: ready for operation (used), Year of construction: 2006, operating hours: 19,857 h, functionality: fully functional, travel distance X-axis: 4,400 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 180 mm, number of slots in tool magazine: 72, TECHNICAL DETAILS X-axis travel: 4,400 mm Y-axis travel: 1,300 mm Z-axis travel: 180 mm Milling unit power: 15 HP Tool change: automatic Number of tool positions: 3 x 24 slots EQUIPMENT Worktable with traverse Auxiliary unit for heavy parts Pneumatic clamps for door and window production Vacuum pump 250 m3/h Automatic lubrication Waste conveyor Kjdpfox Sri Isx Ahusll

Condition: ready for operation (used), Year of construction: 2004, operating hours: 55,476 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller model: HEIDENHAIN Mill Plus IT, spindle speed (max.): 12,000 rpm, New motor spindle in 2012 TECHNICAL DETAILS Travel X-axis: 800 mm Travel Y-axis: 700 mm Travel Z-axis: 600 mm Motor spindle speed: 12,000 rpm Tool holder: HSK-A 63 Tool magazine positions: 120 Table speed: 500 rpm Torque: 1692 Nm Table diameter: Ø 800 + 630 mm Load limit: 800 kg MACHINE DETAILS Kljdpfx Aex Sqr Ijhujl Control: HEIDENHAIN Mill Plus IT Spindle hours: 55,476 h EQUIPMENT Universal milling head with controlled B-axis 2 pallets 800 mm x 630 mm Pallet changer Rotating inspection window Operating mode 4 Tool breakage monitoring
