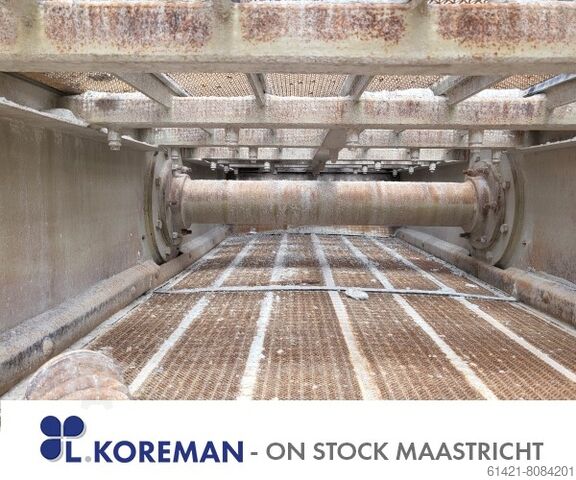

Screening machine Nordberg Bergeaud 15/40-4

Condition: ready for operation (used), Year of construction: 2009, operating hours: 27,745 h, functionality: fully functional, machine/vehicle number: NT320110134, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The offer includes a comprehensive tool package (see attachment; an Excel table can be provided on request)! An inspection checklist for 2025 is also included. Dedpfxoyml Eqj Ah Ijcd TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum machining diameter at tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Axes X-axis tool spindle: 685 mm Y-axis tool spindle: ±125 mm Z-axis tool spindle: 1,075 mm B-axis swivel range: ±120° X-axis turret 2: 130 mm Z-axis turret 2: 970 mm Main spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Counter spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Tool spindle (Turret 1) Maximum speed: 12,000 rpm Maximum tool length: 200 mm Maximum tool weight: 4 kg Tool change time: 1.25 s MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating Hours Power-on hours: 131,963 h Operating hours: 68,391 h Spindle hours: 27,745 h

Condition: ready for operation (used), Year of construction: 2008, operating hours: 29,709 h, functionality: fully functional, machine/vehicle number: NT320GE0052, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The machine's tool spindle was replaced in 2022! The offer includes a comprehensive tooling package (see attachment; an Excel tool list can be provided upon request)! TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum turning diameter with tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Travel paths X-axis (tool spindle): 685 mm Y-axis (tool spindle): ±125 mm Z-axis (tool spindle): 1,075 mm B-axis (swivel range): ±120° X-axis (turret 2): 130 mm Z-axis (turret 2): 970 mm Main spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Bearing inner diameter: 120 mm Dcjdjymlvvepfx Ah Ijd Counter spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Bearing inner diameter: 120 mm Milling spindle (turret 1) Speed: max. 12,000 rpm Maximum tool length: 200 mm Maximum tool weight: 4 kg Tool change time: 1.25 s MACHINE DETAILS Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating hours Power-on hours: 138,593 h Operating hours: 66,865 h Spindle hours: 29,709 h

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 1,500 mm, controller model: Heidenhain 530, Equipment: chip conveyor, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 1,270 mm Z-axis travel: 1,500 mm Spindle speed: up to 4,000 rpm Tool holder: SK50 MACHINE DETAILS Control: Heidenhain 530 Internal cooling: 22 bar Dsdpfx Ahsymcu As Ijcd EQUIPMENT Diagonal milling head with 2.5 x 2.5 indexing Longitudinal chip conveyor

Condition: like new (used), Year of construction: 2024, operating hours: 50 h, functionality: fully functional, paper width (min.): 130 mm, paper width (max.): 780 mm, paper height (min.): 6 mm, paper height (max.): 1 mm, production capacity: 8,000 unit/h, Machine in nearly new condition with only 50 operating hours! TECHNICAL DETAILS Maximum paper size: 950 x 780 mm Minimum paper size: 150 x 130 mm Maximum window size: 380 x 300 mm Minimum window size: 50 x 50 mm Paper thickness: 1 - 6 mm Speed: 8,000 pcs/h MACHINE DETAILS Input voltage: 380 V Operating hours: 50h Dimensions & Weight Dimensions (L x W x H): 7,500 x 1,750 x 1,700 mm Total weight: 3,200 kg FEATURES Processing of standard and corner windows Precise positioning with automatic centering system High degree of automation User-friendly control with touchscreen Robust construction Dedpfx Ajyl U A Aoh Iscd

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, turning length: 2,000 mm, spindle speed (max.): 1,000 rpm, travel distance Z-axis: 2,000 mm, overall weight: 40,000 kg, turning diameter over bed slide: 1,270 mm, controller model: Fanuc Serie 18i-TB, TECHNICAL DETAILS Turning length: 2,000 mm Swing diameter over bed: 1,550 mm Swing diameter over cross slide: 1,270 mm Spindle speed: 1,000 rpm Spindle diameter at front bearing: 240 mm Spindle bore: 185 mm Spindle power: 37/30 kW Dsdsylwl Tjpfx Ah Ijcd Bar capacity: 165 mm Travel in longitudinal direction (Z-axis): 2,000 mm Cross travel: 685 mm Rapid traverse speed X-axis: 10 m/min Rapid traverse speed Z-axis: 12 m/min MACHINE DETAILS CNC control: Fanuc Series 18i-TB Dimensions & Weight Dimensions (L x W x H): 9,800 x 3,695 x 5,292 mm Machine weight: approx. 40 t EQUIPMENT 12-position turret

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 2338, travel distance X-axis: 6,700 mm, travel distance Y-axis: 2,090 mm, travel distance Z-axis: 70 mm, table width: 2,160 mm, table height: 915 mm, table length: 7,340 mm, TECHNICAL DETAILS X-axis travel: 6,700 mm Y-axis travel: 2,090 mm Z-axis travel: 70 mm Dsdpfx Ahoylk Hdj Iecd Main drive: 1 x HSD Main drive power: 6.6 kW / 8.9 HP Max. main spindle speed: 24,000 rpm Secondary drives: 2 x ELTE Secondary drive power: 3.7 kW / 5 HP Max. secondary spindle speed: 24,000 rpm Table width: 2,160 mm Table length: 7,340 mm Table height: 915 mm Number of milling heads: 3 EQUIPMENT Vacuum pump: BUSCH MINK Manuals Integrated software

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 555 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 82 mm, travel distance Z-axis: 600 mm, workpiece diameter (max.): 250 mm, TECHNICAL DETAILS Counter-spindle speed: 59–4,500 rpm Bar capacity main spindle: 65 mm Bar capacity counter-spindle: 51 mm Travel X1/X2 axis: 195 mm Travel Y axis: ± 41 mm Travel Z axis: 600 mm Dodpfx Aeynhihjh Iocd Max. workpiece diameter: 250 mm Max. turning length: 555 mm Number of tool stations upper turret: 12 Number of tool stations lower turret: 12 All tools driven Main spindle nose: A 2-6 Counter-spindle nose: A 2-5 Feed power X1/X2/Y axis: 1 kW Feed power Z1/Z2 axis: 2.1 kW Maximum loading length: 6,200 mm MACHINE DETAILS Control model: Fanuc 18 IT Main spindle power: 18.5 kW / 15 kW Counter-spindle power: 11 kW / 7.5 kW Bar feeder Max. bar length: 6 m 8 channels with diameters: 22 mm, 27 mm, 32 mm, 37 mm, 42 mm, 47 mm, 57 mm, 67 mm 8 pushers with pusher cone Intermediate sizes can also be loaded Unload magazine Max. bar length: 2 m EQUIPMENT Coolant tank Chip conveyor from 10/2021 Last overhaul of bar feeder 09/2020 (channel replacement, replacement of various bearings, replacement of push rods and spindle liners, including maintenance)

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 1,240 mm, turning diameter: 380 mm, spindle speed (max.): 3,200 rpm, quill diameter: 100 mm, controller model: Fanuc 18i-TB, TECHNICAL DETAILS Maximum turning diameter: 380 mm Maximum turning length: 1,240 mm Swing diameter over bed: 600 mm Rapid traverse X/Z-axis: 20 m/min Main spindle Maximum torque: 1,030 Nm Maximum speed: 3,200 rpm Maximum chuck diameter: 254 mm Maximum bar capacity: 76 mm Turret Number of turret stations: 12 positions (6 driven) Driven tool speed: 3,000 rpm Tool system (type): BMT C-axis: 0.001° Tailstock Quill diameter: 100 mm Quill stroke: 120 mm Taper: 5 MT Bar loader Type: Samsys Multisam 2000 Dcsdpfxeyngzie Ah Ied Maximum bar length: 1,550 mm MACHINE DETAILS Operating hours: 46,103 h Control model: Fanuc 18i-TB Main spindle power: 22 kW Turret drive power: 3.7 kW EQUIPMENT Chip conveyor 3 spindle reduction tubes Box guideways 3-jaw power chuck 250 mm (Type: Seoam ACE CAH-10) Full-featured C-axis Touchsetter Manuals

Condition: ready for operation (used), operating hours: 7,738 h, functionality: fully functional, turning length: 225 mm, turning diameter: 260 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 170 mm, travel distance Z-axis: 335 mm, TECHNICAL DETAILS Max. turning diameter: 260 mm Max. turning length: 225 mm Chuck size: 6" Swing diameter over bed: 550 mm Travel X-axis: 170 mm Travel Z-axis: 335 mm Rapid traverse X/Z-axis: 36 m/min Main Spindle Spindle nose (ASA): A2-5 Max. spindle speed: 6,000 rpm Spindle bore diameter: 56 mm Max. bar capacity: 45 mm Turret Number of turret stations: 12 positions Turret indexing time: 0.15 s Tailstock Quill diameter: 60 mm Quill stroke: 80 mm Taper/Quill mount: MT 4 Live Tooling Spindle Max. spindle speed: 5,000 rpm Bar Feeder Model: Fedek Machine Co. DH-65 Bar length min./max.: 280/1,200 mm Bar diameter: 5-65 mm MACHINE DETAILS Dsdpfx Ahoyngpts Iscd CNC control model: Fanuc 0i-TD Control on-time: 30,811 h Cutting time: 7,738 h Spindle motor power: 15/7.5 kW Feed motor power X/Z-axis: 3.0/1.8 kW Live tooling spindle motor power: 3.7/2.2 kW Dimensions Dimensions (L x W x H): approx. 1,620 × 1,200 x 1,400 mm EQUIPMENT Side-mounted chip conveyor and chip cart Short bar loader magazine Interface for bar feeder Workpiece catcher (parts catcher) Chuck open/close confirmation switch C-axis indexing Driven tools Trailing (drag-along) tailstock Linear guides Manuals

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 516231X00505, Year of construction: 2020, operating hours: 14,926 h, load capacity: 2,000 kg, lifting height: 5,600 mm, free lift: 1,900 mm, mast type: triplex, construction height: 2,250 mm, TECHNICAL DETAILS Load capacity: 2,000 kg Lift height: 5,600 mm Free lift: 1,900 mm MACHINE DETAILS Dodpfx Aoynaddjh Iscd Mast type: Triplex with full free lift Overall height: 2,250 mm Battery: 48 V 750 Ah (very good performance measured at 51.3 V) Operating hours: 14,926 h EQUIPMENT 3rd + 4th valve Fork positioner with side shift All dimensions are approximate. No liability is accepted for typographical or measurement errors. COLLECTION CONDITIONS Side loading up to 5 t possible with a large forklift truck on site at your own risk. Collection ONLY with email payment confirmation! Collection WITHOUT prior appointment: Monday to Friday, 7:00 a.m. - 4:30 p.m. A mast that is too high for transport can be disassembled upon request. If collection is not made within the agreed period, a storage fee of €20 per machine per day will be charged (the balance must be paid before collection).
