CNC laser cutting center

MECALASE 3015 PACK PMMA

Condition: good (used), Year of construction: 1994, CNC Spiral bending machine, capacity 50cm3, min-max diam of coil 500-3.500mm. Nledpfx Aoiu Acpsc Hek

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Nodpfx Acsd Tm D Ej Helk Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: used, Holz Her UNO 1303 + PU Edge thickness 0.4 -3 mm (6 mm) Control panel with selector switches for setting the units Fully automatic edge magazine for rolls and strips Adhesive application station: cartridges + PU gluing Workpiece height 6-55 mm Pneumatic pressure unit Cutting unit for rolls and strips up to 3 mm (6 mm) edge thickness with adjustment of 0-10° angle of the cutting saws Milling unit, flush milling, radius milling, bevel milling - 15° Scraping unit for bevels and radii Surface scraping unit - finish Machine is CHECKED in TOP CONDITION from a very well-maintained craft business Njdpfxoxlz Nzo Ac Hjlk from the Lieboch warehouse

Condition: good (used), Year of construction: 1990, operating hours: 9,200 h, functionality: fully functional, turning diameter over cross slide: 490 mm, turning length: 850 mm, turning diameter: 700 mm, spindle bore: 80 mm, spindle speed (max.): 3,200 rpm, travel distance X-axis: 330 mm, spindle motor power: 30 W, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 20 m/min, total height: 2,620 mm, total length: 3,995 mm, total width: 2,620 mm, Equipment: documentation/manual, Tailstock Chip conveyor Njdpfxovga Nye Ac Holk Tool Control Okuma 5020L Hydraulic chuck Autoblock 500 mm

Condition: ready for operation (used), Technical characteristics fully automatic center type QUADRA ES205 V04 Bar loading magazine o Max bar length 7500 mm o Minimum bar length 3000 or 1550 mm o Load capacity with axis 100 mm : 20 bars o Load capacity with axis 200 mm: 10 bars o Maximum loadable weight: 500 kg Bar positioning unit o Max bar length : 7500 mm o Minimum length of manually loaded bar: 500 mm o Carriage translation speed: 0.60 m/min Milling section 4 machining units o Drilling o Milling o Tapping up to M8 on thicknesses up to 4 mm (aluminium) o Sawing (aluminium) cut 0/90° and +/- 45 Sawing machine Evacuation section Finished parts magazine Power and Motors Power: 35 Kw Njdpfx Ajundhfoc Helk Overall dimensions Weight: 8420 Kg

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height Nlodpfx Acstk It Ss Hek 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: ready for operation (used), Year of construction: 1996, turning diameter over cross slide: 340 mm, turning length: 2,000 mm, turning diameter: 570 mm, spindle bore: 83 mm, Weiler Voest Alpine E50 lathe Comes with 3-jaw chuck and 6 multifix tool holders Nledon Hp T Ajpfx Ac Hsk

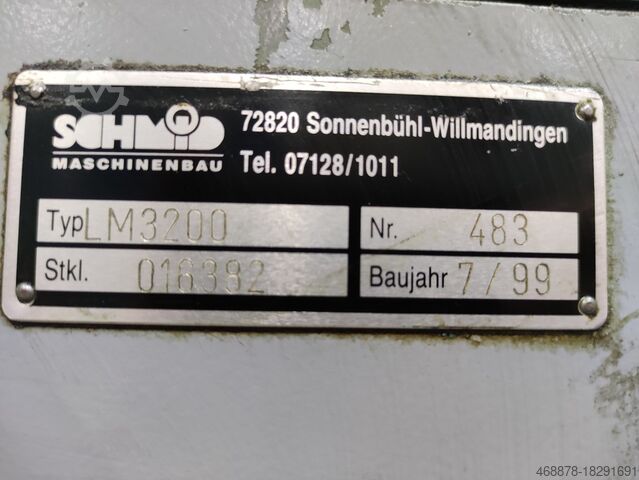

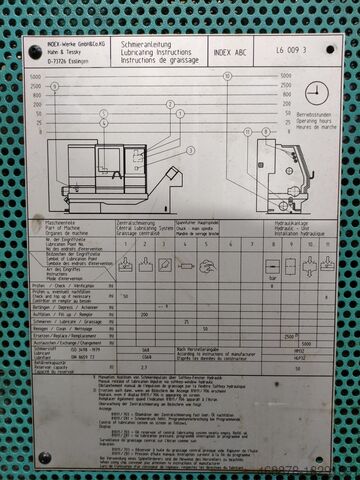

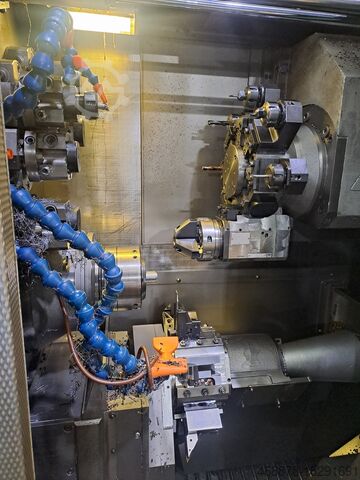

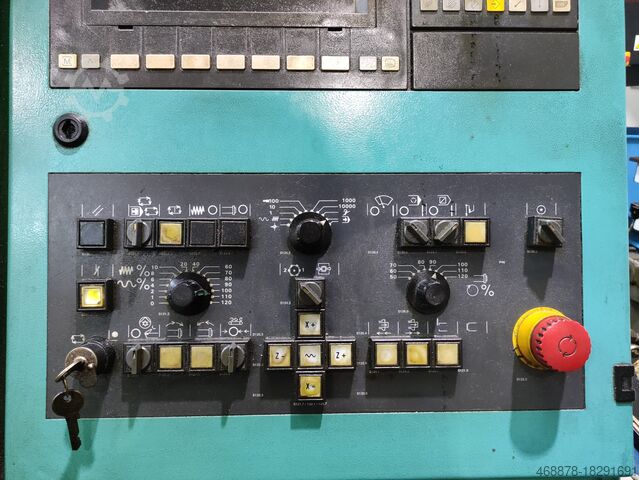

Condition: good (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 401182, Used machine in good condition, all the time maintained by machine producer. Still used for production, could be inspected anytime. Control system: INDEX C 200-4 Additional equipment: Bar Feeder - Schmid LM3200 Dimensions: 3750 x 1400 x 1750 mm (main unit) Technical specification: Number of spindles: 2 Spindle motor power: 29 kW Spindle bore: 52 (60) mm Turning length: 280 mm Maximum spindle speed: 5000 rpm Number of tool heads: 2 Tool head #1: o Number of slots: 8 o X axis: 90 mm o Z axis: 280 mm o Rapid traverse X/Z axis: 24/24 m/min o Feed force X/Z axis: 5500/5500 Nm Njdpfx Acovrh Uns Holk Tool head #2: o Number of slots: 6 o X axis: 81 mm o Z axis: 80 mm o Rapid traverse X/Z axis: 16/24 m/min o Feed force X/Z axis: 8300/5500 Nm SALE IN EU / SWITZERLAND / UK ONLY.

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Nsdpju Sg Auofx Ac Holk Year 2002

Condition: new, Year of construction: 2023, machine/vehicle number: W030P23-02, Forming machine for laminating wood, MDF, PVC, composite profiles The NWA WOOD system, ideal for laminating wood, MDF, composite, PVC, etc. profiles and moldings with decorative foils or roll paper. The adhesive technology involves the use of EVA, polyolefin or PUR hotmelt adhesives. Nodpfjtrymgex Ac Hslk
