Cnc turning and milling center

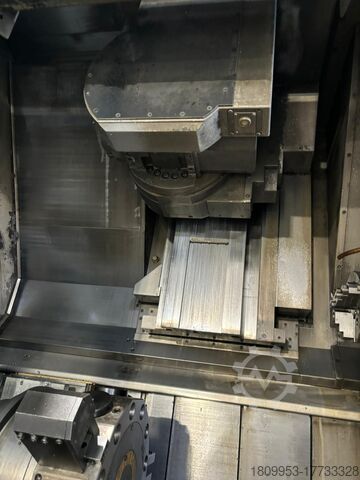

Mori Seiki MT2000SZ

Condition: good (used), Year of construction: 2002, MSG-501 control MAPPS (Fanuc) Max. turning diameter: 550 mm Max. turning length: 1,020 mm Travel axes X1/X2/Y/Z1/Z2/W: 565/160/1,077 mm Main spindle drive power: 22 kW Max. spindle speed: 4,600 rpm Bar capacity: 65 mm Dcodpfswwk Uajx Ah Ssb Spindle nose: A2-6 Sub spindle drive power: 15 kW Max. sub spindle speed: 6,000 rpm Milling spindle max. speed: 7,000 rpm Capto C6 tool system Tool magazine with 60 tool stations Lower turret with 12 tool stations, 6 of which are live stations Max. speed of driven tools: 4,000 rpm Chip conveyor

Condition: good (used), Year of construction: 1994, CNC Spiral bending machine, capacity 50cm3, min-max diam of coil 500-3.500mm. Djdpfx Aoiu Acpoh Socb

Condition: used, Holz Her UNO 1303 + PU Edge thickness 0.4 -3 mm (6 mm) Control panel with selector switches for setting the units Fully automatic edge magazine for rolls and strips Adhesive application station: cartridges + PU gluing Workpiece height 6-55 mm Pneumatic pressure unit Cutting unit for rolls and strips up to 3 mm (6 mm) edge thickness with adjustment of 0-10° angle of the cutting saws Milling unit, flush milling, radius milling, bevel milling - 15° Dedoxlz Nzspfx Ah Sscb Scraping unit for bevels and radii Surface scraping unit - finish Machine is CHECKED in TOP CONDITION from a very well-maintained craft business from the Lieboch warehouse

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder Dcodjv Drigopfx Ah Ssb C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: new, Parallel lathe with display Fervi T075/400V3A. Monoblock cast iron base. Height of Centers 230 mm Max. diameter on Bench 460 mm Max. diameter on Carriage 270 mm Max. diameter on Slot 690 mm Tool Height 25 mm Distance between Centers 1500 mm Distance between Guides 300 mm Bar Taper CM MT7 Bar Passage 58 mm Spindle Attachment Camlock D1-8 Spindle Speed (12)25-1700 rpm Longitudinal Feeds (42) 0.031 - 1.7 mm/rev Cross Feeds (42) 0.014 - 0.784 mm/rev Metric Threads (41) 0.1 - 14 mm Inch Threads (60) 2 - 112 TPI Tailstock Spindle Stroke 130 mm Tailstock Taper CM MT4 Motor 400 V 50 Hz 5.5 kW Coolant Pump 400 V 50 Hz 90W Machine Dimensions 2750 x 1080 x 1370 mm Net Weight 2020 kg Total Dimensions 2870 x 1180 x 1570 mm Gross Weight 2200 kg Accessories Included: 3-jaw self-centering chuck Ø250 mm / D1-8 4-jaw self-centering chuck Ø300 mm / D1-8 Drive flange Ø350 mm Fixed steady rest Moving steady rest Reduction bushing CM 7 / 4 Fixed tailstock CM 4 Rotary tailstock CM 4 Thread comparator Turret guard Spindle guard Rear splash guard Quick change turret type B LED lamp Cooling system Electromechanical foot brake Bathed carriage gears oil Quick-lock tailstock carriage Dsdpfxjvbqv Hs Ah Secb

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Dcjdpfxed Tm D Ej Ah Sob Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Dcsdpfx Ahswlvlgj Sob Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: good (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 0540/98, Manufacturing number: 0540/98. Djdpfjicbbzex Ah Socb Year of manufacture: 1998 ,. Capacity: 400 tons. Stroke length: 300 mm. Stroke: 10-40 / min. Slide adjustment 300 mm. Installation height: 700 mm. The table measures 1600 x 1300 mm Net weight: 45 tons. Gable opening: 1600 mm. Exterior dimensions 2 x 3 x 6 meters. Control system MEAB. Coil feeder / straightener iRON RNE 50B / 11. Decoiler iRON SA6000 max 700 mm.

Condition: used, Year of construction: 2011, functionality: limited functionality, bar passage: 51 mm, overall weight: 6,000 kg, bar capacity 51 mm – three turrets – three Y axes – fixed/driven tool holders – LNS Sprint 552 bar feeder new in 2011 – Fanuc Control Dodpfx Aowvvyrjh Sscb

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC Dodpfx Aswpluljh Secb
