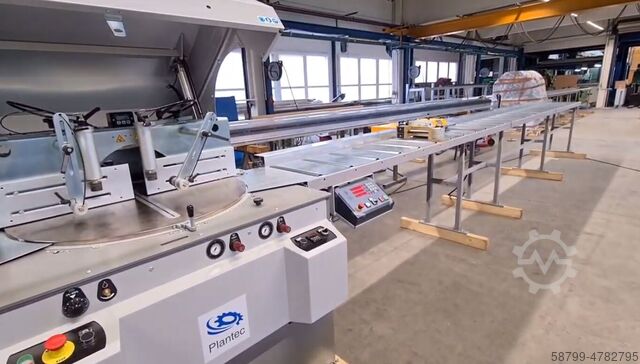

Aluminum circular saw

Plantec TMA 60

Condition: new, Year of construction: 2024, pressure: 8 bar, Miter setting horizontally 15°- 90°15° infinitely variable saw motor 5.50 KW (400 volts) saw blade 600 mm traversing range rear stop 180 mm working height 940 to 1000 mm adjustable via feet 2 x suction nozzles (above in the hood and below) net weight 600 kg WxDxH 135x140x150 cm RAL 9007 gray aluminum rotary plate polished nickel steel Saw head with recirculating ball guides designed with high accuracy and long service life and high rigidity. Sawing material can be preloaded with low pressure when the hood is open. Hydropneumatic sheet feed Chip flow towards the extraction hood. Furnishing • Precision underfloor circular saw • Miter adjustment 0º/ 45º/ 90º/ -45º / -60º continuously • incl. 2 pneumatic vices (vertical) • Infinitely adjustable saw blade feed • Two-hand safety control • Adjustable material stop (rear) • Suction device-swarf extraction system Othgf • Mist spray device for air-oil cooling • Air gun with spiral hose • incl. maintenance unit with pressure reducer • Ergonomically arranged control panel • maximum cutting height 230 mm Hxdcvds7y • Saw blade 600mm • Saw blade not included! Our NC pusher system ensures that your machining parts are positioned at the desired machining position on our UK 600 HA 90°. A gripper clamps the material, the NC control positions the material automatically. The tension and the sawing process are then triggered. The positions are previously programmed into the program control. Once the machine tool has completed your machining, it automatically moves to the next sawing position. Depending on the processing part, several parts can also be clamped on top of each other/next to each other and positioned at the same time. It is always possible for you to inspect the desired system in our production/demonstration hall. Please do not hesitate to contact us. Ijdpfx Ajgwt S Tjhujht

Condition: new, saw blade diameter 350 mm capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15 - 90 U/min total power requirement 3,0 kW weight of the machine ca. 0,68 t dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Electro-pneumatic, vertical, linear-guided automatic saw for use of HSS saw blades to make series cuts from 60° left to 45° right steel. The machine also works in semi-automatic cycle. CNC machine with multiprocessor and two with MEP control, latest generation controlled axes that make it possible to achieve 1000 with the same material thickness different cutting programs, each with a different cutting length and number of Ihodefg Rlcopfx Ahujt pieces program.

Condition: used, Year of construction: 1995, cutting width 375 mm Cutting height 150 mm dimensions of saw-blade 500 x 30 mm Motor output 2 x 3 kW Cutting length 5100 mm speeds 2800 U/min air pressure 6 bar weight of the machine ca. 700 kg dimensions of the machine ca. 6100 x 1450 x 1450 mm * Profile support plate made of steel * Stable cast construction of the saw unit * Large cutting range, 2 profiles can be cut at the same time * Easy adjustment of the moving unit with roller guides * Double storage of the swivel device * Safe clamping thanks to the two-pressure system * Double saw feed guide Isdotv Rgrspfx Ahueht * Hydropneumatic saw feed * External dimension correction scale * Left saw unit fixed * Swivel range 45°-90° * Including suction (without piping) ALKO Mobil-Jet 100 year of manufacture 2002

Condition: new, Year of construction: 2026, No matter what job you need to cut A700 is the only saw you will ever need. With the largest capacity in its class and massive ±75º mitre angle range capability, it is designed for genuine high mitre angle cutting without compromising on the size of the aluminium profiles you may need to cut. Suitable for bundle-cutting many profiles at once and with high-precision. High-speed aluminium processing with precision PLC controlled motion. Pneumatic actuated safety guard, opening and closing with a press of a button for a full unimpeded saw table access. Safety switch disabling the saw on lifting of the guard. Optional CNC controlled saw mitre angle positioning with touch-pad screen control. • Ø700 mm TCT saw blade with 4 kW drive motor • AS / NZS 4024:2014 safety standard, two hand press cut operation • Overhead safety guard with safety tunnels 900 mm each side of the saw • Safety guard pneumatically liftable on a press of a button • Safety switch disabling the saw operation on guard up Ihjdpfxomb U Tus Ahuot • 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure • Mitre angle ±75° with pin locating at 0°, ±15°, ±22.5°, ±30°, ±45°, ±60°, ±75° • Spray-mist blade lubrication system • Air gun and LED interior light • 2× Ø100 mm attachment points for chip collection • Optional 2.2 kW chip vacuum extractor • Optional automated mitre control system Highly suitable for: • Bulk aluminium manufacture • Mitered aluminium structures manufacture • Windows and doors manufacture • Blinds, shades and furniture manufacture • Fabricated aluminium structures manufacture • Aluminium facades manufacture

Condition: ready for operation (used), overall weight: 188 kg, Keyence Agilista 3D printer 3110W incl. rinsing tank and accessories Ihodsryxltjpfx Ahust Technical data: Model: AGILISTA-3110W Printing material: AR-M2 (transparent printing material) Support material: AR-S1 (water-soluble support material) Installation space: 297 × 210 × 200 mm (DIN A4 size × 200 mm) Resolution: 635 × 400 dpi Layer thickness: High resolution 15 µm Normal resolution 20 µm Mains connection: Supply voltage 100 to 240 VAC, 50/60 Hz Power consumption: Max. 750 VA Interface: Ethernet 10BASE-T / 100BASE-TX Operation: Interactive color touch panel Supported operating system: Windows 10 64/32 bit, Windows 8/8.1 64/32 bit, Windows 7 64/32 bit, Windows Vista 64/32 bit *1 File format of the CAD data: STL file Dimensions: W 944 × D 700 × H 1360 mm Ambient resistance: Ambient temperature +18 to +25 °C Relative humidity 30 to 70 % RH Weight: 188 kg

Condition: new, Year of construction: 2026, Fully automatic cutting of small-medium aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. Optional fully automatic inline optimiser. Automatic measuring of aluminium profile lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional). • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. • Fully adjustable saw cutting and aluminium feeding rates for maximum process productivity. • Automatic optimiser mode with aluminium laser length measure and optimisation for minimum waste (optional). • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). Highly suitable for: • Windows and doors manufacture • Commercial office manufacture • Data centres manufacture • Linear lighting manufacture • Blinds and shades manufacture • Composites manufacture Isdpfef Eh Hwox Ahueht Model: A420 Length: 9 m Material Length: 8580 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.

Condition: new, Year of construction: 2026, Supercharge your aluminium cutting productivity with one of the most flexible, large-capacity saws around. A550 is designed for high mitre angle cutting with a huge ±75º saw mitre range supported by a large capacity blade to provide genuine high-angle cutting capability but without compromising on the aluminium size you may need to cut. Suitable for bundle-cutting many profiles at once and with high-precision. High-speed aluminium processing with precision PLC controlled motion. Pneumatic-actuated safety guard opening and closing with a press of a button for full unimpeded saw table access. Safety switch disabling of the saw on guard up. Optional CNC controlled saw mitre angle positioning with touch-pad screen control. Iodpomb U Tfjfx Ahusht • Ø550 mm TCT saw blade with 4 kW drive motor • AS / NZS 4024:2014 safety standard, two hand press cut operation • Overhead safety guard with safety tunnels 900 mm each side of the saw • Safety guard pneumatically liftable on a press of a button • Safety switch disabling the saw operation on guard up • 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure • Mitre angle ±75° with pin locating at 0°, ±15°, ±22.5°, ±30°, ±45°, ±60°, ±75° • Spray-mist blade lubrication system • Air gun and LED interior light • 2× Ø100 mm attachment points for chip collection • Optional 2.2 kW chip vacuum extractor • Optional automated mitre control system Highly suitable for: • Windows and doors manufacture • Mitered aluminium structures manufacture • Aluminium fabricated structures manufacture • Composites manufacture • Blinds, shades and furniture manufacture • Aluminium retail sales

Condition: new, Year of construction: 2024, The UK-400-A semi-automatic circular saw is an "upcut" machine and is mainly used to cut profile materials made of cast aluminium, copper and hard plastics (requires solid material). The machine is characterized by easy handling and fast, convenient changing of the material as well as simple adjustment of the miter angle. The UK-400 A has an infinitely adjustable miter range left and right up to 20° (swivel range twice 70°). The saw feed takes place independently at the push of a button, the material is clamped via two pneumatically controlled vertical and horizontal clamping cylinders. This machine comes standard with a minimum lubrication system and an air spray gun for cleaning the machine! Connections for a chip extraction system are available on this machine. Furthermore, this machine can optionally be equipped with a digital miter angle display, a marking laser and pneumatics for lifting the protective hood! Furnishing • Precision underfloor circular saw • Miter adjustment 0º/ 45º/ 90º/ -45º / -60º continuously • incl. 2 pneumatic vices (vertical) • Infinitely adjustable saw blade feed • Two-hand safety control • Adjustable material stop (rear) • Suction device-swarf extraction system • Mist spray device for air-oil cooling • Air gun with spiral hose Iedsgwt Rnjpfx Ahuoht • incl. maintenance unit with pressure reducer • Ergonomically arranged control panel • maximum cutting height 130mm • Saw blade 400mm • Saw blade not included! It is always possible for you to inspect the desired system in our production/demonstration hall. Please do not hesitate to contact us.

Condition: used, Year of construction: 2001, saw blade diameter 400 mm cutting diameter 240 mm Ihedpfxet Hyp Aj Ahujt stroke 9999 mm load centre 10/60 U/min rotary disc high 240 mm component weight 170 mm total power requirement 6 kW speeds 3100 kg peripheral speed 3450 x 1470 x 1910 mm

Condition: new, Semi-automatic miter saw SALVAMAC LEGEND 500 Cutting height max. 125mm Introductory special price Includes: - Semi-automatic miter saw SALVAMAC LEGEND 500 Cutting height max. 125mm SAFE - SOLID - FAST The compact, simple, robust and innovative machine guarantees maximum safety, flexibility and reliability. Standard accessories: - Automatic protection and pressure device - Ergonomically positioned 2-hand control - Protective shield, rigid - incl. HM saw blade 500 mm Z = 108 Technical data: Maximum cutting area: 220 x 125 / 260 x 100 / 285 x 80 / 310 x 50 mm Saw motor: 5.5 kW Saw blade diameter: 500 mm Rotation speed: 2,800 rpm. Compressed air: max. 8 bar Air consumption per cycle: 5 Nl Extraction nozzle: 1 x 120 mm / 1 x 100 mm Voltage: 400 V / 50 Hz / 3 Ph. Working height: 900 mm +/- 20 mm Minimum distance between stop (left side) and saw blade: 70 mm Minimum distance between stop (right side) and saw blade: 520 mm Minimum distance between 2 stops (optional): 60 mm Note: Basic price without roller conveyors. When setting up the saw, a support table or roller conveyor must be installed at least 1 m to the left and 1 m to the right of the saw. Included: - Roller conveyor without scale on the right, per meter Roller conveyor 320mm wide, with 100mm stop ruler and galvanized rollers, load capacity 230 kg, diameter 60 mm, distance 250 mm, right of the saw, price per meter Isdpfxevtrkio Ahuoht Note: 1 m and 2 m long roller conveyors can be retrofitted. Include: - Roller conveyor with stop ruler and scale on the left, per meter Roller conveyor 320mm wide, with 100mm stop ruler and galvanized rollers, load capacity 230 kg, diameter 60 mm, distance 250 mm, right of the saw, price per meter Note: The stop must be ordered separately. 1 m and 2 m long roller conveyors can be retrofitted. Include: - Pneumatically pivoting stop with 200 mm length - new exhibition machine -
