Milling machine

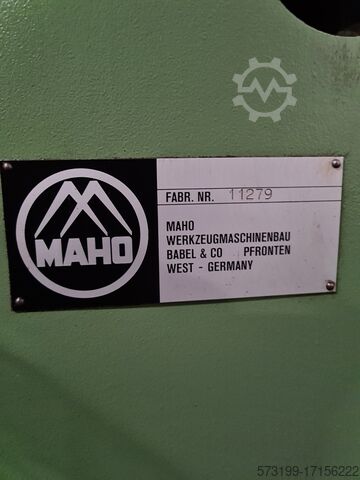

MAHO MH1000C

Condition: ready for operation (used), Year of construction: 1985, operating hours: 29,192 h, spindle speed (max.): 4,000 rpm, total height: 2,988 mm, total width: 4,288 mm, overall weight: 9,000 kg, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 800 mm, product length (max.): 4,152 mm, number of axes: 3, This 3-axis MAHO MH 1000 C/A was manufactured in 1985. It has approximately 29,192 machine hours and includes manuals and documentation. The protective doors are partially disassembled but included. If you are looking to get high-quality machining capabilities, consider the MAHO MH 1000 C/A universal machining centre we have for sale. Contact us for further details. Tool interface ISO 50Quill stroke vertical spindle mm 100Spindle speed range rpm 20–4000Spindle speed override % 80–120Feed rate X Y Z mm/min 1–4000Feed force X Z N 8000Feed force Y N 24000Rapid traverse m/min 10Feed and rapid override % 0–140Table diameter mm 1250Table length mm 800Center bore mm 42 H7T-slots 7T-slot spacing mm 100Manual cross adjustment mm 275Table indexing ratio 1:120Table rotation per handwheel turn deg 3Table rotation per division deg 2Positioning resolution deg 0.001Increment per division mm 0.026Table swivel X-axis deg ±30Table swivel Y-axis deg ±30Table rotation deg 360Table clamping pressure bar 80Max table load kg 800Table weight kg 1100Frequency Hz 50Total connected load kVA 36Total load with coolant kVA 41Total load with coolant and tool changer kVA 46Positioning resolution mm 0.001Machine hours approx h 29192Condition currently idle not in operationDocumentation manuals availableProtective doors partially disassembled includedIncluded accessories none tool holders not includedTable axis one axis manual only not referenceable error present Pgodpfxey Hizqj Airot

Condition: excellent (used), Year of construction: 1990, machine/vehicle number: 30216 & 30277, feed length X-axis: 1,000 mm, travel distance X-axis: 1,000 mm, Universal tool milling machine Make: MAHO Model: MH 1000 2x available! x-way 1000 mm tool holder SK 40 digital display . Head tiltable +/- . Table tilt and swivel +/- . Quill stroke . - 3-axis digital display Pgedsp S Schepfx Airst - Universal table 1.250 x 740 mm (T-slot 16 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - 6 autom. quill feeds 0,02/0,03/0,05/0,08/0,12/0,20 mm/Umdr. - central lubrication, manually operated The machine can be inspected with pleasure. Immediately ready for use Free loading, transport no problem.

Condition: used, Year of construction: 1985, For sale: MAHO MH 1000C milling machine Factory number 11429 Pgodpfjzzw Tbox Airst BKW GmbH model S.05ES Year of manufacture: 1985 18 bar, Vol. 1.6 m3/h; 3000 1/min; kW 0.36; 50/60 Hz; V 190-240; A 2.85 Net price: 7000 Euro

Condition: new, distance between shaft and table: 470total power requirements: 2,2 kwweight approx.: 1,2messurements (LxWxH): Länge2400 mm Breite/Tiefe2160 mm Höhe2300 mm Gewicht 1200 kgspindle rotation speed: 60 4200 min¯¹ Pgsdped H Hhzjfx Airst

Condition: good (used), machine/vehicle number: 85382, UNIVERSAL MACHINING CENTER MAHO MH 800 C, series: 85382 X axis stroke 800 mm Y axis stroke 500 mm Z axis stroke 600 mm Work table dimensions: 900x625 mm Maximum weight allowed on the table: 600 kg Spindle rotation speed: from 20 to 5.000 rpm, 15 kW Tool taper: ISO 40 cone Tool shop with 30 positions MAHO numerical command Machine dimensions: 3,350mm x 2,520mm X 2,500mm; Car weight: 6,200 kg Good technical condition Price EURO 7.000 + VAT Irrtum, Anderungen und Zwischenverkauf vorbehalten / Pgodpfxoldgf He Airet Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Condition: ready for operation (used), Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible. Pgedpfxowynvts Airet

Condition: used, CNC 5-Axis HMC – Horizontal Machining Center, Milling Center, Manufacturing Center Manufacturer: LICON Model: Liflex 1266 PC B1 Year of construction: 2016, Commissioned: 2017 Equipped with SIEMENS 840D SL (Solution Line) CNC path control, with 5 simultaneously controlled axes Travel paths X: 1200 mm, Y: 660 mm, Z: 650 mm A-axis as swivel bridge +/– 135° (270°) B-axis 360° continuous Axis acceleration X + Y-axis 6 m/s² Axis acceleration Z-axis 9 m/s² Feed force X + Y-axis 7500 N Feed force Z-axis 10000 N Positioning tolerance (X/Y/Z) 0.008 mm A-axis swivel speed 180° rotation in 4 sec. Interference diameter on the swivel bridge max. 1400 mm Transport load on the swivel bridge max. 700 kg Tool holder HSK 63 Pgsdpfx Ajt Ac Efoirjt Spindle speed max. 12,000 rpm, stepless Spindle power 37kW at 40% duty cycle Spindle torque at 40% duty cycle 85 Nm Maximum spindle torque 100 Nm Tool change time (chip-to-chip) approx. 3.7 sec. Tool diameter with adjacent slots occupied Ø 140 mm Tool diameter with adjacent slots free Ø 250 mm Maximum tool length 400 mm Maximum tool weight 20 kg Power supply 400 Volt, 50 Hz Connected load 80 kVA Compressed air connection 5-8 bar - LIFLEX MSP 80/63/85/12,000 motor spindle (output 37kW/40% duty cycle) with liquid cooling and recooling unit - 2-axis rotary tilting table LICON as B- and C-axis, with hydraulic axis clamping - Zero-point clamping system on the swivel axis turntable - Dual pallet changer, without pallets (these need to be newly sourced) - Media transfer of 5 single-action pressure lines for oil or air, for workpiece clamping on the pallets Hydraulic functions from 30-150 bar, with pressure monitoring (controllable via M-functions) - Tool changer with 30 tool positions, disc turret type - Machine designed for dry machining with minimal quantity lubrication (MQL) system - MQL-TSC, internal MQL lubrication supply through the spindle - Scraper belt chip conveyor, discharge height 1150 mm - Licon ECO-Mode (energy-efficient aggregate operation) - Direct linear measurement system on all axes - Operating hours (control voltage on) ≈ 7,500 h Space required for operation L x W x H 9,000 x 5,000 x 3,800 mm Space required for transport L x W x H 6,100 x 4,400 x 3,600 mm Base machine weight approx. 21 tons Total weight: approx. 24 tons Very good condition

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base Psdpfx Aodzqb Seirsgt - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Very good condition

Condition: new, x-travel 300 mm y-travel 200 mm z-travel 350 mm table-size 700 x 200 mm spindle taper ISO 40 turning speed range - horizontal 150 - 1660 U/min turning speed range - vertical 110 - 1230 U/min Podpfx Aisfrzunoregt quill stroke 120 mm spindle drive 3,0 kW weight of the machine ca. 1,15 t dimensions of the machine ca. 1,31 x 1,38 x 1,65 m

Condition: used, CNC milling machine ABENE, Type VHF-360TI Serial No. 36084 Year of manufacture 2008 CNC control HEIDENHAIN TNC 320 Travel ranges X: 650 mm, Y: 510 mm, Z: 450 mm Table size 1200 x 400 mm Spindle mount SK 40 Spindle speed 55 - 3000 rpm, 2 speeds Feed rate 30 - 4000 mm/min, stepless Rapid traverse rate (X + Y-axis) 4000 mm/min. Rapid traverse rate (Z-axis) 2000 mm/min. Distance spindle nose to table 20-495 mm Pgedoty A Ehjpfx Airet Motor power spindle drive 7.5 kW Power supply 400 Volt, 50 Hz - CNC path control HEIDENHAIN TNC 320 with interfaces RS232, USB and LAN - Electronic handwheel for X, Y and Z axis - Mechanical handwheels for X and Y axis - Spindle speed can be manually switched with 2 gear stages (Stage 1 = 55-700 rpm) + (Stage 2 = 701-3000 rpm) - Inclined bed design with side-mounted, swiveling spindle head +/- 50° - Inclined bed adjustment manually via hand crank - Hydro-mechanical tool clamping - Automatic central lubrication - Coolant system with electric coolant pump located beside the machine - Machine light - Control cabinet firmly attached to the machine - Operating hours read on control system when switched on = 14780 hrs. - Operating hours read on machine when switched on = 12980 hrs. - Operating hours read on program run = 400 hrs. Space requirement L x W x H 2600 x 2000 x 2000 mm Weight 2500 kg Very good condition
