Used Maho Milling Machine for sale (446)

Condition: new, functionality: fully functional, A new control system for your machine – modern servos – new controller – up to 6 axes The Retrofit Kit V2.0 enables the existing scale of Maho 600 Series industrial machines to continue being used. Pedpfxoxz Dkgo Agqsgw Previously, digital operation required feedback from the motor to the servo amplifier. With the analog system, position feedback is routed to the CSMIO. This means that the motor encoder is now only required for the servo drives, no longer for the CNC controller. As a result, pitch errors can be eliminated thanks to the direct measurement approach. The kit for the Deckel Maho 600 Series includes: - 1 x Delta B3 Controller with 1500-watt output - 1 x Delta B3 Motor 1500 watts with brake - 2 x Delta B3 Controllers with 1000-watt output each - 2 x Delta B3 Motors 1000 watts - 2 x 5-meter encoder cables - 2 x 5-meter motor cables without brake - 1 x 3-meter encoder cable - 1 x 3-meter motor cable with brake - 2 x B3 plug-in boards without brake incl. 3 patch cables per board - 1 x B3 plug-in board with brake incl. 3 patch cables per board - 1 x BIG IO interface module - 1 x Maho Deckel & Co connection board - 2 x encoder boards - 1 x Digital Input 12-23 board - 1 x patch cable set - 1 x CSMIO IP-A controller - 1 x milling SIM software with customized interface - 1 x 24 V 10A power supply - 1 x power distribution unit with LED display - 1 x C2000 4.0 kW frequency inverter We are also happy to provide you with a quote for Deckel, Mikro, etc.

Condition: ready for operation (used), Year of construction: 2000, Immediately available ex CH toolmaking: 5-axis milling machine Deckel Maho Type DMU 35 M Year of manufacture: 2000 CNC control: Heidenhain TNC 310 M Electronic handwheel Table: 400 x 280 mm Table load capacity up to 100 kg Podpjxzdkaefx Agqsgw Travel X/Y/Z: 350/240/340 mm Stepless spindle speeds: 0 – 5000 rpm Taper: SK 40 Rapid traverse: 5 m/min Servo motors for X/Y/Z axis Swivel range: 360 degrees Table clamping: plus 105 / minus 150 degrees Weight: 2 t Tool holders, hydraulic vice Price: EUR 5,750 plus VAT, ex location

Condition: used, Year of construction: 2006, x-travel 500 mm y-travel 450 mm z-travel 400 mm Podjvanqxopfx Agqogw control iTNC 530 Heidenhain turning speed range - main spindle 20 - 10.000 U/min power capacity - main spindel 9 / 13 kW Torque 57 / 82 Nm tool taper SK 40 table surface area 630 x 500 mm Tilting area -5 / +110 ° max. table load 200 kg T-slots 14 H7 T-slot - distance 63 mm C-Axis +/- 360 ° rapid travel ( X / Y / Z ) 12 m/min feed speeds 10.000 mm/min Tooling 16 pos. max. tool weight 6 kg max. tool length 300 mm max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm tool taper SK 40 total power requirement 17 kVA weight of the machine ca. 3,6 t dimensions of the machine ca. 3,0 x 3,0 x 2,5 m Tool Room Milling Machine - Universal DECKEL MAHO - DMU 50 - 5 Axis (3+2) - only 10.071 Spindle Hours - WITHOUT tools

Condition: excellent (used), Year of construction: 1989, Philips CNC 432 control Travel paths X/Y/Z 600 x 400 x 450 mm Pedpfx Agexc N Iyoqsgw Spindle speed 4,000 rpm 20-position tool magazine SK 40 4th axis Lehmann

Condition: used, Universal milling machine table, angle table, setup angle, clamping table, presumed MAHO make T-slot table, add-on table for universal tool milling machine Table no.: 76-400-1 / 2210 05 00 Table size: 700 x 330 mm Pgsdpfx Agjxy Styjqow Overall height: 210 mm T-slot width: 12 mm T-slot pitch: 45 mm - Table plate with 7x T-slots, 12 mm each - Mounting surface 90°, 13 mm diameter holes, 14 mm elongated holes for fastening and 12 mm guide slot - Hole spacing, top mounting plate Ø 13 mm = 500 mm, 50 mm from the table surface (measured at center) - Hole spacing, middle mounting plate Ø 13 mm = 472 mm, 95 mm from the table surface (measured at center) - Elongated hole spacing, middle mounting plate = 475 mm, 140 mm from the table surface (measured at center) - Elongated hole spacing, bottom mounting plate = 475 mm, 185 mm from the table surface (measured at center) Dimensions (L x W x H): 820 x 330 x 210 mm Weight: 61 kg In good condition

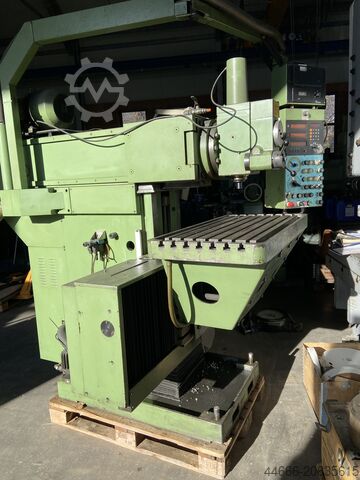

Condition: repair required (used), Year of construction: 1980, Tool milling machine MAHO 800 P with milling head and quill feed. In need of repair. Suitable for spare parts usage. Parts can also be sold individually. Podpfxexz D T Uo Agqogw

Condition: used, Technical details: x-travel: 700 mm Pgedpsvc Avhsfx Agqew y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Equipment: -cooling water pump with feed -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice *

Condition: used, Year of construction: 1997, Immediately available from training workshop: CNC 5-axis milling machine Deckel Maho Model: DMU 50 T Year of manufacture: 1997 Control: MillPluss SK 40 Spindle speeds: 20 – 9,000 rpm Travel X/Y/Z: 500/400/400 mm Table: tilting rotary table 700 x 500 mm Manual tilt B axis 105° (-10/+95°) Manual rotation 360° Table load max 200 kg Tool changer: 16 positions Feed rates max 10,000 mm/min Rapid traverse: 12 m/min Drive: 17 kW Pjdoxy Ralepfx Agqjgw Weight: 3 t Extensive accessories: hydraulic vice, tool holders, milling cutters Price: €6,500.— plus VAT ex location

Condition: excellent (used), Year of construction: 2022, operating hours: 46,259 h, functionality: fully functional, machine/vehicle number: 11210001263, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 10,000 rpm, Control: Heidenhein Mill plus Clamping Table 1000 x 800 mm Taper HSK 100 Toolchanger 120 position Exchange of tables : 2 tables Pgsdpfexzddtox Agqew Coolant tank: 2000l Machine is in running condition, machine has spindle coolig

Condition: used, Year of construction: 1999, x-travel 600 mm y-travel 525 mm z-travel 500 mm table surface area 1000 x 543 mm spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min Pedpfx Agotqqmhoqsgw feed X/Y/Z-axis 20 - 10.000 mm/min rapid traverse X/Y/Z axis 18 / 18 / 15 m/min table load max. 350 kg control HEIDENHAIN MillPlus milling-head swivable +/- 90 ° total power requirement 26 kVA weight of the machine ca. 4,2 t dimensions of machine L x W x H 2,95 x 2,1 x 2,26 m Accessories: various tool fixtures, coolant

Condition: used, Universal Milling Machine MAHO MH 800 Travel X: 700 mm Travel Y: 450 mm Travel Z: 450 mm Spindle SA 40 Spindle exit : 125 mm Spindle speed: from 32 to 1600 RPM Table size: Length 1050 mm x Width 620 mm Manual table travel: 225 mm Table rotation at 360° Swivel table at +/- 30° Scale 3 axes ACU-RITE Sensory drilling Feeds spindle not working Clutch speed used Lubricant pump Voltage: 380 V Width: 2000 mm Depth: 2100 mm Height: 2500 mm Pgodoxxa Rkjpfx Agqow Weight: 3 T

Condition: used, x-travel 500 mm y-travel 380 mm z-travel 350 mm speeds 20 - 5000 U/min table surface area 800 x 355 mm tool taper SK 40 control HEIDENHAIN TNC 124 total power requirement 6,0 kW weight of the machine ca. 1800 kg dimensions of the machine ca. 2210 x 2680 x 1965 mm From a training center (“Daimler Chrysler AG”) Completely overhauled in 2006 for approx. 33,000 euros Includes new HEIDENHAIN “124” control Very little use since overhaul (!!) Operating hours – “machine ON” only: 10,407 hours Psdpevuz Rusfx Agqegw Features: - Electric CNC universal tool milling machine - HEIDENHAIN TNC 124 linear control (installed in 2007) * Swiveling control panel, front right of the machine - Electro-hydraulic tool changer - Vertical milling head - ISO 40 with vertical work spindle * Manual spindle feed .. 50.0 mm * Scale ring for reading the quill adjustment - Horizontal work spindle incl. counterholder - Rapid traverse feed X-axis .. 0 - 4000 mm/min - Rapid traverse feed Y-axis .. 0 - 2000 mm/min - Rapid traverse feed Z-axis .. 0 - 4000 mm/min - Central lubrication, electric - Pneumatic minimum spray device (lubrication system) - Coolant device - Machine stand with base - Machine light - Original operating instructions + circuit diagram + acceptance report, etc.

Condition: excellent (used), Year of construction: 1990, MAHO MH 500W with Heidenhain TNC 320 The machine comes from a training workshop and is in very good condition. The TNC 320 offers intuitive and highly flexible operation and programming according to current industry standards. Technical specifications: - Heidenhain TNC 320 retrofit - Travel X- 500 mm, Y- 380 mm, Z- 350 mm - Spindle taper SK 40 - Vertical quill stroke 50 mm - Spindle speeds 20–3150 rpm, stepless - Feed rate 1–3000 mm/min - Rapid traverse 5 m/min - Table load capacity 250 kg - Total power requirement 11.3 kW - Machine weight approx. 2 t - Handheld control unit - Safety guard An on-site inspection/test under power is, of course, possible. We are happy to offer transport, installation, and commissioning at your location. Everything from a single source: We, Baumgärtner CNC GmbH, are a company specialized in: Pgsdpfx Ajxw N S Iegqew - Service - Maintenance - Overhaul - Automation of DMG machines and equipment from other renowned manufacturers. We support you throughout the entire process! From machine purchase, transport, and delivery, up to commissioning and subsequent maintenance or repair work – you can rely on us.

Condition: ready for operation (used), Year of construction: 1989, Available immediately from location: Pedpfxjxy N Nxe Agqsgw MAHO Toolroom Milling Machine Type MH 500 M Year of manufacture 1989 Heidenhain Digital Display Table 800 x 360 mm SK 40 Spindle speeds 63 – 4000 rpm Quill stroke 50 mm Travel X/Y/Z 500/380/350 mm Drive 3 kW Feed rates 10 – 1000 mm/min Coolant system Weight 1600 kg Adapters Hydraulic vise Price: €3,000 plus VAT, ex location

Condition: reconditioned (used), Year of construction: 2004, With MILL PLUS iT CNC control Year of manufacture: 2004 Travel distances: X 1000 Y 1000 Z 1000 mm Speed range: 0 – 8,000 rpm stepless (SK 50) Including the following accessories: - NC rotary table 900 mm x 700 mm clamping surface (table load max. 1.4 t) - Universal milling head with controlled B-axis - Universal tool changer with 40 magazine slots, double gripper (SK 50) - Fully enclosed safety cabin with sliding doors and interior lighting - Coolant high-pressure system – 40 bar - Chip conveyor Pedpfx Aoxn Aibogqsgw - Rotoclear - 3D probing system Heidenhain TS 641 - Operating modes 3 + 4 - Electronic handwheel - Chip-blowing pistol - 50 tool holders SK 50 - 3 height-adjustable machine mounts - Transport device - Operating manuals

Condition: used, Technical data: Tool holder: SK 40 Travel X/Y/Z: 400 / 375 / 250 mm Speed range: 50 - 3150 rpm Feeds: X/Z-axis: 5 - 1000 mm/min Y-axis: 5 - 670 mm/min Rapid traverse: Pgjdpsxxkw Uofx Agqjw X/Z-axis: 2.4 m/min Y-axis: 1.6 m/min Table size (vertical): 205 x 800 mm Quill stroke – vertical spindle: 50 mm Power: 4 kW Dimensions (WxDxH), approx.: 1790 x 1550 x 1800 mm Equipment: - Rapid traverse - Coolant system - Emergency stop push button - Machine light

Condition: used, Year of construction: 1987, Universal CNC Milling Machine CNC MAHO MH 400 E Travel X: 400 mm Travel Y: 375 mm Travel Z: 250 mm Numerical Command CNC PHILIPS 432 Table: 700 x 270 mm Cone: SA40 Spindle speed: from 80 to 4000 RPM Year of construction: 1987 Pgodpfjxxa A Hex Agqew Central lubrication Manually swivel head Supplied with doc + machine parameters Voltage: 380 V Width: 2200 mm Depth: 2000 mm Total height: 2000 mm Weight: approx 1,5 T

Condition: used, x-travel 400 mm y-travel 400 mm z-travel 300 mm rapid traverse 1,2 m/min feed range 5 - 500 mm/min creep feed 1:100 tool taper ISO 40 stroke v60 h70 mm table - universal ca. 620 x 320 mm table vertical adjustable 350 mm Podpexv D Uzjfx Agqegw weight of the machine ca. 1200 kg Machine was used in a public facility and is in good condition. Machine can be viewed under power by prior appointment

Condition: defective spare-parts repository (used), Maho MH 600 W from training workshop, exceptionally well-maintained Dimensions Machine depth: 1800 mm Machine height: 2200 mm Machine weight: 3000 kg Pjdexwpyropfx Agqegw Table length: 900 mm Table width: 480 mm Travels X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm

Condition: repair required (used), Year of construction: 1983, functionality: limited functionality, total height: 2,650 mm, total width: 3,640 mm, total length: 4,620 mm, overall weight: 6,800 kg, Technical details: X-axis travel: 1000 mm Y-axis travel: 560 mm Z-axis travel: 800 mm Rapid traverse: 6 m/min Working feed: 1- 400 mm/min. Rotary axis resolution (degrees): 0,001 Podpounwd Tefx Agqsgw Control unit: Philips 432 Spindle revolutions: 20-2000 RPM Spindle stroke: 125mm Spindle taper: ISO 50 Spindle power: 15kW Feed force axis X and Z: 8000N Feed force axis X and Z: 24000N Table size 1250 x 800 mm Table load: 800kg Programing resolution: 0,001mm Documentation for machine Note: Defect electronic card should be replaced. The machine is mechanicaly in excellent condition, and could easily be retrofitted with modern CNC controls.

Condition: reconditioned (used), Year of construction: 2006, CNC Universal Milling & Drilling Machine DECKEL MAHO DMU 80 P duoBlock Podexn Aczepfx Agqegw With MILL PLUS iT path control system Year of manufacture: 2006 Travel paths: X 800 Y 800 Z 800 mm Spindle speed range: 0 – 8,000 rpm, stepless (SK 50) Including the following accessories: - NC rotary table, 900 mm x 700 mm clamping surface (maximum table load 1.4 t) - Universal milling head with controlled B-axis - Universal tool changer with 40 magazine stations, double gripper (SK 50) - Fully enclosed guard cabin with sliding doors and interior lighting - ICS – 40 bar (internal coolant supply) - Chip conveyor - Rotoclear - 3D tactile probe Heidenhain TS 641 - Operating modes 3 + 4 - Electronic handwheel - 50 pcs. tool holders SK 50 - 3 height-adjustable machine feet - Transport device - Operating manuals

Year of construction: 1990, condition: ready for operation (used), Two nearly identical Maho milling machines, one with and one without a tool changer, as well as a complete range of accessories/spare parts, are available. Travel X/Y/Z: 600mm/450mm/450mm, tool holder: ISO40, quill stroke: 80mm, spindle speed: 5000rpm, feed rate: 4m/min, rapid traverse: 6m/min. Tool diameter: 130mm/100mm, max. tool length: 250mm, max. tool weight: 6kg. Machine dimensions: approx. 3150mm/3750mm/2150mm, weight: approx. 3600kg. Documentation available. On-site inspection possible. Pgedjxu I Atepfx Agqsw

Condition: used, Year of construction: 1989, Universal CNC Milling Machine MAHO MH 600 E2 Travel X: 600 mm Travel Y: 400 mm Travel Z: 450 mm Numerical Command CNC PHILIPS 432 Cone SA40 Spindle speed: from 20 to 4000 RPM Table size: 900 x 480 mm TravelSpindle sleeve travel: 80 mm Year of construction: 1989 1 lubricant tank Voltage: 380 V Width: 2500 mm Depth: 2400 mm Podpfx Ajxxa Amsgqogw Total height: 2000 mm Weight: approx 3,5 T

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel Maho DMU 50M with line control TNC 124 from Heidenhain TOP condition !!! Technical data: Pgodpfx Agor Hbf Teqsw >> Year of construction 1998 >> Heidenhain control TNC 124 >> Traverse paths X500/Y400/Z400 >> C and B axis manual with display >> Speed 20- 4500 1/min >> Feed 5000mm/min >> rapid traverse 5m/min >> Tool holder SK 40 >> Table Ø700x500mm >> swivel range +95° /-10° >> electronic handwheel >> Weight 2800Kg >> Machine dimensions approx. 4.0 m x 2.5 m height 2.6 m >> Coolant device >> Power connection 400V 32A About the machine : We are offering a Deckel Maho DMU 50M universal milling machine with a Heidenhain TNC 124 line control in very good condition. The table is manually (digitally) adjustable by two additional axes B and C. A very easy to operate control, it can enter and approach positions, deep and thread drilling, drilling patterns, hole circles, hole rows and rectangular pocket milling. Programs can be entered and read out via an interface. The Heidenhain line control makes work easier and even more precise. The milling machine was used in a large company for training purposes. Take the opportunity to inspect and try out the machine under power on site.

Year of construction: 1988, condition: good (used), For sale is a milling machine of the company Maho and the type 500 W The machine is in good condition and fully functional Year of manufacture: 1988 Heidenhain TNC 232 travels X- 500 mm, Y- 380 mm, Z-350 mm spindle mounting ISO 40 quill stroke vertical 50 mm spindle speed 20-4000 rpm, infinitely variable feed range 1-3000 mm/min Pgsdpfx Agsittrljqew rapid traverse 5 m/min table load 250 kg total power requirement 11,3 kW Machine weight approx. 2 t All prices plus VAT machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES ETC. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or to contact us please visit our website
