Used Cidan Forstner Coil Line 2.00 Mm for sale (80,779)

Condition: used, Year of construction: 1982, Used cut-to-length line FIMI 1250×0.12-0.8mm x16t with two packing stations (A3793) is coil metal processing line to cut metal into sheets with required sizes. Such machine can be good solution for metal coil processing companies. Manufacturer : FIMI – Italy Year of manufacture : 1982 Revamping : 2008 (SEI SISTEMI) and 2019 (SEI SISTEMI) Ce marking : 2019 Material before processing : Max coil width 1250 x 0.12 Г· 0.80 mm. Uncoiler capacity : 16 Tons. Sheets dimensions : min. 300 x 500 mm. – Max 1250 x 2000 mm. Working speed 0-120 m/min. LIST OF MACHINES COMPOSING THE LINE ➢ STOCKING RAMP FOR 2 COILS ➢ COIL LIFT ON UNCOILER ➢ UNCOILER WITH SECTORS DIAM. 400 AND DIAM. 508 MM. ➢ PINCH-ROLL FOR STRIP FEEDING TO LEVELER ➢ 6HI-LEVELLER WITH INTERCHANGEABLE ROLL BENCHES – 1 BENCH FOR THICKNESS 0.12 ÷ 0.50 MM. – 1 BENCH FOR THICKNESS 0.50 ÷ 0.80 ➢ CONNECTION TABLE BETWEEN LEVELER AND PINCH-ROLL ➢ PINCH-ROLL ➢ DESCENT ROLLWAY IN LOOPING PIT ➢ ASCENT ROLLWAY FROM LOOPING PIT ➢ PINCH-ROLL WITH MOTORIZED ROLLS ➢ STRIP CENTERING DEVICE WITH VERTICAL ROLLS ➢ THICKNESS MEASURER TYPE ELECTRONIC KEYBOARD ➢ ROTATING SHEAR ➢ SWIVELLING CONVEYOR TO AVOID SCRAPS AND PARTS OF DEFECTIVE STRIP ➢ COLLECTION BOX FOR TRIMMING AND DEFECTIVE PARTS OF THE STRIPS ➢ SWIVELLING CONVEYOR TO AVOID SCRAPS AND PARTS OF DEFECTIVE STRIP IN THE FIRST AND SECOND COLLECTION BOXES AND STACK COMPOSITION ➢ CONNECTION ROLLWAY AND SECTION FOR CONVEYING OF SHEETS IN THE THIRD BOX. ➢ 3 STACK UNLOADING SHUTTLES TO CONVEY STACKS TOWARDS THE ROLLWAY ➢ 1 EVACUATION ROLLWAY FOR THE PACKAGING ➢ HYDRAULIC EQUIPMENT FOR ALL THE LINE ➢ INTRODUCTION STRIP OPERATION PULPIT LOCATED AT LINE ENTRY FOR COILS CUTTING Gbodpjttlfkofx Afuou ➢ MAIN PULPIT FOR ALL LINE OPERATIONS ➢ OPERATION PULPIT LOCATED AT LINE EXIT ➢ ELECTRICAL CABINET CONTAINING ALL ELECTRICAL/ELECTRONIC COMPONENTS AND PLC ➢ PHOTOCELLS AND SAFETY/PROTECTION BARRIERS.

Condition: used, Year of construction: 2023, Used for the production of refrigerator door panels. Line Specifications: Manufacturer: MAS AUTOMAZIONI SRL Year of manufacture: 2023 Electrical supply: 400 V (±10%), 50 Hz Compressed air: 4.5-6 bar, dew point +5°C Cycle time: 10 seconds Gbsdpfszummqox Afusu Changeover time: Automatic Line dimensions: 38.1 m (L) × 9.6 m (W) × 4.4 m (H) Sheet dimensions: Length: 400-2200 mm (±1 mm) Width: 650-900 mm (±1 mm) Thickness: 0.35-0.55 mm (±0.04 mm) The metal sheet forming line consists of: Sheet loading with measuring laser sensors. Punching and bending station with 2 sets of bending blades for different shapes. 2 available spaces for additional bending or forming stations. 2nd punching stations. Total number of pieces produced to date: 89,963. 2 scrap conveyors. Siemens S7 control system.

Condition: used, Year of construction: 1994, material width 2000 mm coil weight 35,0 t material thickness 0,6 - 2,5 mm coil internal diameter - 610 mm coil external diameter 900 - 1900 mm material cross-cut 1600 x 2,5 mm² no. of straightening rolls 13 straightening roll diameter 50 mm speed 0 - 60 m/min power requirement 81,0 + kW weight of straightening machine 14,5 t coil line consisting of: - decoiler make Schleicher, Type HE - 355 - 2100, yom 1994 with auxiliary drive, snubber roll - coil lifting device - extractor device make Schleicher Gjdpozrpu Eefx Afuobu - shear - straightening machine make Schnutz, Type RME 18/50/13-2000 TZ, yom 1994 with infinitely variable drive, 30 intermediate rolls, 117 supporting rolls - coil loop bridge - roll feed make Schleicher, Type WV-SYS-A 160-2000, yom 1994

Condition: used, Coil line – Uncoiler and Leveler Year of construction: 1991 Coil width: 50 to 450 mm Sheet thickness with inactive leveler: 6 mm Sheet thickness with active leveler: 2 mm - Very good condition and comprehensive operating instructions Space requirement of the entire system L x W: approx. 7000 x 3000 mm Weight of the entire system: approx. 11 tons Good condition Leveler HMS Type RS 47-04/1, Machine No. Coil width, nominal width: 400 mm Coil width, maximum passage width: max. 455 mm Coil thickness at 400 mm width: max. 1.5 mm (for steel) Coil thickness at 400 mm width: max. 2 mm (for copper) Speed: max. 40 m/min Number of leveling rolls: 7 pieces Leveling roll diameter: Ø 40 mm Number of tension rolls: 2 pieces Tension roll diameter: Ø 80 mm Infeed height, passage height: 1500 mm - Leveling rolls hardened, ground, and hard chrome-plated, with central support - Tension rolls hardened, ground, and hard chrome-plated, with hydraulic gap adjustment - Manual adjustment of the leveling rolls - Infeed guide with hydraulically extendable tongue and hydraulically adjustable idler roller - Adjustable lateral coil guide - All leveling rolls driven via distributor gearboxes with universal joints - Both tension rolls driven via gearboxes with universal joints - Frequency-controlled drive via geared motors - Leveler opening stroke 250 mm for cleaning the system or for processing thicker material, stroke movement via trapezoidal spindle - Ultrasonic loop control Transport dimensions L x W x H: 3600 x 2200 x 2200 mm Weight: approx. 4 tons Uncoiler HMS Type BA 1.5-06/80, Machine No. Coil weight: max. 8000 kg Coil outer diameter: max. 1600 mm (with loading table) Coil outer diameter: max. 2000 mm (without loading table) Diameter of the coil inlet disc: Ø 1700 mm Coil inner diameter, spreading range: 460-520 mm Coil width, nominal width: max. 630 mm Width of the spreading jaws: 750 mm Height of the uncoiler arbor above the base plate: 1500 mm - Drive of the uncoiler arbor via hydraulic motor and gear - Pneumatic retarder brake on the uncoiler arbor TWINFLEX - Hydraulic spreading of the uncoiler arbor, centrally via wedge slide system - Hydraulic pressure arm with hydraulically driven double rocker roller - Coil loading table with 12 tons lifting capacity and 300 mm stroke - Uncoiler in an above-floor running frame with motorized transverse travel drive Transport dimensions L x W x H: 3500 x 1900 x 2500 mm Weight: approx. 5 tons Central hydraulic unit, separate Tank capacity: 350 liters Drive power: 18.5 kW - Drive motor with 2 pumps REXROTH (tandem pump) - Oil cooler as an air heat exchanger with fan motor Transport dimensions L x W x H: 1600 x 850 x 1450 mm Gbodpsif Sg Sefx Afueu Weight: approx. 800 kg Electrical cabinet, separate - All cable connections are made via Harting connectors Transport dimensions L x W x H: 2800 x 500 x 2250 mm Weight: approx. 800 kg

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, warranty duration: 12 months, The Forstner nuSLIT Series makes all your dreams come true, in a modern sheet metal workshop and takes your production to a new level consider flexibility and productivity. With nuSLIT every function can be operated from the touch panel: coil width, finished lengths, straightening pressure to avoid stop marks, the width settings and operation of the slitting knives. nuSLIT can be integrated in a programmed production flow. The control system is totally compatible with nuIT, allowing you to plan and program your entire production from your office desk with no manual intervention. Combine with the number of decoilers you want and a manual or powered coil selector. There isn’t a better slitting and cut-to-length machine on the market! The most important advantages: Alternating knife arrangement Unbeatable slitting precision Innovative clamping system Control system can be integrated with nuIT Fastest knife change on the market Gbjdpfx Aowy Hxaofuou

Condition: used, Year of construction: 1990, material width coil line 650 mm coil weight 2 x 3,5 t coil internal diameter 460 - 530 mm coil external diameter 1500 mm material thickness coil line 0,8 - 3,0 mm no. of straightening rolls 7 no. of rolls at in- and outlet 4 roll diameter 80 mm feed length 0 - 500 mm power requirement 10,0 kW weight 10,0 t dimensions of the coil line 8,8 x 4,0 x 2,55 m Straightening machine Dimeco, 1676 EV with inlet table and pre-shaping roll, hydraulic loading bridge Double decoiler Dimeco 2382 FFPS with pneumatic lag brake, hydraulic expansion, hydraulic snubber roll, coil loading device elektronic roll feed Microfeed 1140 E with DC-drive, pneumatic intermediate lifting of the rolls Gedpfx Afszrprwsujbu can only be offered without putting into operation - video at seller's site before dismantling available

Condition: new, Year of construction: 2026, Build your production facility for the best ergonomics, efficiency and profitability. A sheet metal decoiler will allow your business to save money, reduce waste within your shop and help free up storage space. We have the right solution whether your sheet metal workshop is big or small. CIDAN Machinery has a wide range of decoilers that can be combined to make an efficient production facility based on your requirements – where parameters such as power, distance, time and access to material are decisive for fast and cost-effective production. Using a sheet metal decoiler from CIDAN Machinery: - is very efficient - reduces waste - is ergonomic - saves money. Gbodpemfn Icjfx Afueu

Condition: used, Year of construction: 1988, Ref. No.: Lg 35526 KOHLER Strip Processing Line 18.260/19 - 1000.2H used Year of manufacture: 1988 Direction of operation: left to right Loading side: front Comprising: Double decoiler 1000.2H Load capacity: max. 1,000 kg per side Strip width: max. 260 mm Mandrel expansion range: 460 – 520 mm Outer diameter: max. approx. 1,200 mm Straightening Machine 18.26019 Passage width: max. 260 mm Number of straightening rollers: 19 pcs Roller diameter: 18 mm Straightenable material thickness: 0.3 – 1.5 mm Drive power: approx. 7 kW Speed: 0 – 40 m/min Roller adjustment: motorized (2-point) Godpfx Afoyb A Swsuebu Used, as-is, ex stock, immediately available. Overhaul available on request. Delivery time by arrangement. Further data to follow or upon request. All information is based on manufacturer’s data and is non-binding for us – Subject to prior sale and errors excepted.

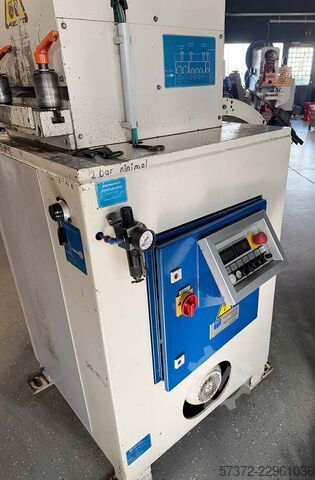

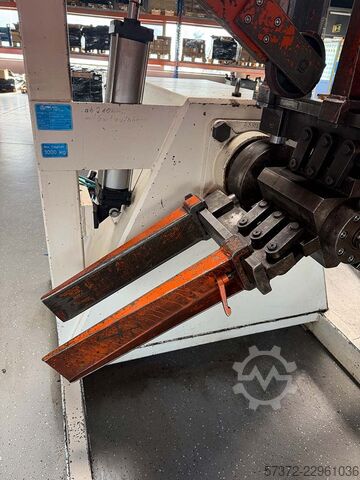

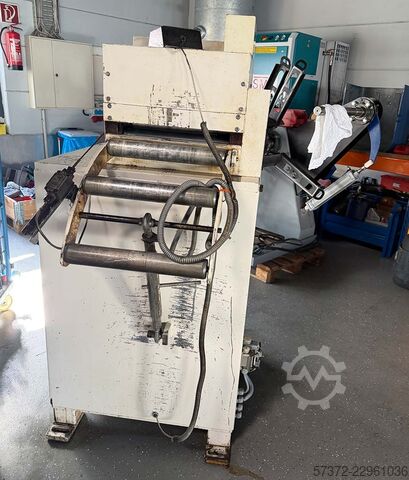

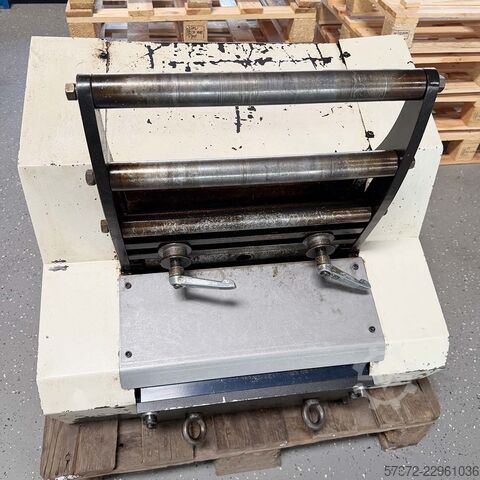

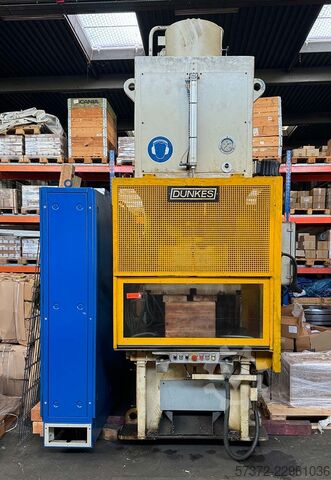

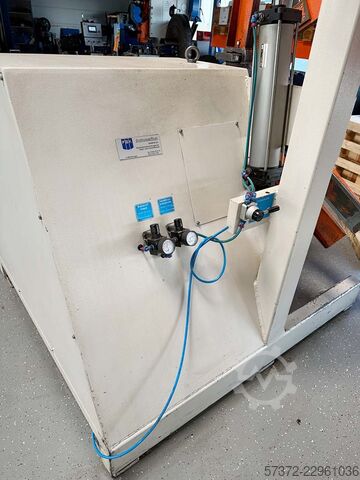

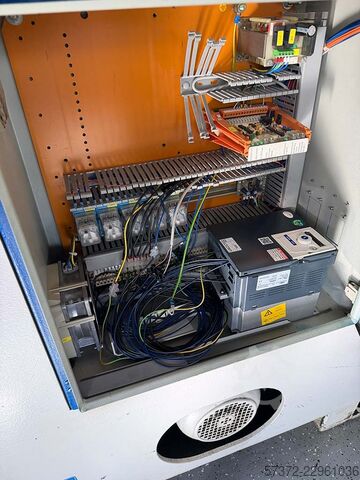

Year of construction: 1995, condition: used, A decoiling, straightening and stamping line with roller feed, straightening machine, decoiler and hydraulic press is available, 1) Roller feed WV-U-80/DSM 300 P-N, working direction: left to right, max. strip width: 300mm, strip thickness: 0.1-5mm, max. strip cross-section: 1,000mm², roller diameter: 80mm, max. feed speed: 120m/min, max. roller contact force: 4.5kN, feed accuracy: ±0.05mm, adjustable pneumatic pressure: approx. 5bar, 2) Straightening machine RSTC W60/7/300, working direction: left to right, passage width: 320mm, max. strip width: 300mm, strip thickness: 0.4-5mm, max. strip cross-section: 1,050mm², straightening and correction roller diameter: 60mm, feed roller diameter: 80mm, strip speed: 0-30m/min, feed rollers: 4, straightening rollers: 7, correction roller: 1, drive power: 3kW, 3) Decoiler E 3000/300 OMB, working direction: left to right, max. load capacity: 30kN, expansion range: 470-520mm, max. coil outer diameter: 1,500mm, strip width: 300mm, main shaft height above floor: 1,000mm, weight: 1.2t, 4) Hydraulic Single-Column Press Dunkes, pressing force: 125t, including documentation. On-site inspection is possible. Gbsdpfx Afsz R A Rpjusu

Condition: new, Year of construction: 2026, Forstner COILFARM The COILFARM by FORSTNER is a new, innovative, and adaptable solution designed to meet the changing market demands for rapid, flexible availability of a wide variety of materials in different thicknesses and color variants. This is one of the main reasons why we have developed the COILFARM, specifically for metalworking companies in trade and industry. Key Advantages Gbedpex Ngumefx Afuju High Capacity: With a storage capacity of up to 75 coils, a wide range of different materials, thicknesses, and color variants can be accessed immediately and without delay. This allows for the effortless handling of large-scale, simultaneous projects. Fast Coil Changeover: Thanks to a sophisticated system, coil changes are performed quickly, easily, and safely. We've integrated a coil buffer station above the nuSLIT as well as a changeover buffer station behind the decoiler. This significantly reduces changeover times and greatly increases overall production efficiency. Simple Loading Process: The well-thought-out machine design makes the loading process of the COILFARM extremely simple. The mandrels can be easily attached to the coil, and loading via the setup station increases your productivity. Maximum Precision: The integrated zero-line alignment (fixed edge) ensures that materials are perfectly aligned every time. This minimizes errors and scrap. Uncompromising Quality: Products from the CIDAN Machinery Group are manufactured without compromise. Our guiding principle in developing the COILFARM was to bring form and function into perfect harmony. 3-Minute Changeover: Stop and rewind, move the coil to the transfer position behind the decoiler, pick up the next coil above the nuSLIT, feed it in first and then set it on the decoiler—and the production is back at full speed. Coil weight: 5,000 kg Min. coil width: 400 mm Max. coil width: 1,270 mm Max. coil diameter: 1,100 mm Coil inner diameter: 380 – 550 mm Optional coil diameter: 460 – 630 mm Slitting capacity (with nuSLIT): 1.00 mm steel with 5 knife pairs Cross-cutting capacity (with nuSLIT): 1.0 mm steel Steel (400 N/mm²): 1.00 mm with 5 knife pairs Stainless steel (600 N/mm²): 0.80 mm with 5 knife pairs Aluminum (300 N/mm²): 1.20 mm with 5 knife pairs Max. storage capacity: 75 coils (with maximum diameter)

Condition: new, Year of construction: 2026, sheet thickness steel (max.): 4 mm, back gauge: 1,000 mm, CIDAN EVO DUO metal shear is the strongest mechanical shear on the market, with a capacity to handle sheet thicknesses from 0.5 mm to 4.0 mm in the same machine (applies to EVO DUO 32). EVO DUO is a powerful built guillotine shear equipped with two (DUO) gearmotors that distribute power and load optimally. The CIDAN EVO DUO metal shear is available in two lengths, 3200 mm and 4100 mm. The machine is well equipped as standard with a lot of features that creates a perfect working environment that meets the greatest demands on efficiency and ergonomics: Blade gap adjustment Sheet support – supports the material during the cut, as standard designed for return to sender. As option with delivery to the rear side of the machine. Pneumatic hold-down beam that enables gentle handling of softer materials, such as aluminum. The distance from the hold-down beam to the cutting line is less than 35 mm, which minimizes the material waste. Gbsdjm Nbq Rjpfx Afusu Flexible table with T-groove rails for table pans, fixed and adjustable angular stops and support arms that can be rearranged and replaced. EVO DUO guillotine shear can be equipped with a 750 or 1000 mm programmable back gauge with CutLink finger touch control. The back gauge is a fast and accurate positioning system with many interesting functions that facilitate the handling of the sheet metal. CIDAN shear EVO DUO fits well with the CIDAN philosophy of low environmental impact, as the machine has low energy consumption, a very low noise level and is designed for maximum usability.

Condition: excellent (used), Year of construction: 2015, operating hours: 5,100 h, Power: 4,000 kN Bolster area: 3,000 x 1,400 mm (W x D) Clamping surface table: 2.950 x 1.500mm Clamping surface ram: 2,950 x 1,240 mm Daylight: 600 mm (stroke down and adjustment on top) Frequency: 5 - 100 rpm, infinitely variable Stroke: 20 - 200 mm, automatically adjustable Ram adjustment: 150 mm (motorized) Design: - With servo technology, speed of ram adjustable, possible to pendle - Table - clamping plates divided and manually adjustable - 8-fold sliding guide - motorized oil - central lubrication - automatic ram adjustment - pneumatic ram weight compensation - electromotive stroke adjustment - control Siemens + Fanuc - visualization Siemens Panel PC in mobile desk - tool safety device 8-fold - tool data memory - 2-channel press force measurement - Hydraulic overload protection - T-slots in table and ram - Longitudinal groove for tool centering in ram - Anti vibration machine feet - opening in the table Equipped with a complete decoiling line make Lorenz Decoiler Load capacity: 80kN strip width: 20 - 820 mm Inner diameter: 470 - 520 mm Coil - outer diameter 1.800 mm Straightening machine strip width: max. 820 mm Strip thickness: 0,5 - 4,0 mm Straightenable cross section: 1.600mm² Gjdpfxepvlf So Afujbu Number of rolls: 9 pcs, Ø 65 mm + 2 pcs feeding rolls Speed: 0 - 30 m/min Electronic roll feed Strip width: max. 820 mm Strip thickness: 0.5 - max. 6.0 mm Cross section: max. 2.400 mm² Number of rollers: 2 pcs. Ø 120 mm

Condition: used, Machine type: Corrugated sheet profiling line – new CHIEF PHENIX type Main components: - Coil lifting arm – 10-ton capacity - Decoiler – 10-ton capacity - Straightener – Dimeco - Feeder – Dimeco Microfeeder - Hydraulic punching press – SCMB 650 tons Gjdow Dd Hpopfx Afuobu - Post-press feeder – Heilbronn - Roller conveyors - Rollforming line – 1000 mm, corrugated profile, CHIEF PHENIX new type Machine Application Automated production line for converting metal coils into corrugated sheets, including straightening, high-force hydraulic punching, continuous feeding, and rollforming. Suitable for structural and cladding applications. Key Features / Differences Modern system with high-performance units: 650-ton SCMB hydraulic press for precise punching, Dimeco straightener and Microfeeder for high throughput. 1000 mm rollforming line configured for optimized CHIEF PHENIX corrugated profile.

Condition: new, Year of construction: 2025, functionality: fully functional, working width: 4,100 mm, warranty duration: 12 months, controller model: CutLink, back gauge: 750 mm, control type: NC control, stroke rate (max.): 35 1/min, Equipment: CE marking, angle stop, documentation/manual, emergency stop, finger protection, foot remote control, Demonstration machine motorized guillotine shear Producer CIDAN Year of manufacture 2023 Cutting length 4100 mm Sheet thicknesses 1.50 mm at 400 N/mm² Sheet thicknesses 0.60 mm at 700 N/mm² Sheet thickness 2.2 mm at 200 N/mm² Up to 35 strokes per minute Equipment: Touch control CutLink Backgauge range 5-750 mm Pneumatic sheet holding device forward depositing Sheet chute forward depositing (return to sender) Extendable table support range 800 mm Gbsdpowxu S Eefx Afusu LED cutting line lighting Machine is available in our showroom in A- 6800 Feldkirch Delivery time: immediately

Condition: good (used), Year of construction: 2017, Modular line for unwinding, slitting, and cutting to length. Gjdpfx Aey Tcw Eofuebu Industrial processing of electrical steel sheets into small laminations for transformer manufacturing. Function: unwinding, slitting, and cutting to length.

Condition: used, Year of construction: 1993, Uncoiler manufactured by ARKU, type AH 2000/M. Press force approximately --- tons. Year of manufacture 1993. Structured summary – a full technical translation will follow if required for this lot. Gbedpfx Afozym Ewjuju

Condition: used, Year of construction: 1987, Uncoiler manufactured by DREHER, type 2380 F-FPS. Press force approximately --- tons. Year of manufacture 1994. Summary provided – a full technical translation will follow if required for this lot. Gbedpfx Afozynmveusu

Condition: ready for operation (used), Year of construction: 2006, material width 650 mm Gsdpfozu A Scjx Afuobu coil weight 15 t material thickness 16 mm The year of construction is estimated, the system is as good as new

Condition: used, Year of construction: 2003, Item No.: Lg 35626 Coil handling system KOHLER 30.400/9 - 2000.2H used Year of manufacture: 2003 Machine No.: 70330 Working direction: from left to right Loading side: rear Consisting of: Double unwinding reel 2000.2H Load capacity: max. 2,000 kg/side Coil width: 85 to 400 mm (when using a pressure arm) Spreading range: 360 – 420 mm Outer diameter: max. 1,800 mm Spreading: hydraulic/sliding wedge system + Automatic retension Drive: 2 x hydraulic motor + auxiliary drive for coil feeding and rewinding Braking: spring-loaded/disc brake Coil diameter-dependent control Lateral displacement: motorized Displacement distance: approx. 200 mm Base frame: frame construction Swiveling: motorized 180°, locking pneumatic, actuated wedge Counter bearing: manually attachable with quick-release fastener, open construction Coil loading: by means of rope or strap Spreading: The spreading is carried out hydraulically via a sliding wedge system. The reel is additionally equipped with an automatic retension system, so that the clamping pressure is maintained for several days. Counter bearing: The counter bearing is designed as a ring strut construction and can be attached manually. Two effective quick-release levers ensure a secure hold. The lightweight construction made of square tube profile in an open design has a total weight of approximately 15 kg with an outer diameter of 1600 mm. Automatic brake control/coil diameter dependent A diameter-dependent brake control is achieved via a proportional valve. During the acceleration and deceleration phase, the braking effect is automatically adjusted via a correspondingly controlled proportional pressure control valve. This control technology guarantees smooth coil unwinding. Base frame with motorized lateral displacement of the reel 2 x pressure roller, swiveling: The pressure roller is used to feed the coil into the straightening machine. It also prevents the coil from jumping when the coil strapping is released. The swiveling of the roller, which is coated with plastic, is carried out hydraulically. The contact pressure can be adjusted continuously. The drive of the roller is carried out via a hydraulic motor. Coil straightening machine 30.400/9 Passage width: max. 400 mm Number of straightening rollers: 9 pcs. Straightening roller diameter: 30 mm Straightening roller material thickness: 0.4 – 3.0 mm Roller stand adjustment: motorized (2-point) The complete straightening roller bearing is mounted on a slide plate at the top and bottom and can be manually moved in and out. Measuring device: digital Measuring display: metric Setting accuracy: 0.01 mm Straightening roller bearing: needle bearing Bearing sealing: shaft seals Straightening roller hardness: HRc 60 Straightening roller surface roughness: 0.001 mm and better Straightening roller drive: individual drive Gearbox: distribution gearbox Lubrication: grease lubrication of the straightening roller bearing Oil circulation lubrication of the cardan shafts Gedpozpbazjfx Afusbu Drive: three-phase motor with frequency control Speed: 0 - 40 m/min Number of coil feed rollers: 2 Coil feed roller diameter: 120 mm Coil feed roller adjustment: pneumatic Drive coil feed: both rollers from the straightening machine gearbox Surface coil feed rollers: like straightening rollers

Condition: used, Year of construction: 2011, Decoiler Coil weight: 4,5 ton Material width max.: 520 mm Coil exterior diameter: 1600 mm Expansion range: 460 - 530 mm Leveller / Straightener Material width : 20 - 400 mm Number of levelling rolls: 7 pcs. Diameter of the levelling rolls: 60 mm Number of pull out rolls: 4 pcs. Diameter of the pull out rolls: 60 mm Material thickness: 0,4 - 3,5 mm Feeding speed: 2 - 10 m / min Roll feeder Material width max.: 310 mm Gsdpfjuqfa Isx Afuobu Material thickness: 3,0 mm Material thickness at max. width: 2,8 mm Material thickness at max. cross section: 850 sq mm Number of feeding rolls: 2 pcs. Diameter of feeder rolls : 80 mm Feeding speed: 104 m / min Required power: 1,5 kW Standard configuration Coil loading unitStroke 500 mm Load capacity 5000 kg Material width max. 500 mm

Condition: used, Year of construction: 1985, Decoiler Decoiler with arm: 1,5 ton Material width: 350 mm Coil exterior diameter: 1.200 mm Expansion range: 370 - 430 mm Speed: 0 - 20 m / min Leveller / Straightener Material width : 250 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 30 mm Gbsdpfxsxdl Nij Afusu Material thickness: 0,5 - 6 mm Cross section: 1.200 mm Feeding speed: 20 m / min Required power: 18 kW Standard configuration - Pneumatic clamp roller- Manual disc brake

Condition: used, Year of construction: 2006, functionality: fully functional, year of last overhaul: 2022, SCHULER GRÄBENER TMK 2-630 – 630 t Punching and Forming Press with Coil Feeding System Manufacturer: SCHULER / Gräbener Pressensysteme Type: TMK 2-630-3.0-50/210 S Year of Construction: 2006 Press Force: 6,300 kN / 630 t Design: Mechanical Punching and Forming Press / Single-Action Press For sale is a SCHULER GRÄBENER TMK 2-630 mechanical single-action press / punching and forming press with a press force of 6,300 kN, including a complete SCHULER automation strip guiding, straightening, and coil feeding system. The system was used for the mass production of punched and formed parts and is currently still fully assembled on site. Technical Data Press Rated Force: 6,300 kN Gbjdpozv Utnofx Afueu Rated Stroke: 12 mm Stroke: 50–210 mm Stroke Rate: 15–60 strokes/min Max. Flywheel Speed: 960 1/min Ram Adjustment: 200 mm Max. Installation Height: 800 mm Table / Tooling Area: approx. 3,000 × 1,500 mm Max. Tool Dimensions: 3,000 × 1,500 × 800 mm Max. Tool Weight: 12,000 kg Drive Power: max. 280 kW Rated Current: 420 A Compressed Air: 6 bar Hydraulic System: 400 bar Clutch / Brake: 6 bar Permissible Switching Rate Clutch / Brake: 16/min Machine Weight without Accessories: approx. 138,000 kg Coil and Feeding System SCHULER Automation / Gräbener Pressensysteme, Year of Construction 2006. Coil / Uncoiling Unit: Type AC-LH-160-0650 Strip Width: 40–600 mm Coil Outer Diameter: 900–1,800 mm Spreading Range: 470–530 mm Coil Uptake / Uncoiling Strip Guiding and Straightening System Threading / Strip Guiding Devices Automated Material Feeding Roller Guides Conveying / Removal Technology Complete Protective Enclosure Control / Operation SCHULER System Control Siemens SIMATIC Operating Components Siemens SIMATIC OP17 Touch Panel Separate Operating Panel for the Feeding System Setup Operator Devices Unidor Process / System Monitoring Condition and Maintenance The system was overhauled in 2022 for approximately €85,000. The maintenance history has been regularly recorded. Current maintenance and repair records are also available for 2026. The system is fully assembled on site and can be inspected by appointment. Scope of Supply The press system is sold, including the associated SCHULER automation and the existing coil, strip guiding, straightening, feeding, and removal technology, as well as the associated protective enclosure and operating / control devices, according to the existing system scope. Complete Service from a Single Source Upon request, we offer a complete project management service for this system – from financing to installation and commissioning at the new location. Possible Services: Individual financing and leasing solutions Organization and support for disassembly Heavy-load loading and transport International transport and export processing Organization of crane and heavy-load operations Reconstruction and assembly at the new location Support during commissioning Coordination of required service and specialist companies This allows the system to be taken over not only at the current location, but also as a completely organized machine project, depending on the customer's requirements. Location: Germany Availability: by arrangement Inspection: by appointment Disassembly / Transport / Reconstruction: can be completely organized upon request Financing / Leasing: upon request Technical data based on available documents and nameplates, subject to change and prior sale.

Condition: good (used), functionality: fully functional, number of straightening rollers: 7, coil outer diameter: 1,400 mm, coil inner diameter: 508 mm, roller diameter: 80 mm, number of feed rollers: 2, feed roller diameter: 80 mm, straightening roller diameter: 80 mm, coil width: 400 mm, load capacity: 3,000 kg, 1. Decoiler Make: Dimeco Model: 2371 E-FPS Year of manufacture: 2006 Load capacity: max. 3 tons Strip width: max. 600 mm Expansion range: 470 – 530 mm Coil outer diameter: max. 1,400 mm Godpstgvgpofx Afujbu Equipped with: • Hydraulic expansion • Pneumatic hold-down roller from above • 6 strip edge guide arms • Pneumatic disc brake 2. Straightening Machine Make: Dimeco Model: 1676 C-VV Year of manufacture: 2000 Strip width: max. 400 mm Strip thickness: 0.8 – 4.5 mm Number of straightening rollers: 7 Number of entry and exit rollers: 2 each Roller diameter: 80 mm Equipped with: • Frequency-controlled drive • Hydraulic strip feeding aid with support table, feed tongue, hold-down arm from above • Pneumatically liftable entry roller • Lateral strip guide rollers • Pneumatically swivelling strip transfer table between straightening machine and feeder

Condition: good (used), Year of construction: 1984, Power: 800 kN Frequency: 30 - 200 rpm, adjustable by PIV gearing Stroke, adjustable: 20 - 100 mm Daylight: 500mm (max. stroke up) Ram adjustement: 75mm Gsdpfx Afjdhzf Isuobu Size of bolster: 1.010 x 800mm Opening in bolster: 700 x 150mm Ram area: 860 x 700mm Motor power: 22 kW equipped by: - 8pc. guideways - hydraulic overload - motorized oil lubrication - motorized ram adjustment - electro pneumatic stroke adjustment with complete decoiling line make ALBA, consisting of: Decoiler Outer diameter max. 1.400mm equipped by: • Decoiler moveable hydraulic • hydraulic coil loading device • hydraulic drive • hydraulic expansion 480 - 530mm • hydraulic pressure arm, lateral adjustable by handwheel • lateral arms Straightener Type: Ma Ria 9 Width: max. 400mm Thickness: 0,5 - 5,0mm Number of pulling rolls: 2 pc., Ø 120mm, upper can be lifted by hydraulic Number of straightening rolls: 9 pc., Ø 60mm, upper rollls adjustable by hydraulic drive, all rolls supported equipped by: • hydraulic strip insertion device • lateral strip guidings at entrance • lateral strip guidings at exit • basket at exit • loop control by sensor • lateral loop guiding Roll feeder Type: Vhy 400 Width: max. 400mm Thickness: max. 5,0mm passline adjustement by hydraulic jack We can offer even only press or decoiling line

Condition: used, Year of construction: 1990, Decoiler Coil weight: 2,5 ton Material width: 50 - 500 mm Coil exterior diameter: 1400 mm Expansion range: 420 - 520 mm Leveller / Straightener Material width : 500 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 50 mm Number of pinch rolls: 2 pcs. Material thickness: 6 mm Cross section: 3000 sq mm Feeding speed: 6 - 24 m / min Standard configuration DREHER - Model WAV-MD-25, YOM 2000Electronic universal roller feedSheet width max. 510 mm Sheet thickness max. 6.5 mm Number of feed rollers 2 Diameter of feed rollers 125 mm Feed speed 137 m / min Feed length 0 - 9999.99 mm Feed accuracy +/- 0.05 Gjdpfx Afsuqdhkouebu Drive power 5.5 kW
