Used Forkardt Planar Disk for sale (678)

Condition: ready for operation (used), Year of construction: 1994, operating hours: 37,780 h, travel distance X-axis: 760 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 500 mm, controller manufacturer: HURCO, controller model: Ultimax 3, table width: 450 mm, table length: 1,000 mm, table load: 500 kg, overall weight: 4,600 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 7,500 W, number of slots in tool magazine: 24, number of axes: 3, This 3-axis Hurco BMC30AP was manufactured in 1994. It features X, Y, and Z travels of 760 mm, 460 mm, and 500 mm, respectively, with a robust table size of 1000 x 450 mm and a maximum table load capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco BMC30AP vertical machining centre we have for sale. Contact us for further details. Bljdpfjzylx Aox Aqwel - Display: TFT- Spindle Speed Range: 30 - 6,000 RPM- Gear / Speed Adjustment: Two-stage gearbox; infinitely variable per range- Tool Changer Type: Umbrella type, automatic- Coolant Supply: Flood cooling- Chip Conveyor: Available- DXF Option: Available on control and floppy disk- Computer Connection: 9-pin; RS-232 (Port 1)- Installed Software Version / Hardware: Ultimax 3 V1.53- Operating Voltages: 440 / 415 / 380 / 220 V, 3-phase- Mains Frequency / Apparent Power: 50-60 Hz / 20 kVA- Rapid Traverse Rate: 15 m/min- Compressed Air Requirement / Operating Pressure: 6 bar- Included Documentation:- Parts Listings & Wiring Diagrams - BMC 30 (1991, English)- Machine Operation and Maintenance (11/1993 Rev. B, English)- Options Manual Ultimax 4 (2004 Rev. A, German)- 2x BMC Operator Manual: BMC 30 with Ultimax 3 (06/1995 Rev. C, German)- Included Software & Backup Floppy Disks:- Optikey Utility Disk - Security Modifier Mill V1.52-V1.59- Optikey Utility Disk - Software Option DXF- Ultimax 3 Version 1.53 - Disk 1 and Disk 2- Ultimax 3 Machine Configuration- Backup Machine Config- Condition & Repair Notes: Machine needs to be rebooted via floppy disks because the buffer battery was depleted. One circuit board was repaired by the machine lab (new capacitors and a new Intel processor installed). Technical Specification Taper Size ISO 40

Condition: used, Spare parts donor We are dismantling the CNC turning machine GILDEMEISTER, type GDM 42/2A CNC control system Eltropilot EPL 2 Machine no. 4.5733, year of manufacture 1989 Machine not operational - electrical problems Turning diameter, normal: 185 mm Swinging diameter, max.: 400 mm Cross slide travel = planar travel: 190 mm Longitudinal slide travel = longitudinal travel: 450 mm Spindle bore in the turning spindle: 52.7 mm Spindle passage in the draw tube: Ø 42 mm Feed rate X and Z, max.: 3000 mm/min Spindle speed: 40-6300 rpm, continuously variable Motor power, spindle drive: 22 kW Mains connection: 400 volts, 50 Hz, 45 kVA - Hydraulic 3-jaw chuck FORKARDT, Ø 200 mm - Tool turret, 12-station, VDI 40, every second station powered - Powered tool station in 6 stations - Electrical cabinet located beside the machine Footprint of the complete machine, L x W x H: 5000 x 2500 x 2100 mm Weight of the complete system: approx. 5.7 tons good condition Transport dimensions: Footprint of the base machine, L x W x H: 3000 x 2300 x 1900 mm Weight of the base machine: approx. 4.8 tons Footprint of the machine's electrical cabinet, L x W x H: 2500 x 550 x 2000 mm Weight of the machine's electrical cabinet: approx. 450 kg without chip conveyor Main motor missing Individual parts available upon request In the electrical cabinet: Siemens Siemens 6SC6101-3A-Z + the circuit boards Bledpfxsdzqm Ro Aqwsl

Condition: good (used), Interchangeable jaws, top jaws, three-jaw chucks, segment jaws, clamping jaws, stepped block jaws, stepped top jaws, block jaws, base jaws, interchangeable jaws, wedge bar chucks, interchangeable jaws, power chucks -Top jaws: soft top jaws for wedge bar chucks, helical teeth, 4 sets -Jaw width: 20 mm Bjdpfx Aezlc Dmeqwjll -Attachment: Material: Aluminum -Dimensions: see photo technical drawing -Submission/Price: complete -Transport dimensions: 350/300/H75 mm -Total weight: 9.2 kg

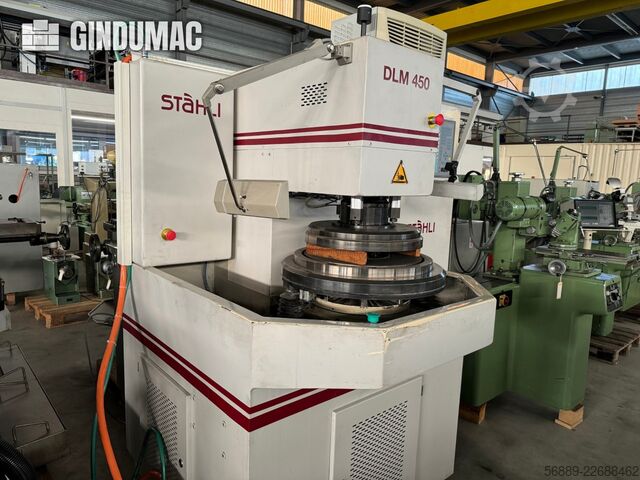

Year of construction: 2006, condition: ready for operation (used), controller manufacturer: SIEMENS, controller model: SIMATIC Panel PC, overall weight: 2,100 kg, total width: 1,650 mm, total height: 2,050 mm, product length (max.): 1,200 mm, number of axes: 1, Surface grinding machine manufactured in 2006. This STAEHLI DLM 450 features a lapping wheel diameter of 450 mm and a maximum lapping wheel speed of 110 rpm. It has a robust machine weight of 2100 kg and dimensions of 1200 × 1650 × 2050 mm. If you are looking to get high-quality lapping capabilities, consider the STAEHLI DLM 450 machine we have for sale. Contact us for further details regarding this machine. Bedpfszyp Arsx Aqwsll - Voltage / Frequency: 400 V / 50 Hz- Max. Current: 50 A- Power Consumption: 26 kW- Wiring Diagram No.: S-2816- Machine Weight: 2100 kg (Nameplate) / Net weight 1900 kg- Dimensions: 1200 × 1650 × 2050 mm- Lapping Wheel Diameter: Ø 450 mm- Lapping Wheel Speed: 0–110 rpm- Max. Lapping Wheel Drive Power: 2 kW- Max. Load on Upper Lapping Wheel: 20 daN- Internal Drive Speed: 0–115 rpm- Max. Internal Drive Power: 0.5 kW- Lapping Wheel Drive Motors (DC Motor): Armature Voltage 260 V, Field Voltage 340 V, Speed 3110 rpm, Power 2 kW, Forced Ventilation 220 V (50/60 Hz)- Internal Drive Motor: Continuously variable DC Motor, Armature Voltage 260 V, Field Voltage 340 V, Speed 3110 rpm, Power 0.5 kW, Forced Ventilation 220 V (50/60 Hz)- Vertical Motion Motor: Stepper motor, 50 steps/sec, Torque 1100 Nm- Ring Gear Adjustment: AC brake motor (2 positions), 380 V / 50 Hz, Speed 700–1400 rpm, Power 0.25/0.37 kW, DC Brake 24 V (16 Nm)- Power Converter: Input 380 V / 50 Hz, Armature Voltage 270 V, Field Voltage 340 V- Worm Gear Ratios: Internal drive i = 1 : 30, Lower system i = 1 : 15.5, Upper system i = 1 : 15.5- Operating Compressed Air Pressure: 6–7 bar- Lapping Fluid Pump: 380 V / 50 Hz, Speed 2600 rpm, Flow rate 57 l/min, Protection class IP 44- Control and Measuring Device: Measuring range ±3 to ±11,000 mm (Millitron manual reference)- Inductive Sensor: Measuring range ±2 mm- Setpoint Adjustment Device: 4-digit display- Control Panel / System: Siemens SIMATIC Panel PC- Control System Processor: Intel Celeron M processor 1.50 GHz- System Memory: 1562624 KB (Ext. Memory), 640 KB (System Memory), 384 KB (Shadow Ram), 1024 KB (Cache Ram)- Hard Disk Storage: 40021 MB (Hard Disk 2)- BIOS / System Date: PhoenixBIOS, BIOS Date Operating System: Microsoft Windows XP Professional / Microsoft Windows Recovery Console

Condition: used, Forkardt 2-Jaw Chuck 1629034, Double-Jaw Chuck, Ø 160mm Index G200 Adapter, Ø140mm ZWS140-K5 Index G200 Used, as shown in the pictures, in excellent condition From warehouse stock (may have storage marks) Blodpszk Iy Rofx Aqwel Please refer to the pictures for further technical information. Scope of delivery as shown in the pictures. With invoice. The invoice will be enclosed with the shipment.

Condition: good (used), FORKARDT Three-jaw manual chuck with wedge bar system Type: F315 Bodpfjzi Aqzjx Aqwsll No.: 1403959 with flange for KELLENBERGER cylindrical grinding machines Equipment: 1 set basic jaws 1 set hardened jaws 1 piece flange D: 300 mm ISO 50, M24 1 set operating wrench 1 piece operating manual Condition: good, fully functional

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm Bledjxabycopfx Aqwjl - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, turning length 1500 mm turning diameter 560 mm turning diameter over slide 350 mm turning speeds 25-220/220-1500 U/min swing diameter over bed slide 350 mm turning dia. in gap 785 mm Bedpfxjxaau Es Aqwoll quill travel 185 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 quill: 5 MK weight of the machine ca. 2420 kg. range L-W-H 2840 x 1150 x 1610 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - Foot pedal with brake function according to CE - Protective device for quick-change tool holder - LED machine light - Initial filling with Shell Tellus 46 - Clamping disk 450 mm - 2 centering points - Frequency converter - Digital speed display - Slip clutch - Rapid traverse longitudinal and planar - Coolant system - Quick-change tool holder with 4 inserts - Change gears - Reduction sleeve - Chip back wall - Operating tool

Condition: new, turning length 3000 mm Bjdpjxaahlofx Aqwjll turning diameter 660 mm turning dia. in gap 900 mm turning diameter over slide 460 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3.300 kg. dimensions 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Change gears - Reduction sleeve - Chip back wall - Cable routing via energy chain - Operating tool

Condition: used, Year of construction: 2011, machine/vehicle number: E1053A0497, overall weight: 850 kg, For sale is a TRUMPF TruDisk 4002 (4C) disc laser / laser source, including a separate KLH cooling unit RW 20/0 SK. Laser technical data: * Manufacturer: TRUMPF Laser GmbH + Co. KG * Type: TruDisk 4002 (4C) * Year of manufacture: 01/2011 Blsdozvqfyspfx Aqwjl * Laser power: 4,000 W * Equipment No.: E1053A0497 * Supply voltage: 380 V (-10%) to 460 V (+10%), 3 AC + PE * Frequency: 50–60 Hz * Connection power: 23 kW / 25 kVA * Rated current: 34 A at 400 V * Protection class: IP54 * Weight: approx. 850 kg Cooling unit: * Manufacturer: KLH Kältetechnik GmbH * Type: RW 20/0 SK * Year of manufacture: 2017 * Part No.: E123223000AA * Serial number: 17KLH00670 * Voltage: 400/460 V * Frequency: 50/60 Hz * Refrigerant: R134a * Refrigerant quantity: 3.7 kg The TruDisk 4002 is offered together with the KLH cooling unit shown in the picture. Inspection is possible by arrangement. Further technical information and images can be provided upon request.

Condition: used, axle configuration: 3 axles, permissible axle load (axle 1): 9,000 kg, permissible axle load (axle 2): 9,000 kg, permissible axle load (axle 3): 9,000 kg, first registration: 04/2001, loading space length: 13,490 mm, loading space width: 2,540 mm, loading space height: 2,640 mm, total length: 13,800 mm, total width: 2,550 mm, total height: 3,950 mm, suspension: air, tire size: 385 / 65 / R22.5, wheelbase: 9,110 mm, color: white, Year of construction: 2001, Equipment: tail-lift, Axle configuration Tyre size: 385 / 65 / R22.5 Make axles: Mercedes-Benz Brakes: disc brakes Suspension: air suspension Rear axle 1: Max. axle load: 9000 kg; Tyre profile left: 20%; Tyre profile right: 20% Rear axle 2: Max. axle load: 9000 kg; Tyre profile left: 20%; Tyre profile right: 20% Rear axle 3: Max. axle load: 9000 kg; Tyre profile left: 20%; Tyre profile right: 20% Weights Empty weight: 8.800 kg Carrying capacity: 30.200 kg GVW: 39.000 kg Functional Tail lift: AMA Stama 20 UF, slider lift, 2000 kg Make of bodywork: Pacton Plywood Box History Number of owners: 1 Condition General condition: moderate Bjdpfxszxyq Ro Aqwell Technical condition: moderate Visual appearance: moderate Product safety Manufacturer: Kuijpers Trading BV Minosstraat 8 5048CK TILBURG, NL

Condition: used, diameter 500 mm height 250 mm Bedpfx Aqoxwzcrowjll hollow 150 mm weight of the machine ca. 0,2 t dimensions 0,5 x 0,5 x 0,3 m 3-jaw chuck with 2 sets of drill jaws Short taper mount size 11 (235mm bolt circle) Bayonet lock Chuck wrench

Condition: good (used), axle configuration: 2 axles, permissible axle load (axle 1): 9,000 kg, permissible axle load (axle 2): 9,000 kg, first registration: 03/2020, loading space length: 13,490 mm, loading space width: 2,480 mm, loading space height: 2,640 mm, total length: 13,900 mm, total width: 2,550 mm, total height: 4,000 mm, suspension: air, tire size: 385 / 65 / R22.5, wheelbase: 8,730 mm, color: red, Year of construction: 2020, Axle configuration Tyre size: 385 / 65 / R22.5 Make axles: Schmitz Brakes: disc brakes Suspension: air suspension Rear axle 1: Max. axle load: 9000 kg; Tyre profile left: 50%; Tyre profile right: 50% Rear axle 2: Max. axle load: 9000 kg; Tyre profile left: 50%; Tyre profile right: 50% Weights Empty weight: 6.791 kg Carrying capacity: 26.209 kg GVW: 33.000 kg Functional Make of bodywork: Schmitz CargoBull Ferroplast Bedpfx Aszyc A Eeqwoll Maintenance, history and condition Number of owners: 3 Technical condition: good Visual appearance: good Product safety Manufacturer: Kuijpers Trading BV Minosstraat 8 5048CK TILBURG, NL

Condition: reconditioned (used), overall weight: 30 kg, chuck outer diameter: 200 mm, three-jaw chuck diameter: 200 mm, short taper mount: 6 mm, through hole: 45 mm, Three-jaw power chuck without step-jaw cheeks Manufacturer FORKARDT KTNCV 200-45, Three-jaw power chuck; the listed price applies to 1 three-jaw chuck. ----- Jaw stroke is achieved via clamping cylinder and draw tube. Chuck No. 1485270 with through-hole clamping. ----- Required cylindrical flange mounting according to DIN 55027 Short taper, taper size: KK6 ----- Three-jaw power chuck with quick-change system also suitable for reversible base jaws, type: FGB 200 ----- Jaw interface: Base jaw type: helical gear; Designation → Size: FGB200, SGB200 ----- Draw tube connection M52 x 2 mm Cylindrical mounting for spindle flange ø 170 x 6 mm Bledpfxszrmzps Aqwjl Mounting hole circle for 3x cap screws approx. 135 mm ----- The chuck is in like-new condition. Weight without clamping jaws approx. 25 kg ----- Delivery without base and top jaws *We are available for any questions. *Shipping costs abroad upon request.

Condition: good (used), Interchangeable jaws, top jaws, three-jaw chucks, segment jaws, clamping jaws, stepped block jaws, stepped top jaws, block jaws, base jaws, interchangeable jaws, wedge bar chucks, interchangeable jaws, power chucks -Top jaws: soft top jaws for wedge bar chucks, helical teeth, 1 set -Jaw width: 22 mm Blodpszlc E Rofx Aqwjl -Attachment: Material: Aluminum -Dimensions: see photo technical drawing -Transport dimensions: 270/95/H70 mm -Total weight: 2.5 kg

Condition: used, diameter 315 mm Blodpfx Aqoy S Dwkswsl weight of the machine ca. 100 kg

Condition: used, diameter 315 mm hollow / mm chuck width 128 mm weight ca.70 kg Make: Forkardt Type: F315 Diameter: Ø315mm Bodpfx Asy S Ducoqwsll Passage: approx. 85mm Chuck width: 140mm Weight: 70kg

Year of construction: 2005, condition: good (used), Hollow shaft chuck Manufacturer: FORKARDT, Type: 3QLC/K250-72-Z8-S12-172005 72mm bore in the chuck with complete clamping cylinder Bljdogqxg Hepfx Aqwel Year of manufacture: 2005, in good condition.

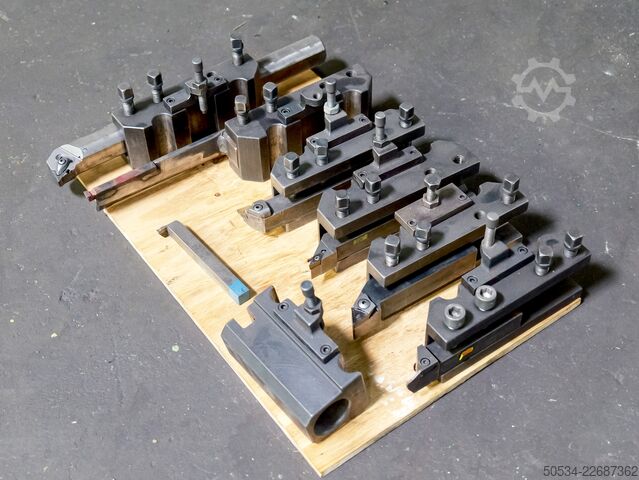

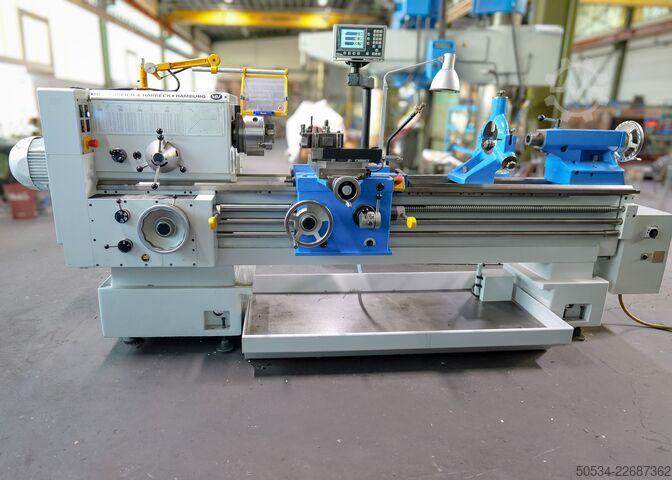

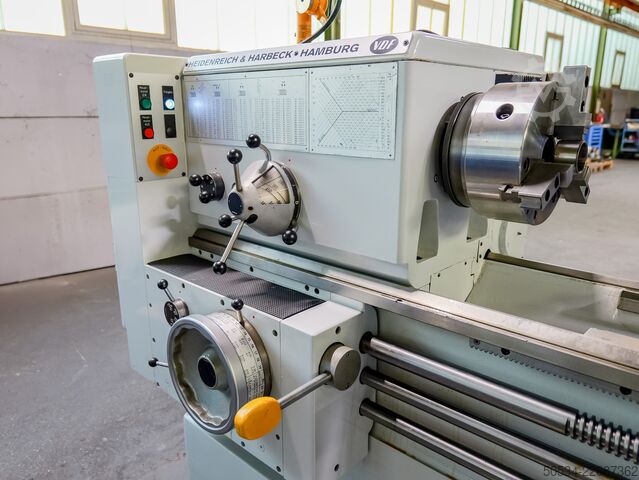

Condition: refurbished (used), Year of construction: 2022, functionality: fully functional, turning diameter over bed: 540 mm Bjdpfx Aqszynycowjll turning length: 1.500 mm turning diameter in the recess: 580 mm Working travel of the lower slide max. approx.: 415 mm adjustment of upper support, max. approx.: 140 mm turning speed range: 0 - 1.800 1/min diam. of main spinde: 135 mm spindle bore: 68 mm internal taper diameter: 68 mm bed width: 403 mm Equipped with: Three jaw chucks FORKARDT 250 Digital read out 3 axis fixed steady rest feed safety chip tray tool holders, 6 chisel holders, 1 holder for clamping sleeve

Year of construction: 2007, condition: ready for operation (used), Offered is a high-performance solid-state disk laser. Laser power: 6000W, beam quality: 8mm mrad, wavelength: 1030nm, laser diode rated power: 29kW, control: TRUMPF LaserControl S. Equipped with internal heat exchanger, Grundfos pressure pump CRI10, integrated safety circuit, 2-phase fiber optic connection box. Weight: approx. 2000kg, overall dimensions X/Y/Z: approx. 1750mm/850mm/1370mm. Inspection possible by arrangement. Bljdpfx Aey T N Ideqwjl

Condition: used, diameter 400 mm Bljdpey S Dnpsfx Aqwol hollow 100 mm chuck width 180 mm weight ca.50 kg Diameter: Ø250mm Passage: approx. 100mm Chuck width: 180mm Weight: 50kg

Condition: used, diameter 315 mm weight of the machine ca. 70 kg Bsdpfx Aoy S Dwqjqwell

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, sheet thickness (max.): 3 mm, working length: 2,500 mm, TECHNICAL DETAILS Sheet thickness with tensile strength of 410 N/mm² max.: 2.00 mm Sheet thickness with tensile strength of 600 N/mm² max.: 1.25 mm Sheet thickness with tensile strength of 265 N/mm² max.: 3.00 mm Minimum sheet thickness: 0.50 mm Length of the notched plate at the inlet max.: 2,700 mm Width of the notched plate at the inlet max.: 1,500 mm Rotatable diagonal of the notched plate max.: 2,700 mm Bending length max.: 2,500 mm Clearance for bending above the work table max.: 127 mm MACHINE DETAILS Processor: Intel Pentium III, 500 MHz RAM: 128 MB SDRAM Graphics memory: 4 MB SGRAM Hard disk capacity: 9.1 GB CD-ROM drive: 600 MB Floppy disk drive: 3.5 inch, 1.44 MB Network cards: 2 Screen diagonal: 17 inches Voltage: 400 V Blsdpfxjzv Rc Sj Aqwjl Frequency: 50 Hz Number of phases: 3 Rated power: 38 kW Rated current: 64 A Switching capacity of the main switch: 40 kA Further technical details can be found in the attached documents.

Condition: used, diameter 315 mm hollow 90 mm Bsdpfsy S Dn Ajx Aqwell chuck width 115 mm weight / kg Three-jaw chuck from Forkardt F315 1 jaw is missing! Type: F315 Diameter: Ø315mm Passage: approx. 90mm Lining width approx.: 115mm

Condition: used, diameter 250 mm boring diameter / mm - / Bsdpfx Asy S D Euoqwjll hollow 65 mm Forkardt power chuck including flange Type: 3NHF250-65-Z8-S12 nmax: 4500/min Diameter: 250mm Passage: 65mm Factory no.: Y615126
