Used Walter Rotary Table - Tilting for sale (20,086)

Condition: good (used), Table size:1500x1500mm Iedpfx Abjfvqmxs Neat Capacity : 6t Dimension: 1600x2500x2000mm Hydraulic

Condition: used, Year of construction: 2021, OFFERS CONSIDERED PRIOR TO AUCTION Iodpfx Abey Rzpzo Nsat 1200mm Stainless Steel Mobile Rotary Collecting Table 240 Volt with 380mm Mobile Conveyor, 240 Volt. Factory No. 21-204C (07/2021) Location: These lots are located in Burnham-on-Crouch, Essex, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

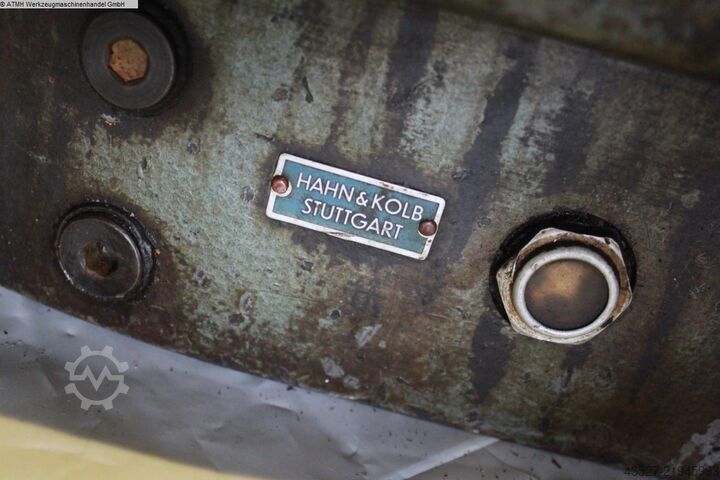

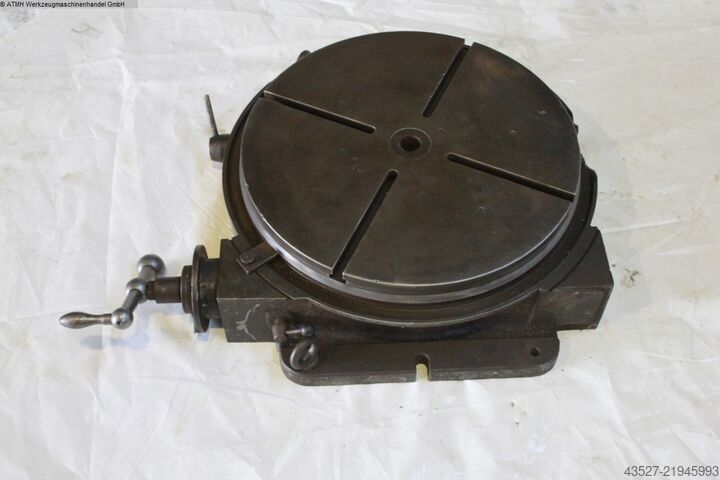

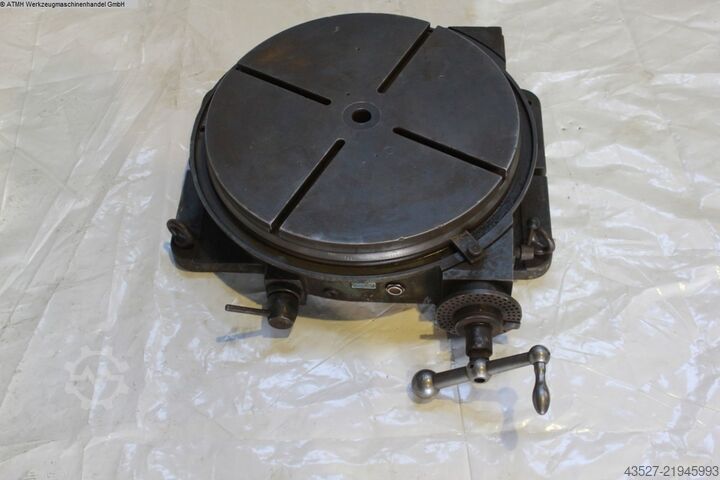

Condition: used, centre height / mm weight 160 kg diameter 500 mm Iasdpfoy S Dyljx Ab Nst

Condition: used, centre height / mm weight 110 kg Iodsy Suqzepfx Ab Njat diameter 400 mm

Condition: used, centre height / mm weight 110 kg Iajdpfx Abjy Sup Rs Not diameter 360 mm

Condition: used, centre height / mm total power requirement / kW Ijdpsy Sul Ejfx Ab Noat weight of the machine ca. 450 kg

Condition: used, Orbital Riveting Machine Double Riveting Automatic with Rotary Indexing Table DUNKES Type DN 4 Rotary table with SIEMENS control system Machine no. P 81 - 5458 Year of manufacture: 1982 / 2009 Rivet shank diameter max. 12 mm Tool shank diameter 16 mm Throat depth 190 mm Rivet head stroke per riveting unit approx. 60 mm Riveting spindle speed approx. 1,400 rpm Tool-to-anvil installation height max. 80 mm Compressed air requirement 6 bar Motor power per riveting unit 1.1 kW Power supply 380 Volt, 50 Hz - Rotary indexing table with servo drive, indexing step size programmable via Siemens PLC control - Double riveting unit is adjustable within the machine frame relative to the indexing table - Table diameter Ø 295 mm for accommodating round workpieces - Pneumatic riveting stroke motion - Riveting unit adjustment via gear motor with leadscrew, positioning via adjustable micro switch - Modernization of the control system and retrofit with servo drive for the rotary table in 2009 - New electrical control cabinet with Siemens Simatic panel – built in 2009 - Riveting time infinitely programmable - Riveting pressure infinitely adjustable via pressure gauge - Micrometer stop for stroke limitation of the opposing riveting units 0–60 mm Space required L x W x H 3200 x 1250 x 2400 mm Weight approx. 2,500 kg Good condition The machine was used for riveting segment saw blades from Ø 400 to Ø 2000 mm. The segments were manually placed onto the carrier disc and fixed with straight rivet pins. Iaodpfx Absdzp T Nj Net The opposing riveting unit simultaneously rivets the pin from both sides. The controlled table automatically rotates to the next working position after each cycle. Ideal for saw blade manufacturers and repair shops. Alternatively suitable as a basis for constructing a special-purpose machine.

Condition: good (used), Year of construction: 1970, table load: 45,000 kg, table width: 2,100 mm, total length: 3,000 mm, Rotary table MITSUBISHI - DIT-A Mitsubishi Rotary table 3000 x 2100 x 45 T V-Axis 1500 mm MACH-ID 6015 Make: MITSUBISHI Type: DIT-A Year: 1970 Table Length: 3000mm Table Width: 2100mm Table load: 45000 Movement V-axis: 1500mm Rotation B-Axis: 360.000° Rotation speed B-Axis:0,02 - 0,60Omw/min. Length: 0mm Width: 0mm Height: 0mm Weight: 0kg Iodpfx Ajwvkczob Njat

Year of construction: 1980, condition: good (used), Make: SCHARMANN Type: TDV 80 Year: 1980 Portable / Transportable with levelling schoes AWF Fixatoren ROD Heidenhain indexing scale with Dro Left and Right rotation in 3 indexing feed rates Power 18 kW Quick posititining fixed angle 0-90-180-270 Gr Specifications Metric US Standard Table Length 3500 mm Table Width 3500 mm Table load 80000 Rotation B-Axis 360000 ° Dimensions (Estimate) Length 6000 mm Width Iedpfsmb Urdex Ab Njat 3500 mm Height 1400 mm Weight 28000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2020, table load: 7,000 kg, table width: 1,200 mm, total length: 1,200 mm,   Iodowq Rmcepfx Ab Nsat Build with double hirth coupling T slot 22 with Jump off 200 mm Diameter off center hole 50 mm Table Length: 1200mm Table Width: 1200mm Table load: 7000 Rotation B-Axis:1 or 5 Gr.° Length: 1200mm Width: 1200mm Height: 340mm Weight: 2000kg

Condition: excellent (used), Year of construction: 2017, table load: 200 kg, table length: 650 mm, overall weight: 240 kg, table height: 400 mm, Horizontal work load 200 Kg Vertical work load 100 Kg Torq 407 Nm Runout 0.025 mm Gear Ratio 72:1 Timing 2:1 incl. Tailstock MK 4 incl. Driver incl. Cable   Table Ø: 315mm Table load: 200 Rotation B-Axis: 0.001° Rotation speed B-Axis:4500Omw/min. Length: 650mm Width: 250mm Height: 400mm Iaodpfeyu Nb Eox Ab Net Weight: 240kg

Condition: good (used), Make: SCHIESS FRORIEP Type: DV 45 Ijdpfjku Aaljx Ab Njat Year: 1980 Specifications Metric US Standard Table Length 3000 mm Table Width 3000 mm Table load 40000 Movement V-axis 1600 mm Rotation B-Axis 360000 ° Rotation speed B-Axis 100 Grad/Min Omw/min. Movement speed V-axis 4500 mm/min. Dimensions (Estimate) Length 5320 mm Width 3000 mm Height 1080 mm Weight 24000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 1965, table load: 60,000 kg, table width: 3,250 mm, total width: 3,250 mm, Indexing dividing setting: 1e stage full rotation setting 5 Gr 2e stage full rotation (fine) 30 " Turning rotation setting: 1e stage 1 - 48 Rpm 2e stage 0,27 - 11 Rpm   V-Axis movement setting: 1e stage 10 mm 2e stage (fine) 0,02 mm Scraped guide way 1 size: 300 x 85 mm  Scraped guide way 2 size: 225 x 85 mm Iajdpfx Abex S Ihae Njt Scraped guideway 3 size: 250 x 85 mm Table Ø: 3250mm Table load: 60 T Movement V-axis: 1800mm Rotation B-Axis: 360000° Rotation speed B-Axis:48Omw/min. Movement speed V-axis:1600mm/min. Length: 6900mm Width: 3500mm Height: 1400mm Weight: 25000kg

Condition: good (used), Year of construction: 2012, travel distance X-axis: 1,035 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, spindle speed (max.): 14,000 rpm, Manufacturer: KOIKE Iedorg A N Nopfx Ab Noat Type: HD 100 VF Year of construction: 2012 Double driven and double geared Remote control with inverter and vario speeds Tilting 0 - 135 gr Specifications Metric US Standard Table length 1220 mm Table width 1220 mm Table load on 50 mm 5000 Table load to 200 mm 4545 Table load to 400 mm 3500 Table load to 600 mm 2900 Table load to 1,000 mm 1850 Table rotation 360 ° Dimensions (estimate) length 2000 mm width 1600 mm height 1700 mm weight 2400 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Year of construction: 1998, condition: good (used), Make: UNION Type: Ti 1800 Year: 1998 Specifications Metric US Standard Table Length 2000 mm Table Width 1800 mm Table load 16000 Movement V-axis 1250 mm Rotation B-Axis 360.000 ° Rotation speed B-Axis 1,35 Omw/min. Movement speed V-axis 4000 mm/min. Dimensions (Estimate) Length Iodpfx Abjkwcdbo Njat 3400 mm Width 2000 mm Height 920 mm Weight 6500 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 1968, functionality: fully functional, GRAFFENSTADEN ARF 114 Z boring machine, photos and descriptions attached Machine in perfect mechanical and electrical condition Longitudinal travel: 2 m Transversal travel: 2 m Vertical travel: 1.75 m Ijdsyzm Dfjpfx Ab Nsat Spindle diameter: 115 mm Spindle stroke: 900 mm 1 Graffenstaden universal head 1 Andréa rotary table 1 extension 1 3-axis digital readout 2 feed ranges via variator for all movements Numerous tools included Machine can be seen in working condition Machine to be dismantled on site Tel: 03.80.92.23.28 or 03.80.92.34.03 or 06.79.58.06.79

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, TJR FHR-255CL-HD4 Iaedoy R Dcqjpfx Ab Njt 5-axis rotary table for use on CNC machines with SIEMENS control Table diameter: 255 mm Swivel range: ±110°

Condition: used, Rotary table, indexing table, dividing head WMW type D 315 k Serial no.: 10930 Table diameter: 315 mm Table height: 135 mm Iedpjxf Uytofx Ab Neat Gear ratio: 90 : 1 - Crank handle with indexing plate and sector arm - Graduated scale ring for reading at the crank - Readable degree graduation on the rotary table - Swing-out worm for direct indexing - Clamping via clamping lever - 14 mm T-slots in the table plate (one place damaged) - Built-in indexing plate: 23-28-33-42-51-61 Weight: 85 kg

Condition: used, Rotary table, dividing head, machine rotary table Table diameter: 360 mm Table height: 130 mm Iedjy Sbwzjpfx Ab Neat Transmission ratio: 120 : 1 Clamping surface: 375 x 430 mm Grid pattern on clamping surface: 400 x 125 mm, Ø 14 mm - Indirect indexing via handwheel on the worm gear, transmission ratio: 120:1 - Worm gear can be engaged/disengaged for direct and indirect indexing - Clamping via 2 clamping levers in any position - Crank handle with index plate - 1 index plate with hole counts: 22, 24, 29, 36, 37, 49, 57, 63 - 1 index plate with hole counts: 16, 27, 30, 33, 41, 47, 53, 61 - 1 index plate with hole counts: 23, 25, 28, 31, 39, 43, 51, 59 - 14 mm T-slots in the table surface - Table surface slightly face milled Overall dimensions L x W x H: 600 x 440 x 130 mm Weight: 81 kg Good condition

Condition: ready for operation (used), DELTA LC 400 / Rotary Table Surface Grinding Machine -Magnetic chuck (rotary table) 400mm -Max. grinding diameter 400mm -Grinding height (distance table – grinding wheel) approx. 220mm -Grinding wheel dimensions / standard / 200x80x78mm -Spindle speed / grinding spindle 2840 rpm -Fine feed 0.01mm -Distance / column – grinding wheel axis 315mm -Spindle motor / 3kW -Lateral grinding wheel dresser -Machine enclosure -Coolant system Iasdpfxjy Sbgcj Ab Nst Dimensions: LxWxH 1.2x0.8x1.8 meters / Weight 700Kg Errors and omissions excepted

Condition: good (used), functionality: fully functional, 1 x Poly-top rotary packing table / Lazy Susan on height-adjustable feet. Diameter - 1.2m. Speed - fixed. Iedpfjy Hiy Hox Ab Njat Power - 3 phase.

Condition: good (used), Year of construction: 2010, functionality: fully functional, workpiece weight (max.): 130 kg, table load: 130 kg, pivoting range: 360 °, Ruchser RU-MKS rotary tilting assembly table with lifting device, 360-degree clamping device, pneumatic brake, rotatable, with retractable roller conveyor, 2 support legs, travel rails, work surface with rubber coating. Iaodjy R Ab Sspfx Ab Njt

Condition: like new (used), Year of construction: 2021, operating hours: 1 h, functionality: fully functional, machine/vehicle number: PW2000-003, total height: 1,300 mm, empty load weight: 1,310 kg, load capacity: 2,000 kg, total length: 2,600 mm, total width: 1,800 mm, table width: 900 mm, input voltage: 400 V, working height: 1,100 mm, table length: 1,400 mm, Dimensions LxWxH: approx. 2600 x 1800 x 1300 mm Load capacity: 2,000 kg The turning device consists of two opposing tables, each with a support surface of 1400 x 900 mm. On the side of the table that is at the bottom during swiveling, the load-bearing steel profiles are angled upward by 90° to securely hold the plate being turned even in a vertical position during a 90° rotation. Both tables are positioned opposite each other and are swiveled by 100° using hydraulic cylinders. The tables are mounted on a load-bearing base frame, with one table fixed in place and the other movable. The movement is performed by hydraulic cylinders which can displace the table mounted on rollers by approx. 300 mm. The base frame also houses the hydraulic and electrical components. A hydraulic power unit is used as the drive source, supplying oil to the cylinders in response to control commands. The respective valves are actuated electrically and/or hydraulically, initiating and maintaining the required table movements in interaction with each other until the turning process is complete. Particular attention in the design of the hydraulic system is given to operational safety and sensitive switching between pushing and pulling motions. The geometry of the table pivot axes results in changing load effects on the tilt cylinders. The hydraulics are designed to ensure the required performance and prevent overloading the components during normal operation. Suitable filters, in combination with a generously sized tank, ensure high availability of the hydraulic system. Iodpfjyr I Dtsx Ab Noat The necessary electrical control system is fully integrated into a sheet steel enclosure housing all required components. The core of the control system is a PLC, which processes operating parameters based on the programmed specifications. The emergency stop function and all relays and evaluation units required to operate the functions are also installed. Operation of the turning device is via a control panel featuring a touch panel for entering function parameters, such as Table 1 swivel up, Table 1 swivel down, Table 1 forward, Table 1 back, Table 2 swivel up, Table 2 swivel down, as well as automatic start/stop. To prevent table collision in manual mode, the PLC programming ensures this by using table position and tilt data. After resolving an emergency stop, the PLC control independently completes the turning process. The turning device is equipped with heavy-duty castors, making it mobile. We have several of these devices in daily operation. This unit is unused.

Condition: used, Year of construction: 2013, functionality: fully functional, Mobile valve machining / turning machine Unigrind FDA 500 for sale. The machine is used, in good condition and fully operational. Inspection and testing on site are possible. The Unigrind FDA 500 is designed for machining and repair of valve sealing surfaces, seats, and flanges. The equipment allows precise turning, milling, and surface refurbishment directly at the worksite. Specification: Model: Unigrind FDA 500 Year: 2013 Mobile valve machining machine Suitable for repair of valves, flanges, and sealing surfaces Accurate machining of flat and conical surfaces Fits various types of industrial valves Compact and robust design Professional industrial equipment German quality More info: Unigrind FDA 500 Iaodpfx Abjy R R Imj Nst Suitable for energy, oil, gas, chemical, and industrial companies as well as repair workshops. If you have further questions, we will be happy to assist you.

Condition: used, Year of construction: 2019, functionality: fully functional, For sale: Unigrind KSM600 flat surface grinding/lapping table. The equipment is in good condition and fully operational. Inspection and testing on site are possible. The Unigrind KSM600 is designed for grinding and lapping flat sealing surfaces. It is suitable for machining and refurbishing surfaces of valves, gates, flanges, and other industrial components. Specification: Model: Unigrind KSM600 Stationary flat surface grinding/lapping table Intended for machining flat sealing surfaces Suitable for valve, gate, and flange repair Robust industrial housing Stable and precise processing Simple and user-friendly operation Professional industrial equipment More information: Unigrind KSM600 Suitable for repair workshops, energy, oil, gas, and industrial companies. Iodpfx Asy R Rl Ssb Nsat If you have any further questions, we will be happy to assist you.
