Used Weitkowitz Jointing Clamp for sale (10,180)

Condition: used, Year of construction: 2005, functionality: fully functional, RAKO 12-Jaw Precision Clamping System Ø 1,600 mm with Extensive Jaw Set (2 units in stock) Manufacturer: RAKO GmbH, Gelenau Manufacturer's designation: 12-Jaw Chuck Year of manufacture: 2005 Documentation date: 2006 Drawing number: 0684.00-00 Article number: MPT-1023 / 1024 Offered is a used, stationary RAKO 12-jaw precision clamping system for mounting on a fixed machine table. The clamping system was used for machining brass cages for ball and roller bearings. It is not a conventional turning chuck for a machine spindle, but rather a permanently mounted workpiece clamping device. The design features twelve basic jaws arranged radially and evenly around the circumference. This distributes the clamping force over numerous contact points. This clamping principle is particularly suitable for large, ring-shaped, thin-walled, sensitive, or easily deformable workpieces. According to the existing manufacturer's drawings, different jaw positions are possible for internal and external clamping. Bdedpfx Ahezx D A Domjh The clamping system has an outer diameter of approximately 1,600 mm and a weight of approximately 2,000 kg. Scope of delivery - RAKO 12-jaw clamping system, Ø approx. 1,600 mm - twelve radially arranged basic jaws - extensive set of various clamping and adapter jaws - different interchangeable and clamping elements - additional fastening and accessory parts as shown in the images - separate wooden crate with jaws and accessories - original RAKO operating manual - overall, section, and detail drawings - drawings of various clamping positions The exact quantity and assignment of all jaws and accessories have not been finally determined. The scope of delivery is based on the images. Condition Used condition with signs of wear and tear due to age and use. Scratches, dirt, discoloration, and, in some places, slight surface rust or corrosion can be seen on the clamping system and individual accessories. Technical data - Outer diameter: approx. 1,600 mm - Weight: approx. 2,000 kg - Number of basic jaws: twelve - Jaw arrangement: radial and even - Clamping options: internal and external clamping - Jaw stroke: 28 mm according to drawing - Total clamping force: approx. 190 daN at 35 Nm actuating torque - Maximum torque on the actuating spindle: 100 Nm - Locking air: present - Maximum locking air pressure: 5 bar - Lubrication: on the twelve basic jaws and the actuating spindle - Transport: three threaded holes M30 for crane screws Mounting on the machine table According to the RAKO operating manual, mounting is done with 14 cylinder head screws M20 × 180 according to DIN 912, strength class 10.9. The specified tightening torque is 300 Nm. Jaws and accessories The scope of delivery includes an extensive range of different clamping and adapter jaws. Documented, among other things, is an adapter jaw H41 with drawing number 0721.02-03 and a finished size of 55 × 50 × 46 mm. Dimensions of clamping system: approx. 1,600 × 1,600 mm Height: to be determined Weight: approx. 2,000 kg Total shipping weight: over 2,000 kg plus accessories and packaging

Condition: used, functionality: fully functional, FAMAD PDFD-I Wood Jointing Line 1. FAMAD DFC-60M Milling and Tenoning Machine Unit Input element length 170-900mm Milling height 20-155mm Milled element package width 650mm Carriage operating speed: Work 10-23m/min Return 32m/min Bodpfx Asw Iy Nyohmedh 2. PHSL Pressing Unit Glued element width 35-155mm Glued element thickness 20-70mm Glued element length min/max 4500-6600mm Possibility of programming inter-cuts Line capacity up to 4000mb/shift 3. General information Length 15700mm Width 3350mm Power demand 48kw Year of production 2006 Very good condition

Condition: good (used), functionality: fully functional, Console base, head adjustable by 600 mm Drilling capacity 40 mm Bsdpfoz Ad N Sex Ahmedh 2 speed ranges, stepless 60 – 1600 rpm 3 feeds 0.1 / 0.16 / 0.25 mm/rev Taper MK 4 Throat approx. 330 mm Quill stroke 220 mm Weight estimated at 1 t (Shown here as sample: 1-axis table with 250 mm cross travel, clamping surface 600 x 240 mm)

Condition: used, Sauter Type RS semi-automatic finger-jointing machine for joining timber workpieces using finger joints. The machine is suitable for processing offcuts and for producing extended solid timber slats. Consisting of: Sauter Type RS-FPEL 130 milling and gluing machine Sauter Type RS-DKPV 6 press Sauter DAS 500 cross-cut saw Technical data: - Milling height: 130 mm Bdedoz D Dw Aspfx Ahmeh - Max. finished length: 3,000 mm - Workpiece width: 45–95 mm - Milling motor: 15 kW

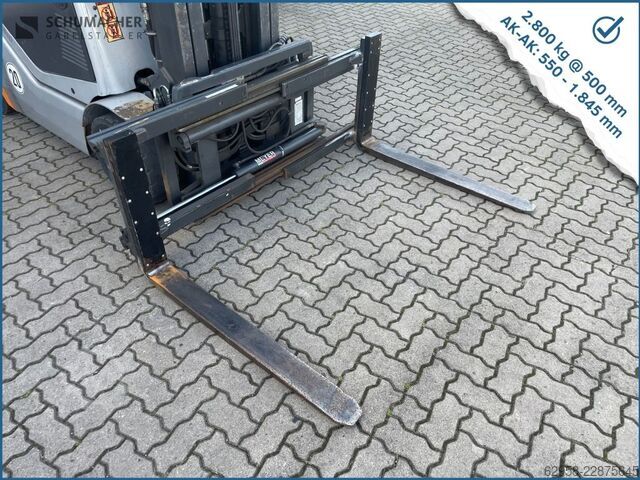

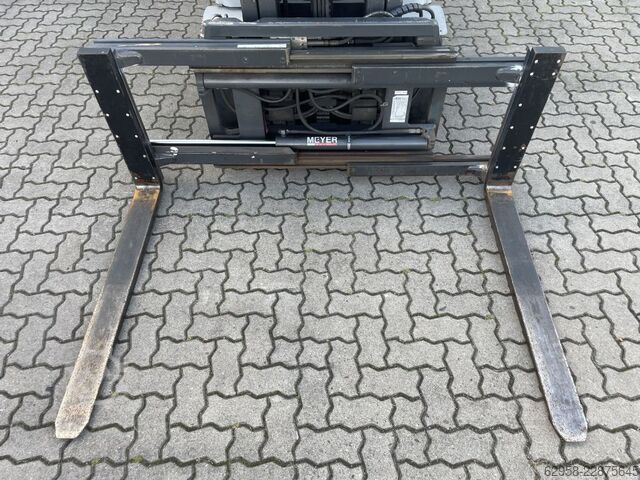

Condition: used, functionality: fully functional, Year of construction: 2019, total length: 1,200 mm, load capacity: 2,800 kg, empty load weight: 442 kg, opening width: 1,845 mm, Clamp fork Load center of gravity: 500 ISO class: ISO Class 3 = 2,500 - 4,999 kg Condition: Ready for use and fully functional Technical condition: good Description: Good, ready-for-use condition, as returned by the previous owner // good working condition, as back from the pre-owner AK-AK: 550 mm - 1845 mm Bdsdpfxoz Idt Ss Ahmsh

Condition: used, functionality: fully functional, Year of construction: 2006, load capacity: 900 kg, Cardboard clamp Load center: 600 ISO class: ISO Class 2 = 1,000 - 2,500 kg Condition: Ready for use and fully functional Technical condition: good Description: ISO 2A (41 cm), Year 2006, Capacity 900 kg, Sideshift, Opening range 480-2200 mm, Clamp length 1100 mm, Clamp height 1000 mm, Width 1600 mm, ID OS1977 Bdjdpfx Ahjzigt Hemeh

Condition: used, functionality: fully functional, overall weight: 5,000 kg, plate width: 1,200 mm, plate length: 1,200 mm, Equipment: type plate available, AMF Zero Point System – Clamping System with Zero Point Clamping Plates, Consoles, Hydraulic Unit, and Accessories Manufacturer: AMF System: Zero Point System Year of Manufacture (Components): Primarily 2013 / 2014 Offered is a comprehensive AMF Zero Point clamping system from industrial use. The system consists of several hydraulic zero point clamping plates, zero point clamping consoles, round changeover and clamping plates, intermediate flanges, adapter elements, an AMF high-pressure hydraulic unit, and extensive AMF clamping and system accessories. The components come from a cohesive clamping and machining system and are suitable for creating flexible workpiece, fixture, and pallet clamping systems on machine tools and machining centers. Individual sale of the components is possible. The existing system includes, among other things: - 1 × AMF Hydraulic Unit, Part No. 515841 - 1 × Large quantity of AMF K20 Zero Point Clamping Modules and System Accessories - 2 × Hydraulic AMF Zero Point Clamping Plates approx. 1,200 × 1,200 mm - 2 × Sets of AMF Zero Point Clamping Consoles, each with 4 stations and a total of 8 K20 clamping modules each - 1 × Clamping Plate Ø 650 mm / 8 Clamping Slots - 1 × Clamping Plate Ø 650 mm / 16 Clamping Slots - 1 × Clamping Plate Ø 1,000 mm / 8 Clamping Slots - 1 × Intermediate Flange / Changeover Table Ø 800 mm - 1 × Semi-circular Clamping Device - Several intermediate and adapter rings - 1 × Large Intermediate Flange / Clamping Device Ø approx. 1,250 mm - Various AMF Clamping Modules, Clamping Studs, Height Elements, Couplings, and Hydraulic Lines - Existing technical documentation Key Technical Data: Hydraulic Unit AMF - Part No.: 515841 - Manufacturer No.: 0113 0469 - Operating Pressure: 40–400 bar - Flow Rate: 2.5 l/min - Supply: 400 V / 50 Hz - Motor Power: 1.1 kW - Separate cable-connected control unit Bsdpfx Ahozx Akajmsdh - Hydraulic connections with quick-release couplings AMF Zero Point Stations 1,200 × 1,200 mm - Hydraulic actuation - K20 Zero Point Clamping Modules - Operating Pressure: 50–60 bar - Dimensions: approx. 1,200 × 1,200 mm - Weight: approx. 423–424 kg per plate - Years of Manufacture: 2013 / 2014 AMF Zero Point Clamping Consoles - 4 stations per set - 2 K20 clamping modules per station - A total of 8 K20 clamping modules per set - Hydraulic actuation - Operating Pressure: 50–60 bar - Console Height: approx. 143 mm Changeover and Clamping Plates Various designs with: - Ø 650 mm - Ø 800 mm - Ø 1,000 mm - Ø approx. 1,250 mm - Radial T-slots - AMF Zero Point Clamping Modules - Underside clamping studs - Various adapter and mounting options Condition: Used, industrial condition. The components show the usual signs of wear, clamping, mounting, and storage. Some dirt, discoloration, and minor superficial corrosion marks are present. Some of the AMF system accessories are still in their original packaging or appear to be unused. A current functional, leak, or accuracy test of the hydraulic and pneumatic components has not been performed. Sale in the existing condition and scope of delivery as shown in the images. Inspection is possible by appointment. Individual sale is expressly possible.

Condition: ready for operation (used), General tongue-and-groove joint Working width max. 1660 mm Milling height max. 200 mm Bedpjzxma Sjfx Ahmodh Milling motor 14 kW A general tongue-and-groove joint can be used to join smaller, panel-like elements together to form a larger panel, or it can be used to create a continuous strand from smaller elements, which is then cut to the required length after the tongue-and-groove joint is formed.

Condition: used, Year of construction: 2000, length 800 mm Bdsdpfjz Ebp Eex Ahmsh width 1250 mm height 1500 mm total power requirement 0 kW weight of the machine ca. 1100 kg dimensions of the machine ca. 800 x 1250 x 1500 mm Device has 7 cross t-slots with 22 mm shaft width.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Circular saw unit Motor power: 3 kW Saw motor speed: 3,000 rpm Circular saw diameter: 400 mm Max cutting height: 125 mm ----- Tenoning shaft Quantity: 01 Shaft diameter: 50 mm Shaft length: 320 mm Motor power: 7.5 kW Shaft motor speed: 3,200 rpm Max tool diameter: 320 mm ----- Profiling spindles (2) Shaft diameter: 50 mm Bedpfxsyk Df Ds Ahmjdh Shaft length: 320 mm Motor power: 7.5 kW Shaft motor speed: 6,000 rpm Max tool diameter: 240 mm ----- Strip recovery unit Quantity: 01 Shaft diameter: 30 mm Motor power: 2.2 kW Saw motor speed: 6,000 rpm Strip recovery saw diameter: 200 mm

Condition: ready for operation (used), Steel angle / Clamping angle / Solid LxWxH 720mm x 650mm x 1550mm Thickness 65mm Bjdoztd U Aepfx Ahmodh Weight 790 kg Errors and omissions excepted.

Condition: used, functionality: fully functional, load capacity: 7,000 kg, Bale clamp ISO class: ISO class 4 = 5,000 - 10,000 kg Bdodpfx Ahjzz Ea Aemjh Condition: Ready for use and fully functional Technical condition: good Description: ISO 4A (61 cm) Capacity 7000 kg Opening range 675-3320 mm Width 2250 mm Clamps 1800 mm ID OS2092

Condition: used, functionality: fully functional, Year of construction: 2020, load capacity: 1,400 kg, empty load weight: 380 kg, drive type: Keine, Cellulose/Bale Clamp Load center: 500 ISO Class: ISO Class 2 = 1,000 - 2,500 kg Mast type: None Technical condition: good Description: Type 1.5T413, overall width 970 mm, opening range 495 - 1675 mm, arm height 440 mm, arm length 1000 mm, arm smooth outside, inside with round iron, arm tips bevelled, load capacity 1400 kg at 500 mm load center, front dimension 158 mm, center of gravity at 289 mm, weight approx. 380 kg, including pressure gauge, connection ISO - Class 2 A Bdedpfxezk Sblj Ahmeh

Condition: used, functionality: fully functional, Year of construction: 2000, load capacity: 2,000 kg, Carton clamp Load center: 500 mm ISO class: ISO class 2 = 1,000 - 2,500 kg Condition: Ready for use and fully functional Technical condition: good Bdodpfjx N U Sajx Ahmjh Description: Year 2000 ISO 2A (41 cm) Capacity 2,000 kg Sideshift Opening range 555-1855 mm Width 1,040 mm Clamps 1,180x1,300 mm ID OS1763

Condition: used, functionality: fully functional, Year of construction: 2009, load capacity: 7,500 kg, empty load weight: 1,620 kg, construction height: 1,200 mm, Paper roll clamp Load center: 650 ISO class: ISO Class 4 = 5,000 - 10,000 kg Condition: Ready for use and fully functional Technical condition: very good Bjdjz Ev Enjpfx Ahmjdh Description: Arm height: 1x 1290 mm, 2x 515 mm, Opening width 420 / 1,300 mm, Rotation range 360 degrees, continuous Arm height: 1x 1290 mm, 2x 515 mm, Opening width 420 / 1,300 mm, Rotation range 360 degrees, continuous

Condition: used, functionality: fully functional, Year of construction: 2012, load capacity: 5,000 kg, Paper roll clamp ISO class: ISO Class 3 = 2,500 - 4,999 kg Condition: Ready for use and fully functional Bjdpfjzl It Hsx Ahmodh Technical condition: good Description: Year 2012, ISO 3A (51 cm), Capacity 5000 kg, Opening range 650-1520 mm, Width 1630 mm, Contact pads 900x250mm, ID OS2059

Condition: used, Fully automatic scarf jointing line for the following dimensions: thickness: approx. 24 – 100 mm, width: approx. 80 – 240 mm, scarf joint lengths: 400 – 1,500 mm, finished length: 2.50 m – 13.50 m, infinitely adjustable. Consisting of the following plant components: - SMB vacuum stacking system, longitudinal, with 2 lifting tables and 2 package conveyor lines, year of manufacture 2013, package dimensions max. 1.20 x 1.20 x 6.00 m, 4 suction pads, Sicko system, singulation and infeed into a conveyor line for scanner feeding, board turner, diverter for too moist, too dry, diverter for B-quality, marking station or automatic operation - Bidac end-face scanner for scarf joint detection, year of manufacture 2013 - Brookhuis moisture measurement FMI 5, year of manufacture 2019 - Microtec scanner Goldeneye 502, year of manufacture 2012 with X-ray, 4 color cameras, and new optimization software - Dimter Opticut 350-2, year of manufacture 2003 with paddle ejector, year of manufacture 2009, and associated sorting belts and pneumatic ejector for 2 additional qualities - NKT packaging - NKT scarf jointing system with rotary table, special pack AH 1050, year of manufacture 2005, consisting of: milling machine, tipping station, infeed section, length 5.0 m, cycle press, length 6.00 m, crosscut saw - SMB stacking machine, year of manufacture 1998, length 2.50 – 13.50 m, divisible into 2 units (e.g. 2 x 5.0 m), 8 stacking arms, 8 stacking tongues, manually adjustable stop, infinitely adjustable, electro/hydraulically controlled, package width: max. 1200 mm, package height: max. 600 mm, hydraulic package ejector. Bjdpfx Aevvi Tyshmjdh Location: Customer

Condition: used, functionality: fully functional, Year of construction: 2008, load capacity: 1,600 kg, Bale clamp ISO class: ISO class 2 = 1,000 – 2,500 kg Bodpfx Aheyzdfmomsdh Condition: Ready for operation and fully functional Technical condition: Good Description: Year 2008 ISO 2A (41 cm) Capacity 1,600 kg / 500 mm Sideshift Width 1,070 mm Clamps 1,200 mm ID OS1935

Condition: used, functionality: fully functional, LENZKES Clamping System Package Bdodpfjzyk Suex Ahmoh Upper components: 6 pieces, width = 60 mm, groove = 18 mm, length = 125 mm, height = 130 mm 6 pieces, width = 60 mm, groove = 18 mm, length = 125 mm, height = 70 mm 4 pieces, width = 90 mm, groove = 28 mm, length = 180 mm, height = 110 mm 4 pieces, width = 90 mm, groove = 28 mm, length = 180 mm, height = 200 mm Lower components: 3 pieces, width = 60 mm, length = 150 mm, height = 250 mm 3 pieces, width = 60 mm, length = 150 mm, height = 160 mm Adjustable force clamps: 5 pieces, width = 60 mm, length = 130 mm, height = 42 mm 3 pieces, width = 60 mm, length = 110 mm, height = 42 mm 12 pieces, width = 60 mm, length = 90 mm, height = 42 mm 6 pieces, width = 52 mm, length = 127 mm, height = 35 mm 3 pieces, width = 52 mm, length = 87 mm, height = 37 mm 14 pieces, width = 52 mm, length = 76 mm, height = 37 mm 2 pieces, width = 75 mm, length = 48 mm, height = 160 mm 4 pieces, width = 75 mm, length = 48 mm, height = 110 mm Free addition: Various clamping jaws (7 pieces complete + 5 pieces accessories) AMF clamping jaws (comparable with Lenzkes) AMF No. 6321/17 4 pieces, width = 50 mm, length = 140 mm, height = 50 mm incl. clamping screws M12

Condition: used, functionality: fully functional, Metering and application system Bodjul Shnjpfx Ahmodh Hydrotop 1 E400R + Ecotac_C for single-component (1K) PUR edge gluing for package dovetail joint systems Glue application – dovetail joint Adhesive application – dovetail joint in very good condition functionality tested

Condition: used, Year of construction: 1973, Technical details: Length: 300 mm width: 275 mm voltage: 220 / 50 V clamping surface area: 300 x 275 mm current: 15 A weight of the machine approx.: 39 kg dimensions L x W x H: 0,47 x 0,28 x 0,09 m Bdedsu Nvrgepfx Ahmoh Magnetic plate *

Condition: like new (used), functionality: fully functional, Clamping elements Dimensions, W x D approx. 100 x 150 mm Overall height 91.5 mm Jaw width 30 mm Lowest support height on jaws 68.5 mm Middle support height 80 mm Clamping height per jaw approx. 11.5 mm Bsdpfjzuvqlex Ahmjdh Jaw clamping travel approx. 25 mm

Condition: excellent (used), Year of construction: 2007, SK 30 intake Includes cooling system management. Bdjdpfx Ahez Au Ifsmsh

Condition: good (used), Stegherr 2 motors, each approximately 2.2 kW Connected load approximately 4.5 kW Bdodpfx Ahezakw Eemoh Compressed air 6 bar Voltage 380 V, 50 Hz

Condition: used, Year of construction: 2021, Drawer Clamping Machine – STROMAB STC 2500 B Technical Description: • Working capacity: 2100 x 1000 mm Bodpfx Ahjxg I Slomjdh • No. 2 working stations • Two-hand safety control button • No. 8 pneumatic cylinders, diameter 115 mm • Thrust per cylinder: 700 kg • No. 8 cast iron squares, height 170 mm Machine Configuration: • Frequency: 50 Hz • Standards: CE compliant • Electrical supply: 400 V – three-phase
