Used Wmw Nicht Bekannt for sale (4,327)

Condition: used, Technical details: Length: 400 mm width: 200 mm height: 150 mm weight of the machine approx.: 63 kg Fodpfxsu N Dr Is Afujpn DIRECT CURRENT MAGNET Magnet core 8 pieces width x distance: 40 x 45mm *

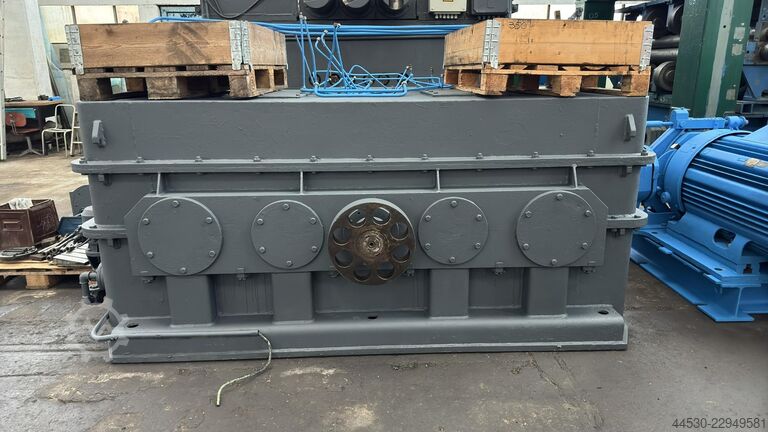

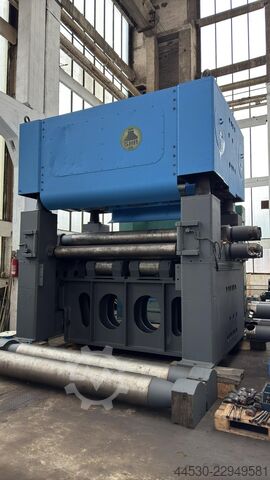

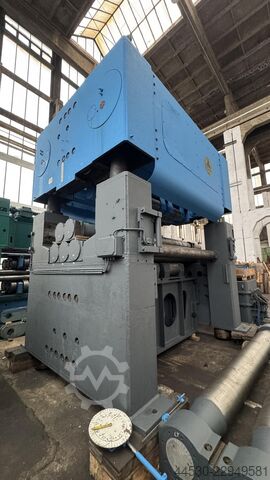

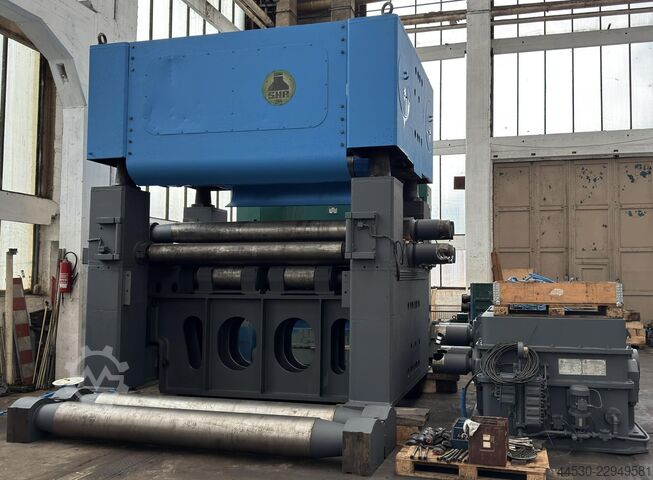

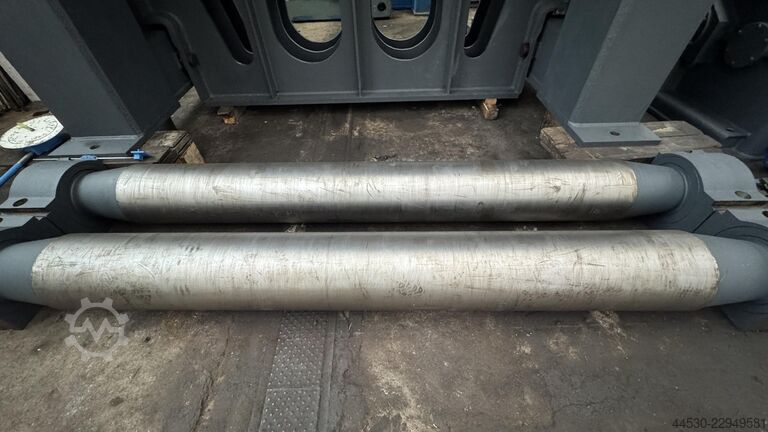

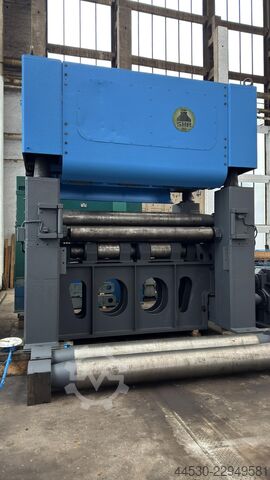

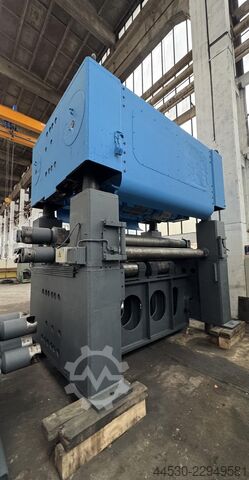

Condition: good (used), Year of construction: 1969, max. sheet width: 2500 mm Convexity length of rollers: 2700 mm max. sheet thickness (St 50): 32 mm Fsdpoz Rn Aqofx Afujpn max. sheet thickness (St 34): 39 mm min. sheet thickness (St 50): 8 mm number of straightening rollers: 7 rollers number of driven straightening rollers: 5 rollers diameter of straightening rollers: 290 mm diameter of input/output straightening rollers: 345 mm number of support rollers: 13 diameter of support rollers: 288 mm stroke of upper beam: 120 mm Straightening speed: 16 m / min Rated power of main drive: 90 kW Total load: 138 kW

Condition: good (used), Year of construction: 1975, pressing force: 250 t, stroke length: 140 mm, throat depth: 400 mm, Pressure: 250 t Throat: 400 mm Stroke: 30...140 mm Table size: 1000 x 750 mm Passage opening in table: 360 x 400 mm Ram area: 630 x 500 mm Ram adjustment: 110 mm Fodpoz Rnnysfx Afujpn Total power requirement: 18 kW Machine weight approx.: 16 t

Condition: good (used), Year of construction: 1986, Grinding depth: 500 mm Internal diameter: 20...400 mm Workpiece spindle speed: 40...400 rpm Table speed: 0.1...8 m/min Rapid traverse: 10 m/min Total power consumption: 17 kW Machine weight approx.: 6.5 t Additional information: grindable diameter within the workpiece guard: internal: 20..400 mm; external: 500 mm max. workpiece diameter within the workpiece guard: 500 mm max. grinding depth: 315 mm grindable taper angle: 60° Internal grinding spindle speeds: 2640...16500 rpm Drive power for surface grinding unit: 4 kW Drive power for workpiece motor: 1.5 kW Workpiece spindle speeds: 40...400 rpm Table speed: 0.1...8 m/min Fpsdoz Rn R Uopfx Afuon Rapid traverse: 10 m/min Table travel: 630 mm max. distance from the workpiece spindle flange to the grinding spindle support: 1250 mm

Condition: used, Year of construction: 1989, table length: 2,240 mm, table width: 1,400 mm, workpiece weight (max.): 5,000 kg, controller model: Siemens 840D, No minimum price – guaranteed sale to the highest bidder! Submitting a bid commits you to collecting the item on time, no later than October 31, 2026! TECHNICAL DETAILS Longitudinal adjustment of the table (X-axis): 2,000 mm Transverse adjustment of the intermediate slide (Y-axis): 1,600 mm (1,500 mm) Vertical adjustment of the crossbeam (W-axis): 900 mm Adjustment of the drilling spindle (Z-axis): 400 mm Distance between the table clamping surface and the spindle head: min. 100 mm Distance between the table clamping surface and the spindle head: max. 1,400 mm Passage between the columns: 1,600 mm Workpiece weight max.: 5,000 kg Tool holder: SK 50 Table Width of the clamping surface: 1,400 mm Length of the clamping surface: 2,240 mm Clamping surface: 3.14 m² Number of T-slots: 9 T-slot width: 22 H7 mm Distance between T-slots: 160 mm Adjustment speeds Axis X: 0.1–4,000 mm/min Axis Y: 0.1–4,000 mm/min Fsdpoz Hvyzjfx Afuepn Axis Z: 0.1–4,000 mm/min Difference between adjacent feeds: 0.1 mm/min Rapid traverse speeds Axis X: 12,000 mm/min Axis Y: 12,000 mm/min Axis Z: 8,000 mm/min Axis ZW: 1,600 mm/min MACHINE DETAILS Control system: Siemens 840D Dimensions & Weight Space requirement (L × W × H): 7,000 × 6,500 × 5,300 mm Weight: 22,500 kg EQUIPMENT Comprehensive documentation All fluids will be drained before collection. Data backup has been saved to a USB drive. A 10-ton bridge crane is available on-site to assist with disassembly and loading. A forklift can be used if arranged in advance.

Condition: used, Technical details: diameter: 250 mm weight of the machine approx.: ca.31 kg Fpsdpfx Afsu Nk D Rjujn revolution per minute: 3504 U/min 3 jaws lathe chuck - incl. 3 pcs of jaws external / internal *

Condition: used, Technical details: clamping surface area: 1000 x 500 mm weight of the machine approx.: 530 kg dimensions L x W x H: 0,5 x 1,0 x 0,49 m Angle extension table - machine table - machine clamping table with 33 x clamping holes M24 vertical mounting side: W x H: 800 x 450mm with 4 clamping grooves Ø 30 x 75mm Fpjdpfou Rd Nijx Afuen *

Condition: used, Technical details: weight of the machine approx.: 18 kg kg dimensions L x W x H: Ø 200 x H: 100 m PERMANENT MAGNETIC ROUND PLATES distance between 5x magnetic cores 36mm, width 20mm force operation 8mm square key (not included) * Fjdpfx Aou N Dmxsfujpn

Year of construction: 2020, condition: ready for operation (used), functionality: fully functional, WMW Niles, Czech Republic Made, CNC(Siemens Controls, Retrofitted in 2020) Floor Type Heavy Duty Lathe ,With heavy Duty Tail Stock, Steady Rest, Rollers, and with 6000 MM X 4000 MM Floor plates Fpsdpfx Afozww R Sjujn

Condition: used, functionality: fully functional, 1. Machine specifications * Pallet changer with 6 pallets - Clamping area: 4 x 800 x 800 mm 2 x 800 x 1000 mm - Max. clamping weight: 2000 kg - Interference circle: D = 1200 mm - Changeover time: 35 sec. * Travel ranges - Workpiece (x): 1140 mm - Support vertical adjustment (y): 910 mm - Column transverse adjustment (z): 875 mm * Max. feed force: 20,000 N * Rapid traverse: 24 m/min * Working spindle - tool holder - SK 50 DIN - Drive power 100/40 % duty cycle: 22/32 kW - Torque 100/40 % duty cycle: 720/1040 Nm - Speed range, stepless: 20 ... 6000 rpm * Coolant supply through the spindle center: 10 bar * Tool magazine (cassette): 186 positions Fpodpfx Afsz H Tqdjujn - Average chip-to-chip time: 11 sec. * Control system: Siemens 840C * Work area protection 2. Year of manufacture: 1995 The machine was only used in production until February 2011!!! 3. Warranty: none 4. Prices: * Machine: €30,000.00 5. Delivery conditions: * Payment terms: 100% before collection * Delivery date: ex-stock

Condition: like new (used), CNC vertical jig boring machine WMW MIKROMAT Travel X: 1120 mm Travel Y: 710 mm Spindle travel Z: 315 mm Travel W: 630 mm Numerical Command: CNC NUM 1060 Fpedjz Nxmdopfx Afujn Spindle: Ø 125 mm Cone: SA40 Rotation: from 36 to 2240 RPM Table size: 1400 x 900 mm Distance between colums: 1080 mm Maxi distance spindle nose/table: from 0 to 900 mm max Maxi eligible load on table: 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage: 380 V Dimensions (L x W x H): 4000 x 2460 x 3030 mm Weight: approx. 9 T

Condition: refurbished (used), functionality: fully functional, 1. Machine specifications: * Travel ranges - Table longitudinal travel (x) 1190 mm - Cross slide transverse travel (y) 530 mm - Column vertical travel (z) 540 mm * Table surface area 480 x 1600 mm * T-slots 18 mm at 80 mm spacing 5 * Table load capacity 1500 kg * Tool holder SK 50 DIN 2080 * Diameter in the front bearing 100 mm * Milling spindle drive power 15 kW * Speed range 35.5 ... 1800 min-1 * Number of speeds 18 * Step ratio, automatic shifting 1.25 * Max. torque 2200 Nm * Feeds 3 ... 2000 mm/min * Rapid traverse longitudinal and transverse 10000 mm/min vertical 5000 mm/min * Coolant system 40 l/min * CNC control TNC 360 Heidenhain, feed motors SIEMENS * Connected load 35 kW * Machine weight 5400 kg 2. Technical condition The machine was only used in production until May 2009!!! Due to the overhaul, the machine meets the acceptance conditions for new machines. All guideways have been re-scraped. Ball screw drive and measuring systems in all axes have been replaced. All motors have been checked and repaired in the authorized workshop. The milling spindle has been checked and repainted. A milling head can be provided for vertical machining. Fpodpfx Afjz H Ttxouen 3. Warranty: last inspection 04/2026 3 months 4. Prices * Machine 59,000.00 € * Assembly/Commissioning 5,250.00 € 5. Delivery conditions: * Pricing: Prices are quoted net for delivery or service ex works, excluding value-added tax. We reserve the right to sell the machine in the meantime. Our terms and conditions of delivery and service apply. * Payment terms: 30% down payment upon order 60% upon delivery 10% after handover * Delivery date: ex warehouse

Condition: ready for operation (used), very good condition. Fjdpfxjz N Sqpj Afuopn

Condition: used, Jig Boring Machine WMW BKoE 450 x 800 Fodpoz Nxltefx Afuopn Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth: 2500 mm Total height: 2600 mm Weight: 4,5 T

Condition: refurbished (used), functionality: fully functional, 1. Machine specifications: * Work table - Clamping surface 375 x 1600 mm - Number of clamping slots 4 - Table load 1000 kg * Adjustable travel ranges, machine-controlled - Table longitudinal movement (x) 1000 mm - Cross slide transverse movement (y) 270 mm - Overarm vertical movement (z) 505 mm Fedpfez H Tuvjx Afuepn * Milling spindle - Drive power 7.5 kW - Max. torque 1850 Nm - Tool holder, steep taper ISO 50 - Diameter in front bearing 100 mm - Max. milling head diameter 250 mm - Quill adjustment 90 mm - Swivel range, on both sides 45 degrees * Speeds - Number 18 - Step ratio 1.25 - Range 45 ... 2240 min-1 * Feed rate - Number of feeds 18 - Step ratio 1.25 - Range, longitudinal and transverse 16 – 800 mm/min - Range, vertical 5 - 250 mm/min - Drive power 1.5 kW - Rapid traverse, longitudinal and transverse 3150 mm/min - Rapid traverse, vertical 1000 mm/min * Coolant system - Flow rate 10 l/min - Capacity 45 l * Connected load 8 kW * Machine weight (net) 3150 kg * Space requirement 2800 x 2420 x 2635 mm * Last inspection 03/2026 2. Technical condition The machine was only used in production until February 2011!!! Due to the overhaul, the machine meets the acceptance conditions for new machines. All guideways have been re-scraped, the gearbox has been overhauled, and the feed and rapid traverse couplings have been replaced. The milling spindle has been overhauled, and a new paint job has been applied. 3. Warranty: 3 months 4. Price: 19,000.00 € 5. Delivery terms: * Pricing: Prices are quoted net for delivery of the machine ex works, excluding VAT. We reserve the right to sell the machine in the interim. * Payment terms: 30% down payment upon order 70% upon delivery * Delivery date: ex warehouse

Condition: good (used), Year of construction: 1988, Swing diameter over bed: 315 mm Swing diameter over cross slide: 200 mm Fedpfez Hylbox Afuepn Turning length: 500 mm Swing diameter over bed: 315 mm Maximum turning diameter over compound slide: 200 mm Center height measured in bed: 180 mm Spindle bore: Ø 32 mm Speed range: 56...2,800 rpm.

Condition: as good as new (ex-display), functionality: fully functional, 1. Machine Specifications * 2 work tables with pallet changing system - Clamping area: 630 x 630 mm - Threaded holes: 23 x M16x30 - Max. clamping weight: 1000 kg * Travel ranges - Table longitudinal adjustment (x): 850 mm - Support vertical adjustment (y): 710 mm - Column transverse adjustment (z): 710 mm * Max. feed rate: 10 m/min * Rapid traverse: 15 m/min * Working spindle - Tool interface: SK 50 DIN - Drive power: 22 kW AC - Torque: 660 Nm - Speed range, stepless: 20 ... 6000 rpm * Coolant supply through the spindle center: 10 bar * Tool magazine: 60 positions * Control system: Sinumerik 850M, software version 4.5 * Feed and main drive: AC Indramat * Footprint (L x W x H): 4100 x 6000 x 3500 mm * Work area protection 2. Technical Condition The machine has never been used in production!!! It is an unused machine – no production hours. Therefore, the machine meets all technical parameters within the acceptance conditions for new machines. 3. Warranty: Last inspection 04/2026, 6 months 4. Prices: * Machine: €120,000.00 * Spare parts package: included * Assembly/Commissioning: €7,500.00 (for assembly/commissioning abroad, travel expenses will be added) 5. Delivery Conditions: * Pricing: Prices are quoted net for delivery or service ex works, excluding VAT. We reserve the right to sell the machine in the meantime. Our delivery and service terms and conditions apply. * Payment terms: 30% down payment upon order 60% upon delivery 10% upon handover * Delivery time: 4 weeks Manfred Friedrich Export / Import Clemens-Winkler-Str. 6, 09116 Chemnitz The following spare parts can be supplied: Indramat motor - 2 AD 132D-BO50 R2-AS 03 - MAC 093 A-0-LS-2-C/130-A1 - MAC 112D-0-HD-4-C/180-BO - MAC 112C-0-KD-2-C/180-A-2 Indramat controller - TBM 1.2-40-W 1/220 V - TDM 1.2-100-300-W1 - TVM 2.2-050-220/300-W1 Heidenheim length measuring system LS403-820 2x - LS403-1020 Tool holders DIN SK 50 - 60 pieces Roller guide element 26 110 Fpodpoz H Tqwofx Afuon - 25 pieces

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, Drilling capacity in steel (diameter): 2-20 mm Overhang: 210 mm Drilling stroke: 100 mm Fpedpfxsz H T Dkj Afuon Distance spindle/table max.: 450 mm Speed range: 355 – 710 – 1400 - 2800 rpm Spindle taper: MK2 Table clamping surface: 340x280 mm Total power requirement: 1.1 kW Machine weight approx.: 165 kg

Condition: good (used), functionality: fully functional, 1 x Drilling and threading machine WMW Heckert Mikromat Well-maintained machine with complete accessories + coolant pump Technical data: Spindle speeds: 90 - 710 rpm (7 steps) Thread sizes: M6 - M30 Pitches: 1.0 - 3.5 mm The machine can be inspected while powered on. Fpedjzzz E Ispfx Afuon

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V Fjdpfx Afou Ngr Douepn total power requirement: 1,1 kW weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: refurbished (used), 1. Machine Specifications * 2 work tables with automatic pallet changer - Clamping area 400 x 400 mm - Perforated pallets - Max. clamping weight 400 kg - NC rotary table - Rotatable clamping position Fsdsz H Tn Aepfx Afuopn * Travel ranges - Column longitudinal travel (x) 650 mm - Support vertical travel (y) 500 mm - Table transverse travel (z) 650 mm * Max. feed rate 36 m/min * Rapid traverse 40 m/min * Working spindle - Tool interface - SK 40 DIN 69871 - Drive power 24 kW AC - Torque 230 Nm - Speed range, stepless 0 ... 10000 rpm * Coolant supply through the spindle center 50 bar * Tool magazine 60 positions * Control system Sinumerik 840 D * Machine bed made of mineral cast * Enclosed work area protection * Chip conveyor * Paper band filter system 2. Technical Condition The machine was only used in production until February 2013! Due to the overhaul, the machine meets the acceptance conditions for new machines. - The machine was completely disassembled and cleaned. - All compact guides and ball screw drives were replaced. - The main drive motor and feed motors were inspected in authorized workshops and, if necessary, refurbished. - The main spindle body was replaced with a new one, the spindle was re-bearinged, and run-in on the test stand. - All cables, air lines, and defective sensors were replaced. - Table assembly, magazine, tool changer, and coolant system were overhauled. - The panes of the work area protection were renewed, and a new paint job was applied. In addition, a new main spindle and a new Kessler motor can be supplied as spare parts. 3. Warranty: last inspection 03/2013; 3 months 4. Prices: * Machine €110,000.00 * Installation/Commissioning €6,000.00 (for installation/commissioning abroad, travel costs will be added) 5. Delivery Conditions: * Pricing: Prices are quoted net for delivery or service ex works. We reserve the right to sell the machine in the interim. Our delivery and service terms and conditions apply. * Payment terms: 30% down payment upon order against invoice 60% upon delivery 10% upon handover * Delivery time: 4 weeks

Condition: used, grinding diameter 1300 mm grinding length 6100 mm grinding wheel diameter 1300 mm voltage 400 V drive capacity - workpiece 23 kW centre distance 6500 mm max. dia. of grinding wheel 750 mm total power requirement 50 kW weight of the machine ca. 35 t 2 x Heavy Duty Steadies Coolant System The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More Fpjdpoz Icxtofx Afujn than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 1978, Pressure: 250 t Throat depth: 360 mm Fpedpfxez Iyy Ij Afuon Table size: 1250 x 630 mm Table diameter: 250 mm Ram clamping surface: 850 x 450 mm Installation height: 800 mm Piston stroke: up to 500 mm Piston diameter: 400/360 mm Ram speed downward: 200 mm/sec Ram speed upward: 110 mm/sec Total power requirement: 20.5 kW Machine weight approx.: 8 t

Condition: used, functionality: fully functional, Used radial drill 40x1250 WMW overhauled according to standards. Fodpfx Afszky Imsuepn

Condition: used, Parallel Lathe WMW NILES type DLZ 500 IV L 1000 Between points: 1000 mm Maxi Ø on bench: 500 mm Maxi Ø over saddle: 300 mm Fpedpfxoz Iz Hps Afuon Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock CM4 Auto Feeds transverse + longitudinal + rapid Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1400 x 1500 mm Weight: approx 2,5 T
