Used Avia Face Plate Chuck for sale (16,514)

Condition: good (used), Cast iron bed - Floor Plate Useful surface (L x W x H): 3600 x 1200 x 300 mm 4 T-slots: width 44 x 26 mm Equipped with Levelling feet Codpfx Ahszzvz Romohc Weight: approx 3 T

Condition: excellent (used), 4 off Insize Granite surface table dimensions 1000x630x140mm. Each one is mounted on an adjustable base. Cedpfxsy Igi Ue Ahmshc Available for 500€ each. All 4 for €1900

Condition: used, Cast bed Length: 2410 mm Cjdezzvyyspfx Ahmjhc Width: 1500 mm Thickness: 550 mm 8 T-slots 50 x 27 mm with 2 opening (possibility to close them) 1 opening L 560 x W 500 mm 1 opening L 480 x W 360 mm Weight: approx 5 T

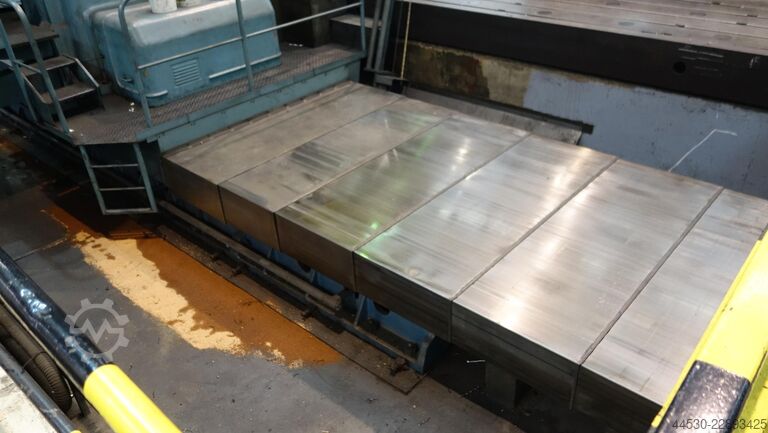

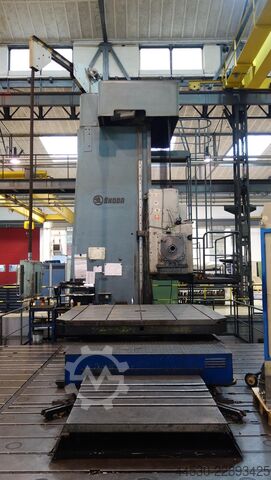

Condition: good (used), Year of construction: 1987, travel distance X-axis: 11,500 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 2,000 mm, feed length W-axis: 1,600 mm, x-travel 11,500 mm y-travel 4,500 mm w-axis 1,600 mm z-axis 2,000 mm Cjdpfxoz Iy Nco Ahmjhc Spindle diameter 200 mm Rotary table 3,000 x 4,000 mm Bed length of rotary table 4,600 mm Tool holder SK50 Workpiece weight on rotary table 80 t Total power requirement 83 kW Additional information incl. 15 plates

Condition: used, Technical details: floor-plate length: 4900 mm plate width: 1460 mm plate height: 300 mm Plate thickness: 300 mm weight of the machine ca.: 5,3 / pro Platte t transport dimensions LxWxH: ca. 4,9 x 1,5 x 0,3 / pro Platte m Csdpfxeval Hqe Ahmjhc There are two plate fields for sale. Material cast steel T-slots according to DIN 650: a=58; h=108; b=110; c=50 mm Center stand 295 mm 6x through holes Ø 40 mm 2 groove areas are broken out on the face of one panel. *

Condition: new, Year of construction: 1983, Spindle diameter: 200 mm Machining width: 6000 mm Machining height: 3150 mm Max. machining depth: 1985 mm Chjdpsz Iy Nvjfx Ahmoc Slide cross section: 530 x 550 mm Table load capacity: 20 t Plate field size: 11200 x 5550 mm Tool holder: SK 60 Machine weight approx.: 173 t Additional information: - Additional equipment: large and small angular heads - Listing No.: 22979 - The table is model S20 MP, size: 2200 x 2500 mm - The machining width on the X-axis of the machine is 6000 mm - Including 6 plates measuring 5600 mm x 1850 mm

Condition: good (used), Year of construction: 1986, Grinding depth: 500 mm Internal diameter: 20...400 mm Workpiece spindle speed: 40...400 rpm Table speed: 0.1...8 m/min Rapid traverse: 10 m/min Total power consumption: 17 kW Machine weight approx.: 6.5 t Cjdpfxjz Izgie Ahmshc Additional information: grindable diameter within the workpiece guard: internal: 20..400 mm; external: 500 mm max. workpiece diameter within the workpiece guard: 500 mm max. grinding depth: 315 mm grindable taper angle: 60° Internal grinding spindle speeds: 2640...16500 rpm Drive power for surface grinding unit: 4 kW Drive power for workpiece motor: 1.5 kW Workpiece spindle speeds: 40...400 rpm Table speed: 0.1...8 m/min Rapid traverse: 10 m/min Table travel: 630 mm max. distance from the workpiece spindle flange to the grinding spindle support: 1250 mm

Condition: used, Year of construction: 1978, Weight 1,5 t serial number 4193 ja vice ja x-travel 500 mm length 1200 mm width 1300 mm height 1789 mm Cjdpfx Ahszxt Tlsmjhc

Condition: used, Technical details: diameter: 250 mm passage: 80 mm width: 80 mm revolution per minute: 2400 U/min dimensions: Ø 250 x B: 180 mm incl. 3 clamping jaws mounted, max. clamping range outside: Ø 60 - 188 mm and max. clamping range inside: Ø 17 - 192 mm Chodpfx Ajvgbhkjhmoc with base plate Ø 303 x 48 mm; outer pitch circle Ø 280 mm with 4x M16 holes; inner pitch circle Ø 134 mm with 4x M12 holes; T-slot 3x lengthwise and 3x crosswise, T-slot spacing = 64 mm Flange = Ø 248 x 13 mm Accessories: with chuck key 1 set of soft jaws *

Condition: good (used), Year of construction: 2004, functionality: fully functional, 14. September 2026 Installation of a completely overhauled power supply unit HEIDENHAIN UV101B. * CNC control HEIDENHAIN TNC 410M * Coolant equipment * Machine lamp Technical details x-travel 620 mm y-travel 420 mm z-travel 400 mm table surface area 800 x 400 mm tool taper ISO 40 spindle turning speed - stepless 50 - 4000 rpm Chodezzw A Aepfx Ahmjc main drive motor 5,5 kW weight of the machine ca. 2,1 t

Condition: ready for operation (used), Year of construction: 2005, Available immediately ex-works: Hydraulic plate shear Baykal Type MGH 3100/10 Year of manufacture 2005 CNC control Delem Dac 310 Cutting length 3060 mm Material thickness 10 mm Cedpfxoz Ixmye Ahmohc Controlled back gauge 1000 mm Drive power 22 kW Strokes/min 12 Weight 9600 kg Dimensions 5000/2600/2000 mm Price: Euro 9,500.00 plus VAT ex-works.

Condition: excellent (used), Year of construction: 2007, CNC control: Heidenhain TNC 124 Travel ranges: X-axis travel: 620 mm Y-axis travel: 420 mm Cjdpfxszh Effo Ahmjhc Z-axis travel: 400 mm Main spindle speed range: 50 - 4000 rpm Gear stages: 2 Main spindle drive power: 6 kW Tool holder: ISO 40 Clamping force: 10 kN Spindle head: manually swiveling ±45° Max. tool diameter: 125 mm Max. tool weight: 6 kg Table clamping surface: 400 x 800 mm T-slots: 5 x 14 x 80 mm Max. table load: 400 kg Feed rate X / Y: 0 – 6000 mm/min Feed rate Z: 0 – 4000 mm/min Rapid traverse X / Y: 6000 mm/min Rapid traverse Z: 4000 mm/min Total connected load: 10 kW Footprint L x W x H: 2850 x 3350 x 2000 mm Machine weight: 2100 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, roller diameter: 60 mm, working width: 1,050 mm, sheet thickness (max.): 1 mm, roll metal bending machine Isitan 1050 X 1.2mm Manual 3 roll Bending Machine, excellent condition for sale manufacturer: Isitan 1050X1.2 max sheet width: 1050mm max sheet thickness: 1.2 mm Chedpjwk Rlxefx Ahmec Wire grooves at the ends of the rollers Conical bender roller diameter: 60mm Upper roller removable for easy workpiece removal machine dimensions: length: 130cm height: 100cm width: 65cm weight: 240kg

Condition: new, Self-centering 4-jaw chuck designed for mounting on lathes, rotary tables, and milling machines. Mounting according to DIN 55029. Hardened and ground working surfaces ensure a longer service life while maintaining accuracy and repeatability. Balanced scroll plate and chuck allow for higher rotational speeds during machining without excessive vibration. Mounts directly to the machine on a CAMLOCK-type spindle nose. Chedpfxjyw Tupj Ahmec Technical data: Parameter Value Unit Lathe chuck cast iron 4-jaw 3744 BISON A 200 mm Ratio 1:4 5 mm B 78 mm E 55 mm F 104.8 mm Q 6 J 29 mm Weight 19 kg Equipment: Lathe chuck One-piece hard external jaws One-piece hard internal jaws Key

Condition: excellent (used), Year of construction: 2003, Tool holder, vertical + horizontal SK 40 Table size L x W 710 x 315 mm Speed range, vertical spindle 63 – 2500 rpm Speed range, horizontal spindle 45 – 1800 rpm Travel ranges: X-axis, longitudinal adjustment, automatic / manual 400 / 420 mm Chodpjziutzsfx Ahmsc Y-axis, cross adjustment, automatic / manual 220 / 228 mm + cross slide 375 mm Z-axis, vertical adjustment, automatic / manual 350 / 380 mm Adjustment of the quill, vertical, manual 80 mm Machine dimensions, approx. 1550 x 1620 x 1850 mm Machine weight, approx. 1300 kg Accessories / Special features: • 3-axis digital display, manufacturer HEIDENHAIN • Infinitely variable feeds with rapid traverse in the 2nd feed stage • Two working spindles for horizontal and vertical tool holders (vertical milling head does not need to be removed during machining when the horizontal spindle is in use) • Ball screw spindles for the X and Y axes, simultaneous milling in X and Y direction possible • Trapezoidal screw spindle, hardened and ground, for the Z axis (vertical) • All operating elements on one side, in the mobile control panel • Additional manual adjustment of the cross slide increases the working area of the machine, even beyond the table surface • Safety handwheels • Tool holder according to DIN 2080 – steep taper ISO 40 • Automatic central lubrication for speed and feed gears • Vertical milling head with quill, swiveling L+R • Fixed angle table 315 x 710 with 5 slots 12 mm, spacing 63 mm • Tool clamping spindles, horizontal and vertical • Splash guard made of Plexiglas on 3 sides of the horizontal table • Coolant system • CE compliant TOP condition! Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: good (used), functionality: fully functional, Toolmaker's milling machine FNC 25E3 Table clamping dimensions: 280 × 750 mm Codpfezurxxex Ahmjhc Accessories

Condition: used, Bed plate 10ft x 5 ft x 4000kgs (approx) - Matched Pair Cjdpfoywziuex Ahmshc

Condition: good (used), Year of construction: 1995, functionality: fully functional, feed length X-axis: 430 mm, feed length Y-axis: 410 mm, feed length Z-axis: 360 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 50 rpm, total height: 2,000 mm, total width: 1,475 mm, total length: 1,700 mm, table width: 320 mm, table length: 800 mm, overall weight: 1,650 kg, Universal Milling Machine FNF 32. Chedpfjxnynbjx Ahmec Year of production: 1995 (FOP AVIA Poland) Specifications: Horizontal worktable: 320 x 800 mm. Vertical worktable: 320 x 900 mm. Spindle taper: ISO 40. Swiveling head: +60; 0; -60 degrees. Hydraulic tool clamping. Travel: X – 430 mm, Y – 410 mm, Z – 360 mm, Spindle speed "1": 50–315 rpm, Spindle speed "2": 400–2500 rpm, Main motor power: 4 kW. Power requirement: 5 kW. Dimensions (L x W x H): 1700 x 1475 x 2000 mm. Weight: 1650 kg.

Condition: used, Year of construction: 2008, x-travel 620 mm y-travel 420 mm z-travel 400 mm digital readout 3 Achsen HEIDENHAIN spindle taper ISO 40 DIN 69871A spindle turning speed range 50 - 4000 U/min table-size 800 x 400 mm table load 400 kg feeds -stepless- max. 2000 mm/min Chjdsyxxymspfx Ahmec rapid traverse 5 / 4 m/min power capacity - milling spindle (S1) 10,5 kW quill stroke 80 mm voltage 400 V total power requirement 17,5 kW weight of the machine ca. 1,9 t dimensions of the machine ca. 2,00 x 2,76 x 2,05 m - Serial-No.: 90395 - Digital display HEIDENHAIN ND780 - electr. handwheel - mechanical handwheels - stepless speed control - stepless feed drives - horizontal milling spindle - coolant device

Condition: excellent (used), Year of construction: 2011, Travel X 620 mm Travel Y 420 mm Travel Z 400 mm Table size 800 x 400 mm Mounting ISO 40 (DIN 69871A) Distance between table and spindle nose 500 Spindle speeds 4000/8000 rpm Quill stroke: 80 mm Ball screws on all axes Rapid traverse X,Y,Z 5,5,4 (m/min) Power KW 10.5 (13.7) Tool clamping: Hydraulic Csdpfswnbrdex Ahmohc Dimensions LxWxH 2,000x2,760x2,050 Weight approx. 1900 kg

Condition: used, functionality: fully functional, machine/vehicle number: 2550X10.14MM, control type: manual, degree of automation: manual, actuation type: mechanical, number of rollers: 3, roller (top) diameter: 300 mm, side roll diameter: 280 mm, roller diameter: 400 mm, roller length: 2,550 mm, working width: 2,500 mm, working height: 800 mm, sheet thickness (max.): 14 mm, sheet thickness stainless steel (max.): 10 mm, input voltage: 380 V, input frequency: 50 Hz, Equipment: centralized greasing system, cone bending device, emergency stop, swiveling upper roller, 3 roll 2500x14 mm Plate bending machine Model OMCCA ITALY CAPACITY plate width 2500 mm plate thickness 14 mm pre-bending 10 mm --- Chodpfx Ahsy Aubuomsc Useful rollers width 2550 mm Top roll d 300 mm Side rollers D 280 mm hard surface of the 3 rolls centralized gear unit side rolls driven Opening front hydraulic drop-end to unload the closed shell. Extended shafts to take installation of add-on molds for section bending Variable speed rolling up to 5 mtr/min power electric motor 20Hp on hydraulic unit console with electric push buttons commands. Dial gauge position rollers readout safety installations with emergency stop

Condition: ready for operation (used), Year of construction: 1998, Table size: 400 x 800 mm Travel ranges x/y/z: 600/400/380 mm Quill stroke: 80 mm Spindle mount: SK 40 Vertical milling head, adjustable in 2 planes Cjdpfozvm H Hsx Ahmjhc Spindle speeds, stepless: 63 - 3150 rpm Feeds, longitudinal/vertical, stepless: 4 - 1200 mm/min Electrical connection: 400 V, 4 kW Space requirement: 1800 x 1700 x 1900 mm Weight, approx.: 1.65 t

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, 600 mm lathe chuck for sale, used only once. Hydraulic 4-jaw. Cedpfxozgc Uzj Ahmohc

Condition: used, Year of construction: 2005, x-travel 620 mm y-travel 420 mm z-travel 400 mm Control Heidenhain TNC 124 turning speed range - spindle 50 - 4.000 U/min transmission ratio 2 drive capacity - spindle motor 6 kW tension force 10 kN swivellable manuell +/-45 ° max. tool diameter 125 mm max. tool weight 6 kg table surface area 400 x 800 mm T-slots 5x14x80 max. table load 400 kg feed speeds X/Y: 0 - 6.000 mm/min feed speeds Z: 0 - 4.000 mm/min rapid traverse X/Y: 6 m/min rapid traverse Z: 4 m/min total power requirement 11 kW weight of the machine ca. 2 t dimensions of the machine ca. 2,9 x 3,5 x 2,0 m Csdpfx Ajylcpqohmjhc Includes: Heidenhain TNC124 point-to-point control Electrical documentation available Coolant system 2 work lights Machine vise Various tool holders Various SK40 tools Enclosure with 2 sliding doors available, pictures to follow

Condition: ready for operation (used), Year of construction: 2021, sheet width 6020 mm plate thickness 6.0 mm thickness at "Niro-steel" 4.0 mm back stop - adjustable max. 1000 mm work height max. 1030 mm no. of strokes 5 - 10 Hub/min cutting angle 0.5 - 3.0 ° down holder 33 Stück Control SC 100 T engine output 11.0 kW weight of the machine ca. ca. 27000 kg range L-W-H 7650 x 2400 x 2885 mm New price in 2021 ~ 160.000 Euro Special price upon request - in checked conditions - machinevideo - ?v=qH3uqGNZZp8 Equipment: - Robust electro-hydraulic guillotine shear * Design: Guide rail - HACO CNC control model SC 100 T, pivoting at the front left * Control unit with LCD display * Pre-selected positioning of the backgauge * Digital display of actual position * Electro-hydraulic cutting angle adjustment * Electro-hydraulic cutting gap adjustment * Programmable retraction from the backgauge * Programmable cutting length limitation * Automatic + manual programming mode * Emergency stop switch - CNC electro-motor-driven material/backgauge * On recirculating ball screws * Continuous adjustment up to max. 1,000 mm - CNC electro-hydraulic cutting gap adjustment - CNC electro-hydraulic cutting angle adjustment - Hydraulically operated Material/sheet metal clamp - Front finger guard - Front support table with recessed grips Chedpsz Hd R Ijfx Ahmec - 1x side stop with mm scale - 1x freely movable foot switch - Rear safety device (light barrier) - Operating instructions (PDF) Optional accessories included: - Sheet metal holding device for thin sheet metal blanks * Optimal positioning of thin sheet metal
