Used Hydraulic Four Column Press for sale (31,478)

Year of construction: 1991, condition: ready for operation (used), Pressing force: 3200kN, stroke: 700mm, table dimensions: 2500x1300mm, weight: 63t, with documentation. Fsdpfx Afjlc N R Dousgh

Condition: good (used), Year of construction: 1981, machine/vehicle number: 027-006-20, Offer 26244 Technical data: - Max. pressing force 63 t - Max. ram stroke 500 mm - Stroke speed 200 mm/sec - Return speed 400 m/min - Installation height 800 mm - Overhang to center of ram 360 mm - Ram clamping surface 530 x 460 mm - Ram clamping pin 40 mm - Table size 750 x 560 mm - Table bore / through hole 180 mm Fgsdpfx Afoz A Axvsujh - Table height above floor 700 mm - Oil capacity (approx.) 300 l - Drive 380 V / 11 kW - Space requirement (approx.) W 1150 x H 3100 x D 1750 mm - Weight (approx.) 4300 kg

Condition: used, Single-column hydraulic press SCHÖN type FES / C 7 Machine no. No. 4281 Year of construction 1995 Pressure force 7 ton. throat 170 mm Projection round cycle station 60 mm Table size 310 x 200 mm Rotary indexing table Ø 400 mm, with 12 indexing stations Plunger surface approx. Ø 100 mm Plunger plate 315 x 200 x 35 mm Ram stroke 100 mm Installation height rotary table - ram plate max. 130 mm Table height above floor 890 mm Ram speed rapid traverse downwards approx. 300 mm/sec. Ram speed rapid traverse upwards approx. 300 mm/sec. Ram speed Working speed approx. 30 mm/sec. Fgodjr I E Itspfx Afujh Drive power 1.5 kW Mains connection 380 Volt, 50 Hz Tank capacity approx. 50 liters hydraulic oil - Rotary indexing control via SIEMENS S7- 1200 - GECHTER pneumatic rotary indexing table with 12 indexing stations - Mechanically adjustable fixed stop - Adjustable pressure holding time in the UT - electrical 2- manual operation Space requirement L x W x H 1450 x 850 x 1900 mm weight 700 kg good condition

Condition: used, Year of construction: 1982, Technical details: Federdlgijpfx Afujgh pressure: 2,5 t

Year of construction: 1992, condition: ready for operation (used), Max. ram force: 1600kN, length: 3170mm, width: 2500mm, height: 5080mm, weight: 23t, with documentation. Fgjdpfxolc N Rys Afujh

Condition: good (used), Year of construction: 1981, machine/vehicle number: 022-009-36, Offer 24374 Technical Data: - Max. pressing force: 100 t - Max. ram stroke approx.: 500 mm - Stroke speed: 25 mm/sec - Return speed: 125 mm/min - Installation height approx.: 1000 mm - Throat depth (to ram center): 380 mm - Ram clamping surface: 530 x 400 mm - Ram clamping pin: 40 mm - Table size: 750 x 560 mm Fgjdsxuhzcopfx Afueh - Table bore / through-hole: 200 mm - Table height above floor: 720 mm - Oil capacity approx.: 200 ltr - Drive: 400 V / 11 kW - Space requirements approx.: W 1150 x H 3250 x D 1850 mm - Weight approx.: 4600 kg

Condition: used, Double-column hydraulic press, NEFF type RHS 125 Z Hydraulic drawing press Machine no. 3973, year of manufacture 1983 Pressing force 125 tons Column width 1050 mm Column opening, side 550 mm Table area 1000 x 800 mm Ram area 1000 x 800 mm Ram stroke 350 mm Installation height max. 750 mm Fgsdpeguvtlofx Afueh Table height above floor 960 mm Drawing cushion force approx. 12 tons at 105 bar Drawing cushion stroke 100 mm Through-hole in the table Ø 202 mm Rapid traverse speed, downward approx. 360 mm/sec Rapid traverse speed, upward approx. 360 mm/sec Working speed approx. 36 mm/sec Oil tank capacity approx. 1000 liters Motor power, main pump 22 kW Motor power, control pump 4 kW Motor power, control pump 2.2 kW Power connection 400 volts, 50 Hz - Hydraulic drawing cushion under the table with a hole through the table plate Ø 202 mm - Precise 4-way column guidance on the ram corners - Stepless pressing force adjustment - Adjustable fixed stop, electrically controlled via a hydraulic motor - Stroke damping - 2-hand control panel for releasing the lifting motion on the press - Control cabinet positioned next to the press (1600 x 500 mm) - Documentation including operating manual, electrical wiring diagram, and PLC program printout available Space required for the press L x W x H 2600 x 2400 x 4270 mm Weight approx. 14 tons Good condition

Condition: used, Single-column hydraulic press with draw cushion RÖCHER Type REP 100.01 SZ Hydraulic deep-drawing press Machine No. 15.499 Year of manufacture 2003 Pressing force: 100 tons Ram stroke: 500 mm Throat depth: 370 mm Installation height: 600 mm Table surface: 850 x 700 mm with a drop-through hole Ø 150 mm Ram surface: 700 x 600 mm Ram ejector force: 16 tons (160 kN) Ram ejector stroke: 100 mm Ram ejector with internal thread M24 x 1.5 mm Draw cushion force: 40 tons (400 kN) Draw cushion stroke: 200 mm Draw cushion area: 530 x 530 mm Pressure holding time: 0 to 90 sec. Table height above floor: 910 mm Hydraulic operating pressure: max. 300 bar Hydraulic tank capacity: 700 liters Approach speed (rapid traverse): approx. 400 mm/sec. Pressing speed up to 23.8 tons (238 kN): 5 to 68 mm/sec. Pressing speed up to 100 tons (1000 kN): 5 to 16 mm/sec. Return speed: 50 to 400 mm/sec. Main pump drive power: 18.5 kW Auxiliary pump drive power: 4 kW Power supply: 400 Volt, 50 Hz (63 Amps) - Operation and programming via PC 670 touch panel, keyboard and mouse - Machine control via SIEMENS S7-300 PLC system - Ram stroke and press force programmable via control system - Draw cushion with drawing and ejector function - Draw cushion force infinitely adjustable - Ram and draw cushion equipped with direct linear measurement system - Draw cushion can be moved in and out under the press area, for punching work using the drop-through hole - Floor-level installation, draw cushion does not penetrate the floor - Pressure and stroke cutoff - Fixed stop with indirect measurement system - Pressure holding time infinitely programmable - Table with holes for the draw cushion ram rods - Ram with ejector - Knock-out damping - Stroke triggering via two-hand operation, foot switch, hand lever and push button on the control panel - LEUZE light barrier as reach-in protection for safety operation - Front mirror columns on the press table can be shifted laterally Fodsyupulepfx Afuegh - Electrical control cabinet mounted on machine frame - Hydraulic oil cooler with fan motor (oil-air cooling) - Manual central lubrication pump - 2x hose connections for tool tempering or cooling at the ram - Piece counter in the control system - 306 read operating hours - Operating manual, hydraulic diagram, and electrical diagram available Space requirements (L x W x H): 3100 x 1800 x 4160 mm Weight: approx. 13 tons Very good condition, as new

Condition: used, Year of construction: 1983, Technical details: Pressure: 160 t throat: 360 mm max. ram stroke: 500 mm distance table/ram: 800 mm clamping plate on table: 1250x630x100 mm passage opening in table: 4x Ø 62mm mm ram speed - forward: 200 mm/s ram speed - reverse: 125 mm/S ram surface area: 450 x 850 mm mortise hole in ram: Ø 49 mm height over floor: 810 mm total power requirement: 17 kW weight of the machine ca.: 7200 kg dimension machine xH: 2,1 x 1,4 x 3,4 m manual counter Fodpfx Afeu Nfvuoujgh *

Condition: used, Single-column hydraulic press, DUNKES Type HZT 2.5 Machine No. H94-2558, Year of manufacture 1994 Clamping force 2.5 tons Overhang 180 mm Table surface 420 x 300 mm Through-hole in the table 60 x 185 mm Ram surface Ø 40 mm Dowel hole for clamping Ø 20 mm Ram stroke 160 mm Maximum installation height 250 mm Rapid traverse downward 65 mm/sec Rapid traverse upward 160 mm/sec Working speed 8.3 mm/sec Table height above floor 950 mm Hydraulic operating pressure 135 bar Hydraulic tank capacity approx. 100 liters Drive power 1.5 kW Power connection 400 volts, 50 Hz - Installation height can be increased by shortening the piston rod by 80 mm - Pressure and stroke limitation - 2-hand operation on the machine - Stroke counter - Safe press control with 2 monitored hydraulic valves - UVV 11.064 VGB 7.n.5.2 (for manual insertion operations) - 32047 operating hours recorded - Electrical wiring diagram and hydraulic diagram available Space requirement L x W x H 1100 x 980 x 1950 mm Weight 700 kg Fsdpfjh Uhqysx Afujgh Very good condition

Condition: used, Year of construction: 1978, pressure 7 t throat 180 mm stroke 100 mm table surface area 300x300 mm ram surface Ø105 mm hole in the table Ø60 mm table height 1050 mm tool hole in ram Ø30 mm Fgsdsvnwfbepfx Afueh total power requirement kW dimensions of the machine ca. BxTxH 1200x1200x2100 mm

Condition: good (used), Press force: 200 tons Table: 1500x1000 mm Motor: 45 kW Weight: 18,000 kg Frame width: 1500 mm Fsdjgvz Hxspfx Afujgh Dimensions: Machine: 5500x2610x2150 mm

Condition: refurbished (used), Year of construction: 2018, machine/vehicle number: DF0150, pressing force: 63 t, pressure:63 t passage width:700 mm stroke:500 mm Approx. weight (w/o operational materials):5,1 t Measurements L x W x H:ca. 1500 x1600 x 2995 mm Return Capacity:6 t Engine Output:11 kW Max Working height:700 mm Approaching Speed max. :140 mm/sec Pressure Speed:15 mm/sec. Fsdpfjfhcc Ujx Afuogh Travel:500 mm Ram plate:600 x 540 mm Table size:750 x 600 mm Table height above ground level:850 mm Oil Tank Capacity:150 l Control voltage:24 V Frequency:50 Hz Siemens Control System:S7 1200 Monitor:Siemens 12 Zoll Special feature: When operating at 260bar the machine reaches a pressure level of 70 tons.

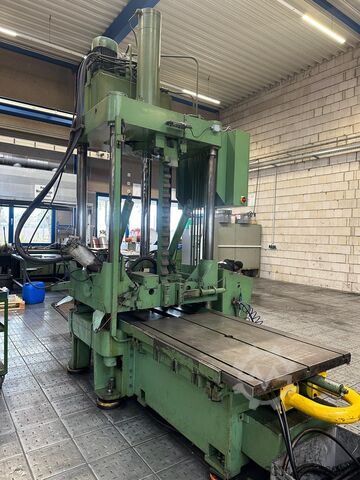

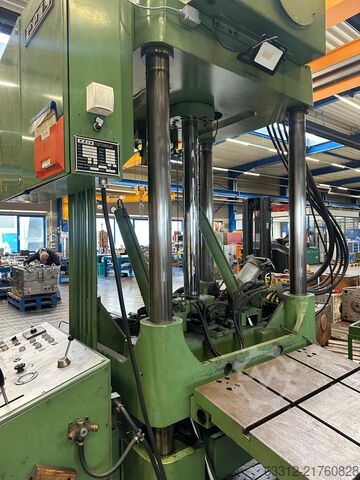

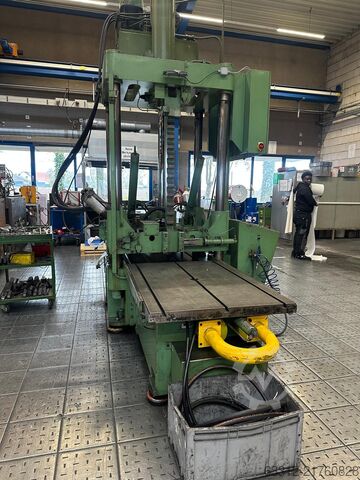

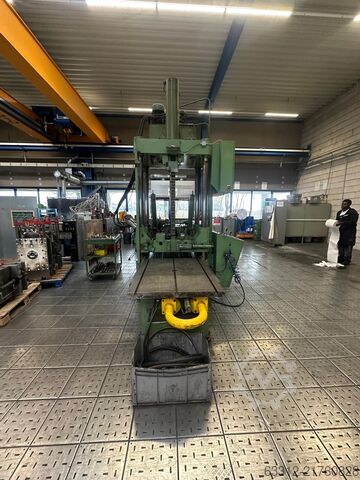

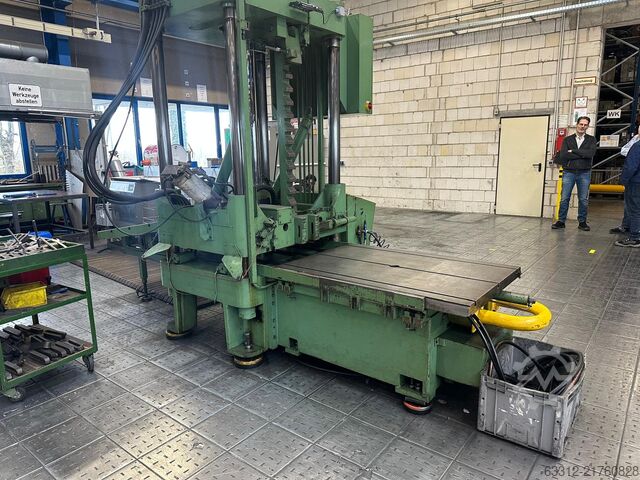

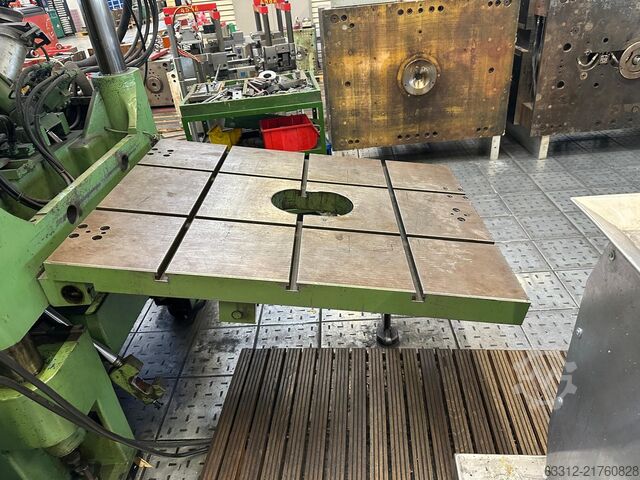

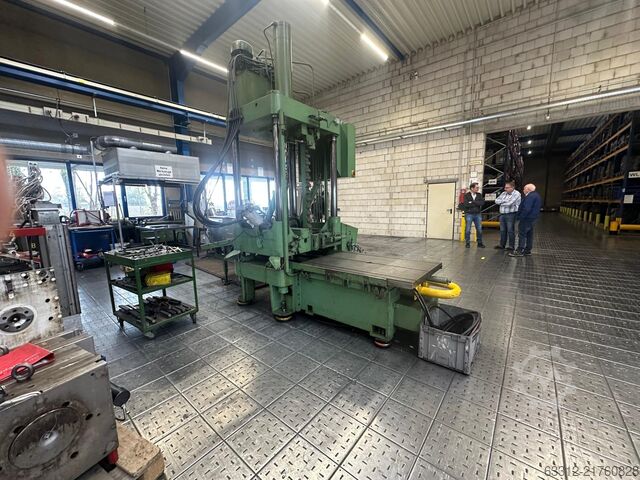

Condition: used, Year of construction: 1984, functionality: fully functional, machine/vehicle number: 02.086.00, pressing force: 40 t, For sale is a try-out press (spotting press) from manufacturer REIS with a maximum pressing force of 40 t. The machine features a table size of 1,280 × 900 mm, a maximum installation height of 1,035 mm, and a stroke up to 1,100 mm, making it suitable for spotting, adjustment operations, and tool modifications in mould and tool making. ##### Technical Data & Information: Spotting Press – 40 t – 1,280 × 900 mm ==== General Details - Design: 4-column press - Manufacturer: REIS - Year of manufacture: 1984 - Press force: 40 t (adjustable) - Return force: 20 t - Distance between columns: 930 × 705 mm - Max. installation height: 1,035 mm - Table size: 1,280 × 900 mm - Overall dimensions (W x D x H): approx. 3,800 × 1,850 × 3,600 mm - Total weight: approx. 9,000 kg Fgsdpfoy Ec H Rjx Afush - T-slots: DIN 650 – 18 mm ==== Hydraulic Cylinder - Stroke: 0–1,100 mm (adjustable) - Cylinder diameter: Ø 160 mm ==== Hydraulic System & Drive - Flow rate: 24 l/min - Operating pressure: 200 bar - Motor power: 9.5 kW ==== Movement System - Ram swivel unit: approx. 175° - Extendable table: yes - Table ejector: available ==== Controls - Operation: Control panel - Additional function control: Oil ports for core pulls (2 units) ==== Safety - Mechanical anti-drop protection ==== Electrical Connection - Main supply: 400 V AC - Fuse protection: 35 A - Frequency: 50 Hz - Connected load main motor: 9.5 kW ##### Areas of application: spotting, adjustment, toolmaking, mould making, plastics engineering, automotive, maintenance (spotting press, try-out press, test press, hydraulic press, 40 t press, 40 tonne press, 4-column press, tool adjustment press, tryout press, tool try-out press) Are you looking for a hydraulic press tailored to your specific application? Contact us for a customised quotation. Our hydraulic presses are manufactured in accordance with German machinery directives, as well as European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. In addition, our presses exceed Canadian and European safety requirements as they fully comply with the national Brazilian safety guideline NR 12, which builds on these standards. Our core strength lies in custom machine construction and press automation. We supply bespoke hydraulic presses at surprisingly affordable prices. The hydraulic systems of our presses predominantly utilise components from leading European manufacturers.

Condition: new, Year of construction: 2026, functionality: fully functional, pressing force: 25 t, stroke length: 400 mm, reverse speed: 20 mm/s, table width: 1,000 mm, table length: 600 mm, table height: 1,000 mm, For sale is a hydraulic sub-platen press from the manufacturer DURENDUS with a maximum pressing force of 25 tons. The machine has a table size of 1,000 × 600 mm, a maximum installation height of 600 mm, and a stroke of 400 mm, making it suitable for assembly, straightening, pressing, and forming operations in industrial applications. ##### Technical data + information: Sub-platen press – 25 T – 1,000 × 600 mm ==== General information - Reference ID: DE-2026-HB-227-01 - Design: 4-column sub-platen press - Manufacturer: DURENDUS - Pressing force: 25 T (adjustable) - Table size: 1,000 × 600 mm - Maximum installation height: 600 mm - Working height: 1,000 mm - Overall height: approx. 1,850 mm - Overall width: approx. 1,750 mm - Overall depth: approx. 1,200 mm - Total weight: approx. 2,000 kg ==== Hydraulic cylinder - Stroke: 400 mm - Cylinder diameter: Ø 115 mm - Piston rod diameter: Ø 90 mm - Working pressure: 250 bar - Return speed: 20 mm/s - Idling speed: 10 mm/s ==== Hydraulics & drive - Hydraulic pump: 6 l/min - Motor power: 3 kW - Tank volume: 30 l - Pressure accuracy: ±5 bar - Hydraulic block and valves: DUPLOMATIC - Air and oil filter: FILTREC - Pressure gauge for pressure indication - Hydraulic unit: mounted at the bottom of the press - Hydraulic oil: HLP46 (not included) ==== Control - Operation: hand valve - Operating mode: manual - Pressure adjustment: rotary control - Stroke limitation: manual via sensor - Siemens components in the control cabinet ==== Safety - 4-column guidance with Ø 60 mm guides - Safety monitoring - CE-compliant design ==== Electrical connection - Main supply: 400 V AC - Control voltage: 24 V DC - Frequency: 50 Hz - Main motor connection power: 4 kW - Total connection power: approx. 5 kW - Protection class of the control cabinet: IP54 ##### Application areas: pressing, forming, straightening, assembly work, jig and fixture construction, toolmaking, metalworking, mechanical engineering, maintenance, small series production (Sub-platen press, hydraulic sub-platen press, hydraulic press, 25 T press, 25 ton press, 4-column press, column press, assembly press, straightening press, pressing press, forming press, industrial press) Fgodpfx Afjzp Ex Uoueh Are you looking for a hydraulic press tailored to your specific application? Contact us for an individual offer. Our hydraulic presses are manufactured according to German and European Machinery Directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements, as they comply with all points of the national Brazilian safety directive NR 12, which is based on these. Our strength lies in the design and manufacture of special machines and the automation of presses. We distribute custom-made hydraulic presses at surprisingly affordable prices. Predominantly, components from leading European manufacturers are used for the hydraulics of the presses.

Condition: good (used), Year of construction: 2012, Condition: 2012 overhauled to the latest UVV Installation height: 800 mm Ram stroke: 500 mm Projection: 360 mm Fsdpjzvnfdofx Afuogh Nominal force: 400 kN Hydraulic pressure: 160 bar Operating hours: 1356 Other: new control from Pilz, electrical circuit diagrams available Video about functionality available

Condition: used, Single-column hydraulic press, straightening press, punching tool – ECKOLD Press frame with hydraulic cylinder, mobile press, punching unit Type RSD 1500 - 125 Machine No. 317 / 690 Year of manufacture approx. 1986 Pressing force 150 tons Stroke 125 mm Ram stroke 35 mm Table size 280 x 210 mm Ram surface Ø 125 mm Installation height (ram to table) max. 265 mm Table height above floor 403 mm Hydraulic operating pressure max. 500 bar - without hydraulic unit Fedpfx Asd Swtajfuogh - Ram surface with 4 threaded holes M16 and 20 mm guide groove, with a centering bore Ø 15 mm in the center - 1 high-pressure hydraulic hose with external thread M30x1.5 mm, hose length 4 meters - 1 high-pressure hydraulic hose with union nut M30x1.5 mm, hose length 4 meters Space requirement L x W x H 700 x 300 x 1450 mm Weight 1250 kg Good condition

Condition: like new (used), Year of construction: 2022, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, pressing force: 100 t, stroke length: 500 mm, operating speed: 400 mm/s, reverse speed: 450 mm/s, table width: 1,250 mm, table length: 630 mm, table height: 860 mm, throat depth: 360 mm, ram plate width: 850 mm, ram plate length: 450 mm, distance table to ram: 800 mm, retraction force: 1.6 t, total length: 2,300 mm, total width: 1,865 mm, total height: 3,650 mm, overall weight: 7,000 kg, year of last overhaul: 2026, controller manufacturer: SIEMENS, Equipment: CE marking, documentation/manual, safety light barrier, Hydraulic C-frame press ZEULENRODA | 100t | Retrofit system from 2026 with CE conformity + manufacturer's warranty --3 units available | short delivery time-- HIGHLIGHTS - Press frame in steel welded construction for maximum stability and rigidity - Press force 1,000 kN | adjustable based on stroke and pressure - Clamping area, table 1250 x 630 mm - Ram stroke 500 mm - infinitely adjustable - Ram plate with anti-rotation protection and guided by columns - Rapid traverse and short stroke function - Active oil cooling - Hydraulic ball-type quick-release couplings for safe and fast tool changes - Protection on the operator side via light curtain, on the side and rear via safety guard - SIEMENS control + touch panel - Interface for automation - Comfortable operation with BWS-1 cycle + BWS-2 cycle - Remote maintenance - CE conformity + manufacturer's warranty Ram column guidance: - Two diagonally arranged guide columns each. They also serve to prevent the ram plate from twisting. Hydraulic equipment: - Oil tank, hydraulic control / pump completely installed and ready for operation with all required pipelines, pumps and valves as well as the control units. - Electronic stroke measurement system - Stroke control: stroke-dependent - pressure-dependent - stroke-pressure-dependent Fgjdpfoz Hcz Ssx Afuoh - Option for setting a press time of 0 ... 10 minutes Safety: - BWS / light curtain on the operator side - Transparent protective elements on the sides, movable - Retraction lock (interlock) - Hydraulic and electrical safety devices in accordance with DIN EN 16092-3 Control / Operation: - SIEMENS - Touch panel control unit as a lift console (height adjustable) - Standing two-hand control unit - 100 storable tool data sets - Transfer of stroke parameters using the teach-in method - Various password levels - ... Operating modes of the press - Off - Setup / Two-hand - Single stroke / Two-hand - Single stroke BWS 1 cycle / 2 cycle - Master / Combined operation / Automation Tool control / protection - 6 x tool cams (24V / 2A outputs), freely programmable - Electronic tool protection with 8 inputs, freely configurable Remote maintenance (eWON Cosy) Service & Support ZEULENRODA PRESSTECHNIK

Condition: used, Year of construction: 1982, Technical details: pressure: 16 t stroke: 250 mm throat: 270 mm dayligth: ca. 400 mm table surface area: 800 x 500 mm boring diameter: Ø 50 mm ram surface area: 220 x 360 mm mortise hole in ram: Ø 40 mm table height over floor: 970 mm voltage: 380 / 50 Hz V Fjdpou Nfmyefx Afuegh control voltage: 220 V / 50 Hz total power requirement: 3,0 kW weight of the machine ca.: 2,3 t dimension machine xH: 1,8 x 1,5 x 2,72 m Press frame in robust welded construction. Adjustment of the operating mode via switch: inching, two-hand, foot or continuous operation with feed Press has a piece counter on the side with overload protection (pressure relief valve) with cutting shock damping Light curtain SICK optical electronics (can be repaired optionally) *

Condition: used, pressure 160 t throat 360 mm stroke 500 mm table surface area 1250x630 mm ram surface 1000x450 mm table height 1000 mm Fgedpslp U Hgefx Afush dayligth 800 mm weight of the machine ca. 8 t

Condition: used, Year of construction: 1991, Technical details: Pressure: 160 t stroke: 500 mm throat: 360 mm max. ram stroke: 500 mm distance table/ram: 800 mm clamping plate on table: 1250 x 630 x 100 mm passage opening in table: 4x D=62 mm ram speed - forward: 200 m/s ram speed - reverse: 125 m/s ram surface area: 450 x 850 mm mortise hole in ram: 49 mm height over floor: 810 mm total power requirement: 17 kW Fjdpfjw D Awmsx Afusgh weight of the machine ca.: 7200 kg dimension machine xH: 2,1 x 1,4 x 3,4 m manual counter *

Condition: used, Machine not operational - control system not functioning Available at a special price Double-column hydraulic press ALPHA TEC -- ALPHATEC Type RPS 5000 Factory No. 300487, Year of Manufacture 2006 Pressing force: 500 tons Distance between columns (front and rear): 2520 mm Table area: 2500 x 2500 mm Ram area: 2500 x 2500 mm Ram stroke: 600 mm Maximum installation height: 600 mm Table height above floor: approx. 900 mm Tank capacity: approx. 1000 liters Ram retraction force: approx. 22 tons Adjustable forward speed: 100-800 mm/s Pressure build-up to 5000 kN: approx. 0.7 sec. Fgjdpfxjdzqpts Afuoh Return stroke speed: approx. 300 mm/s Main motor power: 75 kW Control pump motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - 8-fold flat guide for the ram - Hydraulic ram locking in the top dead center position - Adjacent control cabinet (200 x 50 cm) - Electrical control system SIEMENS PLC S7-314 - Operation via SIEMENS OP 170-B (5.7") - 2-hand control panel located beside the machine - Floor-level installation - Table top 2510 x 2530 x 135 mm (approx. 6700 kg) - Central lubrication system - Operating manual with circuit diagrams Space requirement (L x W x H): 372 x 260 x 460 cm Space requirement for horizontal transport (L x W x H): 460 x 372 x 260 cm Weight: approx. 50 tons The machine was used for straightening heated steel flanges. From insolvency – in good condition.

Year of construction: 1980, operating hours: 7,663 h, condition: used, pressure 320 t throat 800 mm stroke 630 mm distance between table / ram max. 1000 mm ram head dimension 710 x 600 mm table-size 800 x 1200 mm work height max. 1015 mm quantity of oil 1100 l Number of working hours 7663 h weight of the machine ca. 15 t dimensions ca. 1600 x 2200 x 4800 mm dimensions of switch cabinet ca. 1200 x 400 x 1800 mm Tested for function. During the test run it is noticed that the press ram Fgedpfed Ih Nrex Afuoh not 100% leak-proof. In addition, the cable for manual operation was mended several times. Upper cover is missing, since this was dismantled by the customer due to crane use. Operating instructions and electrical plans available.

Year of construction: 1978, condition: used, pressure 40 t Fedpfeq Rhkwsx Afusgh distance between columns 600 mm stroke 150 mm table surface area 600x410 mm ram surface 220x130 mm table height 850 mm weight of the machine ca. 2,5 t

Condition: new, Year of construction: 2019, machine/vehicle number: DF0369, pressing force: 220 t, pressure:220 t passage width:1500 mm stroke:400 mm weight of the machine ca.:5,2 t dimensions:ca. 4000 x 1950 x 2900 mm return capacity:20 t total power requirement:30 kW Max Working height:500 mm :10 mm :10 mm/sec. Return Speed:25 mm/sec speed rapid traverse:10 mm/sec pestle plate:2000 x 400 mm table plate:2000 x 600 mm table height over floor:900 mm Fjdpfx Asfxyivofusgh :500 l Oil cooling (electric):1,5 kW (max) measuring system:TURCK oder Balluff :S7 1500 oder PILZ PSS 4000 Monitor SIEMENS:oder OMRON
