Used Sumitomo Gear Grinding Machine for sale (70,455)

Condition: good (used), Year of construction: 2007, max. wheel diameter 500 mm gear width 200-400 mm module 12 turning speeds 0-3250 U/min bracke pressure bis max. 95 Nm inner taper Konus #39 Control Fanuc 16 total power requirement 15 kW Blsdpfx Amsvr Hf Eszjk weight of the machine ca. 6 t dimensions of the machine ca. 2.350 x 2.240 x 2.500 mm HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm.

Condition: used, Year of construction: 2012, Control Siemens 840 D weight of the machine ca. 13,5 t dimensions of the machine ca. 7m x 4m x 2,75m m Accessories: Coolant tank Bledpfxjxh Rqto Amzsk Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90°

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the Bedpfx Amew N S E Ajzslk cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: refurbished (used), Year of construction: 1989, functionality: fully functional, rotary table diameter: 1,500 mm, grinding height: 457 mm, total height: 3,124 mm, total width: 3,150 mm, total length: 4,165 mm, overall weight: 15,000 kg, grinding wheel diameter: 863 mm, grinding spindle speed: 450 rpm, power: 45 kW (61.18 HP), table diameter: 1,500 mm, LUMSDEN Model 93ML Vertical Rotary Surface Grinder. Refurbished with new bearings in table and spindle, reconditioned main motor, new rectifyer, lubrication system, new control panel. Serial Number: to be advised New 1980's originally Bledpewugh Dofx Amzsk Country of Origin: UK Segmental wheel dia 34" Segments per set 16" Table dia and grinding capacity 60" Magnetic table dia (Humphreys) 60" Max height wheel to Magnetic table 18" Minimum height of wheel to table 4.1/2" Spindle speed 450 rpm. Table speeds 16 and 5.1/2 rpm. Automatic feeds 10 rates .004-.040 ins/min. Power elevation 25 ins/min. Spindle motor 60 Hp / 960 rpm 45 kW Table motor 6/2.1/2 HP /1440/480rpm. Feed motor 1/4 Hp / 1440 rpm. Elevation motor 1 Hp / 720 rpm. Coolant pump motor 1 Hp / 1440 rpm. Overall height of machine 10'3". Floor space 13'8" x 10'4". Approx net weight 15 tons.

Condition: good (used), Year of construction: 2011, Maximum grinding diameter 290mm, maximum grinding length 800mm, grinding wheel size 290mm x 63mm bore. Control Fanuc 21i-TB, workhead speed 1,000rpm, spindle power 5Kw, table swivel +6/-3.5 degrees, workhead swivel angle 0-90 degrees. internal spindle motor 1.5kw. fitted with coolant. Bodpfotudfdox Amzjlk

Condition: ready for operation (used), Year of construction: 1994, Studer S30-1 Year of manufacture: 1994 Blodpfxsy Rmxuo Amzsk

Condition: good (used), Drill grinding machine, drill grinding device, tool grinding machine, twist drill grinding machine, grinding machine, angle grinder, thread drill grinding machine, bench grinder -Manufacturer: Affilatrici, drill and tool grinding machine type 3M 4/60 -Grinding wheels: installed Ø 180 mm, see photos Bljdpfx Aozrfrtsmzek -Motor power: 1.5 kW -Speed: 2800 rpm -Chuck: Ø 160 mm / Bore Ø 60 mm -Accessories: Centering MK1, 2, 4.5 -Coolant system: -Dimensions: 1080/945/H1300 mm -Weight: 370 kg

Condition: used, Year of construction: 2010, We offer you: 2 units of CNC cylindrical grinding machines Manufacturer: Junker Type: Jumat 3000/50S Year of manufacture: 2010 Blsdpfx Amezrl E Hezjk Control system: Siemens You can find the technical specifications in the images. Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is explicitly stated in the additional information. Subject to changes and errors in the technical data and information, as well as prior sale!

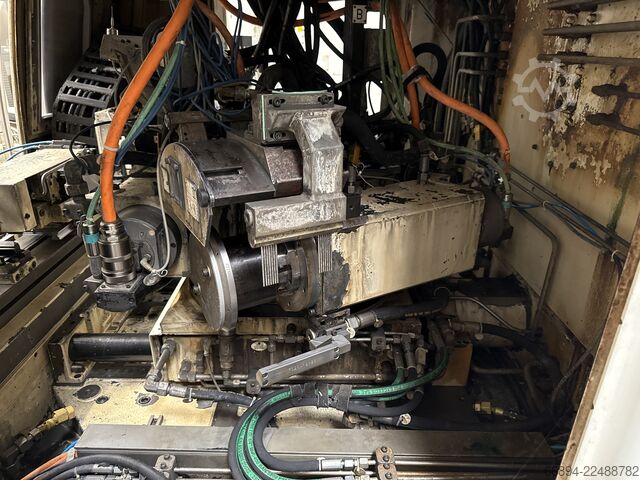

Condition: used, Year of construction: 2011, We offer you: 2 units of CNC cylindrical grinding machines Manufacturer: Junker Type: 2x Jucam 3000/51S Bjdpfxozrl Are Amzelk Year of manufacture: 2011 Control system: Siemens You can find the technical data in the images. Accessories, tools, and clamping devices shown in the images are only included in the scope of delivery if this is explicitly stated in the additional information. Subject to changes and errors in the technical data and information, as well as prior sale!

Condition: used, Year of construction: 2011, We offer you: 2 units of CNC cylindrical grinding machines Manufacturer: Junker Type: 2x Jucam 3000/61 Year of manufacture: 2011 / 2012 Control system: Siemens You can find the technical specifications in the images. Blsdpfx Amszrlywezek Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is stated in the additional information. Subject to changes and errors in the technical data and information, as well as prior sale!

Condition: used, Brand and Model: ACME GOZUA RC 2-75 Type: CENTERLESS HYDRAULIC CYCLES Intermitten ( with stop at the end of the cycle.) Total time for fast feed, slow grinding feed, and stop at the feed carriage setting ( adjustable by timer) 1 to 100 sec.. DIAMOND CUTTING Maximum diameter difference in copy: 8 mm Total tMaximum copy taper : 30º COOLING EQUIPMENT Pump flow rate : 45 l /min Tank capacity: 100 l Decanting compartments : 4 EXTERNAL AND MAIN DIMENSIONS Total machine length: 2.350 mm Total machine width : 1.560 mm Bodpfxszq Sfkj Amzelk Total machine height: 1.450 mm Height of the grinding wheel axes 1.050 mm. External dimensions of shipping packaging : 2.400x1.700x1.600 mm Shipping packaging volume: 6.53m3 WEIGHTS Net: 2.340 kg Gross with cage packaging : 2.445 kg Gross with shipping packaging: 2.485 kg

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Type PSG 63 – UAN Year of manufacture: 1988 Grinding length: 600 mm Grinding width: 320 mm Max. workpiece height: 500 mm Table travel (longitudinal): 750 mm Table travel (cross): 340 mm Grinding wheel diameter: 350 mm Bodpfx Aszrbr Nemzolk Grinding wheel width: 40 mm Spindle speed: 1500 rpm Rapid vertical feed: 400 mm/min Power: 3.7 kW Automatic feed Magnetic chuck Coolant system Weight: 2500 kg Price: EUR 2,000—plus VAT, ex location

Condition: new, grinding height: 150 mm, height adjustment type: mechanical, total height: 1,450 mm, total length: 1,800 mm, total width: 1,400 mm, overall weight: 850 kg, Equipment: CE marking, Structuring and Sanding Machine / 4-Side Brushing Machine Manufacturer: Alpha Brush Model: LS-TSB Versatile brush sanding machine equipped with a total of 6 brush units for 4-sided sanding and structuring of wood materials such as panels, solid wood flooring, scaffolding boards, facade boards, etc. Working width: 300 mm Workpiece height clearance: 150 mm Equipped with: - 1x top brush unit, 2.2 kW - 1x bottom brush unit, 2.2 kW - 1x top brush unit, 2.2 kW - 1x bottom brush unit, 2.2 kW - 1x left-side brush unit, 1.1 kW - 1x right-side brush unit, 1.1 kW Infinitely variable speed control for each brush group (top, bottom, sides) Brush diameter: 260 - 300 mm Quick-change system for brush heads Spring-mounted pressure roller, individually height adjustable Feed rate infinitely variable, approx. 2 - 20 m/min., 0.75 kW Digital display for settings Bjdpoykh Tfsfx Amzslk Recommended extraction capacity: 3000-3500 m³/h Voltage: 400 - 480 V, 3 Ph, 50/60 Hz Protection: 32 A Dimensions (LxWxH): approx. 1800 x 1400 x 1450 mm Weight: approx. 850 kg

Condition: new, functionality: fully functional, power: 4 kW (5.44 HP), input voltage: 400 V, type of input current: three-phase, grinding belt speed: 33,000 mm/s, total height: 1,000 mm, total length: 940 mm, total width: 510 mm, overall weight: 120 kg, grinding width: 150 mm, warranty duration: 12 months, WBG150 - ROGI belt sander, 400V - 3-phase Sanding belt ----- 150 x 2000 mm Belt speed ----- 33 m/s Bljdpoga T Ihjfx Amzok Motor ----- 4 kW Weight ----- 120 kg INCLUDES * Sturdy base frame * Sanding belt

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: EB1507, grinding length: 600 mm, grinding width: 350 mm, total height: 1,900 mm, total length: 1,900 mm, total width: 1,900 mm, workpiece weight (max.): 320 kg, grinding height: 312 mm, grinding wheel diameter: 355 mm, distance table to spindle center: 490 mm, table speed: 25,000 mm/min, table load: 320 kg, type of input current: three-phase, grinding wheel width: 25 mm, overall weight: 1,700 kg, grinding spindle motor power: 2,200 W, travel distance X-axis: 700 mm, travel distance Y-axis: 490 mm, travel distance Z-axis: 340 mm, rotational speed (max.): 1,500 rpm, grinding spindle speed: 1,500 rpm, input voltage: 400 V, Equipment: documentation/manual, - Factory number: EB 1507 - Automatic vertical feed - Headstock adjustment - Belt filter system - Coolant system - Machine light Grinding length 600 mm Blodpfxozrinlo Amzok Grinding width 300 mm Workpiece height 312 mm Table size 600 x 300 mm Maximum workpiece weight 320 kg Distance grinding spindle center - table 490 mm Table travel, longitudinal 700 mm Table travel, transverse 340 mm Table feed rate 1 - 25 m/min Speed range - grinding wheel 1500 rpm Drive power - grinding motor 2.2 kW Grinding wheel dimensions 355 x 25 x 127 mm Magnetic chuck 610 x 305 mm Headstock adjustment device Operating voltage 400 V Total power consumption 3.0 kW Machine weight approx. 1.7 t Space requirement approx. 1.90 x 1.90 x 1.90 m Hydraulic unit 0.60 x 0.35 x 0.75 m Coolant system 0.70 x 0.40 x 0.80 m

Condition: reconditioned (used), Year of construction: 2011, machine/vehicle number: GG110C 19624, total length: 8,355 mm, total width: 1,550 mm, total height: 2,700 mm, overall weight: 3,600 kg, input current: 32 A, input frequency: 50 Hz, type of input current: three-phase, input voltage: 400 V, working height: 800 mm, power: 27 kW (36.71 HP), pressure: 6 bar, year of last overhaul: 2026, Straight-line edging machine for heavy-duty production; equipped with 3 diamond grinding wheels, allowing for the processing of glass up to 50mm thick. Blsdpfx Amezq Dkrezsk Minimum glass dimensions: 40x40mm; Glass thickness: 3-50mm; Speed: 0.6-6 m/min; Installed power: 27 kVA; Weight: +/- 3600 kg.

Condition: used, rand: DANOBAT Model: RT 1200 Useful support surface 1200 x 450 mm Bledpfszqrmzjx Amzsk Useful grinding surface (100 mm wheel) 1200 x 600 Useful grinding surface (50 mm wheel) 1200 x 550 Longitudinal travel X axis 1300 mm. Transverse travel Y axis 500 mm

Condition: used, Used Matra valve grinding machine with double-cone collets as shown, 380 Volt electric motor fully functional. Please do not send email enquiries! If you have any questions, we are happy to assist you by phone. Bjdpfxjzq R Dfj Amzelk Viewing and collection only possible by prior telephone appointment! Subject to alterations, prior sale, and errors.

Condition: refurbished (used), Kellenberger 1500 U-175 – High-Precision Universal Cylindrical Grinding Machine Universal cylindrical grinding machine for external and internal grinding (internal grinding attachment included). - Centre distance: 1,500 mm - Centre height: 175 mm - Complete retrofit, fully dismantled and rebuilt component by component: guideways reconditioned, bearings replaced, new electrical installation and control cabinet, complete repaint, and machine geometry restored to original factory precision. - Equipped with Siemens servo motor, frequency inverter and Fagor digital readout (Fagor). - Condition comparable to a new machine, ready for immediate production. - Available with a wide range of accessories. Bledpowqlyksfx Amzjk - Inspection and live demonstration under power available. Availability: Immediate. 1000U version: Currently undergoing refurbishment.

Condition: good (used), Year of construction: 1994, For sale OERLIKON MATTISON R.P. 5 Vertical Surface Grinding Machine with Magnetic Circular Table – Ø 1100 mm – 45 kW Description: For sale, a vertical surface grinding machine with a vertical spindle and rotary table, manufactured by OERLIKON MATTISON, model R.P. 5. This is a very powerful and robust machine, ideal for quickly grinding large series, as well as for grinding flat surfaces, discs, blades, large rings, or large mechanical parts. Technical specifications: Brand: OERLIKON MATTISON Model: R.P. 5 Diameter of the magnetic circular table: ~1,100 mm (measured with a meter) Bsdszpzynopfx Amzolk Spindle power / main motor power: 44 / 45 kW (60 HP) Motor speed: 750 rpm Motor: SELIN Genova (380 V / 50 Hz / 87 A) Included equipment: Large, recessed electromagnetic circular table Separate electrical cabinet (380 V) Paper filter system / coolant separator with belt conveyor Segment grinding wheel head Control panel on the front

Condition: excellent (used), Capacity M16 module Table diameter: 1,200 mm Maximum workpiece diameter: 1,500 mm Bjdpfszql Ufjx Amzjlk Milling slide travel: 600 mm Table center hole diameter: 250 mm

Condition: excellent (used), max. wheel diameter 300 / 400 mm gear width 76 mm max. module 6 min. module 0,5 Bodpfezq Hmcjx Amzslk Control BWO CNC 921 adjustment of stroke position 94 mm/Hub stroke 82 mm no. of strokes 75 - 1000 Hub/min number of teeth 5 - 200 taper of shaper cutter SK 45 table diameter 400 mm total power requirement 50 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 5,0 x 3,8 x 3,4 m Machine in top condition.

Condition: new, Year of construction: 2026, width of the strips 50.0 mm band length 940 mm band speed 3.0 - 22 m/min turning speeds 1450 U/min tube diameter 16.0 - 114 mm radius 180 ° total power requirement 4.75 kW weight of the machine ca. 265 kg range L-W-H 1000 x 750 x 1300 mm Furnishing: - stationary pipe belt grinders - Automatic material feed with separate drive motor - Replacement sanding belts - Stepless speed adjustment - Manual adjustment of tube tension - Polish bent pipes up to 180" (angle). Bodpfoxaaxqox Amzslk - Manual work possible without feed - CE mark / declaration of conformity

Condition: used, Year of construction: 2005, Technical details: workpiece diameter: 63,5 mm centre distance: 350 mm honing length max.: mm total power requirement: kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,70x2,x2,60 m Technical data G0504 working space Length of the clamping surface mm 1550 Number of T-slots mm 2 Width of the T-slots mm 18 Bjdpfx Amjwrh H Njzolk Distance between T-slots mm 180 Center height (tailstocks) mm 350 Swivel range of the fine wheel head (U-axis) degrees Center distance - tailstock / fine wheel min./max. mm 120/225 Input resolution (all NC axes) mm / degrees Delivery slide Movement range (= Z-axis travel) mm 105 Input resolution mm tool Outside diameter min./max. mm 225/275 Hole diameter mm 160 Width mm 60 workpiece Outside diameter min./max. mm 40-150 Module min./max. mm 1.25-4.0 Tooth width max. Mm 45 weight Weight of the machine approx. Kg 5500 Operating fluid requirements Cooling lubricant recommendation, see chap. 8th Hydraulic fluid HLP D 46 approx. Itr 100 Speeds and feeds Tool speed (continuously adjustable) max. 1 / min 2000 Feed rates Rapid traverse / feed Z direction up to m / min 2 X direction up to m / min 2 U-direction up to m / min 2 V-direction up to m / min 2 C3 direction max.degree / sec 12 Electrical equipment Operating voltage V 400 Control voltage / lighting voltage V DC / AC 24/2 Frequency Hz 50 Power requirement approx. KVA 27 If the electrical installation has to be carried out according to customer specifications, only the information in the electrical documentation applies. Motor data Servo drives: Nm 1 / min Tool drive C1 27.0 00 Workpiece drive C2 27.0 00 X-axis 20.0 00 Z-axis 20.0 00 U-axis 6.0 00 Vertical portal (V1 axis) 6.0 00 Portal horizontal (U1 axis) Gripper axis of rotation C3 5.0 00 Loading slide (X1 axis) 5.0 00 Three-phase motors: KW 1 / min Hydraulic motor 1.5 1410 Central lubrication 0.07 Coolant pump 4 2840 Hydraulic equipment Delivery rate Itr / min 21 System pressure bar 50 Clamping pressure for: headstock max. Bar 35 Clamping tailstock min./max. bar 20 Only available if required. Not all limit values ??can necessarily be reached at the same time. If several maximum values ??come together in a processing task, performance restrictions must be expected! We reserve the right to make changes to the specified constructions, dimensions and weights *

Condition: like new (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: EB1206, total height: 1,800 mm, total length: 1,700 mm, total width: 2,600 mm, Proth PSGS-2550AH surface grinding machine. Like new. Never used!! Fully functional. Magnetic clamping plate: 500x250x80mm Max. workpiece weight: 320kg Travel distances: Longitudinal: 600mm Transverse: 280mm Bljdpozcdy Eofx Amzok Spindle speed: 1500 RPM Hydraulic longitudinal feed: 1-25m/min Transverse feed: 0.1-10m/min Automatic vertical adjustment, computer-controlled Weight: approx. 1350kg Electronic handwheel Demagnetization Cross-grinding attachment Coolant system Machine base made of high-quality MEEHANITE cast iron, stress-relieved multiple times, resulting in unique rigidity and smooth operation. Includes documentation, balancing device, grinding wheels and flanges, and leveling feet.
