Used 7-Axis Tool Grinding Machine for sale (83,557)

Year of construction: 2010, condition: ready for operation (used), functionality: fully functional, working length: 7,600 mm, machine/vehicle number: 1400040505, number of axes: 4, TECHNICAL DETAILS Max. machining length with end face machining: 7,600 mm Max. machining length without end face machining: 7,720 mm EQUIPMENT 12 pneumatic collet chucks 2 work areas 4-axis profile machining center; stepless machining between -90° and +90° with each available tool Automatic clamping position adjustment with absolute measuring system Two separate machining zones for tandem operation 4-axis control 18.5" color monitor, USB ports, and network connection Windows operating system EluCam software Bsdjzhuyfopfx Aphsdf Automatic profile length measurement (on both sides) Barcode scanner The traversing tool magazine ensures short tool change times and thus optimal machining cycles; the magazine can be equipped with eight tools. 8x tool holders with collet chucks

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,100 mm, controller model: Siemens 840D, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,000 mm Travel range, Y-axis: 1,200 mm Travel range, Z-axis: 1,100 mm Spindle speed: 8,000 rpm Pallet size: 630 × 630 mm Rotary table: 360,000 × 0.001° Tool positions: 400 Tool interface: HSK 100 Bsdpfszncndex Aphsdf Number of machining axes: 5 MACHINE DETAILS Control system: Siemens 840D

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 460 mm, controller model: FANUC Series 160is-MB, spindle speed (max.): 12,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel ranges X-axis: 600 mm Y-axis: 410 mm Z-axis: 460 mm A-axis: -120 to +30° C-axis: 360° Spindle Speed range: 100 to 12,000 rpm Speed stages: stepless Bdodpozpxgrjfx Aphef Spindle mount: 7/24 taper, size 40 Spindle bearing inner diameter: 65 mm Distances Distance from table surface to spindle nose: 70 to 530 mm Distance from column front to spindle center: 620 mm Table Work surface diameter: 350 mm Maximum workpiece weight: 200 kg Height of table surface above floor: 1,080 mm Feed rate Rapid traverse X- and Y-axis: 48 m/min Rapid traverse Z-axis: 36 m/min Rapid traverse A-axis: 22.2 rpm Rapid traverse C-axis: 33.3 rpm Working feed rate X, Y, and Z-axis: 1 to 36,000 mm/min Working feed rate A-axis: 22.2 rpm Working feed rate C-axis: 33.3 rpm Tool changer Tool mount: JIS B 6339 BT40 Pull stud: MAS 403 P40T-1 Tool magazine: 20 tools Max. tool diameter: 110 mm Max. tool diameter with adjacent positions occupied: 82 mm Max. tool length from reference line: 300 mm Max. tool weight: 7 kg Tool change time, chip-to-chip: 1.2 s Tool change time, cut-to-cut: 3.8 s MACHINE DETAILS Control model: FANUC Series 160iS-MB

Condition: used, Year of construction: 2005, machine/vehicle number: 25748, Equipped with: Bdjdpfxezn Az Ds Aphsf Central Lubrication Machine Flushing Coolant Filtering Equipment 480V, 60 Hz Electrics Headstock W/Center Tailstock W/Center Auto Loading Hydraulic System Pneumatic System Central Lubrication Coolant Filtering Equipment Specifications: Working Range of the Machine: -Centering Width: 600 - 1250 mm -Maximum Workpiece Diameter: 320 mm -Oscillation Stroke: +/-1 mm in relation to the oscillation frequency -Oscillation Frequency: 0-200 double strokes/min infinitely adjustable -Spindle Rotation Speed: 0-150 min -1 infinitely adjustable -Loading Height Above Floor: 1,050 mm Horizontal Axis Machine Column Travel: 1650 mm Headstock - Rotation: -Workpiece Rotational Speed: n2= 0-200 min-1 limited to n2=0-150 min -1 Headstock - Oscillation: -Oscillation Frequency: n2 = 800 double strokes/min -Oscillation Amplitude: =/- 1 mm Tailstock - Hydraulic Axis: -Stroke: 250 mm -Analog Transducer: Measuring length 300 mm Machine Weight: Approximate 8 Tons Approximate Space Requirements (Width x depth x height): -Machine: 3,6 x 3,3 x 3,3 meters -Switch Cabinet: 2,4 x 0,6 x 2,1 meters -Hydraulic Aggregate: 0,9 x 1,3 x 1,9 meters -Coolant Filtering Equipment: 1,3 x 1,0 x 2,0 meters Approximate Total Space Requirements: 35,5 meters

Condition: good (used), Year of construction: 1998, grinding wheel diameter: 915 mm, overall weight: 14,000 kg, GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control. Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood. Equipped with: Bosch CNC Control Bsdpjrtr D Ijfx Aphjdf Specifications: Wheel Rotation Axis: Horizontal Grinding Wheel Size (OD): 915 mm Grinding Wheel Size, Usable Width: 65 mm Grinding Wheel Size, Peripheral Speed: 30 ms Spindle Motors: 75 kw Grinding Feedrate: 0.1 - 1000 mm/min Spindle Type: Moving Quill Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4) Slide Position Accuracy: 0.001 mm Coolant Flow Rate: 600 l/min Work Capacity (Approx) Rotary: 20 -200 Dia. In.

Condition: good (used), Year of construction: 2011, LANDIS LT-2 TWIN WHEEL CNC ORBITAL CRANK GRINDER Bsdpfx Aortrxxophjdf Equipped with: Landis 6400 CNC Control Siemens TOUCH HMI Arobetech Steady Rest Marposs P7 Gage System Lateral Locator Twin CBN Grinding Wheels Rotary Dresser Headstock Tailstock Rittal AC Units Specifications: Maximum Center Distance: 680 mm

Condition: used, Year of construction: 2012, Control Siemens 840 D weight of the machine ca. 13,5 t dimensions of the machine ca. 7m x 4m x 2,75m m Accessories: Coolant tank Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Bdsdjxh Rqtjpfx Aphef Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90°

Condition: refurbished (used), Year of construction: 1989, functionality: fully functional, rotary table diameter: 1,500 mm, grinding height: 457 mm, total height: 3,124 mm, total width: 3,150 mm, total length: 4,165 mm, overall weight: 15,000 kg, grinding wheel diameter: 863 mm, grinding spindle speed: 450 rpm, power: 45 kW (61.18 HP), table diameter: 1,500 mm, LUMSDEN Model 93ML Vertical Rotary Surface Grinder. Refurbished with new bearings in table and spindle, reconditioned main motor, new rectifyer, lubrication system, new control panel. Serial Number: to be advised New 1980's originally Bdedpfx Apewugh Djhef Country of Origin: UK Segmental wheel dia 34" Segments per set 16" Table dia and grinding capacity 60" Magnetic table dia (Humphreys) 60" Max height wheel to Magnetic table 18" Minimum height of wheel to table 4.1/2" Spindle speed 450 rpm. Table speeds 16 and 5.1/2 rpm. Automatic feeds 10 rates .004-.040 ins/min. Power elevation 25 ins/min. Spindle motor 60 Hp / 960 rpm 45 kW Table motor 6/2.1/2 HP /1440/480rpm. Feed motor 1/4 Hp / 1440 rpm. Elevation motor 1 Hp / 720 rpm. Coolant pump motor 1 Hp / 1440 rpm. Overall height of machine 10'3". Floor space 13'8" x 10'4". Approx net weight 15 tons.

Condition: good (used), Year of construction: 2011, Maximum grinding diameter 290mm, maximum grinding length 800mm, grinding wheel size 290mm x 63mm bore. Bodpfx Ajtudfdsphsdf Control Fanuc 21i-TB, workhead speed 1,000rpm, spindle power 5Kw, table swivel +6/-3.5 degrees, workhead swivel angle 0-90 degrees. internal spindle motor 1.5kw. fitted with coolant.

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 11876, travel distance X-axis: 1,524 mm, travel distance Y-axis: 596 mm, travel distance Z-axis: 584 mm, quill travel distance: 127 mm, quill diameter: 105 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 40 rpm, table width: 355 mm, overall weight: 3,750 kg, table load: 850 kg, XYZ SMX 5000 CNC Bed Type Milling Machine Model: SMX 5000 S/No.: 11876 Year: 2013 Bedpeznkkasfx Aphedf Control: ProtoTrak SMX Table Size: 1930 x 355mm Travels (X,Y,Z axis): 1524 x 596 x 584 Quill Diameter: 105mm Max. Quill Travel: 127mm Spindle Taper: 40 ISO Spindle Speed Range: 40 – 5000 RPM Spindle Motor Power: 7.5 HP Max. workpiece weight: 850 kgs

Condition: used, Brand and Model: ACME GOZUA RC 2-75 Type: CENTERLESS HYDRAULIC Bedpfx Ajzq Sfkephedf CYCLES Intermitten ( with stop at the end of the cycle.) Total time for fast feed, slow grinding feed, and stop at the feed carriage setting ( adjustable by timer) 1 to 100 sec.. DIAMOND CUTTING Maximum diameter difference in copy: 8 mm Total tMaximum copy taper : 30º COOLING EQUIPMENT Pump flow rate : 45 l /min Tank capacity: 100 l Decanting compartments : 4 EXTERNAL AND MAIN DIMENSIONS Total machine length: 2.350 mm Total machine width : 1.560 mm Total machine height: 1.450 mm Height of the grinding wheel axes 1.050 mm. External dimensions of shipping packaging : 2.400x1.700x1.600 mm Shipping packaging volume: 6.53m3 WEIGHTS Net: 2.340 kg Gross with cage packaging : 2.445 kg Gross with shipping packaging: 2.485 kg

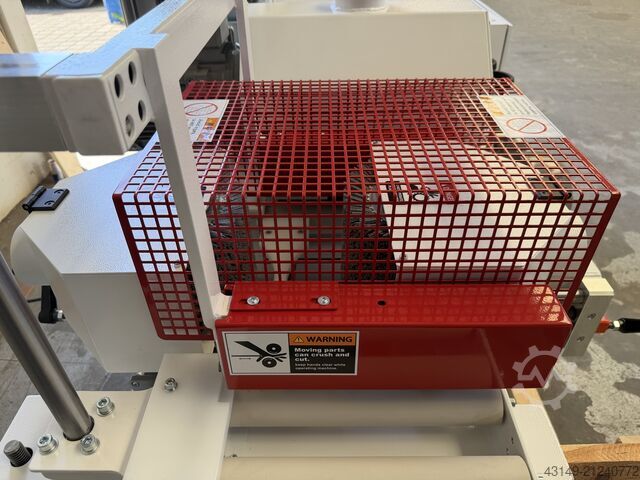

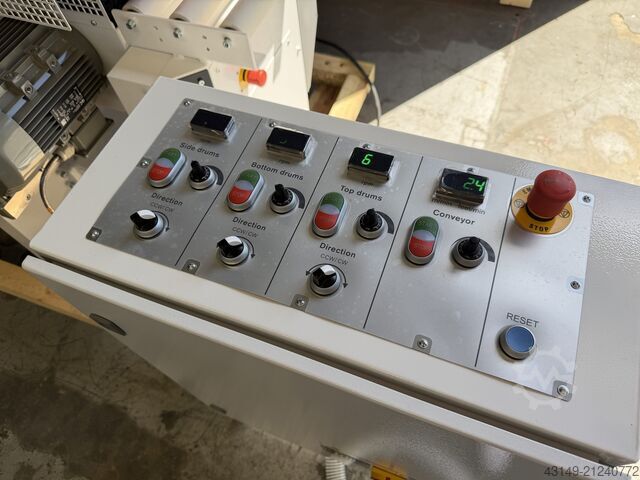

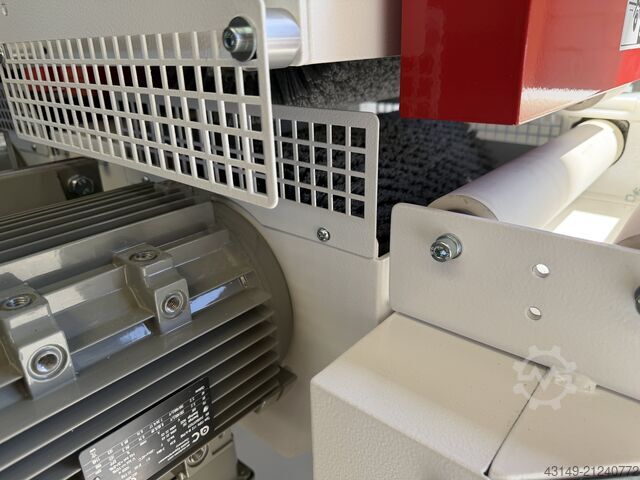

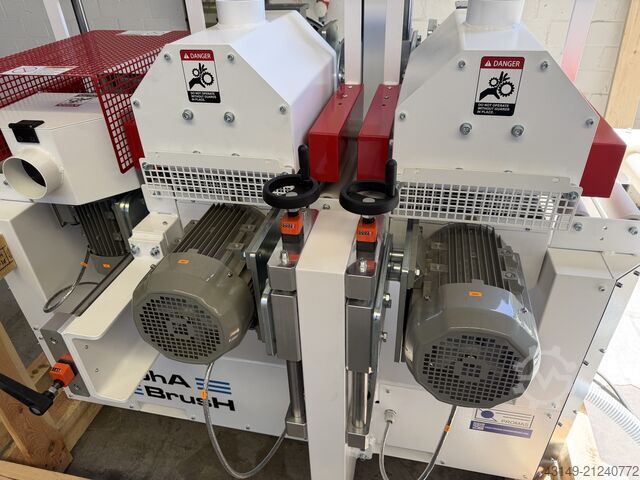

Condition: new, grinding height: 150 mm, height adjustment type: mechanical, total height: 1,450 mm, total length: 1,800 mm, total width: 1,400 mm, overall weight: 850 kg, Equipment: CE marking, Structuring and Sanding Machine / 4-Side Brushing Machine Manufacturer: Alpha Brush Model: LS-TSB Versatile brush sanding machine equipped with a total of 6 brush units for 4-sided sanding and structuring of wood materials such as panels, solid wood flooring, scaffolding boards, facade boards, etc. Working width: 300 mm Workpiece height clearance: 150 mm Equipped with: - 1x top brush unit, 2.2 kW - 1x bottom brush unit, 2.2 kW - 1x top brush unit, 2.2 kW - 1x bottom brush unit, 2.2 kW - 1x left-side brush unit, 1.1 kW Bdodsykh Tfjpfx Aphsf - 1x right-side brush unit, 1.1 kW Infinitely variable speed control for each brush group (top, bottom, sides) Brush diameter: 260 - 300 mm Quick-change system for brush heads Spring-mounted pressure roller, individually height adjustable Feed rate infinitely variable, approx. 2 - 20 m/min., 0.75 kW Digital display for settings Recommended extraction capacity: 3000-3500 m³/h Voltage: 400 - 480 V, 3 Ph, 50/60 Hz Protection: 32 A Dimensions (LxWxH): approx. 1800 x 1400 x 1450 mm Weight: approx. 850 kg

Condition: new, functionality: fully functional, power: 4 kW (5.44 HP), input voltage: 400 V, type of input current: three-phase, grinding belt speed: 33,000 mm/s, total height: 1,000 mm, total length: 940 mm, total width: 510 mm, overall weight: 120 kg, grinding width: 150 mm, warranty duration: 12 months, WBG150 - ROGI belt sander, 400V - 3-phase Sanding belt ----- 150 x 2000 mm Belt speed ----- 33 m/s Motor ----- 4 kW Weight ----- 120 kg Bjdoga T Ihopfx Aphodf INCLUDES * Sturdy base frame * Sanding belt

Condition: reconditioned (used), Year of construction: 2011, machine/vehicle number: GG110C 19624, total length: 8,355 mm, total width: 1,550 mm, total height: 2,700 mm, overall weight: 3,600 kg, input current: 32 A, input frequency: 50 Hz, type of input current: three-phase, input voltage: 400 V, working height: 800 mm, power: 27 kW (36.71 HP), pressure: 6 bar, year of last overhaul: 2026, Straight-line edging machine for heavy-duty production; equipped with 3 diamond grinding wheels, allowing for the processing of glass up to 50mm thick. Minimum glass dimensions: 40x40mm; Glass thickness: 3-50mm; Speed: 0.6-6 m/min; Bodezq Dkrjpfx Aphedf Installed power: 27 kVA; Weight: +/- 3600 kg.

Condition: used, rand: DANOBAT Model: RT 1200 Useful support surface 1200 x 450 mm Useful grinding surface (100 mm wheel) 1200 x 600 Useful grinding surface (50 mm wheel) 1200 x 550 Bdsdpozqrmzsfx Aphsf Longitudinal travel X axis 1300 mm. Transverse travel Y axis 500 mm

Condition: used, Used Matra valve grinding machine with double-cone collets as shown, 380 Volt electric motor fully functional. Please do not send email enquiries! If you have any questions, we are happy to assist you by phone. Viewing and collection only possible by prior telephone appointment! Bdedpfx Aozq R Dfophjf Subject to alterations, prior sale, and errors.

Condition: refurbished (used), Kellenberger 1500 U-175 – High-Precision Universal Cylindrical Grinding Machine Universal cylindrical grinding machine for external and internal grinding (internal grinding attachment included). - Centre distance: 1,500 mm - Centre height: 175 mm - Complete retrofit, fully dismantled and rebuilt component by component: guideways reconditioned, bearings replaced, new electrical installation and control cabinet, complete repaint, and machine geometry restored to original factory precision. - Equipped with Siemens servo motor, frequency inverter and Fagor digital readout (Fagor). - Condition comparable to a new machine, ready for immediate production. - Available with a wide range of accessories. - Inspection and live demonstration under power available. Availability: Immediate. Bdodjwqlykjpfx Aphef 1000U version: Currently undergoing refurbishment.

Condition: good (used), Year of construction: 1994, For sale OERLIKON MATTISON R.P. 5 Vertical Surface Grinding Machine with Magnetic Circular Table – Ø 1100 mm – 45 kW Bodpfxjzpzyns Aphsdf Description: For sale, a vertical surface grinding machine with a vertical spindle and rotary table, manufactured by OERLIKON MATTISON, model R.P. 5. This is a very powerful and robust machine, ideal for quickly grinding large series, as well as for grinding flat surfaces, discs, blades, large rings, or large mechanical parts. Technical specifications: Brand: OERLIKON MATTISON Model: R.P. 5 Diameter of the magnetic circular table: ~1,100 mm (measured with a meter) Spindle power / main motor power: 44 / 45 kW (60 HP) Motor speed: 750 rpm Motor: SELIN Genova (380 V / 50 Hz / 87 A) Included equipment: Large, recessed electromagnetic circular table Separate electrical cabinet (380 V) Paper filter system / coolant separator with belt conveyor Segment grinding wheel head Control panel on the front

Condition: excellent (used), Year of construction: 2015, Mikron HPM 800U HD 5 axis Vertical Machining Centre, with 7 pallet changer (2015) Traverses XYZ: 800 x 800 x 550mm, 500 x 500mm table, A axis -91 / + 121 degrees, C axis, 360 degrees, Heidenhain TNC530, Spindle Speed 20,000rpm, 36kW Spindle Motor, HSK A63 Spindle Taper, 165 tools, swarf conveyor, through spindle coolant, Bdedpfozm Ticex Aphjf

Condition: excellent (used), Year of construction: 2006, 5-axis vertical machining center Brand: IBARMIA Type: ZVH45/L2200 Year: 2006 CNC: SIEMENS 840 D Specifications: Table surface: 2,600 x 800 mm X-axis travel: 2,200 mm Y-axis travel: 800 mm Z-axis travel: 860 mm C-axis: 360,000 positions Bdedpfx Apszq Ea Iohsf A-axis: +/- 105° (0.001°) Spindle speed: 15,000 rpm (HSK 63) Spindle power: 25 kW Equipped with: 30-position tool changer Chip conveyor Electronic handwheel SIEMENS SPIRSIN H/V rotary table, dia. 800 mm Through-spindle coolant

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 81019 01, grinding depth: 500 mm, grinding diameter: 800 mm, grinding spindle speed: 250 rpm, workpiece diameter (max.): 800 mm, pivoting range: 15 °, Machine in special design with increased grinding diameter and extended, hydraulic cross travel! Reconstructed and modernized in 1995 at the manufacturer's plant in Glauchau and commissioned in 1996. TECHNICAL DETAILS Working area and grinding diameter Internal grinding diameter: 30–630 mm Extended internal grinding diameter max.: 800 mm External grinding diameter max.: 800 mm Workpiece diameter max.: 800 mm Grinding area and table movement Grinding depth: approx. 500 mm Table stroke: 800 mm Grinding diameter with workpiece protection max.: 800 mm Grinding diameter without workpiece protection: approx. 850 mm Distances and adjustments Distance workpiece spindle head – grinding spindle carrier: max. 1,225 mm Adjustment of the internal grinding attachment on the table: max. 545 mm Cross travel of the workpiece spindle stock: max. 650 mm Swiveling of the workpiece spindle stock: max. 15° Workpiece spindle Workpiece spindle speeds: 16 / 22 / 32 / 45 / 63 / 90 / 125 / 180 / 250 rpm Bdsdpfx Aozqcvtsphsf Workpiece weight: max. 1,000 kg Spindle head: DIN 55021, size 11 MACHINE DETAILS Control and position display Control type: conventional Cross travel: via geared motor and positioning device Digital position display: HEIDENHAIN, 2 axes Coolant system Coolant system: with magnetic separator Machine weight: approx. 6.4 t EQUIPMENT Coolant system with magnetic separator Fixing devices or machine feet Various grinding wheels Diamond dressing tool Large grinding plate Internal and surface grinding attachment Halogen machine lamp Machine documentation

Condition: like new (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 163190, grinding length: 600 mm, grinding width: 300 mm, workpiece weight (max.): 270 kg, grinding wheel diameter: 350 mm, distance table to spindle center: 565 mm, Like-new horizontal surface grinding machine with few operating hours! TECHNICAL DETAILS Grinding area Grinding length: 600 mm Grinding width: 300 mm Bdsdszqcvgepfx Aphef Work table and workpiece load Table dimensions: 300 mm × 630 mm Maximum workpiece weight: 270 kg Distance spindle axis – table surface: 565 mm Travel distances and feeds Travel distance X-axis: 765 mm Travel distance Y-axis: 340 mm Scale ring graduation Y-axis: 0.02 mm Scale ring graduation Z-axis: 0.005 mm Automatic transverse feed Z-axis: 0.1–8 mm Feeds and rapid traverses Hydraulic feed X-axis: 7–23 m/min Rapid traverse Y-axis: 990 mm/min Rapid traverse Z-axis: 460 mm/min Grinding wheel Grinding wheel dimensions: 350 mm × 40 mm × 127 mm MACHINE DETAILS Control type: Conventional 2-axis position indicator: KNUTH Xpos 3.1 Motor power grinding spindle: 5.5 kW Total power requirement: 7 kW Dimensions & Weight Machine dimensions: 2,800 mm × 2,200 mm × 1,890 mm Machine weight: approx. 2.7 t EQUIPMENT 2-axis position indicator KNUTH Xpos 3.1 Grinding wheel Grinding wheel flange Balancing arbour Balancing stand Halogen work light Magnetic chuck 600 mm × 300 mm Adjustment screws Operating tool Automatic transverse and longitudinal feed Hydraulic table longitudinal movement Double V-guides for the longitudinal movement Combined V- and flat guides for the transverse movement Hardened and ground table guide rails with PTFE counter coating Grinding spindle with maintenance-free, preloaded precision angular ball bearings External hydraulic unit Automatic central lubrication

Year of construction: 2022, condition: ready for operation (used), A universal precision drilling and milling machine by Optimum is available. Speed: 1750rpm, spindle sleeve travel: 120mm, milling head swivel: +/-45°, vertical reach range: 24mm-650mm, horizontal reach range: 0mm-185mm, spindle-to-cross table distance: 60mm-390mm, drilling capacity in steel: 30mm, max. face mill diameter: 100mm, max. end mill diameter: 25mm, cross table dimensions X/Y: 1000mm/240mm, max. table load: 160kg, travel X/Y/Z: 580mm/200mm/340mm, X-axis feed: 720mm/min, machine dimensions X/Y/Z: approx. 1300mm/1100mm/2200mm, weight: approx. 900kg. Documentation available. An on-site inspection is possible. Bedpfezq Ecvsx Aphjdf

Condition: excellent (used), Year of construction: 2008, travel distance X-axis: 3,000 mm, travel distance Y-axis: 825 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 48,000 m/min, rapid traverse Y-axis: 80,000 m/min, rapid traverse Z-axis: 48,000 m/min, table width: 835 mm, table length: 3,500 mm, table load: 3,500 kg, 1 Axis CNC Swivel head, infinitely variable Axis drive with ball screw drive Bjdpfx Ajwyv Nzjphsdf Roller linear guides in all axes Direct path measuring systems Full work area encosure with roof Chip conveyor Coolant unit X - Travel: 3000mm Y - Travel: 825mm Z - Travel: 1100mm B - Axis: - 3 to + 105° Table Length: 3500mm Table Width: 835mm Table load: 3500 Feed rate X-Axis: 48000mm/min. Feed rate Y-Axis: 80000mm/min. Feed rate Z-Axis: 48000mm/min. Spindle Taper: HSK 100ISO/Bt/Mk Power on spindle: 37kW Speeds / ranges: 8000Rpm ATC / revolver: 40 Coolant through spindle / Bar:25 Number of controlled axis: 4 Chip conveyor: Yes Coolantsystem: Yes Length: 8000mm Width: 3800mm Height: 3800mm

Condition: new, Year of construction: 2026, width of the strips 50.0 mm band length 940 mm band speed 3.0 - 22 m/min Bjdpfxoxaaxqo Aphodf turning speeds 1450 U/min tube diameter 16.0 - 114 mm radius 180 ° total power requirement 4.75 kW weight of the machine ca. 265 kg range L-W-H 1000 x 750 x 1300 mm Furnishing: - stationary pipe belt grinders - Automatic material feed with separate drive motor - Replacement sanding belts - Stepless speed adjustment - Manual adjustment of tube tension - Polish bent pipes up to 180" (angle). - Manual work possible without feed - CE mark / declaration of conformity
