Used Chiron Fz 22 L High Speed for sale (88,808)

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450/270/310 [mm] - Rapid traverses rates (X/Y/Z) : 75 [m/min] Hodpouhbr Tjfx Amgsn B ROTARY AXIS - Travel : -20/+90 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 40 TURNING SPINDLE - Spindle speeds : 8000 [rpm] - Max. bar diameter : 32 [mm] - C axis indexing precision : 0.001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X2600 [mm] - Machine height : 2300 [mm] - Machine weight : 2850 [kg] MACHINE HOURS EQUIPMENT - CNC : Siemens 840 D - 3 colors status lamp

Condition: used, Year of construction: 2004, cutting height (max.): 125 mm, cutting width (max.): 4,300 mm, cutting length (max.): 2,200 mm, table length: 2,500 mm, table width: 1,000 mm, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Maximum plate width: 4,300 mm Maximum plate length: 2,200 mm Maximum saw blade overhang: 125 mm Hedpfxjy Ur Dqo Amgsn Number of grippers: 10 Number of work tables: 4 MACHINE DETAILS Programming software: CADMATIC 4 Control system: WINDOWS XP EQUIPMENT Swiveling unit Lift table Roller feed table Lift table (manufacturer: LAWECO, dimensions: 1,000 x 2,500 mm) Barcode label printer (model: ZEBRA ZT231) Scoring unit The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at its destination. External reference: 8524

Condition: ready for operation (used), Year of construction: 1979, Immediately available ex-location: Hydraulic high-speed press Lauffer Type EPT 25 Year of manufacture: 1979 Inspected according to UVV Press force 25 t Stroke 160 mm Installation height 320 mm Throat depth 230 mm Hsdpfxezap Tle Amgon Table 500 x 360 mm Ram 250 x 210 mm Weight 2 t Drive power 7.5 kW Price: EUR 2,750 plus VAT, ex-location.

Condition: like new (used), Year of construction: 2018, operating hours: 214 h, load capacity: 2,000 kg, lifting height: 4,000 mm, fuel type: electric, mast type: triplex, construction height: 1,920 mm, Manufacturer + model: LINDE L 20 as (1173) * EX * Proplan 2GD / Zone 1-21-22 * Mast: 3F4000 ID: 26065.0442 Category: Demo Lowered height: 1920 mm Lifting height: 4000 mm Capacity: 2000 kg Year: 2018 Operating hours: 214 hours Battery: Completely NEW * 24v / 315ah * Year: 2025 Options: * EX * Proplan !!!!! System / Certificate = EPS 16 ATEX 1137 X Gas Group = IIB Type = Cat 2G (approved for ZONE 1 and 2) Temperature class = T4 ===== Dust Group = IIIC Type = Cat 2D (approved for ZONE 21 and 22) Temperature class = T 120°C Hedpfxezaf I Eo Amgon ===== Very UNIQUE explosion-protected ATEX “DEMO” WIDE TRACK - with FREELY ADJUSTABLE fork arms - also fitted with ADJUSTABLE support legs POWER STEERING Complete LIKE NEW!!

Condition: like new (used), Year of construction: 2018, operating hours: 6,472 h, load capacity: 2,000 kg, lifting height: 4,650 mm, fuel type: electric, mast type: triplex, construction height: 2,130 mm, Manufacturer + model: LINDE E 20 L - 386 / 02 evo * EX * Proplan 2GD / Zone 1-21-22 *Mast: 3F4650 ID: 26057.5931 Category: Used Mast: 3F4650 Lowered height: 2130 mm Lifting height: 4650 mm Capacity: 2000 kg Year: 2018 Operating hours: 6472 hours Battery: Completely NEW * 48v / 625ah * Manufactured 02/2026 Options: * EX * Proplan !!!!! System / Certificate = INERIS 08 ATEX 3022 X Type = Cat 2G (approved for ZONE 1) Gas group = IIB Temperature class = T4 Type = Cat 2D (approved for ZONE 21 - Dust) Hedpezaf Irefx Amgsn Dust group = IIIB Temperature class = T 135°C - IP 6X Equipped with CONTAINER specs!! - Joystick control forward/reverse - Triplex FFL mast - Front working light - Flash beacon - Blue spot safety light

Condition: like new (used), Year of construction: 2020, operating hours: 1,312 h, load capacity: 2,500 kg, lifting height: 4,760 mm, fuel type: electric, mast type: triplex, construction height: 2,160 mm, Manufacturer + model: LINDE E 25 L - 387 / 01 * EX * Miretti 3GD / Zone 2 & 22 Mast: 3F4760 ID: 25061.4742 Category: Used Mast: 3F4760 Lowered height: 2160 mm Lifting height: 4760 mm Capacity: 2500 kg Year: 2020 Hours: 1312 hours Capacity: 80 V / 625 Ah Options: CONTAINER specs!! * EX * MIRETTI!!!!! System = Miretti ATEX - 00101 Ref = E11138 Type = Cat 3G (approved for ZONE 2) Gas group = IIB Temp. class = T3 Gc Type = Cat 3D (approved for ZONE 22 - Dust) Gas group = IIIB Temp. class = T200°C Dc Equipped with: - FULL cabin - Complete street lighting - Joystick control forward/reverse - Spreader / S.s. - Sunshade for windscreen & roof - LED spotlight - Triplex FFL mast - Flashing beacon - Completely new tires all around (with ATEX specs) Hsdpfx Amezafxksgon LIKE NEW condition!!!!

Condition: ready for operation (used), functionality: fully functional, spindle speed (max.): 30,000 rpm, controller model: Siemens Simo Drive 611, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Spindle speed: 30,000 rpm Hsdpjzaquqsfx Amgon MACHINE DETAILS Control system: Siemens Simo Drive 611 EQUIPMENT Working spindle Spindle completely overhauled (02/2020) with measurement report Power unit with remote control Spraying device External reference: 763

Condition: good (used), Gas metal arc welding machine, arc welding system, MIG/MAG welding system, pulse welding system -Manufacturer: EWM, PULS MIG/MAG welding machine Hedpfsy Ulu Nex Amgon -Type: LUD320W -Max. welding power: 500 A -Features: Water-cooled -Wire feeder case: HIGH-SPEED integral 4X4S 4-roller drive -Dimensions: 1370/820/H1500 mm -Weight: 242 kg

Condition: used, Year of construction: 2021, machine/vehicle number: A2536805, pressing force: 40 t, pressure:40 t stroke:250 mm return capacity:6,3 t motor:5,5 kw Max Working height:450 mm :90 mm/sec. Hodpsfxyhfefx Amgsn :10 mm/sec. spindle stroke:250 mm pestle plate:500 x 200 mm table plate:600 x 650 mit T-Nuten mm Table cut-out:200 x 170 mm table height:850 mm :200 l

Condition: used, functionality: fully functional, machine/vehicle number: 33524, mileage: 106,900 km, power: 265 kW (360.30 HP), first registration: 06/2020, fuel type: diesel, overall weight: 26,000 kg, axle configuration: 6x2, wheelbase: 4,000 mm, fuel: diesel, color: white, driver cabin: day cab, gearing type: semi-automatic, emission class: euro6, suspension: steel-air, loading space volume: 21.8 m³, Equipment: ABS, AdBlue, EBS, air conditioning, airbag, central locking, cruise control, differential lock, electronic stability program (ESP), power assisted steering, power mirror, seat heater, tachograph, traction control, truck registration, The mileage of the vehicles offered may vary, as some vehicles are currently in rental use! Further comparable vehicles are available upon request. Hsdpfey U Erbjx Amgjn 6-cylinder engine OM470, ABS, ASR, ESP, disc brakes, air-sprung rear axle, differential lock, level adjustment, steered trailing axle, daytime running lights, reversing warning sound, fuel tank 290 liters + 60 liters AdBlue Driver comfort seat, emergency braking assist, lane keeping assist, electric windows, camera rearview mirror, front mirror, sun visor, monitor, air conditioning, roof hatch, tinted windows, monitor, radio, hill-start assist, cruise control, speed limiter, central locking, parking brake, attention assist, stability control, and turning assist Work lights, rear area monitoring, stepboard locking, stepboard monitoring, bio-drain, all-round lights, central lubrication system, Zöller Delta-Premium 2301 bulk spreader

Condition: used, Year of construction: 1985, Technical details: Punching capacity: 40 kN air pressure - required: 8 bar ram stroke - adjustable min/max: 6 - 50 mm ram adjustment: 50 mm no. of strokes: 70 - 400 Hub/min Table dimensions: LxB: 480 x 445 mm hole in table: LxB: 250 x 112 mm slowing-down time: 80 ms bei 450 U/min. clamping surface ram: LxB: 420 x 345 mm ram hole: Ø 40 x 230 mm voltage: 380 V control voltage: 220 V frequency: 50 Hz total power requirement: ca. 19 kVA (ca. 7,5 KW) weight of switch cabinet: 0,3 t machine weight ab.: 4000 kg 40t punching press without roll feed/conveyor belt system Operation via control panel / two-hand operation Operation: manual / automatic Hodpfx Ameu Icwgegjn *

Year of construction: 2022, condition: ready for operation (used), There is a Baumann Perfecta 115 high-speed cutter with Baumann Perfecta BSB 3L jogger, Schneider SENATOR unloader and Schneider SENATOR pile hoist available. 1) Baumann Perfecta 115 high-speed cutter, working height: 900mm, cutting width: 1150mm, insertion depth: 1150mm, max. layer height: 165mm, residual cut: 20mm, residual cut without cover plate: 77mm, weight: 3.2t, year of manufacture: 2022, 2) Baumann Perfecta BSB 3L jogger, load capacity: 1500N, connected load: 2.5kVA, year of manufacture: 2022, 3) Schneider SENATOR unloader, load capacity: 1t, lifting height: 900mm, year of manufacture: 1990, 4) Schneider SENATOR pile hoist, year of manufacture: 2022. An on-site inspection is possible. Hodpfey Tx R Isx Amgsn

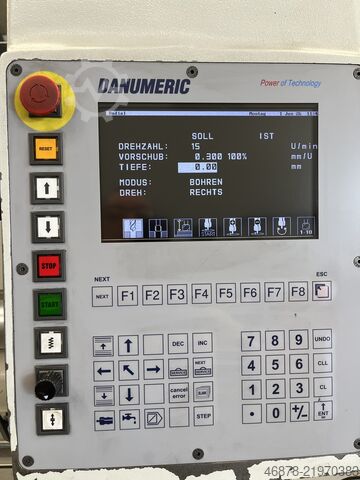

Condition: good (used), Year of construction: 1998, functionality: fully functional, DONAU DANUMERIC 440, year of manufacture 1998 Technical specifications: - Table 1800 x 600 mm, 4 T-slots Hedpey Txlrofx Amgsn - Drilling radius 540 – 1590 mm - Spindle taper SK40 - Speed range 15 – 2800 rpm - Motor power 5.5 kW - Weight approx. 2,800 kg

Condition: good (used), KLOPP H1000 - Planing Machine - Max. planing length: 1000 mm - Planing width: 750 mm - Automatic feed - Worktable extension Dimensions: LxWxH 3.4 x 1.5 x 1.7 meters / Weight approx. 3800 kg Subject to errors and omissions. Hsdpsxzd Ryefx Amgsn

Condition: good (used), functionality: fully functional, quill stroke: 190 mm, spindle speed (min.): 41 rpm, spindle speed (max.): 1,800 rpm, overall weight: 1,920 kg, workpiece weight (max.): 17 kg, sheet thickness steel (max.): 32 mm, torque: 250 Nm, table height: 900 mm, branded DONAU high speed radial drilling machine type DR 32 - completely overhauled by vaumatec in 2022 - with SPECIAL TABLE PLATE (clamping surface 1400 x 1000 mm with coolant channel and drain as well as 4 adjustable feet to relieve the table frame) Technical data: Drilling capacity into solid material: St 60/E335 mm Ø 32 (at feed rate 0.20 mm/rev): GG 22 mm Ø 45 Thread cutting: St 60/E355 M26 Thread cutting: GG22 M35 Tool holder: MK4 Column diameter: mm Ø 195 Distance between spindle nose and table: min./max. mm 260/660 Work table height: mm 900 Quill stroke: mm 190 Column stroke: mm 400 Spindle speeds Speed series I : rpm. 41-1800 Feed rates: mm/rev 0.1-0; 15-0; 20-0.3 Torque at the spindle: max. Nm 250 Smooth running of the boom: Radial N 25 Smoothness of the arm: Axial N 25 Clamping effect: Radial Nm 3500 Clamping effect: Axial N 5500 Feed force: N 7500 Max. permissible mass: kg 17 Max. permissible moment of inertia: kgm 0.002176 Workpiece: Hodsrn Riqspfx Amgen max. table load: kg 1000 Center of gravity: in the middle of the work surface

Condition: refurbished (used), Year of construction: 1996, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Dimensions and travel paths Tool holder SK 40 Table dimensions mm 4000 x 800 Number of T-slots 6 Distance between T-slots mm 140 Distance between spindle bottom edge min. mm 140 Table top edge max. mm 740 Drilling radius min mm 540 max. mm 1590 U-axis travel path mm 2600 Y-axis travel path mm 1050 Quill stroke (Z-axis) mm 200 Column stroke (W-axis) mm 400 Cutting values Drilling capacity into solid material St 60 mm 40 GG 22 mm 50 Thread cutting St 60 M 36 GG 22 M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100% duty cycle. Speed range: min -1 15 - 2800 Torque Nm max. 250 constant from min -1 15 - 200 Feed drives X-axis - AC servo motor kW 0.25 Y-axis - AC servo motor kW 0.25 Z-axis - AC servo motor kW 4.50 W-axis - AC servo motor kW 2.50 U-axis - AC servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min. 7.5 / 7.5 / 5 Rapid traverse speeds (U/W): m/min. 7.5 / 3 Feed rates infinitely variable mm/min. 5 - 2000 Feed force N 12000 Accuracy Positioning accuracy X, Y axis up to 1200 mm mm ± 0.075 Repeatability X, Y axis mm ± 0.03 Positioning accuracy Z axis mm ± 0.05 Repeatability Z axis mm ± 0.03 Positioning accuracy W axis mm ± 0.05 Repeatability W axis mm ± 0.03 Electrical data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Total connected load kVA 13.0 CNC control Axes: 5 (X, Y, Z, W, U), expandable Screen: TFT flat screen backlit, easy to read from all sides Position information: Cartesian or polar, dimensions absolute or incremental, Unit of measurement: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: tool management, tool suggestions according to machining type, cutting data suggestions depending on material Tool management: max. 500 tools Sub-program technology: yes Machining cycles: cycles for centering, drilling, thread cutting, reaming, countersinking and boring, freely programmable cycle for special tools, dwell time possible for each cycle Chip breaking / chip removal: possible for drilling cycle Drilling patterns: row of holes, circle of holes, matrix Basic software: programming in dialog, 38 zero point shifts, turning and mirroring, teach-in for X, Y, Z, restart in the program with optional functions for targeted entry Zero point determination: cycles for determining zero points by manually touching the workpiece for: - any clamped right-angled parts - any clamped round parts - mediation of cast and burnt parts - Angular position detection for round parts by touching - reference edges or surfaces Data interfaces USB interface Hjdpfxjv If T To Amgjn Painting (new painting) Standard painting, two-component textured paint Machine upper part light gray RAL 7035 Machine lower part signal blue RAL 5005 Documentation Operating and programming instructions Electronics circuit diagram Spare parts drawings Test report for mechanics, electrics and safety equipment

Condition: used, Year of construction: 2000, functionality: fully functional, feed length X-axis: 4,000 mm, feed length Y-axis: 1,050 mm, feed length Z-axis: 200 mm, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Dimensions and Travel Ranges Tool holder: SK 40 Table dimensions: mm 4000 x 800 Number of T-slots: 6 T-slot spacing: mm 140 Distance: - Spindle bottom edge: min. mm 140 - Table top edge: max. mm 740 Boring radius: - min. mm 540 - max. mm 1590 Travel range U-axis: mm 2600 Travel range Y-axis: mm 1050 Quill stroke (Z-axis): mm 200 Column stroke (W-axis): mm 400 Machining Data Drilling performance in solid material: - St 60: mm 40 - GG 22: mm 50 Thread cutting: - St 60: M 36 - GG 22: M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100% duty cycle Speed range: min-1 15 - 2800 Torque: Nm max. 250 Constant from: min-1 15 - 200 Feed drives X-axis - AC servo motor kW 0.25 Y-axis - AC servo motor kW 0.25 Z-axis - AC servo motor kW 4.50 W-axis - AC servo motor kW 2.50 U-axis - AC servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min 7.5 / 7.5 / 5 Rapid traverse speeds (U/W): m/min 7.5 / 3 Feed rates, infinitely variable: mm/min 5 - 2000 Feed force: N 12000 Accuracy Positional accuracy X, Y axis at 1200 mm: mm ± 0.075 Repeatability X, Y axis: mm ± 0.03 Positional accuracy Z axis: mm ± 0.05 Repeatability Z axis: mm ± 0.03 Positional accuracy W axis: mm ± 0.05 Repeatability W axis: mm ± 0.03 Electrical data Operating voltage / frequency: V / Hz 400 / 50 Control voltage: V 24 Total connected load: kVA 13.0 CNC control Axes: 5 (X, Y, Z, W, U), expandable Screen: TFT flat screen, backlit, easily readable from all sides Position data: Cartesian or polar, dimensions absolute or incremental, Unit of measurement: mm or inch, or in degrees Interpolation: 2 axes (X, Y) Technology database: Tool management, tool suggestions according to machining process, material-dependent cutting data suggestions Tool management: max. 500 tools Subprogram technology: yes Machining cycles: Cycles for centering, drilling, threading, reaming, countersinking and boring, freely programmable cycle for special tools, dwell time possible in each cycle Chip breaking / chip removal: possible in drilling cycle Drilling patterns: Hole pattern, hole circle, matrix Basic software: Programming in dialog mode, 38 zero-point offsets, rotation and mirroring, teach-in for X, Y, Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for: - any clamped rectangular parts - any clamped round parts - aligning cast and sintered parts - Angle detection for round parts by probing the reference edges or surfaces Data interfaces Paint finish with signs of use Standard paint finish, two-component textured paint Machine upper part: light grey RAL 7035 Machine lower part: light blue RAL 5012 Documentation Operating and programming manual Electrical wiring diagram Spare parts drawings Hjdpfx Amoy Ttrtsgjn Test report for mechanics, electrical system and safety devices

Condition: good (used), Machine type: Donau radial drilling machine DR 32 Year of manufacture: unknown MK 4 spindle taper Spindle speed: 41 – 1800 rpm Threading device Hsdpfey Tpq Ejx Amgjn Coolant pump Weight: approx. 2500 kg Drilling capacity in steel: 32 mm Table size: approx. 1200 x 600 mm

Condition: used, Year of construction: 1990, operating hours: 83,000 h, functionality: fully functional, Complete precision stamping line ready for relocation. Centre piece is a BRUDERER BSTA 50HL (500 kN, year 1990, Kom. 9443) equipped with control and Unidor tool and press safety monitoring system. The line includes a sound-insulating safety cabin, finished-parts output conveyor, Soprem H1000/1000ZV/10M/LK.LF/N1/G coiling machine (2003), and Soprem BR19/160/12/U Straightening machine (2003). Available as a complete turnkey lot. Hodpfx Amsy S E U Regon Technical Specifications Press Manufacturer BRUDERER AG, Frasnacht, Switzerland Machine Model: BSTA 50 HL Serial / Commission No.: Kom. 9443 Year of Manufacture: 1990 Operating Hours: 82,600.0 h (as shown on press control) Total Weight approx.: 8,700 kg Sound Enclosure / Cabin Included: W 3,460 × L 2,331 × H 3,910 mm Stroke range (adjustable): 16 / 19 / 25 / 32 / 38 / 44 / 51 mm Ram adjustment range: 64 mm Tool opening width (max.): 950 mm Bolster plate — Width × Depth: 930 × 650 mm Baseplate opening W × D: 900 × 200 mm Strip feed height (adjustable): 60 – 140 mm Max. strip pass-through width: 250 mm Feeding device: BBV 195 - 85 Feeding angle: 90 degrees Max. Strip thickness: 4 mm Max. Strip width: 160 mm Feed length: 0 – 85 mm Supply voltage: 3 × 400 V / 50 Hz Main motor power: 28 kW Control voltage (DC): 24 V DC Pneumatic supply: 6 – 10 bar (R ½" connection) Press width (with feeder) approx. 2,471 mm Press depth approx. 1,302 mm Press height approx. 3,165 mm Including Soprem H1000/1000ZV/10M/LK.LF/N1/G coiling machine (2003) Including Soprem BR19/160/12/U Straightening machine (2003) Includign Unidor press and Tool Safety System Finished-parts output conveyor belt Sound-insulating safety cabin / enclosure Original technical documentation and schematics

Condition: used, Year of construction: 2003, Fully functional ready to use. Please check out our other listing as well Hedpfowt R Dmsx Amgen

Condition: ready for operation (used), Lang CNC L-Step 22/2 MFP stepper motor controller, SN: V / 200 - 240 V / 50 - 60 Hz, used, in good condition, 100% functional, scope of delivery as per photos. Hjdpfx Amey Sdvasgjn

Condition: like new (used), Year of construction: 2023, operating hours: 200 h, functionality: fully functional, machine/vehicle number: 2022LW160, High-speed roll forming line, equipped with tooling for the production of GELAN and SCHUCO metal profiles used in PVC window frame manufacturing. Machine achieves speeds up to 55 m/min with 6 m profile length production. Maximum processable material thickness is 2.5 mm. Upper and lower shaft diameter is 60 mm, the width between the stands is 360 mm, and each station is driven by an individual gearbox with two cardan shafts. Both upper and lower shafts are driven at each station. The line features 15 forming stands plus two straightening stands (Turkish heads). All forming rollers have a surface hardness of 62 HRC. Additionally, all auxiliary rollers and shafts in contact with the material are induction-hardened to 58–62 HRC (including run-out table rollers and horizontal accumulator rollers). A flying cut servo positioning system (DELTA 7.5 kW servo motor, ball screw, and linear guides) facilitates precise length adjustments via HMI. Hydraulic cutting system included. The run-out table features an automatic profile kickout, conveying, and separation system for continuous production without stopping. The horizontal entry accumulator for strip material ensures uninterrupted production, equipped with pinch rollers and individual drives. Double-sided hydraulic decoiler included. Hsdpoyw Rzaefx Amgen The line is equipped with a continuous ink-jet marking system from KONING (Germany). The automatic stacking system is not installed (see photos). The machine features recirculating cooling and lubrication across all 15 stations. Electronics: SIEMENS (PLC, contactors), SCHNEIDER (contactors), DELTA (Taiwan drives and servo). Main electric motors by Siemens. Bearings by SKF. The mechanical frame is stress-relieved and milled for precision. The machine has only been used for test production, having processed just 250,000 m of material (machine is nearly new). It is installed and connected to power; test runs can be arranged on-site. The listed price refers to the machine disassembled and loaded onto a truck. Included is comprehensive documentation with detailed tooling setup instructions for each profile (including detailed assembly drawings of rollers). Model: LW160 Supply voltage: 380 V Installed power: 73.5 kW (consumes only 40% of power when processing 2 mm strip) Frequency: 50 Hz Weight: 16,500 kg Current: 160 A Serial number: 2022LW160 Year of production: 2022 Year of on-site assembly: 2023

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, actuation type: electric, overall weight: 10,000 kg, input voltage: 380 V, input frequency: 50 Hz, feed length X-axis: 120 mm, feed length Y-axis: 200 mm, feed length Z-axis: 170 mm, GB-A1500 Fully automatic high-speed bending center Bending length (mm): 1500 Bending height (mm): 4side160 4side170/2side350 4side350 Minimum molding size: (Fold 4 sides) (mm) 4 sides 160: 350*250 4 sides 170/2 sides 350: 350*250 4 sides 350: 350*250 Maximum bending size (mm) 1500*1500 X-axis travel: 120 Y axis travel: 4 sides 160: 200 4 sides 170/2 sides 350 305 4 sides 350: 305 Z-axis travel: 4 sides 160: 170 4 sides 170/2 sides 350: 357 4 sides 350: 357 Pressing knife height: 4 sides 160: 177 4 sides 170/2 sides 350: 177 4 sides 350: 357 Number of axes: suction cup: 11 Pressure arm: 14 Machine power (KW) suction cup: 34.7 Pressure arm: 36.35 Maximum bending thickness of aluminum plate (mm): 3 Maximum bending thickness of iron plate (mm): 2 Maximum bending thickness of stainless steel (mm): 1.5 Hsdpsv Ikvgjfx Amgon Maximum bending speed (s/knife) : 0.2 Overall dimensions (mm) long (front) 4 sides 160: 1890 2-4 sides 350 suction cups: 1890 2-4 sides 350 pressure arm: 1890 Width (side) 4 sides 160： 3300 2-4 sides 350 suction cups：3536 2-4 sides 350 pressure arm: 4127 4 sides 160: 2666 2-4 sides 350 suction cups: 2946 2-4 sides 350 pressure arm: 2946 Weight (approx. kg) 4 sides: 160 2-4 sides 350 suction cups: 10000 2-4 sides 350 pressure arm: 10000 1) Machine frame is heaviest welded con struction,stess released by annealing process,this has minimized deflection of the frame. 2) Y Axis full closed loop control 3) Proportional hydraulic compensation system to prevent deformation 4) German HEIDENHAIN linear encoder 5) Taiwan HIWIN ball screw and linear guide rail ,high performance AC Japanese Yaskawa AC servo motors and drives 6) Rich functions CYBELEC/DELEM professional control system 7) Electro-hydraulic servo synchronization module and Greman BOSCH pressure module 8) +/-0.01mm repeat accuracies 9) +/-0.01mm parallelism accuracies

Condition: excellent (used), Year of construction: 2005, Ref: 11098 . 2005 Muller Martini ‘Corona CC-12’ EVA / PUR High Speed Perfect Binder. Excellent condition! Only 36,800 hours worked! Comprising: 36 x 3695/24” top loading feeders with sequential stop/start + handfeed station ‘ASAC’ copy control system with 3714 downstream shut-off element Jogging unit 3643 and Spiral Raceway element 3641 M.M. automatic motorised make-ready with “Commander” Control System. Programmable with data retrieval, menu-guided set-up and on-the-run adjustment Book transfer section with 25 kW drive motor M.M. ‘Corona CC12-23’ with 22 x 23” Combi-clamps Spine preparation units with cutting/milling/sanding/brushing Interchangeable spine gluing units, comprising; ICS30 EVA hot-melt side glue pre-melt tank 30 ltr. Hsdpey Ib S Rofx Amgen ICS80 EVA hot-melt spine glue pre-melt tank 80 ltr. PUR pre-melt unit PUR spine glue unit EVA hot-melt spine glue unit EVA hot-melt side glue unit Stream cover feeder with nipping Lay-down delivery unit to: Flat conveyor system (details on request) to: NO TRIMMER (trimmer can be found and added) Specification: 3695/24" Gatherer - sig. sizes, Max: 500 x 320 mm Min: 140 x 100 mm CC12/24” Binder book sizes, Max: 510 x 305 mm Min: 140 x 100 mm Book thickness : 3 -- 60 mm Clamp opening, Max: 80 mm Open cover width : 203 - 642 mm Mechanical speed, Max: 12,000 cycles/hr.

Condition: excellent (used), Year of construction: 2011, operating hours: 5,303 h, functionality: fully functional, machine/vehicle number: 5847, travel distance X-axis: 600 mm, travel distance Y-axis: 580 mm, travel distance Z-axis: 360 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 42,000 rpm, spindle speed (min.): 5 rpm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, table width: 550 mm, table length: 450 mm, type of input current: three-phase, table load: 350 kg, overall weight: 5,500 kg, workpiece weight (max.): 350 kg, input frequency: 50 Hz, controller manufacturer: Heidenhain, controller model: TNCi530i, operating hours of spindle: 5,303 h, Equipment: documentation/manual, rotational speed infinitely variable, High-Speed Milling Machine HSC500/3 HSC500 - 3 Axis Annual maintenance Spindle operating hours HVC140: 5303h Travel range X/Y/Z: 700/590x580x360 mm Actual machining area: 580x530 mm Hodpfxsy R U Azs Amgon Table area: 550x450 mm Workpiece weight: 350 kg Distance table to spindle nose: 160/520 mm Machine dimensions (W x D x H): 3200x2250x3000 mm Rapid traverse: 30 m/min Equipment: Heidenhain iTNC530i control Prepared for dust extraction Tool changer with 60 stations, HSK40 (Minimum quantity lubrication) Adjustable air nozzle Tool length measurement with Blum laser Workpiece measurement with Renishaw OMP-400 touch probe Additional lighting Electronic handwheel with enabling switch Milling spindle: Steptec HVC140-15/42 42,000 rpm, 5303 operating hours MMS Lubtools 3 kW cooling system Loading door at rear of machine Length compensation, temperature compensation for accuracy package Warranty: 3 months (milling spindle excluded) Transport, commissioning, training Options on request
