Used Escuadras Para Fresadoras Milling Brackets for sale (11,105)

Condition: used, Year of construction: 2008, machine/vehicle number: 220028, CNC control: HEIDENHAIN iTNC 530, travel ranges: X-axis 4300 mm, Y-axis 1500 mm, Z-axis 1300 mm, table size 4970 mm x 1200 mm, max. table load 15,000 kg/m, tool holder ISO 50, multi-angle milling head 45°, automatic angular positioning of axes B and A, spindle motor power 22 kW, hydraulic rotary lock, working feed rate 10,000 mm/min, rapid traverse rate 20,000 mm/min, with coolant system, total spindle operating hours: 25,496 hours. Lsdpfszn A U Rsx Amtjhi

Condition: used, Year of construction: 1990, Weight 1,3 t turning length 40 mm cylinder 0-0,5 rapid traverse 3,7 m/min Lhodezndt Ujpfx Amtei

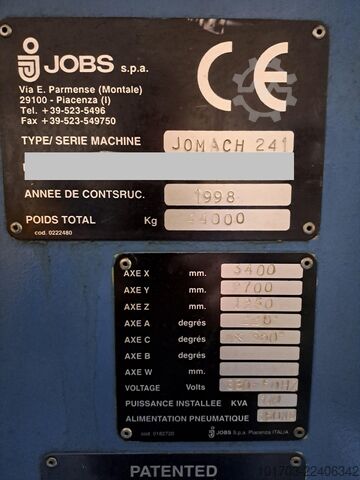

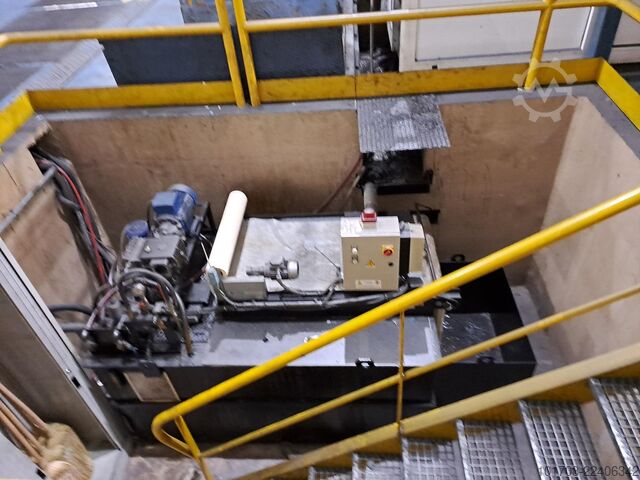

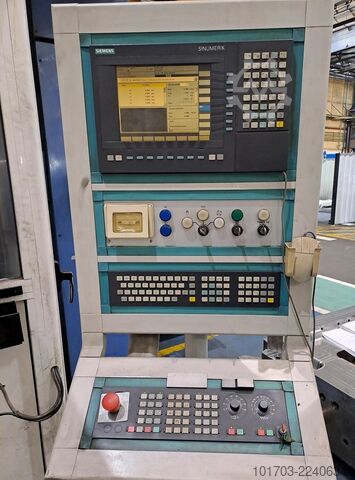

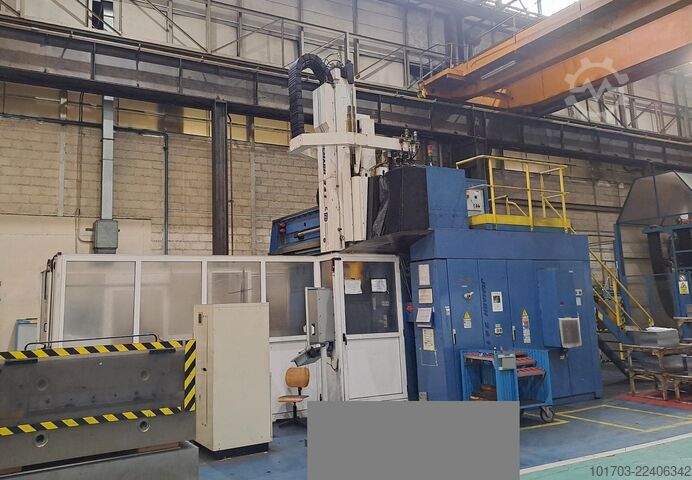

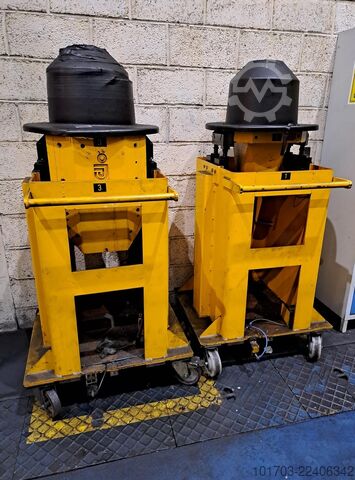

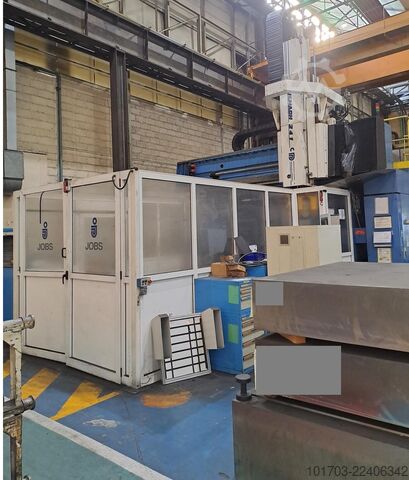

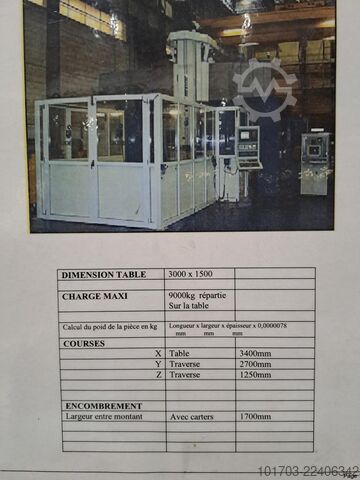

Condition: used, Year of construction: 1998, Portal Milling Machine JOBS JOMACH 241 Year of construction: 1998 Travel X: 3400 mm Travel Y: 2700 mm Travel Z: 1250 mm Numerical Command: CNC Siemens SINUMERIC 840 D Ledezn Hhhjpfx Amtehi Table size: 3000 x 1500 mm Distance between uprights: 1700 mm 1 Tool Changer 32 Tools ISO 50 + 1 Tool Changer 32 Tools HSK-63 3 Milling heads - Axe C: 2 heads TWIST - ISO 50 + HSK 63 A + 1 head 3 axes ISO 50 Weight: 44 T

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Lhedpfevt D D Usx Amtei Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Year of construction: 1996, condition: used, For sale is a heavy-duty CNC milling head, SK50. Lhjdpezmq Icsfx Amtji This is a universal milling head in a heavy-duty design for SK50 toolholders. It is ready for immediate use. It can be manually swiveled and does not have internal cooling. It is suitable for various machines, such as CME, MTE, and others. It offers excellent clamping force, runout, and smooth operation. It can be test-run on our machines. It was removed from an MTE BF2200, which was in production until the very end. If you are interested, please contact us. The price does not include transportation.

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: FSS 400 / 20041, feed length X-axis: 1,120 mm, feed length Y-axis: 345 mm, feed length Z-axis: 400 mm, overall weight: 4,100 kg, For sale is a UNITECH milling machine, model FSS 400. As shown in the photos. The machine is used but fully functional. However, the X-axis should be overhauled at some point. Lhedpfxsznaqio Amtsi A Siemens S7 control system has already been installed. Tool holder: SK50 Table size: 1600 x 400 mm The customer is responsible for organizing and paying for the collection and loading of the machine.

Condition: good (used), Universal machining center HERMLE UWF 801, serial number 5798, control system HEIDENHAIN HS 144, travel ranges: 500 × 430 × 400 mm, spindle: SK40, spindle speed up to 2,000 rpm. Lodeznlzmopfx Amtehi

Condition: used, Year of construction: 2011, pricing can only be given out if you send me an email writing your email address. As machine seeker encrypts your email address. Lsdpfxjzd R S Ao Amtshi MACHINE: GILDEMEISTER CTX Alpha 300 V3S YEAR: 2011 SERIAL NUMBER: 00400003392 CONTROL: Siemens Sinumerik 840D sl ShopTurn ERGOline MACHINE TYPE: CNC Turning Center with C-Axis and Live Tooling CAPACITY: Maximum Turning Diameter: 200 mm Maximum Swing Diameter: 500 mm Maximum Turning Length: 300 mm Bar Capacity: 51 mm MAIN SPINDLE: Spindle Nose: A2-5 Chuck Size: 165 mm Hydraulic 3-Jaw Chuck Spindle Bore: 65 mm Maximum Spindle Speed: 6,000 rpm Spindle Motor Power: 16.5 kW (100% duty) 25 kW (40% duty) Maximum Spindle Torque: 192 Nm AXES: X-Axis Travel: 190 mm Z-Axis Travel: 335 mm Rapid Traverse X: 30 m/min Rapid Traverse Z: 30 m/min TURRET: Turret Type: VDI 30 Number of Stations: 12 Live Tool Stations: 12 Maximum Live Tool Speed: 5,000 rpm Live Tool Power: 3.7 kW C-Axis Resolution: 0.001° TAILSTOCK: Hydraulic Tailstock (optional depending on machine configuration) COOLANT SYSTEM: Flood Coolant Chip Conveyor Compatible ACCURACY: Positioning Accuracy: ±0.005 mm Repeatability: ±0.003 mm ELECTRICAL: Power Requirement: 400 V / 50 Hz / 3 Phase Connected Load: Approx. 30 kVA DIMENSIONS: Length: 4,260 mm Width: 2,510 mm Height: 1,825 mm MACHINE WEIGHT: Approx. 4,000 kg

Condition: used, Vertical milling head, milling head, angle milling head MAHO suitable for MH300 or MH400. Year of manufacture approx. 1990. Tool holder: SK 40. Quill stroke: 60 mm. Centering diameter on the flange plate: 102 mm. Outer diameter of flange: 180 mm. Bolt circle on flange plate: Ø 150 mm. Mounting holes on flange plate: 4x Ø 11 mm. - Quill feed: 0.015 / 0.03 / 0.06 / 0.12 mm/rev. - Head drive via shaft Ø 32 with 10 mm keyway. - Knurled wheel with scale for quill stroke. - Angle scale on angle milling head 2x 90°. Dimensions L x W x H: 300 x 280 x 300 mm. Total weight: 31.4 kg. In good condition. Ljdpsxf Ur Njfx Amtshi

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Lhodsr U St Uopfx Amtji Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: used, Permanent magnet DC servomotor INDRAMAT from MAHO milling machine Ljdpfxoznn H Eo Amtehi Type: MDC 10.10H / MMA-0 (MDC10.10H/MMA-0) Serial No. 12423 Component No. 230837 K-M = 0.30 Nm/A Ieff = 11 A Imax. = 75 A Umax. = 170 V n max = Maximum speed = 3000 rpm Tacho: 0.317 Vs/rad Shaft diameter: 22 mm Shaft length: approx. 21 mm (shaft extension from centering edge) Centering diameter: 70 mm, 7 mm height Bolt circle diameter: 92 mm, 4x M8 mounting screws Overall length: 270 mm (without shaft) Housing diameter: 133 mm Weight: approx. 20 kg Good condition

Condition: used, Univ. Schwenk-Tilting-Rotary Table DECKEL Universal tool and milling machine mounting table, suitable for FP 2L, FP 3L or FP 4L No. 2314 Year of manufacture: approx. 1975 Lhedpjd E A I Nsfx Amtsi Clamping surface: 1000 x 520 mm - 6 clamping slots, 16 mm, spacing 90 mm - Clamping plate can be rotated horizontally to the right and left up to 45 degrees, with a scale - Can be tilted +/- 15 degrees from/towards the machine - Can be swiveled +/- 15 degrees - Swiveling table, tilting table, angular table Permissible load max. 1000 kg Weight: 400 kg Good condition

Condition: used, Horizontal machining center with 2-fold shuttle table STEINEL type BFZ 5 with CNC control SIEMENS Sinumerik 810 M serial no. 34 year of construction 1988 Travel X: 500 mm, Y: 400 mm, Z: 320 mm Clamping surface, table surface 500 x 400 mm Tool holder ISO 40 Lsdpfx Amjutuyistehi Spindle speed max. 6300 rpm infinitely variable Main spindle drive 12 kW Mains connection 380 Volt, 50 Hz, 30 kVA - Tool changer with 24 tool positions - Changing table with 2 stations - Interface for data transfer - Coolant unit with chip conveyor Space requirement L x W x H 4100 x 2500 x 2650 mm Weight approx. 8 tons good condition Transport dimensions: Machine L x W x H 3200 x 2500 x 2650 mm, approx. 7.5 tons. Chip conveyor L x W x H 3500 x 1100 x 2100 mm, approx. 600 kg

Condition: used, Horizontal machining center with pallet changer, STEINEL type BZ 24 FFZ with CNC control SIEMENS Sinumerik 850 M Manufacturer's No. 77, Year of construction 1990 Travel range X: 630 mm, Y: 500 mm, Z: 500 mm Table size per pallet 400 x 400 mm Pallet rotation B-axis Spindle speed max. 7100 rpm, stepless Tool holder ISO 40 Power connection 380 Volt, 50 Hz, 80 Amp. Lsdpfxodzqmrs Amtehi - Tool changer with 60 tool positions and dual-arm gripper - Pallet changer with 4 pallets - Horizontal pallet position for machining, axis movement = X-axis - Pallet rotation = B-axis - Spindle ram as Z-axis - Spindle ram with lateral movement as Y-axis - Coolant spray nozzles on the spindle ram and in the working area - Coolant system with chip conveyor under the working area - CNC control SIEMENS Sinumerik 850 M - Interface for data transfer Space requirement L x W x H 9000 x 3100 x 3200 mm Weight 13.5 tons Transport dimensions on truck: Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm Chip conveyor L x W x H 4700 x 1000 x 1450 mm Loading into a 40" OT HC container is possible. Good condition.

Condition: used, 4-axis CNC drilling and milling machine IXION Type 30 CNC W VMC, BAZ, machining center Year of construction approx. 1997, machine overhauled in 2020 Travel X: 600 mm Y: 350 mm Z: 600 mm Table size 800 x 400 mm T-slot spacing 75 mm Table load 300 kg Spindle holder SK 40 (tightening bolt DIN 69872 A) Spindle speed 20-5000 rpm Torque at the spindle max. 150 Nm Distance between spindle nose and table max. 660 mm Ljdpfou Tln Nox Amtohi Feed speed X, Y and Z 0 - 5000 mm/min. infinitely variable Rapid traverse speed X, Y and Z 15000 mm/min. Tool change time approx. 5 sec. Tool change time from chip to chip approx. 7.5 sec. Milling capacity in St 60 150 ccm/min. Drilling capacity in St 60 35 mm Thread cutting capacity in St 60 M24 Spindle motor drive power 5 kW (10 kW at 25% duty cycle) Mains connection 400 Volt, 50 Hz - CNC control Heidenhain TNC 415 with 12" TFT display - Electronic handwheel - RS 232 interface - 12-position tool changer - hydro-mechanical tool clamping - Rotary axis as dividing head on the table = 4th axis, MECATECNICA type DCN 250-8, jaws lathe chuck Ø 200 mm Speed approx. 25 rpm, transmission ratio 1:180 - Cabin lighting via 2x halogen spotlights - Chip conveyor with coolant pump - Switch cabinet fixed to the machine Space required for transportation Length 320 cm x width 230 cm x height 300 cm Footprint of the machine with chip conveyor L x W x H 3200 x 3100 x 3000 mm Weight of the machine 3100 kg Weight of the chip conveyor approx. 200 kg good condition

Condition: used, Universal Tool Milling Machine MAHO Type MH 800 P with digital readout and HEIDENHAIN TNC 121 contouring control . 80983 Year of manufacture: 1982 Machine overhauled by MMD in 2008, subsequently used only occasionally in the workshop of an electronics company. Travel X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40–2000 rpm, 18 steps Feed X, Z-axis: 10–500 mm/min, stepless Feed Y-axis: 5–250 mm/min, stepless Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Quill vertical travel: 100 mm Quill feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Quill horizontal travel: 100 mm Spindle drive: 5.5 kW Power supply: 380 Volt, 50 Hz, 10 kW - NC contouring control HEIDENHAIN TNC 121 - Vertical milling head with automatic quill feed 0.02–0.2 mm/rev (6 steps) - Hydro-mechanical tool clamping - Coolant system integrated in the machine base - Universal rotary table, 360° rotatable, tilts and swivels 30°, 225 mm cross adjustment Lhjdpfev Amryex Amtei - Rotary table with direct indexing 72 x 5° and indirect indexing via index plate 1:120 = 1 rev = 3° - Swiveling control panel - Central lubrication - Operating manual - Machine mounted on steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirements L x W x H 2650 x 2000 x 2450 mm Weight: 3700 kg + 550 kg steel plate Total weight: 4250 kg (actual) Very good condition

Condition: used, CNC Milling Machine DECKEL Type FP 3 A Tool-tool milling machine with handwheels, also for conventional operation Serial No. 2206 - Built in 1982 GRUNDIG CNC 2101 CNC control system Travel paths X: 490 mm, Y: 300 mm, Z: 340 mm Table size 705 x 425 mm Spindle mount SK 40 Quill stroke 100 mm Spindle speed 25 - 2500 rpm, 21 steps Feed rate 5 - 500 mm/min, continuously variable Rapid traverse speed 1200 mm/min Spindle motor power: 2/4 kW, pole-changing Power supply: 380 V, 50 Hz - GRUNDIG CNC 2101 CNC control system - Mechanical handwheels for all three axes - Universal tilt-and-turn table - Vertical milling head tilts and is manually adjustable by 200 mm - Hydro-mechanical tool clamping - Coolant system in the machine base - Protective enclosure at the front and sides with three hinged doors - Control cabinet adjacent (L x W = 600 x 430 mm) Space requirement: L x W x H: 1900 x 1700 x 1950 mm Lhedpsv R E Rdofx Amtoi Weight: 1700 kg (machine 1540 kg + electrical cabinet 160 kg) Very good condition

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 28317, Year of manufacture approx. 1960 Travel distances: X: 245 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 210 mm Spindle mount, horizontal: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 0.8 and 1.1 kW, pole-changing Power connection: 380 Volt, 50 Hz Lhsdpfxjiy Ekvo Amtji - Spindle speed controlled via 2 motor speeds and 6 gear stages - Feed in the X and Z axes - Coolant system with mechanical pump in the machine base - Quill travel on the vertical milling head: 60 mm - Vertical milling head swivels +/- 90° - Metal substructure made of angle iron with machine feet Space requirement L x W x H: 1100 x 900 x 1650 mm Weight: 650 kg Good condition

Condition: used, CNC Universal Coordinate Drilling and Milling Machine FEHLMANN Type PICOMAX 100-CNC 3 CNC Control HEIDENHAIN TNC 155 Manufacturer's No. 16186651 Year of Manufacture 1986 Spindle Taper FEHLMANN SF32 Drilling Capacity Ø 30 mm in steel Thread Cutting up to M20 in steel Travel X: 850 mm, Y: 435 mm Quill Stroke Z: 210 mm Vertical Movement of Milling Head 580 mm Feed X and Y 1 to 8000 mm/min. Feed Z 1 to 4000 mm/min. Rapid Traverse X and Y 8 m/min. Rapid Traverse Z 4 m/min. Table Clamping Surface 1570 x 500 mm Distance Spindle Nose - Table 130 - 720 mm Overhang Spindle - Column 450 mm Spindle Speed 50 - 7100 RPM, stepless Spindle Drive 10 kW Total Connected Load 20 kW Mains Connection 400 Volt, 50 Hz - CNC Control HEIDENHAIN TNC 155 with TFT monitor - 3 axes controlled, X, Y and Z quill adjustment - hydro-mechanical tool clamping FEHLMANN SF32 - threading device - cable remote control for machine operation and axis movements - motorized vertical movement of the milling head with shutdown via adjustable cams Lhjdpfx Ashik Ezsmtsi - 3D probe RENISHAW, Type MP 11F with FEHLMANN SF32 mount - 20 tool holders FEHLMANN SF32 - swiveling tool holder with 21 tool positions - coolant system in the machine frame - control cabinet fixed to the machine - documentation: operating manual, control manual and electrical diagrams Space Required L x W x H 2350 x 2000 x 2300 mm Weight 3.2 tons very good condition

Condition: used, Table unit from a DROOP & REIN portal milling machine Clamping plate with T-slots made of cast steel gray cast iron Table unit with clamping plate and very solid guideway Table clamping surface 5500 x 2000 mm Travel of the table clamping plate approx. 3100 mm Table height 1050 mm Table load: max. 20 tons Ball screw: Ø 100 mm Thread pitch: 20 mm (single-start) - Processing table guided very stably on the bed - Metal telescopic guideway cover Lhodpfx Amothuzpotji - comes from a DROOP & REIN portal milling machine - Longitudinal table movement via ball screw and SIEMENS servo motor - Clamping surface with 11 T-slots 28 mm - Drive via SIEMENS 1FT6134-6AB71-1AG2 servo motor with IC200448S/R encoder (RN 000 B25) Total length 9500 mm Width 2000 mm Overall height 1050 mm dead weight 28 ton. good condition

Condition: used, Univ. universal tool milling machine DECKEL, Type FP 1 Machine No. 51265, Year of manufacture approx. 1967 Travel distances X: 300 mm, Y: 150 mm, Z: 340 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20 x 2 Spindle speed 40-2000 rpm, 16 speeds Motor power 1.0 and 1.6 kW, pole-changing Mains connection 380 volts, 50 Hz - Feed in the X and Z axes Lhsdpfxjghtvae Amtei - Spindle speed via 2 motor speeds and 8 gear stages - Quill movement on the vertical milling head 60 mm - Swivel, rotary, and tilting angle table - Coolant pump in the machine base - Adjacent control cabinet Space required L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Good condition

Condition: used, Keyway milling head, head for DECKEL milling machine, type FP 1 Factory number: 21948 Dovetail width: approx. 74 - 88 mm Dovetail height: approx. 14.5 mm Dovetail length: 285 mm Distance from the front edge of the dovetail to the center of the gear: approx. 200 mm Stroke size: max. 80 mm Stroke rate: max. 475 double strokes/min. Tool holder: 4-sided, 16 x 16 mm with clamping plate - Stroke size adjustable via eccentric adjustment - Drive from the machine gearbox, within the dovetail guide (as with the normal vertical head) - This keyway milling head is inserted into the dovetail guide in place of the normal vertical milling head (Mounting in place of the vertical milling head) - Drive gear in the keyway milling head, 39 teeth, gear width 15 mm, presumably 15° pressure angle - Keyway milling head can be rotated 360° on the flange plate, degree scale +/- 35° - Small breakout point on the housing Weight: 28.5 kg Lhedpfxeznn Hre Amtji DECKEL FP1 has a pressure angle of 15° on the drive wheel. DECKEL FP2 + FP3 have a pressure angle of 20° on the drive wheel.

Condition: used, CNC Gantry-Type Boring and Milling Machine ANAYAK Type HVM-3800-P Bed type milling machine, structure similar to a plate-type boring mill with fixed table Machine No.: M-20021203 Year of manufacture: 2002 ("Refurbished 2025") The machine will be completely workshop overhauled in 2025 and can then be inspected in storage at 37235 Hessisch Lichtenau. Travel distances: X: 3,200 mm, Y: 1,200 mm, Z: 1,500 mm Table size: 3,800 x 1,200 mm T-slots: 8 pieces, 22 mm, spacing 130 mm Table load: max. 25 tons (stationary table – virtually unlimited load capacity) Spindle taper: ISO 50 (DIN69871-A) (drawbar: DIN 69872-B) Spindle speed: 60 – 4,000 rpm, stepless Feed rate: up to 10,000 mm/min, stepless Rapid traverse X + Y: 20 m/min Rapid traverse Z: 10 m/min Spindle drive: 22 / 30 kW Electrical connection: 400 Volt, 50 Hz, 50 kVA - Automatic tool changer for 30 tools - Spindle drive with 2 speed ranges - With automatic tool changer and tool magazine Ljdpfx Amexcgtgetjhi - Orthogonal milling head with hydro-mechanical tool clamping - Orthogonal milling head fully automatic swiveling in two 45° planes – B+C axis - HEIDENHAIN iTNC 530 control, with electronic handwheel - Prepared for wireless touch probe (probe and receiver not included) - Additional HF-spindle, 18,000 rpm – for attachment - Free-standing control cabinet - Chip conveyor positioned between the gantry bed and the machine table - 32,078 operating hours recorded - Coolant system - Free-standing hydraulic unit - Operating manual with circuit diagrams Installation area (L x W): approx. 1,000 x 700 cm Installation height: approx. 410 cm Weight (total): approx. 33 tons Good condition

Condition: used, CNC Tool Milling Machine MIKRON Type WF 40C/3M with Heidenhain TNC 310 CNC path control Machine No. 440911 Year approx. 1985, overhauled and control retrofit in 11/2000 Ledpfx Amsw A Af Ijtjhi Travel distances X: 600 mm Y: 600 mm Z: 460 mm Table size 900 x 550 mm Spindle taper ISO 40 Distance spindle nose - table max. 520 mm Spindle speed 31.5 - 3150 rpm, 21 steps Feed rate 1 - 2000 mm/min. Rapid traverse speed X and Y = 5000 mm/min; Z = 4000 mm/min Quill stroke 100 mm Main spindle drive 4 and 5 kW Power connection 400 Volt, 50 Hz, 10.5 kW, 25 Amp. - CNC path control Heidenhain TNC 310, NC software: 286140 07, PLC software: MIKR1 - Spindle speed via 21 gear steps - Vertical milling head swivels left and right - Hydro-mechanical tool clamping vertical and horizontal - Central lubrication - Electronic handwheel - 62,815 operating hours shown - Control cabinet permanently attached to the machine rear - Coolant system integrated in the machine base - Swiveling operator panel - Electrical diagram, control manual available Space requirement L x W x H 2300 x 2000 x 2150 mm Weight 2900 kg Good condition

Condition: used, Flexible milling cell with 6-axis industrial robot ABB - CARAT model IRC5 / IRB 2400 M2004 Robot milling system with rotary change table and 2 workstations, robot cell Serial No. 24-51541 Year of manufacture: 2006 6-axis industrial robot ABB model IRB 2400/16 M2000 ABB IRC5 control unit with Tech-In panel HF milling spindle PERSKE model KRS 35.3-2, power: 1.2 kW, speed: 17,400 to 23,200 rpm Robot handling capacity: 16 kg Robot weight: 380 kg Table size (Table 1) with aluminum plate: 500 x 500 mm Table size (Table 2) with Pertinax plate: 600 x 600 mm Power supply: 400 VAC, 50 Hz - High-frequency spindle equipped with collet chuck Ljdpfeyaq Nusx Amtshi - The complete system is set up as a compact milling cell with a rotary change table - Control cabinet and robot controller cabinet are both compactly and solidly mounted on the milling cell - Motorized rotary indexing table (likely WEISS brand) with fixed indexing step: 2 stations = 180° - Rotary table, rotation angle 180°, with partition wall and two clamping surfaces for fixtures - While one side of the rotary table is being milled, the other side can be loaded with new workpieces in parallel - Front safety guard with light barrier for monitoring during 180° table rotation Space requirement: Length 500 cm x Width 190 cm x Height 252 cm Length with front safety guards: 500 cm Length without front safety guards: 400 cm Weight of milling cell approx. 4,000 kg Very good condition The milling cell was used as a machining center for milling aluminum sheets and deep-drawn aluminum parts. Edge machining, milling cut-outs, drilling, etc. Also suitable for plastic processing or similar applications. If interested, please request a video from us.
