Used Scm Panel Return Systems for sale (40,783)

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Hsdpfxoxy Tmne Al Ssl

Condition: used, Year of construction: 1983, Used machine Year of manufacture: 1983 Equipment and technical data: Column reach: 750 mm Spindle stroke: 100 mm Max. clearance between table and spindle: 310 mm Spindle speed: 10000/20000 rpm Motor power: 2.2/3.3 kW Collet tool holder Hjdey Ih Tbspfx Al Sel With air blast system via compressed air connection External dimensions: 905 x 1380 x 1600 mm Weight: 533 kg Availability: short notice Location: 63934 Röllbach

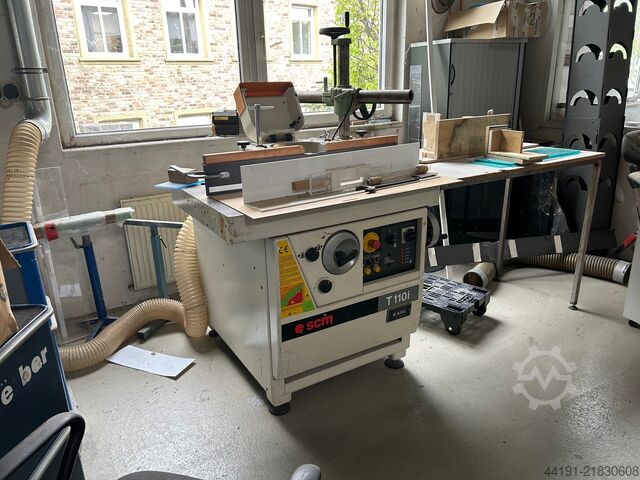

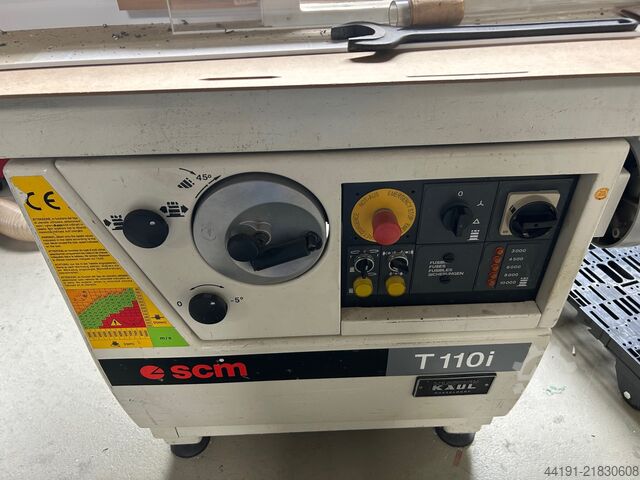

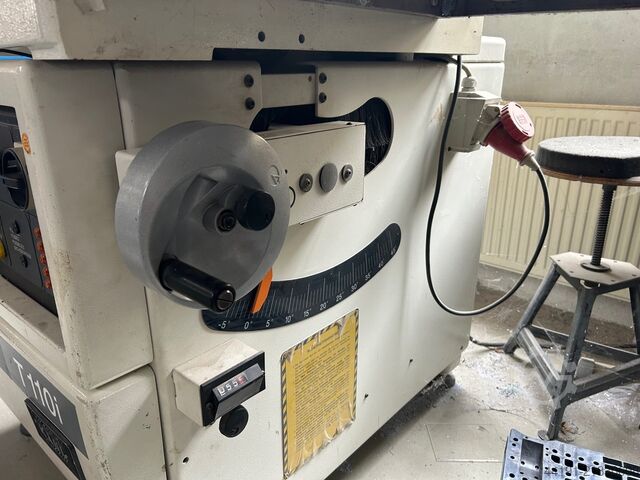

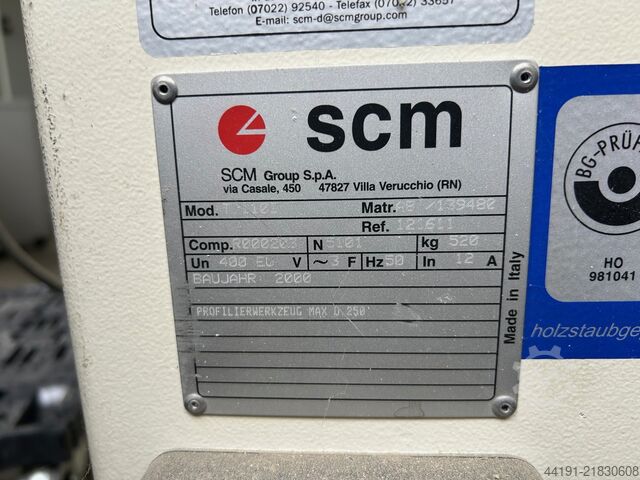

Condition: used, Year of construction: 2000, Used machine Year of manufacture: 2000 The T 110 is the spindle moulder from SCM, optimally combining quality with an attractive purchase price. Hsdpfoy Ih Tuex Al Sol The construction is extremely robust. For convenient operation, all controls are arranged within easy reach on the front of the machine. Precise height adjustment of the tool is ensured by a mechanical display. Spindle tilting from -5 to +45 degrees. Table size: 1000 x 750 mm Spindle clamping length: 140 mm Spindle overhang at the table: 20 mm Spindle speeds: 3000-4500-6000-9000-10000 rpm Max. diameter of tool retractable under table: 320 x 40 mm Profiling tool: max. 250 mm Motor: 4 kW Extraction port: 120 mm With feed unit Weight: 520 kg Availability: short-term Location: Röllbach

Condition: good (used), 1 x Turbo Systems depositors. Located Melksham Hodoy Dt Agjpfx Al Sol

Condition: used, SCM jointer, Italian made 4 traditional knives, wedge-clamped Table combs Width: 410 mm Table length: 2600 mm Angled, adjustable fence Hedjy Ifglepfx Al Sol Brake Well-maintained machine, quiet operation

Condition: used, Year of construction: 2020, max. workpiece length 6360 mm profile spindle 1 Stück main drive 13 kW Control CNC SCM CNC Machining Center ACCORD 40 FX for windows and doors ----- INCLUDES extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden "style" windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows Machine still in operation, available for viewing! Technical Summary (detailed description available upon request!): ----- - ??Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for "Prisma T-S" angle gearbox - BRC - Working unit: Saw blade for face machining, 1 vertical milling cutter connection 3 vertical, independent drill heads, center distance 32 mm 3 vertical drill heads (not independent), center distance 21.5 mm, for mortise drilling 4 horizontal drill heads (2 per side, not independent), center distance 21.5 mm 2 horizontal milling heads (1 per (Page) - TRC 48 - Rear Tool Magazine 48 tool positions (excluding tool holders) Center-to-center distance between positions: 104 mm Max. tool diameter: 350 mm Max. tool length: 320 mm Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle) Max. total weight on the magazine: 250 kg - MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds. - Pendulum operation - Automatic lubrication of the axes - eye-M operating console with integrated PC - Additional fixed control panel - TECPAD - Remote control of machine functions - Clamping jaw preparation H145 for worktable with 8 support rails - Front stop row H110 for worktable with 8 support rails - Rear stop row H110 for worktable with 8 support rails - Suction cup H110 145x145 mm Hodpfey Hl Iyox Al Sjl - Swivel suction cup H110 145x55 mm - Swivel suction cup H110 180x65 mm - First side stop row H145 for worktable with 8 support rails Second side stop row H145 for worktable with 8 support rails Clamp H145 with round base Clamp H145 with square base N.6 Lifting devices with double stroke H145 Laser and reference stop H145 for sheet (left) - PRO-SPEED safety system - Maestro CNC - Machine operator interface and programming - Maestro ProView - Simulation software Tools are sold in the condition, scope, and with accessories as they are currently in stock. Note regarding window cutouts, tool drawings, and tool system listings: Engelfried GmbH does not guarantee that the tools actually available correspond to the systems listed and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: used, • Four-sided planer with a classic spindle • Working width up to 240 mm • Working height up to 120 mm • Min. Working height 6 mm • Spindle speed: 6000 rpm Hsdpfx Aoxxkt Ajl Sjl • Infinitely variable feed 5-25 m/min (optionally up to 36 m/min) • Long axial adjustment path on the vertical spindle, up to 80 mm • All tool spindles with independent motors

Condition: ready for operation (used), Year of construction: 2008, machine/vehicle number: A3347169, functionality: fully functional, number of axes: 3, CNC machine SCM, Record 100 AL action line, 3-axis woodworking line, 400V, year of manufacture 16/07/2008, electrical cabinet, control with safety mat, partition wall, working area 305 x 122 cm, total machine dimensions: approx. 565 x 250 x 260 cm, self-dismantling required 3 axes In perfect working condition 1 large vacuum with details of white panel and 1 small vacuum: Year 2019 / N°A3347169 Hodpfx Asxg El Ael Sel Type VTLF2.250/0-79 Frequency 50/50Hz Speed 950/1150min-1 Power required 5.5/6.4kW Inlet capacity 244/286m³/h Max vacuum 200/200mbar Video available.

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Hjdpfxjw Dcccs Al Sol

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Hjdpfx Aew Dcb Sel Ssl

Condition: used, Year of construction: 2022, PANEL SAW WITH TILTING SAW BLADE Linvincibile SI 5 KEY FEATURES SLIDING TABLE: GUARANTEED SUPERIOR CUTTING QUALITY OVER THE LONG TERM TELESCOPIC ARM: AN “UNBEATABLE” SMOOTH MOVEMENT SAW UNIT: FOR A PERFECT CUT Technical Data SI 5 Main saw blade diameter (mm): 550 Cutting capacity with extendable fence - with table 3200 mm - with table 3800 mm 3200x3200 3800x3200 Saw blade tilt (degrees): 46 Max. cutting height at 90° (mm): 200 Max. cutting height at 45° (mm): 130 Saw blade speed (rpm): 2500-3500-5000 Scoring blade speed (rpm): 8500 - Extractor port diameter: - on frame - on blade guard 120 100 Main motor power [S6 -40%] Hz50 kW: 7 Scoring motor power [S6 -40%] Hz50 kW: 0.9 Cutting width at rip fence (mm): 1600 Standard equipment and accessories - Optimizer/Process control app for tablets: SCM Thundercut. The app can be downloaded from the App Store or Play Store for tablets compatible with iPadOS or Android. It can be activated via the QR code supplied with the machine. The app enables: * Management of machine fleet and material/panel storage * Creation and editing of projects, importing projects from main furniture design software (file format "cpout"), importing cutting lists * Optimization of cutting lists by selecting one or more proposals from the optimization software integrated into the app * Correct machine settings for each cut, thanks to the simple and intuitive graphics of the 3D sequencer, guiding the operator step by step * Printing barcode labels to identify the various parts, via Bluetooth connection with compatible label printers. - 10-year warranty on the sliding table guide system - Sliding carriage entirely made of aluminum structure with guidance on crimped, hardened and arc-ground steel rails with large contact area - Max. saw blade diameter* up to 450mm with scoring blade mounted* up to 550mm without scoring blade - eye-S 15" electronic control including: * 15" touchscreen monitor * Direct control of the following working axes with manual, semi-automatic, automatic, and incremental modes: - Height adjustment of the main saw blade - Tilt adjustment of the saw unit - Rip fence adjustment - Height and lateral adjustment of the scorer (the scorer is automatically raised to the set position on activation and lowered on deactivation) * Operator assistance functions for complex cuts * Ability to store up to 1000 programs with associated image * Ability to store up to 1000 different tools with associated image * Cutting process management of preloaded parametric machining programs * Environment for creating and storing new sequenced working programs * Automatic import of working dimensions from Thundercut app * USB port * Ready for network connection - Auxiliary function of the electronic control, including: * Determination of correct fence position on rip fence for format processing with tilted saw blade * Determination of correct fence position on rip fence for angle cuts with mitre fence on the work table with or without tilted saw blade - Pivoting control panel above the table - Scoring unit with independent Hjdpfx Aoxqtvqjl Sjl

Condition: used, Year of construction: 2001, Min./Max. working width (finished size): 23 - 180 mm Min./Max. working height (finished size): 6 - 105 mm Min. workpiece length: 300 mm Feed speed: 6 - 12 rpm Spindle speed: 6000 rpm Spindle diameter: 35 mm Motor power, horizontal spindle: 10 kW Motor power, vertical spindle: 7.5 kW Feed motor power: 1 kW Diameter of feed rollers: 120 mm Extraction port diameter 1 pc: 150 mm Extraction port diameter 2 pcs: 120 mm Weight: approx. 950 kg Storage location: Supplier Hedpfx Asym D Eiol Sjl

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, working width: 630 mm, power: 9 kW (12.24 HP), Wide belt sanding machine SCM type Sandya Win. Sanding width 630 mm. Equipped with a combination unit for coarse and fine sanding. Electric drive. Operation possible with 16 amps. Transport within Europe available at competitive rates. Hjdpfjy Ec Eaox Al Sjl

Condition: used, Year of construction: 1987, machine/vehicle number: AB-14022, power: 4 kW (5.44 HP), input voltage: 380 V, input current: 9 A, input frequency: 50 Hz, type of input current: three-phase, planing width: 410 mm, number of blades: 2, actuation type: manual, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, total length of planing tables: 2,000 mm, total width: 400 mm, overall weight: 580 kg, SCM Jointer-Thickness Planer 2000 d.FS Planing width: 400 mm Jointer table: 950 / 950 mm Cutterhead speed: 4000 rpm 3 strip planer knives Planing height: 3 - 200 mm Feed rate: 4.5 / 8 m/min Max. cutting depth: 8 mm Motor: 4 kW / 400 V / 50 Hz Weight approx. 570 kg As inspected, ex location Seevetal Subject to prior sale Hjdpfxsxnpn Rj Al Sjl

Condition: used, Year of construction: 2007, functionality: fully functional, grinding width: 950 mm, grinding height: 170 mm, height adjustment type: electric, type of input current: three-phase, - Italian manufacture - year of manufacture: 2007 - combination sanding shoe TECHNICAL SPECIFICATIONS: Hsdpsxdxfqjfx Al Sol - sanding width: 950 mm - sanding height: 4–170 mm - motor power: 11 kW - 1st unit: steel drum with pneumatic engagement - drum diameter: 110 mm - 2nd unit: combination sanding shoe - pneumatic engagement for rubber drum: 78 Shore - shoe with pneumatic adjustment - pneumatic oscillation - air blast for belts - electric height adjustment - two belt speeds: 8.3 m/s and 16 m/s - electronic sanding height positioning - continuously variable feed speed: 4–20 m/min - minimum material length: 500 mm - extraction nozzle diameter: 2 x 140 mm - machine dimensions (L/W/H): 150 x 180 x 210 cm - weight: ~ 1010 kg

Condition: excellent (used), SCM jointer 30cm, planing width 30cm, table length 210cm, 3 traditional knives mounted on so-called wedges, 3hp motor, 380V, 130mm extraction port, noise-reducing combs in the table, fence adjustable by angle, very good condition. Hodpfsy Hp Iwox Al Sel

Condition: used, Year of construction: 1990, Working width: 630 mm Planing height: 250 mm Planer shaft: Tersa Number of knives: 4 Height adjustment: electric Planing thickness display: mechanical counter Feed speed: stepless, approx. 6–18 m/min Hodoyxganepfx Al Sol Infeed roller: steel Outfeed rollers: 2 x steel Table rollers: yes, powered Motor power: 5.5 kW Extraction connection: 160 mm Machine length: 1200 mm Machine width: 1200 mm Weight: 1100 kg

Condition: used, Year of construction: 1992, Working width: 520 mm Planing height: 250 mm Cutterhead: strip knives Number of knives: 4 Height adjustment: electric Planing thickness display: scale Feed speed: 2 speeds Hedpfxoyt E Rao Al Ssl Infeed roller: steel Outfeed roller: steel Table rollers: no Motor power: 5.5 kW Extraction port: 140 mm Machine length: 1200 mm Machine width: 1400 mm Weight: approx. 900 kg

Condition: used, machine/vehicle number: 008047, Position 1: Brushing Machines SCM-BRAVOROBOT P1 Position 2: spraying machine SCM-BRAVOROBOT P1 Position 3: Roller Conveyors SCM-BRAVOROBOT P1 Position 4: Compressed Air Dryers SCM-BRAVOROBOT P1 Hsdpjw Idbyofx Al Sol Position 5: Ovens SCM-BRAVOROBOT P1

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Hedevvi I Rspfx Al Sel

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Hedsvwbp Aopfx Al Sel

Condition: used, Year of construction: 2011, Working size in X-direction: 2770 mm Working size in Y-direction: 1220 mm Working thickness (Z-dimension): 80 mm Machine design: Gantry-type machine Main spindle power: 11.0 kW Main spindle speed: 1500 - 24000 rpm Vector controlled spindle: Yes Clamping system: HSK 63 F Spindle cooling: Air cooling Number of axes: 3 Tool changer: Yes Tool changer positions: 10 Keyboard: Yes Mouse: Yes Programming system: Xilog Plus DXF interface: Yes Online connection possible: Yes CD-ROM drive: Yes Table type: Matrix table Hodpfovvi Htox Al Ssl Stop system: Stop cylinders Number of vacuum pumps: 1 Vacuum pump capacity: 250 m³/h Safety: Safety tread mats Storage location: Sonnefeld

Condition: used, Year of construction: 2004, Storage location: Nattheim Hjdpfx Aevvi Hyel Sel

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTIONAL TABLE - WORK CELL VERSIONX400 CELLDrilling and milling made for you!The numerically controlled machining center is equipped with a wide range of milling/drilling tools to meet every need in the processing of wood and similar materials.- More powerful, with drilling spindles with 8,000 rpm and . Technology, the toughest spindle available on the market, with over 1,000 maintenance-free hours of use. Better and more comprehensively equipped, with various configuration options thanks to the multifunctional table to optimally equip the machine according to your needs. Easier and more understandable programming thanks to the integrated MAESTRO CNC CAD-CAM module. Easier to use: the work table is accessible at all times, the electrical cabinet and vacuum pump are integrated, and in the PRO SPACE configuration there are no guards. Supporting structure. The supporting structure consists of a particularly strong monolithic steel base, heavily ribbed and very rigid. The particularly wide support was specifically designed to give the machine stability, ensuring consistent precision regardless of the working conditions and eliminating the need to anchor the machine to the floor. The base forms a large and solid support for the mobile column: the work unit is thus equipped with a balanced, stable, and durable support that can withstand the most extreme stresses, ensuring higher quality performance and greater precision. The mobile gantry consists of a single, solid unit anchored to the base on both sides and slides on pyrotechnic guides with top-quality ball-return slides. The dual motorization along the X-axis ensures top performance even under demanding working conditions. The movement of the lower moving unit (X-axis) and the working unit along the rod of the moving unit (Y-axis) is achieved thanks to a rack/pinion transmission with helical teeth. this creates a greater tooth-to-tooth thrust which achieves greater acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures absolute quality of finishes as any vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters; These ensure: - Reduced processing times thanks to improved acceleration - Better positioning accuracy thanks to the high-resolution encoder - Zeroing of setup operations when switching on the machine thanks to absolute encoders - Zeroing of general maintenance operations since there are no brushes with the "brushless" system The management of the axis displacement and, in general, of the machine's working elements is carried out by an industrial NS module with digital D Hsdovvi N Ispfx Al Sjl

Condition: used, Year of construction: 1999, Storage location: Nattheim Hsdpfevvi Rxox Al Ssl
