Used Solid Bench Drilling Machine for sale (68,515)

Condition: used, machine/vehicle number: 008013, X axis working area: 5780 mm Y axis working area: 1650 mm Working Table: Pod and Rail Main Electrospindle power: 13.2 KW Number of controlled axes: 4 axes Maximum edge height: 60 mm Total number of drilling spindles: 16 Total number of tool changer positions: 16 Pedpfxswuz Ekj Ag Dsgk

Condition: good (used), Year of construction: 2013, total length: 3,990 mm, total height: 2,500 mm, total width: 2,280 mm, overall weight: 8,500 kg, INGERSOLL CM SYSTEMS AOHD AGILE OIL HOLE DRILL Equipped with: Siemens 840D Control (2) Drill Heads 20-Tool Rack HSK 50A Taper (2) 7" 3-Jaw Chucks (2) Tailstocks (2) Steady Rests Chip Auger Chip Conveyor Mist Collector Hydraulic System Q R 2 Lube System Air Compressor Specifications: Maximum Length: 1050 mm (41.3") Minimum Length: 180.0 mm (7.1") Maximum Stroke: 250.00 mm Maximum Main Journal Diameter: 115.0 mm (4.5") Maximum Pin Journal Diameter: 100.00 mm (3.9") Maximum Swing Diameter: 250.0 mm (9.84") Pgodpfx Ajrtrx Reg Djk X-Axis Travel: 1450 mm (57.1") Y-Axis Travel: 150 mm (5.9")W/HSK 50 Z-Axis Travel: 305.0 mm (12.0") A-Axis Travel: 360 Degree B-Axis Travel: 90 Degree Feed Rate (Z): 1 m/min Maxim (40"/min max) Position Accuracy of X,Y,Z Axes: .010 mm (.00039") Position Accuracy of A & B Axes: .03 Degree Position Repeatability of X,Y,Z Axes: .005 mm (.0002") Position Repeatability of A & B Axes: .005 Degree Spindle Power: 5.5 kW (7.5 hp) Spindle Speed: 0-6,900 RPM Tool Adaption: HSK 50E or A Tool Storage (ATC): 20 Total - 10 Per Spindle W/HSK 50 Lubrication - Slides & Ball Screws: Automatic Central Lubricator Approximate Floor Space (LxWxH): 4.0 x 2.3 x 2.5 m (13.1 x 7.5 x 8.2 Ft) Approximate Machine Weight: 8,500 kg (18,740 #)

Year of construction: 2012, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: BCOR12150, BIESSE BREMA EKO 902 Pgsdpew Nytnofx Ag Dok CNC and vertical dowel insertion machine for reduced cycle times Equipment Features - Clamping grippers measure the thickness to adjust drilling depth - Laser-based measuring system for detecting the front and rear panel edges - Length tolerance compensation correcting the workpiece length in X - 5-position tool changer - Drilling head with individually retractable spindles and grooving saw - Diameter: 120 mm - Gluing and dowel insertion units mounted on Y and Z axes Options - 4.5 kW electrospindle; 18,000 rpm - Special drilling unit for hinges Technical Data - Panel length: 160 - 3200 mm - Panel width: 35 - 900 mm - Panel thickness: 8 - 80 mm - X/Y/Z axis speed: 100 / 60 / 30 m/min - X axis travel: 3200 mm - Y axis travel: 900 mm - Main spindle power: 4.5 kW - Number of controlled axes: 3 axes - Number of drilling spindles: 20 - Number of tool positions: 5

Year of construction: 1994, condition: good (used), machine/vehicle number: 491P, Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle adaptor MK 3 - right - left rotation - Drilling spindle stroke 150 mm - drilling spindle speed infinitely variable 80 - 1170 rpm - 2 feeds 0,1 / 0,2 mm/rev - throat 290 mm - max distance table - drilling spindle 780 mm - table with 2 T-slots 480 x 400 mm - Height adjustable via toothed rack with hand crank - Drive 400 V / 0,9 / 1,3 kW - Space requirement approx. W 600 x H 2100 x D 900 mm - Weight approx. 420 kg - with: - coolant device - quick-action drill chuck 1-13 - illumination Pgsdpfjdkx Anox Ag Dok

Condition: used, Year of construction: 1965, bore capacity in steel (diameter) 40 mm total power requirement 4 kW Podpfx Aev S Iqceg Dogk

Condition: used, SPECIFICATIONS Drilling capacity steel Ø 35 mm Drilling capacity cast iron Ø 40 mm Tapping M25 Spindle taper Mk 4 Spindle diameter Ø 60 mm Spindle travel 180 mm Max. distance spindle - table 80 mm Min. distance spindle - table 870 mm Floor / table area 700 x 600 mm Power 2.2 kW Spindle speeds / ranges 65 - 1750 VARIO rpm Pedpsy Hf Uysfx Ag Dogk DIMENSIONS Length 1200 mm Width 800 mm Height 2400 mm

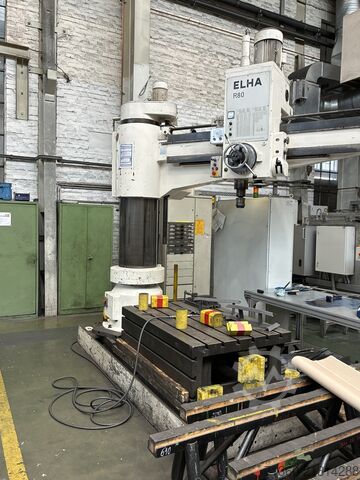

Condition: used, Year of construction: 1987, functionality: fully functional, Drilling capacity in steel (diameter) 80 mm Arm reach 2000 mm Workpiece height - approx. 1300 mm Boring diameter in steel 100 mm Boring diameter in cast iron 115 mm Thread cutting in ST 60 M 68 mm Spindle speeds 16 - 1250 rpm Podpey H Dausfx Ag Djgk Number of spindle speeds 32 Spindle stroke 550 mm Number of feeds 18 Feed range 0.06 - 3.0 mm/rev Distance spindle/baseplate 480 to 1800 mm Column diameter 500 mm Spindle motor 11 kW Lifting motor 4 kW Total power requirement 15 kW Machine weight approx. 8,500 kg Footprint 3200 x 1250 x 3600 mm with work table 1500 x 1000 x 500 mm

Condition: good (used), Station 1: Cutting components to length Podsy Hv Uqepfx Ag Degk Station 2: End face drilling at grid dimensions 27, 32, or 60 mm, to a depth of 95 mm Station 3: End face drilling with an additional bore or cleaning out the bores from Station 1 Station 4: Deflection testing

Condition: good (used), Station 1: Cutting components to length Station 2: Face-drilling in standard grid dimensions of 27, 32, or 60 mm, to a depth of 95 mm Station 3: Face-drilling an additional hole or blowing out the drillings from station 1 Pedsy Hv Nuspfx Ag Degk Station 4: Checking for deflection

Condition: ready for operation (used), Year of construction: 1981, drill diameter 50 mm total power requirement 2,2 kW weight of the machine ca. 0,6 t Podpswu Hklsfx Ag Dsgk

Condition: reconditioned (used), functionality: fully functional, Drilling Machine Brand: GSP Model: 407C22 Reach: 2250 mm Drilling capacity (steel): - Normal feed: 70 mm diameter - Slow feed: 90 mm diameter Carriage travel on arm: 1900 mm Drilling radius (min. - max.): 630 - 2500 mm Pjdpjy D Hr Uofx Ag Dogk Height (min. - max.): 500 - 1750 mm Vertical arm travel: 850 mm Spindle stroke: 400 mm Spindle speeds: 25 to 1400 rpm Motor power: 6 kW Spindle taper: MT 5

Condition: ready for operation (used), Year of construction: 1975, arm 1200MM stroke head on bench 1400MM Pgsdpfx Aevm Akgog Dok universal head portable radial

Condition: used, functionality: fully functional, spindle mount: MK 2, quill stroke: 120 mm, Gillardon column drilling machine, drill press in decent used condition Podpfsh N Svljx Ag Degk Manufacturer: Maschinenfabrik Wilhelm Gillardon II Bretten i. Baden According to the information on the attached plate, the drilling machine is operated with a motor from VEM Elektromotorenwerke Thurm. Electric motor Three-phase asynchronous motor type KPER 80 K 4 VEM Motors Thurm GmbH D Zwickau 3 speed ranges via belt drive. Quill travel approx. 120 mm, drilling spindle with Morse taper 2. Weight approx. 150 kg / Approx. 1380 RPM MK2 drill column Power consumption 0.75 kW - Mains connection 380 Volt, 50 Hz. Price €390,-- net ex location, plus packaging costs All technical details subject to errors and omissions. Sale exclusively to countries within the EU.

Condition: excellent (used), functionality: fully functional, Working diameter: 2–40 mm. Minimum and maximum point angles: 40–180°. For right- and left-side cutting tools, 1–12 cutting edges. For sharpening twist drills, step drills and tap drills. A wide range of accessories and a user manual for the machine are included. Pjdpfxoy Hb T Eo Ag Dogk Clean and good condition

Condition: used, Year of construction: 1994, functionality: fully functional, throat depth: 1,250 mm, Radial drilling machine Fab. Breda type. R 55-1250 Year of manufacture 1994 Technical details Make: BREDA Type: R 55-1250 Throat: 1250 mm Drilling capacity in steel: 55 mm Drilling capacity in cast iron: 70 mm Tapping capacity in steel: M 50 Tapping capacity in cast iron: M 65 Drill spindle mount: MT 5 Throat: 1250 mm Cross travel of headstock: 930 mm Minimum/largest distance from base plate: 5360 – 1375 mm Vertical travel of the boom: 705 mm Spindle stroke: 310 mm Pgsdpfx Aev Rpf Seg Dsk Number of spindle speeds: 12 Spindle speeds: 30 – 1200 rpm Number of feeds: 8 Feeds: 0.06 – 1.0 mm/rev Base plate 2070 x 910 mm Clamping area base plate 1325 x 910 mm Motor power 4.4 kW - 380 volts Dimensions (L x W x H) 2.1 x 1.0 x 2.5 m Weight 3 t Accessories Drilling table 750 x 600 x 550 mm Cooling Hydraulic clamping All information is subject to change. A demonstration is available at any time in our showroom.

Condition: good (used), Internal Item No.: 26041 Drill Bit Grinding Machine REMA Model: S2/40 Power: 0.9 kW / 380V 2900 rpm Including accessories Dimensions (LxWxH): 100 x 70 x 120 cm Weight: approx. 200 kg Pgsdpfxjy Hr R Ue Ag Dsk The machine is fully operational and can be inspected under power, by appointment, in over 500 m² of heated storage space.

Condition: good (used), Code: 0342 Brand: VITAP Model: ALFA 35 - CE Standard Semi-automatic multiple boring machine with 35 spindles for furniture, kitchens, bathroom furniture, custom-made furniture, panels - CE Standard Technical data N° 35 spindles with quick coupling Centre distance between each spindle mm 32 Centre distance between first and last spindle mm 1088 Max depth of hole mm 70 Board dimensions mm 1330 x 500 Spindle rotations per minute 2800 Motor power Hp 3 Turret with 6 different depth positions Side fence Horizontal/vertical 45 degree pneumatic tilting head Metric bar 3000 mm with stops Operating pressure 6- 8 atm Podpfxsywm A He Ag Djgk Overall dimensions mm 1590 x 860 x 1250 h Weight kg 454

Condition: good (used), machine/vehicle number: M4137-1280, functionality: fully functional, rotational speed (max.): 960 rpm, For sale is a Snow TA-3-S tapping machine. The item is in good condition. Two units available. Technical data: Manufacturer: Snow Manufacturing Model: TA-3-S Serial number: M4137-1280 Motor power: 0.55 kW Speed: 960 rpm Voltage: 380 Volt Frequency/phase: 50 Hz / 3 phase Control voltage: 110 Volt Pgedsy Hihkjpfx Ag Dek Transport and loading can be organized Europe-wide for an additional fee, upon request. Prices are subject to VAT. Viewing by appointment possible. Please contact us—our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Gjbn N Ay Dowza Dxogoil Do you need a high-quality yet affordable metalworking machine for your production? Or are you looking to sell yours? For further info or contact options, please visit our website.

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, travel distance X-axis: 7,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 750 mm, spindle speed (max.): 3,000 rpm, spindle diameter: 150 mm, travel distance W-axis: 900 mm, table length: 3,000 mm, table width: 1,600 mm, workpiece weight (max.): 14,000 kg, CNC TOSNUC The machine is in excellent condition and is equipped with 3 rotary tables: 2 x 1600 x 1600 mm and one 1600 x 3000 mm. Tool magazine with 120 slots. Pjdsvutqaepfx Ag Dogk

Condition: new, Year of construction: 2020, bore capacity in steel (diameter) 40 mm throat 220 mm bore stroke 120 mm spindle taper MT 4 spindle turning speed range 105 - 1257 U/min no. of turning speeds 8 Stufen table surface area 400 x 320 mm base plate 390 x 650 mm voltage 400 V / 50 Hz total power requirement 1,1 / 1,8 kW weight of the machine ca. 0,3 t range L-W-H 2,1 x 1,0 x 0,7 mm with quick-action drill chuck 3-16 mm, drill chuck protection, work table can be rotated, swiveled and height-adjusted, coolant device, Pedpfx Agoy Erwls Djgk lighting, right/left spindle rotation, mechanical depth stop,

Condition: ready for operation (used), functionality: fully functional, input voltage: 380 V, type of input current: three-phase, spindle mount: MK 3, drilling depth: 120 mm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 200 rpm, total width: 400 mm, total length: 600 mm, total height: 1,820 mm, table width: 320 mm, table length: 400 mm, Flott SB M3 ST 3-phase 380V motor runs smoothly. Stepless speed adjustment via variomatic spindle drive. Spindle speed adjustable from 200 to 2000 RPM. MT3 spindle taper. Röhm Supra 3-16mm drill chuck included. Machine vice included. Spindle safety guard. Pgodpey D Uihjfx Ag Djk Emergency-off switch. Drilling depth adjustable. Maximum drilling depth: 120mm Table size: 400x320mm Table height adjustable. Overall dimensions: 60x40x182cm Year of manufacture: 1987 Made in Germany Overall good condition. Contact us for shipping options! € 2,350.00

Condition: excellent (used), Year of construction: 1996, Overhauled in 2005 Number of spindles: 2 Podpfxey Eykgo Ag Degk Drilling capacity per spindle, steel: 1-6 mm Drilling depth: max. 350 mm Travel distance Z: 350 mm Travel distance W: 350 mm Drive power per spindle - 100% duty cycle: 3.7 kW - 50% duty cycle: 5.5 kW Spindle speed: 3,000 - 27,000 rpm Spindle mounting: Ø 10 - 60 mm Coolant pressure: max. 150 bar Coolant flow rate: 48 l/min Coolant volume: 1,000 l

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Pedpovvi I Rofx Ag Degk

Condition: used, Year of construction: 2002, Drilling capacity: 25 mm, spindle mount: MK 3 Storage location: Nattheim Podpfx Agovvi Auj Degk

Condition: used, Year of construction: 1999, bore capacity in steel (diameter) 50 mm arm length 1250 mm bore capacity in cast iron 60 mm Pgodpfx Agsy Ehxro Djk quill stroke 300 mm tool taper MK 5 speeds 25 - 1440 U/min feeds 0,08 bis 0,58 mm/U thread cutting attachment ja Boring motor 4,0 kw weight of the machine ca. 2,4 t dimensions of the machine ca. 2,0 x 0,75 x 2,15 m Radial drilling machine - Mounting cube 800 x 600 x 500mm - Coolant system - Good condition
