Used Thread Whirling Device For Lathes for sale (20,680)

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 25693, turning diameter: 150 mm, Specifications: Number of Axes: 3 Maximum Workpiece Diameter: 300 mm (approx.) Maximum Workpiece Length: 300 mm (approx.) Chuck Size: 6” (standard, options for larger sizes) Machine Dimensions: 2,400 mm x 2,200 mm x 2,500 mm (approx.) Machine Weight: 3,200 kg (approx.) Spindle Speed: Up to 6,000 RPM (standard) Spindle Power: 15 kW (continuous) Spindle Torque: 75 Nm Spindle Bore: 65 mm X-Axis Travel: 300 mm Y-Axis Travel: 250 mm Z-Axis Travel: 300 mm Rapid Traverse (X, Y, Z): 20 m/min (maximum) Feed Rate: 12 m/min (max feed rate in all axes) Number of Tool Stations: 6 to 12 tool stations Bodpozn Ay Tofx Ablolk Maximum Tool Diameter: 32 mm (in fully populated tool turret) Maximum Tool Length: 100 mm Positioning Accuracy (X, Y, Z): ±0.005 mm Repeatability (X, Y, Z): ±0.002 mm Spindle Runout: < 0.003 mm

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Bodewcfgbjpfx Abljlk Hydrostatic Ways Scale Feedback Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

Condition: good (used), Year of construction: 2015, machine/vehicle number: 190630, turning length: 150 mm, turning diameter: 200 mm, spindle bore: 42 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 50 rpm, travel distance X-axis: 150 mm, travel distance Z-axis: 155 mm, rapid traverse X-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, turning diameter over bed slide: 220 mm, overall weight: 5,000 kg, spindle nose: 140 Flat, bar diameter (max.): 51 mm, power: 0.015 kW (0.02 HP), The innovative front-facing spindle of the 2SP-150H helps create an automation-friendly lathe for small parts production. By moving the spindle off the side and incorporating the Okuma Gantry Loader (OGL) into the production line, parts can be loaded and unloaded automatically. An extremely compact footprint improves floor space utilization, while the popular dual spindle option significantly reduces cycle time. Equipped with: Okuma OSP-P300L CNC Control Blodortrlzopfx Ablok 8" 3-Jaw Chuck Expanding Mandrel Turret Tooling Gantry Loader Pendant Controller Chip Auger Stack Light

Condition: used, Year of construction: 2007, turning length 2500 mm control Sinumerik 840 D spindle head A 11 tool numbers 48 swing diameter over bed slide 750 mm swing over bed 780 mm c-axis 0,1-30 1/min diameter of quill 160 mm taper bore MK 5 tool length - max. 500 mm weight of tools max. 15 kg weight of the machine ca. 27 t dimensions of the machine ca. 8,4 x 4,0 x 2,5 m Technical details: Nominal turning length: 2,500 mm Swing diameter over bed slide: 750 mm Swing diameter over bed: 780 mm Working height: 1,300 mm Spindle head to DIN 55026: A 11 Bore through: 123 mm Diameter in front bearing: 200 mm Oriented spindle stop: 0-359 degrees Drive power at 100/60 % duty cycle: 37/45 kW Total speed range: 10-2,500 1/min Blodjwwaruopfx Ablek Number of speed ranges: 2 Speed range I: 10-775 1/min Speed range II: 20-2,500 1/min Max. torque at 60 % duty cycle: 2,500 rpm. Torque at 60 % ED: 2,083 Nm (up to 186 rpm)

Condition: good (used), Year of construction: 2013, control Siemens 840D sl turning length 2000 mm turning speeds max. 3100 1/min Torque 1200 Nm diameter of quill 140 mm quill power 5-30 kN total power requirement 125 kW weight of the machine ca. 20 t The machine can still be inspected under power at the seller's factory. It is in good condition, the precision of the turning operation is very good. The milling drive is not functional. An offer from Niles for the repair of the milling drive is available on request. Hydraulic steady rest included. Technical details: Turning length 2000 mm Control Siemens 840 D sl Main spindle: Speed max.3800 1/min Main spindle: Torque max. 1200 Nm Pinole diameter 140 mm Bedpfxjv Nw Npo Ablslk Center point MK6 Quill force 5 - 30 kN Feed speed Z-axis mm/min Rapid traverse Z-axis 40 m/min Feed rate X-axis - mm/min Rapid traverse X-axis 25 m/min Total power requirement 125 kW Machine weight approx. 20 tons

Condition: good (used), Year of construction: 2006, control FANUC 21i-TB Control Bedpfx Aevzln Rjblslk x-axis 390 mm z-axis 780 mm spindle taper A2-11 number of spindle speeds 2000rpm engine output 37 kW weight of the machine ca. 9000 kg dimensions of the machine ca. 1905,0 × 2720,0 × 3260,0 m The machine has chucks that can produce gears from 100 to 500 mm. Special chuck is available

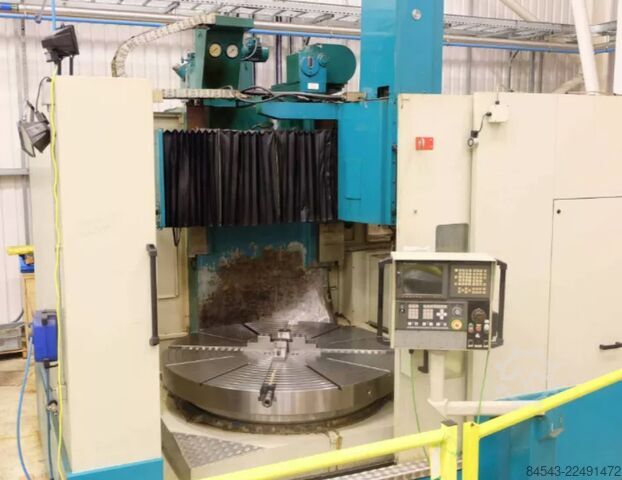

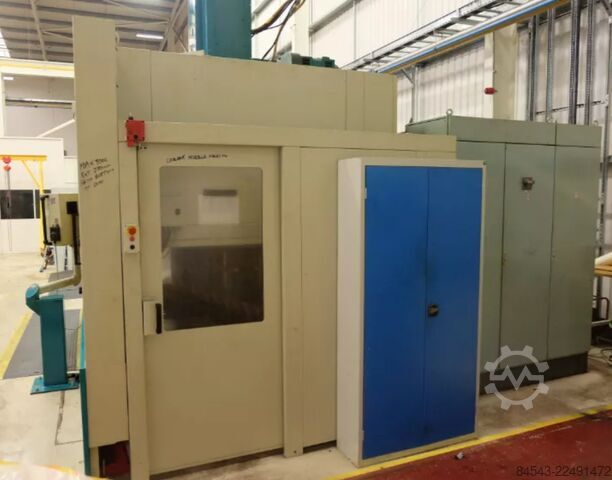

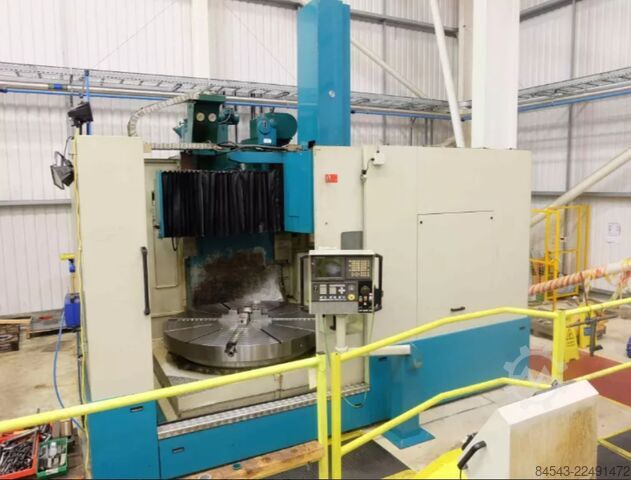

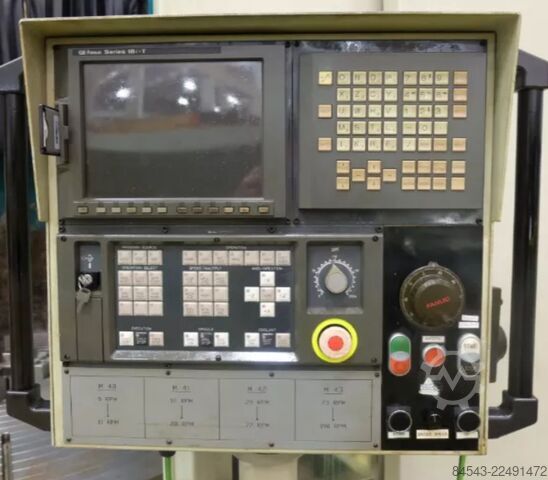

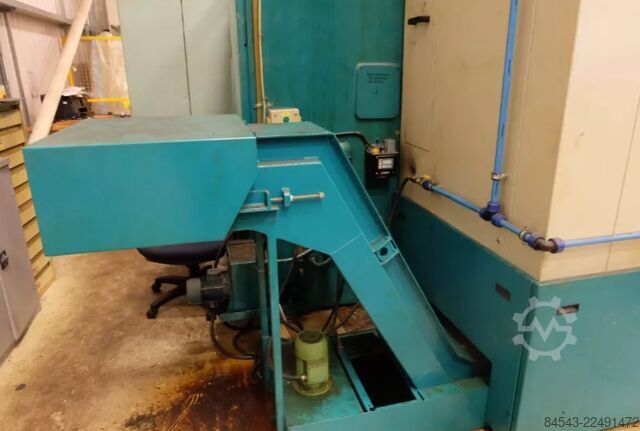

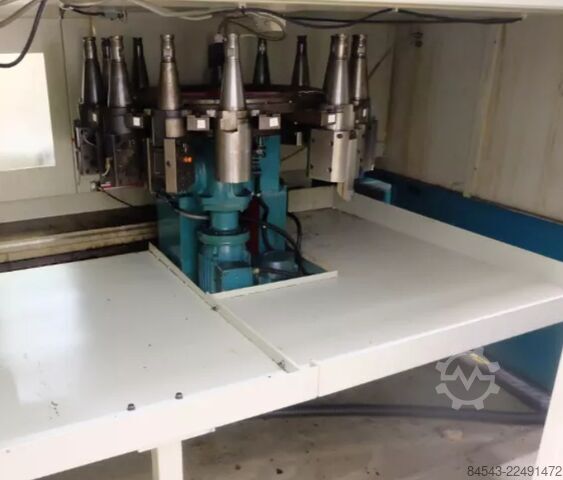

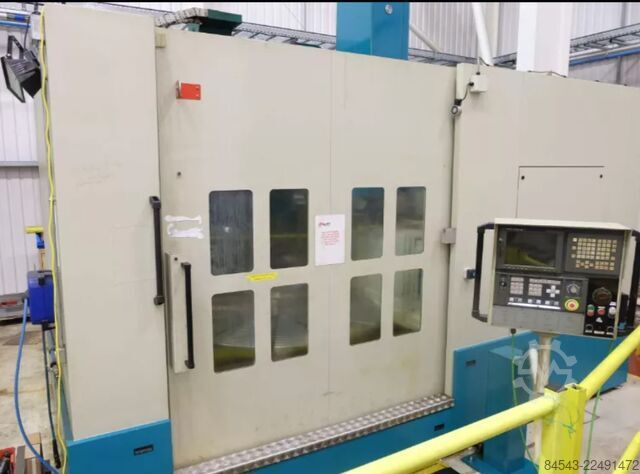

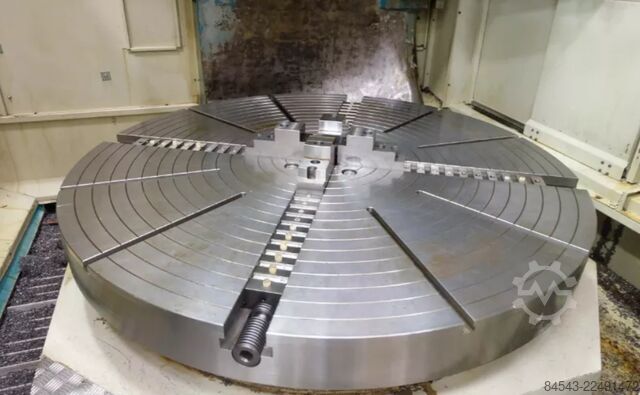

Condition: excellent (used), Webster & Bennett 72” CNC Elevating Rail Vertical Turning & Boring Machine Fanuc control Tool changer Table Size 72” Machine swing 84” Bljdpfszrpmusx Abljk Table speed Range 3.8 to 150 rpm. Feed range .156mm to 7.5mm per rev. Max Height under cross slide 48” Max Height under turret 48” Ram Travel 38” Main motor 50hp Fully interlocked guards with swarf conveyor

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 1,750 mm, spindle bore: 104 mm, spindle speed (max.): 1,800 rpm, type of input current: three-phase, Model:Prototurn 555 Swing Over Bed:560mm Distance Between Centres:1750mm Control: Prototrak SLX Spindle Speeds: To 1800 RPM Spindle Bore:104mm With: 300mm 3 Jaw Chuck Fixed Roller Steady Quick Change Toolpost Toolpost Holders Dimensions: 3940 x 2250 x 1910mm high Bledpfx Ajzrnkreblek Weight: 4100 Kgs

Condition: like new (used), Year of construction: 2024, operating hours: 50 h, functionality: fully functional, total height: 2,290 mm, total length: 5,760 mm, total width: 4,440 mm, overall weight: 5,760 kg, 2024 HAAS ST-35 CNC LATHE – ONLY 50 HOURS – LIKE NEW – FULLY EQUIPPED 2024 HAAS ST-35 CNC Turning Center in outstanding condition with only 50 operating hours. The machine was purchased for a specific production project and has seen very limited use. It is in excellent mechanical and cosmetic condition and is ready for immediate production. Main Features Programmable Tailstock Chip Conveyor High Pressure Coolant Automatic Tool Presetter (ATP) Haas Next Generation Control (NGC) Ethernet & USB Connectivity Touch Screen Control Work Light Complete documentation The machine has always been operated in a clean industrial environment and maintained according to Haas recommendations. The machine can be inspected under power in Portugal. Additional photos, videos and technical information are available upon request. Price: €90,000 + VAT Bsdpfjzrhinjx Abljlk

Condition: used, Harrison Alpha 1350XS CNC Toolroom Lathe (2010) Swing Over Bed 350 mm Swing Over Cross Slide 196 mm Swing in Gap 535 mm Distance Between Centres 650 mm Maximum Turning Diameter 350 mm Spindle Speed Range 1 – 3,500 rpm Fanuc Oi-TD CNC control Harrison Alpha conversational programming Fanuc Manual Guide i Full ISO G-code programming capability 2-axis CNC control (X and Z) Bljdpfxozq Ddxe Ablok Electronic handwheel operation Machine Weight Approx. 1,800 kg Machine Dimensions (L × W × H) 2,400 × 1,700 × 1,500 mm

Condition: used, Craven Double-Column Vertical Boring & Turning Mill (VTL) Table Diameter: 9 ft / 2,743 mm Maximum Swing: 9 ft 6 in / 2,895 mm Bjdpfx Ajzq Dc Ueblelk Maximum Machining Height: 6 ft 6 in / 2,000 mm (Table top to underside of crossrail) Maximum Workpiece Weight: Up to 15,000 kg (Approx. 15 Tons) Table Speed Range: 1 to 50 RPM Ram Travel (Vertical Z-Axis): Up to 1,000 mm

Condition: like new (used), 2024 Star SP-23 CNC Sliding Head Lathe – Low Hours, High Specification, Immediate Availability Swiss CNC Ltd are pleased to offer two exceptional 2024 Star SP-23 CNC Sliding Head Lathes, both presented in excellent condition with low operating hours. Designed for manufacturers demanding uncompromising precision, high productivity and long-term reliability, the SP-23 is one of the most capable 23mm sliding head machines available today. Each machine is fully equipped for immediate production and supplied with a comprehensive automation package including an FMB Turbo 3-38 magazine bar feeder, LNS MH500 swarf conveyor, Filtermist oil mist extraction and FireTrace automatic fire suppression system. Machine Specification The Star SP-23 features a highly capable 7-axis configuration, providing exceptional flexibility for complex component manufacture. Axis Configuration * Main Spindle (Headstock): Z1 / C1 * Main Working Platen: X1 / Y1 * Sub Spindle: X2 / Z2 / C2 Machining Capacity * Maximum machining diameter: Ø23mm * Headstock stroke: 205mm (50mm Non-Guide Bush mode) * Bar feeder capacity: 4,280mm The machine offers the flexibility to run both guide bush and non-guide bush applications, making it ideal for both long, slender components and shorter, more economical parts. Main Spindle Performance The main spindle delivers outstanding productivity with: * Maximum spindle speed: 10,000rpm * 3.7kW spindle motor Tooling configuration includes: * 8 turning tool positions (12mm square) * 5 drilling sleeve holders accepting Ø22mm sleeves (ER16) * 2 fixed + 5 modular driven tool stations * Driven tooling speed up to 8,000rpm The high-frequency driven spindles provide excellent performance for milling, drilling, cross drilling and tapping operations, reducing cycle times while maintaining exceptional surface finish and accuracy. Sub Spindle Capability The fully programmable sub spindle provides efficient back-working operations and complete part machining in a single cycle. * Maximum chucking diameter: Ø23mm * Maximum spindle speed: 10,000rpm * 2.2kW spindle motor Back-working tooling includes: * 4 back-working platen positions * ER20 drill sleeve capacity * 4 driven tool positions (ER16) * Driven tooling speed up to 8,000rpm This configuration allows complex second-operation machining without secondary handling, improving productivity and part accuracy. Included Equipment Each machine is supplied with: * FMB Turbo 3-38 Magazine Bar Feeder * LNS MH500 Swarf Conveyor * Filtermist Oil Mist Extraction * FireTrace Automatic Fire Suppression * High Frequency Driven Spindles Ideal Applications The Star SP-23 is perfectly suited to high-volume production across a wide range of industries including: * Medical * Aerospace * Automotive * Hydraulics * Electronics * Precision Engineering * Motorsport Available Now * 2 Machines Available * 2024 Model Year * Excellent Condition * Low Hours * Immediate delivery available Installation, commissioning, operator training and ongoing technical support are available through Swiss CNC Ltd. For further information, photographs or to arrange a viewing, please contact Swiss CNC Ltd. Bedpfxszqvhve Ablelk

Condition: good (used), Year of construction: 2010, 400mm max machining diameter, 640mm max cutting length, 685mm swing, 12 Station Turret, Fanuc 32i Control, spindle motor power 25kW, 77mm diameter bar cap, 3 jaw chuck, swarf conveyor, tool presetter, coolant, Blsdpfszqr N Aox Ablsk

Condition: used, Antares Vision AV6630.0 PSA Mini Linear for Case Bodpfx Aboznw Tnelelk Unit was removed from the stores of "blue chip" pharma company in Ireland. Very good condition

Condition: good (used), Year of construction: 2013, 480mm swing over bed, 257mm Swing over the Cross-slide, 1250mm between centres, 80mm spindle bore, 25-2500rpm spindle, Bledpfezqr Hnox Ablok 7.5kW Spindle Motor, coolant, Prototrak SLX Control, 3 jaw chuck, QCTP & holders, tailstock.

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS TURNING PERFORMANCE Maximum turning height: 445 mm Turning diameter over bed: 890 mm Turning diameter over carriage: 490 mm Turning diameter in removable bed: 1,060 mm Distance between centers: 3,000 mm Bed width: 700 mm Maximum workpiece weight: 5,000 kg SPINDLE Spindle bore: 155 mm Spindle speed: 3.7–1,000 min⁻¹ CONTROL Control type: Conventional Digital position display: Fagor MACHINE DETAILS Year of manufacture: 2013 Serial number: 40,032 Connected power: 30 kW Overall length: 5,100 mm Overall width: 1,800 mm Overall height: 1,950 mm Machine weight: 7,500 kg CE marking: Present Documentation: Present EQUIPMENT Three-jaw chuck Quick-change tool holder Bedpfx Aezrmrbjblelk Fixed steady rest Digital position display Fagor Removable bed

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, TECHNICAL DETAILS Turning diameter over bed: 500 mm Turning diameter over slide: 290 mm Center height: 250 mm Distance between centers: 1,500 mm Bed width: 365 mm Spindle bore: 70 mm Spindle speed: 2–2,800 min⁻¹ Control system: Teach-in MACHINE DETAILS Year of manufacture: 2001 Connected power: 15 kW Overall length: 3,700 mm Overall width: 1,650 mm Overall height: 190 mm (?) Shipping dimensions (L × W × H): 3,700 × 1,650 × 190 mm (?) Net weight: 3,300 kg Shipping weight: 3,300 kg Shipping packages: 1 piece Color: White Serial number: 291/01 Documentation available: Yes Blsdpezrmq Dsfx Ablek CE marking present: Yes CE certificate available: No

Condition: excellent (used), axle configuration: 2 axles, permissible axle load (axle 1): 9,000 kg, permissible axle load (axle 2): 9,000 kg, first registration: 10/2019, total width: 2,600 mm, suspension: air, tire size: 435/50 R19,5, Year of construction: 2019, Equipment: ABS, = Additional Options and Accessories = - Air suspension - Disc brakes = Notes = Bjdpfx Aezrmyxjbljlk TRANSPORT TO ANTWERP: 590 EUR Refrigeration unit brand: Frigoblock = Further Information = Axle configuration Tire size: 435/50 R19.5 Brakes: Disc brakes Suspension: Air suspension Rear axle 1: Max. axle load: 9000 kg Rear axle 2: Max. axle load: 9000 kg Weights Unladen weight: 7,650 kg Payload: 22,350 kg GVW: 30,000 kg Functional Body brand: FRIGOBLOCK Extendable body: Yes Maintenance, history, and condition APK (technical inspection): valid until 11/2026 Technical condition: very good Optical condition: very good Identification License plate: OS-37-BY

Condition: used, Year of construction: 2003, infeed unit for double grooving machine equipped with: multiple feed belts, high-speed reference rollers, infeed unit for double tenoning grooving machine Blodpeycxnwjfx Abljk

Condition: used, Year of construction: 1983, total length: 1,200 mm, total width: 800 mm, total height: 1,400 mm, Colour: Green Empty weight: 500 kg - Year: 1983 Bsdpfszrhiuex Ablolk - Documentation available: No - CE certificate present: No - Serial number: 83585 - Drive system: Conventional - Power [kW]: 2.5 - Swing over bed [mm]: 80 - Distance between centres [mm]: 50 - Bed width [mm]: 120 - Max. spindle speed [rpm]: 1000 - Transport dimensions: 1200mm x 800mm x 1400mm (l x w x h) - Transport weight [kg]: 500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: reconditioned (used), One-off special price: PARAT quick-change tool holders offer high positioning accuracy and repeatability. These turning tool holders are very stable and have low vibration. Turning lathe tool holder, basic size = "WD" Holder for turning tools max. height: 40mm - 45mm Bljdpfshtvqpox Ablsk Manufacturer: PARAT, AXA Length: approx. 150mm Images: 1801_01_01 (1 piece in stock) Tool holder WD40 = 40x150mm DHL package shipping within Germany: €9.00

Condition: good (used), Year of construction: 2000, functionality: fully functional, turning diameter over cross slide: 210 mm, turning length: 1,000 mm, turning diameter: 330 mm, spindle bore: 40 mm, spindle speed (max.): 3,500 rpm, spindle motor power: 7 W, Equipment: documentation/manual, Year of manufacture: 2000 Turning length: 1000 mm Swing diameter over bed: 330 mm Swing diameter over cross slide: 210 mm Distance between centres: 1000 mm Control type: FANUC Spindle nose: Camlock D1-4 Bjdpfx Aexd Aigeblelk Spindle bore: 40 mm Max. spindle speed: 3,500 rpm Spindle motor power: 7.5 kW Dimensions (L x W x H): 2100.0 × 1200.0 × 1600.0 mm Weight: 1200 kg

Condition: ready for operation (used), Year of construction: 2014, operating hours: 4,416 h, functionality: fully functional, turning diameter over cross slide: 500 mm, turning length: 630 mm, turning diameter: 350 mm, spindle bore: 65 mm, spindle speed (max.): 3,500 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 660 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 3 m/min, rotational speed (max.): 3,500 rpm, total height: 1,720 mm, total length: 2,870 mm, total width: 1,675 mm, overall weight: 4,500 kg, chuck outer diameter: 260 mm, spindle nose: A2-6, Equipment: documentation/manual, rotational speed infinitely variable, The Hwacheon Hi-Tech 200BL is a robust CNC lathe that stands out in practice for its strikingly simple operation. The machine features an intuitive design and predictable performance, making setup and operation feel quickly familiar. Bljdpoyvqw Sefx Abljk A major advantage is the configuration with only an X and Z axis. The lack of additional axes and complex functions keeps the operation clear and efficient. This HWACHEON HI-TECH 200BL machine is standard equipped with: - Chip conveyor + collection bin. - Schunk 3-jaw chuck (ROTA NC Plus 260-86) including various sets of top jaws. - Original HWACHEON and FANUC documentation. Weight & dimensions: - 4,500 kg - approx. 2870 x 1675 x 1720 mm (LxWxH)

Condition: excellent (used), functionality: fully functional, spindle bore: 40 mm, turning length: 1,016 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 67 rpm, Colchester Master 2500 40" between centres Spindle speeds 30-2500rpm Imperial dials 2 axis DRO Coolant pump and system Morse taper 3 tailstock Spindle bore 40mm Quick change tool post Comes with 4 jaw 10" 3 jaw with reverse jaws 8" 12" face plate Bjdpfx Abjzphivololk Drive dog plate 4 x quick change tool holders

Condition: excellent (used), Year of construction: 2009, These very good, used universal lathes come from a training center and are being sold due to restructuring. There are 3 identical lathes available. Center height: 180 mm Distance between centers: 1000 mm Swinging diameter over bed: 360 mm Swinging diameter over cross slide: 250 mm Bed width: 190 mm Spindle bore: 42 mm Spindle mounting according to DIN 55027: Size 5 Speed range, 16 steps: 33 – 2000 rpm Feeds, 13 longitudinal: 0.03 – 0.4 mm/rev Likewise, 13 cross: 0.01 – 0.13 mm/rev Bedeziuybopfx Ablolk 27 metric threads: 0.2 – 7 mm 36 Whitworth threads: 4 – 72 threads/inch 18 module threads: 0.3 – 3.5 module 21 diametral pitch threads: 8 – 44 pitch Tailstock mounting: MK 3 Drive power: 2.25 / 3.75 kW Machine dimensions L x W x H: 2000 x 1000 x 1550 mm Weight: 1100 kg Accessories / Special features: • 3-axis digital display RSF • 3-jaw chuck, diameter 200 mm • Quick-change tool holder system “Multifix”, size B • Chuck guard, foldable, electrically secured • Large chip guard • Coolant system • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany
