Used Erlo Column Drilling Machine With Gear Drive for sale (83,679)

Year of construction: 1970, condition: ready for operation (used), Box column drilling machine Make ALZMETALL Type:AB4 HST Year 1970 Djdpjmp Tp Hefx Akmoku with coolant device . drilling capacity in steel max : 40 mm spindle mounting : MK4 spindle speed : 80-710 rpm feeds : 0.09 - 0.16 -0.28 mm/rev table size : 600X460 mm Machine is ready for use .

Condition: as good as new (ex-display), Year of construction: 2026, OPTIdrill D 26PRO - Pillar drilling machine Dkjdpsdqzbnofx Akmsu Bench and pillar drilling machine with V-belt drive User-friendly safety switch according to IP 54 with undervoltage release and separate emergency stop button 400-volt models with right/left rotation Drilling depth stop Precisely manufactured drilling table with diagonally running T-slots Height adjustment of the drilling table via rack and pinion Drilling table can be tilted ± 45° and rotated 360° V-belt cover with safety switch Aluminum die-cast quill lever in one piece with soft-grip handles Industrial motor Precision spindle bore Machine operation including safety electricals in 24 V DC Guaranteed run-out accuracy

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle Dkodpfx Aortrzdskmju (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: good (used), Mikron WF31D Precision Milling and Drilling Machine Machine with chip and splash guard enclosure Equipped with a Heidenhain TNC355 control system Technical Specifications The WF 31 D is a precision milling and drilling machine for series production and CNC training. Drive via an automatically switchable stepped gearbox and Poly-V belt. Vertical spindle can be extended by 90 mm; conversion from vertical to horizontal machining is possible. Ball screws with DC drives enable simultaneous feed movements. Dsdpswiucfjfx Akmjku Guides are protected against dust, chips and coolant. Technical Data Manufacturer: Mikron Type WF31D Control system: Heidenhain TNC 355 Longitudinal movement (X): 560 mm Transverse movement (Y): 500 mm Vertical movement (Z): 400 mm Drive power: 3.3/4.0 kW Speed range: 40-4000 rpm Feed rate: 2-3000 mm/min Rapid traverse rate X/Y: 6000 mm/min, Z: 5000 mm/min Electrical Equipment Total installed rated power: 10.0 kW Installed useful power: 7.3 kW Operating voltage: 3 x 380 V - 50/60 Hz Protection class: IP 54 Max. permissible ambient temperature: +35 °C Relative humidity: 75 %. Dimensions and Weights Width: 2450 mm Length: 2800 mm Height: 2000 mm Net weight of the machine: approx. 2570 kg. Heidenhain TNC355 Operating Manual Heidenhain TNC355 Programming Examples Heidenhain TNC 355 Service Manual More items - new and used - can be found in our shop! International shipping costs available upon request!

Year of construction: 1985, condition: good (used), Offer 22428 Technical data: - Drilling capacity in steel ST 60: 18 mm - Drill spindle mounting: MK 2 - Drill spindle stroke: 120 mm - 10 drill spindle speeds: 90 - 1450 rpm - Overhang: 280 mm - Table with 2 T-slots: 350 x 400 mm - Max. distance table - drill spindle: 410 mm - Drilling machine with height adjustment via rack and pinion with hand crank - Lighting - Drive: 400 V / 1.5 kW - Table base - Space requirement: approx. W 500 x H 2000 x D 850 mm Dsdeimbmcspfx Akmsku - Weight: approx. 350 kg - Includes: - Machine vise - Quick-change drill chuck - 10 pcs. HSS drill bits 8 - 20 mm

Year of construction: 2017, condition: excellent (used), REF: MM6476 1 x 2017 Packaging Automation Ltd Eclipse SL4 inline heat-sealing machine supplied with 1 x Packaging Automatic Ltd Eclipse C1 automated chain-and-peg conveyor system, 2 x interchangeable sets of tooling and some spare parts. Previously used to heat seal punnets of cauliflower and cauliflower/broccoli mix from multi-head weigher. Both machines on height adjustable feet. The Eclipse SL4 is a fully automatic inline tray-sealing machine designed for high-throughput food packaging applications. Suitable for sealing a wide range of pre-formed trays, the machine is ideal for use within the meat, poultry, seafood, ready meal, fresh produce, bakery, and convenience food sectors. The automated conveyor system provides continuous product handling, helping to improve production efficiency and throughput. Specification: Model of inline heat sealer - Eclipse SL4. Serial number - EC34-MC-00100. Model of indexing inline conveyor – Eclipse C1. Date of manufacture - 2017. Tooling - 2 x sets. Set 1: 4 x 1 format with arms. For punnets (double section) measuring 261mm L x 166mm W x 55mm D. Set 2: 4 x 1 format with arms (single punnet - in machine) measuring 177mm L x 140mm W x 55mm D. Eclipse C1 infeed conveyor belt (modular plastic belt section) - 300mm wide. Outfeed conveyor belt - 290mm wide, blue rubber. System footprint: Eclipse C1 indexing conveyor footprint - 3870mm L x 950mm W x 1050mm H. Dkedpfx Akezrg T Eemju Eclipse SL4 inline sealer footprint - 3230mm L x 1050mm W x 2050mm H. Condition – Very good. This system was purchased new and run for approximately 6 months per year. Supplied with various spare parts, including cutters for both sets of punnets, spare belts, heater pads, etc. *Please note* - None of the following equipment pictured is included in the sale: multi-head chutes with sensors feeding the C1 infeed conveyor AND thermal transfer coder mounted on Eclipse SL4 inline sealer.

Condition: used, Year of construction: 2021, Drilling capacity in St 60 55 mm threading in St 60 M 30 M 36 Short spindle MK 4 spindle stroke 140 mm throat 300 mm column diameter 145 mm Machine table - usable table surface 615x430 mm T-Slots Amount - Width - Distance 2x14x224 mm distance spindle - column min./max. 150/735 mm feed 0,1 + 0,3 mm/U Djdpfx Akez I Ub Homsku 0 stufenlos Spindle Speed 70-2.400 U/min. engine 3,0 kW machine weight ab. 380 kg Standard equipment: - 7" TFT LCD display with touch function: * Manual input of spindle speed set value * Actual speed display * Integrated drilling depth display with touch zero point transfer * Virtual drilling depth scale in the display * Machine status indicators and warnings on the display * Service information * Selectable operating language: DE/EN/FR/ES/IT/NL/RU - Thread cutting device, for thread cutting with stop, max. 6 threads/min (thread cutting capacity depending on spindle speed), thread depth adjustable via depth stop and on the TFT LCD display (4 tools) - Infinitely variable speed adjustment via adjustment lever - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - anticlockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Clockwise and counter-clockwise rotation via contactor control - Control voltage 24 V, protection class IP 54 - Paint finish: DD textured paint signal white RAL 9003, PANTONE 4545c, black Item 20.5 Foot switch in addition to the thread cutting device, for switching the direction of spindle rotation in the process. direction of rotation during the process Item 25. Coolant unit B, consisting of: separate container (33 l), pump with motor protection switch, complete armature motor protection switch, complete fitting Item 37.5 Technology calculator in the display The technology calculator guides you through the cutting task Determination of the cutting data using the following parameters: - Manufacturing process - Tool diameter - Cutting speed - Material table - Transfer function of the spindle speed as set value

Condition: new, bore capacity in steel (diameter) 14 /15 mm throat 180 mm bore stroke 70 mm turning speeds 420 - 2100 U/min 250 x 220 mm distance drilling head - clamping area max. 380 mm total power requirement 0,5/1,0 / 400 kW / Volt column diameter 65 mm tool taper MK 2 weight of the machine ca. 0,08 t dimensions 0,4 x 0,5 x 0,9 m Table Drilling Machine with: Djdpfxefg U Tge Akmsku variable feed Tapping function. depth display Coolant system Belt-drive spindle protection machine light

Condition: excellent (used), functionality: fully functional, Year of construction: 2014, Operating hours: approx. 22,800 h Laser on: approx. 40,100 h Voltage: 400 V Frequency: 50 Hz Dkodpfxsyyygko Akmju Power: 3,200 W

Year of construction: 1965, condition: used, Drilling diameter 30 mm total power requirement 0,74 kW Machine weight approx. 0.35 t drilling capacity in steel (diameter) 30 mm throat 300 mm drilling stroke 120 mm mounting MK 3 table surface 335 x 280 mm groove width 14 mm table adjustable in height 510 mm distance spindle/table max. 120 - 630 mm column base area 380 x 400 mm distance spindle / base plate 1160 mm Speed range - drilling 200 - 2500 rpm speed steps working spindle 4 Dkodpfxom Sg Tbe Akmju column diameter 100 mm machined base plate: Yes table rotation approx. 180 ° space requirement approx. 0,9 x 0,4 x 1,9 m Control conventional

Condition: refurbished (used), Year of construction: 2027, functionality: fully functional, position of the milling head: Schwenkbar (45°), table diameter: 4,000 mm, total length: 13,300 mm, gear diameter: 5,000 mm, total height: 5,700 mm, total width: 7,500 mm, input frequency: 50 Hz, workpiece diameter (max.): 5,000 mm, type of input current: three-phase, milling length: 600 mm, spindle speed (max.): 125 rpm, spindle speed (min.): 10 rpm, travel distance X-axis: 2,750 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 1,750 mm, overall weight: 115,000 kg, distance table to spindle center: 3,300 mm, controller manufacturer: Siemens Sinumerik ONE, drive type: Sinamics S120, control type: CNC control, Equipment: documentation/manual, The ZFWZ 5000 originates from Modul's Chemnitz gear machining division and is completely overhauled and delivered with a Siemens Sinumerik ONE control system by Serwema Retrofit Solutions, the company that houses the Modul drawing archive. Proven kinematics, new electrical system, new drives, new safety technology: you get the performance of a new machine at a fraction of the price and with a delivery time of twelve months. The machine mills external gears, both straight-toothed and helical, up to a module of 40 in hobbing and up to a module of 50 in single-indexing. With the internal milling attachment, internal gears are produced for gear rings of large roller bearings, rotary couplings, and planetary hollow gears, as used in wind power, mining, crane, and shipbuilding technology. Workpieces up to 5000 mm in diameter can be accommodated on the 4000 mm table, the milling head pivots by ±45°, and the 82 kW drive power at the milling head allows for roughing with high chip volume as well as finishing with precision. Technical data: max. workpiece diameter 5000 mm, table diameter 4000 mm, distance from milling spindle axis to table axis 300–1800 mm, distance from milling spindle axis to table surface 550–3300 mm, max. milling cutter diameter 500 mm, max. milling cutter length 600 mm, tangential travel 600 mm, milling cutter speed 10–125 rpm, drive power of milling head 82 kW, swivel angle ±45°. Installation dimensions approx. 13.3 × 7.5 × 5.7 m, weight approx. 115 t. Dksdpfx Aoz Etmpokmsu The machine is delivered with a new Siemens Sinumerik ONE control system and Sinamics S120 drives, the latest Siemens generation with full availability of spare parts and support, in an air-conditioned switch cabinet of our own manufacture. The user-friendly interface makes setup and programming possible without in-depth G-code knowledge. The geometry acceptance is carried out according to the manufacturer's standard or DIN, with a protocol, jointly with you in Chemnitz. The scope of delivery also includes a machine safety fence with state-of-the-art safety technology, a new paint finish in RAL 5015/7035, a magnetic chip conveyor, circulation and loss lubrication, a hydraulic unit, a coolant system, and the operating manual.

Condition: good (used), Code: 0462 Dsdpfezp Exzsx Akmeku Brand: SERRMAC Model: V 22 - CE Standard Pillar drill with swivel table for machine shops, workshops, carpentry shops, and other applications - CE Standard Technical data: Sturdy construction Drilling capacity in steel diameter 22 mm Spindle taper cm2 Spindle stroke 90 mm Column diameter 98 mm Distance from column to spindle center 201 mm Table 350 x 250 mm Spindle speed 255/380/420/560/630/660/950/990/1090/2380/2590/3850 rpm Motor power 0,55 Kw Overall dimensions mm 400 x 750 x 1700 h Weight kg 170

Condition: ready for operation (used), functionality: fully functional, ARBOGA UM 3008 / Drilling and Milling Machine -Spindle speeds / 8 stages / 105 - 3020 rpm -Gear / Gear head / Swiveling and tilting -Tool holder MK 3 Dksdpfoz Hy Hrsx Akmsu -Drilling capacity / Steel max. 30mm -Drilling depth / Quill stroke approx. 130mm -Max. distance - Spindle / Table approx. 600mm -Cross table 585x245mm, adjustable via crank Dimensions: L x W x H 0.9 x 0.8 x 1.9 meters / Weight approx. 600 kg Errors and omissions excepted.

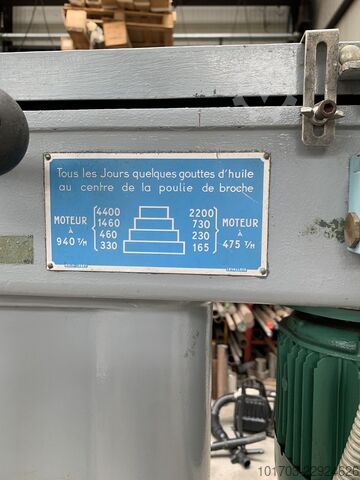

Condition: used, Column Drilling Machine PRECIS Ø 23 mm Cone: CM2 Maxi diameter: Ø 23 mm Rotation: from 165 to 4400 RPM Table size: 390 x 190 mm Spindle travel: 100 mm Dkedez Nxmwepfx Akmou Column diameter: Ø 120 mm Throat depth: 240 mm 2 speed motor Mini chuck/table height: 100 mm Maxi chuck/table height: 350 mm Manual descent Manual hydraulic lifting of the table Voltage: 380 V Width: 700 mm Depth: 1000 mm Total height: 1800 mm Weight: approx 800 kg

Condition: new, Year of construction: 2024, ALZMETALL pillar drilling machine AX 3/S, drilling capacity in steel 40 mm, spindle speeds: 160-2250 rpm, short spindle MK3, spindle stroke: 120 mm, overhang: 293 mm, column diameter: 115 mm, machine table usable support surface: 514 x 360 mm, with T-slots 2 x 14 mm x 224 mm, distance spindle-table min./max. 117/701 mm, machine table height adjustment via hand crank, machine height without options: 1840 mm, net weight: 260 kg. Standard equipment: Main switch with locking mechanism Dkjdpoz E Sqysfx Akmju Motor with thermal protection contact Mushroom push button (latching) for EMERGENCY STOP Speed adjustment, stepless Spindle guard with electrical protection Main switch Right and left rotation Protection class IP 54 Motor insulation class "F" (155°) Paint finish: DD structural paint signal white RAL 9003, PANTONE 7545c, black including the following options: LED machine light, item no. 12. Digital drilling depth display Zero point setting (drilling start) 5-digit LED display, character height 13 mm, item no. 37.1 Delivery time: ex stock Waiblingen Beinstein The machine can be inspected at our premises by appointment.

Condition: new, bore capacity in steel 30 mm threading cutting capacity: M20 throat 260 mm bore stroke 125 mm spindle taper MK 3 feed range - spindle 0 mm/U spindle turning speed range 80 - 1440 / 180 -3200 U/min transmission ratio 2 Stufen column diameter 110 mm table surface area 500 x 365 mm Dkodpfx Akjfg U Tnomou total power requirement 0,8 / 1,4 kW weight of the machine ca. 0,27 t dimensions of the machine ca. 0,4 x 1,2 x 1,9 m Equipment: - Gears made of hardened and ground steel - Front speed selector lever - Gear lubrication by automatic oil pump - Integrated coolant device - Machine lamp - Rotatable and tiltable table - Automatic feed with electromagnetic clutch - Handwheel for manual fine feed - automatic tool ejector - Integrated electrical controls in the drill head - Pushbutton for EMERGENCY STOP - Switch for right / left rotation - Height-adjustable chip protection hood with microswitch - CE mark

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Soraluce model FL8000 high performance travelling column, floor type CNC milling machine TRAVEL (X) 7,500 mm TRAVEL (Y) 1,400 mm TRAVEL (Z) 1,000 mm RAPID TRAVERSE (X,Y,Z) 25,000 mm/min WORKING FEED RANGE (X,Y,Z) 1 – 10,000 mm/min ACCELERATION RATE (Instantaneous not maximum) 1 m/sec2 SPINDLE SPEED 20 - 4,000 Rpm SPINDLE TAPER ISO 50 SPINDLE POWER 28 Kw NC15C - HEIDENHAIN iTNC 530 (Flat 15.1" TFT Screen with digital drives). Single processor version. Prepared for a machine of 10 motors (9 CNC axes + spindle motor). Main push button panel with individually operated push buttons for linear axes (X+, X-, Y+, Y-, Z+, Z-) K20 option for the i530M. Independent AC. Heidenhain digital drive servomotor for each axis HEIDENHAIN HR-410 portable electronic handwheel with 5m spiral cable Automatic Indexing head 28Kw, 760Nm, 0.001°x 0.001°, 4000 Rpm. Continuous air and oil mist lubrication system for head gears. Automatic Tool Clamping device – 15,000N. Automatic hydraulic tool releasing device Spindle taper: BT50 Dkedpjw U Tlzjfx Akmou High Torque spindle motor 28kW, 100% ED, digital motor. R10 – ZF gearbox two speed including cooling unit Spindle Speed Range 20 – 4,000Rpm Rapid Feed X-Y-Z axes 25.000mm/min Working Feed range X-Y-Z axes 0 - 10.000mm/min Acceleration rate X- Y -Z axes 1 m/s2 (instantaneous, not maximum) Hydraulic counterbalance system for head/ram assembly X axis driving system by two servomotors, two gearboxes and a double rack & pinion Preloaded ballscrews with double recirculating nuts in Y and Z axes. Automatic centralized lubrication system. Linear Guiding System with recirculating cylindrical rollers in each axis. Automatic centralized lubrication system for the guides. HEIDENHAIN Linear measuring scales in X-Y-Z axes with compressed air purge system - (Precision +/- 0,005mm) H48 – Coolant through the spindle type AD. M3 – Automatic tool changer 40 stations. M6 – Horizontal-vertical tool changing facility. M8 – Motorized tool changing device. Tool changer is driven by a servo motor Hydraulic equipment Front metallic roller blind cover to both upper and lower ram area, together with metallic protection to the lateral side of the column, between the machine table and the rear guideway support, which protects the vertical movement of the ram. CE10 - PROTECTION on the back and both lateral sides of the machine column P20 - Operator's platform fixed to the column and travels together with it in the "X" axis direction. The main operator’s panel is mounted within the operator's platform area for machines without an operator’s pendant and is accessed from the rear of the machine. D7 + D50A - Coolant system with 1000L capacity tank with two pumps providing high and low pressure providing 5 & 12bar and 50L/min flow rate. Paper and Magnetic filtering. E30A – swarf conveyor FL8000 Hinge conveyor belt. Width 350mm PW11B – Pendulum working area system. PM2 x 2 – Machine prepared by Soraluce for the inclusion of two rotary tables. Working area lighting. Electrical cabinet cooling system Electrical cabinet lighting Working methods - According to CE safety regulations Filter to assure electromagnetic compatibility. Protection to both sides of the column with security bumpers Anchoring Bolts Standard Colour - Blue RAL 5005 / Grey RAL 7035 K19 – Two sets of machine documentation (One hard copy, one on CD ROM) Floor plate 8,000 x 1,500 x 300mm

Condition: ready for operation (used), Gillardon GB 40 VE 40-1100 Drilling Machine, Bench Drill Drilling capacity (steel): approx. 40 mm Drilling capacity (cast iron): approx. 50 mm Threading capacity: M27-M33 Tool holder: MK4 Speed range: 60-1600 rpm (stepless) Feed rate range: approx. 0.1; 0.16; 0.25 mm/rev Albrecht drill chuck: 3-16 mm Spindle stroke: 200 mm Overhang: 350 mm Space requirement: 1200 mm x 800 mm x 2100 mm (L x W x H) Dksdpfjz H U Hmex Akmju You are welcome to visit us for an inspection. We would be happy to arrange an affordable shipping service for you! You will receive a proper invoice. For foreign customers, a net invoice can also be issued. A valid VAT identification number is required. Subject to prior sale. Visit our shop and see our other offers. The company names and trademarks mentioned are the property of their respective owners and are used only for identification and description of the products. Deviations in technical data as well as errors in the description of the article may occur and are subject to change.

Condition: new, Year of construction: 2026, functionality: fully functional, power: 3 kW (4.08 HP), input voltage: 400 V, input current: 6 A, input frequency: 50 Hz, type of input current: three-phase, tool diameter: 50 mm, spindle mount: MK 5, drilling depth: 250 mm, height adjustment type: mechanical, actuation type: electric, rotational speed (max.): 1,400 rpm, rotational speed (min.): 31 rpm, total width: 800 mm, total length: 1,100 mm, total height: 2,400 mm, throat depth: 335 mm, table width: 480 mm, table length: 560 mm, overall weight: 1,270 kg, Equipment: CE marking, documentation/manual, Special Offer – 5% Discount Available! Column Drilling Machine MTP Z5150B – New The MTP Z5150B Column Drilling Machine is a professional industrial machine designed for drilling, reaming, countersinking and tapping operations in steel, cast iron, aluminum, brass, bronze and engineering plastics. Its heavy-duty cast iron construction and machine weight of 1270 kg provide outstanding rigidity, stability and machining accuracy, even when using large-diameter tools. Equipped with a 12-speed mechanical gearbox, automatic spindle feeds and a tapping function, the machine allows the operator to select the ideal cutting parameters for different materials and machining operations. The integrated coolant system further improves machining efficiency and tool life. With a spindle speed range of 31.5–1400 rpm, the MTP Z5150B is suitable for both heavy-duty drilling and precision machining. The large T-slot worktable ensures secure workpiece clamping, while the rigid column construction minimizes vibration for accurate and reliable results. Main Features • Heavy-duty cast iron construction • 12-speed mechanical gearbox • Automatic spindle feeds • Tapping function • Integrated coolant system • Adjustable worktable • High machining accuracy • CE certified Standard Equipment • Mechanical gearbox • Automatic spindle feeds • Tapping function • Integrated coolant system • Adjustable worktable • Safety guard • Emergency stop • Technical documentation • CE Declaration of Conformity Technical Specifications • Model: MTP Z5150B • Machine type: Column drilling machine • Maximum drilling capacity: 50 mm • Spindle taper: MT5 • Quill travel: 250 mm • Motor power: 3 kW • Power supply: 400 V / 50 Hz / 3-phase • Spindle speed: 31.5–1400 rpm • Number of spindle speeds: 12 • Automatic feed: 0.056–1.80 mm/rev • Throat depth: 335 mm • Table size: 560 × 480 mm • Machine weight: 1270 kg • Condition: New • CE certified Applications • Drilling • Reaming • Countersinking • Tapping • Metal fabrication • Tool rooms • Maintenance workshops • Manufacturing plants Suitable Materials • Structural steel • Tool steel • Cast iron • Aluminum • Brass • Bronze • Engineering plastics Transport and Delivery The machine is available from stock and ready for immediate dispatch. We provide professional transport throughout Europe using specialized heavy machinery logistics. Every machine is securely loaded, protected during transport, and delivered directly to the customer's premises. We also assist with export documentation and international shipping arrangements. Worldwide shipping is available upon request. About Metal Technics Polska Metal Technics Polska is a manufacturer and distributor of professional metalworking machinery. We supply high-quality machines throughout Europe and provide expert technical advice, spare parts, and comprehensive after-sales support. Dsdpfx Aozcn A Dekmsku Contact us today for pricing, delivery times, machine availability, additional photos, videos, or a personalized quotation.

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, drilling depth: 1,600 mm, feed length X-axis: 3,000 mm, feed length Y-axis: 2,100 mm, feed length Z-axis: 1,500 mm, overall weight: 50,000 kg, feed rate X-axis: 10,000 m/min, feed rate Y-axis: 10,000 m/min, feed rate Z-axis: 10,000 m/min, spindle speed (max.): 4,500 rpm, drill diameter: 40 mm, table length: 2,100 mm, table width: 1,900 mm, CNC Heidenhain iTNC 640 AXES OF MOVEMENT Maximum drilling depth in a single operation (V axis): mm 1,600 Table travel, horizontal movement (X axis): mm 3,000 Vertical movement (Y axis): mm 2,100 Column approach movement (milling) (Z axis): mm 1,500 Drilling slide tilting (resolution 0.001°) (A axis): +30° / -15° Table rotation (resolution 0.001°) (B axis): 360° Max axis feed rate: mm/min 10,000 DEEP HOLE DRILLING AND MILLING SPINDLE – ISO 50 Solid drilling capacity: mm 5 – 25 Maximum drilling diameter: mm 40 Adjustable spindle speed: rpm 1 – 4,500 Spindle power S1: kW 17 Spindle torque: Nm 324 Dedpfxsywnr Ns Akmjku Standard drilling tool holder: mm Ø 25 x 70 Maximum internal spindle pressure: bar 120 Taper type: ISO 50 DIN 69871/A Coolant system: Yes ROTARY TABLE Rotary table dimensions: mm 1,900 x 2,100 Table rotation (resolution 0.001°) (B axis): 360° Table load capacity in rotation: kg 20,000 T-slots: mm 22 OIL SYSTEM Hydraulic pump motor power: kW 4 – 7.5 Self-regulated oil pressure: bar 15 – 120 Self-regulated oil flow rate: l/min 5 – 80 Oil tank capacity: L 800 – 1,000 Cooled oil temperature: 25 – 32 °C Filtration grade: micron 16 MACHINE DIMENSIONS AND WEIGHT Width x Length x Height: mm 7,000 x 7,900 x4,700h Machine weight: kg 50,000 DRILLING CAPABILITIES WITH GUN DRILLS Maximum depth: mm 1,600 Maximum rotation speed: rpm 4,500 Minimum drilling diameter: mm 6 Maximum drilling diameter: mm 40 THREADING HEAD “IMSASISTEM” WORKING FEATURES Max rotation speed: rpm 4,500 Maximum threading on C40 steel: M36 Machine equipped with: • Remote electronic handwheel Heidenhain • ISO 50 tool changer magazine with 40 positions • Fume extraction system 4,000 m³/hour • Through-spindle air/oil system • M24 threads on table side • Various tools and equipment • Tool rack with assorted gun drills • User and maintenance manual and CE declaration of conformity

Condition: refurbished (used), Year of construction: 2017, BUCK TBFZ 3000 CNC incl. tools and clamping wedges The machine has been comprehensively overhauled and modernized. Conversion to Heidenhain iTNC530 including completely new control cabinet Travel: X-3000 mm, Y-1.500 mm, Z-1500 mm Z1: 500 mm A-axis: +/- 20° Depth of drilling in a single pass Z: 1.500 mm Drill depth by readjusting Z1: 2.000 mm Drilling performance with single-lip internal thread drilling tools: 3-40 mm diameter NC rotary table 360° B-axis: 2.500 x 2.300 mm max. Tischladung: 25.000 kg Internal coolant supply (IKZ): 70/100 bar Spindle drive power at 60%: 20.5 kW Express travel X/Y/Z: 15.000 mm/min Spindle speed: 0-6,000 RPM Control: Heidenhain iTNC530 tool holder: SK50 Space requirements: approx. 8.5 m x 8.5 m x 3.5 m machine weight: approx. 24,000 kg Dsdpfxjz Ntr Io Akmsku max. table load: 25.000 kg

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Features and technical specifications: - Motor: 400 V, 50 Hz, 3-phase, 1.5 kW - Pneumatic single-head drilling machine with 23 spindles - Aluminium ruler with 4 stops (2 profiles on the right/left, 1500 mm each) - with quick-action chuck - 2 patented, accident-proof pressure clamping cylinders - Connection for extraction system in accordance with EC standards - Aluminium drilling beam, spindle centre distance 32 mm - Work table made of MDF and cast iron - Patented spiral system for fine adjustment of the drilling depth - Pneumatic drilling head oscillation with Lockable in any position between 0° and 90° - Fold-down side stops with fine adjustment via counters with decimal display - Drilling height adjustment via dial gauges with decimal display Dodpfxozk N S Uj Akmeku - Back stop, travel up to 300 mm - Fixed stops 37 mm for fitting pot-type band drills - Complies with EC standards - Max. drilling width 704 mm - Max. drilling depth 65 mm - Max. workpiece width 960 mm - Max. workpiece length 3000 mm - Max. workpiece thickness 60 mm Availability: at short notice Storage location: 63934 Röllbach

Condition: not inspected (used), Year of construction: 1970, - Drilling diameter: 5-30 mm - Drilling depth: 750 mm Dsdsxzz Hepfx Akmsku - Filter - Pump

Condition: new, Year of construction: 2025, turning diameter over cross slide: 250 mm, turning length: 730 mm, turning diameter: 500 mm, spindle speed (max.): 1,800 rpm, CNC lathe machine CK 6150 with flat bed We offer a new CNC lathe machine model CK6150. We use this machine in our production and you can see it in operation before ordering. The CK 6150 lathe has a flat bed and hardening guides, which ensures a long period of operation of the equipment. The machine is equipped with a CNC system, the GSK CNC system is installed as standard. Optionally, the machine can be equipped with a Fanuc or Siemens CNC system. The machine can have a tool holder for 4-6 or 8 tools, depending on the customer's wishes. Djdpoxdmgvsfx Akmeku It is possible to install a hydraulic chuck on the machine, which will greatly simplify the process of installing parts on it and a hydraulic tailstock. The CK 6150 lathe can be equipped with additional supporting frame for more accurate manufacturing of long parts. Technical specifications: Model CK 6150 x 1000 Maximum workpiece diameter over bed 500 mm Maximum workpiece diameter over support 250 mm Maximum workpiece length 1000 mm Maximum turning length 730 mm Spindle bore diameter 82 mm Spindle speed 150-1800 rpm Engine power 7.5 kW Mechanical chuck (hydraulic optional) Chuck size 250 mm. 4-position tool holder (6 or 8 optional) Maximum tool size for tool holder 25x25 mm Machine weight 2700 kg Machine dimensions 2650×1700×1820 mm We can also supply lathes CK 6140, CK 6150 and CK 6160 with other dimensions of the working part: CK 6140 dimensions of the working part 550/750 mm CK 6150 dimensions of the working part 1000/1500/2000 mm CK 6160 dimensions of the working part 1000/1500/2000 mm CK 6152E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6185E dimensions of the working part 1000/1500/2000/3000/4000 mm CK 61100E dimensions of the working part 1000/1500/2000/3000 mm CK 61125E dimensions of the working part 1000/1500/2000/3000 mm

Condition: used, Year of construction: 1998, Number of spindles in the hole row: 11 Number of horizontal spindles: 3 Pot-band drilling head: yes, Hettich Drill spacing: 32mm Power consumption: 2.2kW Dkodsz I Ivdepfx Akmsu Drilling unit: swiveling
