Used Jinan Senke Cnc Machine Skl-1530F for sale (65,448)

Condition: used, Year of construction: 1994, A Maho 4-axis CNC machining center is offered for sale. X/Y/Z travel: 600mm/500mm/400mm, tool holder: ISO 40, max. spindle speed: 6000rpm, feed rate: 6m/min, rapid traverse: 13m/min, operating hours/power-on hours: approx. 58569h, control: Philips CNC 432. Equipped with through-spindle coolant supply with high-pressure pump, fully enclosed splash guard, automatic tool changer, 2-pallet changer and chip conveyor. The main spindle is defective and has already been removed from the machine. The machine is not operational. Documentation available. An on-site inspection is possible. Dodpfx Aksz Hn S Asmeku

Condition: used, Year of construction: 1992, functionality: unexamined, machine/vehicle number: FBZ-8732, travel distance X-axis: 2,500 mm, type of input current: three-phase, input voltage: 380 V, CNC bed-type milling machine Anayak FBZ-HV-2500 with a swiveling universal milling head, year of manufacture 1992, Fidia control system. Serial no. FBZ-8732, connection 380 V, 50 Hz, 60 A, 40 kW. Dksdez A Uitspfx Akmsu Longitudinal travel X 2,500 mm, bed-type table with continuous T-slots. Equipment: Irudex chip conveyor with chip collection cart, hydraulic unit with hydraulic ring for hydraulic tool release, control panel with keyboard, safety guard with viewing window. Location: Homburg (Saar), Germany. Inspection by appointment. Price on request, net plus VAT, ex works; dismantling and loading by arrangement. All information without guarantee.

Condition: excellent (used), Year of construction: 2021, Table size 3500 x 820 mm, table load 2500 kgs, traverses XYZ 3000 x 800 x 720mm, Rapid federate 50m/min, Spindle power 35Kw, spindle speed 18,000rpm, 30 station ATC, Dkjdpfxez Ha H Ss Akmsu Spindle taper CT40, Mazak Smooth Control, B axis +/- 110 degrees, C axis 0.001 degrees, Through spindle coolant, swarf conveyor.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, X-axis: 650 mm Dkedszapp Hspfx Akmsu Y-axis: 325 mm Z-axis: 350 mm B-axis: 130 degrees C-axis: 360 degrees Spindle speed: 30,000 rpm Spindle interface: HSK 50 Tool changer: 60 positions Control system: Makino Professional 5 Includes hybrid length measuring system Includes measuring probe Includes approximately 60 HSK 50 tool holders (MST + Rego Fix) Spindle has been replaced Ball screws for X and Y axes replaced in 2024 Machine currently has approximately 32,000 spindle hours and is still in active production Available from approximately week 46/2026 An inspection with the machine powered on can be arranged at any time.

Condition: new, Year of construction: 2025, Ref. -No.: 10464 Manufacturer: IGREK Type: 3500 XXL Year of construction: 2025 Type of control: CNC-Steuerung Control: Siemens 840 D / Heidenhain iTNC 640 Djdpfjxc Tr Aex Akmoku Storage location: Istanbul Country of origin: Türkiye X-Travel: 10500 mm Y-Travel: 3500 mm Z-Travel: 1400 mm A-Axis: +/- 115 ° B-Axis: 360 ° Max. Torque: 235 Nm Rapid Traverse X/Y/Z: 30 m / min Drive power spindle: 54 kW Table load max.: 4000 kg Tool Taper: HSK-A100 Spindle Speeds: 12500 RPM Machine length: 16000 mm Machine width: 7400 mm Machine Height: 8500 mm Weight: 195 t Further information: GREK 3500 XXL – Customized precision for large-scale projects The IGREK 3500 XXL is a CNC 5-axis portal milling machine of the latest generation, developed for the high-precision machining of large components. Built in 2024, it is ready for immediate use and equipped with the latest technology to meet the most demanding requirements in heavy industry and mechanical engineering. Key features: Gigantic machining areas: With travel distances of 10,500 mm (X), 3,500 mm (Y) and 1,400 mm (Z), the machine offers extraordinary flexibility for machining large parts. 5-axis simultaneous machining: The A-axis with +/- 115° and the B-axis with 360° guarantee maximum precision and versatility when machining complex workpieces. Powerful spindle: Equipped with a speed of up to 12,500 rpm, a maximum torque of 235 Nm and a drive power of 54 kW – ideal for high-performance machining. Robust and durable: Weighing 195 tons and with a table load of up to 4,000 kg, the machine is designed for heavy-duty machining. Innovative tool holding fixture: The HSK-A100 tool holding fixture enables quick tool changes and increases efficiency. Speed and efficiency: Rapid feed rates of 30 m/min on all axes ensure maximum productivity. Technical data at a glance: Traverse paths: X 10,500 mm / Y 3,500 mm / Z 1,400 mm Spindle power: 54 kW Spindle speed: 12,500 rpm Table load: up to 4,000 kg Machine dimensions (LxWxH): 16,000 x 7,400 x 8,500 mm Weight: 195 tons Additional benefits: The machine is supplied with the advanced Siemens 840D or Heidenhain iTNC 640 control system and offers worldwide warranty and service support from the manufacturer. Choose the IGREK 3500 XXL for precision and efficiency in the machining of large parts. Contact us now for a non-binding offer!

Condition: ready for operation (used), functionality: fully functional, Union table drilling machine BFT 105 Heidenhain TNC 155 Year of manufacture: 1988 Djdpfez Ei Ucjx Akmeku Table load capacity: approx. 4 tons 24 kW spindle: diameter 105 / SK 50 / S2000 Travel distances: 1750 x 1100 x 800

Condition: used, A CNC machining center with T-slot table is offered. Control: HURCO Ultimax with dual-screen console. Equipped with several fixtures mounted on the machine table, coolant system and available HURCO documentation including training documentation for the Ultimax CNC control. Inspection possible by appointment. Dsdpfx Aoz Hzd Sskmoku

Condition: good (used), Year of construction: 2008, functionality: fully functional, Peddinghaus FDB 1000/3 – CNC Plate Drilling & Profiling System– Year 2008 6 metres x 1 metres Capacity. Maximum workpiece width 1000 mm. Maximum workpiece thickness 50 mm. 3 x drilling spindles. Maximum drilling diameter 40 mm. Oxy‐Fuel. Hypertherm Plasma. Kemper Extraction Unit. Dkodpsz Hfbbofx Akmou

Year of construction: 2014, condition: used, X-axis: 2000mm, Y-axis: 1200mm, Z-axis: 1500mm, table surface: 2200x1200mm, number and width of T-slots: 7x22mm, distance between T-slots: 140mm, max. workpiece weight on table: 7.2t, working feed rate: 0-12,000mm/min, rapid traverse: 15m/min, acceleration: 1.5m/s², hydraulic unit power: 5.5kW, pump flow rate: 25l/min, working pressure: 110bar, tank capacity: 180l, cooling unit capacity: 6,100W, compressor power: 2.61kW, length: 5820mm, width: 6723mm, height: 3602mm, weight: 17t, spindle operating hours: 5,000h, with documentation, an on-site inspection is possible. Dkedpfx Akez Ea Rzjmeu

Condition: ready for operation (used), SIP 640, CNC, precision boring machine with Fanuc control. Dkjdpfxez H Nrqj Akmou

Condition: excellent (used), Year of construction: 2003, Sub-spindle, Y-axis, B-axis, C-axis SIEMENS 840D ShopMill Turning diameter max 246mm Turning length -445mm Spindle speeds main & sub-spindle -6'000 rpm Turret head: 12 driven positions B-Axis 440 mm Tool presetting device Tool catching attachement Dkjdpjz Iaqgofx Akmeu Misc. accessories MARCELS MASCHINEN CH

Condition: used, Year of construction: 2019, functionality: fully functional, table length: 8,000 mm, table width: 2,540 mm, overall weight: 8,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 8,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, THERMAL CUTTING) | YEAR 2019 The Ficep Tipo G25LG is a CNC plate processing line for combined drilling, milling, tapping and thermal cutting of steel plates in structural steel fabrication. Built in 2019 - a young machine in its class on the used market. All processes run in a single pass on a rigid double-bridge gantry frame. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The vertical mono drilling unit with automatic tool changer (ISO 40) performs drilling, milling, tapping, centre-punching and countersinking. The Hypertherm XPR300 plasma torch and the integrated oxy-fuel cutting unit handle thermal cutting - from thin sheet to heavy plate. The line is operated via the Ficep Pegaso CNC control. Infeed and outfeed roller conveyors with material transfer (8 m each) ensure continuous material flow. Typical applications: structural steel fabrication, steel trading and plant engineering. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2019 | Serial number: 36098 - Machine type: CNC plate processing line (drilling / milling / thermal cutting) Dedpsu Dw I Eefx Akmoku - Condition: used, refurbished by certified technician - Frame design: double-bridge gantry frame, welded | Machine weight: 8,000 kg - Plate width: max. approx. 2,540 mm, min. 200 mm - Plate thickness: max. 45 mm (plasma cutting), max. 100 mm (drilling) - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Max. drilling diameter: 40 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7,000 rpm | Spindle power: 15 kW - Plasma cutting torch (straight): 1 | Plasma source: Hypertherm XPR300 | 300 A - Oxy-fuel cutting unit: included - CNC control: Ficep Pegaso CNC - Processes: drilling, milling (incl. straight/curved slots, Y/J weld-edge preparation), tapping, centre-punching, countersinking, marking, scribing, straight plasma cutting, oxy-fuel cutting On request (to be confirmed bindingly during inspection): processing length, tool magazine stations, min. plate thickness for drilling, min. drilling diameter, pass line height, longitudinal and cross positioning speeds, connected load and machine dimensions. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2019) - 1 x Ficep Pegaso CNC control - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Plasma cutting torch (straight) | 1 x Hypertherm XPR300 plasma source (300 A) - 1 x Oxy-fuel cutting unit - 1 x Infeed roller conveyor with material transfer (8 m) | 1 x Outfeed roller conveyor (8 m) - 1 x Extraction system for plasma cutting LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Sale exclusively to commercial customers (B2B).

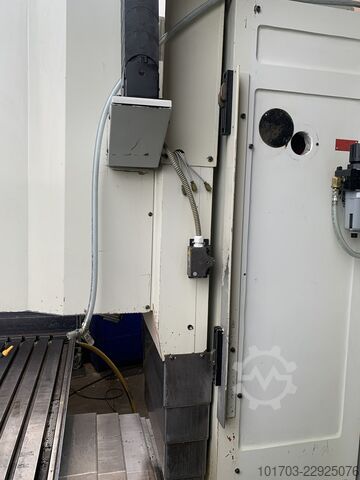

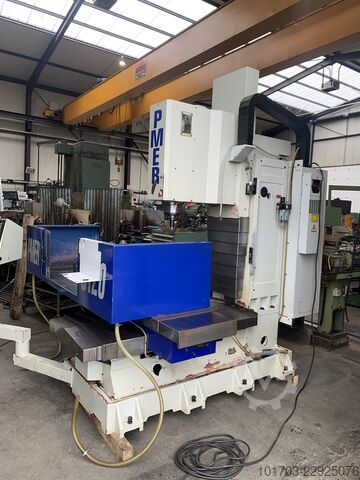

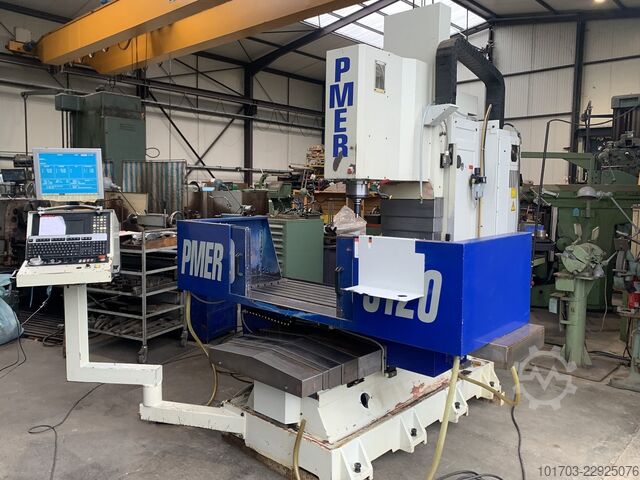

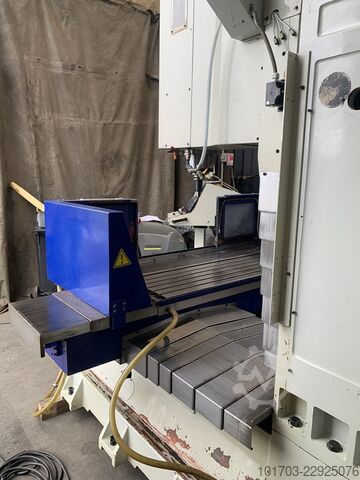

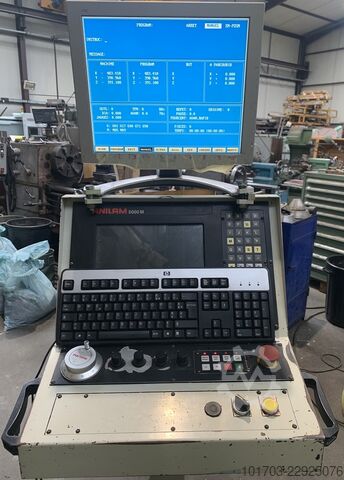

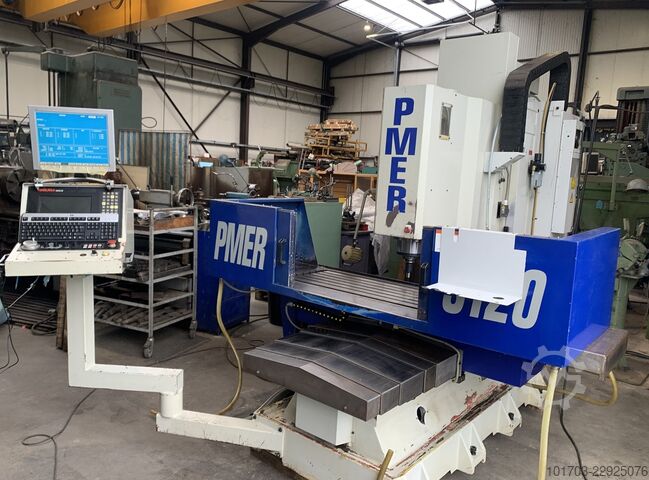

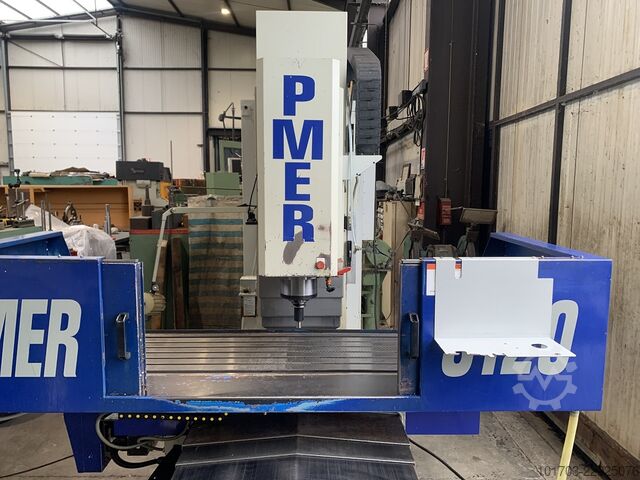

Condition: used, Year of construction: 2002, CNC Milling machine PMER type S120 Travel X: 1200 mm Travel Y: 630 mm Travel Z: 600 mm Dksdpfx Akoz Nx Eysmju Numerical Command ANILAM 5300 (Defective ANILAM screen changed by a PC screen + PC keyboard) Cone: BT 40 Spindle speed: from 50 to 6000 RPM Table size: 1600 x 500 mm Year of construction: 2002 Maxi distance spindle nose/table: 730 mm Mini distance spindle nose/table: 130 mm Diameter of the spindle sheath : Ø 150 mm Pneumatic tool clamp Central lubrication Lubricant pump Voltage: 380 V Width: 2300 mm Depth: 3600 mm Total height: 2600 mm Weight: approx 4,5 T

Condition: used, Year of construction: 2001, A CNC machining center is offered. Control: CNC control with control panel. Equipped with workholding fixture and coolant system. The boards are presumably defective. Inspection possible by prior arrangement. Dsdpfx Asz Hlxtjkmoku

Condition: good (used), Year of construction: 2003, CNC - lathe machine Machine type: DMG CTX 410 V1 Control: Heidenhain CNCPilot 4290 Year: 2003 Working hours: 11.080 h SPECIFICATIONS Max. swing over slide: 365 mm Turningdiameter: 420 mm Bar capacity: 67 mm Max. turning length: 600 mm Spindle speeds: 25 - 5.000 rpm Spindle power: 28 / 21 kW Travel Dodpfx Aksz Dkt Rsmjku X-Axis: 250 mm Z-Axis: 600 mm Tool capacity: 12 Tool: VDI 30 Tailstock Equipment Chip conveyor

Condition: used, Year of construction: 2012, CNC Portal Plasma Cutting Machine Manufacturer: Microstep Type: SPL-P 13501.30 Year of manufacture: 2012 Working area: 3,000 x 13,500 mm 1 plasma torch with Kjellberg HiFocus 161i power source Dodpfx Akoz H I Auemjku Automatic gas console 51026ä

Condition: used, Year of construction: 2013, A versatile and flexible NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc. Programming is extremely simple thanks to the colour graphic touch screen controller using pre-installed electronic macros. As standard the machine is equipped with one milling head that automatically moves for either vertical or horizontal machining. It also has interpolation of the axis. Specification Axis capacity - X 2800mm, Y 180mm, Z 150mm. (2400mm X capacity when optional drilling head fitted). 1 x ER32 collet for milling cutter 16mm max. dia. Max working table dimensions - 3000x618mm X axis positioning speed 35m/min. Dkodpfozzwg Usx Akmou Y axis / Z axis positioning speed 6m/min. Retractable pneumatic positioning stops 2 off - on front of table Adjustable pneumatic workpiece clamps x 3 - mounted on rear of table. Left hand side ref. stop. Front table extension supports x 2 Router motor power 3.3kw. Router motor RPM 0-18,000 rpm. Touch screen controller - Elco Power 1000. Dust extraction outlet x 1 80mm dia, 2 x 100mm dia CE side and rear safety guards with front light curtain. With following options fitted : - Pneumatic tool change ISO 30 - Drilling unit with ER25 collet. - Extended Y axis stroke 400mm - Increased clamping capacity 200mm. Year - 2013 CE Compliant Serial Number - 22170

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Dksdpfx Ajxy Tmnekmju

Condition: used, Year of construction: 2005, Fritz Werner TC630-N CNC 5-axis (3 + 2) horizontal machining centre with Siemens 840D control with Knoll coolant through spindle system, Knoll chip conveyor, Renishaw probe interface, mist extraction unit, chiller, handwheel & manuals Dsdpfx Akez Hzwromeku Rohm Power Chuck & Rohm Collet System On Rotary Table. Axis Travel 'X'=1,000mm, 'Y'=820mm, 'Z'=400mm, 'C'=360°, 'B'=360°. Maximum Spindle Speed 6,000rpm. Spindle Taper SK50. 50 Position ATC.

Condition: good (used), Year of construction: 2009, Ref. -No.: 10662 Manufacturer: STARRAG HECKERT Type: HEC 1250 Athletic Year of construction: 2009 Type of control: CNC Control: Siemens 840D Dsdpfxjz Adt Re Akmjku Storage location: Halberstadt Country of origin: Germany Machine-No.: 221XXX X-Travel: 2200 mm Y-Travel: 1600 mm Z-Travel: 1850 mm Spindle Diameter: 100 mm Max. Tool Weight: 35 kg Max. Tool Length: 800 mm Max. Tool Diameter: 250 mm Clamping Area: 1000 x 1250 mm Tool Piece Magazine With: 60 Pcs./pcs. Max. Torque: 25.000 Nm Turning Speed Range - Stepless: 40000 mm / min Rapid Traverse: 40 m / min Numbers Of Pallets: 2 pallet change time: 47 s Weight Of The Machine Ca.: 26,5 t Position uncertainty P: 0,008 mm Position deviation Pa: 0,006 mm Positional dispersion Ps: 0,005 mm Maximum table rotation: 10 RPM Further information: - Design: Thermally symmetrical column design with optimal chip flow for machining castings. - Applications: Mechanical engineering, energy technology, and the machining of large gearboxes and engine components. - Powerful motor spindle (up to approx. 82 kW, depending on the model) for heavy-duty machining. - The Heckert HEC 1250 Athletic (built in 2009) is a high-performance, modular 4-axis large-scale machine for the precise complete machining of heavy workpieces. The machine can be viewed while powered on by prior arrangement.

Year of construction: 1991, condition: used, Travel X/Y/Z: 850mm/435mm/210mm, vertical head adjustment: approx. 590mm, table dimensions X/Y: approx. 1570mm/500mm, max. table load: 250kg, spindle taper: Fehlmann SF32, max. spindle speed: 7100rpm, spindle power: approx. 5kW, drilling capacity in steel: 30mm, tapping capacity in steel: M20, control: Mach3 with touchscreen PC, weight: approx. 3000kg. The machine was subsequently retrofitted with a Mach3 control. An on-site inspection is possible. Dkodjzz Irbopfx Akmsu

Condition: used, Year of construction: 2016, Working area: X=3300 mm Y=1280 mm Z=150 mm Clearance height Operator terminal: 24" LED colour display Handheld terminal for axis speed control Software: "Woodflash Vacuum pump 90 m³/h/50 Hz or 108 m³/h/60 Hz Milling spindle 12 kW HSK F63 (12,000 rpm) 12-position linear tool changer on the left of the machine frame + pickup station Drilling head DH 16 4H 2S: Vertical 12 spindles Horizontal 4 spindles 2 grooving saws Storage location: Nattheim Dksdsz A Aw Sopfx Akmeu

Condition: good (used), Year of construction: 2020, functionality: fully functional, input voltage: 380 V, type of input current: three-phase, overall weight: 4,500 kg, input frequency: 50 Hz, Equipment: CE marking, documentation/manual, safety light barrier, HYDRA is a high-speed, two-head digital quilting machine, equipped with a fully automatic double-feed system, designed for the furniture, mattress, and home textile industries. It performs all operations: feeding via motorized rollers, quilting, and cutting of the duvet or padding to the desired length. The double-feed system allows quilting of two rolls simultaneously, while also offering motorized width adjustment for single-feed mode, with a changeover time of just 20 seconds. This double-feed system is ideal for large-scale production of sofas and headboards, doubling the manufacturing capacity through the simultaneous quilting of two rolls. Conversely, switching to single-feed mode allows for the quilting of high-end mattresses and large-format home textile items. Dsdpfszx Sw Aex Akmeku No rework machine required: the ability to resume stitching at the exact stopping point or at the desired point. Automatic parking in case of upper or lower thread breakage. Automatic measurement of the maximum physical stitching area for cross-verification with the active pattern. Easy adaptation of quilting patterns. Motorized adjustment of the width of the side and center roller clamps. Your sofas, mattresses, headboards, and duvets will stand out for the quality of their stitches, their patterns, their durability, and your increased efficiency. Key features: High-quality Dürkopp Adler sewing head with spare parts available worldwide. Upper and lower thread trimming in 0.5 seconds. Simultaneous quilting of two different rolls for increased productivity. Single-roll feed mode available, with switching between single and double modes in seconds. Statistical production graphics: stitch length, pattern name, customer name, stitching time, number of stitches, etc. ElektroteksCare: online after-sales service. Advanced side cutters. Easy troubleshooting through error code display. Adjustable material tension in both directions. Reliable Omron control system offering maximum efficiency. Ergonomic feeding system for multiple rolls. High-durability pneumatic system with low air consumption.

Condition: used, Year of construction: 2020, functionality: fully functional, machine/vehicle number: 5290, EUROMAC STX FLEX 12 1500/22-2500 CNC punching / nibbling machine. Technical data: - Year of construction: 2020 - Serial number: 5290 - Max. punching force: 22 t - Working range X axis: 2500 mm - Working range Y axis: 1500 mm - Multitool holders included: XMTE6 and XMTE10 Dkedpfxsz Aawxe Akmeu Machine is located in Ivanjica, Serbia. Further information, additional photos and inspection on request.

Condition: used, Year of construction: 2011, AXES Working area X-Y-Z axes * mm 3050-1300-180 Workpiece length in swivel machining mm 1390 Stroke X-Y-Z axes mm 3460-1735-250 Max. travel speed of the X-Y axes m/min 60 WORKING TABLE Number of workpiece supports and vacuum cups 6 / 2 Standard type Standard End stops / Position 1 / rear Vacuum pump m3/h 90/108 DRILLING UNIT Vertical spindles Std/Number/Speed 1/min 12 (8X-5Y) / 4000 Horizontal spindles Std/Number/Speed 1/min 6 (4X-2Y) / 4000 Integrated slotting/sawing unit in X Ømm/1/min 120 / 6000 Motor power kW (HP) 2.2(3) ELECTROSPINDLE Motor power Std. / Opt. (S6) kW (HP) 7.5(10) / 11(15) Max. speed 1/min 24000 Tool changer mounted on the unit carrier in X 4 positions, pneumatic INSTALLATION Installed power KVA 23÷28.5 Compressed air requirement Nl/min 450 Extraction air requirement m3/h 1900+1900 (3400) Required extraction air velocity m/sec 30 Extraction nozzle diameter mm 150+150 (200) Machine weight Kg 3000 * X Distance between the stops - Y Milling center as reference point; Z Workpiece passage GENERAL FEATURES CNC-controlled boring and milling center, in C-frame design and working table with adjustable workpiece supports and vacuum cups, for performing: - Vertical drilling on the surface of the panel - Horizontal drilling on all four sides of the workpiece - Slot milling with disc cutter in "X" direction - General milling operations Self-supporting structure and working table Structure made of a steel welded construction with the control cabinet integrated into the machine frame. Available in two different lengths and with standard workpiece supports or TV supports. Movable unit carrier Box construction made of cold-rolled steel with internal reinforcing ribs, protective devices with bumpers. Working unit Consisting of a drilling head with vertical spindles, horizontal spindles, an integrated slotting and sawing unit and an SCM electrospindle with tool quick-change system type HSK 63 F. Travel paths of the portal and the unit carrier Movement in the X, Y and Z axis takes place on linear prismatic ball-bearing guides with the aid of pre-tensioned linear guides. The power transmission of the X-axis (movable stand) takes place via a pre-tensioned, backlash-free rack and pinion drive with diagonal movement. The movement of the unit carrier in Y and Z direction takes place via pre-tensioned linear guides. The positioning of the working units and the control of the machine functions takes place via "Brushless" three-phase servomotors and digital drives. CNC CONTROL The control unit consists of a numerical control for the milling and drilling machines and a pre-connected personal computer with a graphical user interface "XILOG PLUS". PC -Office- operating system Windows XP - LCD color screen 17 - Qwerty keyboard - Swiveling control panel - Machine interface software Xilog Plus Xilog Plus features Programming - parametric, graphical and ISO programming - Import of DXF and ASCII files - Linear or circular interpolation in three axes, linear in space, spiral in the chosen plane - Supported programming with graphic and syntax aids for drilling and milling operations - Automatic optimization of drilling operations and tool changes - cycles - Possibility of plate zero-point shift for performing drilling on inclined or curved plate sides - Complete compatibility with CAD/CAM Routocam (SCM) - AlphaCam Integrated additional functions Djdpfx Aeyymz Uokmsku - Calculator for direct transfer of the calculated data.
