Used Mw Double Grinding Machine for sale (71,263)

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Technical details grinding length 600 mm grinding width 400 mm workpiece height 400 mm total power requirement 23 kVA weight of the machine ca. 4,5 t dimensions of the machine ca. 3592 x 3519 x 2203 mm Additional information Horizontal surface grinder in almost new condition Operating hours: CNC on: 1198 hours Machine on: 1117 hours Automatic operation: 509 hours Grinding operation: 228 hours Okamoto Touch Screen Control Codpfxoy Idnue Ad Nogt Travel X-axis: 600 mm Travel Y-axis: 22.5 – 497 mm Travel Z-axis: 400 mm Grinding wheel dimension 355 x 38 x 127 mm Speed range rpm: 1-2800 (stepless) Rapid traverse mm/min: 4000 Main drive kW: 7.5 Maximum table load in kg: 1000 Accessories: - Electro-permanent magnetic clamping plate: 400 x 600 P13 mm, height 80 mm (make Wagner) - 2 grinding wheel flanges (without grinding wheel) - Table dresser - Automatic straight dresser, spindle box mounted - Automatic compensation of the wheel dressing amount - Automatic central lubrication - Ball screw in the Y and Z axes with AC servo motor and measuring system - Coolant system with belt filter system

Condition: good (used), Year of construction: 1995, functionality: fully functional, Technical details internal diameter 800 mm grinding depth 500 mm swing diameter 850 mm weight of the machine ca. 6,4 t Additional information Used internal cylindrical grinding machine with face grinding device in special design with enlarged swing diameter and extended, hydraulic transverse movement Reconstructed and modernized 1995 in the Glauchau manufacturer’s plant, put into operation 1996 1. TECHNICAL DATA 1.1 Working area Grinding diameter in the workpiece guard internal grinding, min./max. mm 30/630(800) External grinding, max. mm 800 Grinding depth, up to approx. mm 500 Table stroke mm 800 Workpiece diameter, max. mm 800 Swing diameter in workpiece protection, max. mm 800 Without workpiece protection, approx. mm 850 Distance from workpiece spindle head to grinding spindle carrier, max. mm 1225 Adjustment of the internal grinding device on the table, max. mm 545 1.2 Workpiece headstock Cross shift, max. mm 650 Cross adjustment via gear motor and positioning device with HEIDENHAIN digital position display Swivel, max. degrees 15 Workpiece spindle Speeds rpm 16/22/32/ 45/63/90/ 125/18/250 Load capacity, max 1000 Spindle head (with bayonet flange) DIN 55021 size 11 Machine accessories: 2-axis digital displays made by HEIDENHAIN Coolant system with magnetic separator Fixators (machine shoes) Various grinding wheels Diamond dresser Large face plate Internal and face grinding device Halogen machine lamp Cedpfxoy Idlas Ad Negt Machine documentation

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Studer S32 with Siemens 840 powerline control and Felsomat handling. 30-degree angled cut. Top condition. Machine can be inspected under power. Cgedpfx Adewa Im Es Not

Condition: good (used), Hardly used Elektra-Beckum double bench grinder with stand and container, in good, fully functional condition. Shipping not possible Please do not send email inquiries! If you have any questions, we are happy to assist you by phone. Inspection and collection only possible by prior telephone arrangement! Cjdpfx Adjy Inkae Nogt Subject to change, interim sale, and errors.

Condition: like new (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: 0602273, grinding length: 400 mm, grinding width: 200 mm, total height: 2,300 mm, total length: 3,800 mm, total width: 2,100 mm, spindle speed (max.): 3,850 rpm, spindle speed (min.): 1,000 rpm, overall weight: 2,900 kg, Equipment: rotational speed infinitely variable, Machine with 2x flange Cedpfx Adov H N Hzj Negt D91, B91 Any accessories can be discussed on site

Condition: excellent (used), functionality: fully functional, A very well-maintained surface grinding machine JAKOPSEN model: SJ 618. Grinding length: 450 mm. Grinding width: 200 mm. Cjdpfoy Iuvvex Ad Nsgt

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: 146978, Knuth Surface Grinding Machine Flat HFS 2500C Working Area & Capacities Table dimensions: 250 x 500 mm Grinding area (max.): approx. 500 x 250 mm Maximum workpiece weight: 180 kg Distance spindle center to table surface: 450 mm Travel Distances & Feeds Longitudinal travel (X-axis): 560 mm Cross travel (Y-axis): 275 mm Hydraulic table feed (X): 7 – 23 m/min Rapid traverse cross (Y): 990 mm/min Rapid traverse vertical (Z): 460 mm/min Spindle & Grinding Wheel Cgsdpjy H Dg Iefx Ad Njt Grinding spindle motor power: 2.2 kW Grinding wheel dimensions: 200 x 20 x 31.75 mm Graduation: Y-axis 0.02 mm / Z-axis 0.005 mm Dimensions & Weight Machine dimensions (LxWxH): approx. 2650 x 2150 x 1675 mm Total weight: approx. 1800 kg

Condition: ready for operation (used), Year of construction: 1981, drill diameter 50 mm total power requirement 2,2 kW Cedpfx Adjwu Hklo Njgt weight of the machine ca. 0,6 t

Condition: good (used), Year of construction: 1983, operating hours: 15,870 h, functionality: fully functional, grinding length: 600 mm, grinding width: 200 mm, table load: 100 kg, overall weight: 2,000 kg, distance stand to spindle center: 500 mm, input voltage: 400 V, Surface grinding machine Jung JF520 Year of manufacture: 1983 Operating hours: 15,870 h Grinding area: 600x200 mm Distance table to grinding spindle center: 500 mm Max. table load: 100 kg Automatic table cross feed Automatic grinding head height adjustment Rapid traverse Central lubrication Required floor space: 3,100x1,700 mm Weight approx. 2,000 kg - complete documentation Cgodpsyxcm Rofx Ad Nst - extensive accessories: grinding wheels dresser angle table balancing scale

Condition: excellent (used), workpiece diameter 30 - 325 mm Csdsy Ihb Sjpfx Ad Nsgt grinding depth 60 mm clamping length 1000 mm center hole 1 - 30 mm weight of the machine ca. 0,2 t dimensions of the machine ca. 0,5 x 0,5 x 1,7 m dressing unit, counter steady, grinding stones

Condition: good (used), Studer S30-12 cylindrical grinding machine TECHNICAL DATA Main dimensions Center height: 125 mm Center width: 400 / 700 / 1025 mm Largest longitudinal slide path: 400 / 700 / 1000 mm Longitudinal slide Table speed: 50 - 5000 mm/min Reversing delay: 0-6 s Smallest automatic travel: 1.5 mm Max. stroke: 400 / 700 / 1020 mm Max. Table inclination: 12 / 30 / 78° Cross slide Cgjdpfxsvca Izo Ad Net Swivel range: +- 45° Quick adjustment: 40 mm Feed path with handwheel: 20 mm Largest plunge depth: 1.7 mm Sanding headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Speed: 1340 / 1500 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece headstock Swivel range: 0 - 90 Speed range: 30 - 675 rpm Mounting cone: Morse 5 Collets: W25 Tailstock Mounting cone: Morse 3 Adjustment travel of the center: 30 mm Total power requirement: 5 / 8.25 kW No liability is assumed for the correctness, completeness and up-to-dateness of the information.

Condition: good (used), ESTARTA 312 Centerless cylindrical grinding machine TECHNICAL DATA AND SCOPE OF SUPPLY TECHNICAL DATA Cgodpfxor Igy Re Ad Not Workpiece, diameter: 1-5 - 75 mm Grinding wheel diameter: 400 mm Grinding wheel width: 160 mm Working stroke: 0-1 mm Work feed: Stepless Speed, grinding wheel: 1300 rpm Weight: approx. 4000 kg Dimensions: 1.5 x 0.4 x 2.0 m SCOPE OF OFFER Including: (non-exhaustive list): Grinding wheel (mounted), regulating wheels (mounted), grinding pads, complete operating documentation. Exact scope of offer according to photo gallery No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: excellent (used), AGATHON 150 SL2 Centerless cylindrical grinding machine TECHNICAL DATA Working wheel: Diameter: 150 mm width: 50 mm Bore: 50 mm Regulating disk: Diameter: 100 mm Width: 50 mm Bore: 40 mm Workpiece diameter: Minimum: 0.1 mm Maximum: 12 mm Max. Length for plunge-cut grinding: 49 mm Weight: 750 kg Connected loads: 3 X 380 V / 50 Hz Compressed air: 5-6 bar Dimensions: Cgsdpfx Adsr Hdi Aj Not Machine: 1000 x 500 x 880 mm Electrical cabinet: 1550 x 540 x 420 mm Coolant tank: 750 x 550 x 700 SCOPE OF OFFER U.A: (list not exhaustive): Grinding wheels regulating wheels Spare flange mandrel Grinding pads Complete operating documentation Exact scope of offer according to photo gallery We assume no liability for the accuracy, completeness and up-to-dateness of the information provided.

Year of construction: 1994, condition: good (used), Manufacturer: Rollomatic Year of manufacture: 1994 Csdjwhznxjpfx Ad Njgt Type: CNC 24-F Machine number: 142 3 x 380 V, 50 Hz

Year of construction: 2003, condition: excellent (used), Schneeberger DMR Gemini CNC tool grinding machine TECHNICAL DATA Control: GE Fanuc 160, 5 axes simultaneous Software: Schneeberger Quinto Measuring system X,Y and Z axis: 0.1 μm A-axis: 0.0001° C axis: 0.0001° Grinding head Power: 15 kW speed: 50 - 10`000 rpm spindle nose: HSK 50 Max. wheel diameter: 250 mm Max. Number of grinding wheels: 6 Codjmqni Aopfx Ad Nogt Linear axes X-axis, travel: 380 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Y-axis, travel: 300 mm feed speed: 5`000 mm/min resolution: 0,0001 mm Gear ratio: 24 :4 Power: 1,6 kW / 8 Nm Z-axis, travel: 280 mm feed speed: 20`000 mm/min resolution: 0,0001 mm gear ratio: 1 : 1 Power: 1,0 kW / 3 Nm Rotary axes C-axis: 210 ° Speed: 72 ° / s Resolution: 0,0001 ° Power: 1.6 kW / 8 Nm C` axis: +- 180 ° Speed: 90 ° / s Resolution: 0,0001 ° Infeed: Hydraulic A axis: +- 360 ° Speed: 225 ° / s resolution: 0,0001° Power: 1,0 kW Nose: ISO 50 Center height: 210 mm Dimensions and weight Length: 1700 mm Depth: 2270 mm Height: 2260 mm Weight: 8`000 kg We do not guarantee the accuracy, completeness and timeliness of the information.

Condition: new, Maximum grinding length 3200 mm Work area (length*width) 3180*180 mm Grinding wheel size 200*100*32 mm (can be customized) Rail: Machine guide rail with wear-resistant strip Cooling system: Water tank with integrated water pump for spray circulation cooling Grinding precision ≤0.05 mm/m Operating voltage: 380V 50Hz Machine spindle reciprocating speed: approx. 17 m/min Grinding head drive type: Belt drive Grinding head motor power (custom grinding machine motor): 4.0 kW Traverse motor power: 0.75 kW Water pump power: 0.125 kW Total power: approx. 5.5 kW Total weight: approx. 2800 kg Overall dimensions: 5350*1300*1300 mm CE certified Cgodpfxjy Hgw Ae Ad Njt

Condition: used, Year of construction: 2009, functionality: fully functional, input voltage: 400 V, power: 1.5 kW (2.04 HP), input frequency: 50 Hz, We are offering this used Hog Maschinen ABRADE MASTER PRO bevel and edge rounding grinding machine, year of manufacture 2009. Year of manufacture: 2009 Rated voltage: 400 V Frequency: 50 Hz Main motor rated power: 1.5 kW Main motor rated current: 16 A Secondary motor rated power: 0.12 kW Cedpfx Ajy Ir H Sjd Nsgt Bevel and edge rounding grinding machine Variable adjustable bevel 0-12 mm Rounding 2-15 mm radius Including feed and stand Description: Belt drive electrically powered, oscillation can be switched on as needed. Feed with 4 speeds. Extraction connection Compressed air connection for belt cleaning If you have any questions or need further information, please feel free to send us a message or give us a call.

Condition: good (used), Year of construction: 2014, spindle turning speed range 170 - 18000 U/min weight of the machine ca. 7,5 t dimensions of the machine ca. 5,00 x 4,00 x 2,20 m --> Control conversion (2014) to Siemens Sinumerik 840D Solutionline --> Overhaul of the new control system in 2016 Cjdpfxow Intao Ad Njgt --> Technical data Grinding diameter: 20 - 300 mm --> Oscillation diameter: 350 (500) mm --> Workpiece length: 300 (1300) mm --> Recommended grinding depth up to: 300 mm --> Grinding table stroke Z-axis (total): 650 (950) mm --> Resolution: 0.001 mm --> Rapid traverse: 12 m/min-1 --> Grinding stroke speed: 0 - 9.99 m/min-1 --> Feed rate: 0 - 99.99 m/min-1 --> Step feed value during reversal: 0 - 0.999 mm --> Grinding table stroke X-axis (total): 150 mm --> Resolution: 0.001 mm / Ø --> Rapid traverse: 5 m/min-1/R --> Grinding stroke speed: 0 - 5 m/min-1/R --> Feed rate: 0 - 99.99 m/min-1/R --> Step feed value during reversal: 0 - 0.999 mm / Ø --> Swivel capability of the workpiece headstock: --> B-axis: -32° (-23°) / +2° --> Resolution: 0.0001° (0.36") --> U-axis stroke (total): 300 mm --> Resolution: 0.001 mm / Ø --> Travel speed: 5 m/min-1 --> Centre height above workpiece table: 200 (300) mm --> Centre height above grinding table: 330 (430) mm --> Workpiece spindle passage: 50 (70) mm --> new in 1988

Condition: like new (used), We are selling a refurbished Knopp glass grinding machine Glaskant S. The machine has been completely overhauled. The machine body has been newly powder-coated. Ball rollers are also new. Support table size: 120x60 cm. Codpjyl Sptofx Ad Njgt

Year of construction: 2001, condition: good (used), table diameter 200 mm workpiece height 100 mm number of wheels 1 Control Robot CNC total power requirement 6 kW weight of the machine ca. 1,8 t dimensions of the machine ca. 1,83 x 2,04 x 2,1 m Codpfx Adstt Tb Do Nogt Technical data - Grinding capacity : Ø 0.025 –12.7 [mm] - Bar diameter : Ø 1.0 –12.7 [mm] - Grinding length : W15 (option W20) - Z-axis : 35[mm] Resolution : 0.5 [µm] – X- axis : 25 [ mm] Resolution : 0.1µm – Y-axis : 286[mm] Resolution : 0.5µm – U- axis : 15 [mm] Resolution : 0.1µm Head Motor: 0.70 [kW] Rotation: 300 – 3000 [rpm] Grinding - Raw grinding : 1.5 [kW] Spindle : Ø 60 [mm] Grinding wheel diameter : Ø 200 [mm] Cutting speed : 30 m/sec. - Completion: 0.75 [kW] Spindle: Ø100 [mm] Grinding wheel diameter: Ø150 [mm] Cutting speed: adjustable - Dimensions (L x W x H): 1830 x 2040 x 2100 mm - Weight: approx. 1800 [kg] Accessories - Loading and unloading robots - Fire protection device CONTROL axes; 4 axes + 2 programmable robots - simultaneously linear interpolation of the 4 axes + cylindrical interpolation of 2 robot axes

Condition: excellent (used), Double bench grinder / grinding stone Grinding wheel diameter: 300 mm Grinding wheel width: 40 mm 380 Volt 1.5 kW Height without pallet: 1200 mm Width: 610 mm Depth: 400 mm Weight: 139 kg with pallet Cgodpfx Adjy Hfyie Net

Condition: used, Year of construction: 2001, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 400 mm max. width of grinding wheel: 400 mm grinding motor: 55 kW peripheral speed: max. 45 m/sec regulating wheel dimensions: 350 x 400 x 203 mm dimensions of grinding wheel: CBN 500 x 400 x 304 mm grinding wheel size: KORUND 600 x 400 x 304 mm total power requirement: 75 kVA weight of the machine ca.: 13 t. dimensions of the machine ca.: 4,47 x 2,77 x 2,49 m. Codpfx Asttxg Iod Nsgt Centerless Grindign Machine JUNKER JUPITER 500 CNC SIEMENS in good condition. Including: · 2 robots Kuka KR 16 Year 2007 · CNC loading and unloading device Promot EPL60NC Year 2007 The machine was lately used for grinding of guide bushes (through grinding). Plunge is possible. JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *

Condition: used, Year of construction: 1996, Technical details: grinding length: 1370 mm grinding width: 560 mm workpiece height: 800 mm total power requirement: 50 kW dimensions of the machine ca.: 9 m ABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head Csdpfxsw S Hy Hs Ad Nogt *

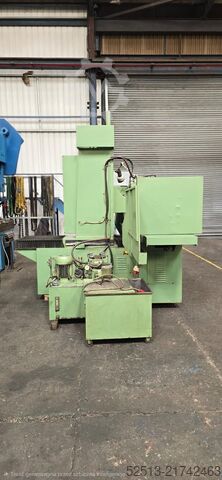

Condition: used, Year of construction: 1989, MAKE GER, MADE IN SPAIN MODEL RS 10/60 YEAR TABLE LENGTH 1300.0 mm TABLE WIDTH 600.0 mm TRAVEL X AXIS: 1600.0 mm Y AXIS: 600.0 mm MAX DISTANCE (TABLE TO WHEEL) 800.0 mm MAX WORKPIECIE WEIGHT 1000 KGS GRINDING WHEEL SIZE 400.0 x 100.0 x 127.0 mm SPINDLE SPEED MAX 1500 RPM MACHINE DIMENSIONS 4600.0 x 2700 x 2600.0 mm MACHINE WEIGHT 7600 KGS PLUS ELECTROMAGNETIC CHUCK SIZE: 1000.0 X 600.0MM HYDRAULIC PACK COOLANT SYSTEM Cjdsy Du N Uspfx Ad Nsgt WHEEL MOUNTED DRESSER

Condition: used, Year of construction: 2015, functionality: fully functional, type of input current: three-phase, We are offering this used HAAS GR-510 gantry milling machine, year of manufacture 2015. Model: GR-510 Manufacture date: 02/2015 Voltage: 354-488 V Phases: 3 Frequency: 50/60 Hz Full load current: 20 A Maximum load current: 35 A Short-circuit interrupt capacity: 10,000 A Wiring diagram: 96/0284 Short-circuit current: 5,000 A Arc protection rating: 208-240VAC models HRC-1; 360-480VAC models HRC-2 Cjdsyxx Azjpfx Ad Nsgt Part number (P/N): 29-10048 If you have any questions or require further information, please feel free to message or call us.
