Used Oil Hole Drilling Machine for sale (69,005)

Condition: used, Used machine Used Ganner Compact 30 line boring machine Lrodpfx Aswhuh Sokusl Equipment and technical data: 2 drilling beams with 15 spindles each Pitch 32 mm Position adjustment drilling unit 0 - 650 mm Distance between the rows of drill holes at least 190 mm Spindle speed 2800 rpm Motor power 2 x 0.75 kW Clamping height of the workpieces max. 70 mm Working height 850 mm Compressed air connection 6 bar Availability: by arrangement Location: Solingen

Condition: used, bore capacity in steel (diameter) / mm throat / mm bore stroke 70 mm Lodpfx Akey Tbv Tousrl total power requirement 0,9 kW

Condition: good (used), Year of construction: 1992, functionality: fully functional, double-row line boring machine GANNER with 21 spindles each Ljdoxlt T Sspfx Akuorl

Condition: good (used), Year of construction: 1987, travel distance X-axis: 11,500 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 2,000 mm, x-travel 11,500 mm y-travel 4,500 mm w-axis 1,600 mm z-axis 2,000 mm Spindle diameter 200 mm Rotary table 3,000 x 4,000 mm Bed length of rotary table 4,600 mm Ledsy T Hz Uspfx Akusrl Tool holder SK50 Workpiece weight on rotary table 80 t Total power requirement 83 kW Additional information incl. 15 plates

Condition: good (used), Year of construction: 1983, travel distance X-axis: 6,000 mm, Spindle diameter: 200 mm Lsdsy T Hznspfx Akusrl Machining width: 6000 mm Machining height: 3150 mm Max. machining depth: 1985 mm Slide cross section: 530 x 550 mm Table load capacity: 20 t Plate field size: 11200 x 5550 mm Tool holder: SK 60 Machine weight approx.: 173 t Additional information: - Additional equipment: large and small angular heads - Listing No.: 22979 - The table is model S20 MP, size: 2200 x 2500 mm - The machining width on the X-axis of the machine is 6000 mm - Including 6 plates measuring 5600 mm x 1850 mm

Condition: good (used), Year of construction: 1999, Drilling capacity in steel (diameter): 60 mm / MK5 Quill stroke: 310 mm Spindle speed: 28...2500 rpm Table size: 1470 x 986 mm Lrsdpfxsy T Hzhe Akuel Total power requirement: 4 kW Machine weight approx.: 4.6 t

Condition: used, Year of construction: 2000, number of spindles / bore capacity in steel (diameter) / mm bore stroke / mm Ljdpfjy S Dm Sex Akuerl BD13M – 5-Spindle Gang Drill / Bench Drill

Year of construction: 1991, condition: ready for operation (used), A single-sided glass drilling system is offered. Table surface X/Y: approx. 800mm/600mm, drilling diameter: approx. 3mm-100mm, table design: grating support for water drainage, control: manual drilling feed. Equipped with sturdy steel base frame, water collection tray. Weight: approx. 180kg, overall dimensions X/Y/Z: approx. 1000mm/1100mm/1650mm. Inspection possible by arrangement. Lodpfxsy Tn Iie Akuerl

Year of construction: 2018, condition: ready for operation (used), A vertical glass drilling system is offered. Working range X/Y: unlimited/1300mm, drilling diameter: 3mm-100mm, glass thickness: 3mm-25mm, control: digital position display with manual drilling control. Equipped with rollers on both sides, water collection tray, pneumatic workpiece clamping, drill set. Weight: approx. 1100kg, overall dimensions X/Y/Z: approx. 5000mm/2500mm/1200mm. Inspection possible by arrangement. Lsdpfx Aksy Tn Hxjuorl

Year of construction: 2018, condition: ready for operation (used), A CNC radial drilling machine overhauled in 2018 is offered. Working range X/Y: 1050mm/1800mm, drilling capacity steel: 40mm, drilling capacity cast iron: 50mm, thread cutting: M36-M45, tool holder: SK40, speed range: 15rpm-2800rpm, quill stroke Z: 200mm, column stroke W: 410mm, table clamping surface X/Y: 1800mm/600mm, feed speed: 5mm/min-2000mm/min, rapid traverse X/Y: 7.5m/min, control: CNC control. Equipped with 360° swivel device, motorized tool clamping, three-jaw chuck for round parts, modernized LCD monitor, extensive tooling package. Weight: approx. 2900kg, overall dimensions X/Y/Z: approx. 2600mm/1900mm/2950mm. Inspection possible by arrangement. Lrjdpfoy Tn Ntox Akusl

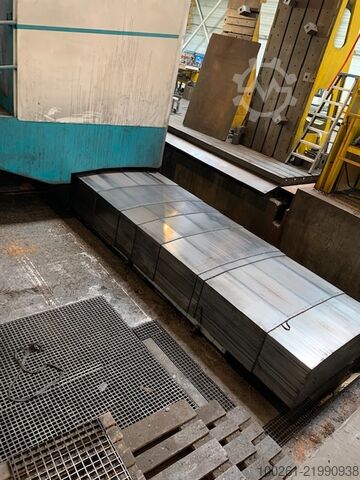

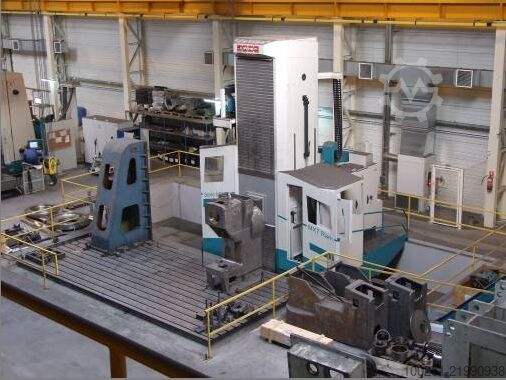

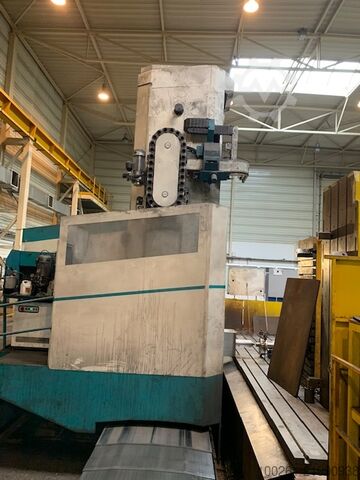

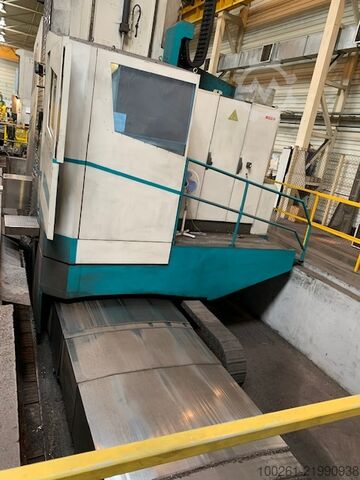

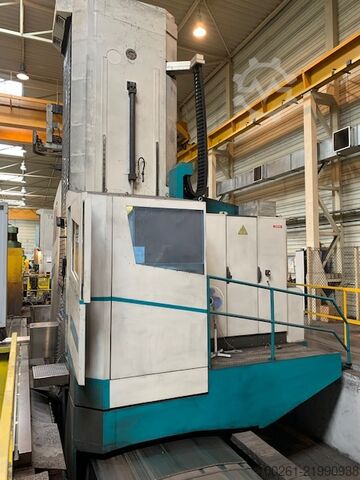

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 8,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, Juaristi MX-7 JUARISTI MX-7 – Year of manufacture 2006 • X-axis: 8000 mm • Y-axis: 4000 mm • Z-axis (RAM): 1000 mm • W-axis spindle travel: 800 mm • Fixed table / Floor plates: 8000 x 4000 mm • Table load: 80,000 kg • Spindle diameter: 180 mm • Spindle power: 41 kW • Spindle torque: 2024 Nm Lodpfxjy Udu Io Akuorl • CNC control: Heidenhain iTNC 530 • SK 50 tool holder • Tool changer with 30 positions • Automatic tool changer (ATC) • Swiveling head • D’Andrea turning head • Internal and external coolant • Siemens feed motors • Absolute Heidenhain measuring system • Automatic clamping of RAM accessories • Hydraulic-electronic RAM compensation system • Independent, vertically movable operator platform • Chip conveyor • Full protective cabin / Complete enclosure • Complete original documentation available

Condition: used, Year of construction: 1970, bore capacity in steel (diameter) 65 mm arm length 1600 mm workpiece height max. 1600 mm surface area 1800x800 mm Ljdpfx Akey Tplvjuorl turning speeds 18-1800 U/min Feed -2,54 mm/U The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), CATALOGUE NUMBER 8005 TECHNICAL SPECIFICATIONS - Number of spindles: 21 pcs - Distance between the outermost spindles: 640 mm - Distance between spindles: 32 mm - Pneumatic clamps: 2 pcs - Table surface dimensions: 870x560 mm - Height to the table surface: 900 mm - Stroke of the feed cylinder: 65 mm - Vertical/horizontal and angled drilling adjustment - Drilling head adjustment, pneumatic - Main motor: 1.5 kW - Dimensions (L/W/H): 1000x1150x1240 mm - Weight: 370 kg Lredpfx Aey T Rmhjkuol ADVANTAGES – 21 spindles – drill bit mounting with quick-release fittings – Vertical, horizontal, and angled drilling – Unpainted – Used drilling machine, very good condition Net price: 7900 PLN Net price: 1880 EUR, depending on the exchange rate of 4.2 EUR (Prices may change due to significant exchange rate fluctuations)

Condition: good (used), Year of construction: 1998, functionality: fully functional, DONAU DANUMERIC 440, year of manufacture 1998 Technical specifications: - Table 1800 x 600 mm, 4 T-slots - Drilling radius 540 – 1590 mm - Spindle taper SK40 - Speed range 15 – 2800 rpm - Motor power 5.5 kW - Weight approx. 2,800 kg Lrodpfxsy Txlrj Akujl

Condition: used, Year of construction: 2018, 1 x CNC-CONTROLLED DRILLING, GLUING AND DOWEL INSERTING MACHINE GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro) 400V, 3Ph, 50Hz complete in standard design with: - Support with linear guide consisting of: 1 x single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) 1 x blow-out, gluing and dowel inserting station in reinforced design for dowels Æ 8 mm, dowel length 30 mm - fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 1300 mm, travel speed max. 78 m/min. - Z-axis, position via support table 5-40 mm programmable with NC-controlled Z-axis option - Dowel driving overhang of 7-20 mm, programmable with NC-controlled Y-axis option, drilling depth of 0-35 mm (with drill length GL 70 mm) is automatically set with driving overhang - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with a viscosity of 150 to 350 mPas - Glue quantity continuously adjustable via operator software - GL/WATER selector switch for rinsing the glue system, 1 stainless steel container each for 5 kg glue and 5 l water - Control lamp for residual glue quantity display in the glue container - 1 side stop left, 1 side stop right and 1 center stop (all removable) - 4 start buttons for individual working with 1-4 workpieces - 4 pcs. Pneumatic inclined clamping cylinder 10° for workpiece thicknesses up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. suction funnel, connection Æ 80 mm - 1 pc. TCT control with: built-in industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, TFT industrial display 15" resistive touchscreen, resolution 1024 x 768, CPU 2 GHz, 256 MB RAM, 2x network interface adapters, IDE hard disk, 4x USB rear, 1x USB front, operating system: WINDOWS 7 - programming via menu-driven user software, drilling distances freely programmable with ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and work step optimization, 4 work fields can be assigned with different programs, graphic workpiece display, parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text OPTIONS: 1 electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle 4 vertical inclined clamping cylinders 10° with holder, additionally, (total 8 clamping cylinders) 1 surcharge for machine bed length 1800 mm with working length 1800 mm 1 surcharge for: 1 horizontal drilling unit, motor 1.5 kW, with multi-spindle drilling head with 3 individually controllable drilling spindles, pitch 32 mm arranged in X-axis, tool speed 3000 rpm. (The standard working length is not reduced) 1 Y-axis NC-controlled, with recirculating ball screw and dynamic traversing speed of 300 mm/sec. The dowel driving overhang 7-30 mm and the drill hole depth 0-42 mm can be programmed via software. (with drill length GL 77 mm) for vertical drilling unit drilling from TOP, Y-axis position 5-42 mm 1 surcharge Y-axis NC-controlled position 5-62 mm instead of 5-42 mm 1 surcharge for: 1 vertical drilling unit drilling from TOP, motor 1.5 kW, with multi-spindle drilling head with 3 individually accessible drilling spindles, 32 mm pitch arranged in X-axis, tool speed 3000 rpm. Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm, (the standard working length is not reduced) 1 Z-axis NC-controlled, with K Lredpfx Asxwaz Hjkuel

Condition: ready for operation (used), A gang drilling machine is offered. Number of spindles: 3, drilling capacity: 8mm, spindle holder: B12/MK1, table clamping surface X/Y: approx. 1050mm/300mm, speed range: 450rpm - 4500rpm, control system: manual. Equipped with quick-action drill chucks, solid cast iron base, emergency stop switch. Weight: approx. 480kg, overall dimensions X/Y/Z: approx. 1200mm/850mm/1700mm. Inspection possible by arrangement. Lredpfx Aoy Tau Ujkuol

Condition: ready for operation (used), A column drilling machine is offered. Drilling capacity: 40mm, spindle holder: MK4, table clamping surface X/Y: approx. 550mm/450mm, speed range: 25rpm - 3000rpm, control system: manual. Equipped with machine vise, height-adjustable drilling table, coolant system. Weight: approx. 850kg, overall dimensions X/Y/Z: approx. 1000mm/700mm/2100mm. Inspection possible by arrangement. Ledey Tavfjpfx Akusrl

Year of construction: 1976, condition: ready for operation (used), A column drilling machine is offered. Drilling capacity: 32mm, spindle holder: MK3, table clamping surface X/Y: approx. 450mm/350mm, speed range: 100rpm - 1600rpm, control system: manual. Equipped with quick-action drill chuck, height-adjustable drilling table, foot switch. Weight: approx. 480kg, overall dimensions X/Y/Z: approx. 600mm/800mm/1850mm. Inspection possible by arrangement. Lodpfx Aey Tavlekujrl

Condition: used, Year of construction: 2006, Radial drilling machine Manufacturer: Valmer Type: TR 80/2500 SP Year of manufacture: 2006 Ledpfxow Dbgys Akusrl Table dimensions: 1,000 x 800 x 560 mm Maximum drilling diameter: 80 mm Maximum threading diameter: 42 mm Distance between spindle axis and column, maximum: 2,500 mm Distance between spindle axis and column, minimum: 500 mm Head movement, horizontal: 2,000 mm Distance between spindle nose and work surface, maximum: 2,000 mm Distance between spindle nose and work surface, minimum: 550 mm Spindle stroke: 450 mm Morse taper: MT 6 Power: 7.5 kW Machine dimensions: 3,730 x 1,400 x 3,825 mm Weight: 11,000 kg 19526

Condition: excellent (used), CATALOGUE NUMBER 7908 TECHNICAL SPECIFICATIONS - Tool diameter, Wescott chuck 0-20mm - Max hole depth 155mm - Max milling length 250mm - Drill unit adjustment front/back, right/left + angle - Table adjustment up/down - Table swivel angle 0-45˚ - Working table dimensions 600x320mm - Four-point head 16-22-25-32mm - Material clamps 2 pcs - Motor power 2.2kW - Dimensions (L/W/H) 1050x800x1250mm - Weight 200kg ADVANTAGES – German-made – Very good condition – Eccentric clamps, 2 pcs – Not repainted – Used drilling machine Net price: 6,500 PLN Lredpfxjy Tw Tze Akuel Net price: 1,550 EUR based on rate 4.2 EUR (Prices may change with significant fluctuations)

Condition: excellent (used), CATALOG NO. 7911 TECHNICAL DATA - Number of spindles: 29 pcs - Distance between outermost spindles: 900 mm - Spindle pitch: 32 mm Lrsdpfjy Tw Swjx Akujl - Table surface: 700x1220 mm - Table height: 930 mm - Pneumatic clamps: 3 pcs - Drilling vertically, horizontally, and at an angle - Vertical/horizontal operation – pneumatic table adjustment - Pneumatic lifting of drilling head - Dimensions (L/W/H): 1400/1050/1400 mm - Weight: 744 kg ADVANTAGES – Manufactured by Italian brand SCM – For 29 drills – Not repainted – Very good condition – Used drilling machine Net price: 5,900 PLN Net price: 1,400 EUR at an exchange rate of 4.2 EUR (Prices may change with significant exchange rate fluctuations)

Condition: used, Year of construction: 2000, functionality: fully functional, feed length X-axis: 4,000 mm, feed length Y-axis: 1,050 mm, feed length Z-axis: 200 mm, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Dimensions and Travel Ranges Tool holder: SK 40 Table dimensions: 4000 x 800 mm Number of T-slots: 6 T-slot spacing: 140 mm Distance: Spindle lower edge min. 140 mm Table upper edge max. 740 mm Boring radius: min. 540 mm max. 1590 mm Travel range U-axis: 2600 mm Travel range Y-axis: 1050 mm Quill stroke (Z-axis): 200 mm Column stroke (W-axis): 400 mm Machining Data Drilling capacity in steel St 60: 40 mm Drilling capacity in cast iron GG 22: 50 mm Ljdpfoy Ttrtjx Akujrl Thread cutting: St 60: M 36 Thread cutting: GG 22: M 42 Main Spindle Drive AC motor, frequency-controlled: 5.5 kW at 100% duty cycle Speed range: 15 - 2800 min-1 Torque: max. 250 Nm Constant from: 15 - 200 min-1 Feed Drives X-axis - AC servo motor: 0.25 kW Y-axis - AC servo motor: 0.25 kW Z-axis - AC servo motor: 4.50 kW W-axis - AC servo motor: 2.50 kW U-axis - AC servo motor: 2.50 kW Rapid traverse rates (X/Y/Z): 7.5 / 7.5 / 5 m/min Rapid traverse rates (U/W): 7.5 / 3 m/min Feed rates, stepless: 5 - 2000 mm/min Feed force: 12000 N Accuracy Positioning accuracy X, Y-axis on 1200 mm: ± 0.075 mm Repeatability X, Y-axis: ± 0.03 mm Positioning accuracy Z-axis: ± 0.05 mm Repeatability Z-axis: ± 0.03 mm Positioning accuracy W-axis: ± 0.05 mm Repeatability W-axis: ± 0.03 mm Electrical Data Operating voltage / frequency: 400 / 50 V / Hz Control voltage: 24 V Total connected load: 13.0 kVA CNC Control Axes: 5 (X, Y, Z, W, U), expandable Display: TFT flat screen, backlit, easily readable from all sides Position data: Cartesian or polar, dimension data absolute or incremental Units: mm or inch, or in degrees Interpolation: 2 axes (X, Y) Technology database: Tool management, tool suggestions based on machining process, material-dependent cutting data suggestions Tool management: max. 500 tools Subprogram technique: yes Machining cycles: Cycles for centering, drilling, thread cutting, reaming, countersinking and counterboring, freely programmable cycle for special tools, dwell time possible for each cycle Chip breaking / chip removal: possible during drilling cycle Drilling patterns: hole pattern, hole circle, matrix Basic software: Programming in dialog mode, 38 zero point offsets, rotation and mirroring, teach-in for X, Y, Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for: - rectangular parts mounted in any way - round parts mounted in any way - determination of castings and forgings - angle detection in round parts by probing reference edges or surfaces Data interfaces: USB interface Painting (Repainting) Standard painting, two-component textured paint Machine upper part: light gray RAL 7035 Machine lower part: signal blue RAL 5005 Documentation Operating and programming manual Electrical circuit diagram Spare parts drawings Test report for mechanics, electrical components and safety devices

Condition: new, Year of construction: 2026, operating hours: 1 h, functionality: fully functional, machine/vehicle number: 2026, Optical precision drill grinding High-precision and very easy-drill grinding with optics and , Costsaver and Swiss in 100% quality. grind drills, thinning and check in the shortest time and with maximum precision. With MEGA POINT blue line you win more than once, achieve with it: - Better positioning - Improved accuracy of diameter - Significantly longer service life - Feed force is greatly reduced The MEGA POINT blue line is a versatile precision drill grinding machine, which is easy and ergonomic operation and a variety of drills handelsueblichen nachschleift perfect and optimized. MEGA POINT blue-line 1-20mm (Optiom to 30mm) Technical specifications: Our MEGA POINT drill grinding allows precise and rapid regrinding and thinning all handelsueblichen drills. Our customers have so always perfectly ground drills for disposal. The sophisticated design provides enormous flexibility in terms of the different cut angles and the thinning of the drill. Without a doubt, the world's best conventional drill grinding! Technical specifications Drill material grinding HSS and carbide HSCO Point angle adjustable 80 ° - 150 ° optional tip angle adjustable up to 180 ° Chuck with collets for drill diameters from 1 to 6.5 mm Chuck with collets for drill diameter 7 - 20 mm optional Spannzangenset for drill diameter 20 - 30 mm Average / free angle adjustable 0 - 40 ° Ausspitzvorrichtung, Ausspitztiefe adjustable CBN grinding wheel double-fine / coarse D 125 mm optional DIAMOND grinding wheel (for carbide drills) D 125 mm Lrsdpj R R R Ssfx Akujl CBN grinding wheel for thinning D 50 mm x 4 mm Engine power 0.3 kW Spindle speed 2800 r / min Power supply 230 volt 50 Hz Dimensions (L x W x H) 50 x 50 x 50 cm Weight about 42 kg Standardausfuehrung For right- and left-cutting, two- and dreilippige drills. With built-in optics (10x Zoom) separate Ausspitzvorrichtung and: 1 Machine light 2 chucks with collets D 1 -6.5 mm and D 7 - 20 mm 1 CBNDoppel grinding wheel D 125 mm fine / coarse 1 CBNSchleifscheibe D 50 x 4 mm 1 Set of service tools 1 instruction manual with spare parts list 1 CD-ROM with manual (CE Declaration) Danger: OPTIMA / TATAR Parts BERGER technology will take over on January 1, 2016, the stock of spare parts of HighTech OPTIMA AG. We can now offer genuine spare parts and service for the OPTIMA and TARTAR Boherschleifmaschinen.

Condition: new, Year of construction: 2026, operating hours: 1 h, functionality: fully functional, Standard equipment red line Optical precisions drill point grinding machine for 2 fluted drills Ledpfx Aksbrpr Ususrl regrinding and point splitting in one chucking diameter range 2 to 16 mm (1 to 20 mm as option) point angle 80° - 150° infinitely adjustable cutting angle 0° - 20° infinitely adjustable relief angle set to 30° incl. complete electrical instalation with single phase electrical motor 0,3KW 115V 60Hz (or 220V 50Hz) and integrated power-supply for illumination of the optical system incl. built-in optical projection system with 10 power lens (zoom lens with 6 - 20 power as option) incl. integrated point splitting device incl. one precision collet holder and one set of double-tapered precision-collets of your choice (MP 16 for drill-dia. 3-16 mm, MP 6,5 for drill-dia. 1-6.5 mm or MP 20 for drill-dia. 6.5-20 mm) incl. 1 double sided grinding wheel dia. 125mm CBN (one side coarse [grit ~100] second side medium [grit ~200]) incl. wheel guard with connection system for vacum cleaner incl. 1 each of detailed operating manual with pictures, spare parts list, CD-Rom and CE-Declaration (on demand)

Condition: new, Year of construction: 2026, operating hours: 1 h, functionality: fully functional, BERGER drill grinding machines are precise - fast - simple - economical And they help you increase productivity. These ergonomic and easy-to-use, precise drill grinding machines offer you, among other things, the following advantages: • Significantly increased tool life of your drills through even distribution of cutting forces across both cutting edges • Significant reduction of feed forces thanks to precise, symmetrical point thinning • Improved diameter accuracy - the precise and optimizable grinding results in holes whose diameter exactly matches the nominal diameter of the drill. • Improved positional accuracy - the sharp drill tip, precisely pointed and close to the center, no longer "wanders" upon initial contact with the workpiece, but cuts smoothly from the start • Resharpening, point thinning, and inspection in a single setup Furthermore, the purchase of new drilling tools is drastically reduced, as you can now resharpen your existing drills up to 40 times or more in-house! So you're not only protecting the environment, but also your wallet, and, most importantly, your employees' nerves! Keep up with the times... keep up with BERGER technology. Our EPG-1 has been copied countless times over the past 18 years, but its quality has never been matched... With EPG1 / #easy-point-grinder #Grind your drill bits for your material and your operating conditions! For drills (HSS and solid carbide) with diameters ø 7 – 20 mm (Optional ø 3 – 8 mm and ø 20 – 30 mm) with 90° – 140° point angle Technical Data EPG1 Lrodpfx Ajbrptvjkusl Point angle continuously adjustable 90° – 140° Collet set for drill diameters 7 – 20 mm Optional collet set for drill diameters 3 – 8 mm Optional collet set for drill diameters 20 – 30 mm Point thinning device, point thinning depth continuously adjustable CBN grinding wheel (for HSS drills Ø 118 mm) Optional diamond grinding wheel (for carbide drills) Ø 118 mm Single-phase AC industrial motor 250 watts Spindle speed 2900 rpm Electrical connection 230 Volt 50 Hz Dimensions (L x W x H) approx. 30 x 40 x 20 cm Weight approx. 22 kg Sharpen your drill bits for your material and application conditions quickly, easily, precisely, and affordably
