Used Panhans Swivel Spindle Milling Machine for sale (67,484)

Condition: excellent (used), Year of construction: 2014, operating hours: 1,652 h, travel distance X-axis: 4,500 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,300 mm, Soraluce SL-6000 Year of manufacture: 2014 Heidenhain TNC 530 HSCI Machine Data Travel Distances Longitudinal (X): 4500 mm Vertical (Y): 1600 mm Cross (Z): 1300 mm Table Size Length: 8000 mm Width: 1100 mm Electrical Data 400 Volt ±10 %, 50 Hz (Euro standard) Paintwork RAL 5011 (steel blue) RAL 7035 (light grey) TECHNICAL MAIN DATA Automatic Indexing Milling Head Tool holder: ISO 50, DIN 69871 AD Automatic tool clamping: Clamping force 20,000 N Positioning accuracy: ±3 sec Repeatability: ±0.002 mm Pull stud: DIN 69872 Form A Number of indexing positions: 2.5° milling head → 144 positions per plane Spindle bearing diameter: 90 mm Purge air: 0.7 bar Main Drive Water-cooled inline motor Power: 43 kW (100% duty cycle) Spindle Speed Range 20 – 5,000 rpm Torque: 900 Nm (S1) / 1045 Nm (S6) Infinitely variable speed control Axes Rapid traverse X/Y/Z: 35,000 mm/min Feed force X/Y/Z: 16,000 N CLAMPING SURFACES T-slot width: 22 H12 Reference slot: 22 H7 Number of T-slots (table): 6 Spacing: 140 mm Front side: 2 slots, 200 mm apart Max. Table Load 5 t/m² Weight Approx. 21,800 kg Dimensions (Type SL 6000) Length: 8,675 mm Width: 4,990 mm Height: 3,850 mm STANDARD MACHINE EQUIPMENT HEIDENHAIN iTNC 530 HSCI control (5 axes) Machine table with 6x T-slots Milling head 2.5° x 2.5° with air/oil cooling Speeds up to 5,000 rpm Inline motor 43 kW Spindle speeds 20–5,000 rpm Rapid traverse 35,000 mm/min Feed force 16,000 N Acceleration 2 m/s² Coolant system (external + internal) Hydraulic counterbalance Thermal compensation (SORALUCE 3D) INA linear guideways Central lubrication Rack and pinion drive X-axis Ball screws Y/Z HEIDENHAIN AC drives Direct linear measurement system Milling slide with cover Control cabinet cooling (Rittal) Siemens electrics Hydraulics Vickers Work area lighting Ethernet connection 220 V socket Hnedpfxsy A Rc Is Ahbok MILLING HEAD DESCRIPTION Automatically indexing milling head 2.5° x 2.5° Air/oil cooling up to 5,000 rpm Hybrid bearings for thermal stability Automatic indexing, clamping, and release Hirth coupling for maximum precision Spindle supported by 5 bearings Compressed air and oil mist lubrication Oil is discharged internally Gearbox oil-cooled Housing made of cast iron (GGG40) OPERATOR PLATFORM Travels longitudinally with the machine Base area: 1050 x 960 mm Floor height: 120 mm Platform height: 2200 mm COOLANT SYSTEM Tank: 1000 liters Lift tank: 500 liters Delivery rate: 50 l/min Pressure: 5/20 bar IKZ according to DIN 69871 Belt filter + magnetic separator Oil skimmer TOOL CHANGER (ATC 40) Tool positions: 40 Max. diameter: 125 mm (250 mm with adjacent positions free) Max. length: 400 mm Max. weight: 20 kg Tool change time: 10 s Spindle cleaning by air CHIP CONVEYOR Hinged belt Conveyor width: 350 mm Discharge height: 1000 mm HANDHELD UNIT HEIDENHAIN HR 550 FS Wireless handwheel with vibration alarm Alphanumeric display NC and PLC buttons Feedrate/spindle speed potentiometer PROBE (RENSHAW RMP60 M) Wireless transmission Measuring cycles integrated Repeatability ±1 µm 3-point measurement Automatic calibration TOOL MEASUREMENT Make: HEIDENHAIN TT 140 Automatic tool measurement Tool breakage monitoring Accuracy ±1 µm The machine has only 1,650 spindle hours Control ON: 7,400 hours

Condition: excellent (used), functionality: fully functional, feed length X-axis: 1,800 mm, feed length Y-axis: 1,150 mm, feed length Z-axis: 1,370 mm, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 1,370 mm, spindle speed (max.): 1,800 rpm, table width: 800 mm, table length: 1,625 mm, Boko F30 4 Axis CNC Milling and Boring Machine Model: F30 Table Area: 1625 x 800mm Fully Rotational Through Control Control: Heidenhain 426 ‘X’ Axis: 1800mm ‘Y’ Axis: 1150mm ‘Z’ Axis: 1370mm Hsdpfx Ajyynqdohbjnk Spindle Taper: 50 INT Spindle Speeds: To 1800 RPM

Condition: good (used), Year of construction: 2013, – 2 pneumatic clamps – 12,000 rpm – Mist lubrication system – Weight 180 kg Hsdpfxjy An U Io Ahbonk – 230V

Condition: excellent (used), Universal milling machine, tool milling machine, milling machine, mill (used) Manufacturer: Maho Model: MH 700 Working area X: 500 mm Working area Y: 300 mm Working area Z: 400 mm Table clamping surface: 810 x 480 mm Spindle taper: SK 40 16 spindle speeds: 32 - 1600 rpm Feed X automatic: 10 - 500 mm/min Feed Z automatic: 10 - 500 mm/min Hnsdpfxjy Axvis Ahbjk Feed Y automatic: 5 - 250 mm/min Rapid traverse X/Y/Z Counter bearing Drive power: 4.2 kW Weight: approx. 2200 kg Coolant system Operating manual Tool cabinet included Rotary, tilting and swivelling table Machine dimensions: Depth 1950 mm, Width 1400 mm, Height 1750 mm Machine condition: very good, came from a research facility. Affordable shipping possible Forklift on site, free loading onto truck Machine location: D-48477 Hörstel

Condition: used, Deckel milling machine FP1 with 3-axis digital readout, 380V, 120–1900 rpm. Travel distance X-axis: 300 mm, Y-axis: 150 mm, Z-axis: 340 mm. Tool holder: MK 4 with draw thread S 20 x 2. Milling head type: Vertical milling head. Table type: Fixed table. Table clamping area: 600 x 210 mm. T-slot size: 12 mm. Feed X-axis: 290 mm, Y-axis: 150 mm, Z-axis: 330 mm. Weight: 700 kg. Deckel FP1 milling machine. Hedpfx Ajy Ddd Ushbenk

Condition: used, Milling spindle Manufacturer: HSD Type: ES 779L 4P 12.00 kW H1 HSD milling spindle 12 kW with tool changer and 6-position station for Kuka Quantec series Comprising: 1 piece Water-cooled milling spindle with tool changer HSD ES779L 4P 12.00 kW H1, liquid cooling 1 piece Tool station for 6 tools (toolchanger station) with Leonie measuring station for checking the tools 1 piece Kuka tech cabinet with KEB frequency inverter, control technology and water cooler, Art. No. 00216249, serial no. 0395009, year of manufacture: 2018, weight 360 kg Hodpfswyay Dox Ahbjnk 1 piece Hose package and connection cable from the control cabinet to the HSD spindle. Originally intended for a Kuka robot of the Quantec series; all brackets and connections are included. 16426ä

Condition: used, Technical details: spindle diameter: 150 mm x-travel: 3000 mm y-travel: 2000 mm Hnodpsy Anpxsfx Ahbok spindle stroke: 700 mm dimension of the ram: 340 x 340 mm ram stroke: 700 column travel: 1500 mm spindle taper ISO: 50 bore spindle turning speed range: 3,2 - 1600 U/min table surface area: 2000 x 2500 mm max. table load: 25000 kg rapid speed: 5 / 10 m/min feed speeds: 1 - 5000 mm/min total power requirement: 100 kW weight of the machine ca.: 57 t dimensions of the machine ca.: 8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply *

Condition: good (used), Year of construction: 2001, The machine will be delivered including a new replacement spindle. Digma HSC 500, year of manufacture 2001, Heidenhain iTNC 530 control, travel X/Y/Z 500/400/350 mm, spindle speed up to 42,000 rpm, Hodpfx Ahoy A H Tpebsnk tool holder HSK 40, laser diameter measurement, oil mist lubrication system, extraction for graphite machining, 3D infrared measuring probe, The tool cannot be released from the spindle; according to the service technician, this is not a spindle problem but a hydraulic issue. A new HSC replacement spindle is included.

Condition: new, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 1,500 mm, position of the milling head: Universal-Diagonal-Fräskopf, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, spindle speed (max.): 6,000 rpm, pivoting range: 1 °, torque: 1,178 Nm, coolant supply: 36 bar, Equipment: documentation/manual, rotational speed infinitely variable, LAGUN MM 6 Travelling Column Milling Machine The LAGUN MM 6 is a high-dynamic travelling column milling machine for precision machining of large and complex workpieces. Ideal for both single part production and series manufacturing with the highest requirements in terms of accuracy, stability, and flexibility. Your advantages at a glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly through JMT ✔ Leasing / financing available ✔ High flexibility thanks to travelling column design ✔ 24-month warranty Why choose LAGUN: LAGUN is one of Spain’s leading machine tool manufacturers (MAHER HOLDING) and stands for robust construction, dynamic performance, and decades of experience in milling machine design. The machines impress with reliability, ease of maintenance, and economical operation. Technical features: Control: HEIDENHAIN TNC 7 digital path control HEIDENHAIN 19" TFT monitors HEIDENHAIN motors, measurement systems, and HR-510 electronic handwheel Tool changer: Automatic tool changer (ATC), 60 stations Hsdpfjhy Au Ijx Ahbsnk Chip removal: Hinged belt conveyor Enclosure: Three-sided perimeter enclosure Accuracies: Positioning accuracy: ±0.030 mm Repeatability: ±0.008 mm Your benefits as a JMT customer: ✔ Official LAGUN distribution partner in Germany ✔ On-site technical support and service ✔ Fast spare parts supply ✔ Training and instruction included ✔ Reference machines available in Germany Contact us – we will be pleased to advise you and provide an individual offer

Condition: new, travel distance X-axis: 6,200 mm, travel distance Y-axis: 2,600 mm, travel distance Z-axis: 1,200 mm, feed rate X-axis: 10,000 m/min, feed rate Y-axis: 20,000 m/min, feed rate Z-axis: 15,000 m/min, table length: 6,000 mm, table width: 2,400 mm, spindle speed (max.): 6,000 rpm, table load: 19,000 kg, position of the milling head: vertikal, torque: 1,350 Nm, spindle nose: SK 50, spindle motor power: 53 W, warranty duration: 12 months, Equipment: rotational speed infinitely variable, STARVISION FG 6226 Gantry Milling Machine – Available for Immediate Delivery The STARVISION FG 6226 is a high-precision gantry milling machine designed for machining large and heavy workpieces. Ideal for tool and die making, mechanical engineering, contract manufacturing, and demanding machining tasks that require exceptional stability, dynamics, and accuracy. Hnsdpfx Aehy Avtohbek Your Advantages at a Glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly from JMT ✔ Financing / leasing options available ✔ High rigidity for heavy-duty machining ✔ 24-month warranty Why STARVISION: STARVISION stands for state-of-the-art gantry milling machines with high precision and efficient operation. With its rigid portal design, powerful drives, and high-quality components, the machine is ideally suited for demanding applications. Technical Equipment: Control: HEIDENHAIN TNC 7 CNC controller HEIDENHAIN 19" TFT monitor HEIDENHAIN motors, measuring systems, and electronic handwheel Cooling: Internal coolant supply (IKZ) 70 bar Tool Changer: 60-position chain magazine with double gripper Chip Removal: Hinged belt chip conveyor (transverse) Twin screw conveyor (longitudinal) Preparation: Prepared for 4th axis (rotary table) Enclosure: Fully enclosed, top covered Accuracies: Positioning accuracy: ± 0.035 mm Repeatability: ± 0.028 mm Your Advantages as a JMT Customer: ✔ Official sales partner in Germany ✔ On-site technical support and service ✔ Fast spare parts supply ✔ Training and operator instruction included ✔ Reference machines available in Germany Contact us – we are happy to advise you and provide a customised offer

Condition: not inspected (used), Tool Milling Machine HERMLE UWF 802 M - Travel Control HS 401 - Travel X/Y/Z: 500x430x400 mm - Spindle speed range: 18–3550 rpm - Stepless feed on all three axes - Rapid traverse 0–1.6 m/min on all three axes - Vertical and horizontal milling device - Tool holder ISO 40 - Hydraulic tool clamping - Central lubrication - Drive power: 6 kW - Work lamp - Chip tray - Documentation Hedpfx Aoy Ddz Hohbonk Dimensions (LxWxH): 1.9x1.8x1.9 m / Weight: 1900 kg Errors and omissions excepted.

Condition: ready for operation (used), Year of construction: 2008, Universal tool milling machine WAGNER FCA 400 -Year of manufacture: 2008 Hodpfx Ajy Ddhmohbsnk -CE marking -3-axis digital readout -Traverse paths X/Y/Z: 450x400x400 mm -Fixed angle table: 740x320 mm -Automatic feeds on all three axes -Rapid traverses -Spindle speed range: 40-2000 rpm -Tool holder: ISO 40 -Vertical / horizontal milling device -Vertical head with quill -Safety handwheels -Coolant system -Horizontal counter-support -Work light -Machine feet Dimensions LxWxH: 1.4x1.2x1.9 meters / Weight: 1800 kg Errors and omissions excepted.

Condition: ready for operation (used), Year of construction: 2010, Immediately available ex location: CNC bed milling machine Wagner Type WBE 1300 R Year of manufacture: 2010 Siemens Sinumerik 810 D Table 1500 x 400 mm Travel X/Y/Z: 1300/500/570 mm SK 40 Automatic tool clamping Drive power 12/9 kW Spindle speeds 60 – 8,000 rpm Electronic handwheel Ball screw Vice Various tool holders Hnsdey Alppepfx Ahbjk Weight 4 t Price: EUR 5,500 plus VAT ex location

Condition: ready for operation (used), Year of construction: 2000, Available immediately from location: CNC bed milling machine MTE Model Kompakt Plus Year of manufacture 2000 Heidenhain TNC 410 Table 2200 x 750 mm Travel X/Y/Z 2000/800/800 mm Table load 4 t Spindle taper SK 50 Hydraulic tool clamping Spindle speeds 40 – 2500 rpm Spindle power 15 kW Total power requirement 30 kW Coolant system Weight 12 t Hnodpfx Ahjy Aln Sjbsk Price: EUR 12,500 — plus VAT, ex location

Condition: ready for operation (used), Year of construction: 2009, Available immediately ex location: CNC bed-type milling machine Iberimex Model Ecomill BF 2600 Year of manufacture 2009, low operating hours Heidenhain iTNC 530 Table 2700 x 1050 mm Travel ranges X/Y/Z 2600/1000/950 mm Table load 6 t Internal coolant supply (IKZ) 14 bar Hydraulic tool clamping SK 50 spindle taper Spindle speeds 24 - 1600 rpm Spindle drive 25 kW Hedpfsy Aln Ejx Ahbenk Chip conveyor Weight 14 t Price: €21,000 plus VAT, ex location.

Condition: ready for operation (used), Year of construction: 1989, Immediately available from training center: Universal Milling Machine Horizontal - Vertical WMW Auerbach Type FW 250 x 1000 / 2 Year of manufacture: 1989 Hnjdpfoy Alnrsx Ahbok Table: 1250 x 250 mm Table load capacity: 1250 kg Travel X/Y/Z: 700 / 400 / 500 mm Heidenhain 3-axis digital readout SK 40 Spindle speeds: 55 – 2800 rpm Feeds: 10 – 630 mm/min, stepless Vertical head Horizontal milling device Drive power: 6.3 kW Weight: 2.5 t Offered at EUR 2,000 – plus VAT, ex location

Condition: ready for operation (used), Year of construction: 1990, Immediately available ex location: CNC tool milling machine Hermle Type UWF 700 Year of manufacture 1990 Heidenhain TNC 145 Table 700 x 280 mm Travel X/Y/Z 410/310/400 mm Hedoy Alnlepfx Ahbsnk SK 40 Drive 2.2 kW Hydraulic tool clamping Spindle speeds 40 – 2000 rpm Quill stroke 63 mm Rapid traverse in all axes 1.5 m/min Drive 2.2 kW Accessories, vise Weight 1.5 t Price: EUR 2,500 plus VAT, ex location

Condition: ready for operation (used), Year of construction: 1989, Available immediately from location: MAHO Toolroom Milling Machine Type MH 500 M Year of manufacture 1989 Hjdpfx Ahoy Alm Usbonk Heidenhain Digital Display Table 800 x 360 mm SK 40 Spindle speeds 63 – 4000 rpm Quill stroke 50 mm Travel X/Y/Z 500/380/350 mm Drive 3 kW Feed rates 10 – 1000 mm/min Coolant system Weight 1600 kg Adapters Hydraulic vise Price: €3,000 plus VAT, ex location

Condition: ready for operation (used), Year of construction: 1984, Immediately available from training center: MAHO Tool Milling Machine Model MH 600 Year of manufacture: 1984 Table: 700 x 400 mm Hjdpfx Ajy Almuohbonk Travel X/Y/Z: 500/400/400 mm Speeds: 40 – 2500 rpm SK 40 Spindle stroke: 80 mm Coolant system Drive: 4 kW Feeds: 8 – 400 mm/rev Head swivels 90/90 degrees Weight: 1900 kg Price: EUR 2,250.-- plus VAT, ex location.

Condition: ready for operation (used), Year of construction: 2000, Immediately available from Swiss toolmaking: 5-axis milling machine Deckel Maho Hnsdpfx Ajy Almnohbsk Type DMU 35 M Year of manufacture: 2000 CNC control: Heidenhain TNC 310 M Electronic handwheel Table 400 x 280 mm Table load up to 100 kg Travel X/Y/Z: 350/240/340 mm Infinitely variable spindle speeds: 0 – 5,000 rpm Taper SK 40 Rapid traverse 5 m/min Servo motors for X/Y/Z axes Swivel range 360 degrees Table clamping plus 105/minus 150 degrees Weight 2 t Accessories, hydraulic vise Price: EUR 5,000.—plus VAT, ex works

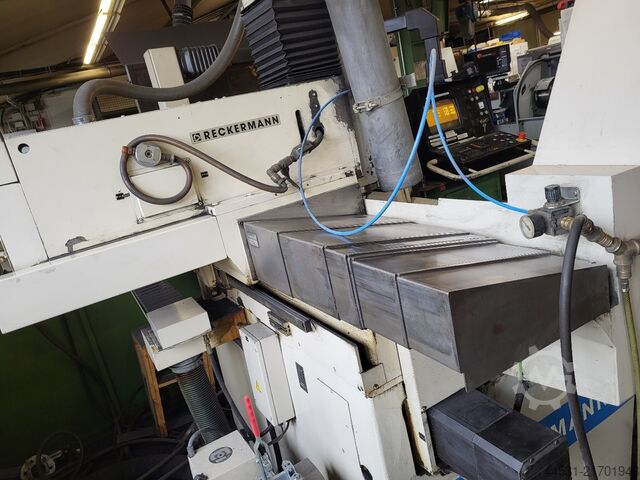

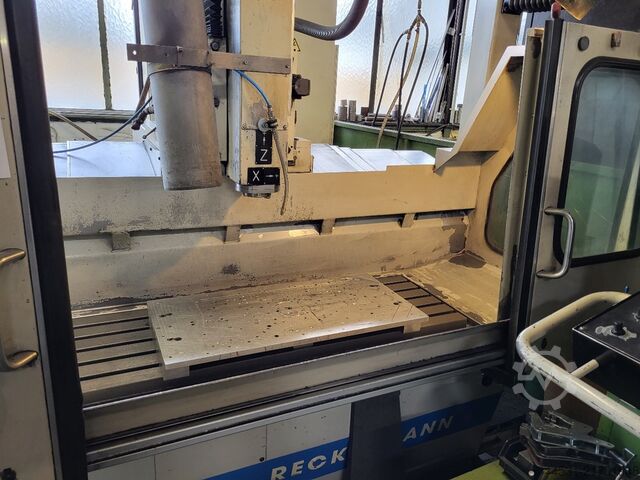

Condition: ready for operation (used), Year of construction: 1996, Immediately available ex location: CNC universal milling machine Reckermann Type: Primo II Year of manufacture: 1996 Heidenhain TNC 430 control Spindle taper SK 50 Infinitely variable spindle speeds: 20 – 2,000 rpm Table load capacity: 1,000 kg Stepless feed rates: 20 – 6,000 mm/min Hsdpfx Aey All Rshbenk Travel (X / Y / Z): 1,000 / 400 / 350 mm Drive: 7.5 kW Weight: 4 t Price: EUR 2,500 plus VAT, ex location

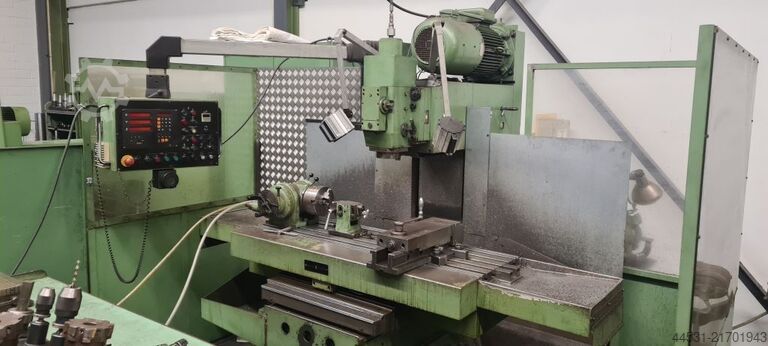

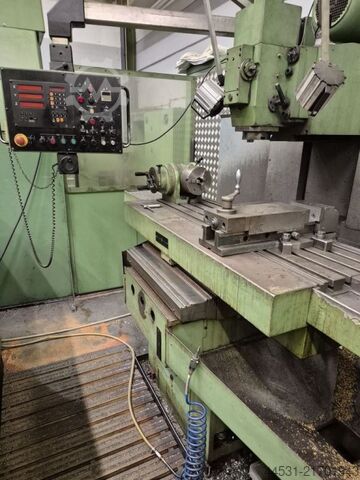

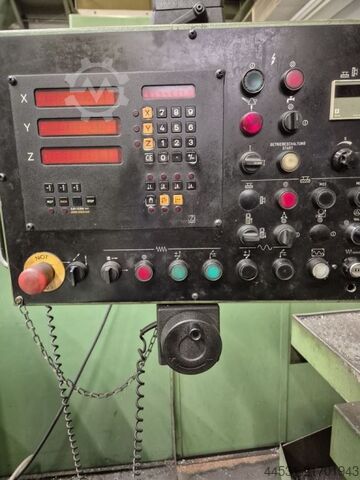

Condition: ready for operation (used), Year of construction: 1990, Immediately available ex location: Milling machine Reckermann Type Delta 1300 Hodpfx Ahjy All Dobonk Year of manufacture 1990 Table 1400 x 400 mm Travel X/Y/Z 1000/400/450 mm SK 50 Spindle speeds 60 – 3600 rpm Drive 12.5 kW Dividing head Many tools Heidenhain 3-axis digital readout Weight 4 tons At a price of EUR 3,750.—plus VAT, ex location.

Condition: ready for operation (used), Year of construction: 1984, Deckel Copy Milling Machine Model KF 3 S Year of manufacture: 1984 Table surfaces: 600 x 555 / 620 x 750 mm Y-axis travel: 150 mm Z-axis stroke: 380 mm Hnodpey Allwofx Ahbsk X-axis stroke: 150 mm Drive: 3 kW Roughing spindle Finishing spindle Locking arm Control lever with cable Tracing stylus holder Collets Weight: 2400 kg Price: EUR 2,000—plus VAT, ex works

Condition: ready for operation (used), Year of construction: 1986, Immediately available ex location: Fully automatic milling machine Busch Type NF 8/32 Year of manufacture: 1986 Groove width up to 32 mm Machining length up to 6100 mm Automatic material feed Automatic infeed Drive: 5.5 kW Accessories: support tables Tool holders, cutters Coolant system Digital display Weight: 4 t Hnjdpfxoy Allqs Ahbok Price: EUR 3,000 – plus VAT ex location

Condition: ready for operation (used), Year of construction: 1995, Available immediately ex location: CNC tool milling machine Deckel, type FP 5–80, year of manufacture 1995, CNC control Dialog 12, universal table 750 x 520 mm. Travels X/Y/Z: 800/550/500 mm. Drive power: 9 kW. Quill stroke: 80 mm. Electronic handwheel. Spindle speeds: 32–5000 rpm. Feeds: 0–6000 mm/min. Weight: 4.5 t. Price: EUR 2,750 plus VAT, ex location. Hodpjy Allkefx Ahbenk
