Used Vitap Through-Hole Drilling Machine for sale (68,549)

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: COMBO (Plasma, Drilling, OXY-Fuel, Bevel), Equipment: CE marking, documentation/manual, * COMBO offers customers the most innovative technological solutions and features a wide range of models. * It is a highly advanced machine equipped with a 6- and 12-station automatic tool changer ISO 40 drilling system, offering capabilities such as drilling, tapping, countersinking, plasma cutting, OXY cutting, and ±45° bevel cutting. * The COMBO has a working range from 1,500 mm x 3,000 mm up to 4,000 mm x 24,000 mm and can be equipped with high-capacity plasma power sources. * Plasma Cutting * Drilling Isdpfx Ajyy Rn Ssb Nsat * Tapping * Countersinking * OXY-Fuel Cutting * Fully welded, heavy-duty machine frame. * High-durability cutting table designed for easy replacement. * Dual drive system with linear rails, rack and pinion. * Compliance with CE standards. ISO 40 Drilling System * 6-station automatic tool changer (optional 12-station). * CNC-controlled automatic coolant spraying system during cutting. * 26 kW spindle motor power. * Drilling capacity: Ø M5 to Ø M40 (HSS, UDRILL). * Drilling depth: 100 mm * Drilling speed: 0.15 – 0.35 mm/rev. * Spindle speed: 1,500 rpm * Hypertherm / Thermal Dynamics power sources. * Hypertherm / Eurosoft CNC controls. * Possibility to import .dxf and .dwg files via Pronest / Cut-Expert CAD-CAM.

Condition: used, machine/vehicle number: 008013, X axis working area: 5780 mm Y axis working area: 1650 mm Working Table: Pod and Rail Main Electrospindle power: 13.2 KW Number of controlled axes: 4 axes Maximum edge height: 60 mm Total number of drilling spindles: 16 Total number of tool changer positions: 16 Isdpfx Aewuz Ekjb Noat

Year of construction: 2012, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: BCOR12150, BIESSE BREMA EKO 902 CNC and vertical dowel insertion machine for reduced cycle times Equipment Features - Clamping grippers measure the thickness to adjust drilling depth - Laser-based measuring system for detecting the front and rear panel edges - Length tolerance compensation correcting the workpiece length in X - 5-position tool changer - Drilling head with individually retractable spindles and grooving saw Isdpfx Ajw Nytnjb Noat - Diameter: 120 mm - Gluing and dowel insertion units mounted on Y and Z axes Options - 4.5 kW electrospindle; 18,000 rpm - Special drilling unit for hinges Technical Data - Panel length: 160 - 3200 mm - Panel width: 35 - 900 mm - Panel thickness: 8 - 80 mm - X/Y/Z axis speed: 100 / 60 / 30 m/min - X axis travel: 3200 mm - Y axis travel: 900 mm - Main spindle power: 4.5 kW - Number of controlled axes: 3 axes - Number of drilling spindles: 20 - Number of tool positions: 5

Year of construction: 1994, condition: good (used), machine/vehicle number: 491P, Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle adaptor MK 3 - right - left rotation - Drilling spindle stroke 150 mm - drilling spindle speed infinitely variable 80 - 1170 rpm - 2 feeds 0,1 / 0,2 mm/rev - throat 290 mm - max distance table - drilling spindle 780 mm Isdpjdkx Ansfx Ab Njat - table with 2 T-slots 480 x 400 mm - Height adjustable via toothed rack with hand crank - Drive 400 V / 0,9 / 1,3 kW - Space requirement approx. W 600 x H 2100 x D 900 mm - Weight approx. 420 kg - with: - coolant device - quick-action drill chuck 1-13 - illumination

Condition: used, Year of construction: 1965, bore capacity in steel (diameter) 40 mm Ijdpfx Asv S Iqcob Neat total power requirement 4 kW

Condition: used, functionality: fully functional, power: 3.68 kW (5.00 HP), input voltage: 380 V, type of input current: three-phase, Microcut Vertical Turret Milling Machine – 5HP Microcut vertical turret milling machine manufactured by Buffalo Machinery Co. Ltd, Taiwan. Heavy duty industrial machine fitted with power feeds, coolant system and machine vice. Iasdpfx Aey R Ebnjb Not Model: 5VK type with 5HP motor and 380V 3 phase supply. Suitable for precision engineering, fabrication, maintenance workshops, toolrooms and general machining work. Features include: Vertical turret milling head Large T-slot table Power feed controls 5HP motor 380V 3 phase Machine vice included Coolant tray and lubrication system Variable speed head Heavy cast iron industrial construction Machine is in good used workshop condition with normal cosmetic wear from industrial use. It is complete and operational. Ideal for engineering shops, maintenance departments and production work. Loading available on site. Transport can be arranged. Viewing welcome. Open to sensible offers.

Year of construction: 2010, condition: good (used), Double mitre saw DGS400 for 45° (frame) cuts with digital left stop. Drilling or dovetail milling machine T20NC for frame assembly. 4 motors at 1.1 kW. Speed: 26,500 rpm. Direction of rotation: right and left. Milling cutter / drill bit. Iajdoxxytxopfx Ab Njt

Condition: ready for operation (used), Year of construction: 1994, overall weight: 7,000 kg, Arm length 1800 mm, drilling capacity 80 mm, weight 7000 kg Iaodpfx Abeyzq Dpe Not

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) / mm Iodpfoy S Dvmjx Ab Noat throat / mm bore stroke / mm total power requirement 1,5 kW

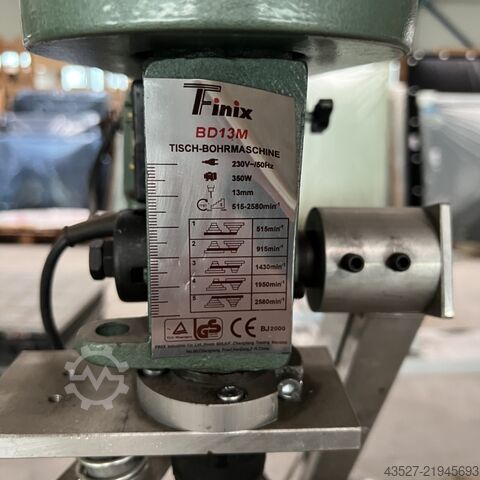

Condition: used, Year of construction: 2000, number of spindles / Iajdpey S Dm Sefx Ab Not bore capacity in steel (diameter) / mm bore stroke / mm BD13M – 5-Spindle Gang Drill / Bench Drill

Condition: used, Line boring machine WEBO with 4 stations type B 20 make no. 376/13; 376/14; 376/27; 376/36 year of construction approx. 1970 drilling capacity 20 mm spindle adaptor MK 2 - long spindle sleeve drilling head distance 335 mm throat 260 mm pinol stroke 190 mm table size 350 x 1500 mm Iaodpfoihmwtex Ab Net distance drilling spindle/table min.30 mm / max. 700 mm Spindle speed drill head 376/13 355, 500, 710, 1000, 1400, 2000, 2800, 4000 rpm. Spindle speed drill head 376/14 355, 500, 710, 1000, 1400, 2000, 2800, 4000 rpm. Spindle speed drill head 376/27 250, 355, 500, 710, 1000, 1400, 2000, 2800 rpm. Spindle speed drill head 376/36 180, 250, 355, 500, 710, 1000, 1400, 2000 rpm. Motor power 1,1 / 1,3 kW Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and 4 V-belt steps - drill head height adjustment via toothed rack and hand crank approx. 300 mm - height adjustable drilling table approx. 350 mm space requirement L x W x H 1750 x 1100 x 1900 mm weight 1900 kg good condition

Condition: used, Column Drilling Machine INFRATIREA - ORADEA Type PH - 031 Serial No. Year of manufacture 1975 Drilling capacity 40 mm Spindle taper MK 4 - short quill Throat depth 320 mm Quill stroke 250 mm Table size 400 x 400 mm Column diameter 160 mm Spindle speed 85 - 1500 rpm, 6-speed gearbox Motor power 2.2 kW Power supply 400 Volt, 50 Hz - Spindle speed adjustable over 6 gear steps Iaedpfjtrpifsx Ab Not - Right and left-hand rotation - Automatic feed 0.10 - 0.16 - 0.25 - 0.4 mm/rev - Swivel drill table - Table height adjustment via hand crank - Clamping surface on machine base - Coolant pump integrated in base Required space L x W x H 1000 x 600 x 2450 mm Weight 700 kg

Condition: used, Box column drilling machine WEBO Series- No 132 Machine No: 9 Drilling capacity 50 mm Spindle cone MK 5 - long quill throat 430 mm spindle stroke 280 mm Height adjustment of drill head 500 mm Table size Ø 725 mm Distance between drill spindle and table max. 740 mm Distance between drill spindle and clamping surface on machine base max. 1240 mm Spindle speed 55-820 rpm Feed rate level 1 0.13 - 0.2 - 0.27 - 0.4 mm/rev. Feed rate stage 2 0.6 - 0.83 - 1.17 - 1.8 mm/rev. Column diameter 300 mm Motor power 2.8 / 3.6 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator Iasdpfx Aeqa Txqjb Not - Manual drill head height adjustment via hand crank, clamping with clamping screws - Rotatable drill table with mechanical clamping - Table height adjustment via hand crank - Clamping surface on machine base 600 x 550 mm Top height of drill head 3020 mm Overall height drill head bottom 2520 mm Space requirement L x W x H 1400 x 780 x 2520 mm Weight 1600 kg good condition

Condition: used, Radial drilling machine WEBO Type R4bR Serial No. 15 / E195 Year of manufacture: approx. 1965 Drilling capacity: 50 mm Iasdpfju T Ty Hjx Ab Njt Spindle taper: MT 5 Maximum spindle outreach: approx. 1250 mm (to column) Clamping surface: 1400 x 1000 mm Column diameter: 315 mm Spindle speed: 30 - 1325 rpm, 9 steps Feed: 0.12 - 2 mm/rev, 9 steps Electrical connection: 380 Volt, 50 Hz - Spindle speed in 9 steps - Motorized height adjustment of the boom Required floor space for operation (L x W x H): 220 x 100 x 285 cm Transport dimensions (L x W x H): 220 x 100 x 260 cm (without motor for height adjustment) Weight: approx. 2.8 t.

Condition: used, Tool grinding machine, twist drill grinding machine BORA -- BI-EMME s.n.c. (Italy) Type 1/BM 40 Iodpfx Ajnzt A Hjb Nsat No. 49697 Year of manufacture 1997 Grinding range Ø 3 - 40 mm Center angle 40° - 180 Motor power 1.1 kW Grinding wheel dimension max. Ø 200 mm Grinding wheel speed 2840 rpm Mains connection 400 Volt, 50 Hz - For grinding standard drills and other tools with 1, 2, 3, 4 or 6 cutting edges (step drills, taps, countersinks, drills with a thick core and drills with special grinding) - Precision six-jaw chuck Ø 125 m - pointing device (motor power 0.18 kW) - For left and right cutting drilling tools thanks to interchangeable cams - Cam disks easily interchangeable for 2 or multi-bladed tools - 4 cam disks - Centering arbor for MK1, MK2, MK3, MK4 - A white grinding wheel with a diameter of 170 mm and a width of 40 mm is installed - Metal base with door and shelf - Wet grinding unit shown opposite - Operating instructions per PDF Space requirement L x W x H 900 x 850 x 1250 mm Weight 220 kg Very good condition

Condition: used, Radial drilling machine with plate field WEBO type HRH 100 / 3000 Machine. No. 10009555/7 -- 1110185 -- 6046 Year of manufacture 1979 Drilling capacity Ø 100 mm in ST 60 at feed rate 0.5 mm/rev. Nominal throat depth 3000 mm Max. throat depth max. 3100 mm Spindle holder MK 6 Spindle speed 22.4 - 1600 rpm 36 steps Feed rate 0.05 - 2.5 mm/rev 18 steps Spindle - base plate distance 970 - 2335 mm Pinol stroke 325 mm Swivel range of the arm 360 movable on bed, bed length 7500 mm Clamping area panel field 8000 x 2100 mm - Electrical central clamping - Drilling unit can be moved lengthwise on the machine bed by electric motor - Panel field consisting of 2 clamping plates with 7x T-slot, (length 4000 x width 2100 x panel thickness 360 mm) Space requirement L x W x H 8000 x 4550 x 4300 mm Maximum height 4300 mm Transport height (bed with drilling machine) approx. 3150 mm Iaedpfefbt Hujx Ab Njt Transport weight (bed with drilling machine) approx. 20 tons Transport dimensions of panel section L x W x H 4000 x 2100 x 900 mm (2 panels stacked on top of each other) Transport weight panel field approx. 14 ton. good condition

Condition: good (used), Year of construction: 2002, Drilling and Milling Machine Manufacturer: KNUTH Type: TBF 500 Year: 2002 with coordinate table Spindle taper: MK4 Spindle speeds: 125-2500 rpm Motor power: 1.1 kW Table travel: X 500 mm, Y 160 mm Max. installation height: 300 mm Spindle stroke: 130 mm Table size: 200 mm x 730 mm Machine dimensions: Width 1000 mm, Depth 800 mm, Height 1800 mm, Weight approx. 350 kg In good condition. Iasdpsy Spubefx Ab Not

Condition: excellent (used), Rapid radial drilling machine / Radial drilling machine / Drilling machine (used) Manufacturer: Mikrosa Year of manufacture: 2001 Type: SRB 35 Drilling capacity: - Steel: 35 mm - Cast iron: 40 mm Thread cutting: - Steel: M20 - Cast iron: M24 Spindle taper: MK 4 Spindle speed: 20 – 2800 rpm, infinitely variable Automatic feed: infinitely variable Spindle stroke: 140 mm Arm reach: 1000 mm Table size: 1050 x 400 mm Column diameter: 200 mm Installation height: 600 mm Iedpey Skrzsfx Ab Neat Connected load: 7.8 kW Space requirement: approx. width 1250 mm, depth 2100 mm, max. height 2700 mm Weight: approx. 2000 kg Hydraulic clamping Thread cutting device Depth stop Lateral clamping surface Drill chuck 2 gearbox stages The machine is in very well-maintained condition, runs very smoothly, and is ready for immediate operation. Forklift available, free loading on truck. Affordable shipping possible. Location of the machine: 48477 Hörstel

Condition: used, Year of construction: 1964, bore capacity in steel (diameter) 65 mm arm length 2000 mm Iaodpsy Swhpsfx Ab Not workpiece height max. 1800 mm surface area 900x2000 mm turning speeds 1400 U/min The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, bore capacity in steel (diameter) . mm arm length . mm workpiece height max. . mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Iaedpfxjyqvyao Ab Net

Condition: like new (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 260 mm, travel distance Z-axis: 160 mm, spindle speed (max.): 7,100 rpm, spindle speed (min.): 50 rpm, total length: 2,000 mm, total height: 2,300 mm, table width: 880 mm, total width: 1,600 mm, table length: 320 mm, spindle nose: SF32 snelwissel, workpiece weight (max.): 300 kg, Equipment: documentation/manual, rotational speed infinitely variable, The machine comes from a university and is therefore in exceptionally good condition (as good as new). If required, it can also be demonstrated in operation at our premises! Additional options & accessories: Approx. 15 tool holders Heidenhain TS220 3D probe Original documentation Iajdpfx Absy R Sq Aj Net Weight & dimensions: 2,150 kg approx. 2000 x 1600 x 2300 mm (LxWxH)

Condition: excellent (used), Year of construction: 1998, Frame dowel and slot mortising machine from Hofmann HT 200 U with angle adjustment Specialized drilling machine for stair construction, window manufacturing, and universal applications thanks to pneumatic height adjustment. Angled doweling and baluster/rail drilling are easily possible due to the swiveling drilling unit. Motor with pole-change switch, two speeds Motor output 1.5 / 1.8 kW, 1400 / 2800 rpm Motor can be started via a practical handle switch Precision drill chuck with two inserts: 16 mm and M10 thread Table size approx. 1100 x 240 mm Linear laser for precise workpiece positioning Drilling unit can be rotated 65 degrees to the left and right Pneumatic adjustment of working height, allows doweling on two levels without repositioning Desired drilling heights for each drilling level can be set with a handwheel and digital counter; switching between levels is pneumatic and is operated from the front Cross adjustment approx. 320 mm, stepless or in a 12 mm grid Drilling stroke approx. 200 mm 2 pneumatic workpiece clamps, positionable at the front and back of the table Isdsyfta Tepfx Ab Neat 2 swiveling workpiece supports 2 side stops, can also be used as front support Mobile base Extraction port 80 mm 4 used but good drills: 9, 12, 16, 19 mm Few touch-ups on the paint, excellent condition, see original photos A used swiveling slot mortising machine in this condition is very rarely available. CE mark Operating manual Dimensions: approx. 1200 x 1200 x 1200 mm (LxWxH), weight 310 kg. The machine can be demonstrated at our premises by appointment. We only offer machines that are ready for demonstration and available in our warehouse – see “more offers from this supplier.”

Condition: new, spindle speed (max.): 3,200 rpm, spindle speed (min.): 72 rpm, spindle mount: MK 4, table width: 240 mm, table length: 800 mm, – MK4 Isdpfx Abey R E N Ee Njat – 75/3200 rpm – Thread cutting function – Digital 3-axis display – Height-adjustable drilling head – Rotatable drilling head – Table 800 × 240 mm – Gear drive – 2-speed motor – Safety guard – Emergency stop – Coolant system – Lighting – Documentation – 400V

Condition: excellent (used), Year of construction: 2009, drilling depth: 350 mm, workpiece weight (max.): 1,600 kg, table load: 1,600 kg, Deep hole drilling machine Mollart - LD8 - 150 Pellet Die Number of Spindles 8 Gun Drilling Diameter Range 1.5mm-10mm (Per Spindle) Maximum Drilling Depth 150mm Drill Spindle Stroke 350mm Pellet Die Diameter 500mm-1550mm B-Axis Accuracy +/- 6 Arc Seconds Y-Axis Vertical Travel 400mm Gun Drill Speed Range 0-14,000 RPM Max. drill Ø steel 1.5 - 10 mm Drilling depth 350 mm Table load 1600 Speeds / ranges 14000 Rpm Dimensions (Estimate) Length 4500 mm Iaodpfxeyilgde Ab Njt Width 4500 mm Height 2300 mm Weight 12000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2016, total height: 2,350 mm, total length: 4,300 mm, total width: 1,880 mm, Colour: Grey Empty weight: 1.310 kg - Year: 2016 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AB/226310 - Transport dimensions: 4300mm x 1880mm x 2350mm (l x w x h) - Transport weight [kg]: 1310kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets Iajdpfx Aexy Rk Rob Nst
