Used Center Point for sale (18,513)

Condition: used, Year of construction: 2009, Automatic central lubrication Milling unit 7833 2-stage, 11 kW power 1000 - 24000 rpm 1 double drilling spindle in X-direction 1 integrated sawing unit for sawing / grooving in X-direction, traveling Tool changer 7892, 16-way Linear Pick-up changer, permanently installed on the right-hand side of the machine Laser pointer consisting of 2 laser pointers for positioning the vacuum suction cups or tracing the workpiece contour Automatic console - suction cup positioning 6 consoles including 3 suction cup holders per console including 1 vacuum suction cup 80x80 mm per suction cup holder including 4 feeding aids Additional processing fields at the front for 6 consoles Basic unit pneumatics for frame clamping system 7974 (6 consoles) 2D barcode scanner Video camera in the processing head Vacuum pump 140 m³/h Vario tool Change changing unit package consisting of Consists of: Vector axis 7899 (C-axis), fully interpolating, 0-360° continuously rotatable, including pneumatic tool changer 7890, single-slot magazine pick-up system, permanently installed in front of the machine frame on the left. Tool changer 7894, 6-slot pick-up magazine specifically for Vario Tool Change tool holders, permanently installed in the machine frame on the left, can be equipped with a Vario Grip KSJ F 40 collet chuck, 3 Vario Grip KSJ F 40 tool holders (for 2-20 mm ER32 collets), 1 saw blade holder, 3 collets according to customer selection, 1 carbide circular saw blade, max. 220 mm diameter. Blodpfxjvvi Spj Aqwol Storage location: Nattheim

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Bsdew Dcccspfx Aqwoll

Condition: used, Year of construction: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel length X-Y: 4,200 x 2,000 mm Description of the units and accessories (base) The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user an optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier in gantry design is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. The work unit is mounted on this mobile unit carrier on prismatic, ground guides and a recirculating ball slide. Axis movement: The drive system in the Y and Z axes is provided by ground ball screws of the highest precision class. The X-axis is driven by a backlash-free, preloaded precision rack and pinion drive. This ensures balanced load distribution during the positioning process. Such characteristics are important for ensuring balanced movement even in more complex tasks. The movement of the various axes is controlled by brushless three-phase servo motors/brushless AC motors. These offer excellent positioning speeds thanks to very short ramp times. Furthermore, the measuring system is fully integrated into these motors. These properties make this type of drive completely maintenance-free. · Rapid traverse in X: 40 m/min · Rapid traverse in Y: 60 m/min · Rapid traverse in Z: 22.5 m/min Vacuum system (basic) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. negative pressure (connection) 0.9 bar Control / control cabinet · Office PC or industrial PC (see options) · Basic NC control: ESA-GV KVARA 6.0 · Cable remote control with the most important functions ELECTRIC/ELECTRONIC CNC CONTROL Universal is equipped with a powerful NC control. The integrated office PC gives the NC control an unparalleled level of familiarity: the software runs on Windows XP and allows quick and easy programming, which is easy to learn even for inexperienced users. The system is open and allows the connection of CD-ROM drives, audio cards, barcode readers, modems, printers, scanning systems, etc. Furthermore, the installation of all network systems, as well as all commercially available CAD programs, is possible. To reduce space, the control cabinet is located under the machine table, and the operator works at a separate terminal on casters that can be freely positioned. XILOG PROGRAMMING SYSTEM Software features: - Import of DXF files - Import of ASCII files - User interface in the operator's native language (available for languages I - GB - F - D - E) - Linear and circular interpolation in three axes, linear in space, spiral in the selected plane - Assisted programming - Calculator for direct transfer of calculated data - Graphic and syntax aids for drilling and milling operations - Parametric programming to perform the same panel machining on different P Bljdpfxovvi Nzs Aqwsl

Year of construction: 2009, condition: used, functionality: fully functional, machine/vehicle number: C107230, We are offering a well-maintained Emmegi PHANTOMATIC T3 A CNC machining center, ideal for processing aluminum and light alloy profiles. Machine Details: Manufacturer: Emmegi S.p.A. (Italy) Model: PHANTOMATIC T3 A Year: 2009 Serial Number: C107230 Power: 7.5 kW Bedpfxey Idm Re Aqwell Voltage: 400 V / 3-phase Current: 16 A Frequency: 50 Hz Weight: 1950 kg Description: The PHANTOMATIC T3 A is a versatile CNC machining center designed for milling, drilling, tapping, and cutting operations on aluminum profiles. Known for its reliability and precision, this machine is suitable for window, door, and façade production, as well as general aluminum fabrication.2Emmegi

Condition: used, machine/vehicle number: 008576, X axis working area: 3000 mm Y axis working area: 1230 mm Blsdpfx Aezylvzeqwjl Main Electrospindle power: 3.6 KW Number of controlled axes: 3 axes Total number of drilling spindles: 20 Total number of tool changer positions: 4

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, Bedpopumdcefx Aqwjll mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

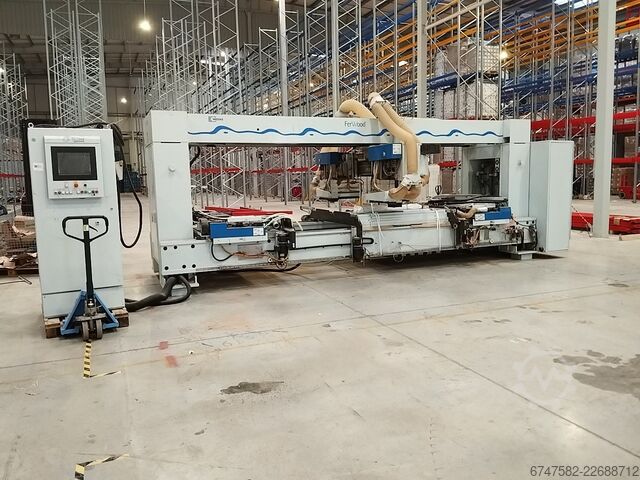

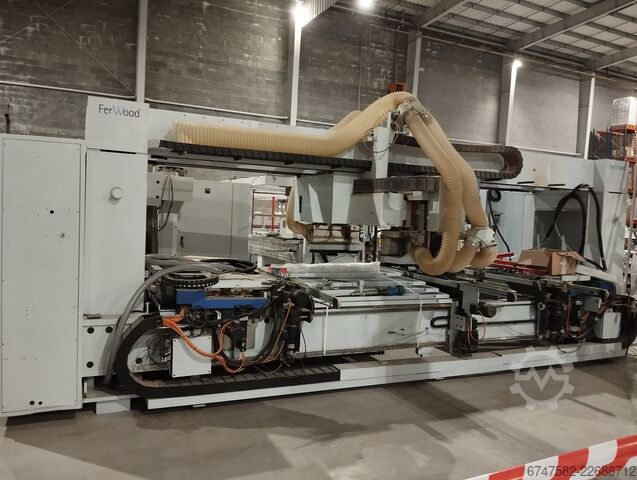

Condition: used, Year of construction: 2008, machine/vehicle number: 0-250-19-0287, functionality: fully functional, input voltage: 415 V, input current: 125 A, input frequency: 50 Hz, type of input current: three-phase, workpiece length (max.): 1,500 mm, workpiece width (max.): 3,000 mm, workpiece height (max.): 60 mm, actuation type: electric, total height: 2,760 mm, total length: 5,280 mm, total width: 7,150 mm, overall weight: 18,000 kg, Equipment: CE marking, documentation/manual, The PROFI BHT 500 drilling center is equipped with 2 upper tool heads. Each head includes: a) two sets of vertical drills with a 32mm spacing: 17 spindles in the Y-axis, 15 spindles in the X-axis, and an additional 4 horizontal spindles in the Y-axis. Bodpfszyp Tkjx Aqwell b) an electric spindle unit with a power of 5kW and an ISO30 chuck. The machine also features two horizontal drilling units, each consisting of: two units equipped with 9 spindles with a 32mm spacing, and 2 glue guns for applying adhesive and furniture dowels. Belt conveyors at the infeed and outfeed points allow for manual loading of parts, and the machine can also be operated in a production line.

Condition: new, type of input current: AC, travel distance X-axis: 850 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 640 mm, number of slots in tool magazine: 30, controller manufacturer: HEIDENHAIN, overall weight: 6,500 kg, table length: 1,000 mm, table width: 460 mm, controller model: TNC 7, coolant supply: 20 bar, rapid traverse Z-axis: 36,000 m/min, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rotational speed (max.): 12,000 rpm, spindle nose: SK 40 BIG PLUS, table load: 400 kg, tool diameter: 150 mm, tool length: 300 mm, tool weight: 8 g, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The LAGUN L 850 machining center in a cross table design stands for high precision, robust construction, and economical production. Ideal for mechanical engineering, mold making, and job manufacturing, as well as for a wide range of demanding machining tasks. Your advantages: ✔ Delivery and commissioning by JMT technicians included ✔ Original spare parts available directly from stock ✔ Technical support and on-site service in Germany ✔ Training and instruction of operating personnel included ✔ Financing and leasing options available upon request ✔ 24-month warranty Technical equipment: Control system: ✔ HEIDENHAIN TNC 7 Basic ✔ HEIDENHAIN TFT screen 16" ✔ HEIDENHAIN motors, measuring systems, and electronic handwheel HR 510 Including the following accessories: ✔ Longitudinal hinged band chip conveyor ✔ Preparation for the integration of a rotary table Bedpom Tv Sbjfx Aqwjll ✔ Full enclosure with side-opening viewing windows ✔ Ergonomic L-shaped control panel Accuracy: Positioning accuracy: ± 0.005 mm Repeatability: ± 0.003 mm Contact us – we will be happy to advise you and prepare a customized offer.

Condition: used, Year of construction: 2006, Victor V26-II CNC lathe; with C-axis; with driven tools; FANUC 21i-TB control; chuck: 10"; turning diameter: 520 mm; turning length: 1090 mm; spindle speed: 3,500 rpm; upper turret toolholder with 12 positions, 6 of which are driven; tool presetting device; chip conveyor; oil mist extraction. Bledpfxsr E Amge Aqwol

Condition: excellent (used), Year of construction: 2012, machine/vehicle number: 11920000463, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, number of slots in tool magazine: 60, table length: 8,000 mm, table width: 1,000 mm, spindle motor power: 35,000 W, rapid traverse Z-axis: 60 m/min, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, spindle nose: HSK-63, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, ACCESSORIES Blodpfxjr Npvle Aqwel Chip conveyor Oil mist collector 60 positions in tool changer 980 liter high pressure coolant through the spindle system with paper band filter Infrared measuring sensor Tool measurement with BLUM Laser 3D Quick Set preparation Cooling unit Air blast through the spindle

Condition: good (used), Year of construction: 2008, travel distance X-axis: 630 mm, travel distance Y-axis: 765 mm, travel distance Z-axis: 510 mm, CNC control Mazatrol Matrix 2-fold pallet changing device NC-swivel rotary table 80-fold tool changer high pressure coolant through the spindle 20bar chip conveyor Technische Daten / technical details: Verfahrweg X / X-Travel 630 mm Verfahrweg Y / Y-Travel 765 mm Verfahrweg Z / Z-Travel 510 mm Schwenkbereich A-Achse / swivel range A-axis -120 - +30 ° Drehbereich C-Achse / rotary range C-axis 360 ° Tischgröße / table size 500x500 mm Werkzeugschaft / spindle taper SK40 Drehzahl / spindle speed 35-12000 UpM /rpm Eilgang / rapid feed 50 m/min Anzahl der Werkzeugplätze / tool places in ATC 80 fach / fold Antriebsleistung Hauptantrieb / drive capacity main drive 26 kW Bjdetp Hgzjpfx Aqwoll Gewicht der Maschine ca. / weight 17000 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm table surface area 50 x 700 mm NC-rotary table integriert, 700 mmø spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - .000 U/min control HEIDENHAIN control TNC 430 feeds x/y/z -stepless 20 - 15.000 mm/min rapid traverse 30 m/min ATC 32 (2 x 16) Pos tool diameter 80 / 130 mm workpiece length 315 mm weight of tools max. 8 kg NC-rotary table - speed - max. 15 U/min table load 600 / 500 kg milling head -swivable ° total power requirement 60 kW weight of the machine ca. 9,6 t dimensions of machine L x W x H 4,53 x 2,60 x 2,50 m = 5-axis machining center, table clamping surface 50 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Bedpfxjtqqmbj Aqwjll Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant

Condition: used, greates pass round over bed 480 mm swing diameter over bed slide 300 mm turning length 1500 mm centre height 240 mm centre distance 1500 mm Bedpfx Aqstqqx Aowell spindle bore 42 mm spindle turning speed range 14 - 1400 U/min total power requirement 4 kW weight of the machine ca. 2,4 t dimensions of machine L x W x H 3,00 x 1,05 x 1,40 m Accessories: 3-jaw chuck 250 mmø, MULTIFIX-head, running center

Condition: new, power: 40 kW (54.38 HP), travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,000 mm, workpiece weight (max.): 10,000 kg, number of slots in tool magazine: 60, controller manufacturer: HEIDENHAIN, Equipment: CE marking, The LAGUN TM 3 is a highly stable traveling column milling center in a T-shaped design, featuring a large rotary table and a large working envelope. It offers maximum flexibility and is ideally suited for the precise machining of large and complex workpieces. Its advantages: ✔ Delivery and commissioning by JMT technicians included ✔ Original spare parts available directly from stock ✔ Technical support and on-site service in Germany ✔ Training and instruction of operating personnel included ✔ Financing and lease-purchase options available upon request ✔ 24-month warranty Technical specifications: Control: ✔ HEIDENHAIN TNC 7 Bedpshy Aunofx Aqwsll ✔ HEIDENHAIN 24" TFT screen ✔ HEIDENHAIN motors, measuring systems, and electronic handwheel HR-510 Cooling: Internal coolant supply (ICS) 36 bar Tool changer: 60-position chain magazine with double gripper Chip removal: 2 x articulated belt conveyors (front and rear) Enclosure: Full enclosure (perimeter) Accuracy: Positioning accuracy: ± 0.015 mm Repeatability: ± 0.008 mm Contact us – we will be happy to advise you and prepare a customized offer.

Condition: new, power: 17 kW (23.11 HP), travel distance X-axis: 450 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 495 mm, workpiece weight (max.): 200 kg, number of slots in tool magazine: 30, controller manufacturer: HEIDENHAIN, overall weight: 6,500 kg, controller model: TNC 640, coolant supply: 20 bar, rapid traverse Z-axis: 30,000 m/min, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rotary table diameter: 320 mm, rotational speed (max.): 12,000 rpm, spindle nose: SK 40 BIG PLUS (BVD 40), tool diameter: 150 mm, tool length: 300 mm, tool weight: 8 g, Equipment: CE marking, chip conveyor, documentation/manual, rotational speed infinitely variable, LAGUN L5AX 320 – available for immediate delivery The LAGUN L 5AX 320 5-axis simultaneous machining center with a cross table design stands for the highest precision, robust construction, and economical production. Ideal for mechanical engineering, mold making, and contract manufacturing, as well as for demanding and complex machining tasks. Your advantages: ✔ Delivery and commissioning by JMT technicians included ✔ Original spare parts available directly from stock ✔ Technical support and on-site service in Germany ✔ Training and instruction of operating personnel included ✔ Financing and lease-purchase options available upon request ✔ 24-month warranty Technical features: Control system: ✔ HEIDENHAIN TNC 640 ✔ HEIDENHAIN TFT screen 15" ✔ HEIDENHAIN motors, measuring systems, and electronic handwheel HR 510 Including the following accessories: ✔ Longitudinal articulated belt chip conveyor ✔ Full enclosure with side-opening viewing windows ✔ Ergonomic control panel Blodpfx Aqoh Ekqyewol Accuracy: Positioning accuracy: ± 0.005 mm Repeatability: ± 0.003 mm Contact us – we will be happy to advise you and create an individual offer.

Condition: reconditioned (used), Year of construction: 1985, In 2020, the machine underwent a comprehensive overhaul for €7,000. Documentation is available. Work processes: - Chamfering 60° - Longitudinal turning up to a maximum of 40 mm - Center drilling Fully automatic work sequence: - Clamping, tool holder closed - Rapid traverse forward - Working feed - Dwell time for cutting - Rapid traverse back - Releasing, tool holder open Technical data: Max. workpiece diameter (round) 80 mm Bodpeiamn Sjfx Aqwsll Max. workpiece diameter (6-sided) 70 mm Min. workpiece diameter (round and 6-sided) 10 mm Min. workpiece length 450 mm Speed range, infinitely variable Stage I / Stage II = 51-306 / 102-612 Electrical equipment 220/380 V, 50 Hz Motor power, main motor kW 1.3 / 1.8 Motor power, coolant motor kW 0.07 Required air pressure 6-8 bar Weight approx. 520 kg Dimensions: L 1520 mm x W 610 mm x H 1350 mm Roller conveyor

Condition: like new (used), Tower clamping system TS 125 Magnum Jaw width 125 mm Clamping ranges: 1 x 476 mm 2 x 226 mm 4 x 108 mm Overall height 780 mm Clamping stroke per clamping slide 64 mm Clamping force 40 kN Price: 7,850.00 € + VAT Item 2 4 hydraulic clamping cylinders Jaw width 125 mm Overall length 400 mm Price per unit 850.00 € + VAT Price for 4 units 3,000.00 EUR + VAT Item 6 Preci Tool NC, Type 125 Jaw width 125 mm Overall length 430 Only 1 fixed jaw Price: upon request Item 8 HILMA machine vise with rotary table Mechanical/hydraulic Clamping force 40 daN Jaw width 125 mm Overall length 430 mm Price: 850.00 € + VAT Item 9 HILMA machine vise Mechanical/hydraulic Clamping force 50 daN Jaw width 160 mm Overall length 550 mm Price: 900.00 € + VAT Item 10 HILMA machine vise Mechanical/hydraulic Clamping force 25 daN Jaw width 100 mm Overall length 380 mm Price: 650.00 € + VAT Item 11 HILMA machine vise with rotary table Mechanical/hydraulic Clamping force 40 daN Jaw width 125 mm Overall length 430 mm Price: 850.00 € + VAT Item 12 HILMA machine vise with rotary table Mechanical/hydraulic Clamping force 50 daN Jaw width 160 mm Bljdpfsidl Rrox Aqwol Overall length 620 mm Price: 1,050.00 € + VAT Item 26 HILMA machine vise (trade fair model) Jaw width 125 mm Overall length 430 mm Price: upon request Item 28 HILMA machine vise Mechanical/hydraulic Clamping force 25 daN Jaw width 100 mm Overall length 570 mm Price: 700.00 € + VAT Item 32 Clamping angle Clamping surface 160 x 420 mm Price: 150.00 € + VAT Item 33 Clamping angle with HILMA clamping cylinder Jaw width 125 and load cell Price: 450.00 € + VAT

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, Fanuc Robodrill T14iA Vertical Machining Centre for sale. 1998 model with 8,000 rpm spindle and 14 tool ATC. SPECIFICATION Traverses X Axis 500mm Y Axis 380mm Z Axis 300mm Spindle Nose to Worktable Minimum 250mm Maximum 550mm Work Table Table working surface 650 x 400mm Table loading capacity (uniform load) 200kg Table surface configuration Number of T slots 3 Width 14mm Pitch 125mm Machine Dimensions Width 1550mm Depth 1900mm Height (min/max) 2067 / 2367mm Weight (approximately) 2100kg Spindle Speed range 100 – 8,000rpm Taper BT30 Feedrates Rapid traverse rate 48m/min Feedrate 1 – 30,000mm/min Toolchanger ( MAS BT30 Tools) Tool storage capacity 14 tools Tool change time – cut to cut 0.9 secs (2kg) Tool Diameter 80mm Tool Length 200mm Tool Weight 2Kg Coolant tank capacity 100 litres CNC Control System Fanuc Series 16iM Electrical Supply 415V, 3 ph , 50Hz Compressed Air Supply 5kgf/cm2 (100 litres/min) MACHINE EQUIPPED WITH:- Coolant system Lighting Bodpfsnq Dguex Aqwsll Enclosed guarding

Condition: good (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 2,050 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 520 mm, rotational speed (max.): 12,000 rpm, CNC control Heidenhain TNC 430 32-fold tool changer coolant device 2x chip conveyor measuring feeler The hole X-axis travel is 2050mm. You can work in one move 2 meters. A dividing wall is also with the machine. Then the X-travel will be split. Technische Daten / technical details: X-Weg / X-travel 2050 mm Y-Weg / Y-travel 520 mm Z-Weg / Z-travel 520 mm Bjdpfx Aqeu Hf Ryjwjll Spindelaufnahme / spindle taper SK40 Drehzahlbereich / spindle speed 12000 UpM /rpm Werkzeugwechselmagazinplätze / number of tool places in changer 2x 32 Antriebleistung Spindel / drive capacity spindle 36 kW Gewicht ca. / weight 12800 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: new, Year of construction: 2024, Axis distance: 920 mm X-axis: 3000 mm Material thickness: Z 12 mm - 30 mm Feed rate: 20 m/min. A-axis: 360 degrees Minimum dimensions: Plate: x = 300 mm Y = 120 mm z = 12 mm The machine is equipped with a 4-position drill chuck and a saw blade. Maximum and minimum hole diameters that can be drilled: 3 - 35 mm The saw blade moves in the X-direction. Max. cutting depth with saw blade: 10 mm Motor: 0.75 HP, 400 volts Required extraction capacity: 2300 m3/h Location: In stock, 54634 Bitburg - immediately available - Bsdecnz H Hspfx Aqwjll

Condition: like new (used), Year of construction: 2023, SCM Accord 40 fx CNC machining center with the following equipment: Working area X-Y = 6360 x 1905 mm, Z = 350 mm OF0158 Usable Z clearance height = 350 mm with H50 suction cups OF0165 Axis travel speed of Accord 40 fx Version PRO-SPEED OF0168 Pendulum (dual-zone) operation OF0169 Automatic axis lubrication OF0299 TELESOLVE remote maintenance via Internet 450328 eye-M PRO control console with integrated PC 450291 Additional fixed control panel 870068 TECPAD – remote control of machine functions 560058 No. 10 carrier rails MATIC – L1825 230429 MAXI working unit – Prisma KT 1 870046 Prepared for angle gearbox "Prisma KT-KS" 470014 Air nozzle for tool 870119 Device for tool length measurement 870120 Device for panel thickness measurement 870009 Drilling unit F16 OF0176 Front stop row H50 for worktable with 10 carrier rails 510205 Preparation for clamps for worktable with 10 carrier rails 480178 Front stop row H110 for worktable with 10 carrier rails 480105 Rear stop row H110 for worktable with 10 carrier rails 480137 First lateral stop row H110 for worktable with 10 carrier rails 480005 Suction cups H110, 145x145 mm, 36 pcs 480006 Suction cups H110, 145x55 mm, rotatable, 10 pcs 480007 Suction cups H110, 180x65 mm, rotatable, 10 pcs 480018 Suction cups H110, 145x30 mm, rotatable, 5 pcs 480410 Lifting devices H110, 8 pcs 350016 Vacuum pump 250 (300) m³/h 560538 Additional automatically adjustable base for MATIC 10 carrier rail 190046 PRO-SPEED safety system 524800 "SAV€NERGY" 2.0 energy saving system 210837 TR12 – lateral tool magazine Blodpfxjyfgzde Aqwol 210056 Rapid 24 – rear tool magazine OF0182 Air conditioning for control cabinet OF0438 Human-machine interface software (HMI) MAESTRO ACTIVE OF0543 Operating system Windows 10 embedded 64 bit OF0422 Machine operating interface software Maestro cnc OF0435 Hardware dongle for Maestro cnc 524309 Maestro 3D-Advanced module 109993 MACHINE LANGUAGE: German SPECIAL FEATURES INCLUDED IN MACHINE CONFIGURATION: - Extension of maximum panel width to 2,120 mm for full processing; traverse length remains unchanged at 1900 mm. - 10 support suction cups for remnants MACHINE ALREADY DISMANTLED AND STORED. LIST PRICE 2023 EUR 399,890.--

Condition: excellent (used), Year of construction: 2014, CNC turning and milling center Okuma Multus U4000 1SC 1500 BigBore Control: OSP-P 300S Bsdpfjyk Ddgsx Aqwoll Year of manufacture: 2014 Internal machine number: 35 X-axis: 695 mm Y-axis with travel: +150/ -150 = 300 mm Z-axis: 1,600 mm B-axis: 240°, positioning in 0.001° C-axis: 360°, positioning in 0.001° Turning diameter: 650 mm Turning length: 1,500 mm Tool holder: Capto C6 Total number of tool positions: 80 Accessories: NC tailstock Adjustable hydraulic steady rest AX 5 on NC axis Coolant system with strip filter Hydraulic 3-jaw chuck Kitagawa BB 212-11 Automatic touch probe High-pressure coolant IKZ Software option High Cut Pro (High-precision package with Super Nurbs) CAS collision protection system Spindle orientation, main spindle, electric Multitool including turning function for Y-axis Helix function Automatic main power cut-off DNC-DT interface Machining Navi M-i (milling), speed control for minimizing vibrations. One-Touch IGF Chip conveyor

Condition: excellent (used), Year of construction: 2020, operating hours: 4,800 h, functionality: fully functional, machine/vehicle number: NL154200702, Manufacturing origin: JP Voltage: 380 V / 50 Hz / 3-phase Net weight: 5,400 kg Customs tariff number: 8458.9100 TECHNICAL DATA Bedew T Sn Espfx Aqwoll Maximum turning diameter: 350 mm Turning length: 515 mm CNC control: M730UM MAPPS Celos Swing over bed: 923.8 mm Swing diameter above carriage: 755 mm Standard turning diameter: 260 mm Bar capacity: 34 mm Main spindle: Spindle speed range: 100 – 8,000 rpm Spindle motor power: 11 / 7.5 kW C-axis resolution: 0.001° Chuck diameter: 210 mm Subspindle: Maximum speed: 8,000 rpm Spindle nose: A2-5 Axis travels: X-axis travel: 260 mm Z-axis travel: 580 mm Y-axis travel: 100 mm (±50 mm) Turret: Number of turret stations: 20 Driven stations: 20 Tool shank diameter: 25 mm Maximum driven tool speed: 10,000 rpm Driven tool motor power: 5.5 / 3.7 kW Feed rates: Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Rapid traverse subspindle: 30 m/min Rapid traverse Y-axis: 10 m/min Rapid traverse C-axis: 400 rpm Total power requirement: 31 kVA Approximate machine weight: 5.4 t Approximate machine dimensions: 4.0 x 3.0 x 3.2 m Errors and omissions excepted – data provided without obligation.

Condition: reconditioned (used), Year of construction: 2008, operating hours: 13,600 h, functionality: fully functional, machine/vehicle number: 106, Machine partially overhauled by Willemin with new geometry and a new secondary spindle (6,000 rpm). New ball screws on X-Y-Z axes. Alignment and calibration. Ready for production. 5 axes – Fanuc 31i A5 – HSK40E – max 30,000 rpm – Year 2008. Country of manufacture: Switzerland Voltage: 3x400V / 60Hz; 50 A; 35 kVA Dimensions: 270x200x260 cm Net machine weight: 2,500 kg TECHNICAL SPECIFICATIONS WILLEMIN MACODEL 508 MT Control: Fanuc 31i A5 X axis: 450 mm Y axis: 200 mm Z axis: 425 mm B axis: -45° to +100° U axis: 300 mm Tool magazine: 48 PickUp stations Bedpfx Aew T Tlroqwoll Main spindle A: max Ø42 mm, max 6,000 rpm Main spindle C: max Ø42 mm, max 3,000 rpm Milling motor spindle: HSK40E, max 30,000 rpm All technical details are given without obligation and subject to errors or omissions.

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, - ULTIMAX 4 control - toolchanger for 24 tools - coolant through spindle - chip screw - electronical hand wheel - measuring feeler Renishaw Technische Daten / technical details: Verfahrweg X / X-Travel 610 mm Verfahrweg Y / Y-Travel 510 mm Verfahrweg Z / Z-Travel 610 mm Tischgröße / table size 760x510 mm Werkzeugschaft / spindle taper SK40 Drehzahlbereich / spindle speed 10-10000 UpM /rpm Bedpfx Aqsx D A Ddjwoll Anzahl der Werkzeugplätze / tool places in ATC 24 fach Eilgang / rapid feed 30 m/min Gewicht der Maschine ca. / weight 4700 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.
