Used Guides for sale (4,139)

Condition: new, Bernardo Center and lathe master 180 incl. 3-axis digital display Top width 1000 mm Tip height 180 mm Swing over bed 360 mm Swing over bend * 480 mm Swing over cross slide 220 mm Bed width 185 mm Spindle bore 51 mm Spindle mount DIN 55029, D1-5 Speed range (8) 70-2000 RPM Range of longitudinal feeds (32) 0,052-1,392 mm / Rev Area plan feeds (32) 0.014 - 0.380 mm / Rev Metric threads (26) 0.4-7.0 mm Inch thread (34) 4-56 Gg/1 " Quill diameter 42 mm Quill trail 110 mm Spindle mount MT 4 S1 engine power output 100% 1.5 kW (400 V) Motor power S6 40% 2,2 kW (400 V) Machine dimensions (W x D x H) 1920 x 750 x 1600 mm Weight approx. 540 kg Bed length removable: 225 mm Scope of delivery • 3-axis digital display i200 with LCD display • 3 - jaw Chuck DK11-200 mm / D5 • Face plate 200 mm / D5, according to DIN 55029 • Fixed bezel - forward diam. maximum 70 mm Diam bezel with • ongoing - forward. maximum 50 mm • Coolant system • Initial filling with Shell Tellus 46 • Pull-out chip tray • Face plate 320 mm • Four-way steel bracket • protective device while the four-way tool post • Slipping clutch • Mikrometerlängsanschlag • Thread watch • LED machine luminaires • Reducing bushing • Change gears • 2 centres Hnsdjd Du Tispfx Ad Tjk • Foot pedal with brake function after CE • motor with magnetic brake according to CE standard • base

Condition: used, Slitter 650x3 Stainless Steel, made by GUIDA Hnedpsymciyofx Ad Tok Main characteristics: - Type of products: Stainless Steel (INOX) - Thickness: 0.20 - 3.00 mm - Entry coil width: 20 - 650 mm - Coil maximum weight: 5000 kg - Coil outer diameter: maximum 1560 mm - Coil inner diameter: 400/500/600 mm - Minimum extractable diameter: 510 mm Type of products: Stainless Steel (INOX) Thickness: 0.20 - 3.00 mm Entry coil width: 20 - 650 mm Coil maximum weight: 5000 kg Coil outer diameter: Max. 1560 mm Coil inner diameter: 400/500/600 mm Minimum extractable diameter: 510 mm

Condition: used, Slitting line 1500x 8, made by GUIDA Line composition: - Loading coil car - Uncoiler with sliding base and single expanding mandrel - Pressure arm - Feeding telescopic table with cutting edge and deflecting roll - Entry pinch roll - Crop shear - Tilting table - Mechanical centering device - Calming rolls - Slitting shear - Looping pit equipment (entry and exit saddles + connecting tables) - Felt press - Deflecting rolls - Titling table - Recoiler with single expanding mandrel Hsdpfx Ajymciaed Tonk - Separator arm - Electric equipment - Hydraulic equipment - Safety fences protection - Several tooling and accessories - Spare parts Material to be processed: Hot rolled carbon steel Material tensile strength: 400 N/mm² Coil width max.: 1.500 mm Thickness: 1 - 8 mm Coil weight: 20 Tn Coil inside diameter entry: 500/600 601 + steel spacers for bigger diameter Coil external diameter Entry/Exit: 1.700 mm Slitting shear mandrels diam.: 220 mm Blades diameter: 355 mm Line speed: 50/25 m/min with manual speed change gear Working Direction: From left to right Power supply tension: 380/50 Hz

Condition: like new (used), functionality: fully functional, Completely restored guidework for debarker, as good as new Hnjdpfeq Dp Erex Ad Tek

Condition: used, Alignment ruler, alignment rail, steel ruler -Angle: 90° -Dimensions: 3000/100/H15 mm Hnodjfiqrqepfx Ad Tek -Weight: 28 kg

Condition: used, Straightening ruler, straightening rail Hedpfx Aecn Rd Tsd Tonk -Angle: 32° -Dimensions: 3000/50/H8 mm -Weight: 8.4 kg

Condition: used, Guide track, guides, tool slide, cross table, cross slide, bed guide track, machine bed -Guide track: from Meuselwitz lathe -Measures: see drawing in the photos -Dimensions: 780/355 / H390 mm -Weight: 135 kg Hedpfsgvm Dmsx Ad Tsnk

Condition: new, Machine according to DIN 8605: lathe with increased accuracy. Tip width: 700 mm Peak height: 170 mm Circulating diameter over bed: 340 mm Circulating diameter over flat slide: 190 mm Bed width: 260 mm Laengs schlitten: 600 mm Shifting path cross slide: 220 mm Shifting path upper slide: 110 mm Flat slide: 410 mm Flat slide width: 150 mm Guide load-length bed slide: 380 mm Rotary chisel cross-section: 20x20 mm Center of rotation distance - Upper slide: 34 mm Swing range upper slide (Support): 60/120° Main spindle: Spindle connection DIN 55029 (Camlock): S 5 Spindle bore: 50 mm Inner cone according to DIN 7178: 1:22 Spindle diameter in the front bearing: dia. 70 mm Max chuck diameter: 200 mm Max. washer diameter: 200 mm Spindle speeds: 40-3000 rpm Speed control: Stepless mechanical speed levels: 4 Main drive: Power at 40% ED: 5.3 kW Max rated torque a. d.Main spindle: 640 Nm Feed: 20 (28) Laengsvorschuebe Z: 0.045-0.787 mm/U 20 (28) Plan vorschuebe X: 0.023-0.406 mm/U Thread: 20 (28) metric thread (basic): 0.4 - 7.0 mm 32 inch thread (with option Raed replacement D3Z200): 56 - 4 Gg/inch 28 Module thread (with option Raed replacement D3Z200): 0.2 - 3.5 32 diam. Pitch thread (with option Raed replacement D3Z200): 112 - 8 Tailstock: Hnodpfx Adsdctnbj Tsk Pinole diameter: 50 mm Indoor cone of the pinole: MK 3 Pinole stroke: 120 mm Side adjustment: x 13 mm Zulessige Werkstueckweights

Condition: ready for operation (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 2.4212.06, grinding width: 1,450 mm, workpiece weight (max.): 11,000 kg, grinding length: 3,000 mm, table width: 3,000 mm, table length: 1,250 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Table and Workpiece Clamping area of the table: 3,000 x 1,250 mm Overall table size: 6,000 x 1,800 x 1,000 mm Clearance between columns: 1,650 mm Grinding length: 3,000 mm Grinding width: 1,450 mm Max. workpiece height: 1,250 mm Cross beam adjustment: 1,250 mm Max. workpiece weight: 11 t Table feed rate: 1 to 45 m/min Control System and Grinding Supports Universal grinding support: 7.5 kW Swiveling range of grinding spindle: +/- 110° Grinding wheels (universal support): 500 x 60 mm Vertical adjustment (universal support): 350 mm Peripheral grinding support: 22 kW Grinding wheels (peripheral support): 600 x 120 mm Vertical adjustment (peripheral support): 150 mm MACHINE DETAILS Electrical Data Hnedpfsw Srzcex Ad Tsk Total connected load: 40 kW Dimensions & Weight Weight: approx. 45 t Installation dimensions: 12,000 x 6,000 x 4,800 mm Note: The machine can be dismantled and loaded for €10,000.

Condition: used, functionality: unexamined, overall weight: 75 kg, Equipment: documentation/manual, Magnetic linear guides / positioning systems with Heidenhain Lida 101C scales “Magnetic Linear Motor Motion Systems” | "Linear Motor Motion System" Hjdow Evqcepfx Ad Tsnk Stroke guide: 1240 mm Weight: 75 kg.

Condition: good (used), Year of construction: 2012, grinding width: 2,000 mm, workpiece weight (max.): 18,000 kg, grinding length: 8,000 mm, Manufacturer: Waldrich Coburg Type: 30-10 S 3640 Control system: SIEMENS 840D Year of construction: 2012 Guideway / Slide way / Surface Grinding Machine Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D Control panel Left & Right side machine KNOLL HL650/4000 Filtration system new 2023 Automatic doors (4x) for easy machine / load / clamping acces Hydraulic table drive with 18000 kg work load Rebuild in 2012 for 1.5 Mil EUR Large package flanches and stones Large package spare parts / ballscrews / measuring / protection covers Specifications Metric US Standard X - axis 8825 mm Y - axis 3010 mm Z - axis 2500 mm Table length 8000 mm Table width 1800 mm Table load 18000 Feed X - axis 1 - 45.000 mm/min. Feed Z-axis 100 - 3000 mm/min. Grinding stone dimensions 600 x 150 mm Power output 22 kW Rotational speed 930 rpm Coolant system Hnodpfjtp T N Tjx Ad Tjk Knoll 4000 L Feed Y - axis 1 - 700 mm/min. Dimensions (estimate) length 24360 mm width 9550 mm height 7000 mm weight 80200 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: new, For sale Ropeguide for a Demag DH hoist Hjdpfeh Uqf Ajx Ad Tenk NB! we have more than 15,000 Demag parts in stock see our website or other ads

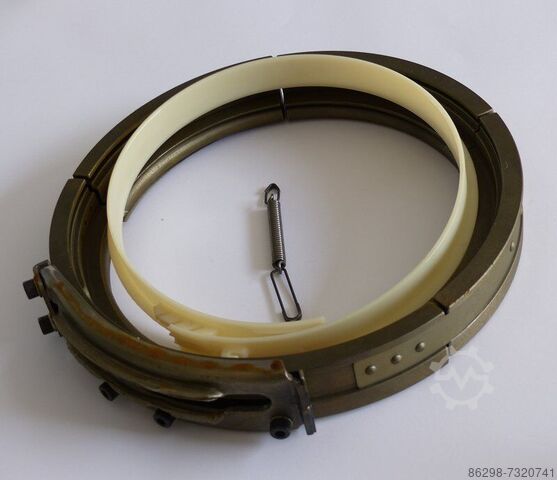

Condition: new, For sale Ropeguide Hnodpfx Ash Uqgged Tsk for a Demag P hoist P100 P200 P400 P600 P1000 P2000 P5 P7 P10 P15 P20 P23 P30 P35 P50 NB! we have more than 15,000 Demag parts in stock see our website or other ads

Condition: new, Precision guidance and lathe Make: GDW Model: LZ 400 VS1 comfortline Condition: new machine with infinitely variable speed control and continuous regulation of feeding highest security standard Top width: 1000 mm centre height: 200 mm spindle bore: 62 mm Speed range: 0-4000 RPM equipped as standard with: The latest display is already in the basic price generation includes "comfortline", the many New features and Einfachheiten includes: -9 "TFT color display -Technology memory for 99 tools -oriented spindle stop via Teach-In button -Input of constant speed or constant cutting speed (V = c) -Speed limit can be selected Hnedpfjdymdrex Ad Tjk Error - and status display in plain text -Feeding and thread pitch input using image-supported masks -With thread-cutting must not change gears thus more subject to change, or even be purchased in addition to all gänigen To be able to thread! Furthermore, it is included in the standard: LED light, integrated into machine casing -Quick-change tool holder size B with chisel holder -Lead screw shut-off with key -Brake device for main drive -Chuck guard can be moved with end switch monitoring -Chip back wall protection removable -Splashguard cover moveable -Removable chip Pan -Easy bed stop (stop longitudinal) -Central lubrication -Reducer socket for main spindle

Condition: new, Precision guidance and lathe Make: GDW Model: LZ 400 VS2 comfortline Condition: new machine with infinitely variable speed control and continuous regulation of feeding highest security standard Top width: 1000 mm centre height: 200 mm spindle bore: 62 mm equipped as standard with: The latest display is already in the basic price generation includes "comfortline", the many New features and Einfachheiten includes: -9 "TFT color display -Technology memory for 99 tools -oriented spindle stop via Teach-In button -Input of constant speed or constant cutting speed (V = c) -Speed limit can be selected Hnjdpfx Asb Ng Nxsd Tsk Error - and status display in plain text -Feeding and thread pitch input using image-supported masks -With thread-cutting must not change gears thus more subject to change, or even be purchased in addition to all gaenigen To be able to thread! Furthermore, it is included in the standard: LED light, integrated into machine casing -Quick-change tool holder size B with chisel holder -Lead screw shut-off with key -Brake device for main drive -Chuck guard can be moved with end switch monitoring -Chip back wall protection removable -Splashguard cover moveable -Removable chip Pan -Easy bed stop (stop longitudinal) -Central lubrication -Reducer socket for main spindle inner taper ME

Condition: new, TC 165 x 750V Illustration shows MIOTAL® TC 180 x 1000 Center distance: 750 mm Center height: 165 mm Swing diameter over bed: Ø 330 mm Bed width: 190 mm Cross slide travel: 160 mm Top slide travel: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Hnjdeir Igwjpfx Ad Tsk Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Features: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with recirculating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as a gearbox version

Condition: new, TC 180 x 1000 V Tip width: 1000 mm Center height: 178 mm Circumferential diameter over bed: Ø 356 mm Bed width: 190 mm Cross slide travel: 160 mm Travel distance top slide: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm Max. Chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2500 1/min Mechanical feed stages: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Face feeds X: (40) 0.022 - 0.98 mm/rev Metric thread: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 Gg/inch Thread module: (32) 0.4 - 7.0 Diametral thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner taper of quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 750 kg Dimensions, approx.: 1880 x 880 x 1390 mm Hjdpeir Imyofx Ad Tjnk Features: - Acceptance certificate according to DIN - Precise, hardened and ground guides - Robust headstock with circulating oil lubrication, precision bearing-mounted spindle, hardened and ground gears for long-lasting quality - Electromagnetic spindle brake (TC), frequency converter with electric braking device (V models) - Torsion-resistant machine beds made of MEEHANITE quality casting, stress-free annealed and multi-ribbed for extremely smooth running - Electrical equipment from SIEMENS/SCHNEIDER - Overload protection for feed gearbox - Pulse button for main spindle - CE / IEC as well as German documentation and German service Basic equipment (standard accessories): - Machine stand with splash guard rear panel - 3-jaw lathe chuck - 4-fold steel holder - Foot pedal with mech. brake device - Coolant device - Chuck guard and spindle cover in accordance with European safety standards CE - 1 Fixed center point for main spindle - 1 Fixed center point MK3 - 1 Test report - Safety devices and electrical equipment according to CE - Reducing sleeve for main spindle Operating tool Available options for this lathe: - 3-axis digital readout - Quick-change holder system Multifix also available as gearbox variants

Condition: ready for operation (used), Max. swing over bed: 460 mm. Max. turning diameter over carriage: 258 mm. Center height: 225 mm. Distance between centers: 1000 mm. Bed width: 300 mm. Spindle drive: 5.5 kW. Max. spindle speed: 3,000 rpm. Spindle nose: CAM LOCK 6”. Spindle bore: 58 mm. Longitudinal travel: 850 mm. Cross travel: 210 mm. Rapid traverse (cross): 5 m/min. Tailstock quill diameter: 68 mm. Tailstock quill stroke: 127 mm. Tailstock taper: Morse MT4. Toolholder clamping system: Capto C4. Machine dimensions: 2500x1350x1800 mm. Net weight: 1,780 kg. MACHINE CONFIGURATION: FAGOR 8055T teach-in CNC control. Hjdsw Ap N Tepfx Ad Tenk

Condition: ready for operation (used), Year of construction: 1980, operating hours: 15,339 h, functionality: fully functional, grinding width: 2,650 mm, grinding length: 11,500 mm, table load: 10,000 kg, grinding height: 2,000 mm, grinding wheel diameter: 600 mm, The machine was retrofitted by the seller in 2020! The machine remained powered until 01.08.2025! TECHNICAL DETAILS Grinding Area: Maximum grinding width: 2,650 mm Maximum grinding length: 11,500 mm Maximum grinding height: 2,000 mm Maximum workpiece height: 2,120 mm Maximum distance between columns: 2,670 mm (by removing the guideways, a width of 2,750 mm can be achieved) Table size: 2,240 x 12,000 mm Maximum table load with even weight distribution: 10,000 kg/m Travel and Adjustment Ranges: Cross slide travel: 1,800 mm Vertical adjustment of universal grinding support: 450 mm Vertical adjustment of grinding support with horizontal spindle: 250 mm Head inclination: ±90° Grinding Spindle: Wheel diameter: 600 mm Wheel width: 120 mm Hnsdow I Ebuepfx Ad Tek Wheel bore: 200 mm Wheel speed: 1,000 rpm Spindle power: 30 kW MACHINE DETAILS Control: Fanuc CNC 31i Model A Operating hours: 15,339 hours EQUIPMENT Enclosure without roof

Condition: ready for operation (used), Year of construction: 2023, machine/vehicle number: 232597, functionality: fully functional, cutting height (max.): 320 mm, controller model: SIEMENS SIMATIC HMI, saw band length: 5,080 mm, throat depth: 370 mm, No minimum price – guaranteed sale to the highest bidder! By placing a bid, you commit to timely collection, either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Belt length: 5,080 mm Material feed height: 1,200 mm Roller diameter: 630 mm Hedpfx Aoyng Ated Tjnk Throat depth: 370 mm Max. cutting height: 320 mm Guide bar (hydraulic stroke): 200 mm Belt tension (hydraulic stroke): 60 mm Belt speed: 250 – 2,000 m/min MACHINE DETAILS Control system: SIEMENS SIMATIC HMI Operating voltage: 400 V Rated current: 32 A Dimensions & Weight Dimensions (L x W x H): 2,700 x 2,500 x 2,700 mm Weight: 2,100 kg EQUIPMENT Roller conveyor (roller conveyor width: 350 mm) External reference: Heraeus

Condition: not inspected (used), Year of construction: 2016, functionality: unexamined, edge thickness (max.): 22 mm, rotational speed (max.): 12,000 rpm, Equipment: CE marking, The machine has the following configuration: Pre-milling unit Automatic, timer-controlled intervention and positioning via NC Edge preheating lamps Edge band magazine Glue pot for EVA hot-melt adhesive Premelter for EVA hot-melt adhesive QM-705 End trimming unit IN-801 Number of motors: 2 Top and bottom flush trimming unit RS-100 Number of motors: 2 Motor power: 2 kW Speed: 12,000 rpm Fine finishing and contour trimming unit RF-100 Number of motors: 2 Motor power: 2 kW Speed: 12,000 rpm Corner rounding unit AR30 Number of motors: 2 Hjdpfx Adoyxndbs Tjnk Motor power: 0.8 kW Speed: 12,000 rpm Automatic, timer-controlled intervention End cutting unit RB02 Positioning by NC Glue scraping unit RCC-701 Polishing unit SP-501 Number of motors: 2 Motor power: 0.25 kW Spraying unit LPT-700 TECHNICAL DETAILS Panel height min: 10 mm Panel height max.: 60 mm Edge thickness min.: 0.4 mm Edge thickness max.: 22 mm MACHINE DETAILS Total connected load: 22 kW EQUIPMENT Feed pressure with rubber belt Panel support guides with NC positioning CE marking The machine is sold and delivered as is (“as seen and approved”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the place of destination. External reference: 7673

Condition: ready for operation (used), functionality: fully functional, working height: 60 mm, TECHNICAL DETAILS Max. panel height: 60 mm PVC/ABS edge height: 3 mm MACHINE DETAILS Power-Touch control: 21" full HD display EQUIPMENT - Anti-adhesive unit - Twin-motor corner copying unit - Roll holder plate - EVA glue application unit with pre-melter and glue pot - Edge pressure unit for straight profiles with pressure rollers - End trimming saw unit with automatic swivel adjustment - Double-motor beveling unit with adjustable setting - Double-motor multifunctional rounding unit (beveling + rounding) - Working height electronically adjustable via NC control - Workpiece support guide with idler rollers - Side roller conveyor with free-running wheels - Edge scraper unit - Glue scraper unit Hjdpfx Aeyzm R Sod Tjnk - Brushing unit External reference: MMG013

Condition: ready for operation (used), Year of construction: 2011, machine/vehicle number: 0-261-20-5976, functionality: fully functional, workpiece height (max.): 60 mm, feed rate X-axis: 20 m/min, controller model: POWER CONTROL PC 20+, TECHNICAL DETAILS Panel height: 60 mm PVC-ABS edge thickness: 3 mm Solid wood edge thickness: 12 mm Feed speed: 20 m/min MACHINE DETAILS Control: POWER CONTROL PC 20+ Operational current (full load): max. 33 A Largest motor: 9.7 A Largest heating circuit: 2.7 A Fuse: 35 A Frequency: 50 Hz EQUIPMENT Upper motorized rubberized belt Manual infeed guide Hnsdsyzm E Njpfx Ad Tok Anti-adhesive unit Jointing unit Gluing with EVA adhesive Edge support plate End trimming unit with automatic tilt adjustment Offset trimming and corner rounding unit with two motors Linear contour rounding unit with two motors Edge scraper unit Glue scraper unit Buffing unit External reference: MMG014

Condition: ready for operation (used), Year of construction: 2008, operating hours: 27,167 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, rotational speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel X-axis: 850 mm Travel Y-axis: 700 mm Travel Z-axis: 500 mm Spindle speed: 18,000 rpm Tool holder: HSK-A63 Table type: NC-SRT 420 mm Table specification: Pallet clamping system Pallet changer: PW160, 400 x 400 mm MACHINE DETAILS Control: Heidenhain iTNC 530 Internal coolant supply: 80 bar Frequency: 50 Hz Operating hours: 27,167 h EQUIPMENT - Heidenhain DNC - DXF import - Kinematic Opt iTNC - Automatic cabin door - Additional magazine: ZM43 - Linear guides: Dynamic version - Rotary table axis: A-axis (not centered) - Manual cabin roof - Laminated safety glass window - Pallet storage - External MQL (minimum quantity lubrication) - Tool breakage monitoring A2 Blum - Heidenhain touch probe - Preparation for additional touch probe - Event Messenger - Tool identification HSK - Machine license TCS-Soflex - Electronic thermal compensation - Electronic hand control module Hjdpfeyzyttjx Ad Tjnk - Oil mist extraction (prepared & with after-filter) - Flange for oil mist extraction - Sealing air for measuring units - Chip flushing pistol - Machine bed flushing - Internal & external air blast - Signal light - Coolant filter type: Paper band filter for coolant system - Scraper belt conveyor - Test protocol: C 40 iTNC 530 PW160

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 111146, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 10,000 rpm, controller model: Heidenhain 530, TECHNICAL DETAILS Travel X-axis: 1,100 mm Travel Y-axis: 610 mm Travel Z-axis: 610 mm Spindle nose to table: 120–730 mm Machine table: 1,250 x 610 mm T-slots in table: 5 T-slot width: 18 mm T-slot spacing: 100 mm Spindle speed: 60–10,000 rpm Torque: 332 Nm Hedpfx Adeyzxz Nj Tenk Power: 13 kW Spindle cooling: Oil-cooled Rapid traverse X/Y/Z: 32 m/min Feed rate: 1–12,000 mm/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool holder: SK40 Pull stud: DIN 69871/72 Tool changer: 30 stations Tool-to-tool change time: 1.5 s Tool weight: max. 7 kg Tool diameter: max. 76 mm Tool diameter with adjacent station free: max. 140 mm Tool length: max. 300 mm MACHINE DETAILS Control: Heidenhain 530 Compressed air: 3/8", 6–8 bar Power supply: 400 V / 75 A / 35 kVA Hydraulic oil: R32 (ISO 32) Central lubrication: R68 (ISO 68) Coolant tank: 250 l Guides X/Y/Z: Linear 45/45/45 mm Machine bed: Cast iron Machine weight: 7,500 kg EQUIPMENT IKZ 22 bar (internal coolant supply) Tool changer with 30 stations Oil-cooled spindle Central lubrication Coolant tank Linear guides X/Y/Z Chip conveyor Handwheel Note: The machine is sold without tools and vise.
