Used Kaiser Automatic Punching Press - Double Column for sale (42,549)

Condition: used, machine/vehicle number: 4396, pressing force: 200 t, pressure:200 t distance between columns:1200x1000 mm stroke:600 mm total power requirement:32,5 kW weight of the machine ca.:20,5 t draw back pressure:20 t :1 Stück voltage:400 V frequency:50 Hz :24 V :Rexroth/Bosch dayligth:800 mm working area:1200x1000 mm :1200x1000 mm work height max.:1100 mm :170 mm/sek. :150 mm/sek. :15 mm/sek. quantity of oil:500 l :220 V memory:200 Programme :20-200 über Monitor t :5-170 mm/sec. :0-10 sec :2-10 mm/sec :750x950 mm :300 mm :5-50 t :2-80 mm/sec Hodpfxsfxyh As Ab Aet :1000 kg

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Manufacturer: GIGANT Hodpfox R U Idex Ab Aet Model: G2-1200/2 Year: 1993 Condition: Used Stock number: 0375 Pressing force: 1200 t Number of pressing points: 2 Die table size: 3,700 x 2,700 mm Ram size: 3,700 x 2,700 mm Ram stroke: 1,000 mm Max. vertical clearance: 1,590 mm Die opening at BDC: 610 mm Lower blankholder stroke: 400 mm Movable bolster: Present at the front

Condition: as good as new (ex-display), Year of construction: 2022, pressing force: 400 t, Press design double column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 4000 kN Free ripping force max. 400 kN Pressure build-up time Closed die steel to steel Max. 4 sec. Dimensions 3,800 mm long and 4,475 mm wide Max. Opening width 800 mm Stroke 800 mm Table height above floor 1100 mm Height above floor (headroom) approx. 4300 mm Hall height min. 5500 mm parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of press without operating materials and table plate approx. 28 t Press table Table size 1500x1500 mm Speeds Fast closing with 100 mm sec. Pressing speed 8 - 3 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders/driving cylinders 1 pc. Operating pressure max. 300 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 3 bar Main pump BOSCHREXROTH axial piston pump approx. 145 L/min Oil volume approx. HLP 46 MW 1000 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Auxiliary pump BOSCHREXROTH, gear pump 10 L/min Pressure stabilization for up to 300 sec. Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Connection hydraulics main motor 40 kW Sliding table press with 400 T capacity, Hedpeph Uk Nsfx Ab Aot Closing speed up to 100 mm/ ( adjustable via touch screen ) Opening speed up to 100 mm/sec ( adjustable via touch screen ) Starting press speed 10 mm/sec ( adjustable via touch screen ) table top size 1500x1500mm ram size approx. 1600x1500mm Oil temperature monitoring 55 degree warning, 60 degree shutdown Automatic lubrication ( adjustable via touch screen ) Free positioning of the ram ( adjustable via touch screen ) SICK/PILZ light barriers 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram protection Circuit oil cooling ( adjustable via touch screen ) Ejector in table, 20 T press force, 350mm travel Ejector moves outwards with the table Table plate milled flat, with DIN 22 T grooves Pressure adjustment from 60 T to 400 T ( adjustable via touch screen ) Travel limitation either by pressure or position Set-up mode, single stroke and cycle sequence ( adjustable via touch screen ) Swiveling control panel on the cabinet Two-hand operation, with opening button, manual/single stroke/cycle switchover button Installation, commissioning, instruction against separate charge The control is supplied by SIEMENS. ( S 7 1200 ) Also the touch screen monitor with 9 inch. The remote maintenance unit SECOMEA -Ethernet is included in the delivery. The side of the press has two 1000 mm high and 800 mm wide windows with double doors. (sliding table press, hydraulic press, hydraulic press, double column press)

Condition: used, Year of construction: 1985, pressure 63 t passage width 1350 mm stroke 300 mm total power requirement 16 kW weight of the machine ca. 10 t dimensions of the machine ca. 2,0 x 1,8 x 3,4 m Hedpfst Hwxusx Ab Aot

Condition: used, Technical details: pressure: 63 t Hjdsvt Nvpopfx Ab Aet throat: 315 mm ram adjustment: 60 mm adjustment of stroke: 70 mm ram stroke: 10 - 105 mm no. of strokes: 71 - 140 Hub/min strokes per minute: Einzelhub: 45 / 50 Hub/min. passage between the side columns: 355 mm dayligth: 335 mm table:: BxT: 800 x 630 mm passage opening in table: 400 x 130 mm clamping plate: BxT: 616 x 85 mm clamping surface ram: BxT: 450 x 280 mm mortise hole in ram: Ø 50 x 83mm mm total power requirement: 7,5 kW weight of the machine ca.: 5,9 t dimensions electric cabinet LxWxH: 0,86 x 0,30 x 1.3 m dimension machine xH: Presse: 1,42 x 1,8 x 2,6 m Press with roll feed/strip system and straightener High-performance press with roll feed/strip system and straightening machine Application: suitable for series production Equipped with servo roll feed MINI: refurbished until 01/2021 -manufacturer P/A GmbH, type SRF 220 -for strip width 220mm -feed rate 150m/min. -operation with hand tool straightening system: -manufacturer Wanzke, type KS 150 -insertion width max. 200mm -2 pieces driven inserting rolls -4 pieces driven straightening rolls (top), adjustable vertical approx. 30mm -5 pieces driven straightening rolls (bottom), fixed, not adjustable Coil = special design: -mechanical/manual -external take-up max. Ø 1.500mm -internal take-up max. Ø 300mm -width max. 200mm Roller deposit: -roller system with 9 pieces of roller bars with 53 rollers (Ø 25x25mm). *

Condition: used, Year of construction: 1984, pressure 500 t passage width 750 mm stroke 120 mm total power requirement 57 kW Hsdet Hwpyepfx Ab Ast weight of the machine ca. 16 t dimensions of the machine ca. m

Condition: used, Year of construction: 2006, machine/vehicle number: 18282, Pressure total: 140 ton Stroke: 800 mm Daylight: 1.004 mm Free frontal opening L-R: 2.060 mm Table surface area : 2.000 x 520 mm Slide area: 2.040 x 520 mm Working speed: 4 -20 mm / sec Rapid travel: 135 mm / sec Hodpfx Ajuqd Nuob Aet Return speed: 120 mm / sec Weight of machine approx.: 14 ton Height over floor approx.: 4.810 mm Oil volume: 700 l

Condition: excellent (used), Year of construction: 2003, Manufacturer: ROVETTA Year: 2003 Condition: Used Hodoxlh Rfepfx Ab Aot Stock number: 0385 Pressing force: 630 tons Number of connecting rods: 4 Slide stroke: 300 mm Slide adjustment: 250 mm Die clearance at BDC: 950 mm Strokes per minute: 15/65 Maximum front opening: 5,200 mm Table dimensions: 5,000 x 2,630 mm Slide dimensions: 5,000 x 2,630 mm Main motor power: 132 kW

Condition: refurbished (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 131 720, total height: 4,120 mm, ram adjustment: 150 mm, installation height: 550 mm, table height: 1,000 mm, total width: 2,600 mm, total length: 3,600 mm, drop-through hole in table: 1,200 mm, table length: 3,000 mm, table width: 1,250 mm, pressing force: 250 t, control cabinet height: 2,200 mm, control cabinet length: 3,600 mm, control cabinet width: 600 mm, type of input current: three-phase, stroke length: 160 mm, stroke adjustment: 20 mm, input voltage: 400 V, distance between side stands: 650 mm, distance between stands: 1,600 mm, overall weight: 35,000 kg, control voltage: 24 V, input frequency: 50 Hz, ATTENTION: The machine is currently partially disassembled. The control panel and switch cabinet have been scrapped. Components can be inspected. Before delivery in 2026/2027, the machine will undergo a complete mechanical and electrical overhaul. Hsdezrxbuepfx Ab Ast Pressing force: 2500 kN Adjustable stroke: 40 - 180 mm Ram adjustment: 150 mm Stroke rate: 20 - 150/min Working height: 550 mm Table dimensions: 2000 x 1250 mm Ram dimensions: 2000 x 1000 mm The machine is currently not operational.

Condition: like new (used), Year of construction: 2023, functionality: fully functional, total height: 5,300 mm, ram adjustment: 150 mm, installation height: 570 mm, total width: 3,300 mm, total length: 5,250 mm, pressing force: 250 t, type of input current: three-phase, stroke length: 35 mm, input voltage: 400 V, distance between side stands: 820 mm, overall weight: 58,000 kg, control voltage: 24 V, input frequency: 50 Hz, HR 250/2200 SL – Punching Line (Demonstration and Trial System) Press frame + ram in cast design with optimal damping properties Turnkey complete system for: • Production of electrical sheet metal parts • Flat stamped parts • Flat progressive die-cut parts EQUIPMENT + ACCESSORIES: • Punching machine HR 250/2200 SL [ZEULENRODA] 2,500 kN | Stroke rate 80…250 min-¹ >also available without accessories/peripherals upon request< • Roller feed “push-pull”, [ZEHNDER & SOMMER] • RAZIOL roller strip lubricator • Strip thickness measuring device • Punching package control [UNIDOR / TRsystems] • Unwinding reel 3.0t [KOHLER] • 21-roll fine leveling machine, deburring attachment [KOHLER] • Motorized tool changing system with hydraulic lifting bars + insertion clamp • Scrap and parts removal • Servo punching shear • Control cabinet platform • Operator platform • Soundproof cabin • Safety fence TECHNICAL DESIGN: Stroke rate of the press: 80 - 250 min-¹ Ram stroke: 35 mm Quick lift: 75 mm Installed height: 570 mm at max. stroke (fixed 35 mm) at the bottom, ram adjustment (150 mm) at the top Table surface: 2300 x 1100 mm Clamping plate: 2300 x 1100 mm T-slots DIN 650: 22 mm Table opening: 2020 x 400 mm Ram surface: 2240 x 900 mm Ram stroke, fixed: 35 mm Quick lift: 75 mm Height above floor: 1380 mm (including clamping plate 200 mm) Strip inlet height: 200 - 400 mm (above the clamping plate) Stand opening, side: 820 x 500 mm (W x H) Recommended max. upper tool weight: 2200 kg Recommended upper tool weight: 1950 kg - Control system SIEMENS S7-1500 - 15’’ touch panel + two-hand control panel - Remote maintenance DESCRIPTION: - Press frame in gray cast iron design - Press ram in cast design - Direct drive with electro-pneumatic clutch-brake combination - Fully eccentric two-point eccentric shaft, forged - Power transmission via two connecting rod joints - Roller guide, 8-fold for precise ram guidance - Rotating mass balancer - Ram weight compensation by means of pneumatic bellows cylinder - Quick Lift 75 mm (quick lift function for fast tool access) Hodjzu Ryhopfx Ab Ajt - Condition monitoring (forces, temperatures, lubrication, pneumatics)

Year of construction: 1978, condition: used, pressure 25 t distance between columns 580 mm stroke 150 mm dayligth 370 mm table surface area 560x400 mm Hsdpfxjlp U Are Ab Ajt ram surface 400x350 mm hole in the table 80 mm weight of the machine ca. 2,5 t dimensions of the machine ca. 1500x500x2500 m

Year of construction: 1976, condition: used, pressure 250 t distance between columns 900 mm stroke 300 mm table surface area 850x900 mm ram surface 800x880 mm stroke 300 mm table height 1050 mm Hedpfolp U A Sox Ab Aet

Condition: used, Year of construction: 1971, machine/vehicle number: 1967, pressure:30 t no. of strokes:100 - 600 Hub/min stroke adjustable from - to:8 - 40 mm ram adjustment:40 mm inlet width:198 mm mould height - Max./min.:230 - 270 mm roll surface width:110 mm hole in the table:310 x 80 mm distance between columns (le-ri):330 mm distance between columns (vo-hi):280 mm Hsdpfscxxxmox Ab Aet table height over floor:990 mm column diameter:50 mm voltage:380 V frequency:50/60 Hz control voltage:24 V table-size:475 x 450 mm ram diameter:190 mm total power requirement:0,96 - 5,5 kW weight of the machine ca.:2,5 t dimensions of the machine ca.:1,2 x 1,16 x 2,15 m

Condition: good (used), Year of construction: 1991, operating hours: 49,637 h, functionality: fully functional, machine/vehicle number: 9666, ram adjustment: 64 mm, conveyor belt width: 203 mm, pressing force: 50 t, control cabinet length: 940 mm, control cabinet width: 760 mm, stroke length: 1,651 mm, input voltage: 380 V, overall weight: 9,000 kg, control voltage: 24 V, sheet thickness steel (max.): 4 mm, input frequency: 50 Hz, sheet thickness aluminum (max.): 4 mm, Technical Data Manufacturer: BRUDERER AG Model: BSTA 50 EL CNC Machine Type: CNC High-Performance Punching Machine Year of Construction: 1991 Machine Number: 9666 Press Force: 500 kN (50 t) Connected Load: 40 kW Main Motor Power: 25 kW Supply Voltage: 380 V / 50 Hz Control Voltage: 24 V DC Compressed Air Connection: 6–10 bar Operating Hours: approx. 49,637 h Adjustable Stroke: 16–51 mm Mounting Space/Clamping Plate: 760 x 940 mm Main Drive: 22 kW Power Supply: 400 V / 50 Hz Table Area: 940 x 580 mm Strip Feed Height (adjustable): 50–140 mm Max. Strip Width: 203 mm Max. Material Thickness: 4 mm Dimensions of machine with BBV 202: 2390 x 1270 x 3090 mm Machine Weight: approx. 9000 kg Configuration 2 x BRUDERER BBV 202/120 DOUBLE strip feeder KOHLER leveling machine 100.180/2.500.2M, year of construction 1992 Unwinding reel / coil reel Soundproof cabin Conveyor belt for part removal Lifting and sorting device for containers Roller conveyors and stacking racks Technical documentation available Description Hedezuur Uopfx Ab Aot Complete BRUDERER high-performance punching line consisting of a precision punching machine BSTA 50 EL, BRUDERER strip feeder BBV 202/120, KOHLER leveling machine, unwinding reel, soundproof cabin, and discharge and conveying equipment. The system is designed for the efficient processing of strip material in high-speed punching operations. Extensive technical documentation is available.

Condition: used, Single-column hydraulic press, straightening press, punching tool – ECKOLD Press frame with hydraulic cylinder, mobile press, punching unit Type RSD 1500 - 125 Machine No. 317 / 690 Year of manufacture approx. 1986 Pressing force 150 tons Stroke 125 mm Ram stroke 35 mm Table size 280 x 210 mm Ram surface Ø 125 mm Installation height (ram to table) max. 265 mm Hsdod Swtaepfx Ab Aot Table height above floor 403 mm Hydraulic operating pressure max. 500 bar - without hydraulic unit - Ram surface with 4 threaded holes M16 and 20 mm guide groove, with a centering bore Ø 15 mm in the center - 1 high-pressure hydraulic hose with external thread M30x1.5 mm, hose length 4 meters - 1 high-pressure hydraulic hose with union nut M30x1.5 mm, hose length 4 meters Space requirement L x W x H 700 x 300 x 1450 mm Weight 1250 kg Good condition

Condition: used, Machine not operational - control system not functioning Available at a special price Double-column hydraulic press ALPHA TEC -- ALPHATEC Type RPS 5000 Factory No. 300487, Year of Manufacture 2006 Pressing force: 500 tons Distance between columns (front and rear): 2520 mm Table area: 2500 x 2500 mm Ram area: 2500 x 2500 mm Ram stroke: 600 mm Maximum installation height: 600 mm Table height above floor: approx. 900 mm Tank capacity: approx. 1000 liters Ram retraction force: approx. 22 tons Adjustable forward speed: 100-800 mm/s Pressure build-up to 5000 kN: approx. 0.7 sec. Return stroke speed: approx. 300 mm/s Main motor power: 75 kW Control pump motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - 8-fold flat guide for the ram - Hydraulic ram locking in the top dead center position - Adjacent control cabinet (200 x 50 cm) - Electrical control system SIEMENS PLC S7-314 - Operation via SIEMENS OP 170-B (5.7") - 2-hand control panel located beside the machine - Floor-level installation - Table top 2510 x 2530 x 135 mm (approx. 6700 kg) - Central lubrication system - Operating manual with circuit diagrams Space requirement (L x W x H): 372 x 260 x 460 cm Space requirement for horizontal transport (L x W x H): 460 x 372 x 260 cm Weight: approx. 50 tons The machine was used for straightening heated steel flanges. Hjdpfx Abjdzqpte Aet From insolvency – in good condition.

Condition: used, Year of construction: 1998, machine/vehicle number: 2 / 2000, Pressure total: 2000 ton Ram stroke: 900 mm Slide adjustment: 800 mm Shut height (stroke down, adjustment up): 1800 mm Free frontal opening L-R: 5040 mm Distance between oil tray: 4840 mm Distance between the columns F - B: 2600 x 2400 mm Table surface area : 5000 x 2700 mm Slide area: 5000 x 2700 mm Die cushion capacity in table: 400 ton Hjdpfx Asyvz Stsb Ajt Die cushion stroke: 350 mm Die cushion pad area: 4200 x 2100 mm Cushion pressure in ram: 200 ton Ejector stroke in ram: 200 mm Number of strokes: 8 - 14 s.p.m. Required power: 350 kW Height over floor approx.: 11350 mm Die weight at the ram max.: 40000 kg Die Weight total: 80000 kg Weight of machine approx.: 580 ton Standard configuration Moving bolster front sidePin diameter 52 mmForce in microinches = 400 tA SIEMENS control system is installed The documentation is available.A packing list would be available, as an identical press has already been dismantled.

Condition: used, Year of construction: 1991, pressure 400 t stroke 300 mm Hjdpotqqlcofx Ab Aet table surface area 1200 x 700 mm ram surface 1200 x 700 mm dayligth 500 mm adjustment of stroke 300 mm return capacity 348 kN capacity of ejector 100 kN ejector stroke 100 mm control SIEMENS Simatic S 5 total power requirement 65 kW weight of the machine ca. 28 t dimensions of machine L x W x H 4,4 x 2,75 x 4,0 m = hydr. punching and embossing press Accessories: tool changing table - with cutting shock absorption damping force 4000 kN damping stroke 5 mm spindle adjustment 200 m

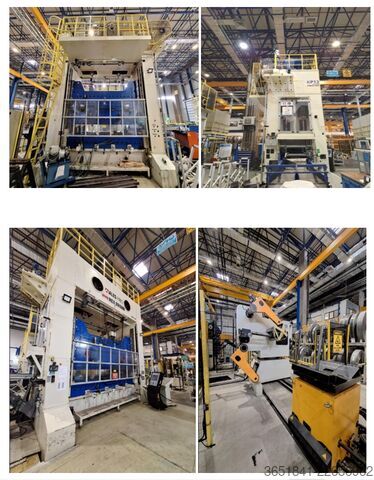

Condition: used, Year of construction: 2017, machine/vehicle number: H 28 16 0401, KP13 Üretim Markası: ALES PRES H TİPİ EKZANTRİK PRES Makinenin Üretim Yılı: 2017 Kapasite : 500 TON Hava Tüketimi (m3/saat) : 30 Güç (KW) : 75 Kapladığı Alan (m2) : 108,16 Lokasyon: KOCAELİ/ÇAYIROVA Üst Tabla Ebatları : 377 cm x 160 cm Alt Tabla Ebatları : 350 cm x 160 cm Hedpfx Aszxq Tcsb Aot Pres Yükseklik : 6,5 m Pres En : 5,2 m Pres Genişlik: 3,2 m Dakikadaki Vuruş Sayısı : 70 spm Sac sürücü, Sac açıcı ve Sac doğrultucu Markası : Coiltech used

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, pressing force: 315 t, stroke length: 300 mm, Equipment: CE marking, Table dimensions (x-y/mm)  2150 x 1200 Ram dimensions X-Y (mm)  2000 x 1200 Stroke (mm)  300 Hedpfx Aozi Rbbsb Ast Slide adjustment (mm)  200 Strokes per minute  5 - 50 Side window dimensions (x-y/mm)  800

Condition: used, Year of construction: 1998, pressure 160 t stroke 30 - 90 mm no. of strokes 50 - 300 /min distance between columns 1270 mm dayligth (stroke and adjustment up) 590 mm column travel -side 440 mm Hodpszrpqysfx Ab Aet table surface area 1250 x 900 mm hole in the table 950 x 300 mm ram surface 1250 x 800 mm ram adjustment 100 mm material width 200 mm material thickness - 6,0 mm feed length 0 - 120 mm power requirement 64,5 kW Weight 21,00 t dimensions of the machine ca. 3,0 x 2,2 x 3,9 mxmxm with infinitely variable drive, hydraulic clutch/brake combination (make Desch), automatic stroke adjustment, motoric ram adjustment, fix table, circular oil lubrication mechanical roll feed Bruderer BBV 205/120 with drive via main shaft / pivot shaft of the press consoles Guethle CK 01/0800

Condition: used, Year of construction: 1969, press capacity 250 t spindle diameter 160 mm ram stroke range 180 mm stroke speed 71 Hub/min column daylight 450 mm Hsdpfx Aeyt R Epsb Aot table surface area 560x450 mm ram surface 450x400 mm total power requirement 12 kW weight of the machine ca. 9 t The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1998, machine/vehicle number: 1 / 2000, Pressure total: 2000 ton Ram stroke: 900 mm Slide adjustment: 800 mm Shut height (stroke down, adjustment up): 1800 mm Free frontal opening L-R: 5040 mm Distance between oil tray: 4840 mm Distance between the columns F - B: 2600 x 2400 mm Table surface area : 5000 x 2700 mm Slide area: 5000 x 2700 mm Die cushion capacity in table: 400 ton Die cushion stroke: 350 mm Die cushion pad area: 4200 x 2100 mm Cushion pressure in ram: 200 ton Ejector stroke in ram: 200 mm Number of strokes: 8 - 14 s.p.m. Required power: 350 kW Hjdjyvz U Iopfx Ab Aot Height over floor approx.: 11350 mm Die weight at the ram max.: 40000 kg Die Weight total: 80000 kg Weight of machine approx.: 580 ton Standard configuration Moving bolster front sidePin diameter 52 mmForce in microinches = 400 tA SIEMENS control system is installed The documentation is available.A packing list would be available, as an identical press has already been dismantled.

Year of construction: 1977, condition: used, pressure 200 t distance between columns 500 mm Hedpfx Abslp Uz Us Aet stroke 150 mm ram surface 320 mm table surface area 470x400 mm weight of the machine ca. 12 t dimensions of the machine ca. 2000x2000x2700 mm

Condition: ready for operation (used), Year of construction: 1998, machine/vehicle number: 8900, functionality: fully functional, pressing force: 20 t, stroke length: 60 mm, throat depth: 176 mm, ram adjustment: 55 mm, stroke rate (max.): 155 1/min, TECHNICAL DETAILS Press force: 20 t Stroke rate: 155 strokes/min Ram stroke: 6 - 60 mm Ram adjustment: 55 mm Ram contact area: 130 x 248 mm Pin hole in ram: 25 x 65 mm Inclination: 28° Overhang: 176 mm Distance from table to ram: 270 mm Passage width: 470 mm Table dimensions: 300 x 450 mm Through hole in table: 90 mm Table height above floor: 775 mm Air pressure (required): 5.5 - 6 bar MACHINE DETAILS Total power consumption: 3.5 kW Control type: conventional Hodpfx Aezb Du Heb Ajt Dimensions & Weight Machine dimensions (L x W x H): 1,300 x 1,100 x 1,950 m Machine weight: 1 t EQUIPMENT High-performance press Central lubrication with light curtain (monitored) Linuflex Stroke counter Steel plate (dimensions: 315 x 400 x 50 mm) with center hole (diameter: 63 mm)
