Used Michael Deckel Tool Grinder for sale (37,937)

Condition: excellent (used), Rondamat R 934, year 1997, in very good condition. Rsdpfoxiv S Ejx Alascf

Condition: like new (used), Tool and cutter grinder NESI model C350 Rodpfxeinbigs Alaocf

Condition: reconditioned (used), Year of construction: 1984, functionality: fully functional, machine/vehicle number: 1289 397, spindle speed (max.): 8,000 rpm, travel distance X-axis: 220 mm, travel distance Y-axis: 130 mm, travel distance Z-axis: 50 mm, swivel angle A-axis (min.): -10 °, swivel angle A-axis (max.): 27 °, TECHNICAL DETAILS Motor power: 2.2 kW Spindle speeds: 1,000 - 8,000 rpm Spindle tilt (A-axis): -10° to +27° Adjustment accuracy: 1 minute Height adjustment (Y-axis): 130 mm Stroke range (X-axis): 220 mm Oscillation stroke: steplessly adjustable during oscillation, 0-30 mm Oscillation frequency: 30/60 rpm Workpiece Spindle Head Radius adjustment (Z-axis): 0.01 - 50 mm Adjustment accuracy: 0.01 mm Slide retraction (from grinding to measuring position): max. 49 mm Cross table clamping surface: 155 x 205 mm Travel distances (X-Y): 60 mm each Maximum swivel angle (B-axis): 260° MACHINE DETAILS Connection voltage: 380 V Weight: 1,200 kg EQUIPMENT - Variable grinding pressure - Projector fixed in measuring position - 1 cabinet with accessories - Various grinding wheels and flanges Rcodpfjwzlh Aox Alaof - Coolant tank - Documentation

Condition: good (used), Year of construction: 1984, Grinding wheelhead: - motor power : 2,2 kW - spindle speeds : 1 000 - 8 000 rpm - spindle inclination (A-axis): -10° up to +27° - setting accuracy 1 min - height adjustment (Y axis) : 130 mm - stroke range (X axis) : 220 mm Rcsdpevmpabefx Alaof - oscillation stroke, steplessly adjustable during oscillation : 0-30 mm - oscillation frequency : 30/60 1/min Workhead: - radius setting (Z axis) : 0.01-50 mm - setting accuracy: 0,01 mm - retraction of slide from the grinding to the measuring position : max. 49 mm - cross table, clamping surface : 155 x 205 mm - travel X - Y : each 60 mm - maximum swivelling angle (B axis): 260° - supply voltage : 380 V - weight : 1200 kg Accessories/options: - grinding pressure variable - projector fixed in measuring position - 1 cabinet with accessories - different grinding wheels, flanges - coolant tank - documentation Under power in our warehouse.

Condition: repair required (used), Year of construction: 2005, functionality: not functional, machine/vehicle number: 15125250184, travel distance X-axis: 2,500 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 820 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 18,000 rpm, Note: Error in the magnetic linear measuring system of the X-axis TECHNICAL DETAILS Number of axes: 3 Travel range of X-axis: 2,500 mm Travel range of Y-axis: 920 mm Travel range of Z-axis: 820 mm B-axis rotation: 105° Table length: 3,100 mm Table width: 900 mm Table length: 3,100 mm Table width: 900 mm Tool holder: SK40 Max. spindle speed: 18,000 rpm MACHINE DETAILS Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (L x W x H): 7,500 x 4,500 x 300 mm Net weight: 22,000 kg Transport packages: 3 EQUIPMENT External cooling Chip conveyor Rjdozu Nyaopfx Alajcf Tool magazine (30 pieces)

Condition: ready for operation (used), Year of construction: 2011, operating hours: 12,946 h, functionality: fully functional, travel distance X-axis: 935 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, controller model: Heidenhain iTNC 530 HSCI, spindle speed (max.): 15,000 rpm, No minimum price – guaranteed sale to the highest bidder! Rodpfszwn Etex Alajcf TECHNICAL DETAILS Travel range X-axis: 935 mm Travel range Y-axis: 850 mm Travel range Z-axis: 650 mm Number of axes: 3 Table length: 1,200 mm Table width: 850 mm Max. table load: 2,000 kg Spindle connection: HSK-A63 Spindle speed: 15,000 rpm Tool changer: 30-position Rapid traverse: 40 m/min Feed rate: 40,000 mm/min MACHINE DETAILS Control system: Heidenhain iTNC 530 HSCI Internal cooling: 40 bar / 23 liters/min Operating hours: 36,420 h Spindle hours: 12,946 h EQUIPMENT Chip conveyor

Condition: used, Motor output 3 kW total power requirement 3 kw Rsdpev Nq Sksfx Alaecf Weight 1.400 kg

Condition: like new (used), Year of construction: 1993, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, rotational speed (min.): 40 rpm, rotational speed (max.): 2,000 rpm, For sale: Deckel-Maho FP1 – Heidenhain TNC 123 – ISO 40 – Year of manufacture 1994 Offered for sale: a Deckel-Maho FP1 universal milling machine, manufactured in 1994, equipped with Heidenhain TNC 123 control and ISO 40 tool holder. This is a later model from the last production years of the FP1. The Deckel FP1 is a high-quality German precision and toolmaking milling machine, known for its very solid construction, accuracy and versatility. Due to the combination of the robust FP1 machine construction and the Heidenhain TNC 123, this machine is very suitable for precise milling and drilling work, single-piece production, toolmaking, maintenance and precision mechanical work. Technical data Brand: Deckel-Maho Rcsdpoywlakjfx Alaef Type: FP1 Year of manufacture: 1994 Control: Heidenhain TNC 123 Tool holder: ISO 40 X-axis travel: approx. 300 mm Y-axis travel: approx. 160 mm Z-axis travel: approx. 340 mm Spindle stroke: approx. 80 mm Spindle speed: approx. 40 – 2,000 rpm Feed: continuously variable Type: universal milling machine Heidenhain TNC 123 The Heidenhain TNC 123 enables accurate positioning and simple operations, and offers significantly more ease of use than a fully conventional model. The ISO 40 tool holder is robust and allows the use of widely available tools. Due to the 1994 year of manufacture, this is a relatively young and late FP1 model. This makes this machine particularly interesting for those looking for the well-known mechanical quality of Deckel, but also prefer a later model with Heidenhain control. A great opportunity for someone looking for a Deckel-Maho FP1 from 1994 with Heidenhain TNC 123 and ISO 40. Condition: used Location: Emmeloord Asking price: €15,950 excluding VAT Inspection and demonstration are possible by appointment. If you are seriously interested or would like additional information, please contact us.

Condition: ready for operation (used), Year of construction: 2000, operating hours: 6,328 h, functionality: fully functional, machine/vehicle number: 11180000573, travel distance X-axis: 1,250 mm, travel distance Y-axis: 880 mm, travel distance Z-axis: 800 mm, workpiece weight (max.): 1,000 kg, spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,250 mm Rsdszxf Inspfx Alaocf Travel range Y-axis: 880 mm Travel range Z-axis: 800 mm C-axis indexing: 360° (0.001°) Feed rate: 40 m/min Rapid traverse: 40 m/min Number of pallets: 1 Pallet dimensions, diameter: 1,000 mm Max. workpiece weight: 1,000 kg Max. torque: 7,900 Nm Max. spindle speed: 18,000 rpm Spindle drive power: 15 kW at 40% duty cycle Spindle drive power: 10 kW in continuous operation Tool interface: CAT 40 Number of tool positions in the magazine: 60 Tool changer: Double gripper MACHINE DETAILS CNC control: 3D contouring control MillPlus Total power consumption: 55 kVA Coolant tank capacity: 600 l Dimensions (L x W x H): 7,000 x 3,500 x 3,902 mm Operating hours Hours under power: 33,831 h Spindle operating time: 6,328 h EQUIPMENT Electronic handwheel Chip conveyor Internal coolant supply Rotating viewing windows Flushing gun Preparation for Renishaw probe Accuracy package Preparation for internal cooling with 40/80 bar Paper band filter

Condition: used, Year of construction: 1987, FRIEDRICH DECKEL PRECISION MILLING MACHINE MODEL: FP4M Rodpfx Ajzv Eg Sjlajcf YEAR: 1987 approx. HEIDENHAIN DIGITAL READ OUT CLEAN

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, feed length X-axis: 485 mm, feed length Y-axis: 385 mm, feed length Z-axis: 380 mm, spindle speed (max.): 3,150 rpm, Table size 795 x 460 mm Longitudinal travel 485 mm Rsdpfx Aewffzkolajcf Transverse travel 385 mm Vertical travel 380 mm Spindle travel 80 mm Spindle speed 0 - 3,150 rpm Spindle taper horizontal ISO 40 Spindle taper vertical ISO 40 Control CONTOUR 2

Condition: used, functionality: fully functional, The TOOLTEMP company is selling TT-157e temperature control units. All units have been fitted with new filling and cooling valves. The price is per unit. Medium: Water, max. 90°C Microprocessor controller MP-694 Heating power: 9 kW, manual stepped control 3/6/9 kW Cooling power: 18 kW Filling volume: 6 liters Connections: Heating circuit R1/2" internal thread; cooling water R3/8" external thread Rcjdpfx Aszxa Nyjlaef L/W/H: 600 mm x 230 mm x 600 mm Weight: 47 kg

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Equipment: documentation/manual, Deckel Maho DMC 103V Vertical Machining Center The machine is in good condition and can be inspected while powered on at any time. Technical data: Year of manufacture: 2003 Control system: Heidenhain TNC 426 / 43 Travel ranges: X: 1000 mm Y: 600 mm Z: 600 mm Spindle: 10,000 rpm Tool holder: SK40 ATC with 24 positions Table: 1200 x 600 mm Weight: approx. 6,750 kg Dimensions: 410 x 242 x 275 cm Accessories and options: Coolant tank Electronic handwheel with 3D path control Cooling system with compressed air Operating mode 4 Redpfxozw U Rce Alaecf Documentation

Condition: used, Year of construction: 2001, Manufacturer: DECKEL MAHO (DMG) Model: DMU 70 VL Year of Manufacture: 2001 Control Unit: HEIDENHAIN TNC 430 Machine Type: 5-Axis Universal Machining Center Working Range / Travels: X-axis: 710 mm Y-axis: 520 mm Z-axis: 520 mm B-axis (Swivel range): -10° / +95° (NC-controlled) C-axis (Rotary table): 360° (NC-controlled) Work Table: Table Type: NC Swivel-Rotary Table Clamping Surface: Ø 700 x 500 mm Max. Table Load: 350 kg Milling Spindle: Max. Spindle Speed: 12,000 RPM (Motor Spindle) Drive Power (40% / 100% ED): 15 kW / 10 kW Tool Taper: SK 40 (DIN 69871) Tool Changer: Magazine Positions: 30 slots Rodpfoyh Nm Sjx Alaecf Max. Tool Diameter: 80 mm / 160 mm (with empty adjacent pockets) Max. Tool Length: 315 mm Max. Tool Weight: 6 kg Feed Rates & Motion: Rapid Traverse (X/Y/Z): 30 m/min Max. Feed Rate: 20,000 mm/min Weight & Footprint: Machine Weight: approx. 5,500 kg Total Power Requirement: 40 kVA Space Requirements: approx. 4.0 m x 3.0 m x 2.8 m Equipment & Features: High-End Control: Heidenhain TNC 430 5-Axis Capability: Full NC swivel/rotary integration.

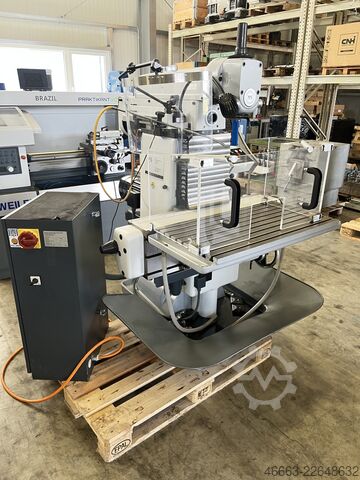

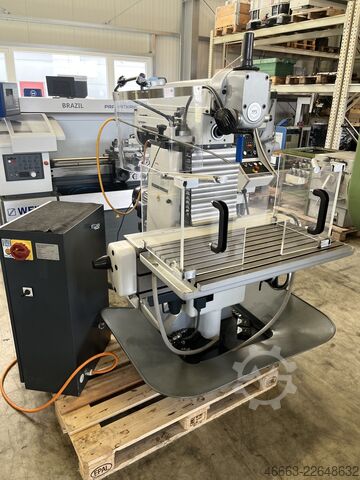

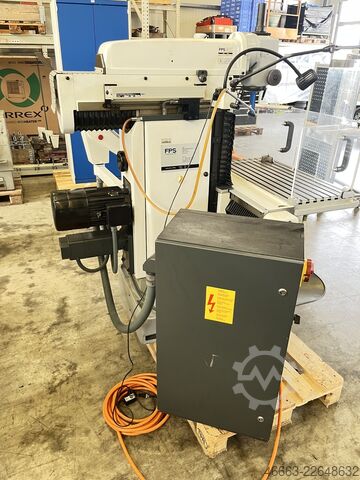

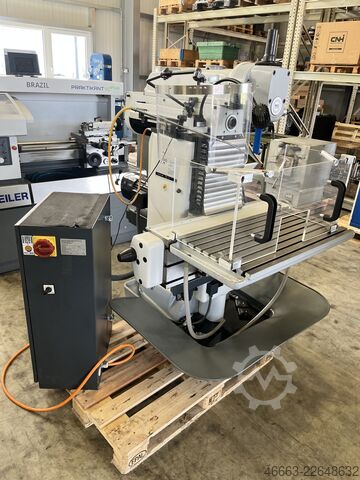

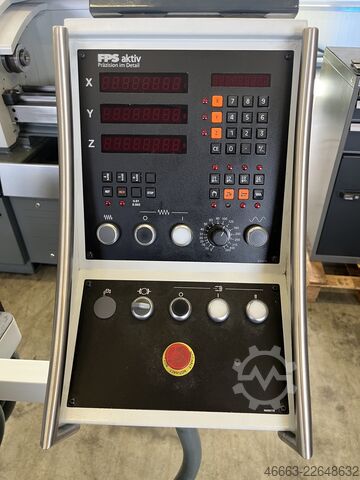

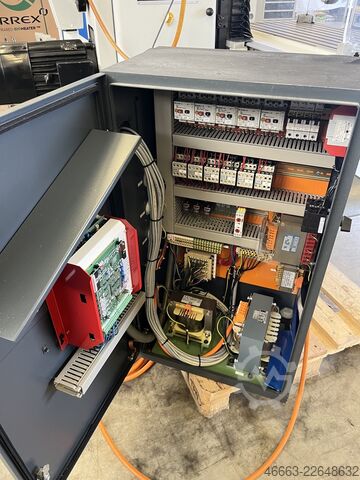

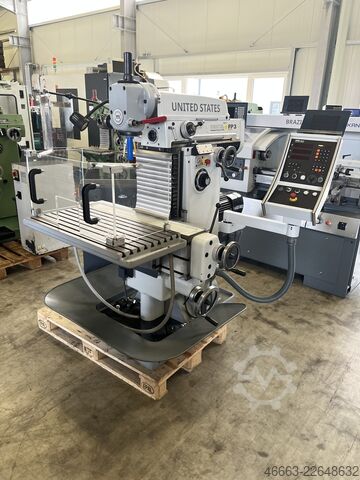

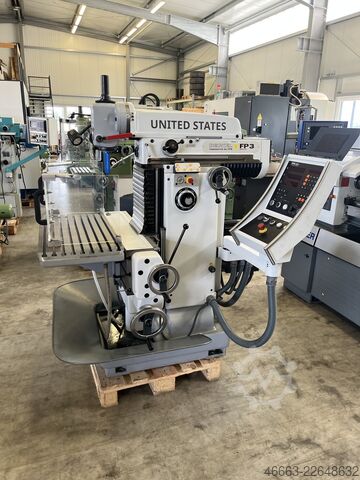

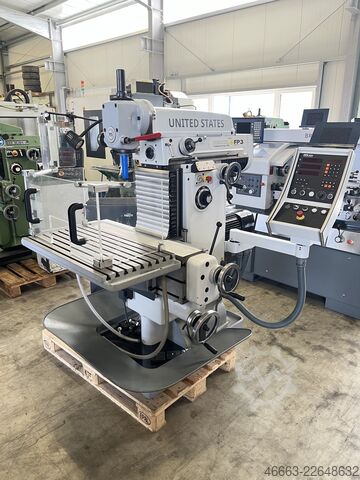

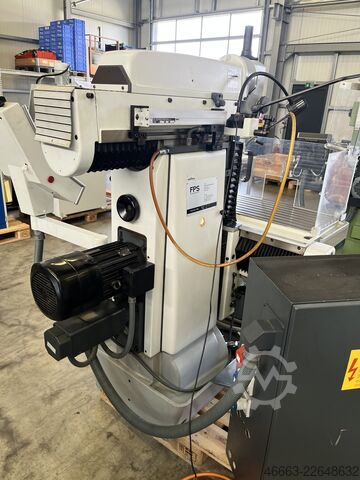

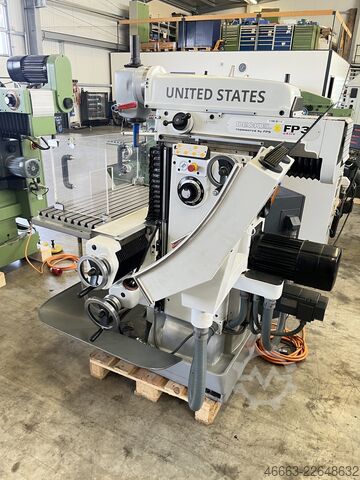

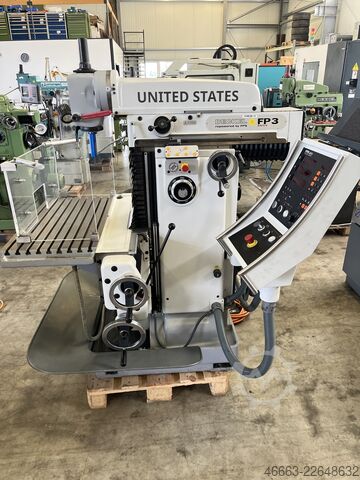

Condition: refurbished (used), functionality: fully functional, Internal article number: 26083 Universal milling machine Deckel FP3 aktiv Refurbished by FPS + Machine lamp / protective cover Rsdpfx Alozxg H Eoaecf The machine comes from a training workshop and is in very good condition.

Condition: good (used), Year of construction: 2021, functionality: fully functional, Internal article number: 26082 Universal milling machine Deckel FP4M Overhauled by FPS in 2021 + Hydraulic machine vice, Röhm 135 + Machine lamp / protective cover + Operating manual Dimensions (L x W x H): 140 x 210 x 200 cm Weight: approx. 1500 kg Redjzxgy Sepfx Alaecf The machine comes from a training workshop and is in very good condition.

Condition: ready for operation (used), Year of construction: 1984, Deckel Copy Milling Machine Model KF 3 S Year of manufacture: 1984 Table surfaces: 600 x 555 / 620 x 750 mm Y-axis travel: 150 mm Z-axis stroke: 380 mm X-axis stroke: 150 mm Drive: 3 kW Roughing spindle Finishing spindle Rsdpfxezwudpj Alajcf Locking arm Control lever with cable Tracing stylus holder Collets Weight: 2400 kg Price: EUR 2,000—plus VAT, ex works

Condition: ready for operation (used), Year of construction: 1995, Available immediately ex location: CNC tool milling machine Deckel, type FP 5–80, year of manufacture 1995, CNC control Dialog 12, universal table 750 x 520 mm. Travels X/Y/Z: 800/550/500 mm. Drive power: 9 kW. Quill stroke: 80 mm. Electronic handwheel. Spindle speeds: 32–5000 rpm. Feeds: 0–6000 mm/min. Weight: 4.5 t. Price: EUR 2,750 plus VAT, ex location. Rcedpfx Aozwuc Eolaef

Condition: good (used), Year of construction: 2008, Ref. -No.: 10660 Manufacturer: DECKEL MAHO Type: DMC 835 V Year of construction: 2008 Type of control: CNC Control: Siemens 840D mit Shopmill Storage location: Halberstadt Country of origin: Germany X-Travel: 835 mm Y-Travel: 510 mm Rcodpfxozw Txfj Alaof Z-Travel: 510 mm Main spindle drive power: 14 kW Table Dimensions (Lengthxwidth): 1000 x 560 mm Table Load: 800 kg Tool Taper: SK 40 Numbers Of Tools In Magazin: 20 Turning Speeds: 10000 RPM Max. Workpiece Weight: 4,5 t Further information: - Chip conveyor - Handwheel The machine can be inspected while powered on by prior arrangement.

Condition: good (used), Year of construction: 2012, Ref. -No.: 10659 Manufacturer: DECKEL MAHO Rodpfx Aszw Tw Uolaocf Type: DMC 835V Year of construction: 2012 Type of control: CNC Control: Haidenhein iTNC 530 Storage location: Halberstadt Country of origin: Germany Machine-No.: 1541XXX X-Travel: 835 mm Y-Travel: 510 mm Z-Travel: 510 mm Number of T-slots: 5 Max. Tool Weight: 6 kg Max. Tool Length: 250 mm Max. Tool Diameter: 80 mm Tool change time: 1,6 s T - groove width: 14 mm T - slot spacing: 100 mm Tool Taper: SK40 Numbers Of Tools In Magazin: 30 Spindle Speed: 12000 RPM Max. Torque: 130 / 87 Nm Turning Speed Range - Stepless: 30 mm / min Total Power Requirement: 35 kW Dimensions Of The Machine Ca.: 4,5 x 3,5 x 2,7 m Weight Of The Machine Ca.: 5 t Changeover time chip - chip: 6 sec Feed rate: 1 - 20.000 (X / Y / Z) High pressure cooling: 20 bar Further information: The machine can be inspected while powered on by prior arrangement.

Condition: used, Year of construction: 2012, Deckel Maho NHX 4000 Horizontal Machining Center Horizontal Machining Center, Deckel Maho Type / Model: DMG NHX 4000 Condition: Used Year of Manufacture: 2012 Program Runtime: approx. 48,200 hours Spindle Hours: approx. 39,200 hours Rcodpfozxc H Uex Alajf Technical Data Travel ranges X / Y / Z axis: 560 mm / 560 mm / 660 mm Rapid traverse rate (X/Y/Z): 60 m/min Work table & Pallets Pallet size: 400 x 400 mm Max. workpiece weight: 400 kg Max. workpiece dimensions (Ø x H): Ø 630 x 900 mm Pallet change time: approx. 8.0 seconds B-axis (rotary table): 360° (increment 0.001°, direct drive) Main spindle: 12,000 1/min Max. speed: 12,000 1/min Drive power: approx. 15 kW (or up to 30 kW in special/power versions) Max. torque: approx. 110 Nm Tool interface: SK 40 or HSK-A63 (depending on the exact spindle design from the factory) Tool changer (ATC) Magazine slots: Usually 40 stations as standard Max. tool diameter: 70 mm (up to 170 mm with free neighboring slots) Max. tool length: 450 mm Max. tool weight: 12 kg Dimensions & Weight Machine weight: approx. 7850 kg Footprint / Dimensions (W/D/H): approx. 2,860 x (width varies depending on the chip conveyor) x 2540 mm Control system (standard model year 2012): MAPPS IV based on Fanuc (alternatively Siemens 840D) Inquiry item: Transport costs in an individual offer.

Condition: used, Year of construction: 2008, Deckel Maho DMC 55H duoBlock Horizontal Machining Center Horizontal Machining Center Deckel Maho Type / Model DMC 55 H DuoBlock Rcsdpfszxc Ewsx Alaef Year of Manufacture 2008 Condition Used Program Runtime: approx. 66,600 hours Spindle Runtime: approx. 46,500 hours Technical Data Travel distances X / Y / Z axes 560 mm / 600 mm / 600 mm Rapid traverse (X/Y/Z) 40 m/min (optional in the linear version or high-dynamics up to 60 m/min) Work table & Pallet Changer (APC) Number of pallets 2-position pallet changer Pallet size 400 mm x 400 mm Max. workpiece weight 500 kg Max. workpiece height 850 mm B-axis (rotary table) 360° (designed as an NC rotary table, usually with 0.001° division) Main spindle Standard version 12,000 rpm (often with SK 40 / HSK-A63) High-speed option 18,000 rpm (standard with HSK-A63) Tool changer (ATC) Magazine positions Standard 60 stations Tool interface HSK-A63 (alternatively SK 40 or BT 40) Max. tool diameter 80 mm (with free neighboring positions up to 160 mm) Max. tool length 330 mm Dimensions, weight & control Machine weight approx. 11,000 kg to 13,000 kg (depending on magazine size and chip conveyor) Footprint (L x W x H) approx. 5.0 x 3.0 x 2.8 m (pure space requirement without peripherals) Control Siemens Sinumerik 840D Powerline / Solution (alternatively Heidenhain iTNC 530)

Condition: ready for operation (used), DECKEL CNC MILLING MACHINE WITH CONTOUR 2 CONTROL TYPE: FP 4 MA MACHINE NO.: 2204 - 1679 YEAR OF MANUFACTURE: 1988 Working area: X-axis (longitudinal) automatic/manual 485 / 500 mm Y-axis (transverse) automatic/manual 385 / 400 mm Z-axis (vertical) automatic/manual 380 / 400 mm Equipment: - Standard accessories - Swivel table 460 x 800 mm - Vertical milling head, adjustable, SK40/M16 - Hydraulic vise - Automatic tool changer - Automatic central lubrication - Electronic handwheel - Machine light - Chip tray - Protective cabin - Coolant system - Various tool holders - Documentation Condition: operational, can be demonstrated under power. Rsdpfx Aezrmkdslascf

Condition: ready for operation (used), machine/vehicle number: 46436, Travel distances: longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm Features: - Sliding vertical milling head - Tilting angle table 260 x 600 mm - Various tool holders - Setup elements - Rotary table D:280 mm - Documentation Condition: workshop-tested Rjdpfx Alsygia Eeascf

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 9585, DECKEL Universal Milling and Drilling Machine Model: FP 2 Redpjygicaefx Alaecf Machine No.: 9585 Year of manufacture: 1978/79 Condition: Good, operational condition Travel distances: longitudinal: 400 mm vertical: 400 mm horizontal: 200 mm
