Used Prism Lower Die for sale (10,040)

Condition: new, Number of sanding units 2 St. sanding width 190 mm Sanding height max. 2-180 mm LÖWER double-sided grinding machine DSM 2000 ----- Double-sided single wood sander for sanding Solid wood such as window wood etc. Stable top quality Guide with long casting tables, brushing and finishing equipment and conveyor belt feed. Suitable for high continuous loads even with higher chip removals. - Staggered sanding and finishing units at the top and bottom - Directly driven rubberized grinding rollers for slip-free power transmission - Combined grinding via roller and shoe for high chip removal at the same time flat intervention zone - Maintenance and wear-free CERMET-coated sanding shoes with very good thermal conductivity and absolute Dimensional accuracy - External cooling of the grinding zones for cooler grinding and higher grinding Grinding belt service life - Forced pneumatically controlled sanding belt oscillation - effective sanding dust extraction directly on the sanding rollers Airborne dust extraction on the tension rollers - Integrated brushing and finishing device with large sanding dust extraction - Motorized grinding thickness adjustment via precision threaded spindles and large-sized linear ball bearing sets on hardened and ground precision shafts with dust and dirt protection - Adjustment of the chip removal at the bottom using a precision threaded spindle Dimension display via scale ring (resolution 0.1mm) - Sanding belt tension via pneumatic cylinders with constant clamping pressure - Sanding belt change with pneumatic belt relaxation in seconds - Adjustment of the sanding belt run when changing the belt - electro-pneumatic compressed air monitoring - Run-in protection via contact roller for workpieces that are too thick - Workpiece transport via calibrated non-slip and non-stick conveyor belts over heavy, 1000mm long cast tables with a finely planed surface and Spring-loaded pressure rollers with fine adjustment - Cardan shaft drive for smooth and even workpiece transport - Feed gear motor with three different feed speeds for quick adaptation to different types of wood - all motors electrically protected - Ergonomically arranged controls on the workpiece inlet side - automatic workpiece thickness scanning (no previous measurement necessary) - Digital thickness display (resolution 0.1mm) with modern magnetic tape system Technical data: Hfedpfxsvu Hdto Ahzji - Sanding belt speed: 22 m/s - Sanding belt length: 1800mm - Sanding belt width: 200mm - Working width: 190mm - Grinding thickness: 2-180mm - two brake motors for drive: 5.5 kW - Feed motor: 1.0 kW - Feed speed: 6, 11 and 16 m/min. - automatic height adjustment: 0.37 kW - two brush units with fiber brushes D 120 x 200mm at 0.37 kW - Suction nozzle: 2 x 120mm and 2 x 150mm - Pneumatic connection 6 bar - Working height: 850mm - Length: 2105mm - Length with control panel 2490mm - Width: 880mm - Height: 1910mm - Weight: approx. 1500 kg - Operating voltage: 400 volts, 50 Hz, 3P - CE version ----- ----- Basic price of the machine on request! ----- ----- Special accessories with surcharge: continuous feed 4-20 m/min. for speed adjustment to the previous machine Price on request Workpiece blow-off - using nozzles from above and below at the machine ...

Condition: new, Number of sanding units 1 st. sanding width 150 mm Sanding height max. 150 mm Loewer edge finishing machine MiniSpin N ----- Machines for finishing and fine sanding of Edges and profiles with a grinding spindle horizontal or vertical. Motor 0,75 KW Spindle in vertical position for machining edges Hsdpexmk Ayefx Ahzsfi Pivoted spindle in horizontal position, laterally etc. for processing longer profile bars or Conjunction with a combined grinding head for grinding of edges with a grinding disc blades Grinding head swiveling + / - 20 ° for editing oblique lines Working height / width 150 mm max. Diameter roller / brush

Year of construction: 2008, condition: good (used), functionality: fully functional, machine/vehicle number: 10999, DESCRIPTION Double-sided grinding machine / grinding machine top/bottom Manufacturer Löwer Type DSM 3000 Hfjdpfev Dfp Hex Ahzsi with workpiece return Bthgq0Ygu0 Working width: 290 mm Grinding thickness: 2-200 mm Shortest workpiece length: approx. 320 mm Equipped with: 1x grinding unit from above, 7.5 kW 1x brushing unit from above, 0.37 kW 1x grinding unit from below, 7.5 kW 1x brushing unit from below, 0.37 kW Grinding belt dimensions: 300 x 1800 mm Electric height adjustment, 0.37 kW Adjustable feed, 6/11/16 m/min. Compressed air: 6-8 bar Dimensions approx. 2700 x 1100 x 1900 mm Weight approx. 1600 kg

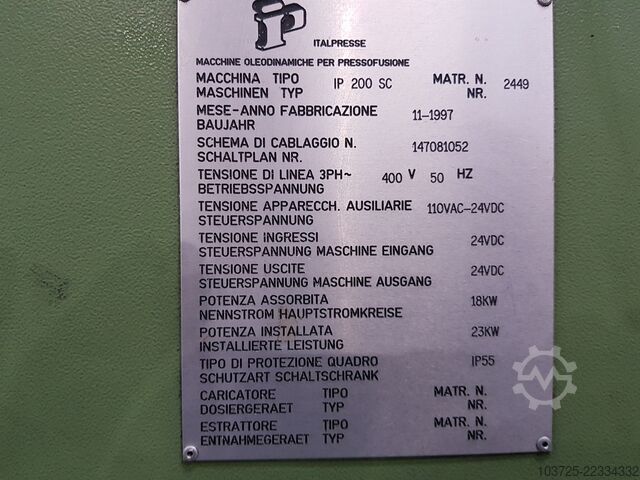

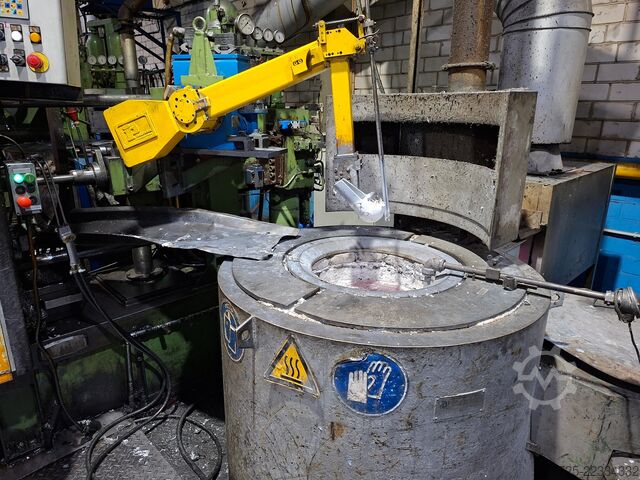

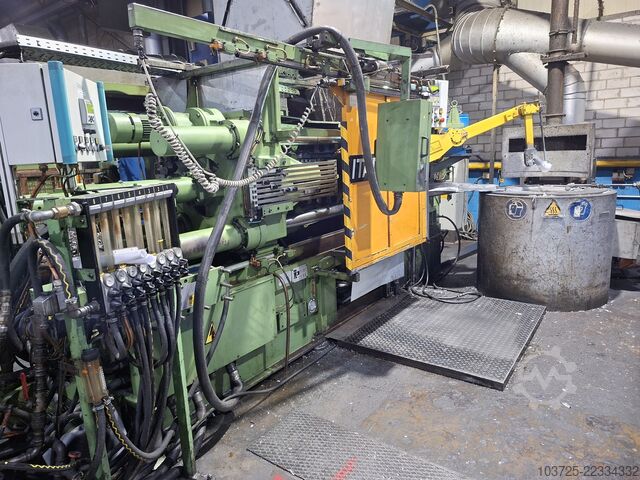

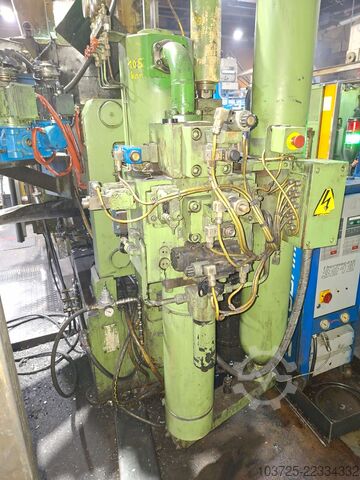

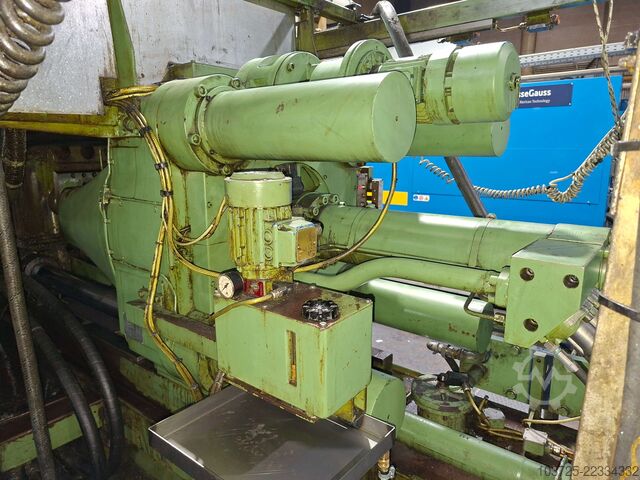

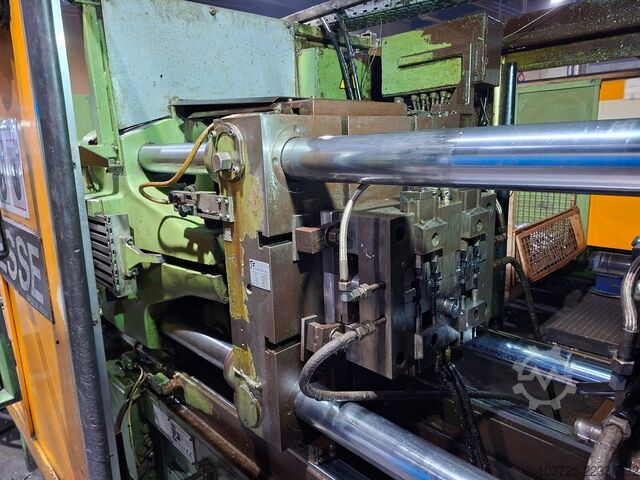

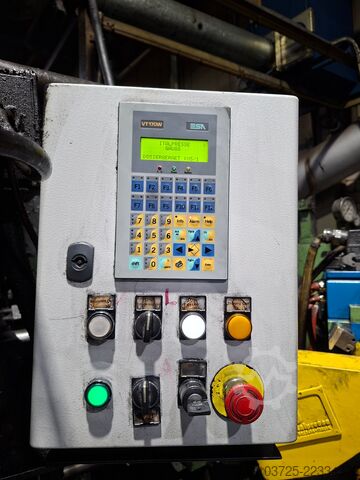

Condition: used, Year of construction: 1997, functionality: fully functional, clearance between the columns: 480 mm, total height: 2,040 mm, total width: 1,750 mm, stroke length: 460 mm, total length: 5,177 mm, column diameter: 90 mm, type of input current: three-phase, input voltage: 400 V, overall weight: 9,500 kg, clamping force: 2,000 kN, power: 18 kW (24.47 HP), input frequency: 50 Hz, Equipment: documentation/manual, We are offering this used Italpresse IP 200 SC die-casting machine, manufactured in 1997. Type: IP 200 SC Manufacturing number: 2449 Year of manufacture: 11.1997 Wiring diagram no.: 147081052 Operating voltage: 400 V Mains frequency: 50 Hz Auxiliary power supply: 110VAC–24VDC Control voltage inputs: 24 VDC Control voltage outputs: 24 VDC Power consumption: 18 kW Installed power: 23 kW Enclosure protection class: IP55 Hydraulic pump: Vickers 4525V42A17 – 86DD 22R Pressure accumulator TÜV certificate: Last inspection in 2018, next inspection due on 01.08.2028. In recent years, extensive investments have been made in the technology to ensure reliability: Hfedpfx Ahjzlw N Rjzei 2024: Installation of a new column including nut. 2023: Replacement of various wear parts (column wiper, slide rails/slide shoes including wiper) as well as complete seal kits for the closing cylinder and multiplier. 2021: Installation of new pump inserts for high and low pressure. The machine will be sold including a Gauss VS1 dosing unit with a separate, compact control panel and a gas-operated melting furnace with a 200-liter crucible and a Hindenlang gas burner (type HO-3). Original manual and complete electrical and pneumatic diagrams are available. The machine is currently still in active production. Since it is in operation, the operating hours cannot be read exactly, but an inspection under power is possible at any time by arrangement. The machine will be disconnected at the end of September / beginning of October. If you have any questions or require further information, please send us a message or call us.

Condition: used, Used strip layout die set from LVD Upper blade: P10.12 W20 Lower die: T12 20 V12 opening (for approx. 1.5 mm) Hfsdpfxszk Hr Ss Ahzoi 6 x 508 mm = 3048 mm

Year of construction: 2016, condition: excellent (used), functionality: fully functional, machine/vehicle number: 116245, GM DC330 Digital die cutting machine/ converter Compact footprint Unwind Web guide Web width 330 In / Outfeed nip for tension control Magnetic die station 200z / 25inch to support die plates of 50mm to 520mm Hsdpfoylpvdsx Ahzsfi Distortion/ Dispro factor to handle other tooth size plates Re Reg mark reader to support the printed web Die-cut offset possible inline Lateral/ Cross movement possible Waste rewinder Slitting station with manual 7 air pressured V-knives Upper and Lower rewind with options of clock or anti clockwise rotation Label or meter counting Core mandrels/spindles of 25mm, 38mm, 44mm and 76mm x 2 Cold foil Self adhesive lamination Laminator unwind and rewind Silencer to reduce noise when using the lamination Full Flexo station Varnish tray, Picking roller, Anilox roller, Print roller included GEW UV lamp Min 6 bar air pressure required Machine Weight 1200Kg !! Available for immediate sale !!

Year of construction: 1984, condition: excellent (used), functionality: fully functional, Iijima EFC-1600 automatic die-cutting machine with stripping section and front-edge trimming device for bundles, discharge onto conveyor belt. Installed in our workshop and powered on; can be tested. Overall condition is very good. From the second owner, who purchased the machine from DGT in 2001 and used it occasionally for major orders over more than 20 years. The company also had 4 large die-cutters and a Bobst 102. Maximum format 1200 x 1600 mm Corrugated cardboard thickness 2–11 mm Hodjv Nzpgspfx Ahzjfi Maximum solid board thickness 3 mm Normal maximum die-cutting pressure 350 tons Die knife height 30.00 mm Machine's own weight 32,000 kg; this is 12,000 kg heavier than the Bobst 1575 EEG, of which this is the significantly reinforced "copy." The machine is too wide for container loading unless dismantled; however, it can be transported on a flatrack or in a conventional closed truck of standard width (< 250 cm wide).

Condition: good (used), Details - Agie Mondo 50 Specifications X-axis (longitudinal) 497.8 mm Y-axis (transversal) 348 mm Z-axis (vertical) 348 mm Tank length 1018.5 mm Tank width 678.2 mm Tank height 398.8 mm Type CNC type AGIE FUTURA IV Table length 749.3 mm Table width 548.6 mm Maximum workpiece length 858.5 mm Maximum workpiece width 647.7 mm Maximum workpiece height 315 mm Maximum workpiece weight 499.1 kg Maximum generator current 64 A ----- Dimensions (L x W x H) 1549.4 × 1955.8 × 2336.8 Hfjdpfxszkcf Is Ahzji Weight 2131.1 kg *Factory-installed options - Plate 2* Option Ref. No. Purpose CAPACITANCE OPTION U05.629.7 Finer spark gap detection. Better surface finish. I/O MODULE ASSY. U05.759.2 Input/output module for automation. HEAT EXCHANGER U06.126.3 Water/oil heat exchanger to stabilize the dielectric fluid. Important. FILTER/REG/LUB U05.316.1 Air FRL unit for the cabinet. Standard. C-AXIS U06.831.8 4th rotary axis installed. Allows for indexing. TOOLCHANGER ASSY. U06.154.3 Automatic electrode changer. Major option, rare. PROGRAMMABLE FL. U06.756.7 Programmable flushing system. For deep machining.

Condition: good (used), Crane bottle, crane hook, load hook, single hook, lower bottle, lifting bottle -Manufacturer: Demag, crane hook lower block -Load capacity: 500 kg -Hook opening: 32 mm -Dimensions: see photos Hedpfezk D Uqjx Ahzjfi -Dimensions: 240/90/60 mm -Weight: 1.7 kg

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 642544, travel distance X-axis: 350 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, total height: 2,600 mm, total width: 2,500 mm, total length: 4,000 mm, table width: 400 mm, table length: 450 mm, input voltage: 400 V, overall weight: 5,000 kg, input frequency: 50 Hz, controller manufacturer: CHARMILLES, controller model: SOLUTION, CHARMILLES ROBOFORM 350 SL Wire EDM machine - Rated current: 10.6 A - Table with three grooves The machine is equipped with an EROWA clamping system, as well as an EROWA Robot Compact automatic tool and electrode changing system, with a 44-position electrode changer. In addition, there are two workbenches with matching accessories such as clamping devices, a mounting plate, and various EROWA clamping systems and electrodes. Hodpszldycofx Ahzsfi Note: The item must be collected between September 8th and September 10th, 2026, on a date to be confirmed. FCA D-63128 Dietzenbach - loaded onto a truck.

Condition: used, Year of construction: 2020, operating hours: 4,800 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,400 mm, total width: 2,100 mm, total length: 3,425 mm, table width: 850 mm, quill stroke: 710 mm, type of input current: three-phase, distance table to quill: 250 mm, table length: 1,150 mm, warranty duration: 6 months, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2026, table load: 3,000 kg, input frequency: 50 Hz, rapid traverse X-axis: 5 m/min, rapid traverse Y-axis: 5 m/min, rapid traverse Z-axis: 15 m/min, Equipment: documentation/manual, EDM314MF30 + AWEX50/5 MF30 control panel Year of manufacture: 2020 Operating hours: 4800 h Overhauled Travel ranges XxYxZ: 905/1020 x 705 x 455 mm Work table: 1150 x 850 mm (steel table with T-slots) Work tank: 1200 x 900 mm Filling level of work tank: 500 mm Electrode weight, max.: 50/500 kg Workpiece weight: 3000 kg Machine weight: 7500 kg Machine dimensions (W x D x H): 2100 x 3425 x 3450 mm Equipment: Color: Light/Teal gray Tool changer: 30-position, in-machine Automation: AWEX50/5 50 electrode positions 5 pallets UPC 320x320 Cartridge filter system Quick-change chuck EROWA/3R-Macro C-axis: 100 rpm, direct measurement 0.0001 degrees Holding brake in C-axis Hodpfxsyt Ewge Ahzofi CO2 extinguishing system K&B Fire protection flap Smoke extraction with activated carbon filter Cooling unit integrated in the machine Manual control panel Automatic tank refill Erosion generator: 60 A Option with booster stage for 120 A erosion power Transportation On-site commissioning Training

Condition: used, functionality: fully functional, Year of construction: 2016, load capacity: 3,000 kg, Four-way side loader Hfsdpfx Ahju Acuzezei Condition: Ready for use and fully functional Technical condition: good Description: Little-used spreader for Combilift CB2500 and CB3000, two units available – one for the 135 cm and one for the 175 cm fork carrier.

Condition: new, functionality: fully functional, - Single screw extruder - 25/25 LD screw - Motor: 2.2 kW - Wide slot die adapted 1.0 x 120 mm - With cooling rollers (200 mm wide) Hfsdpfxorg Ebco Ahzoi - Winder / haul-off - Control system

Condition: new, Year of construction: 2026, functionality: fully functional, AM-20 Laboratory/Pilot Extruder with Wide-Slot/Film Die and Calender Unit Compact, vertical laboratory and pilot extruder AM-20 suitable for processing various plastics such as PP, PE, PS, ABS, PVC and other plastic granulates. The machine is equipped with a wide-slot die/film die, making it ideal for film extrusion, material testing, color and mixing trials, as well as development applications in laboratory and pilot plant environments. Hedeyyw T Uepfx Ahzsfi Additionally, calendering equipment is included, as shown in the photos. Technical data: • Model: AM-20 • Voltage: 110 V / 220 V • Input voltage: 2 x 220 V • Power: 1000 W • Screw diameter: 20 mm • L/D ratio: 15:1 • Throughput: approx. 500–1000 g/h • Dimensions: 45 x 25 x 60 cm Suitable for: • Film extrusion • Laboratory and pilot-scale trials • Material development • Color and mixing tests

Condition: excellent (used), Year of construction: 1997, operating hours: 16,100 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 500 mm, workpiece weight (max.): 800 kg, total height: 3,000 mm, total width: 1,700 mm, total length: 2,840 mm, table width: 600 mm, quill travel distance: 500 mm, type of input current: three-phase, table length: 800 mm, feed length X-axis: 500 mm, feed length Y-axis: 350 mm, overall weight: 3,500 kg, tank capacity: 550 l, Equipment: documentation/manual, Agie Compact 3 CNC EDM machine for sale. 1997 machine Hfedpfx Ahozhwy Uszei Fitted with System 3R Macro chuck on C axis. 10 station tool changer 16100 machining hours Macro - mini chuck shown in picture not included in sale

Condition: used, Year of construction: 1989, We offer this used Gietz FSA 790 hot stamping, embossing, die-cutting machine, year of construction 1989. Hfsdpey Iy Uqjfx Ahzoi Manufacturer: Gietz Model: FSA 790 Year of construction: 1989 If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: ready for operation (used), One Gietz platen die-cutting and embossing press and one Polygraph free-arm wire stitching machine are offered. 1) One Gietz Presto platen printing, die-cutting and embossing machine, max. paper size X/Y: approx. 320mm/480mm, frame size X/Y: approx. 320mm/460mm, working area X/Y: approx. 350mm/480mm, max. paper size without additional equipment: approx. 330mm/470mm, capacity: approx. 2500strokes/h, flywheel revolutions per stroke: 8, flywheel diameter: approx. 725mm, flywheel width: approx. 50mm, working height: approx. 900mm, weight: approx. 1100kg. Inspection possible by prior arrangement. 2) Polygraph 781/1L50 RF free-arm wire stitching machine, year of manufacture: 1960, number of stitching heads: 1, max. stitching thickness: approx. 8mm, stitching arm length: approx. 500mm, front stitching arm width: approx. 10mm, inside staple crown length: approx. 12mm, max. stitching capacity: approx. 250stitches/min. Inspection possible by prior arrangement. Hodpezk Nb Ajfx Ahzefi

Condition: excellent (used), Year of construction: 2011, operating hours: 26,882 h, functionality: fully functional, travel distance X-axis: 310 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 270 mm, Exeron S 310 MF Year of manufacture: 2011 Generator hours: 26882 Control system: Exowin 20 X, Y, Z travel: 310 x 270 x 270 mm C-axis Hodpfozguk Uex Ahzofi 3R tool holder in the spindle Erowa chuck on the machine table with magnetic plate Generator: 64 A C-box for carbide and PKD tools 20-position tool changer Fire extinguishing system Chiller Aluminum clamping plate, Erowa Documentation Machine is connected and available for inspection.

Condition: excellent (used), Year of construction: 2011, operating hours: 1,703 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 2,000 kg, tank capacity: 800 l, OPS INGERSOLL Gantry Eagle 800 year of manufacture: 2011 travel: x, y, z 550 x 850 x 450 mm control: Eagle Power Tec electrode changer: 20 pieces 3D probe 3D probe on the table magnet: 400 x 200 mm C-axis EROWA clamping system fire extinguishing system Hjdpfxezgt Rmj Ahzsfi remote control chiller includes approximately 600/700 liters of dielectric fluid includes drawer cabinet with contents documentation machine is powered on for inspection

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Mitsubishi EA8 CNC die-sinking EDM machine Year of manufacture: 2010 C-axis 4-position tool changer X, Y, Z: 300 x 250 x 250 mm Generator: 60 A Max. workpiece weight: 550 kg Max. electrode weight: 25 kg Chiller Hirschmann electrode holder in the spindle 24 x electrode holders 1 x Hirschmann electrode holder for milling Hfedpfx Aeyh E N Ajhzoi Fire extinguishing system Magnet on the table Documentation and diskettes Machine is connected and ready for inspection

Condition: excellent (used), Year of construction: 2001, operating hours: 27,265 h, functionality: fully functional, Charmilles Roboform 35 with QCRI robot Year of manufacture: 2001 Operating hours: 27,265 X, Y, Z travel: 355 x 255 x 305 mm C-axis with Erowa chuck Erowa chuck on the table Erowa probe Magnet 3 x aluminium Erowa pallets 320 x 320 mm 35 x electrode holders 50 x 50 mm QCRI robot 4 x pallet positions on the table Hfedpfx Aoyh E A Njhzoi 54 x electrode holder locations Documentation and diskettes Machine powered up for inspection

Condition: like new (used), Year of construction: 2017, operating hours: 9,830 h, The machine is like new. Hedpfx Ahjziyv Uszjfi

Condition: used, Year of construction: 1966, machine/vehicle number: 155017, Buchdrucktiegel - Stanztiegel / Letter Press Tiegel - DIE Cutter Heidelberg OHTYear 1966 - Serial-No. 155017 N Size min.: 40 x 70mm - max. 260 x 380mm Speed min.: 2.200 sph - max. 5.500 sph Standard chase: 260 x 340mm Hjdpfsh Axiqjx Ahzefi Skeleton chase: 260 x 350mmKomplett mit Zubehör und Schließrahmen / Complete with tools and accessories include frame Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Year of construction: 1963, machine/vehicle number: 142, Letter Press Tiegel - DIE CutterSize min.: 40 x 70mm - max. 260 x 380mm Speed min.: 2.200 sph - max. 5.500 sph Standard chase: 260 x 340mm Skeleton chase: 260 x 350mmComplete with tools and accessories include frame Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Hfedsmi U Nmopfx Ahzji Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Year of construction: 1960, machine/vehicle number: 16945, Buchdruckzylinder / Letter Press Cylinder DIE Cutter Heidelberg SBGYear 1960 - Serial-No. 16945 Hfodpfx Ahorttuhezoi Size min.: 210 x 280mm Size max.: 560 x 7700mm Speed min. max. 4.000 sph Punching pressure: 60T Weight approx. 5.0800kg3Komplett mit Zubehör und Schließrahmen / Complete with tools and accessories include frame Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test
